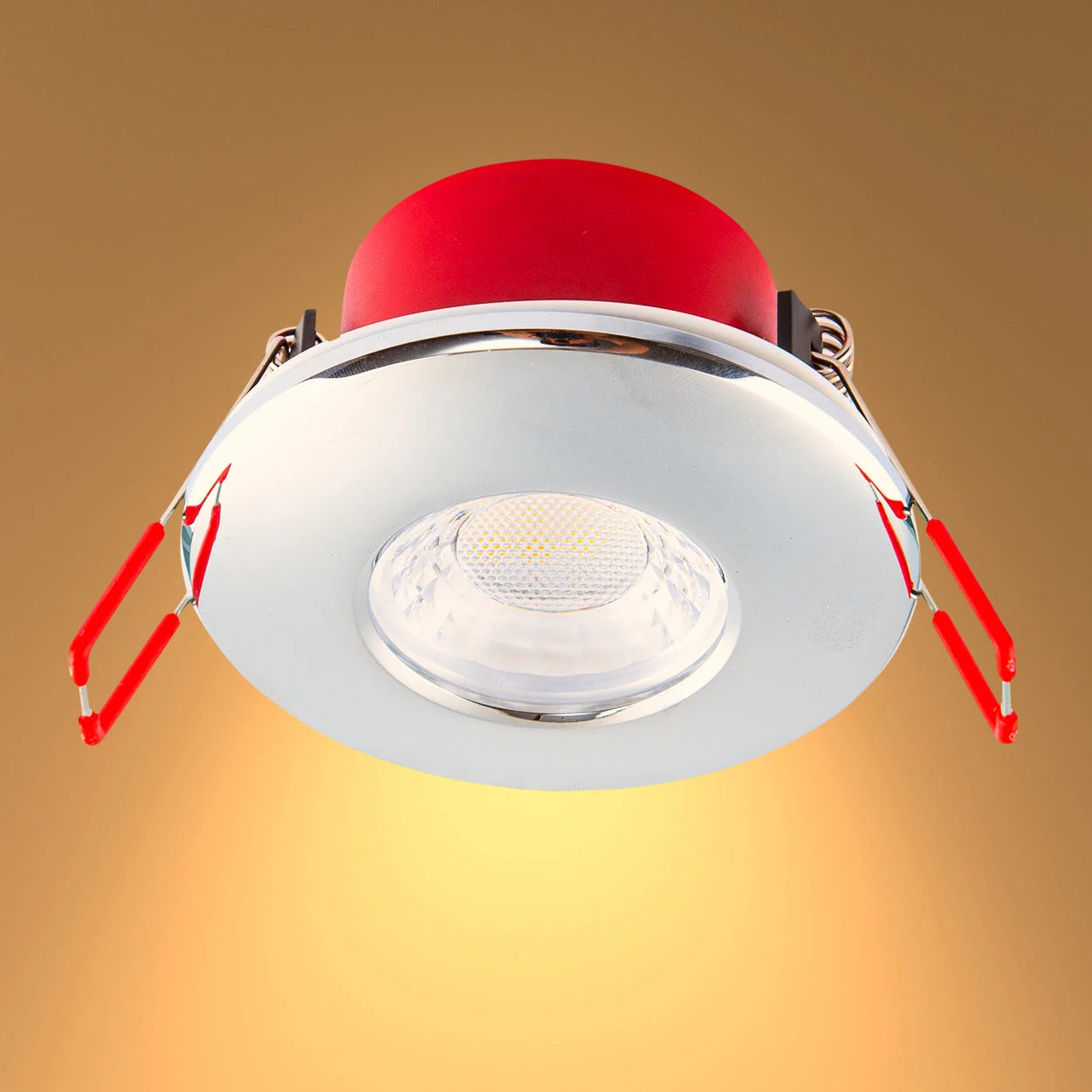

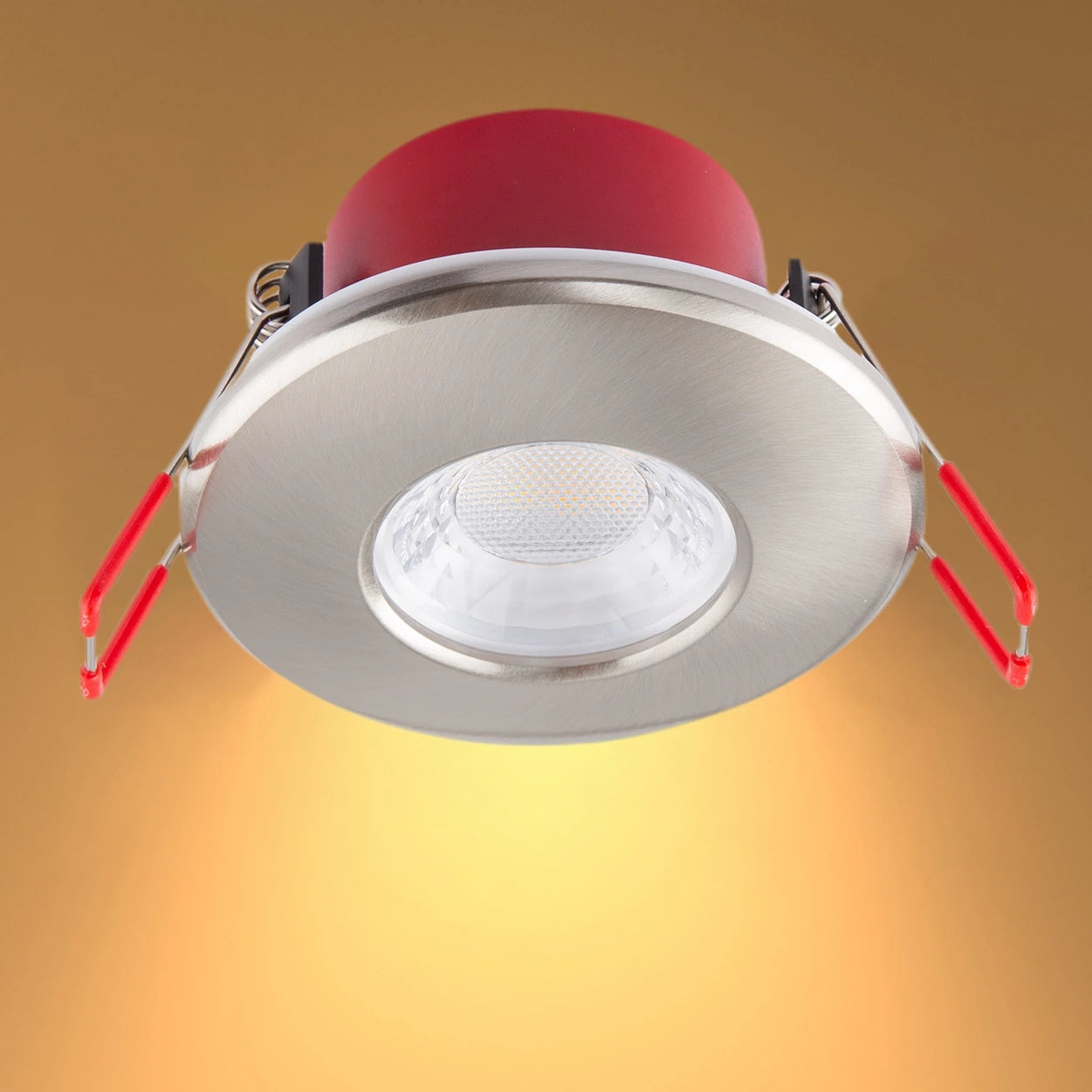

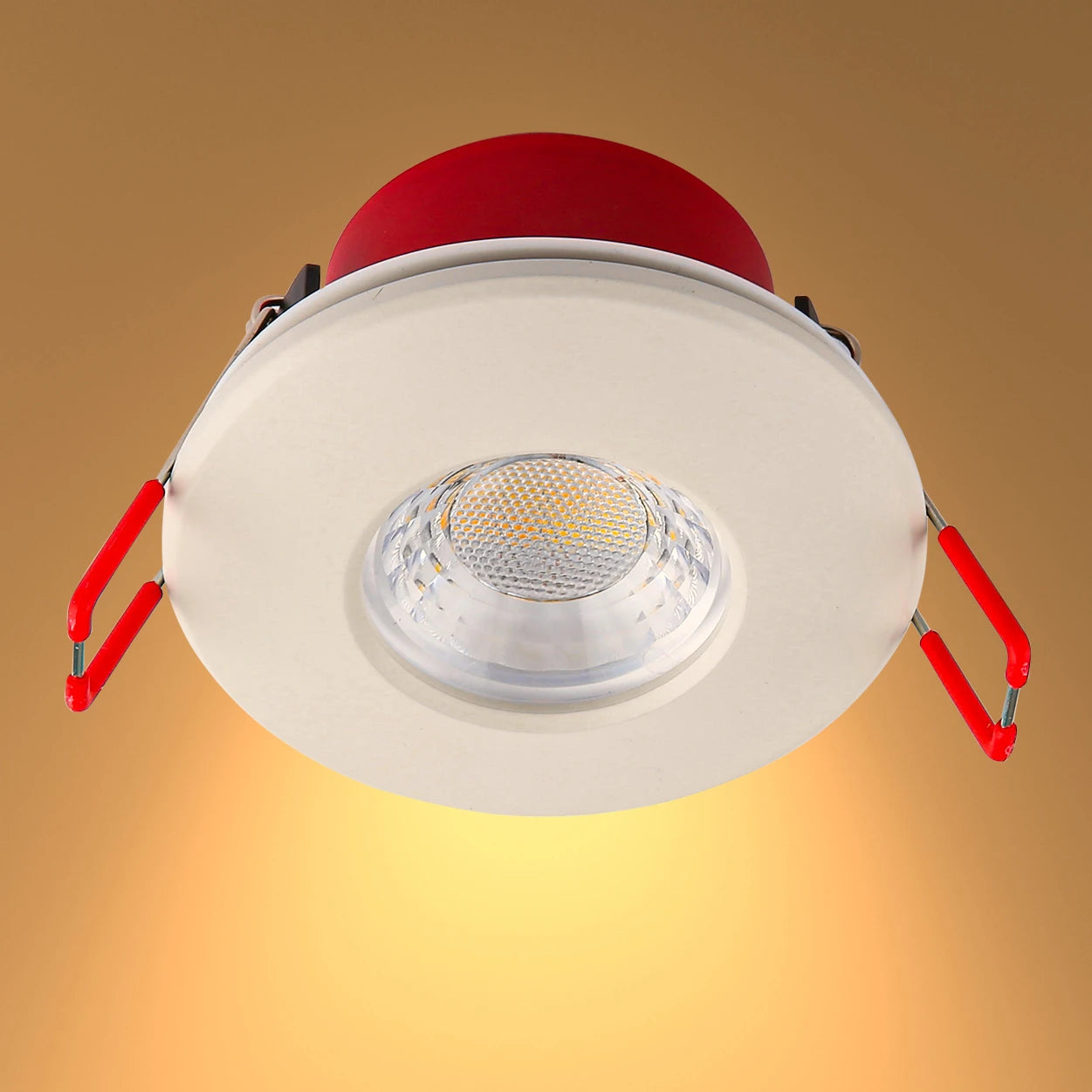

Fire Rated Waterproof IP65 Dimmable CCT Change 500 Lm Fixed Downlight Warm or Cool White - White.
Colour:White
Quantity:

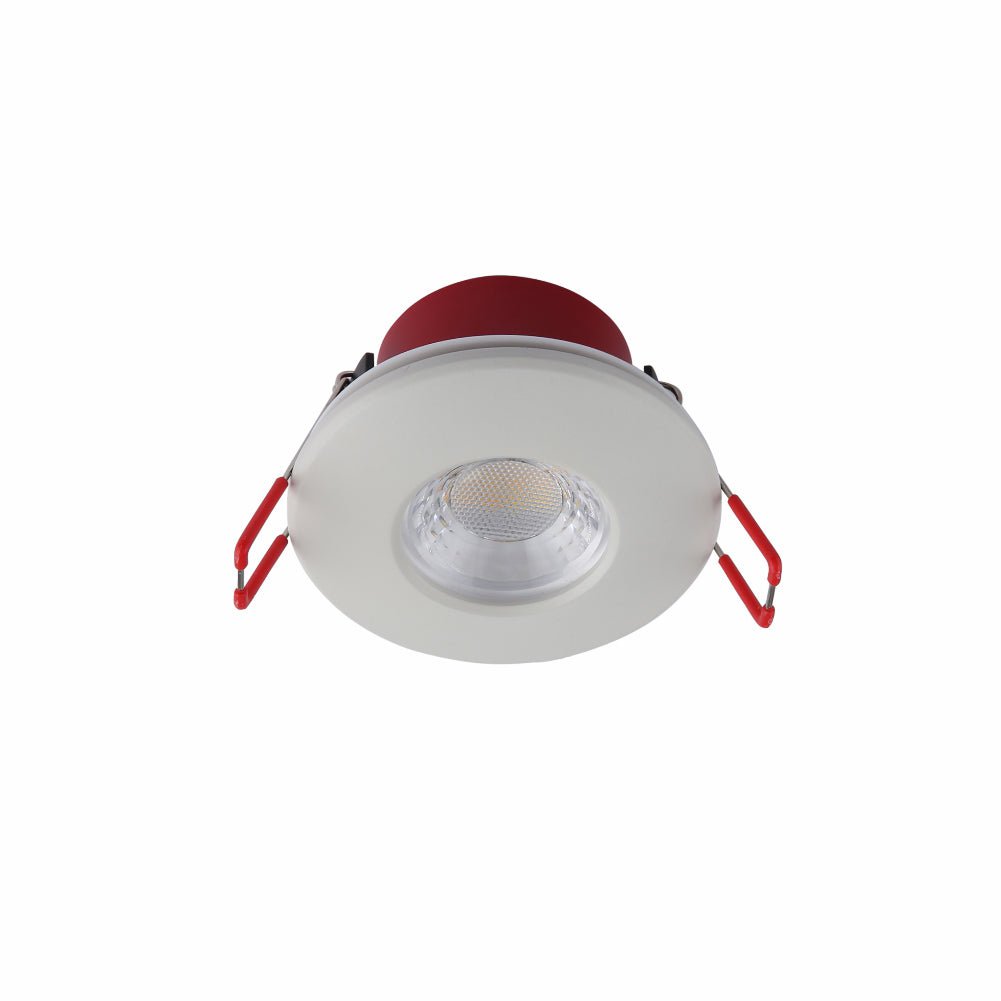

Fire Rated Waterproof IP65 Dimmable CCT Change 500 Lm Downlight Warm or Cool White

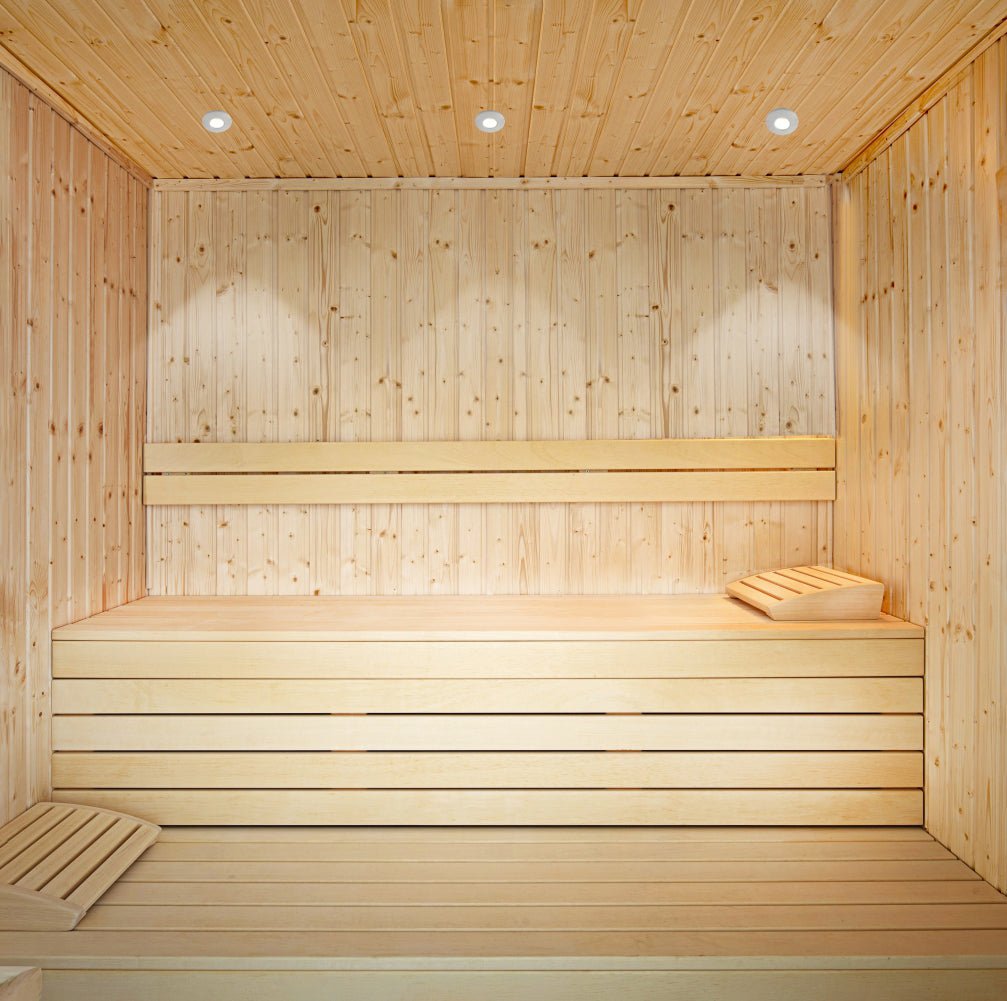

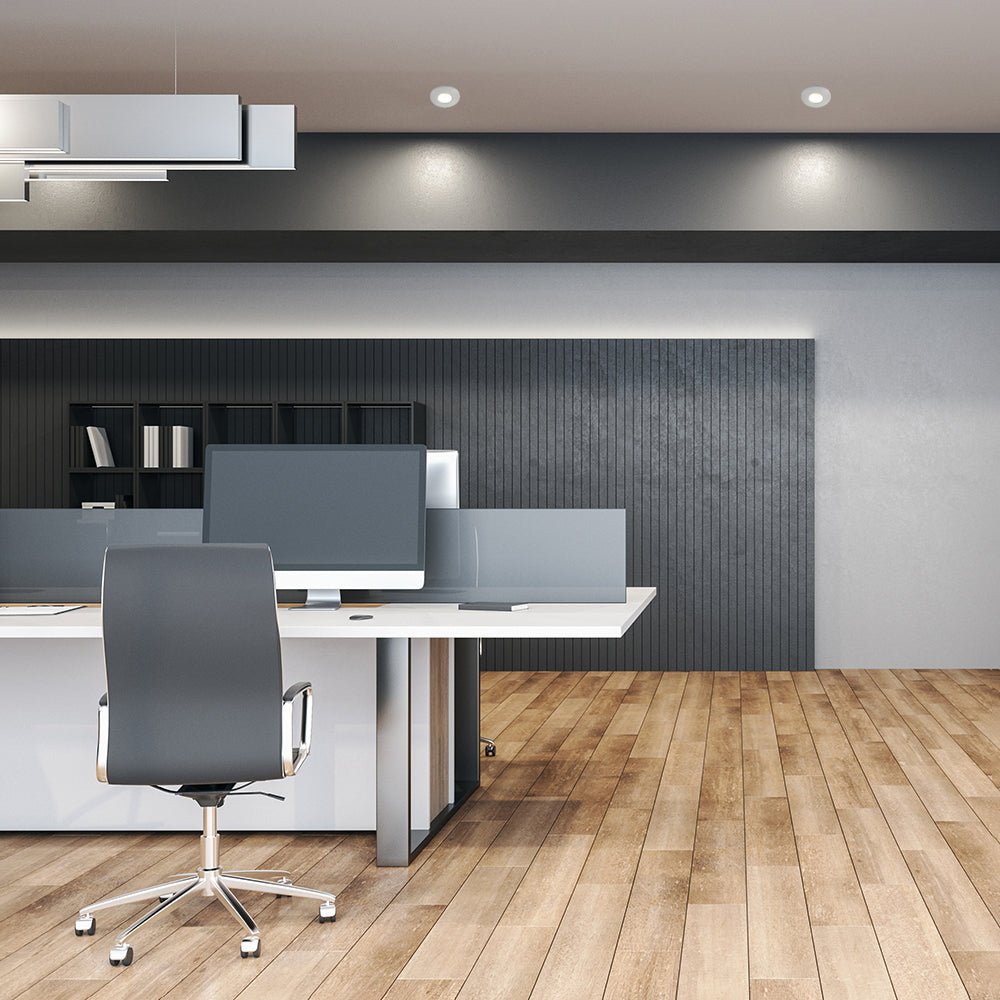

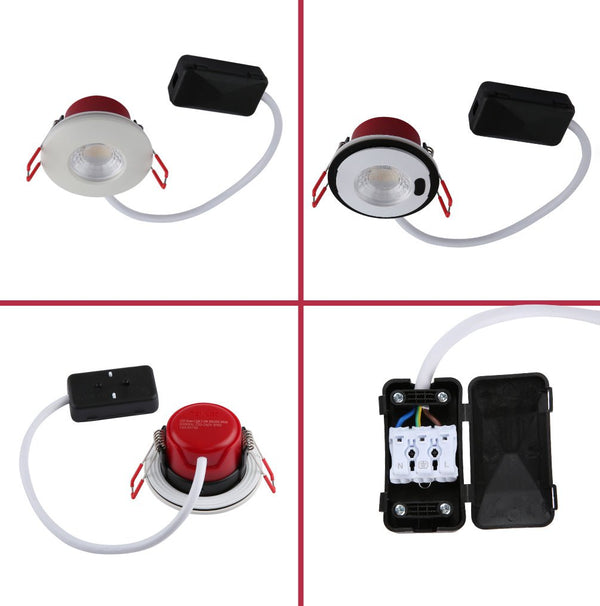

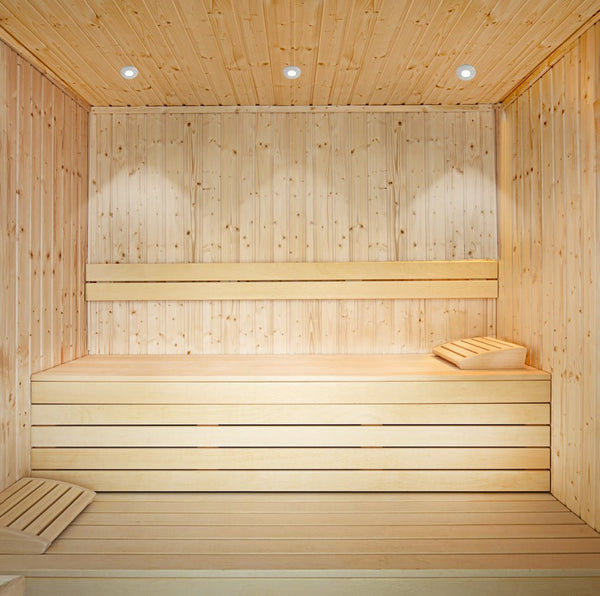

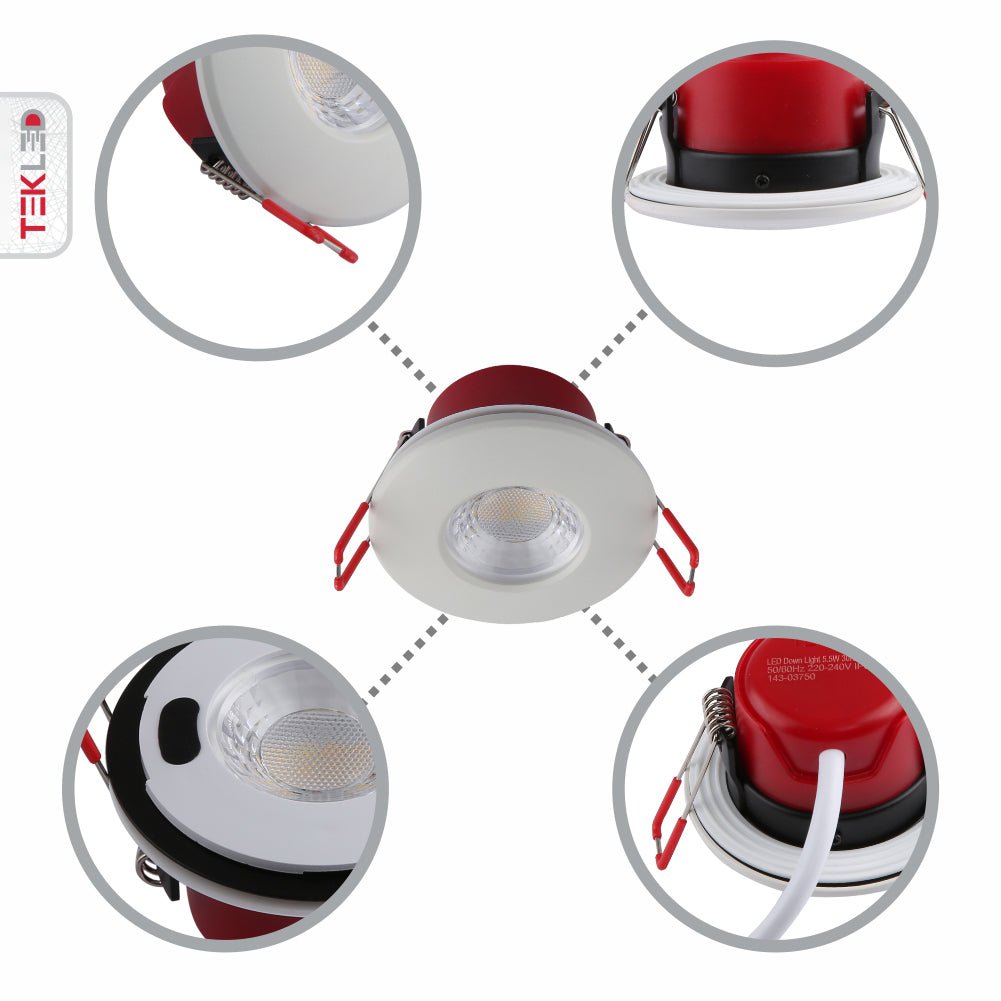

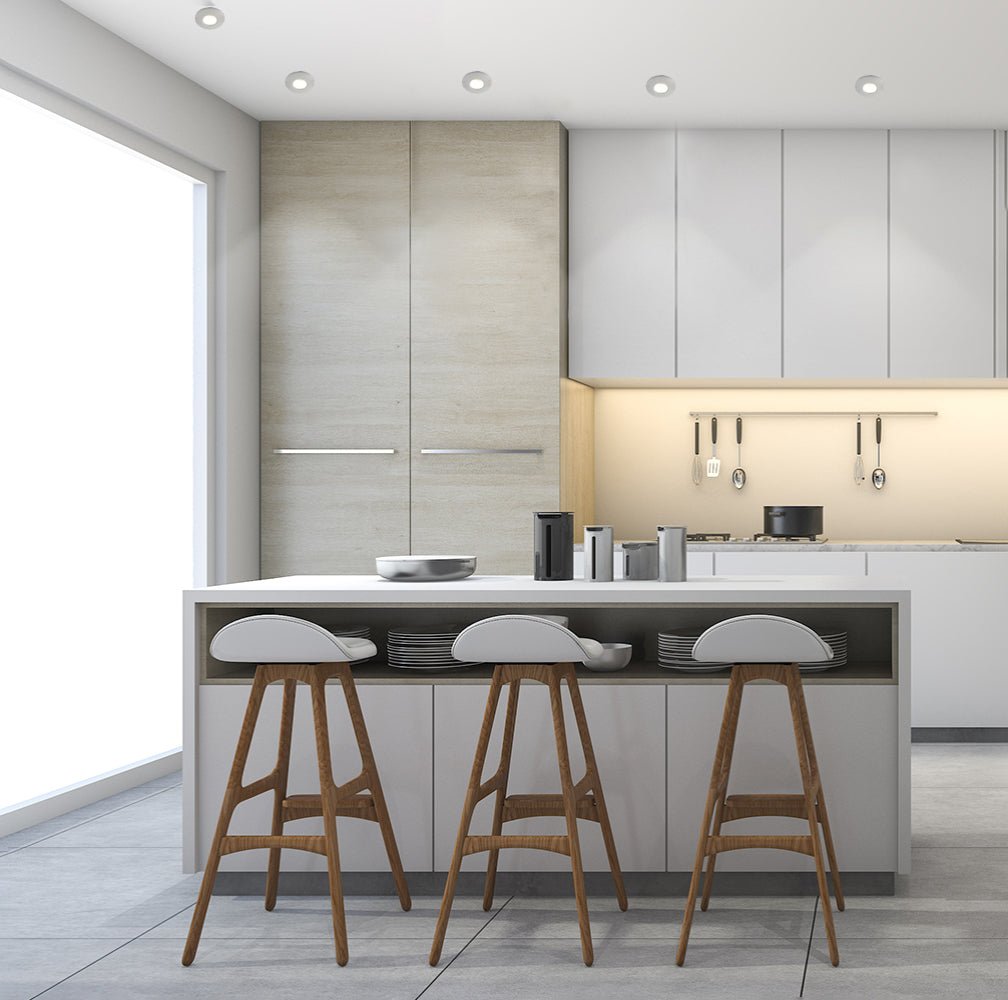

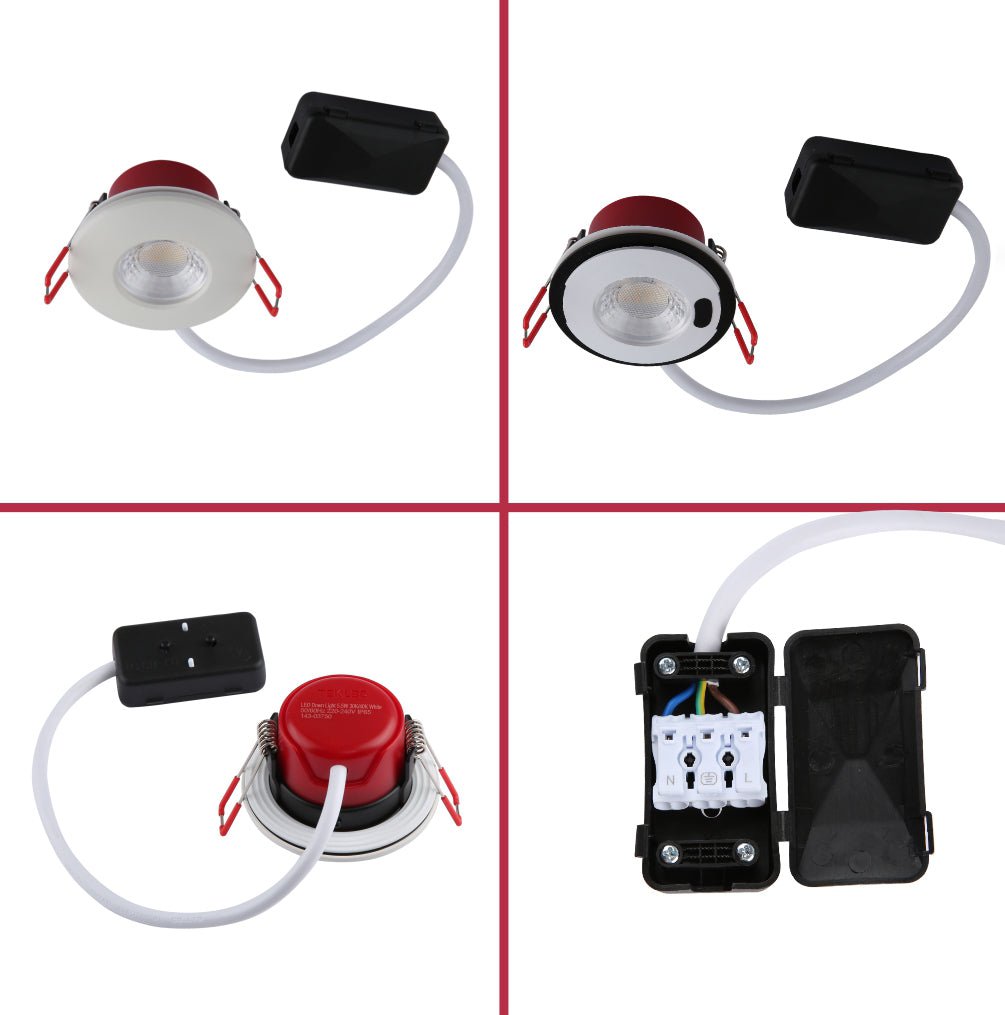

Fire Rated Waterproof IP65 Dimmable CCT Change 500Lm downlights from TEKLED comes with wide commercial applications and is suited for wide spaces, living rooms, offices, etc. It is dimmable with triac dimmers such as trailing edge and leading edge dimmer switches and you can choose either 3000K or 4000K. This fixture has an IP rating of 65 and fire rated for 30-60-90min fire tests. Its excellent energy rating ensures that you save energy and money despite longer periods of use. This fixture gives off a safe, non-flickering light and can be used with dimmer switches to adjust your lighting needs and needs to be mounted into the ceiling surface by an expert.A versatile solution for your lighting needs. No transformer required; downlights can be wired straight to the mains. They feature a metal spring clip which allows for easy installing. It suitable for kitchens, bathrooms, shower rooms, leisure facilities, homes, offices, etc. This recessed mount downlight is sturdy and easy to install. Available in White, Brushed steel and polished chrome colour variants.
Technical Specifications
| Name | Fire Rated Waterproof IP65 Dimmable CCT Change 500 Lm Downlight White |
| Product Code | 143-03750 | 143-03752 | 143-03754 |
| Power | 5.5 W |
| Power Source | Hardwired |
| Voltage | 220/240Vac 50/60Hz |
| Input Current | 0.03A @240Vac |
| Lamp Holder Type | Integrated LED |
| Protection Class | Class II |
| Dimmability | Dimmable |
| Light Source | LED SMD 2835 |
| Led Quantity | 2P8S |
| Bulbs | Built-in LED fixture with built-in LED driver |
| Light Output(luminous flux) | 550 lm |
| Luminous Efficacy | 95 lm/W |
| Lux | 120Lux @2m |
| CRI(Colour Rendering Index) | CRI>80 |
| CCT (Kelvin)(Light Colour) | 3000K Warm White or 4000K Cool White |
| IP Class(Ingress Protection) | Frontside IP65 |
| Mount Type | Recessed Mount |
| Function Mode | Switch for Choosing CCT |

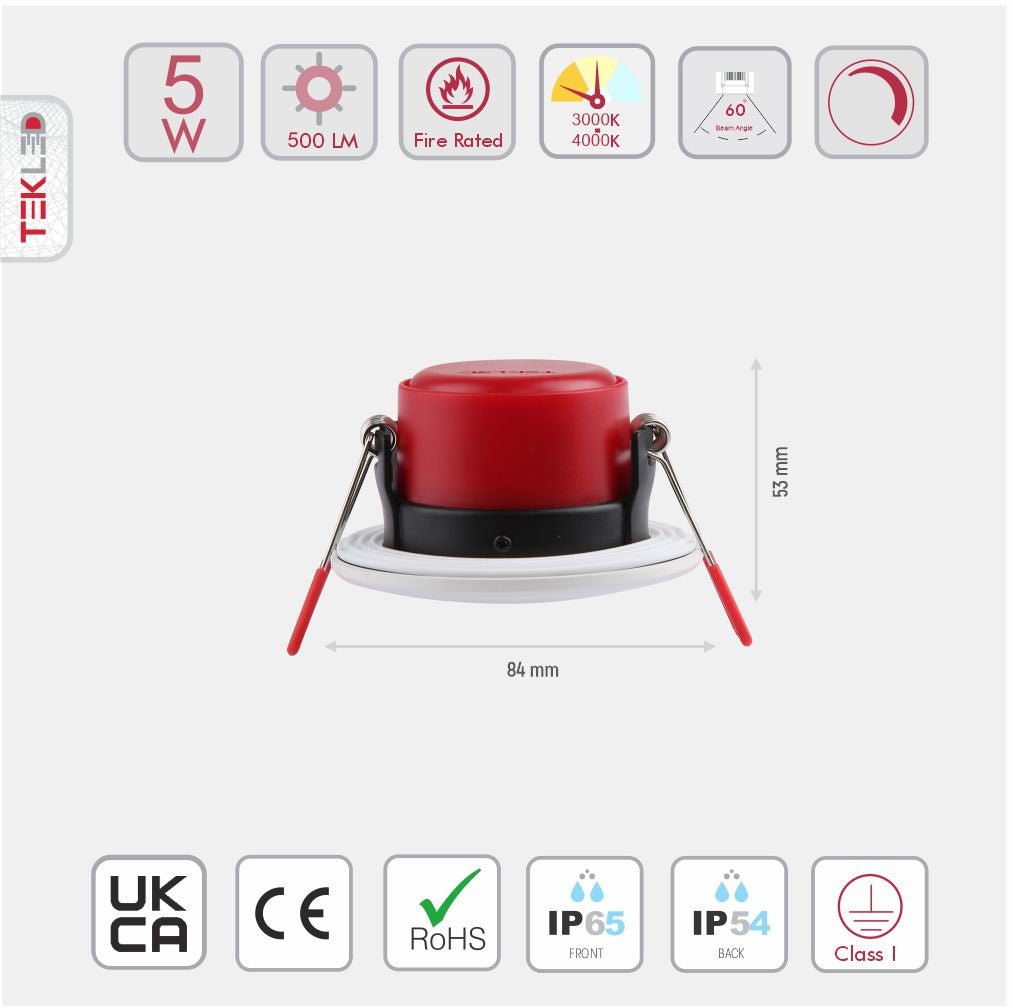

| Product Dimensions (L x W x H) (D x H) | D84x49mm |
| Cut-Out Size | D68mm |
| Power Cord Length | 28cm |
| Made of Materials | Polycarbonate |

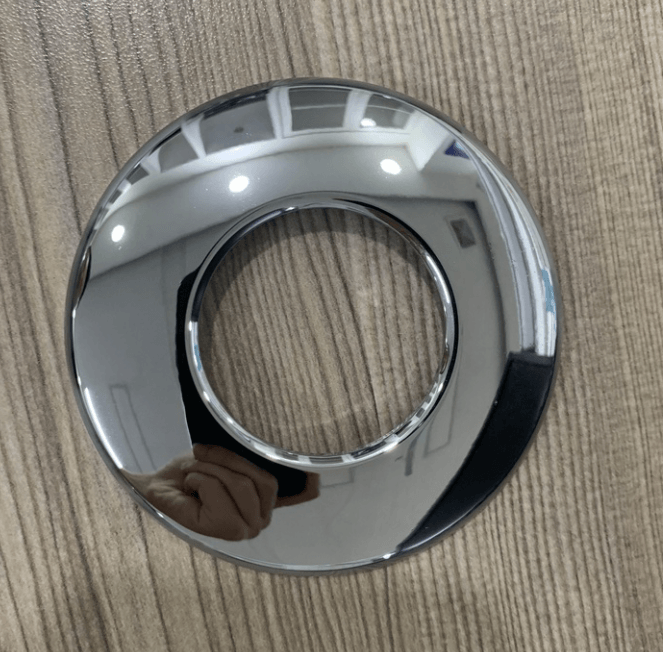

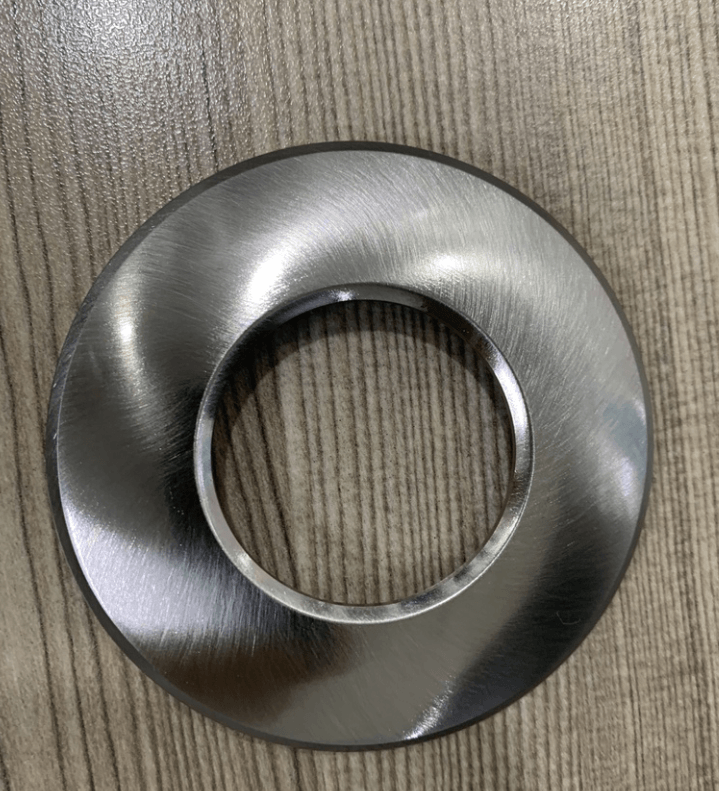

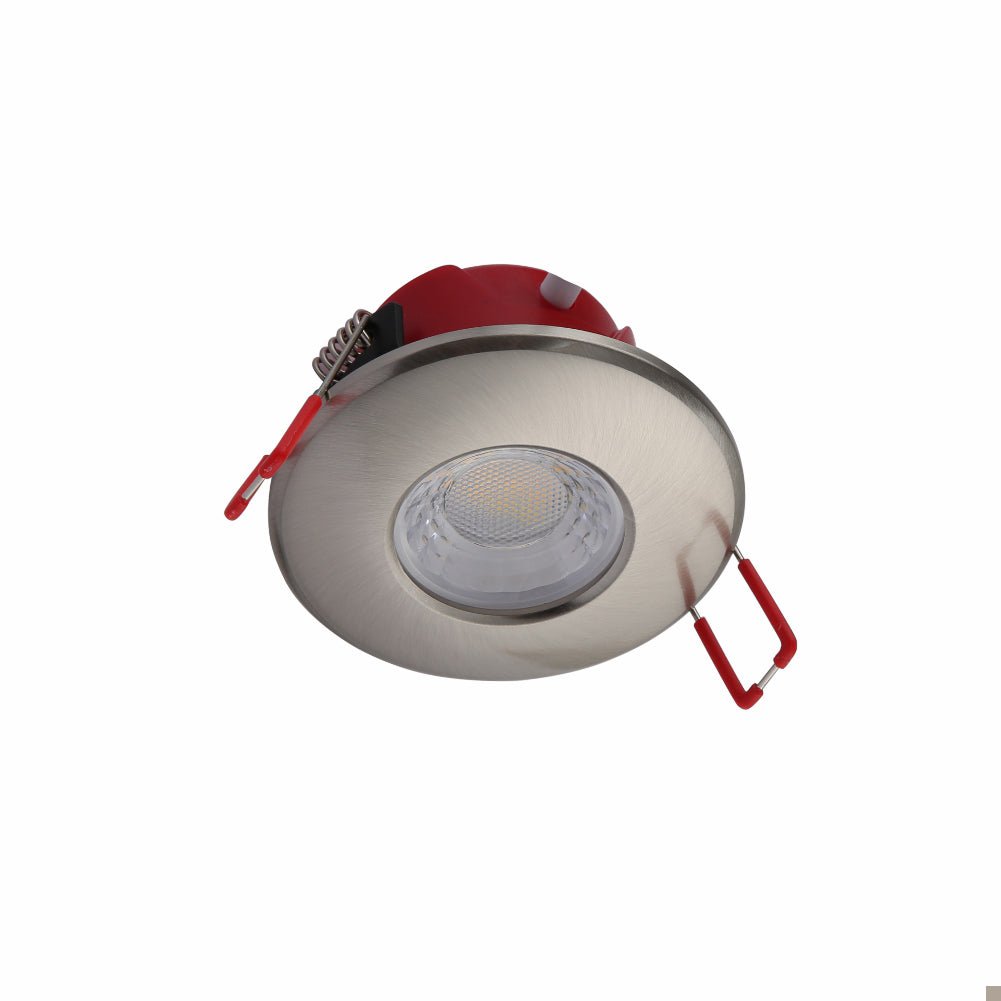

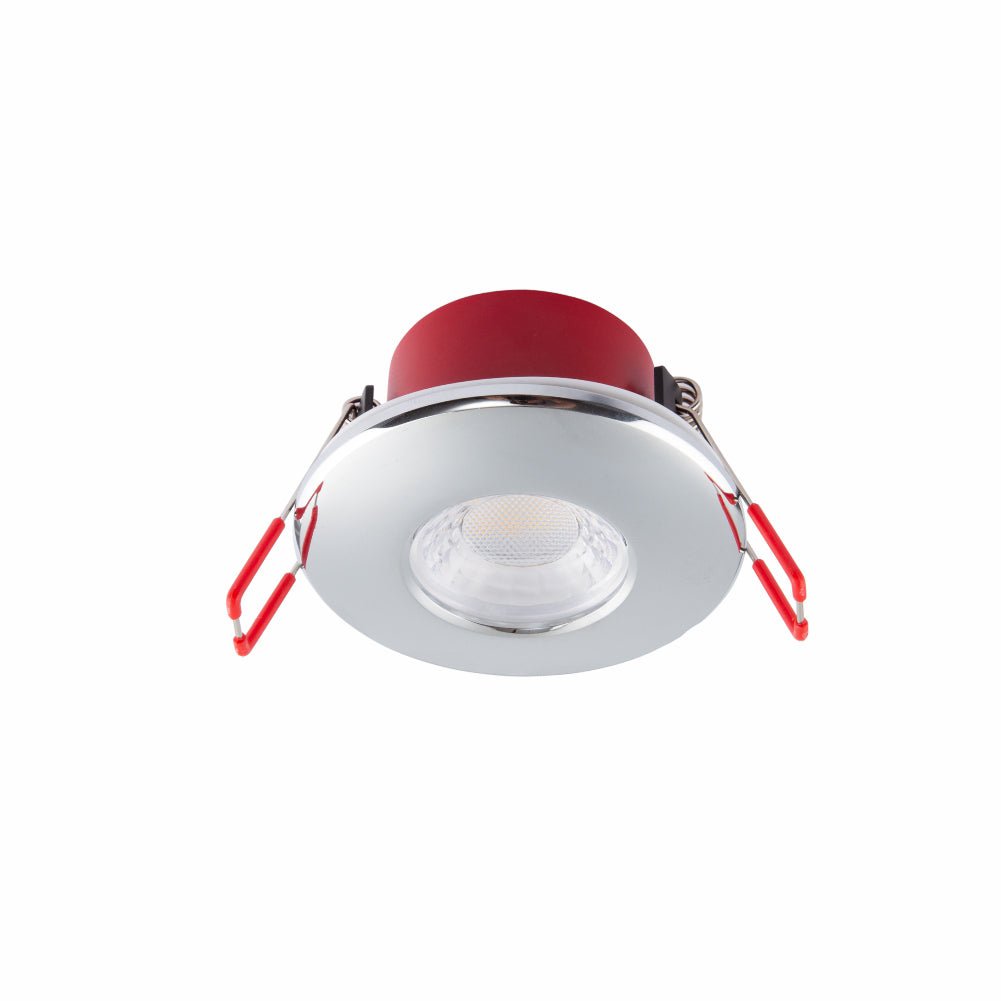

| Product Colour | White, Polished Chrome, Brushed Steel |
| Diffuser Material | Polycarbonate |
| Diffuser Type | Clear |
| Driver Brand | Tospo |
| Driver Type | Constant Current |
| Driver Power | 5.5W |
| Driver Input Voltage | 220~240Vac 50/60Hz |
| Driver Input Current | max 0.03A @240Vac |
| Driver Output Voltage | 63-77Vdc |
| Driver Output Current | Max 75mA |
| Surge Protection Level | 0.5kV |
| Power Factor | pf>0.8 |
| Flickering | Non-Flickering |
| Control | On/Off, triac dimmable |
| Operating Temperature (C) | -20/+55C |
| New Energy Rating | F |
| Energy Rating | A+ |
| Warranty | 3 year |
| Life Span | 30000 h |
| Gross Weight | 195 g |
| Net Weight | 170g |
| Box Dimensions (LxWxH) | 10.3x9.8x8.3cm |
| Box Content | 1Light fixture, User manual, 1fittings, 1 white bezel |
| Certifications | UKCA, CE, RoHS |
