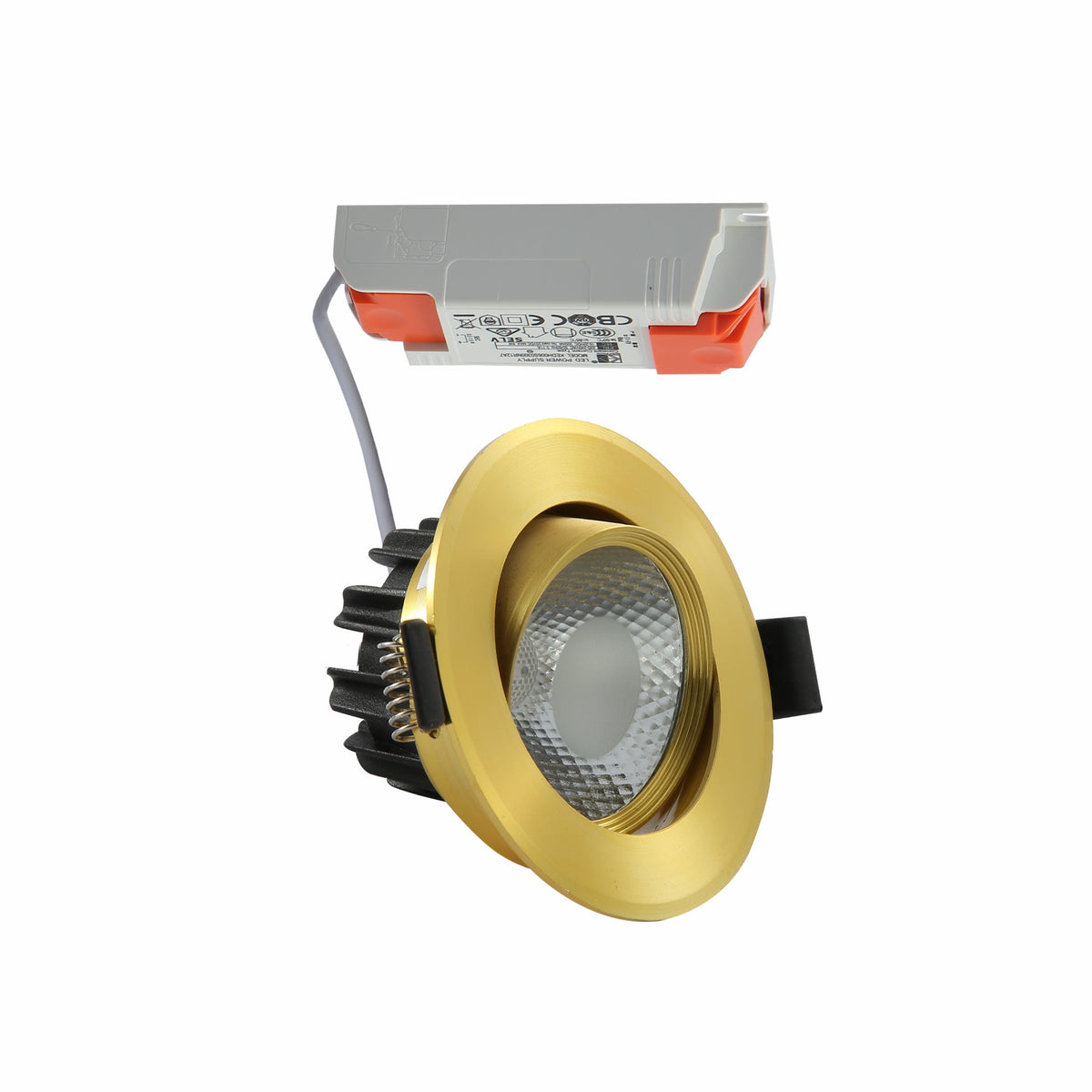

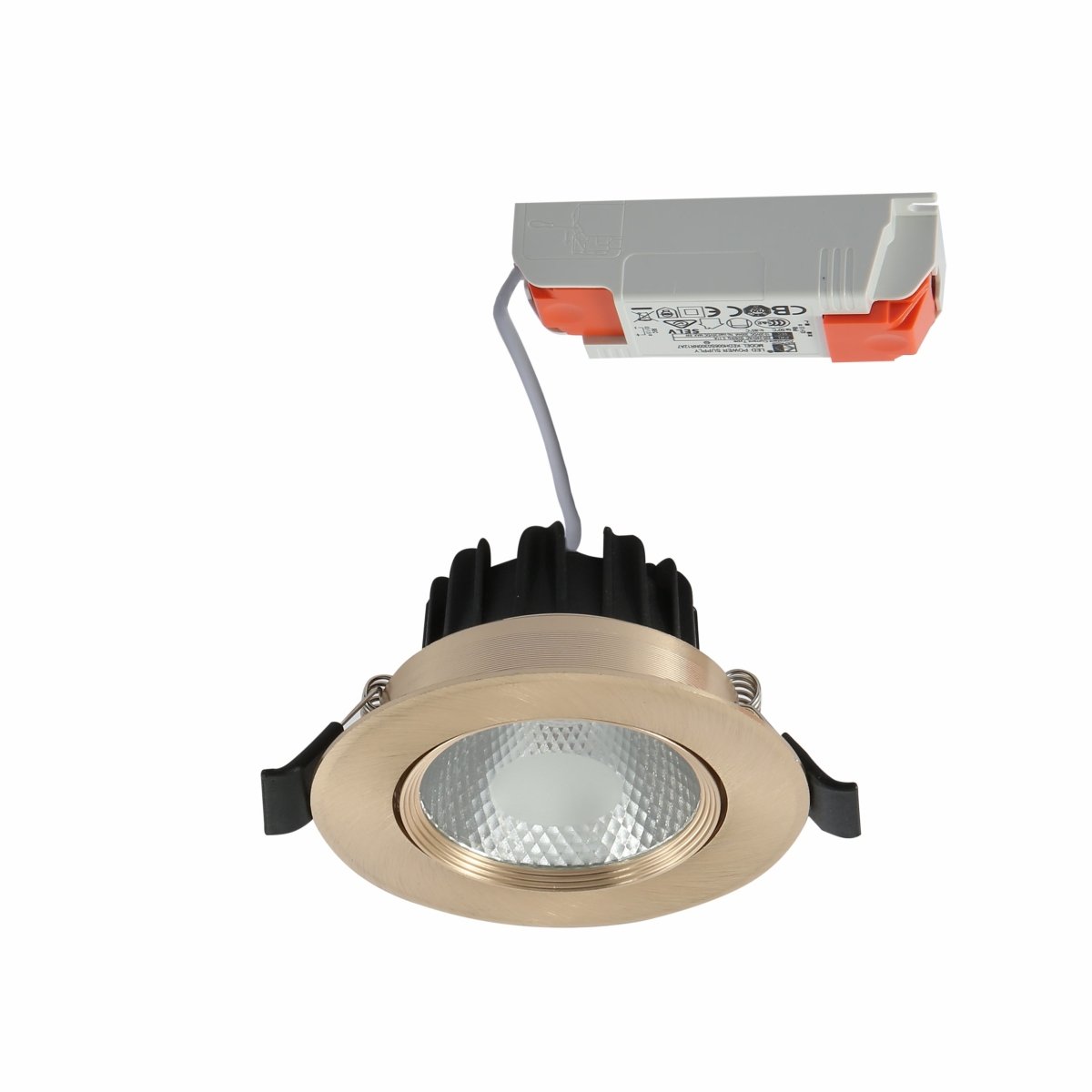

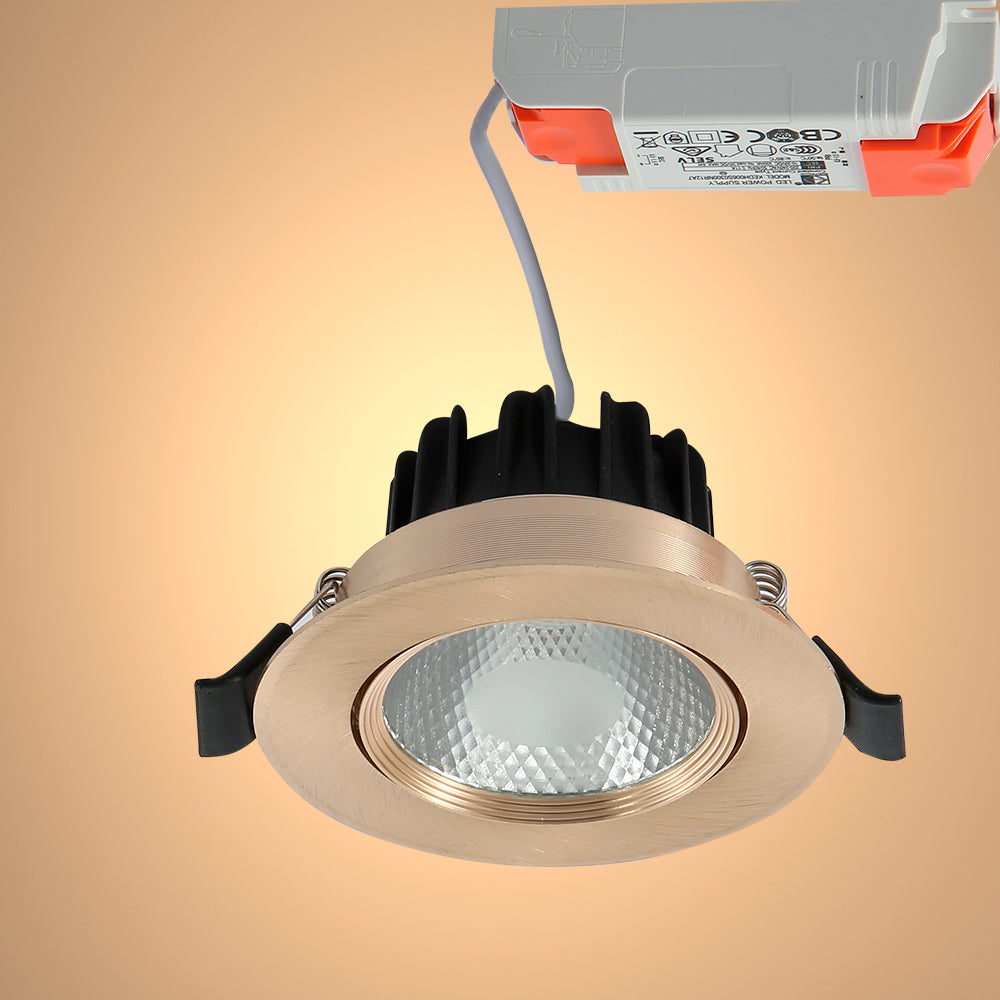

LED COB Tilt Recessed Downlight 5W CRI90 - Antique Brass / 4000K Cool White.
Colour:Antique Brass
Light Colour:4000K Cool White
Quantity:

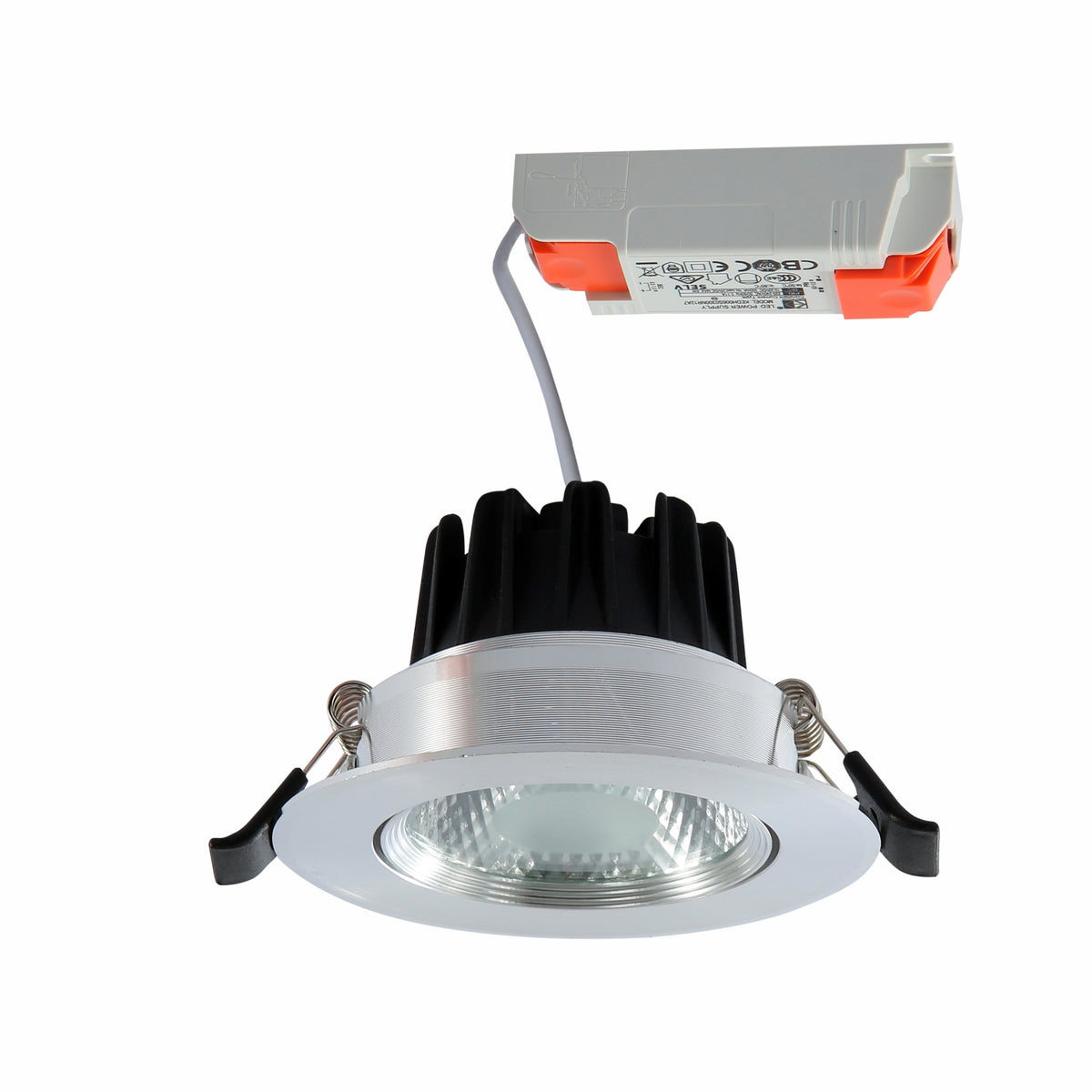

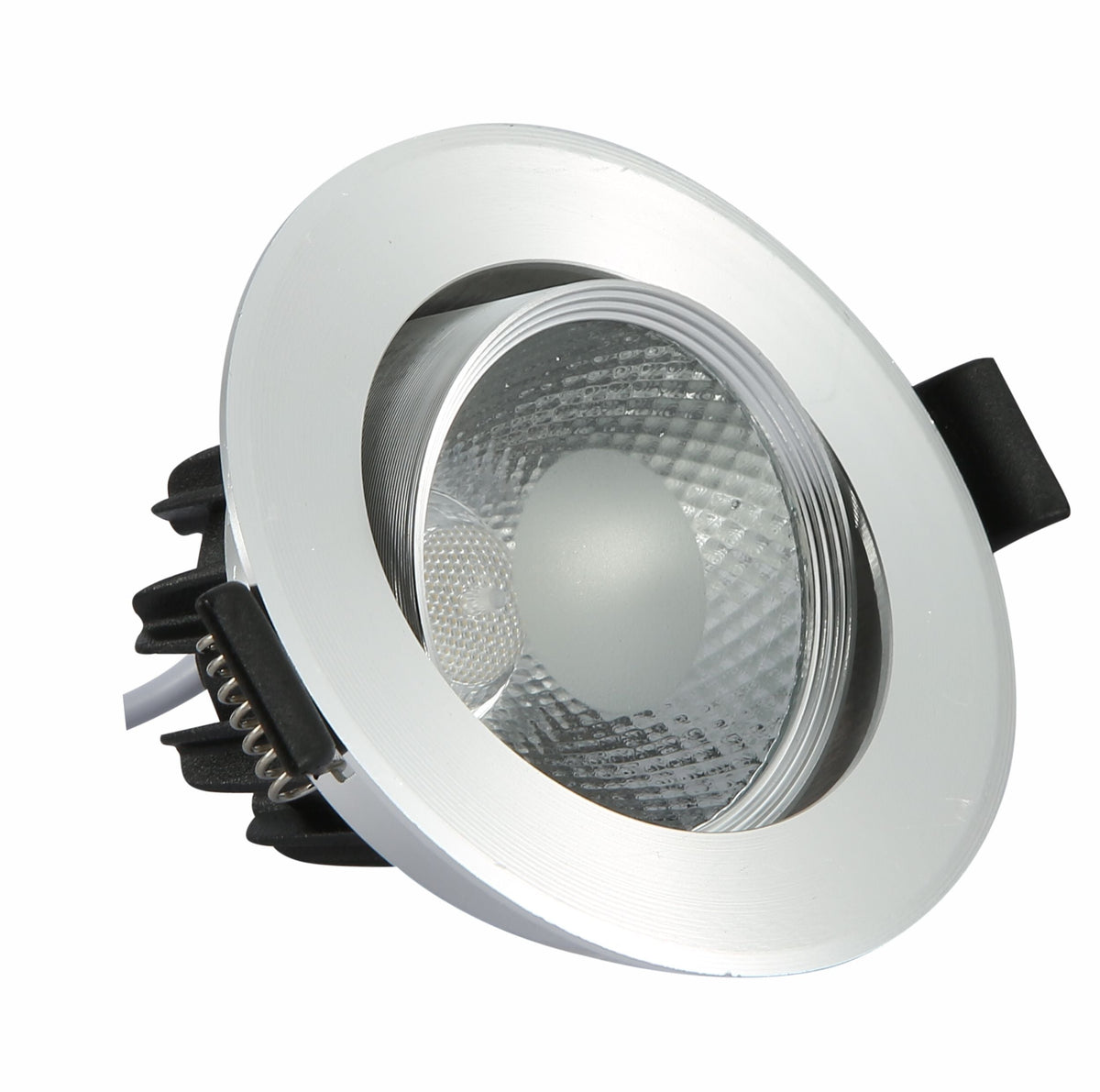

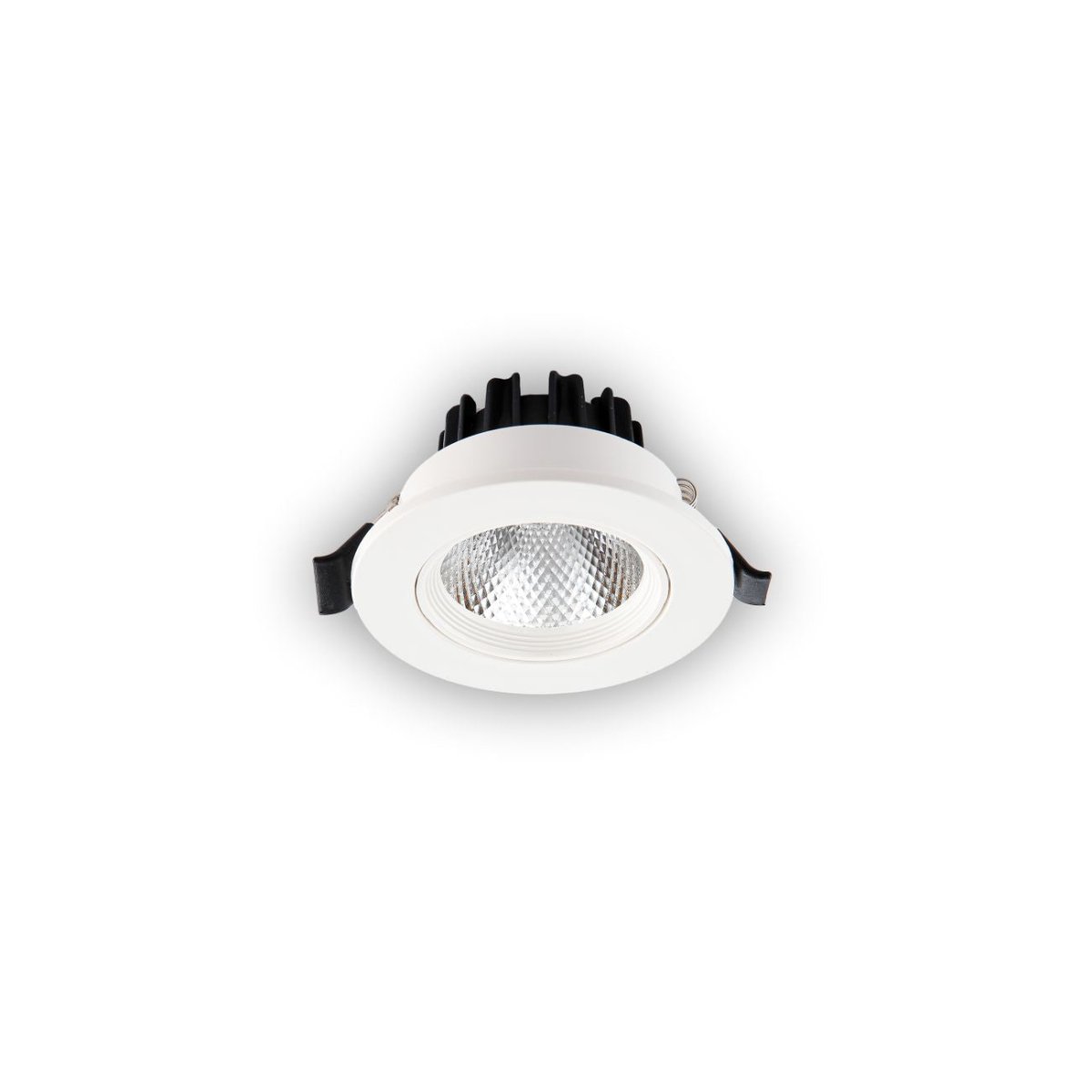

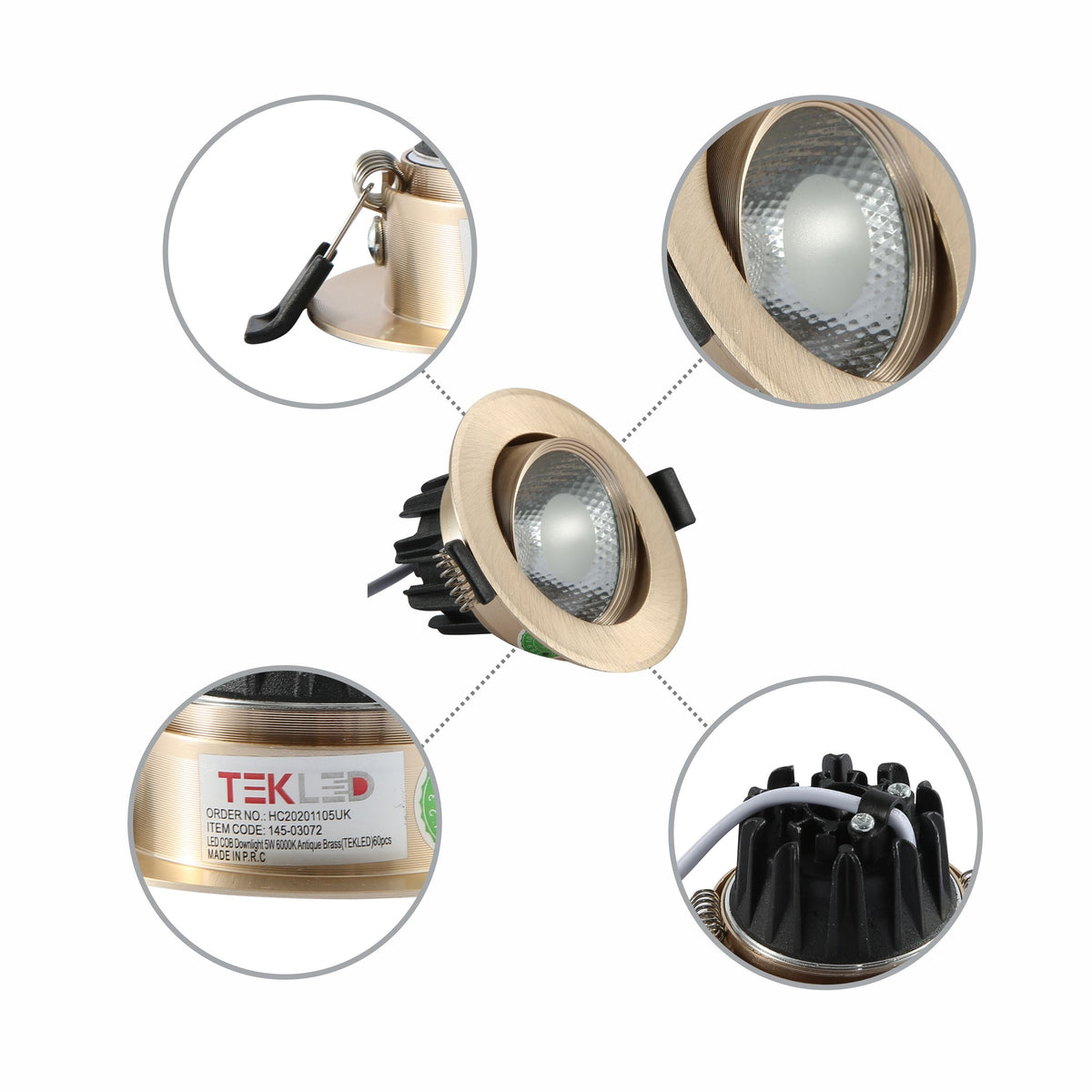

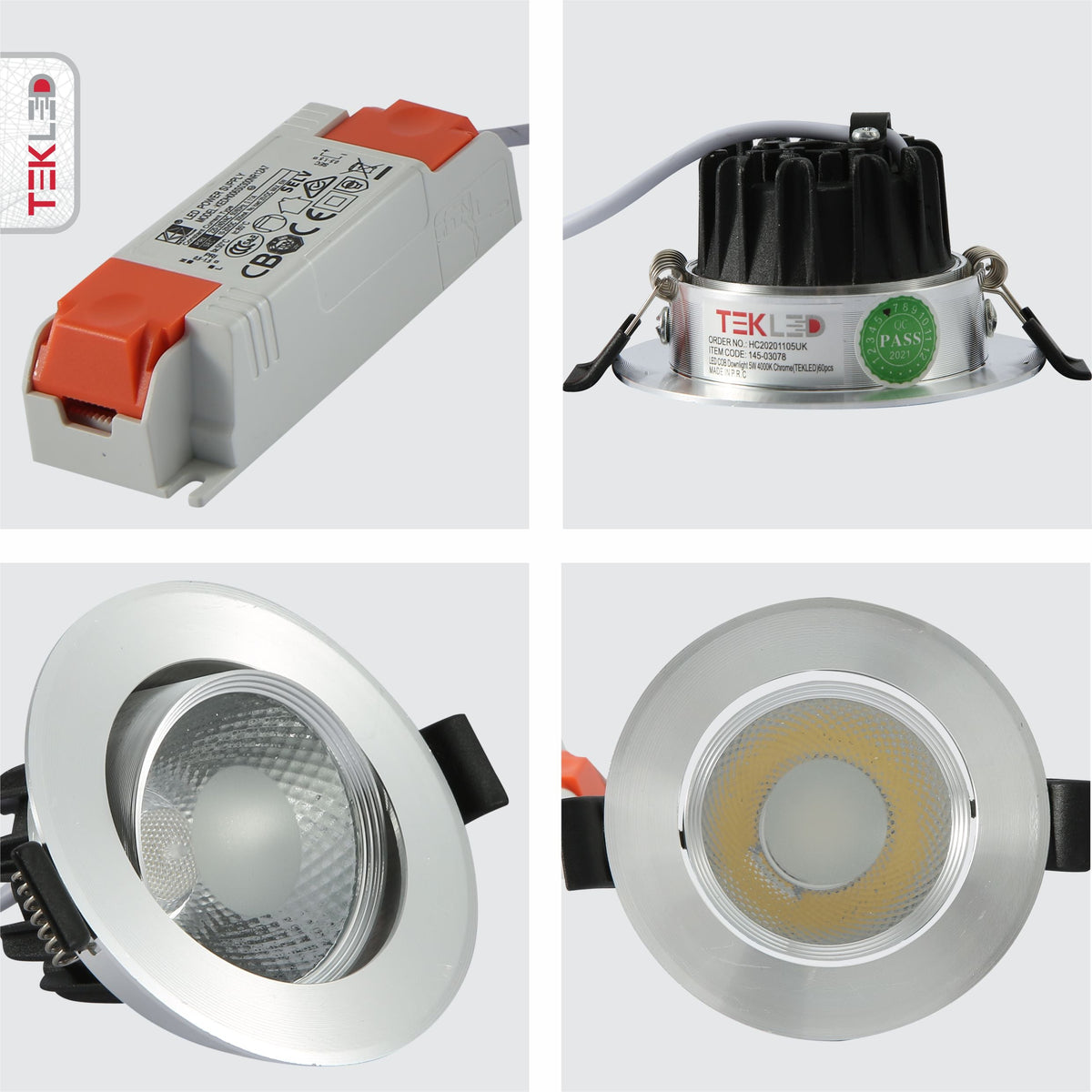

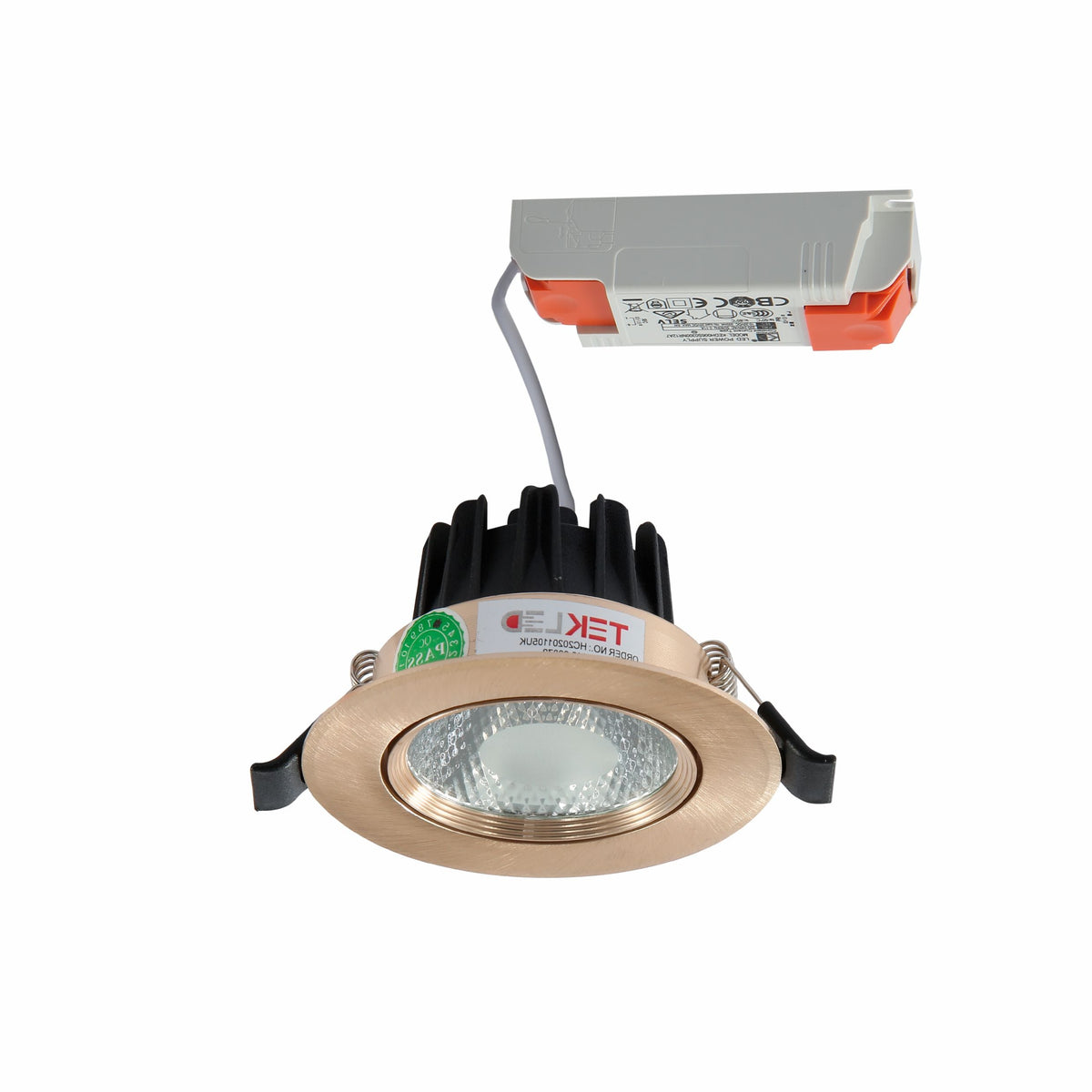

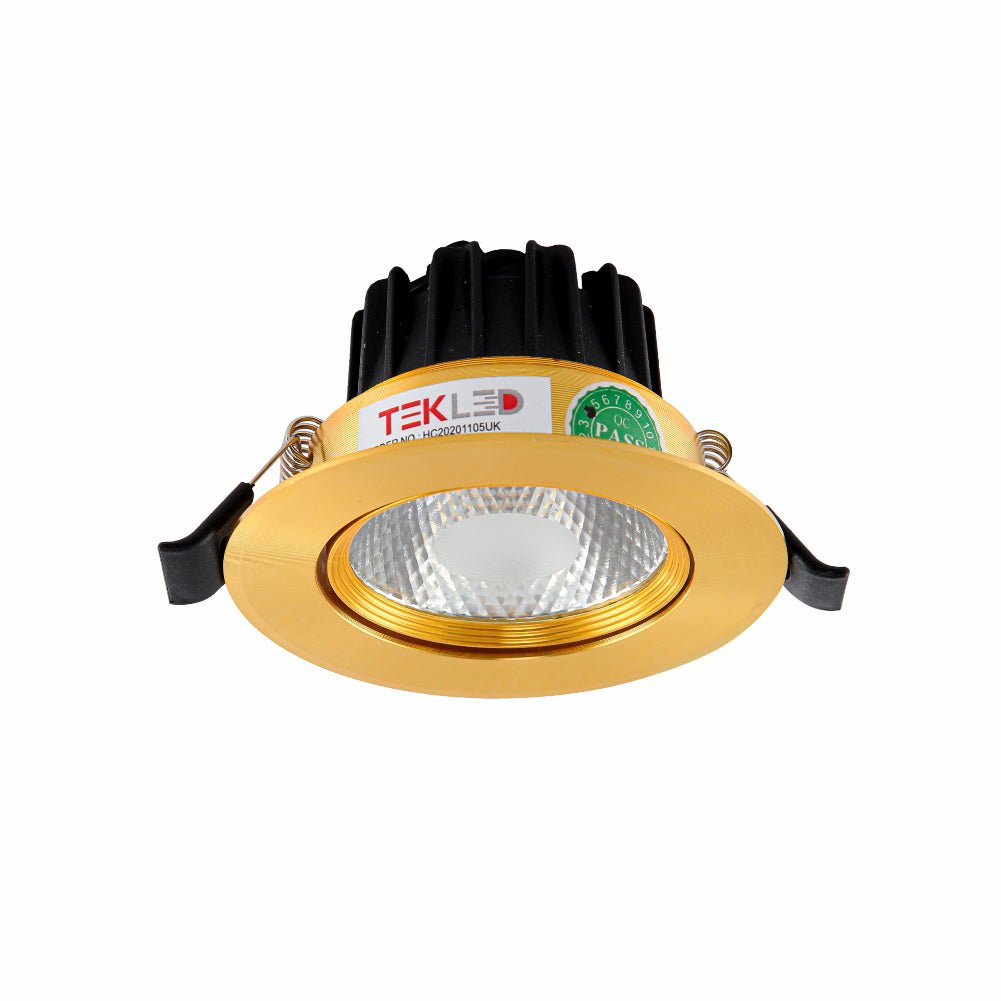

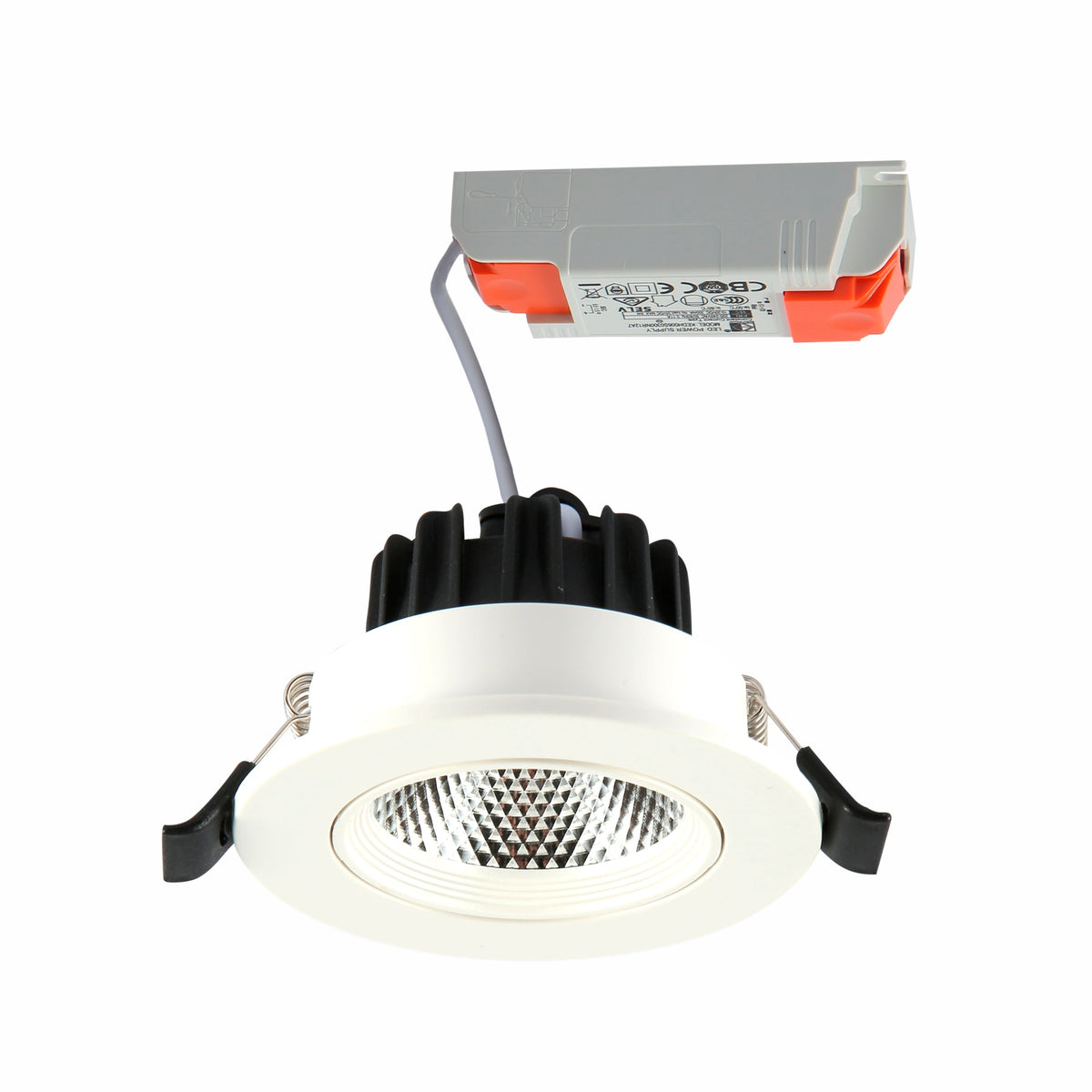

LED COB Recessed Downlight 5W CRI 90

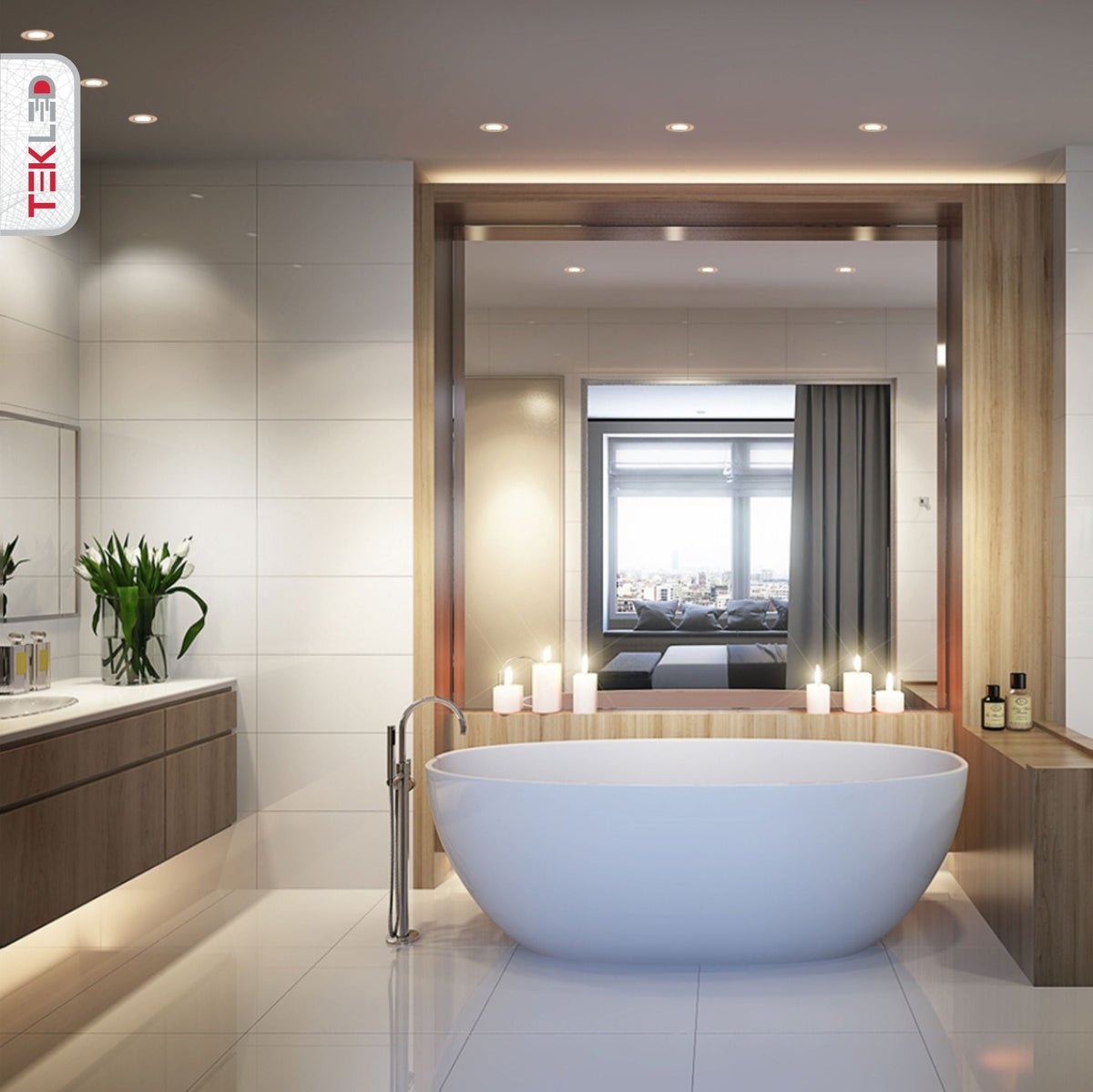

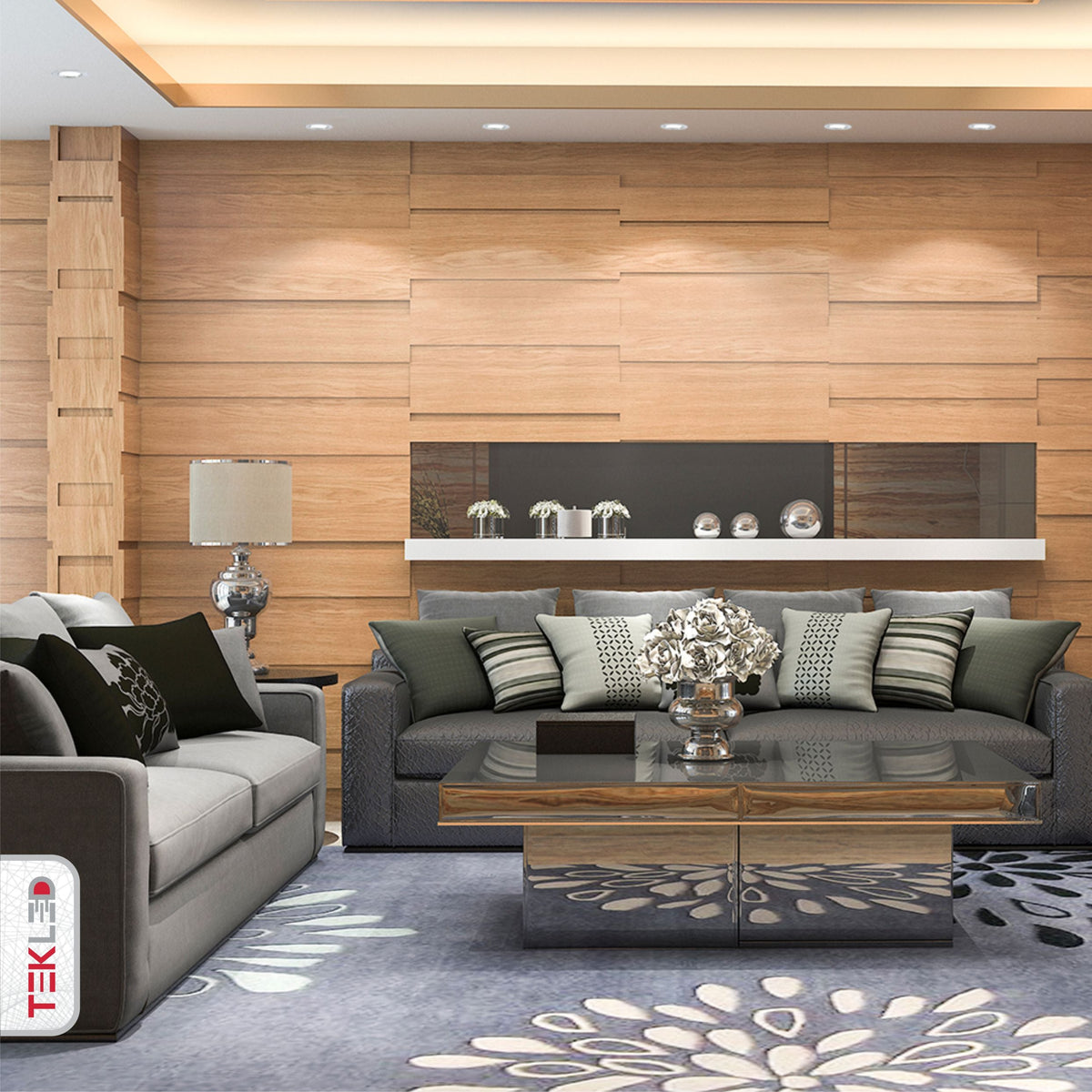

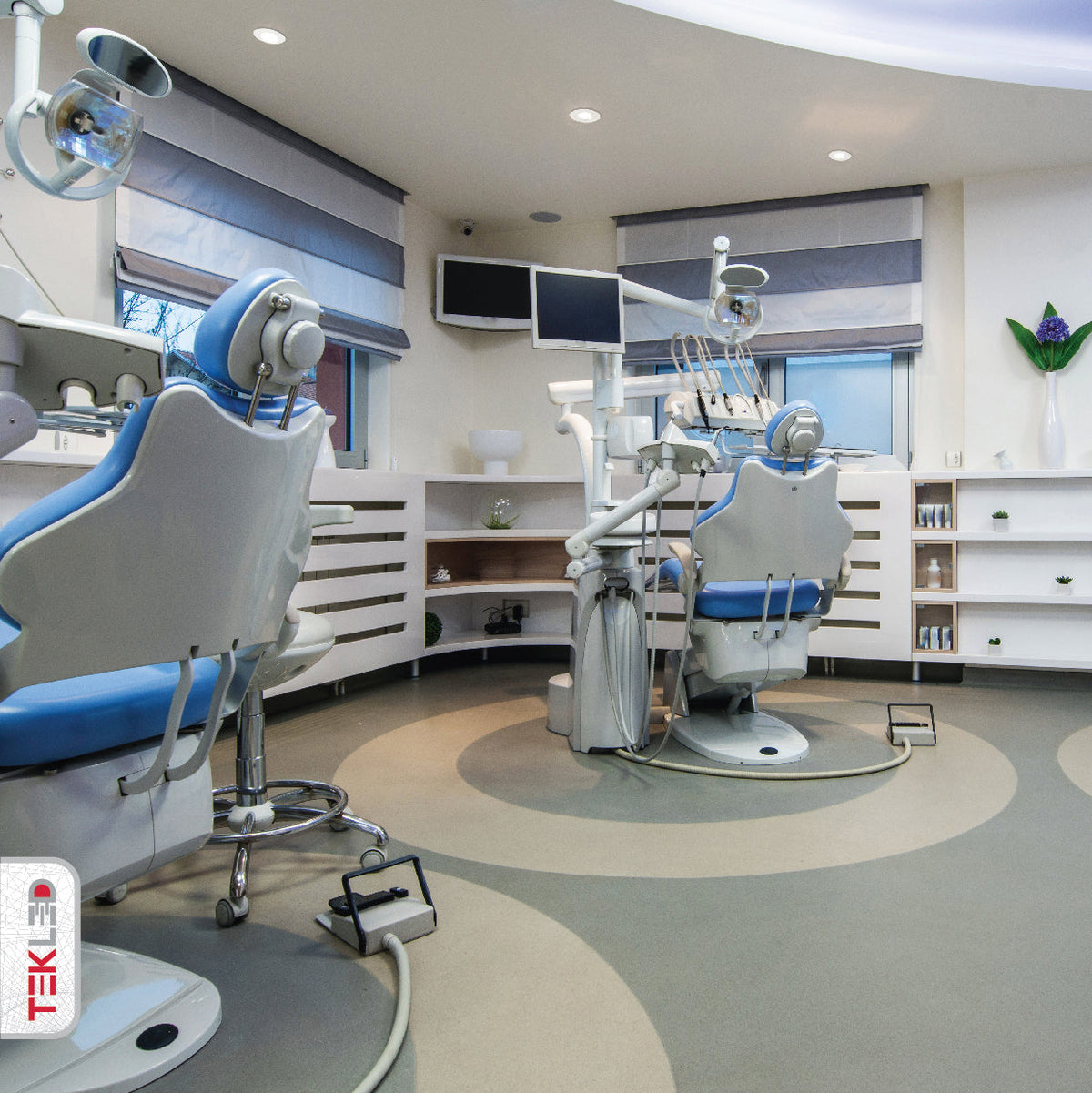

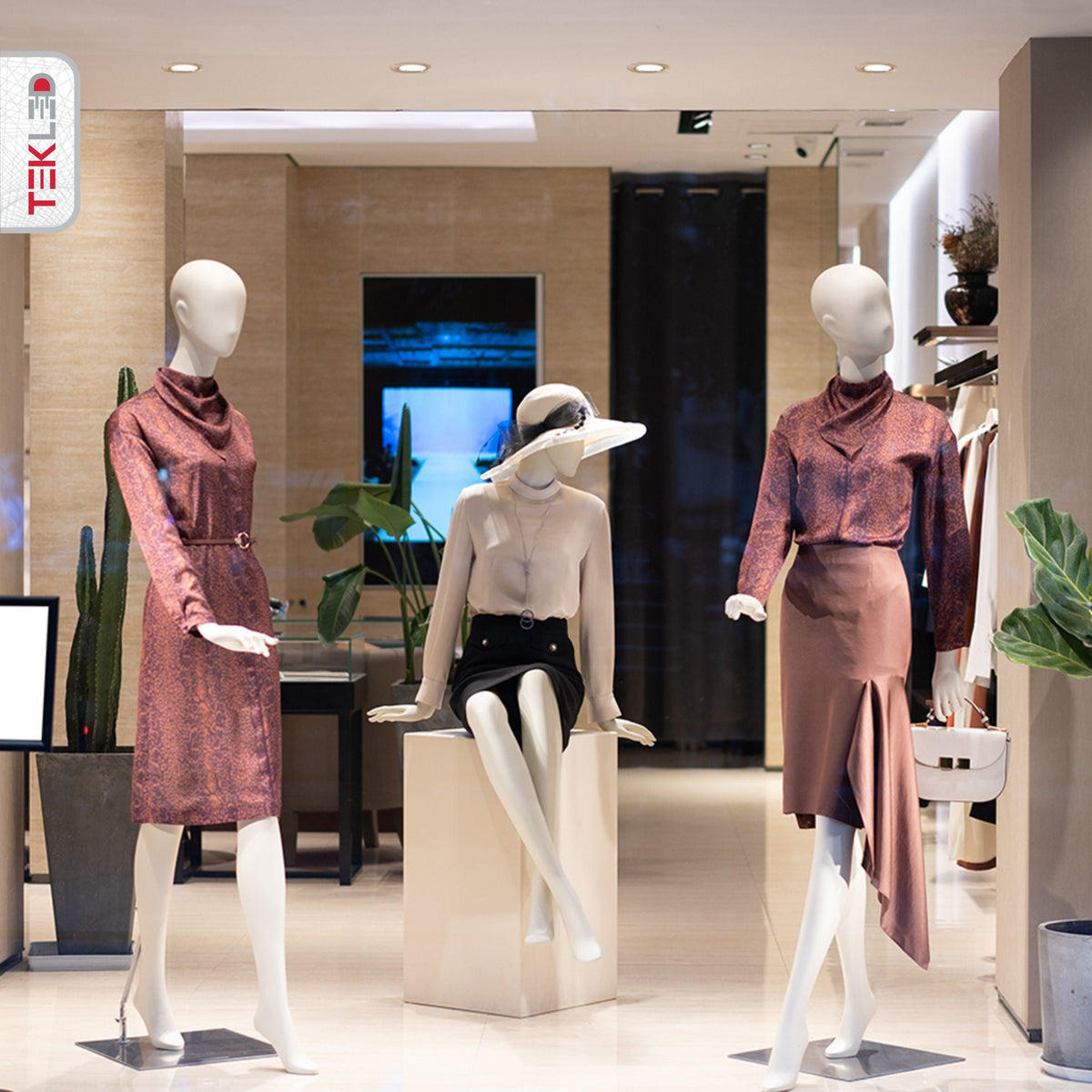

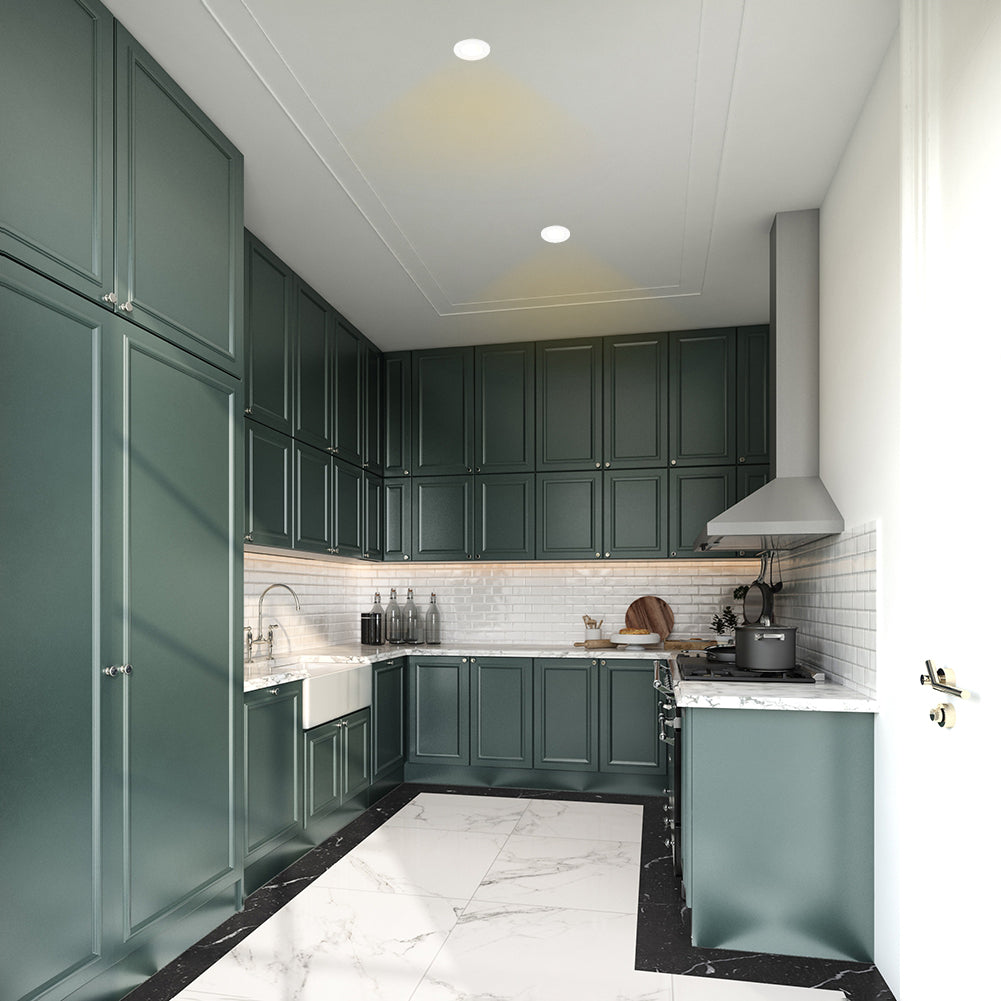

The LED COB Recessed Downlight 5W Cool Daylight 6000K or Cool White 4000K is perfect for your home. With the combination of its small size, robust construction and modern style, it is an excellent choice for enhancing the lighting in any home decor or commercial environment like hotels, restaurants, cafes. It is an energy saving light, consumes only 5W and has a long lifespan. Available in White, Chrome, Antique Brass, Gold, colour and cool white or warm light variants. Integrated LED items have much more longer lifetime than LED bulbs and replacing the even GU10 led bulbs fixtures with integrated LED fixtures will allow you keep money in your pocket. Due to physical and electrical specs of integrated LEDs you may replace 7W LED bulb fixtures with 5W integrated LED fixtures you will use less energy and get more lumen.Technical Specifications
| Name | LED COB Recessed Downlight 5W Cool Daylight 6000K or Cool White 4000K |
| Product Code | 145-03084 | 145-03082 | 145-03080 | 145-03078 | 145-03072 | 145-03070 | 145-03076 | 145-03074 |
| Power | 5 W |
| Power Source | Hardwired |
| Voltage | 220/240Vac 50/60Hz |
| Lamp Holder Type | Integrated LED |
| Protection Class | Class II |
| Dimmability | Non-Dimmable |
| Light Source | Built-in LED |
| Led Quantity | 1 pc COB | 1 |
| Bulbs | Built-in LED fixture with LED driver |
| Light Output(luminous flux) | 600 lm | 700 lm |
| Luminous Efficacy | 120 lm/W | 140 lm/W | 102 lm/W |
| Lux | avg 478Lux @2m - max 665Lux and avg 119Lux @4m - max 166Lux | avg 300lux @3m | avg 440Lux @2m - max 515Lux and avg 110Lux @4m - max 130Lux |
| CRI(Colour Rendering Index) | CRI>90 |
| CCT (Kelvin)(Light Colour) | 6000K Cool Daylight | 4000K Cool White |
| IP Class(Ingress Protection) | IP20 |
| Mount Type | Recessed Mount |
| Function Mode | On/Off |

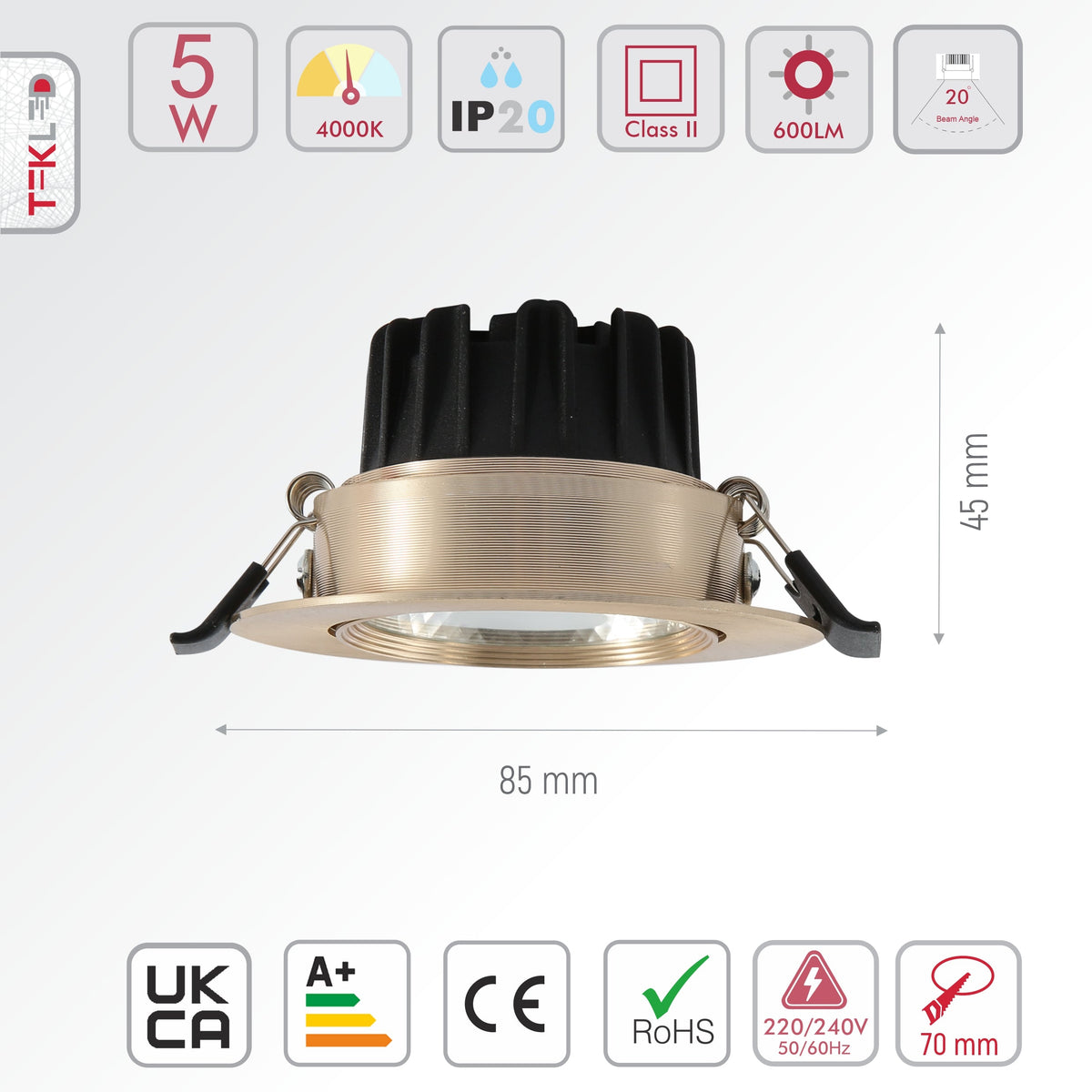

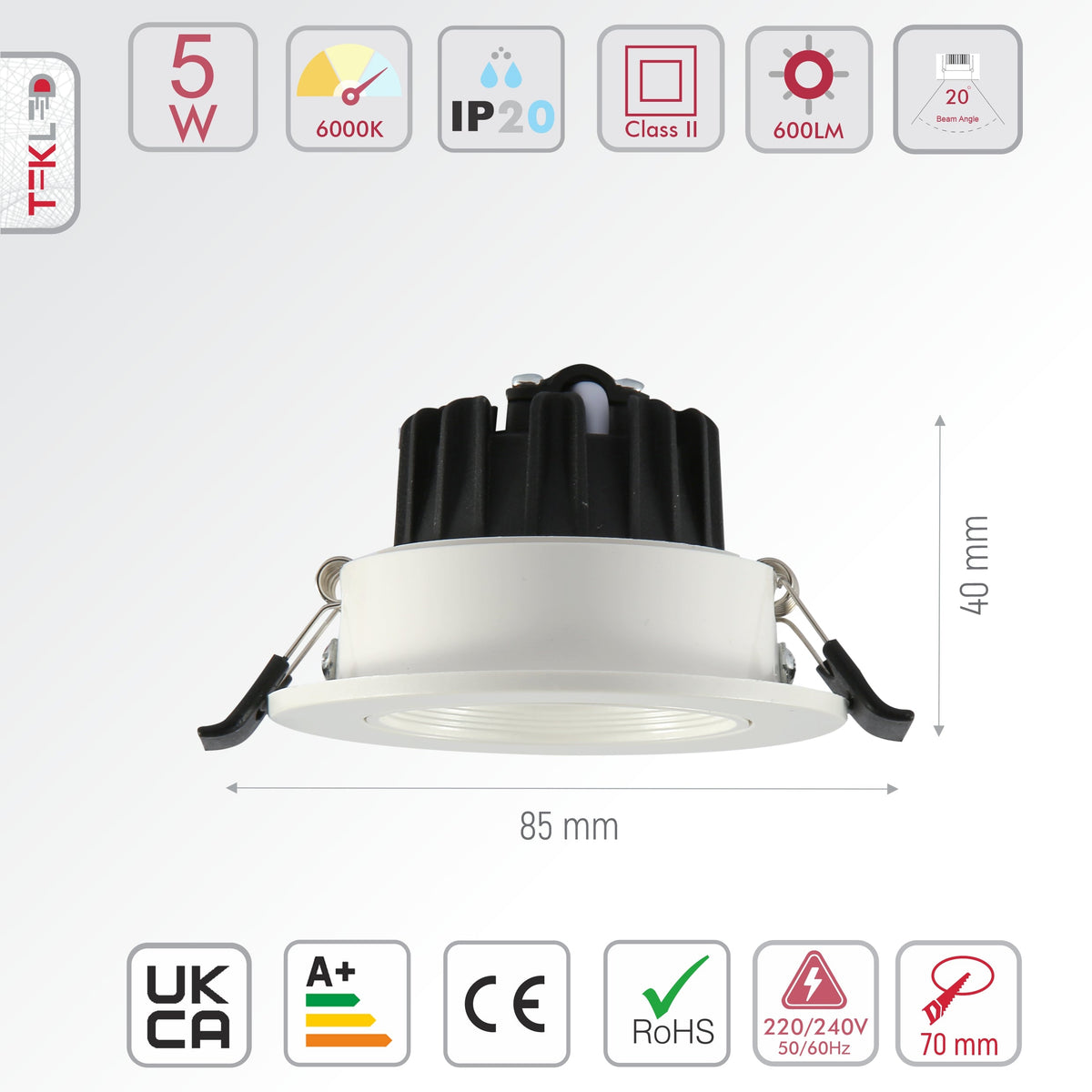

| Product Dimensions (L x W x H) (D x H) | D85x45mm |

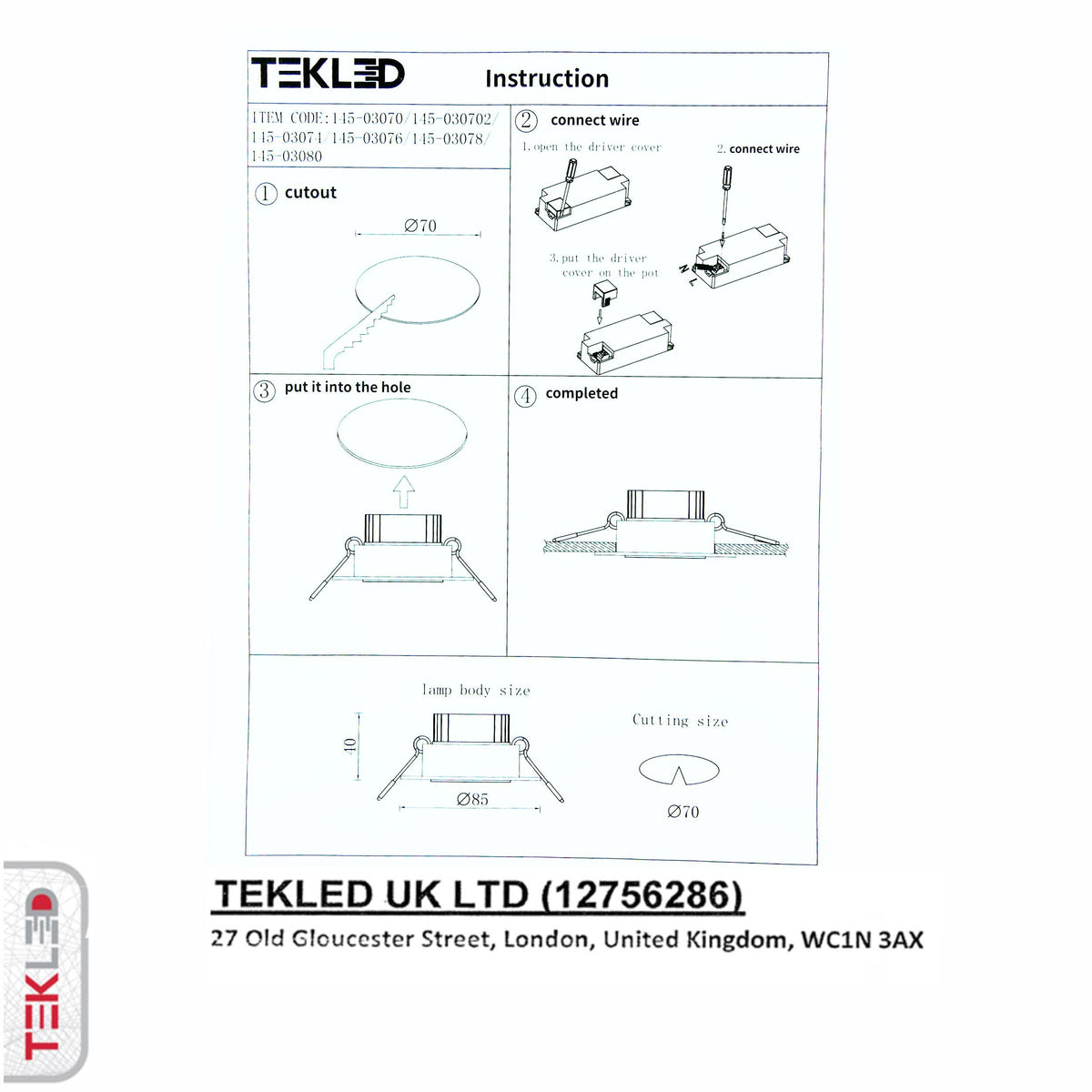

| Cut-Out Size | D70mm | D70 mm |
| Made of Materials | Aluminium, PMMA, Glass |
| Product Colour | White | Chrome | Antique Brass | Gold |
| Paint Type | Spray Painted | Electroplated |
| Adjustable | Tiltable |
| Optic Type | Reflector | Lens |
| Optic Material | PMMA | PMMA(acrylic) |
| Diffuser Material | Glass |
| Diffuser Type | Clear |
| Driver Brand | KeGu |
| Driver Type | Constant Current |
| Driver Power | 6w | 6 W |
| Driver Input Voltage | 220~240Vac 50/60Hz |
| Driver Input Current | 0.05A @240Vac |
| Driver Output Voltage | 10-20Vdc |
| Driver Output Current | 300mA |
| Surge Protection Level | 1kv |
| Power Factor | pf>0.5 |
| Flickering | Non-Flickering |
| Control | On/Off |
| Operating Temperature (C) | -20/+55C |
| New Energy Rating | E | E | F |
| Energy Rating | A++ | A+ |
| Warranty | 3 year |
| Life Span | 20000 h | 30000 h |
| Gross Weight | 135g | 139g |
| Net Weight | 108g | 112g |
| Box Dimensions (LxWxH) | 95x95x75mm |
| Box Content | 1 x Light fitting | 1pcs lamp, 1pcs instruction | Light body*1 Instruction*1 | 1*Light body* Instruction |
| Certifications | UKCA, RoHS, TUV, SAA, CCC, CE (LVD, EMC) |
