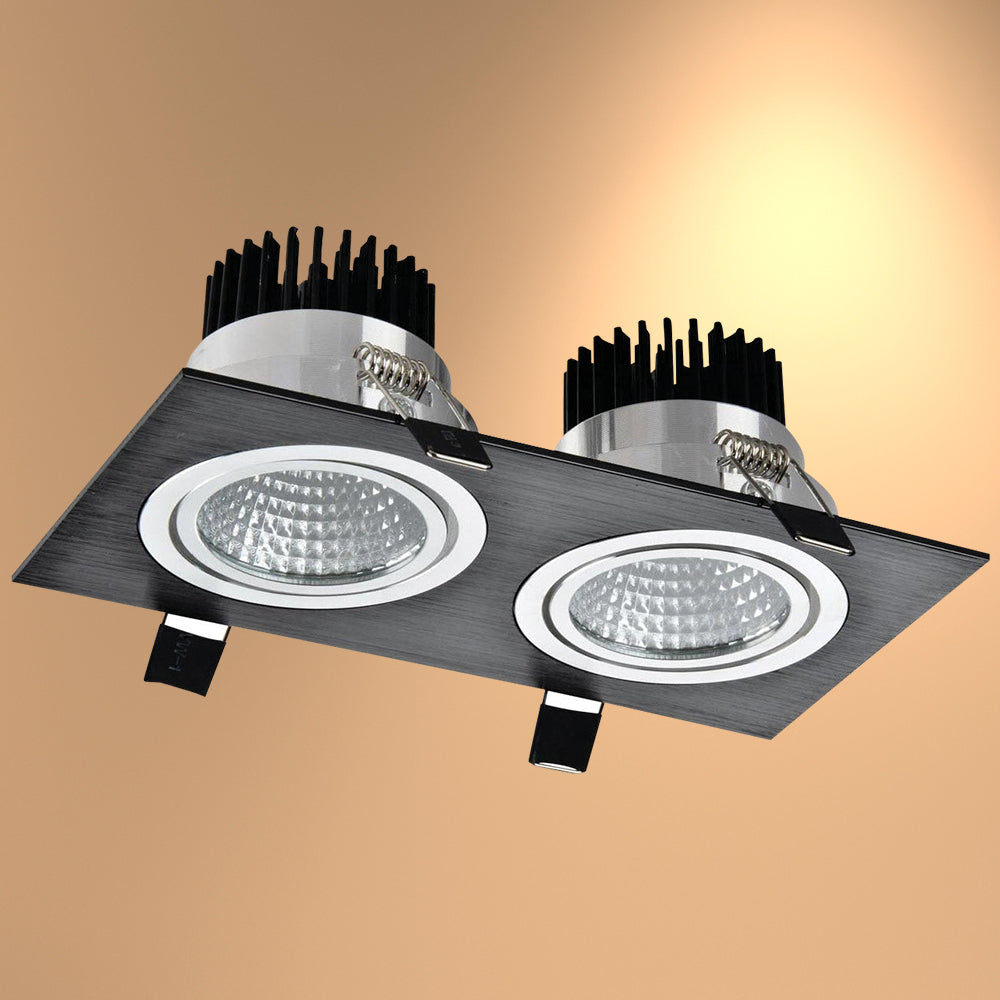

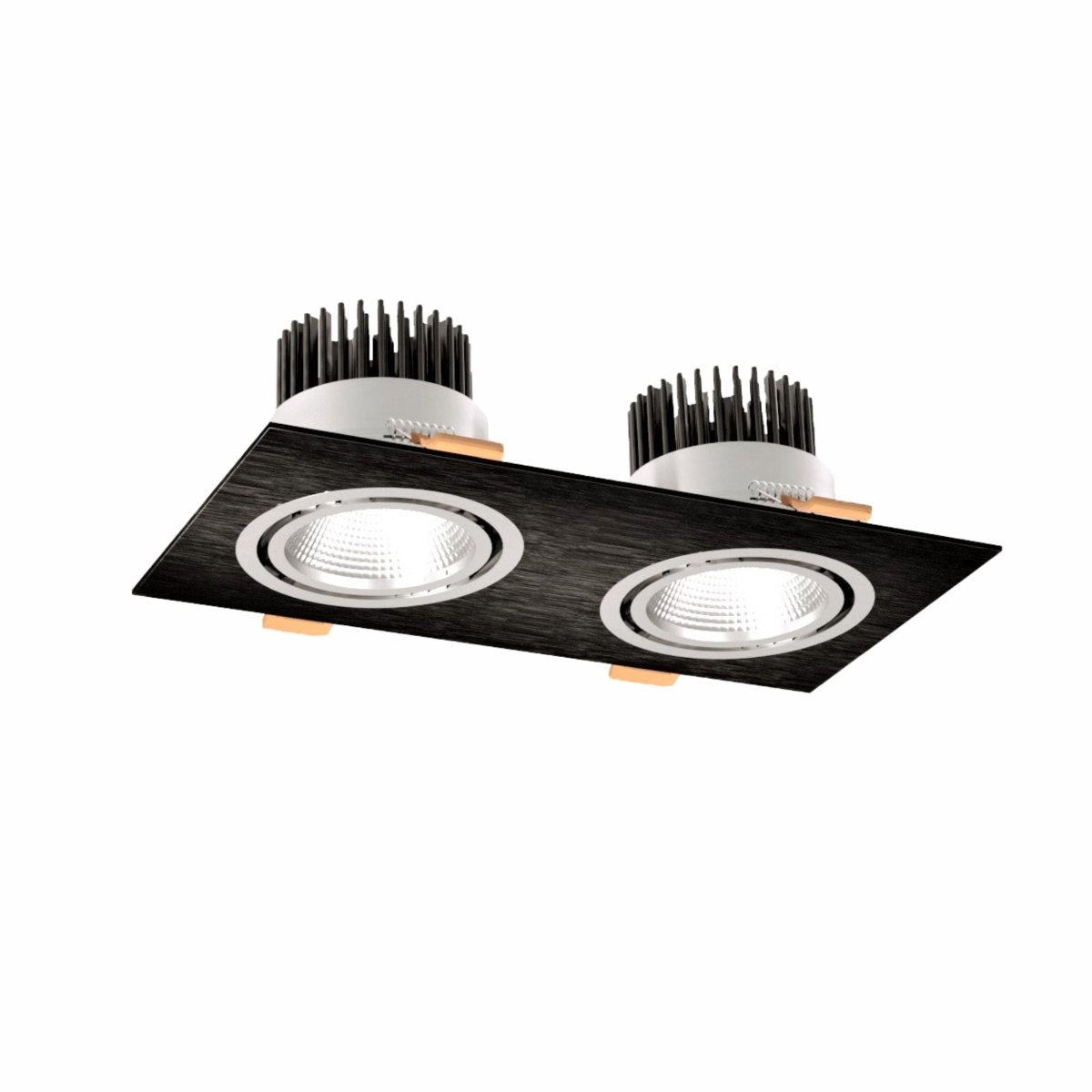

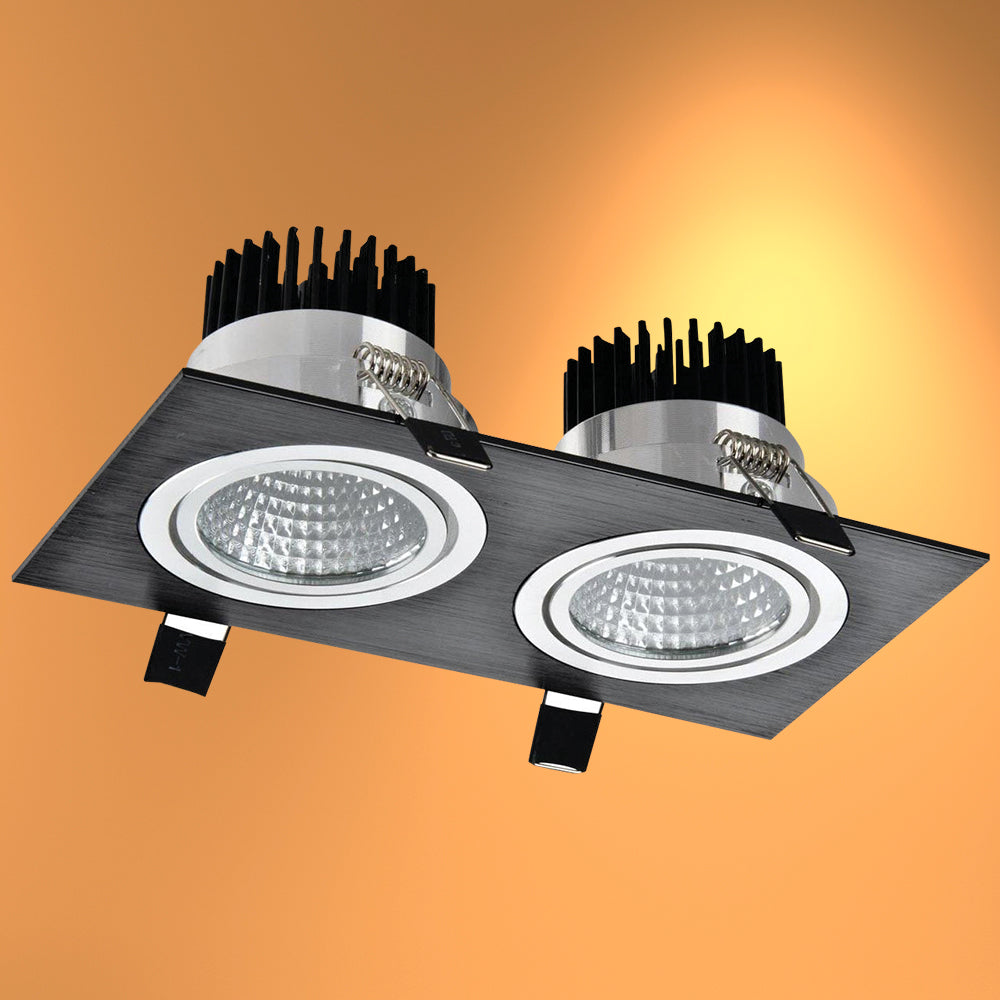

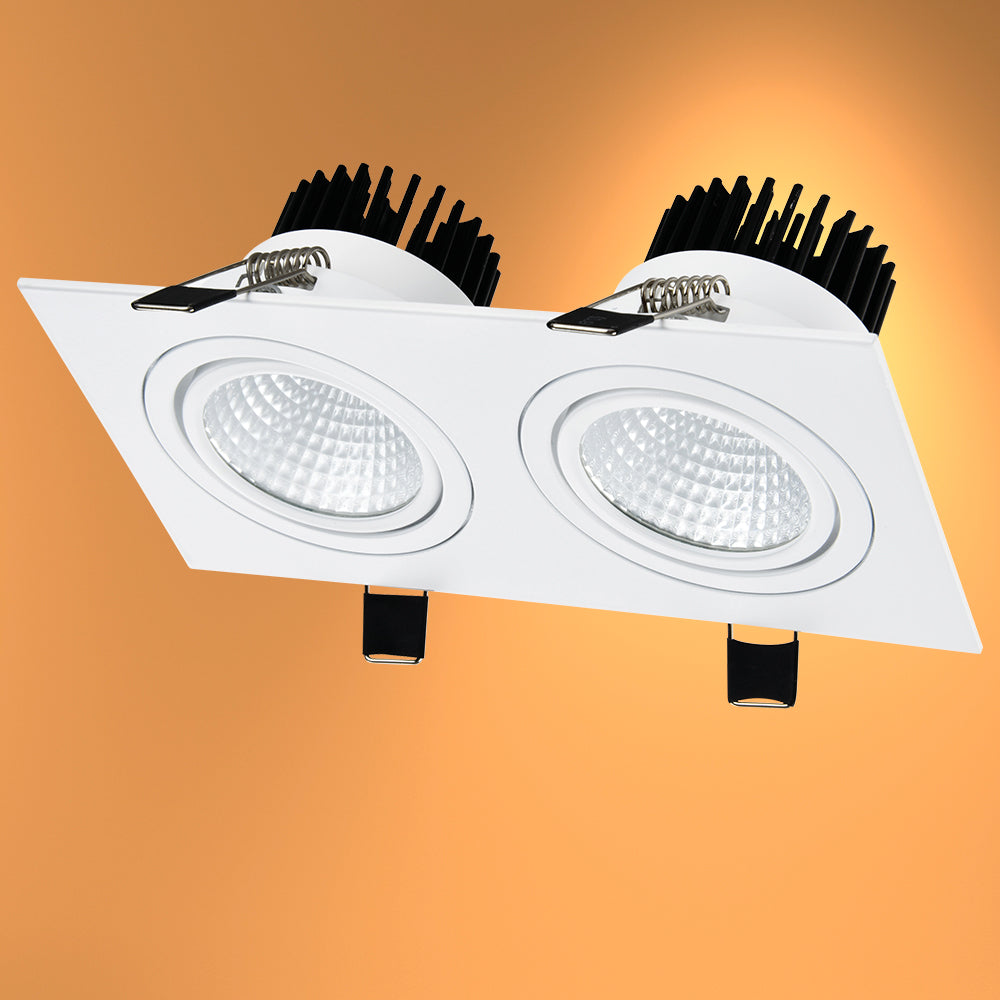

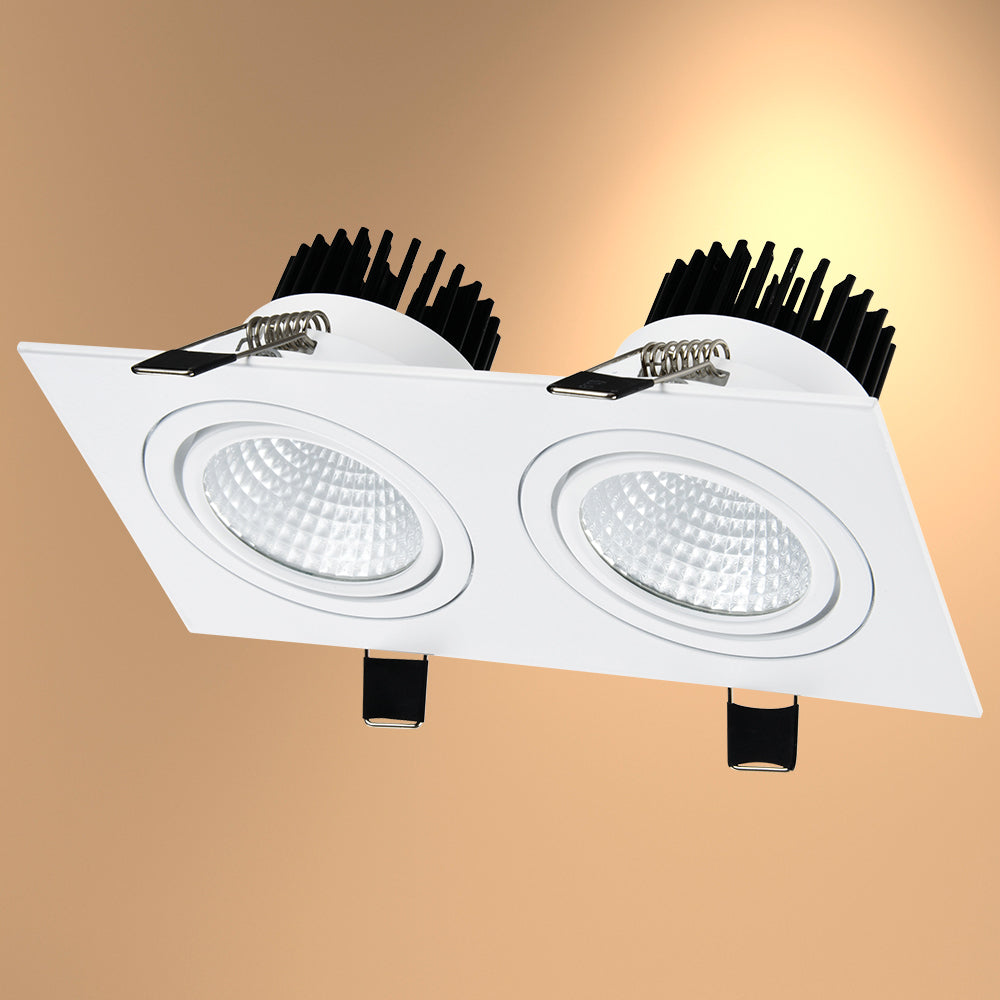

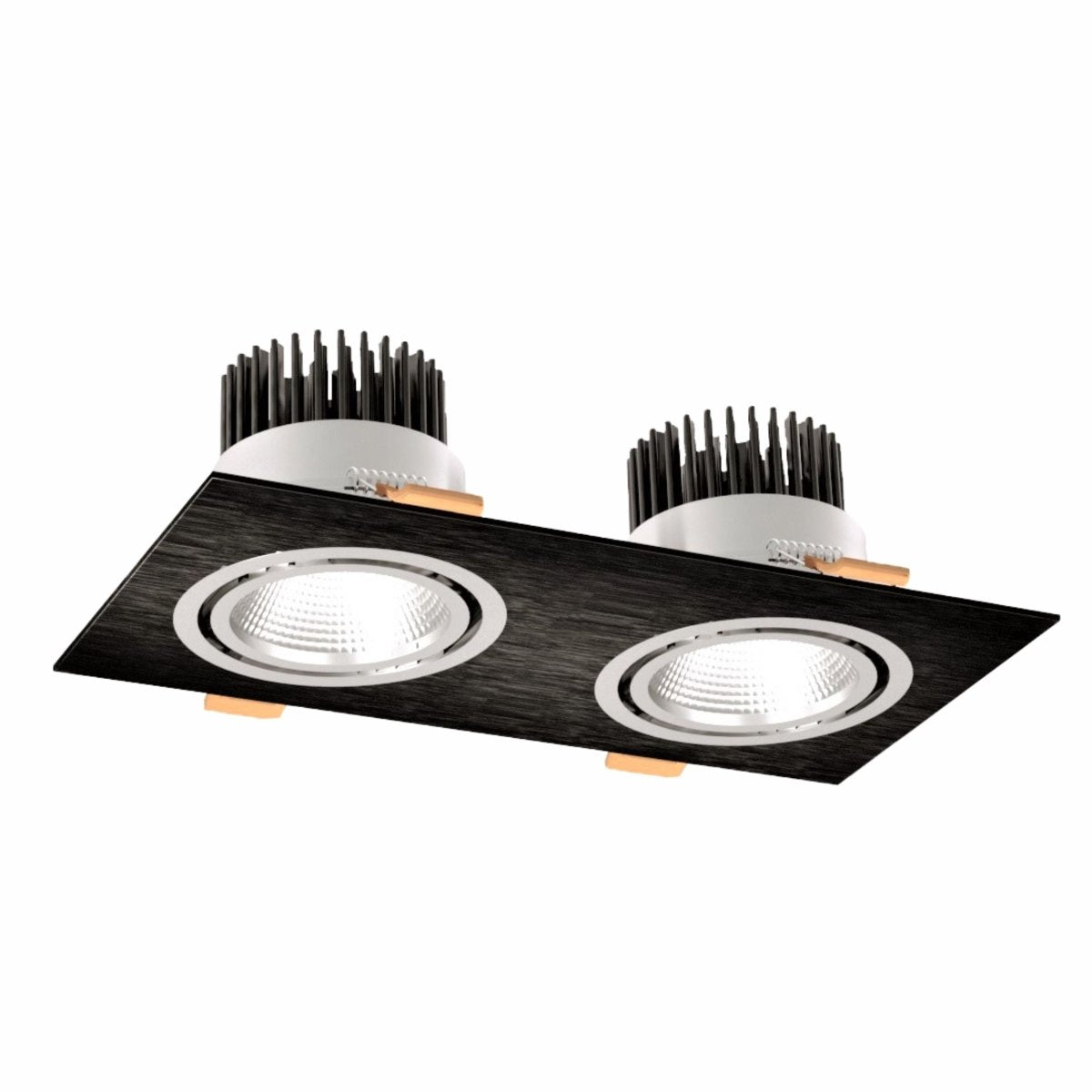

LED Tilt Recessed Rectangle Downlight 2 Way IP20 CRI90 - Black / 3000K Warm White / 2 x 5 W.
LED 2 Way Recessed Downlight IP20 CRI90

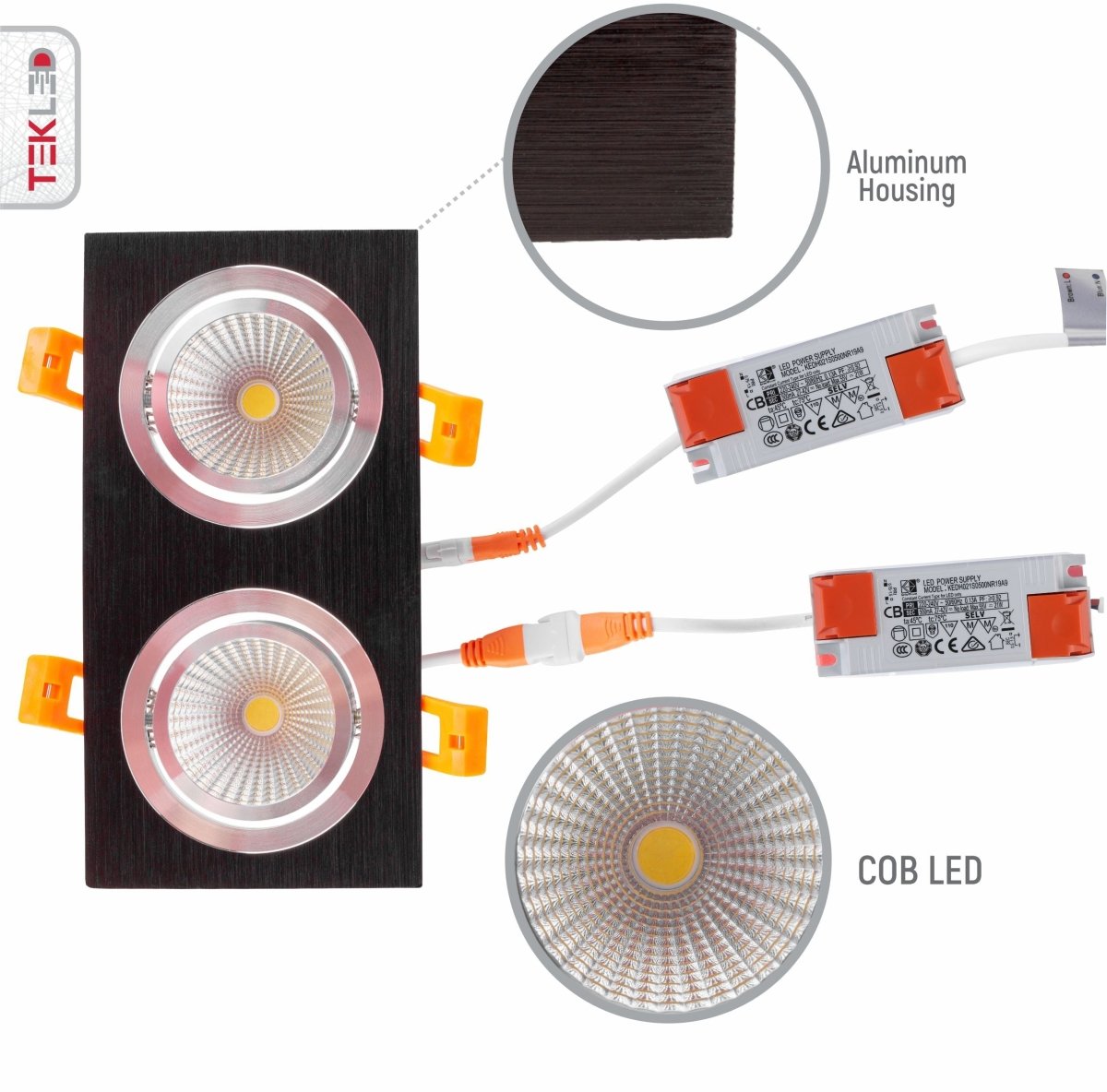

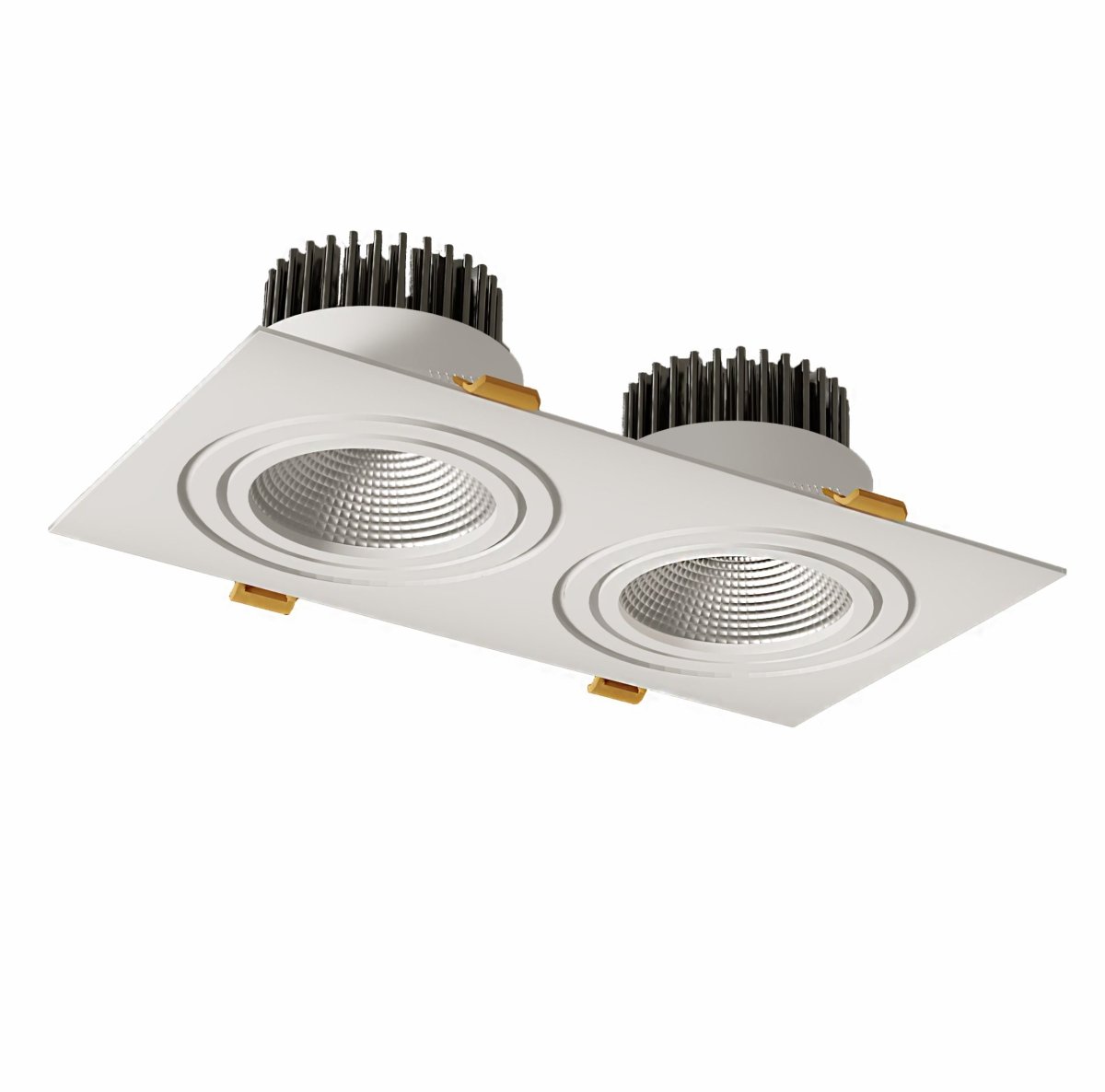

Illuminate your surroundings while saving up to 80% on your electricity bills with this new range of LED recessed downlights from TEKLED. Built with adjustable tilt and rotate body, this 2 way recessed mount light helps you pivot the direction of light as per your needs. This fixture is made from high quality aluminium, PVC and glass, making it dust resistant and highly durable. With a colour rendering index of 90, this hardwired downlight comes with integrated LEDs which run for more hours than any traditional incandescent lamp and give you non-flickering brightness. LEDs also save you big bucks on lamp replacement costs, making this a highly cost effective purchase for you. This fixture comes fitted with 3000K warm white LEDs and 4000K cool white LEDs. You can choose the colour temperature as per your need and set up an ambience for yourself. You also get two different colour options of black and white with this light and can choose between 5W or 10W fixtures.
Technical Specifications
| Name | LED 2 Way Recessed Downlight 2x5W or 2X10W Warm White or Cool White IP20 Black or White Finish |
| Product Code | 165-0332791 | 165-033284 | 165-0332792 | 165-033285 | 165-033278 | 165-033282 | 165-033279 | 165-033283 |
| Power | 2 x 5 W | 2 x 10 W | 10W , 2x5W |
| Power Source | Hardwired |
| Voltage | 220/240Vac 50/60Hz |
| Input Current | 0.05A*2 @240Vac | 0.09A*2 @240Vac |
| Lamp Holder Type | Integrated LED |
| Protection Class | Class II |
| Dimmability | Non-Dimmable |

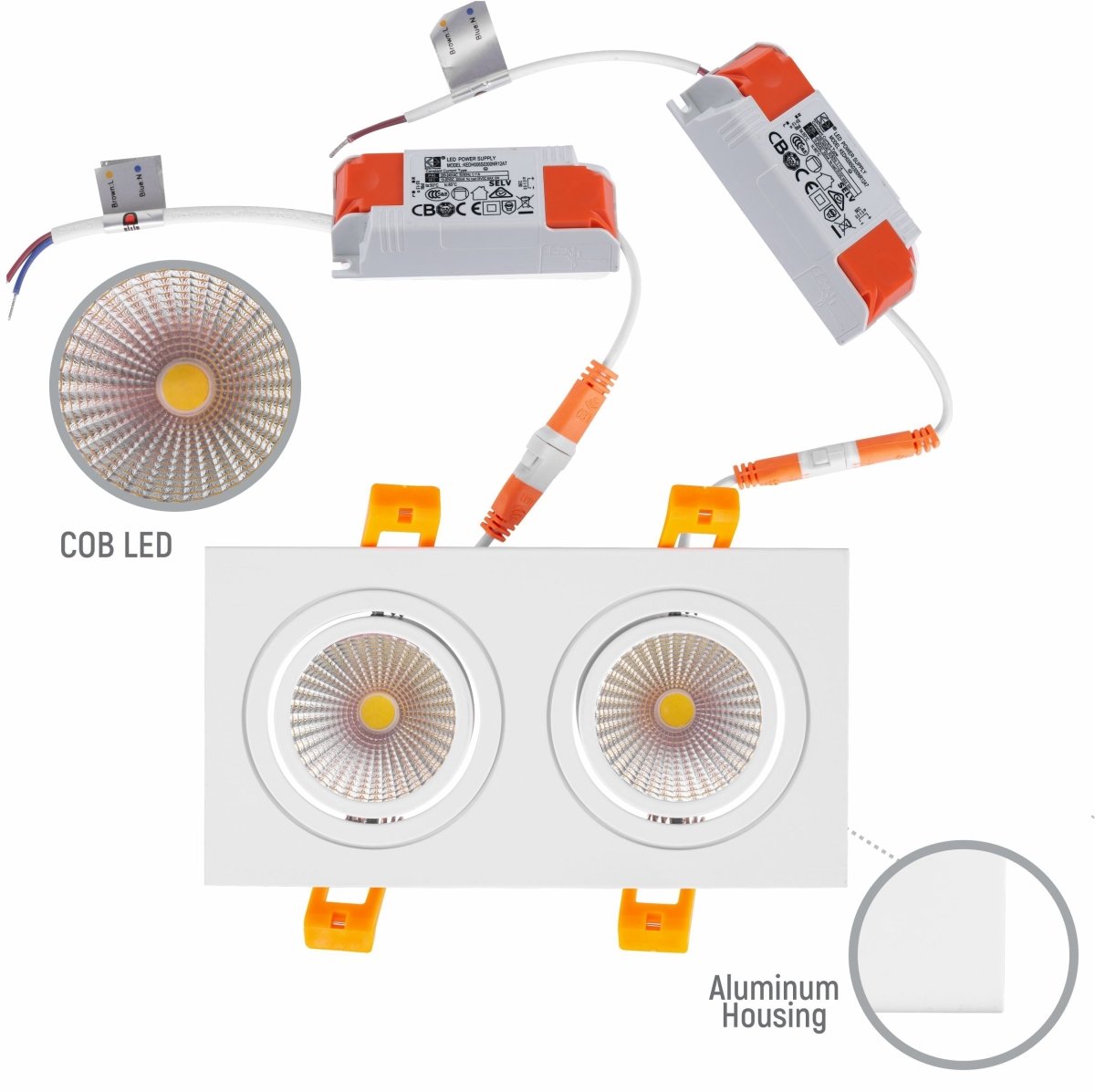

| Light Source | COB 1414 5W | COB 1414 10W | Built-in LED |
| Led Quantity | 2pcs COB |

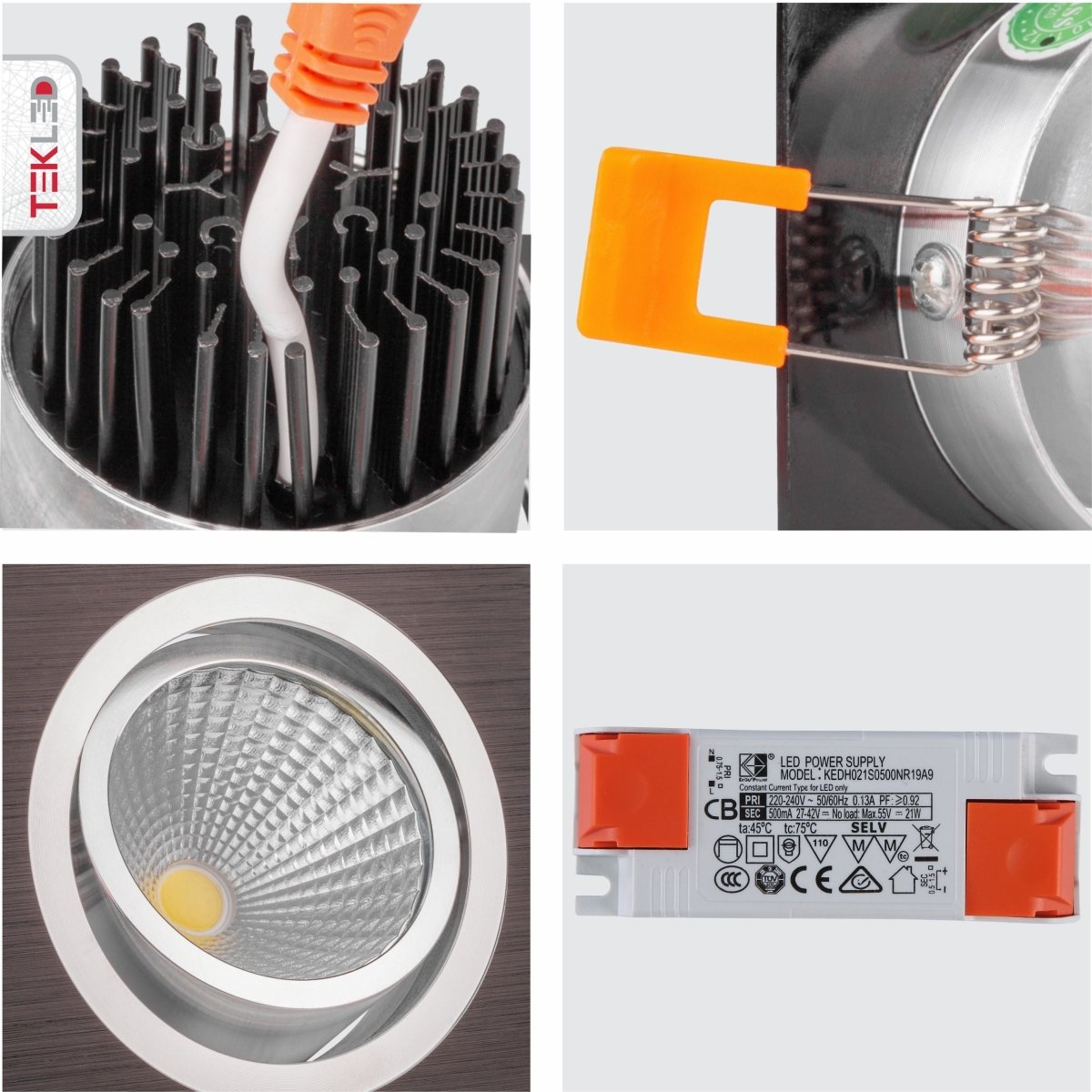

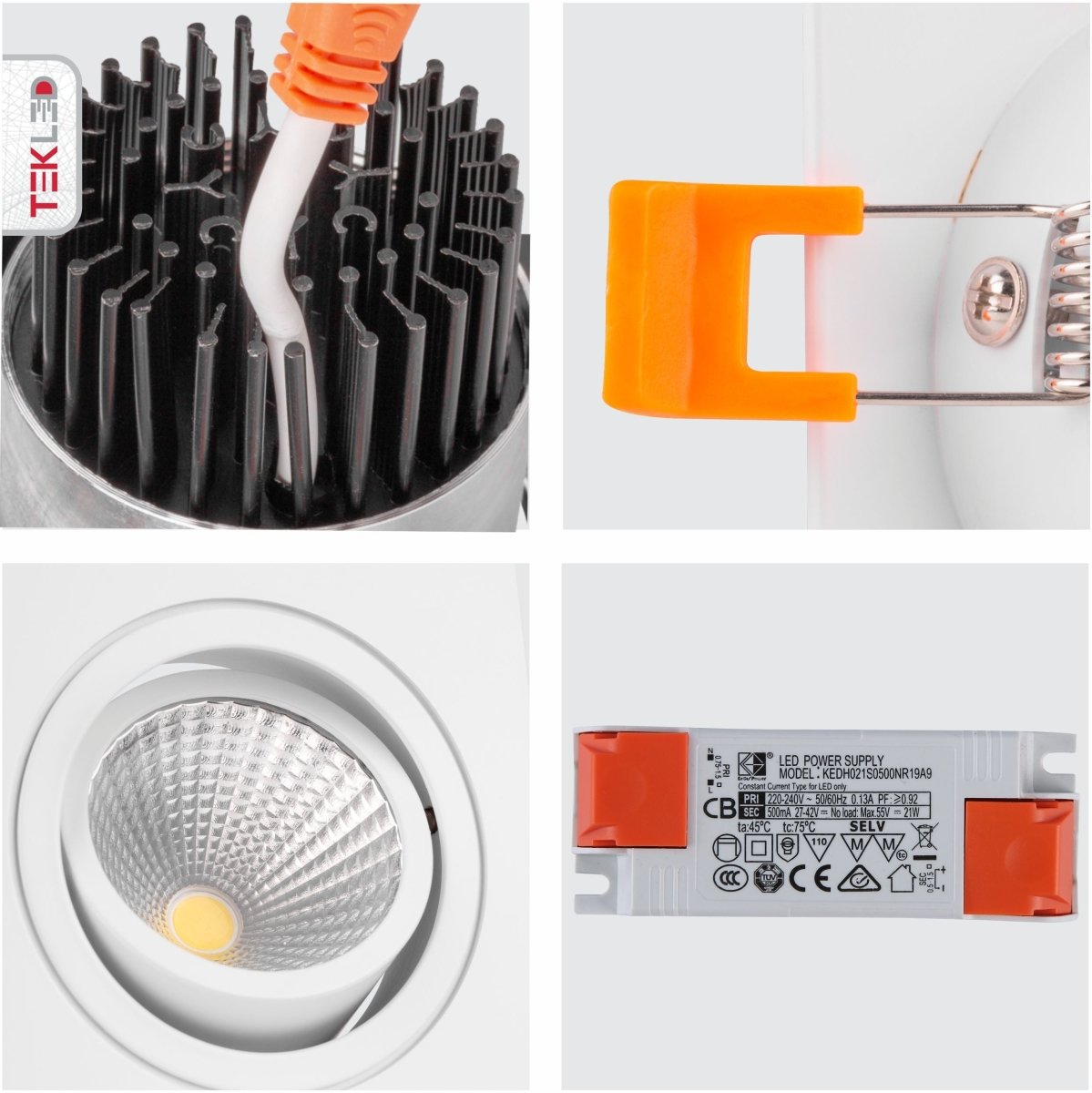

| Bulbs | Built-in LED fixture with LED driver |
| Light Output(luminous flux) | 1310 lm | 2140 lm | 1200 lm |
| Luminous Efficacy | 110 lm/W | 100 lm/W | 120 lm/W |
| Lux | avg 280Lux @2m | avg 455Lux @2m |
| CRI(Colour Rendering Index) | CRI>90 |
| CCT (Kelvin)(Light Colour) | 3000K Warm White | 4000K Cool White |
| IP Class(Ingress Protection) | IP20 |
| Mount Type | Recessed Mount |
| Function Mode | On/Off |

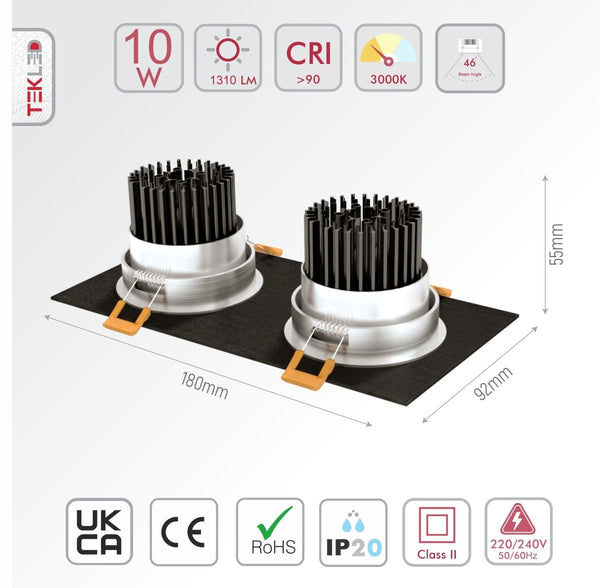

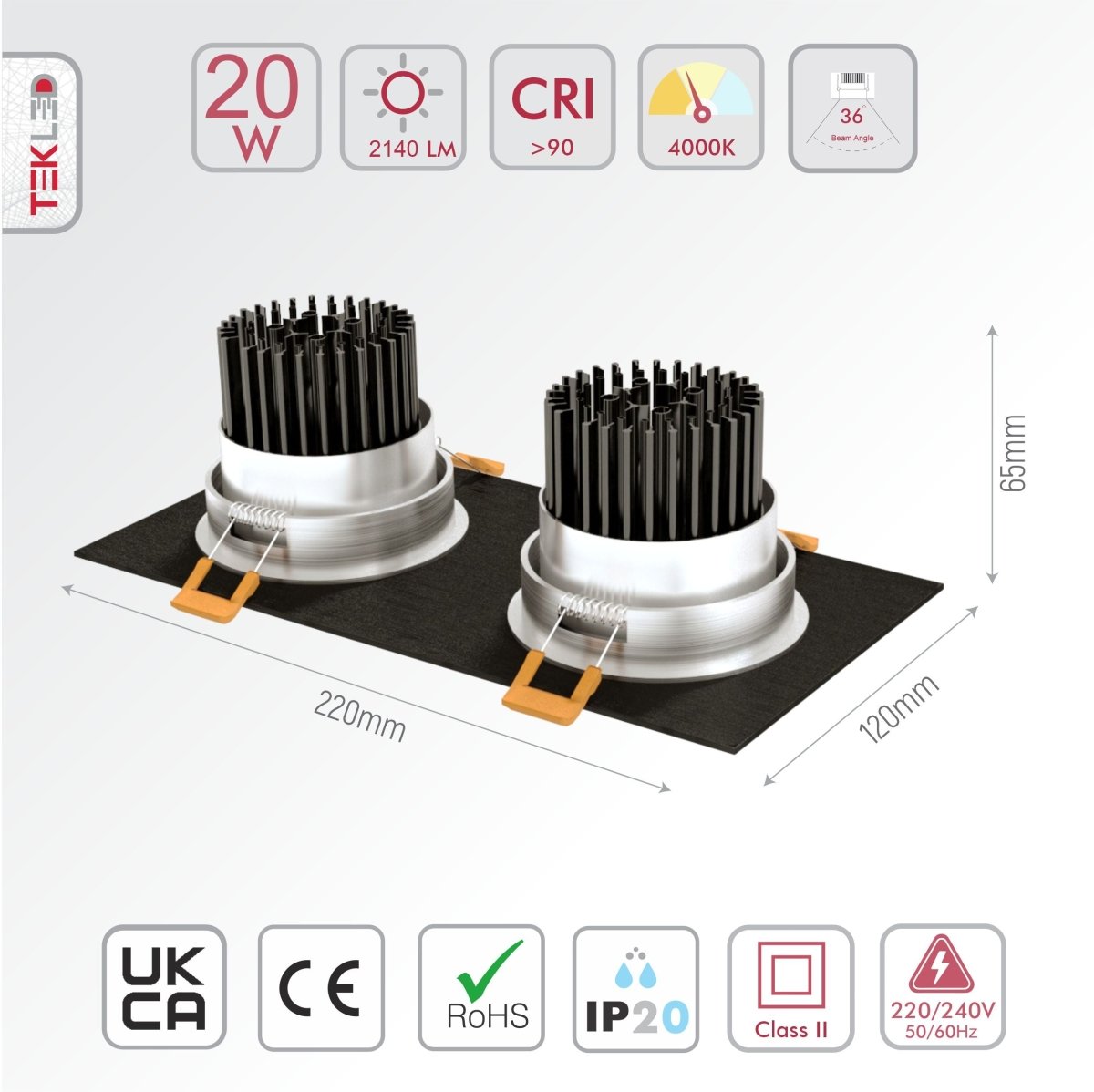

| Product Dimensions (L x W x H) (D x H) | 180x92x55mm | 230x120x65mm | 185x130x80mm |
| Cut-Out Size | 155x75 | 205x95 | 155x75mm |

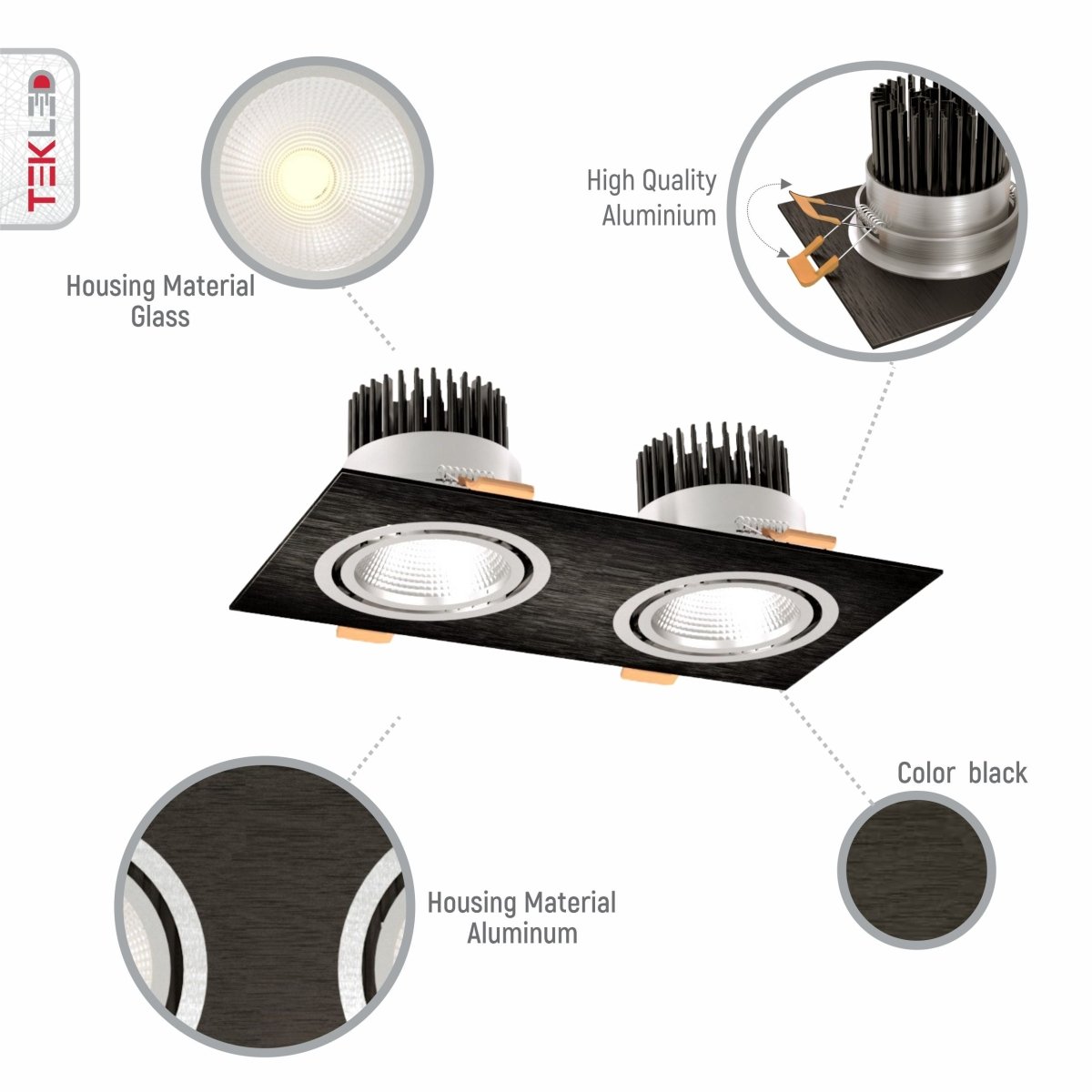

| Made of Materials | Aluminium, PMMA, Glass |

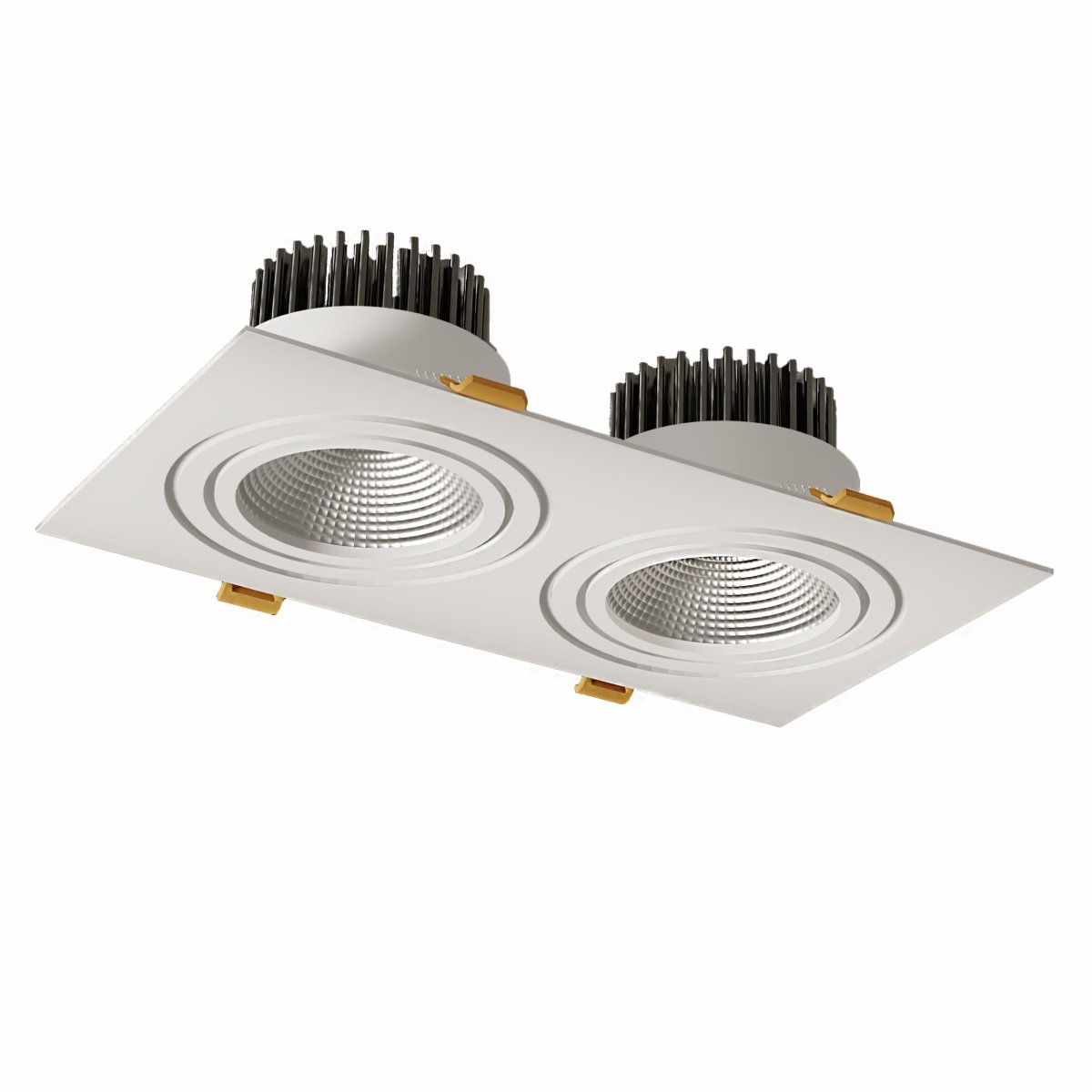

| Product Colour | Black | White |
| Paint Type | Spray Painted |

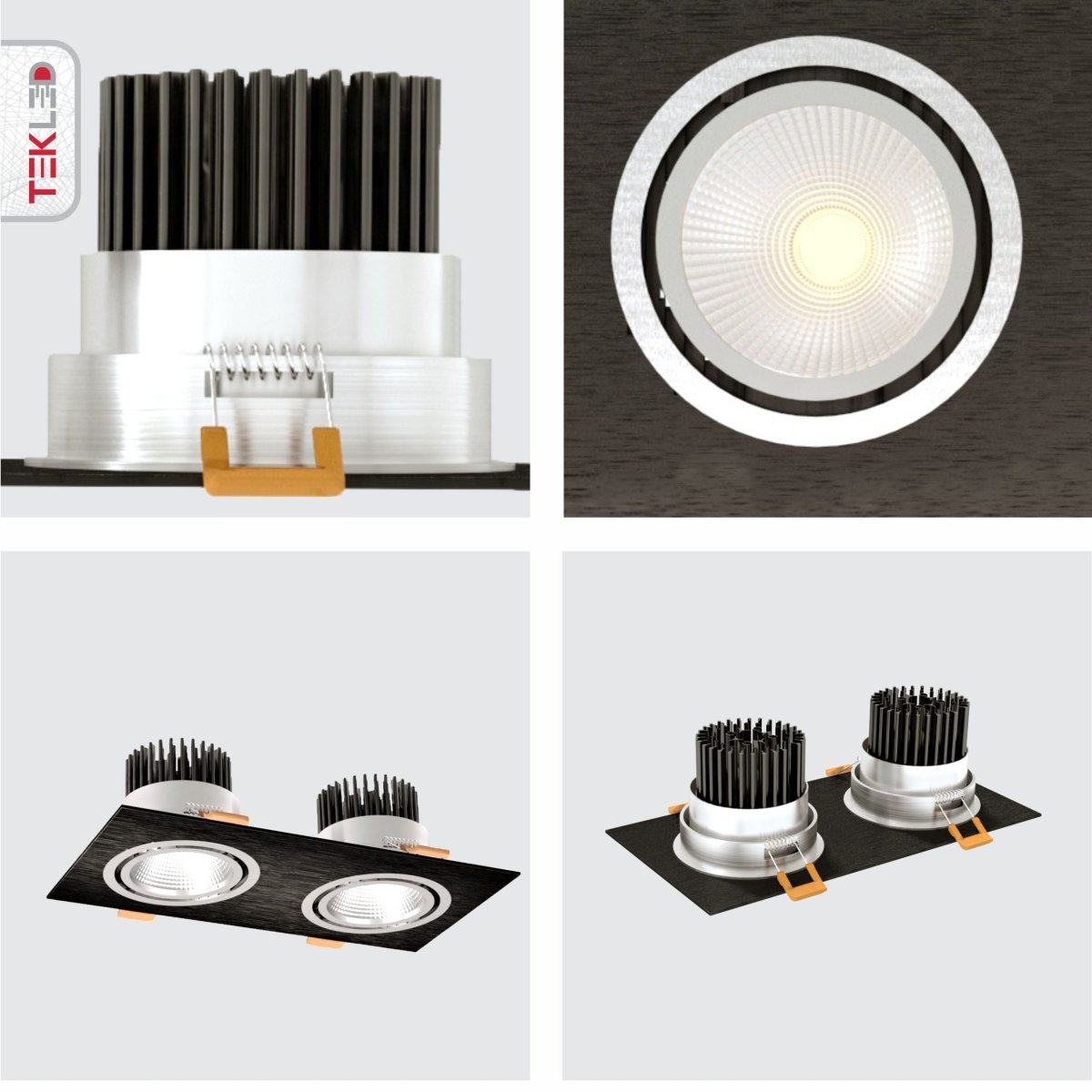

| Adjustable | Tilt and rotate |
| Optic Type | Reflector |
| Optic Material | Aluminium | PMMA |
| Diffuser Material | Glass |
| Diffuser Type | Clear |
| Driver Brand | KeGu |
| Driver Type | Constant Current |
| Driver Power | 6W*2 | 12W*2 |
| Driver Input Voltage | 220~240Vac 50/60Hz |
| Driver Input Current | 0.05A*2 @240Vac | 0.09A*2 @240Vac |
| Driver Output Voltage | 10-20Vdc | 25-40Vdc |
| Driver Output Current | 300mA*2 | 300mA |
| Surge Protection Level | 1kv |
| Power Factor | pf>0.5 |
| Flickering | Non-Flickering |
| Control | On/Off |
| Operating Temperature (C) | -20/+45C |
| New Energy Rating | F | F | E |
| Energy Rating | A++ |
| Warranty | 3 year |
| Life Span | 30000 h | 20000 h |
| Gross Weight | 0.37kg | 0.55kg |
| Net Weight | 0.33kg | 0.49kg |
| Box Dimensions (LxWxH) | 185x130x80mm | 235x125x80mm |
| Box Content | 1 pcs Lamp Body 1 pcs instruction | 1 x Light fitting |
| Certifications | UKCA, CE (LVD, EMC) | UKCA, CE, RoHS |
