Constant Current (CC) LED drivers play a pivotal role in delivering efficient, stable, and safe operation of LED devices. In this comprehensive guide, we're going to deep-dive into the world of CC LED drivers, explaining what they are, how they work, where they are utilized, and more. We'll also tackle some of the most frequently asked questions about these crucial components.

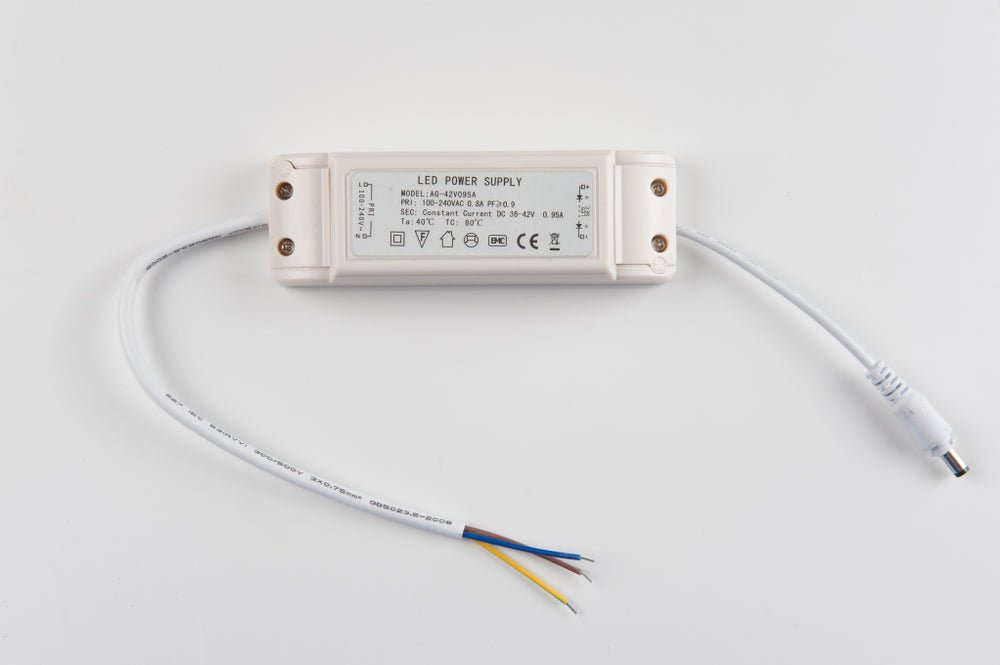

A Constant Current (CC) LED driver is a type of power converter that maintains a consistent electric current supply to an LED or LED array. It's designed to adjust the voltage across the LED circuit to ensure that the current remains constant. This stability is vital because LEDs are highly sensitive to variations in current. Slight changes can result in significant differences in light intensity, colour, and lifetime, or may cause damage to the LED. Therefore, CC drivers are essential for safeguarding LED devices against overcurrent and ensuring their longevity and consistent performance.
How Does a Constant Current LED Driver Work?
A CC LED driver operates by constantly monitoring the current flowing through the LED circuit and adjusting the voltage to maintain a constant current level. This functionality is especially important because the relationship between an LED's voltage and current is not linear. Minor changes in voltage can result in significant changes in current, which can affect the LED's brightness, colour, and lifespan or even damage it. By regulating the current, a CC LED driver ensures that the LED operates within its specified current range, thus ensuring consistent brightness, colour, and longevity, and preventing overcurrent that could cause damage.
Where Can I Use a Constant Current LED Driver?
CC LED drivers are highly versatile and are used in a broad range of LED lighting applications that require stable and precise light output. Some of the key areas where you may use a CC LED driver include:
- Retail Lighting: CC LED drivers are commonly used in retail environments for accent lighting, product displays, and highlighting specific areas or products. They provide consistent brightness and colour to enhance visual appeal.
- Museum and Gallery Lighting: Constant Current drivers are ideal for museum and gallery lighting, where precise illumination is required to showcase artwork, artifacts, and exhibits. They ensure uniform lighting without any fluctuations.
- Hospitality Lighting: Hotels, restaurants, and bars often utilize CC LED drivers for ambient lighting, task lighting, and decorative lighting. These drivers offer stable and flicker-free illumination, creating a pleasant and inviting atmosphere.
-
Commercial Office Lighting: Constant Current drivers are suitable for office spaces, providing reliable lighting solutions for general illumination or task lighting requirements. They help improve productivity and create a comfortable work environment.
- Outdoor Landscape Lighting: CC LED drivers are used for landscape lighting applications such as garden illumination, pathway lighting, or highlighting architectural features. They offer consistent brightness and colour in outdoor settings.
- Street Lighting: In street lighting applications, where high-power LEDs are employed, CC LED drivers ensure efficient and uniform illumination throughout the street, contributing to enhanced visibility and safety.
- Industrial Lighting: Industrial facilities such as warehouses, factories, and production areas can benefit from CC LED drivers for high-bay lighting or task lighting, ensuring consistent and reliable illumination in challenging environments.
- Entertainment Lighting: Constant Current drivers are utilized in the entertainment industry for stage lighting, concert lighting, theatrical lighting, and other performance-related applications. They provide precise control over lighting effects and maintain stable output.
- Backlighting and display lighting: CC drivers can be used in backlighting for LCD televisions and display lighting where stable and uniform brightness is required.
This list is by no means exhaustive, as CC LED drivers can be used in virtually any application where LEDs require a stable current for optimal performance. However, the choice between a CC and a Constant Voltage (CV) driver will depend on the specific requirements of the LED device and the application.
What Are the Different Types of Constant Current LED Drivers?
Constant current LED drivers come in various forms to suit different applications and installation environments. Some of the common types include:
- AC Input CC Drivers: These drivers accept an AC voltage input and output a constant DC current. They are typically used in indoor applications and are designed to connect directly to the mains power supply.
- DC Input CC Drivers: These drivers accept a DC voltage input and output a constant DC current. They are often used in applications powered by batteries or renewable energy sources like solar panels.
- Dimmable CC Drivers: These drivers allow the output current (and therefore the brightness of the LED) to be adjusted through dimming control signals, such as 1-10V, DALI, or PWM.
-
Non-dimmable CC Drivers: These drivers provide a fixed output current and do not support dimming. They are typically simpler and cheaper than dimmable drivers.
What Are the IP Ratings for Constant Current LED Drivers?
The IP (Ingress Protection) rating of a CC LED driver refers to its level of protection against the ingress of dust and water. Here are some common IP ratings for CC LED drivers:
- IP20: Offers protection against solid objects up to 12mm, like hands and similar objects. It's not waterproof and is typically used in indoor applications.
- IP65: Dust-tight and protected against water projected from a nozzle. It's suitable for outdoor use and in environments where the driver may be exposed to dust and water jets.
- IP67: Dust-tight and protected against immersion in water for up to 30 minutes at depths between 15cm and 1 meter. It's ideal for use in outdoor applications where the driver may be subjected to heavy rain or brief submersion in water.
- IP68: Dust-tight and protected against continuous submersion in water. It's used in applications where the driver may be permanently submerged in water, such as underwater lighting.
Each IP rating is suited for different applications, so it's essential to choose a driver with the appropriate IP rating based on the specific installation environment.
How Does a Constant Current LED Driver Compare to a Constant Voltage LED Driver?
Constant Current and Constant Voltage are the two primary methods of driving LEDs, and they have distinct differences.
A CC driver maintains a constant current to the LED, adjusting the voltage as needed to achieve this. It's typically used when the number of LEDs (or LED strings) in a circuit is known and fixed, and it's essential to maintain the same current through each LED.
On the other hand, a Constant Voltage driver maintains a constant voltage, allowing the current to vary. This type of driver is usually used with LED strips, where the number of LEDs may vary. With a CV driver, the same voltage is applied across the entire strip, and each segment of the strip draws the current it needs.
While both types of drivers have their advantages, neither is inherently better than the other. The choice between a CC and CV driver will depend on the specific LED device and application requirements.
What Are the Advantages and Disadvantages Of Constant Current LED Drivers?
Like any technology, CC LED drivers come with their own set of advantages and disadvantages.
Advantages:
- Current stability: CC drivers provide a stable current, ensuring consistent brightness and colour across all LEDs in a circuit.
- LED protection: They help protect LEDs from overcurrent, which can lead to damage and reduced lifespan.
Disadvantages:
- Design complexity: Designing with CC drivers can be more complex than with CV drivers, especially in applications where the number of LEDs may vary.
- Cost: CC drivers can be more expensive than CV drivers due to the additional circuitry required to regulate the current.
How Do I Choose a Constant Current LED Driver?
Choosing a CC LED driver involves considering several factors:
- Output Current: Determine the required current for your LED or LED array and choose a driver that delivers this current.
- Input Voltage: Make sure the driver can handle the input voltage from your power source. For example, if you're using mains power, the driver should be able to handle the typical mains voltage in your location (e.g., 120V in the US, 230V in Europe).
- Output Voltage Range: The driver's output voltage range should cover the total voltage of your LED array.
- Dimming Requirements: If you need to dim your LEDs, choose a driver that supports the dimming method you intend to use.
- IP Rating: Choose a driver with an appropriate IP rating for the environment where the driver will be installed.
- Protection Features: Consider drivers with protection features such as overvoltage, overcurrent, and short-circuit protection, especially for high-reliability applications.
Can I Drive an LED Strip with a CC Power Supply?
In general, LED strips are not designed to be driven by a constant current (CC) power supply. LED strips, especially those commonly used for under-cabinet or accent lighting that operate at 12V or 24V, are designed for constant voltage (CV) power supplies. These strips have resistors integrated into the strip to control the current to each LED or group of LEDs.
Using a CC driver could cause uneven lighting or potentially damage the strip because the current would vary based on the number of LEDs in use, which changes as you cut the strip to length. There are some high-power LED strips designed for professional lighting applications that can be driven with a CC driver, but these are not common and typically specified by the manufacturer.
As a rule, always use the type of driver recommended by the LED strip manufacturer to ensure optimal performance and longevity.
Can I Drive a 34V COB LED with a CC LED Driver with a Range of 48-60V?
No, you cannot safely drive a 34V Chip-on-Board (COB) LED with a CC LED driver that has an output voltage range of 48-60V. The voltage rating of the LED should fall within the output voltage range of the driver. In this case, a 34V COB LED would require a driver with an output voltage range that includes 34V.
What icons or markings should I look for when seeking a Constant Current (CC) LED driver in the UK?
In the UK, the CE marking has been replaced by the UKCA (UK Conformity Assessed) marking for certain products, including LED drivers. When seeking a Constant Current (CC) LED driver in the UK, look for the following icons or markings:- UKCA Marking: The UKCA marking indicates that the LED driver meets the required standards for safety, health, and environmental protection in the UK.
- RoHS Symbol: The RoHS symbol signifies compliance with the Restriction of Hazardous Substances Directive, which restricts the use of hazardous substances in electrical and electronic equipment.
- IP Rating: Check for the IP rating indicated on the product, specifying the level of protection against dust and water. Common IP ratings for LED drivers include IP20, IP65, and IP67.
- Manufacturer's Certification: Look for any additional certifications or standards specific to LED drivers, such as ISO 9001, ISO 14001, or relevant IEC standards.
