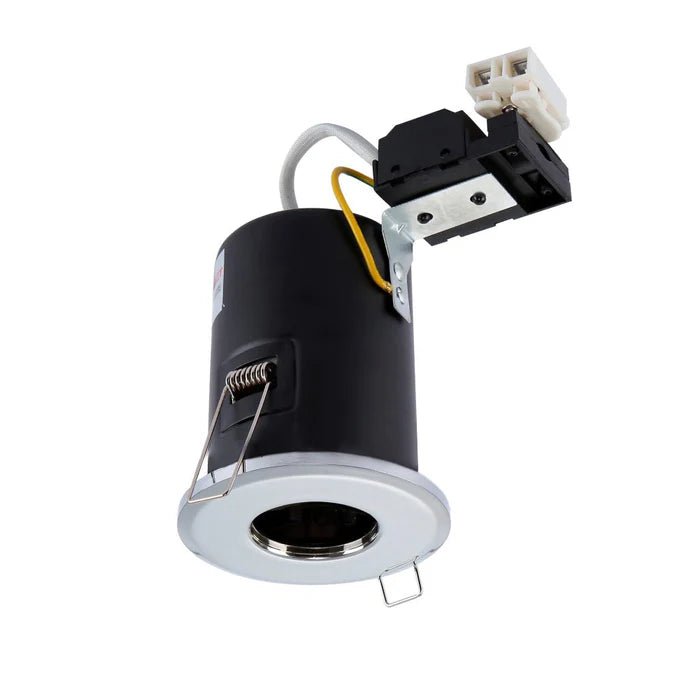

What is a Fire Rated Light?
A fire-rated light, also known as a fire-rated downlight or fire-rated recessed light, is a lighting fixture designed to provide a barrier against the spread of fire in a building. It is specifically designed to maintain the fire resistance of ceilings or walls where they are installed.
The main purpose of a fire-rated light is to prevent the passage of fire and hot gases through the opening created by the recessed light fixture. In the event of a fire, the fire-rated light is intended to delay the spread of flames, heat, and smoke to neighbouring areas, providing additional time for occupants to evacuate the building and for emergency response teams to mitigate the situation.
Fire-rated lights are typically constructed using fire-resistant materials and have additional features that enhance their fire resistance. Some common features of fire-rated lights include:
- Fire-resistant housing: The housing of the fire-rated light is made of materials that can withstand high temperatures and resist fire spread.
- Intumescent material: Many fire-rated lights contain intumescent material, which expands when exposed to heat, forming a barrier that seals the opening and helps prevent the spread of fire and smoke.
- Fire-rated glass or diffuser: Fire-rated lights may have special glass or diffuser materials that are resistant to heat and flames.
- Fire-rated seals: The light fixture is equipped with fire-rated seals or gaskets to seal the gap between the fixture and the ceiling or wall, providing an additional layer of protection against fire and smoke penetration.
It's important to note that the fire resistance of a light fixture is determined by its specific fire rating, which indicates the duration for which it can maintain its integrity during a fire. Fire-rated lights are usually rated for a specific time, such as 30 minutes, 60 minutes or 90 minutes indicating the duration they can withstand the spread of fire.
When installing fire-rated lights, it is crucial to follow the manufacturer's instructions and any applicable building codes or regulations to ensure proper installation and maintain the fire resistance of the lighting system. Consulting with a qualified electrician or fire safety professional is recommended to ensure compliance with fire safety requirements.
What is a Fire Rated Light Used For?
Fire-rated lights are primarily used for maintaining the fire resistance of ceilings or walls in buildings where recessed lighting fixtures are installed. They serve the following purposes:
- Fire Protection: Fire-rated lights are installed in areas where there is a risk of fire spreading through the ceiling or wall openings created by recessed light fixtures. By incorporating fire-resistant materials and construction features, fire-rated lights help contain the spread of fire, heat, and smoke, minimising the risk of property damage and providing additional time for safe evacuation.
- Building Safety Compliance: Building codes and regulations often require the use of fire-rated lights in specific locations, such as fire-rated partitions, fire-rated ceilings, or areas where fire compartmentalisation is necessary. Using fire-rated lights ensures compliance with these safety standards and helps meet the legal requirements for fire protection in buildings.
- Emergency Egress Illumination: Fire-rated lights can also serve as emergency egress illumination during a fire incident. By maintaining their integrity and functionality in the event of a fire, they provide essential lighting for occupants to find their way to exits and evacuation routes.
- Design and Aesthetics: Fire-rated lights are available in various designs and styles, allowing them to seamlessly integrate into the overall interior design of a space. They can provide both functional lighting for example outdoor lights and aesthetic appeal such as fire rated downlights or recessed lights, while maintaining the required fire resistance.
Where is Fire Rated Light Used?
Fire-rated lights are used in various commercial, residential, and public buildings where recessed lighting fixtures are installed. Some common areas where fire-rated lights are commonly used include:
- Commercial Buildings: Fire-rated lights are installed in offices, retail stores, restaurants, hotels, and other commercial establishments to ensure fire safety compliance and protect against the spread of fire in ceilings or walls. Fire-rated downlights or fire–rated recessed lights are a popular choice in commercial buildings to provide both illumination and fire-protection.
- Residential Buildings: Fire-rated lights are utilised in residential buildings such as houses, apartments, and condominiums. They are commonly installed in areas like kitchens, living rooms, bedrooms, and hallways to maintain fire resistance and enhance overall fire safety.
- Healthcare Facilities: Hospitals, clinics, and other healthcare facilities often require fire-rated lights in patient rooms, corridors, waiting areas, and other spaces to ensure the safety of patients, staff, and visitors in the event of a fire.
- Educational Institutions: Fire-rated lights are used in schools, colleges, and universities to meet fire safety regulations and provide protection in classrooms, corridors, libraries, and other areas.
- Public Spaces: Fire-rated lights are essential in public spaces such as airports, train stations, shopping malls, and theatres to enhance fire safety and emergency egress routes.
- Industrial Facilities: Manufacturing plants, warehouses, and industrial buildings often utilise fire-rated lights in areas where recessed lighting is required, ensuring fire protection in these environments.
It is important to note that the specific locations within these buildings where fire-rated lights are used may vary based on local building codes, regulations, and the fire safety requirements of each space. Consulting with a qualified electrician or fire safety professional is recommended to determine the appropriate use of fire-rated lights in specific building projects.
What Is The History of Fire Rated Lights?
The history of fire-rated lights can be traced back to the development of fire safety standards and regulations in the construction industry. Fire-rated lighting fixtures were created to address the need for maintaining the fire resistance of ceilings and walls where recessed lights were installed.
The establishment of fire safety regulations and building codes gained prominence in the early 20th century as a response to devastating fires that occurred in various cities worldwide. These fires, such as the Great Chicago Fire of 1871 and the Triangle Shirtwaist Factory fire in New York City in 1911, highlighted the need for improved fire safety measures in buildings.
Over time, as building regulations became more stringent, the concept of fire-rated lights emerged. These specialised lighting fixtures were designed to prevent the spread of fire and smoke through the openings created by recessed light fixtures. Fire-rated lights incorporated various features and construction techniques to enhance their fire resistance and maintain the integrity of fire-rated ceilings or walls. For example, fire rated light covers for recessed lights are a popular choice in situations where the integrity of fire-rated ceilings or floors must be preserved. They are used to seal off the opening around the recessed light fixture, preventing the spread of fire and heat through the ceiling or floor.
The development of fire-rated lights involved advancements in fire-resistant materials, intumescent technology, and the understanding of fire behaviour. Intumescent materials, which expand when exposed to heat, were incorporated into the design of fire-rated lights to create a barrier that seals the opening and hinders the passage of fire and smoke.
Today, fire-rated lights are an integral part of fire safety strategies in buildings. They are manufactured to meet specific fire resistance ratings, such as 30 minutes, 60 minutes, or even longer, depending on the required level of fire protection. These fixtures undergo testing and certification processes to ensure their compliance with fire safety standards and regulations.
As building codes and fire safety practices continue to evolve, fire-rated lights will continue to be developed and improved to provide enhanced fire protection in buildings of all types.
How Do I Know If a Light Is Fire Rated?
To determine if a light is fire-rated, you can look for specific markings, labels, or certifications on the light fixture itself or in the product documentation. Here are some indicators that can help you identify if a light is fire-rated:
- Fire Rating Markings: Fire-rated lights typically have clear markings indicating their fire resistance rating. This information may be indicated on the fixture itself or on the product packaging. The fire rating is usually specified in minutes, such as "30 minutes," "60 minutes," or longer, indicating the amount of time the light can maintain its fire resistance.
- Third-Party Certifications: Look for certifications from recognized testing laboratories or certification bodies that specialise in fire testing. Common certifications include UL (Underwriters Laboratories), ETL (Intertek), CSA (Canadian Standards Association), and CE (Conformité Européene). These certifications confirm that the light fixture has undergone testing and meets specific fire safety standards.
- Documentation and Product Information: Review the product documentation, user manuals, or installation guides provided by the manufacturer. Fire-rated lights often include information about their fire resistance properties and may provide instructions on their appropriate use in fire-rated ceilings or walls.
- Manufacturer Specifications: Check the specifications provided by the manufacturer. Some manufacturers explicitly state whether a light fixture is fire-rated or suitable for installation in fire-rated assemblies. Look for specific statements regarding fire resistance or fire-rated compatibility.
It's important to note that the presence of fire rating markings or certifications alone does not guarantee the suitability of a light fixture for a specific application. It is essential to consult with a qualified electrician, architect, or fire safety professional who can assess the specific requirements of your project and ensure that the chosen light fixture is suitable for the intended use in fire-rated assemblies.
What Makes a Light Fire Rated?
A light fixture is considered fire-rated when it has been designed and tested to maintain the fire resistance of the ceiling or wall in which it is installed. Here are some key features and characteristics that make a light fire-rated:
- Fire-Resistant Construction: Fire-rated lights are constructed using materials that have been specifically chosen for their fire-resistant properties. These materials are intended to withstand exposure to heat and flame without compromising the integrity of the fire-rated assembly.
- Intumescent Technology: Many fire-rated lights incorporate intumescent materials, which are substances that expand when exposed to heat. These materials act as a barrier, sealing off the opening created by the light fixture and preventing the passage of fire and smoke. The expansion of the intumescent material helps to maintain the fire resistance of the surrounding structure.
- Fire-Testing and Certification: Fire-rated lights undergo rigorous testing to ensure their compliance with fire safety standards and regulations. They are subjected to specific fire test protocols, such as the ASTM E119 or UL 263 test, to evaluate their performance under fire conditions. A light fixture must pass these tests and meet the defined criteria to receive fire-rating certifications from recognized testing laboratories.
- Fire Resistance Ratings: Fire-rated lights are assigned specific fire resistance ratings, which indicate the duration of time they can maintain their fire resistance. Common fire resistance ratings include 30 minutes, 60 minutes, 90 minutes, or longer, depending on the desired level of fire protection. The rating is determined through testing and indicates the amount of time the light can withstand exposure to fire before allowing the spread of flames or smoke.
It is important to note that a fire-rated light should be installed in accordance with the manufacturer's instructions and any applicable building codes or regulations. Improper installation or modification of the light fixture can compromise its fire-rated properties and the overall fire safety of the building. Consulting with a qualified electrician or fire safety professional is recommended to ensure proper selection and installation of fire-rated lights in fire-rated assemblies.
What Does 30 60 90 Fire Rated Mean?
"30-60-90 fire rated" refers to the fire resistance rating of a building component, such as a wall or door assembly. The numbers represent the duration in minutes that the component can withstand exposure to fire before it allows the spread of flames or smoke. Here's what each number signifies:
- 30-Minute Fire Rating: A component with a 30-minute fire rating can resist the spread of fire for at least 30 minutes. It is designed to provide a level of fire protection during this time, allowing occupants to evacuate safely and giving firefighters a window of opportunity to control the fire.
- 60-Minute Fire Rating: A component with a 60-minute fire rating provides a higher level of fire resistance than a 30-minute rating. It can withstand exposure to fire for at least 60 minutes, offering an extended period of protection and allowing more time for evacuation and firefighting efforts.
- 90-Minute Fire Rating: A component with a 90-minute fire rating offers the highest level of fire resistance among the three ratings. It can maintain its integrity for at least 90 minutes, providing an even longer duration of fire protection.
The fire rating is determined through standardised fire tests, such as the ASTM E119 or UL 263 test, which evaluate the component's ability to withstand heat, flames, and smoke. The specific requirements and regulations for fire ratings may vary between countries and regions, so it's essential to consult local building codes and regulations for precise information.
The 30-60-90 fire rating is often associated with building elements such as walls, doors, floors, or partitions. It indicates the time duration that these components can effectively prevent or delay the spread of fire, allowing for safer evacuation and reducing property damage.
Why Are Lights Fire Rated?
Lights can be fire-rated for several reasons, primarily to enhance fire safety in buildings. Here are some key reasons why lights are fire-rated:
- Prevention of Fire Spread: Fire-rated lights are designed to prevent the spread of fire from one area of a building to another. By incorporating fire-resistant materials and construction techniques, fire-rated lights can help contain fire within a specific space or room, limiting its ability to spread to adjacent areas. This containment can buy valuable time for occupants to evacuate and for firefighters to control the fire.
- Protection of Structural Integrity: Fire-rated lights play a role in preserving the structural integrity of a building during a fire. They are specifically designed to maintain the fire resistance of ceilings, walls, or other building elements where they are installed. The use of fire-rated lights ensures that openings created by the lights do not compromise the fire-resistance ratings of the surrounding structures.
- Passage of Electrical Wiring: Lights require electrical wiring to function, and these wiring systems can serve as conduits for fire and smoke to spread. Fire-rated lights incorporate measures to minimise the risk of fire transmission through electrical wiring. They are designed to contain the wiring within fire-resistant compartments or utilise firestop materials to seal any gaps or openings, preventing the spread of fire and smoke through the wiring pathways.
- Compliance with Building Codes: Building codes and regulations often require the use of fire-rated lights in specific applications or areas. These codes aim to ensure the safety of occupants and protect property in the event of a fire. Compliance with fire safety regulations may be a legal requirement, and the use of fire-rated lights helps meet these requirements.
By incorporating fire-rated lights, building owners and occupants can have increased confidence in the fire safety of their spaces. Fire-rated lights contribute to containing fire, preserving the structural integrity of buildings, and providing additional time for evacuation and firefighting efforts. It is important to consult with professionals and adhere to local building codes and regulations when selecting and installing fire-rated lights.
Why Do I Need Fire Rated Lights?
Fire-rated lights are essential for several reasons, all of which revolve around fire safety and compliance with building codes. Here are some key reasons why you may need fire-rated lights:
- Fire Containment: Fire-rated lights are specifically designed to help contain and control the spread of fire within a building. By using fire-resistant materials and construction techniques, these lights can help prevent the rapid spread of flames, heat, and smoke to other areas, allowing occupants more time to evacuate safely and reducing property damage.
- Protection of Building Elements: Fire-rated lights are installed in ceilings or walls, and they are designed to maintain the fire resistance of these structural elements. They help preserve the integrity of fire-rated ceilings or walls by minimising the impact of any openings created by the lights. This is crucial for ensuring that the fire-resistant properties of these building elements are not compromised.
- Compliance with Building Codes: Many building codes and regulations mandate the use of fire-rated lights in specific areas or applications. These codes are in place to ensure the safety of occupants and to mitigate the risk of fire-related incidents. Compliance with building codes is essential to meet legal requirements and to pass building inspections.
- Improved Fire Safety: Fire-rated lights contribute to overall fire safety by providing additional time for evacuation and enabling firefighters to respond more effectively. By delaying the spread of fire and smoke, fire-rated lights can help create safe escape routes and assist in the suppression of the fire.
- Insurance Requirements: In some cases, insurance policies may require the use of fire-rated lights to minimise fire risks and ensure adequate protection. Compliance with insurance requirements can help you maintain coverage and protect your investment.
It's important to consult with professionals and adhere to local building codes and regulations when determining the need for fire-rated lights. Fire safety should be a priority, and incorporating fire-rated lights can significantly enhance the safety and protection of your building and its occupants in the event of a fire.
What Does a Non Fire Rated Light Mean?
A non-fire rated light refers to a light fixture that does not have the fire-resistant properties or construction required to prevent the spread of fire or maintain the integrity of fire-rated barriers, such as ceilings or walls. These lights are not designed or tested to withstand the heat, flames, or smoke generated during a fire.
In contrast to fire-rated lights, non-fire rated lights may be constructed using materials that are more susceptible to heat, flame, or melting. They may lack features such as fire-resistant enclosures, firestop gaskets, or other mechanisms that prevent the passage of fire and smoke through the light fixture.
Using non-fire rated lights in areas where fire-rated lights are required by building codes and regulations can pose significant safety risks. During a fire, non-fire rated lights can contribute to the rapid spread of flames, heat, and smoke to other areas of the building. This can compromise the safety of occupants and increase the severity of the fire.
It's crucial to adhere to local building codes and regulations and consult with professionals to determine the appropriate use of fire-rated lights in areas where fire safety is a concern. Using non-fire rated lights in applications or locations where fire-rated lights are necessary may result in code violations, safety hazards, and potential legal consequences.
What Does ‘120 30 /- Fire Rating’ Mean?
The term "120 30 /- fire rating" is not a standard fire rating designation or industry term. Fire ratings typically follow a specific classification system that indicates the duration of fire resistance and the performance of a product or construction assembly in a fire.
The most common fire rating classification system includes three main elements:
- Fire Resistance Duration: This is represented by a number indicating the duration in minutes that a material or assembly can withstand fire exposure without failing. Common ratings include 30 minutes, 60 minutes, 90 minutes, and 120 minutes.
- Integrity: The integrity rating refers to the ability of a material or assembly to prevent the passage of flames and hot gases through it during a fire. This is typically indicated by the letter "E" (e.g., E30, E60) and is followed by the duration of fire resistance.
- Insulation: The insulation rating refers to the ability of a material or assembly to limit the transfer of heat through it during a fire. This is typically indicated by the letter "I" (e.g., I30, I60) and is followed by the duration of fire resistance.
What Does ‘-/ 60 /-’ Fire Rating Mean?
The term "-/ 60 /-" is not a standard fire rating designation or industry term. Fire ratings typically follow a specific classification system that indicates the duration of fire resistance and the performance of a product or construction assembly in a fire.
The most common fire rating classification system includes three main elements:
- Fire Resistance Duration: This is represented by a number indicating the duration in minutes that a material or assembly can withstand fire exposure without failing. Common ratings include 30 minutes, 60 minutes, 90 minutes, and 120 minutes.
- Integrity: The integrity rating refers to the ability of a material or assembly to prevent the passage of flames and hot gases through it during a fire. This is typically indicated by the letter "E" (e.g., E30, E60) and is followed by the duration of fire resistance.
- Insulation: The insulation rating refers to the ability of a material or assembly to limit the transfer of heat through it during a fire. This is typically indicated by the letter "I" (e.g., I30, I60) and is followed by the duration of fire resistance.
What are Fire Rated Standards?
Fire-rated standards are specific guidelines and requirements set by regulatory bodies, building codes, and industry organisations to ensure that certain materials, products, or constructions possess the necessary fire-resistant properties to mitigate the spread of fire and protect life and property. These standards define the criteria for fire performance, including fire resistance duration, integrity, insulation, and other related factors.
Fire-rated standards can vary depending on the region, country, and specific applications. They are typically developed and enforced by organisations such as the International Code Council (ICC), National Fire Protection Association (NFPA), Underwriters Laboratories (UL), and other local regulatory bodies.
Some common fire-rated standards include:
- ASTM E119: This standard specifies the fire resistance testing procedures for building elements such as walls, floors, and roofs.
- UL 94: This standard evaluates the flammability of plastic materials used in various products and provides a classification system based on ignition, flame spread, and self-extinguishing properties.
- NFPA 251: This standard outlines the fire resistance testing methods for gypsum board assemblies, including walls, ceilings, and partitions.
- BS 476: This British standard classifies the fire performance of building materials and structures, including fire resistance, flame spread, and smoke control.
It's essential to consult the specific fire-rated standards applicable to your location and project to ensure compliance and safety. Building codes and regulations typically reference these standards to determine the minimum requirements for fire safety in construction, electrical systems, furnishings, and other aspects of building design. Compliance with fire-rated standards helps reduce the risk of fire incidents, protect occupants, and facilitate efficient firefighting and evacuation procedures.
Are LED Panels Fire Rated?
LED panels themselves are not inherently fire-rated or fire-resistant. The fire rating of an LED panel depends on the construction and materials used in the panel, as well as any additional fire-resistant features or components that may be incorporated.
In general, LED panels should be installed in a manner that complies with local building codes and fire safety regulations. This may involve using fire-rated enclosures or ensuring proper fire barriers and separation between the LED panel and the surrounding structure. Fire-rated enclosures can help contain any potential fire or heat generated by the LED panel, preventing its spread to other areas.
When selecting LED panels, it is advisable to look for products that have undergone fire safety testing and certification from reputable testing laboratories. These certifications indicate that the LED panels have been evaluated for their fire performance and meet specific fire resistance standards. Examples of relevant certifications include UL (Underwriters Laboratories) and ETL (Intertek Testing Services), which test and certify products for fire resistance and safety.
Additionally, it is essential to follow the manufacturer's instructions and recommendations for the installation and use of LED panels. This includes proper electrical wiring, suitable mounting methods, and adherence to any specified fire safety measures.
It is always recommended to consult with a qualified electrician, lighting professional, or building code expert to ensure that LED panels are installed and used in compliance with applicable fire safety regulations in your specific location. They can provide guidance on the appropriate fire-rated measures to implement for LED panel installations.
