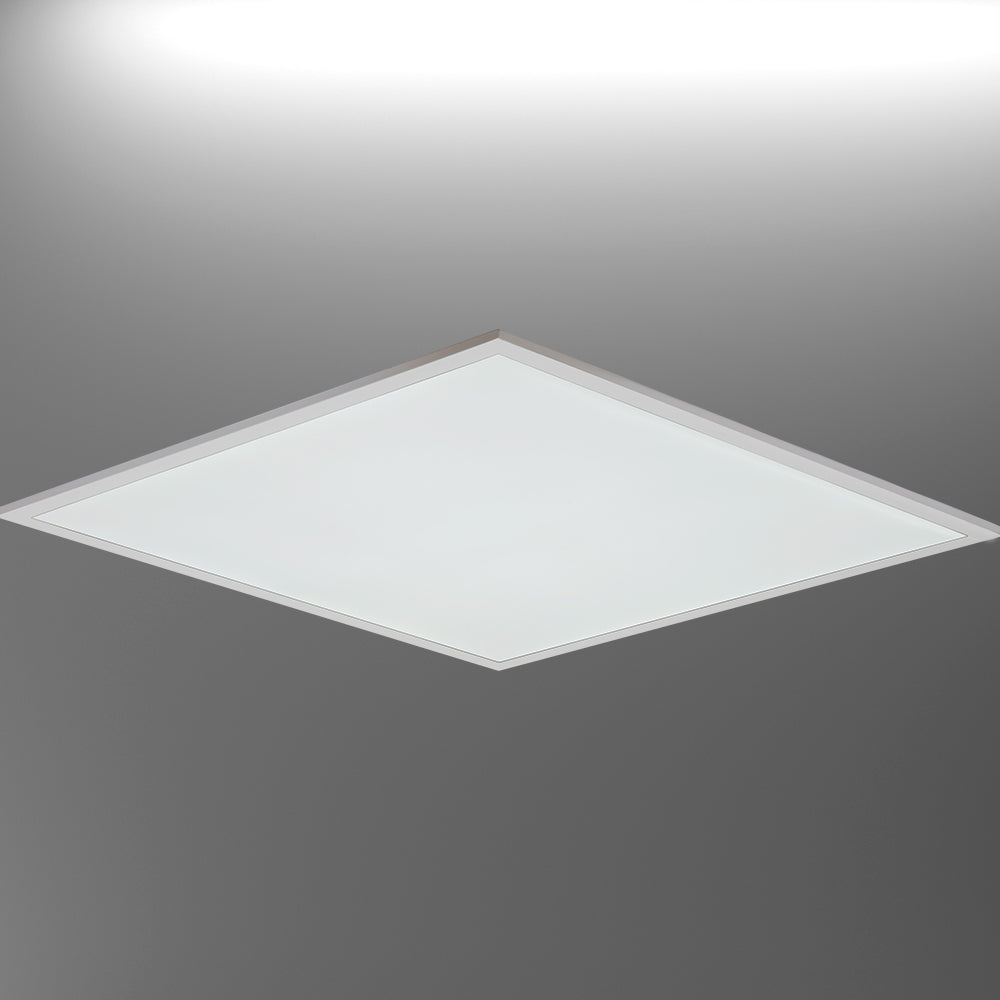

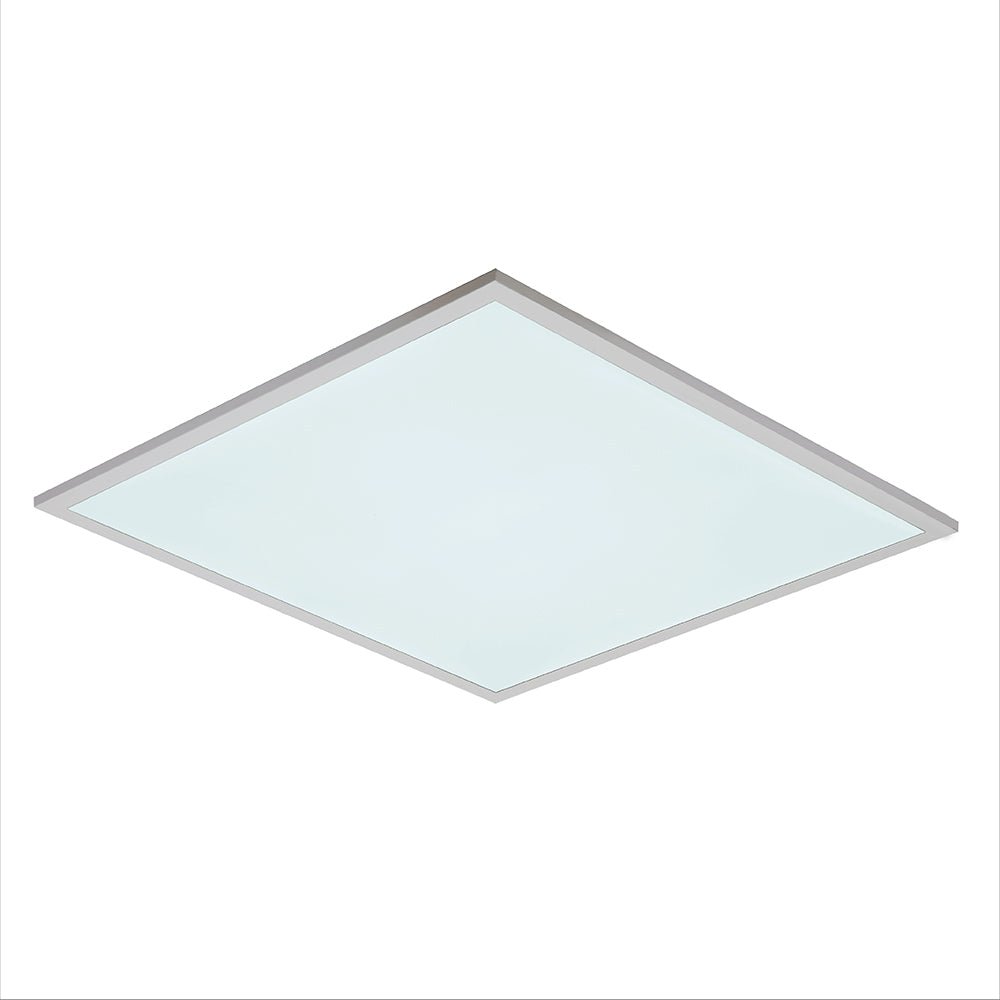

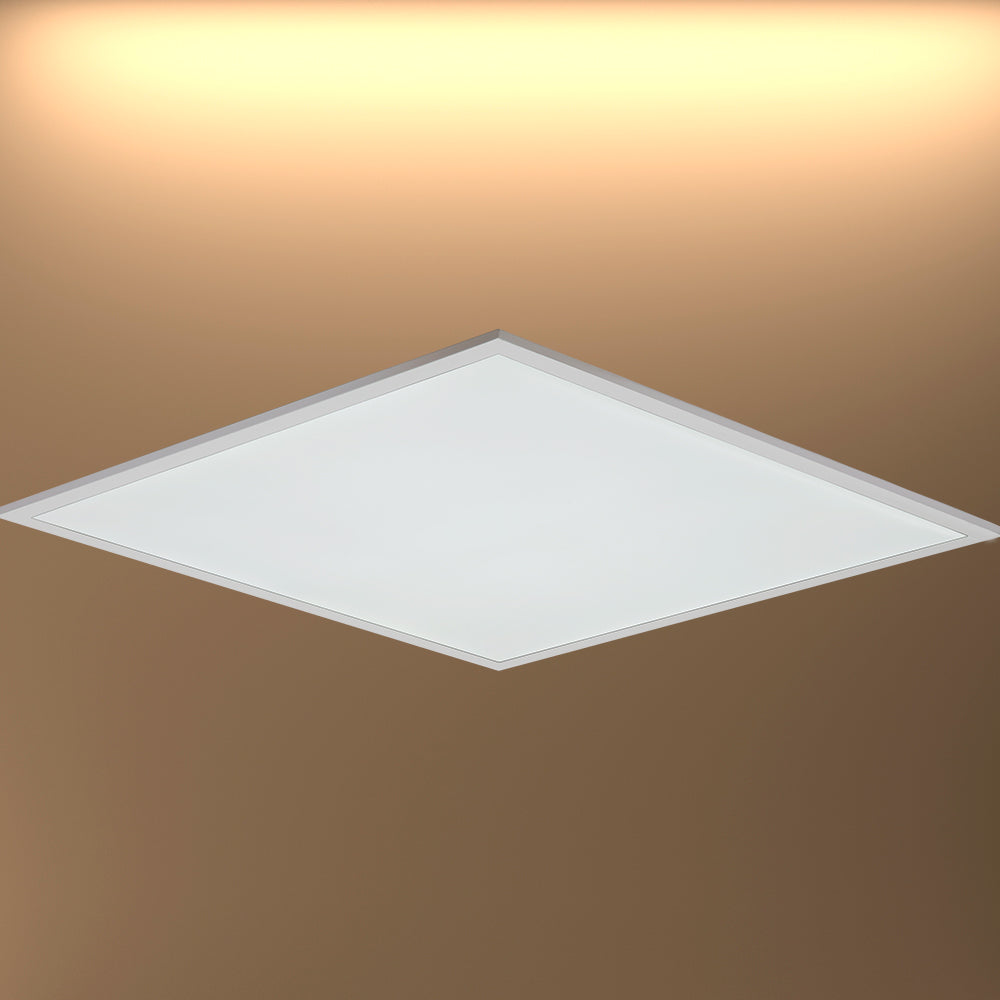

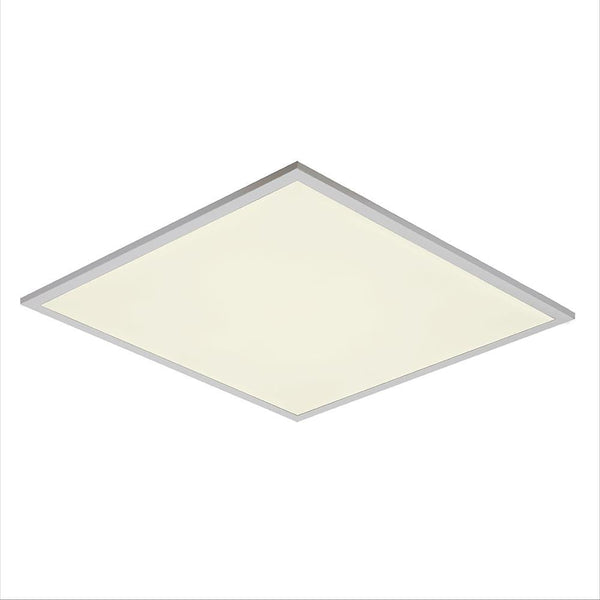

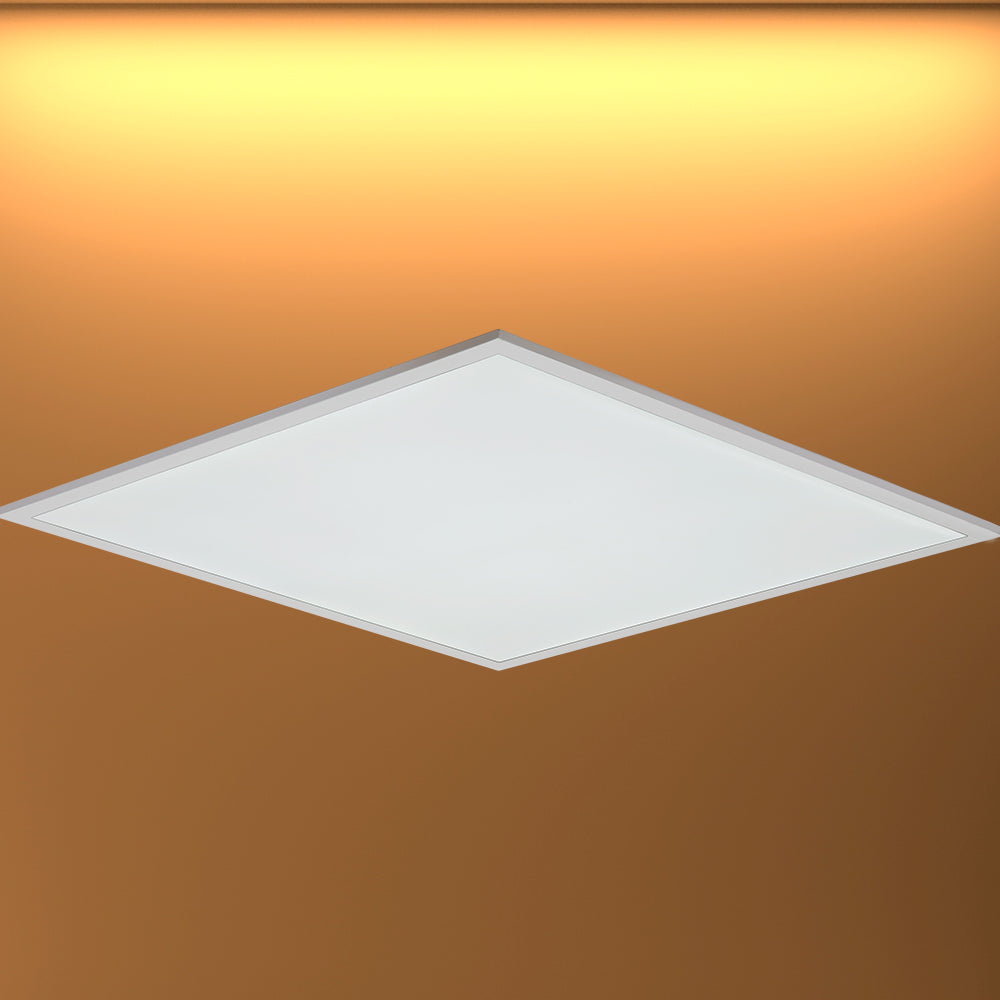

LED Backlit Panel Light 38W 3800Lm 600x600 2x2ft Non-Flickering - 3000K Warm White.

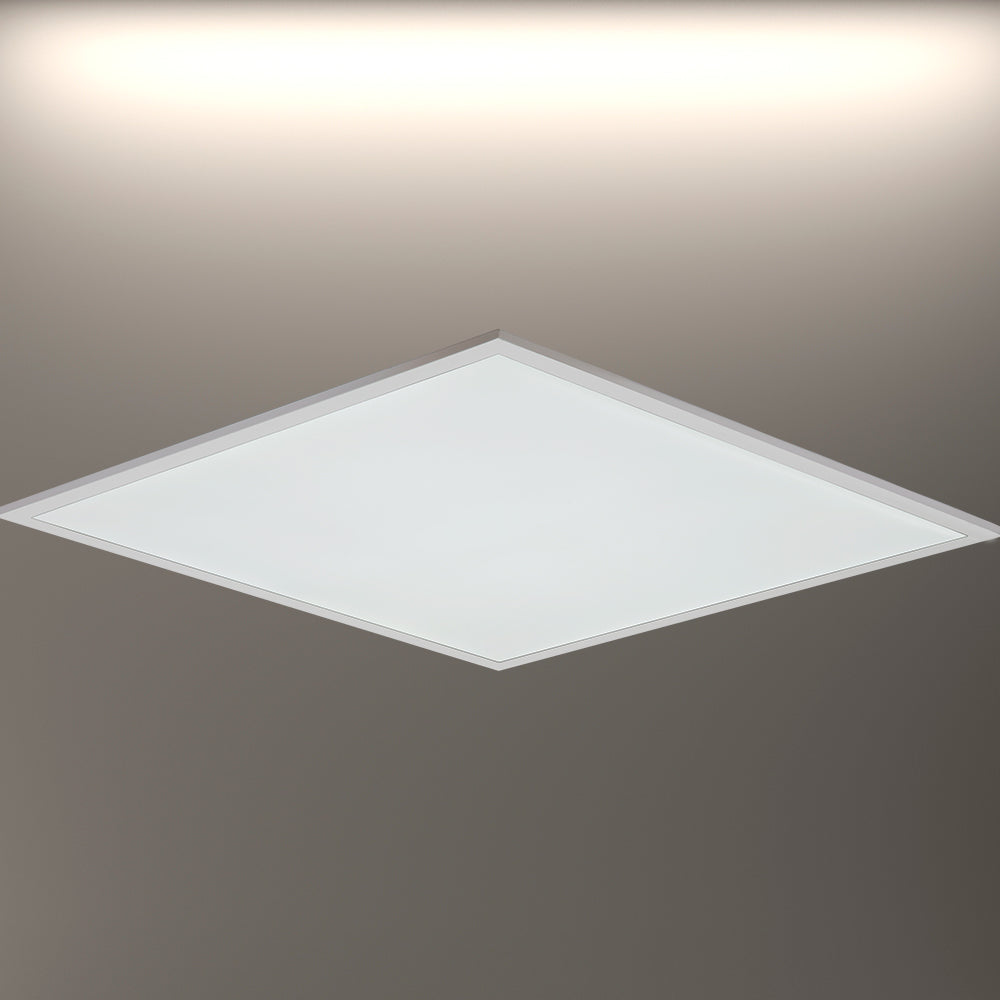

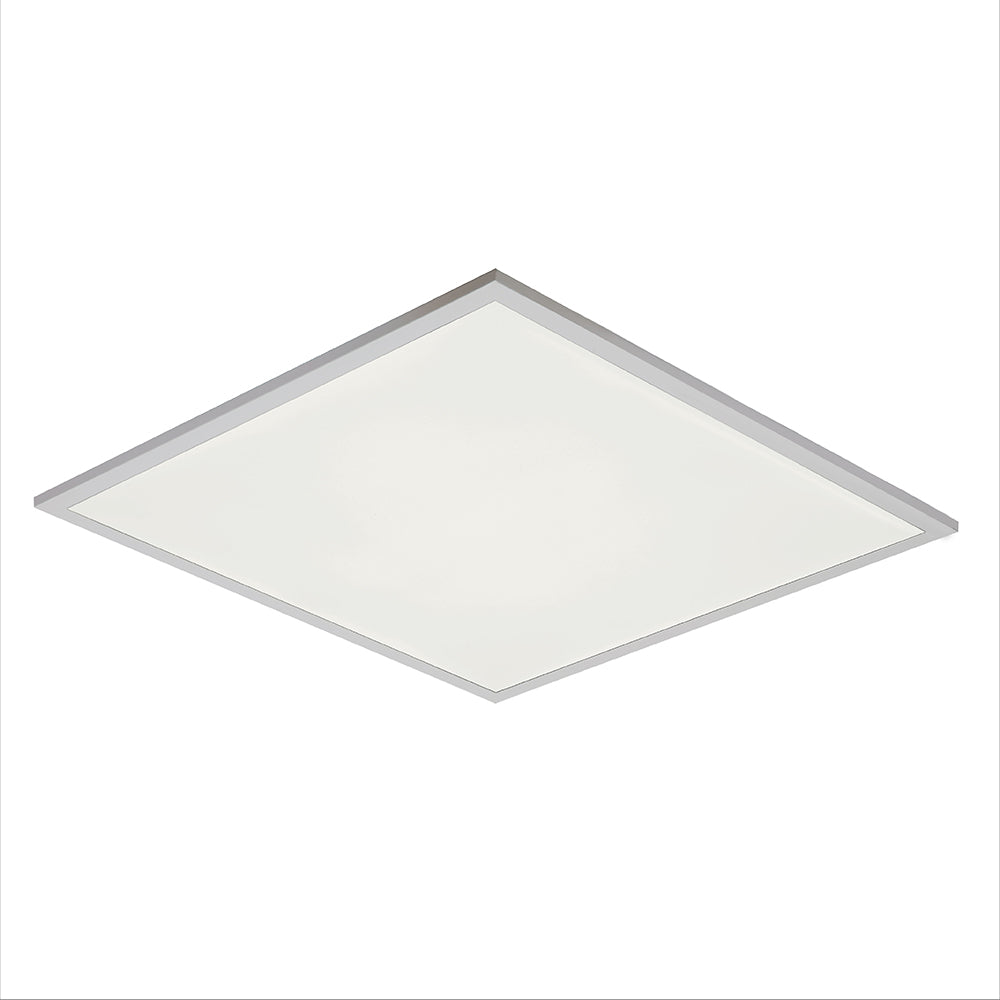

LED Backlit Panel Light 38W 3800Lm 600x600 2x2ft Non-Flickering

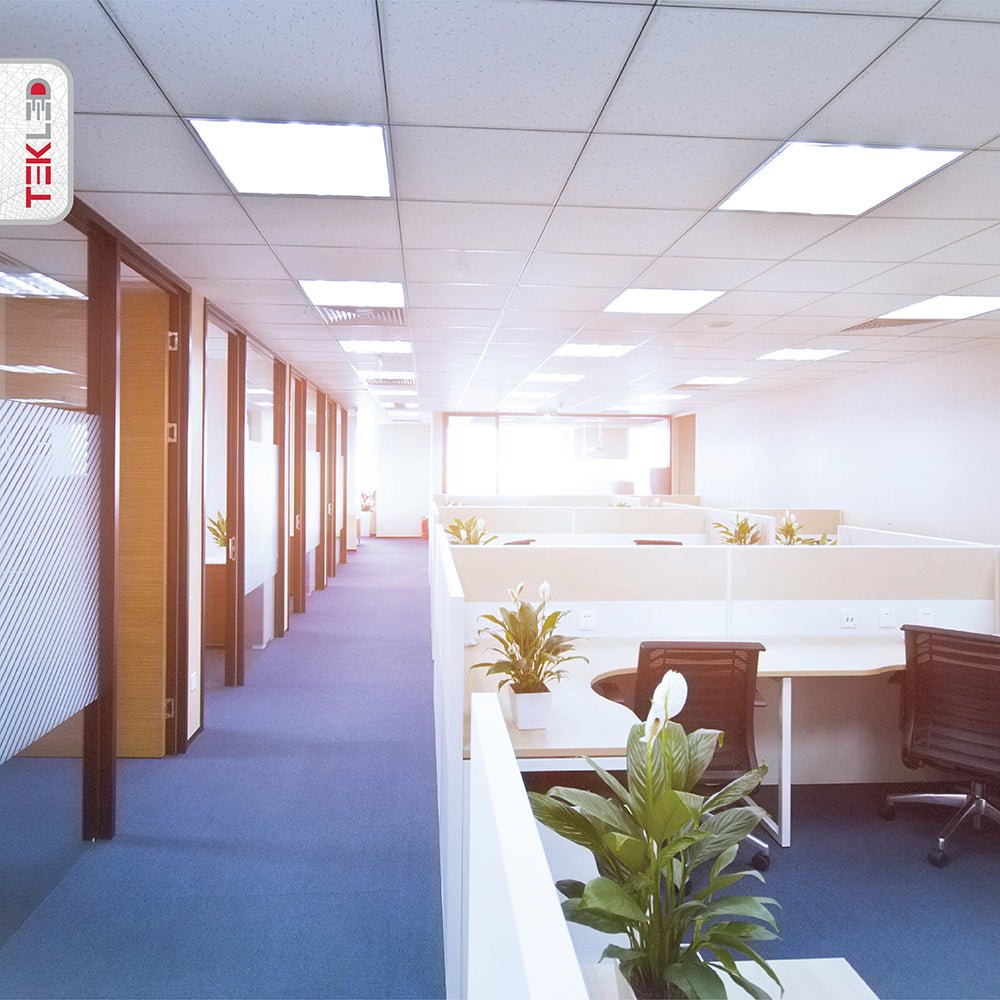

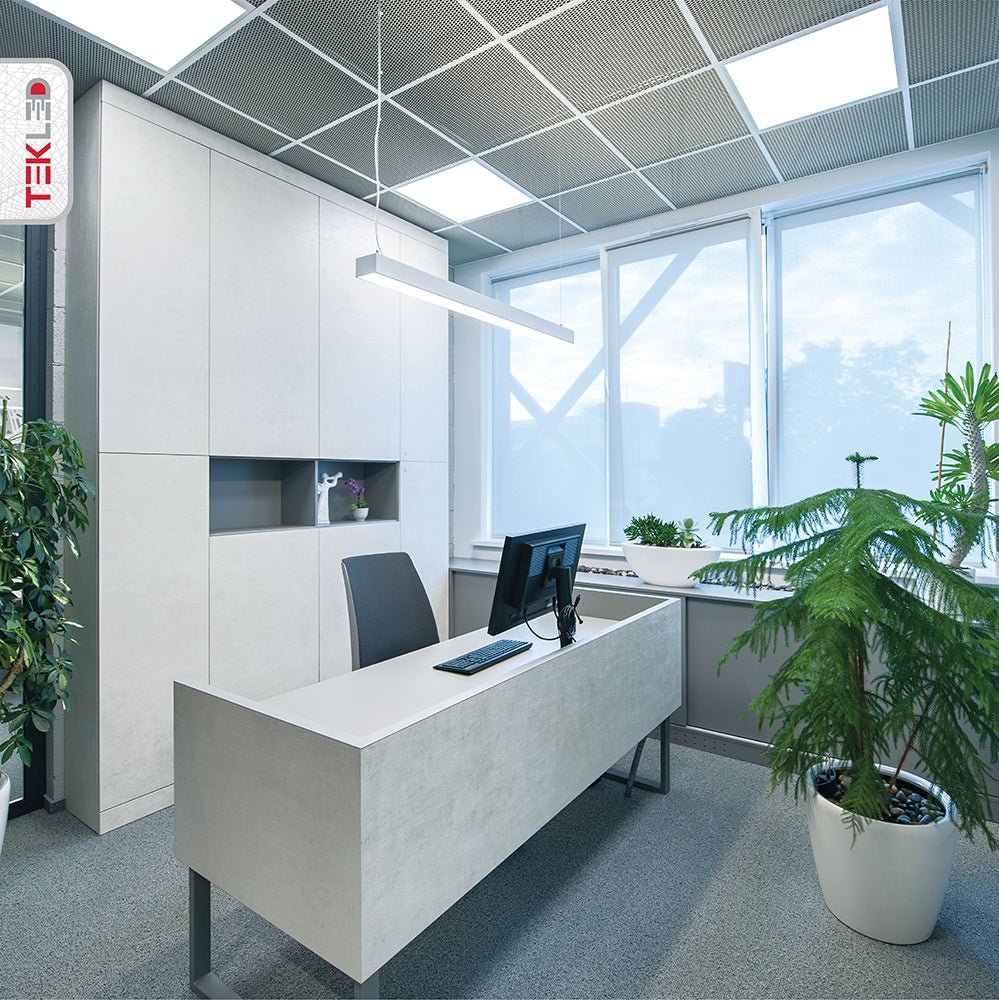

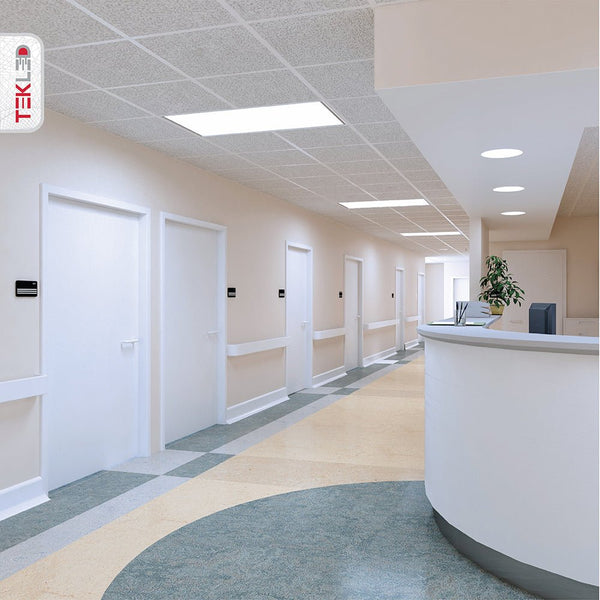

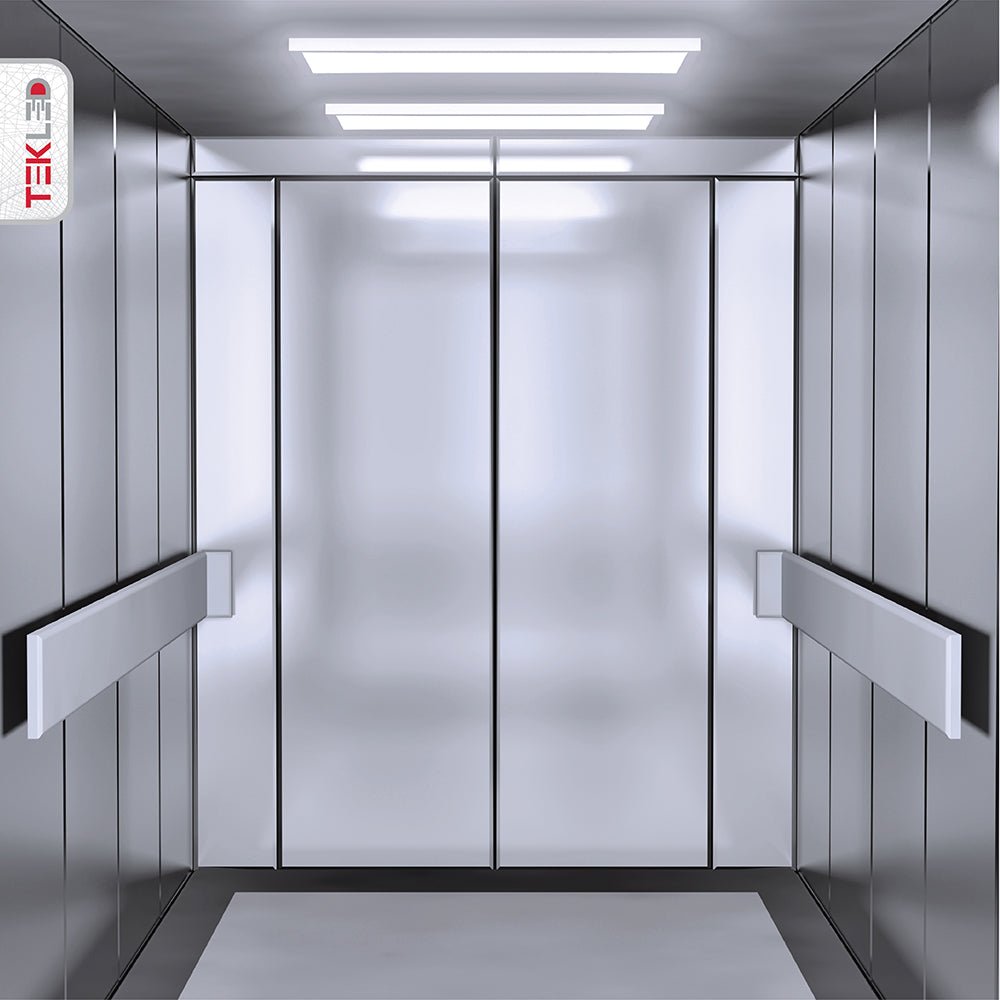

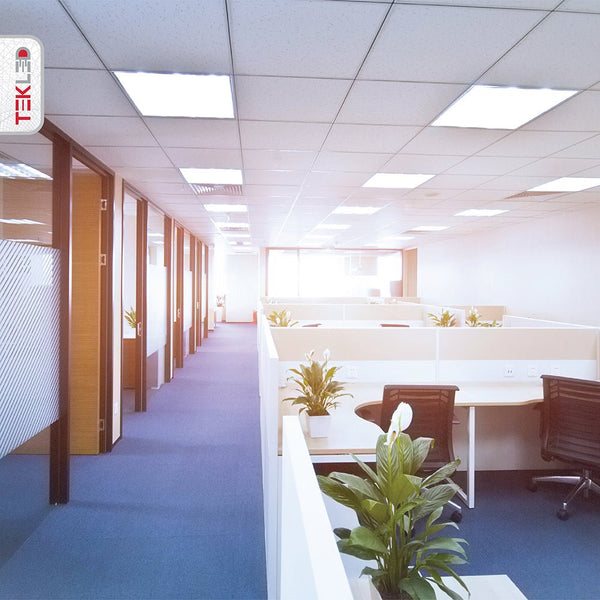

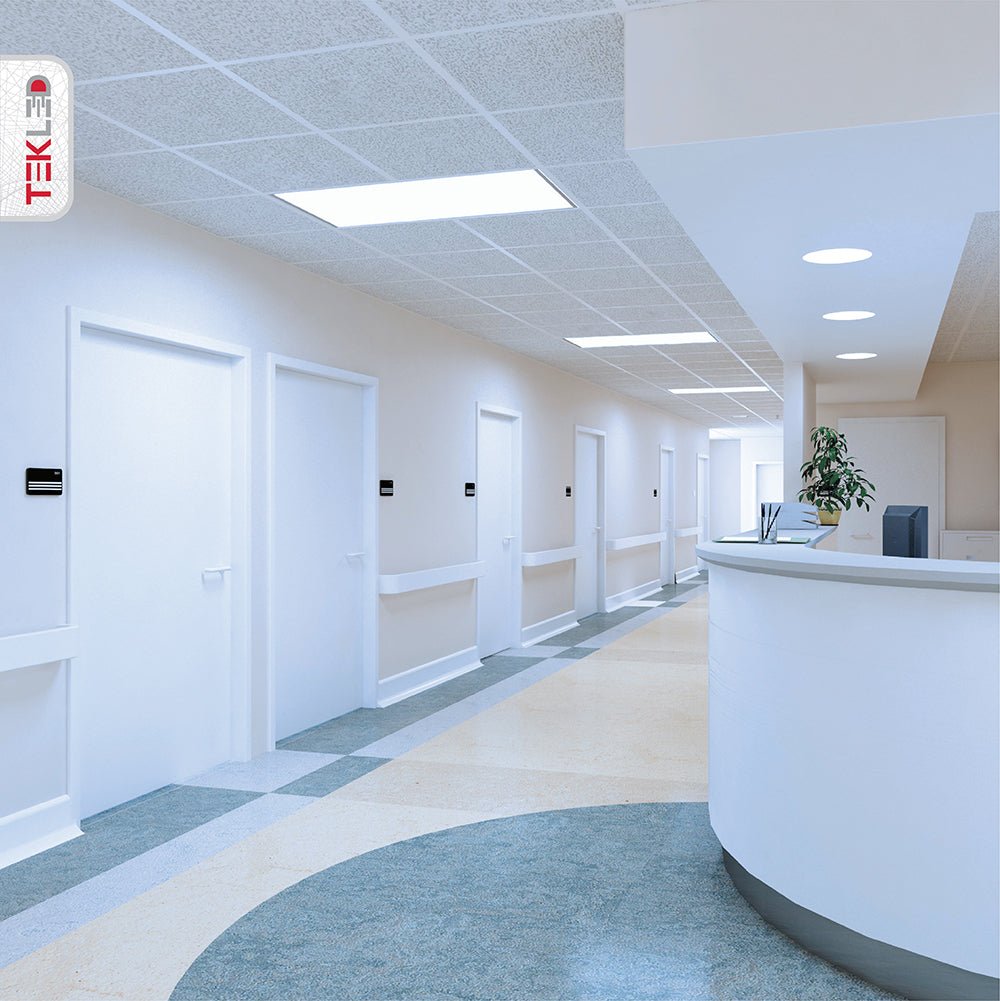

Here to deliver high brightness and even illumination with an instant light, no delay feature, this sleek designed LED backlit panel light from TEKLED is an excellent option for your indoor lighting decor. Its slim construction ensures a wider application such as to be used in living rooms, bedrooms, offices, take-aways, markets and retail stores or other such places which require to be lit for longer periods of time. Fitted with 38W integrated LED Lights, these panels are elegant in design and integrate seamlessly with your ceilings. All are our LED lights are extremely energy efficient and feature high efficiency LED driver giving outstanding lighting performance while being extremely low on energy consumption. More so, our lights dissipate least amount of heat to the environment resulting in cooler and comfortable indoors. This recessed mount, hardwired fixture is made of high quality aluminium frame with steel back cover with a polystyrene diffuser, making it highly durable. This panel light emits well-balanced, non-flickering, non-glaring glow which can reduce stress and induce sleep. This fixture is available in 4 variants with 6500K cool daylight, 5700K cool daylight, 4000K cool white light and 3000K warm white light colour temperatures to choose from. We guarantee that this fixture will not change colour for years. Its diffuser will not become greyish or yellowish by time since the heat source(LEDs) are far from the diffuser and we use high quality materials for our products.
Technical Specifications
Name | LED Backlit Panel Light 38W 3800Lm Warm White Cool White Cool Daylight 600x600 2x2ft Non-Flickering |
Product Code | 165-038403 | 165-038402 | 165-038401 | 165-038400 |
Power | 38 W |
Power Source | Hardwired |
Voltage | 220/240Vac 50/60Hz |
Input Current | 0.17 A @240Vac |
Lamp Holder Type | Integrated LED |
Protection Class | Class II |
Dimmability | Non-Dimmable |
Light Source | LED SMD 2835 |
Led Quantity | 2P4S*6*9V 48Pcs |
Bulbs | Built-in LED fixture with LED driver |
Lit Type | Backlit |
Light Output(luminous flux) | 3800 lm | 3750 lm |
Luminous Efficacy | 100 lm/W |
Lux | 320Lux @2m |
CRI(Colour Rendering Index) | CRI>80 |
CCT (Kelvin)(Light Colour) | 6500K Cool Daylight | 5700K Cool Daylight | 4000K Cool White | 3000K Warm White |
IP Class(Ingress Protection) | IP20 |
Mount Type | Recessed Mount |
Function Mode | On/Off |
Product Dimensions (L x W x H) (D x H) | 595 x 595 x 35 mm / 2 x 2 ft |
Cut-Out Size | 580 x 580 mm |
Power Cord Length | 15 cm |

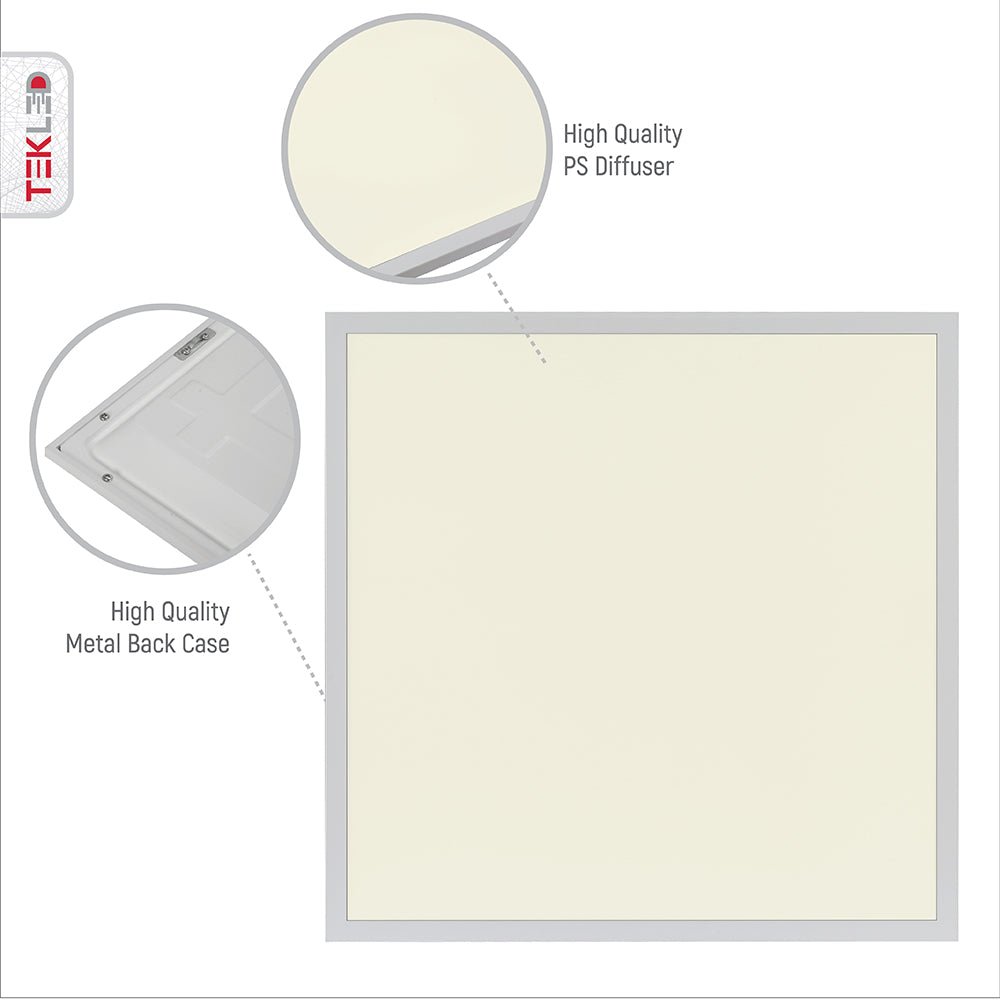

Made of Materials | Aluminium Frame, Steel Back Cover, Polystyrene Diffuser |
Product Colour | White |
Paint Type | Spray Painted |
Optic Type | Lens |
Optic Material | PMMA(acrylic) |
Diffuser Material | Polystyrene |
Diffuser Type | Opal |

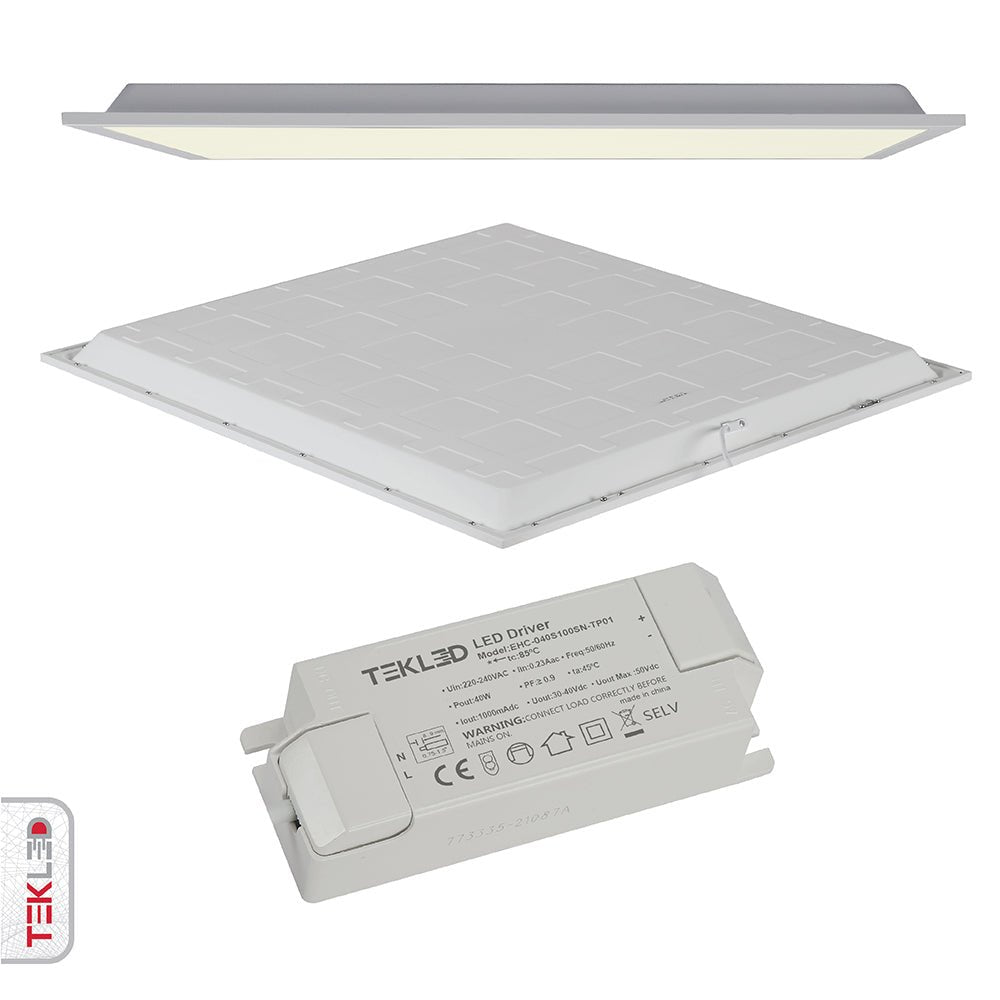

Driver Brand | TEKLED |
Driver Type | Constant Current |
Driver Power | 40W |
Driver Input Voltage | 220~240Vac 50/60Hz |
Driver Input Current | 0.17 A @240Vac |
Driver Output Voltage | 30-42Vdc |
Driver Output Current | 950mA |
Surge Protection Level | 2kV |
Power Factor | pf>0.9 |
Flickering | Non-Flickering |
Control | On/Off |
Operating Temperature (C) | -40/+55C |
New Energy Rating | F |
Energy Rating | A+ |
Warranty | 3 year |
Life Span | 50000h at Tc 70C |
Net Weight | 1.51kg |
Certifications | UKCA, CE, SAA, TUV, CCC, RoHS |
