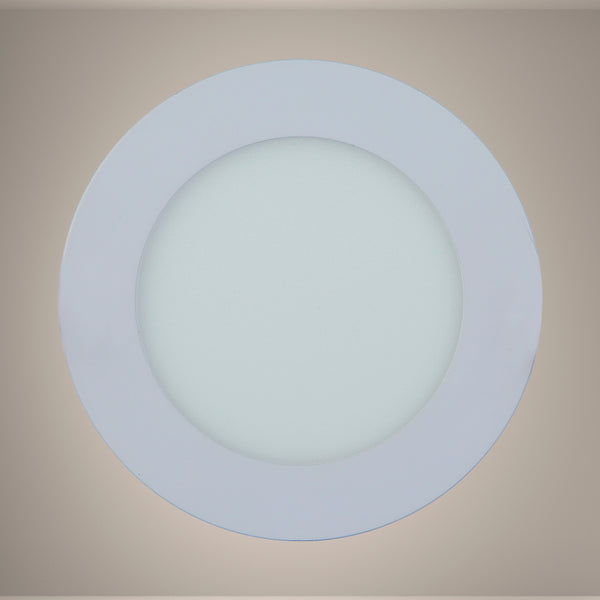

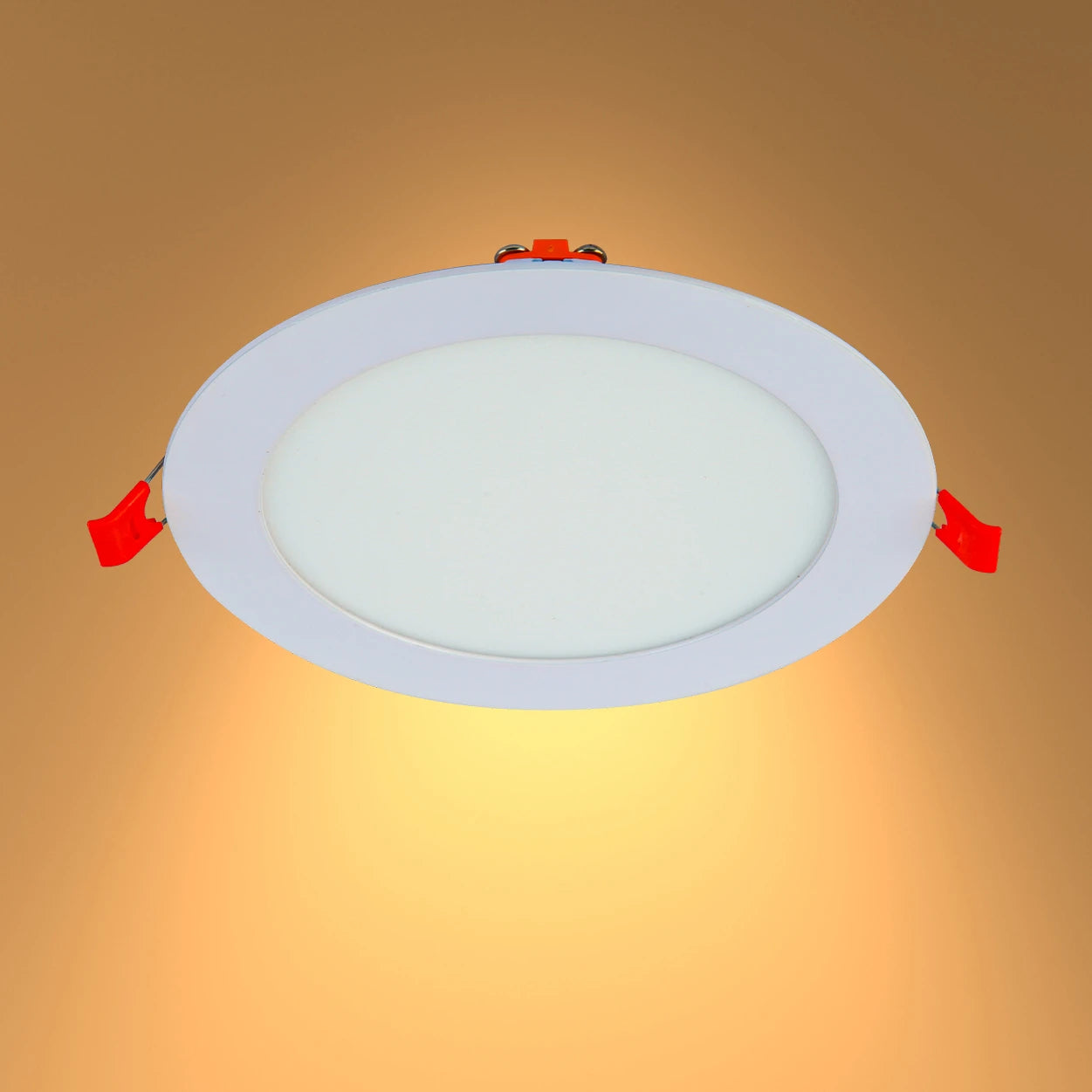

12W Downlight LED Round Slim Panel Light D170mm - 3000K Warm white.

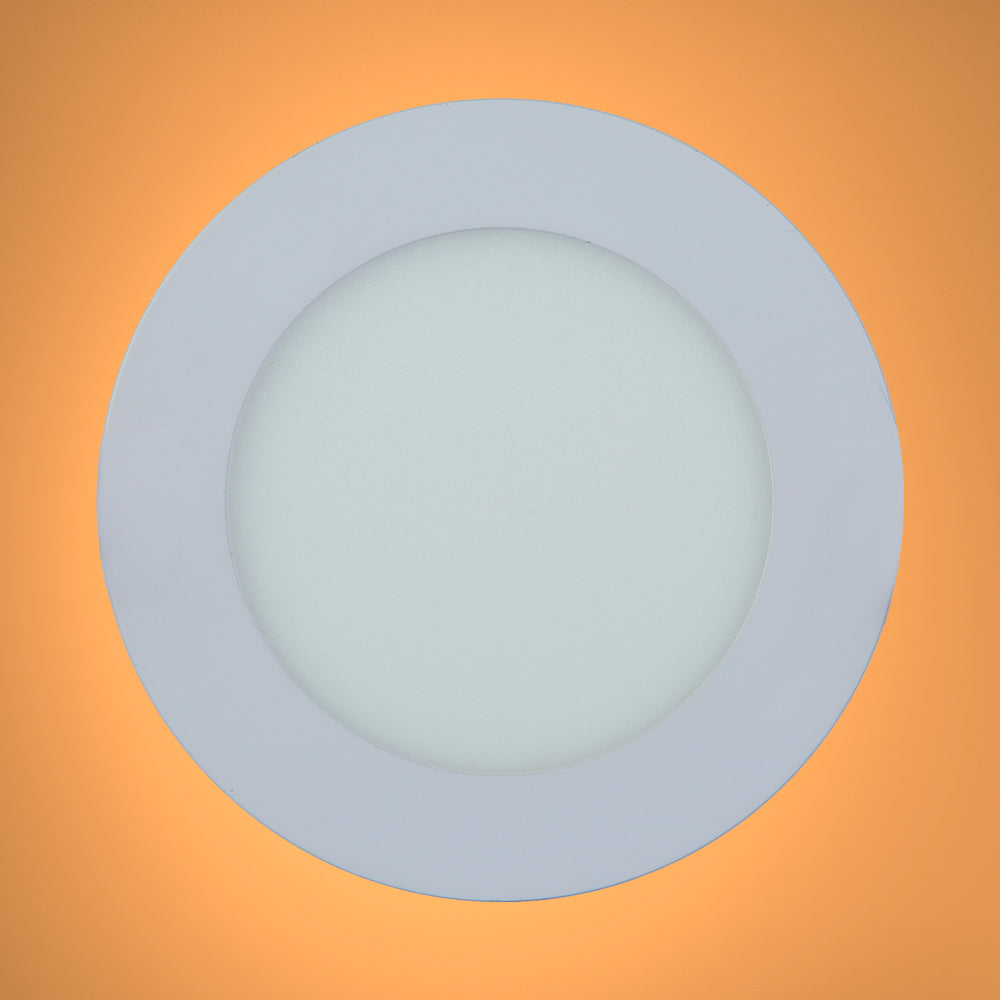

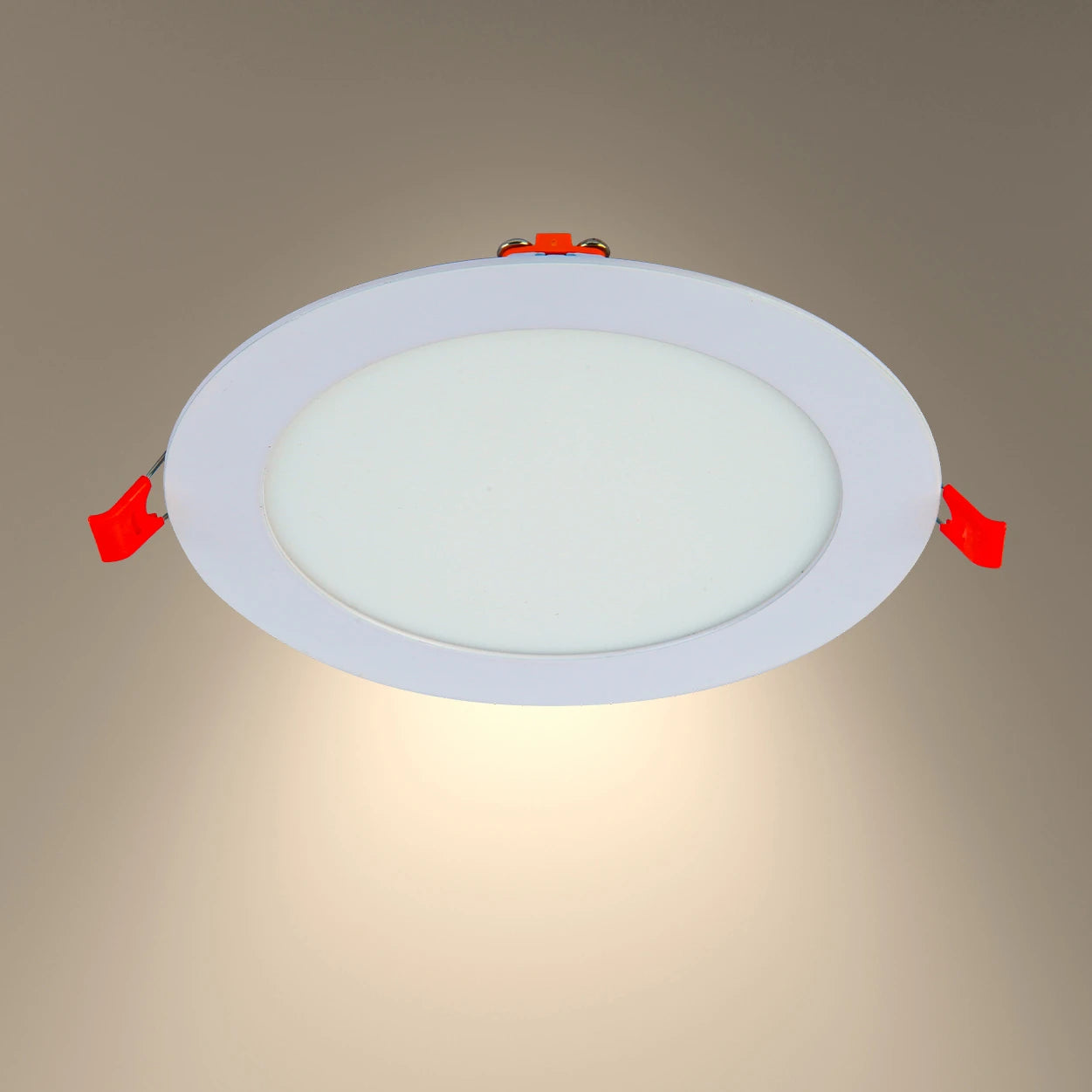

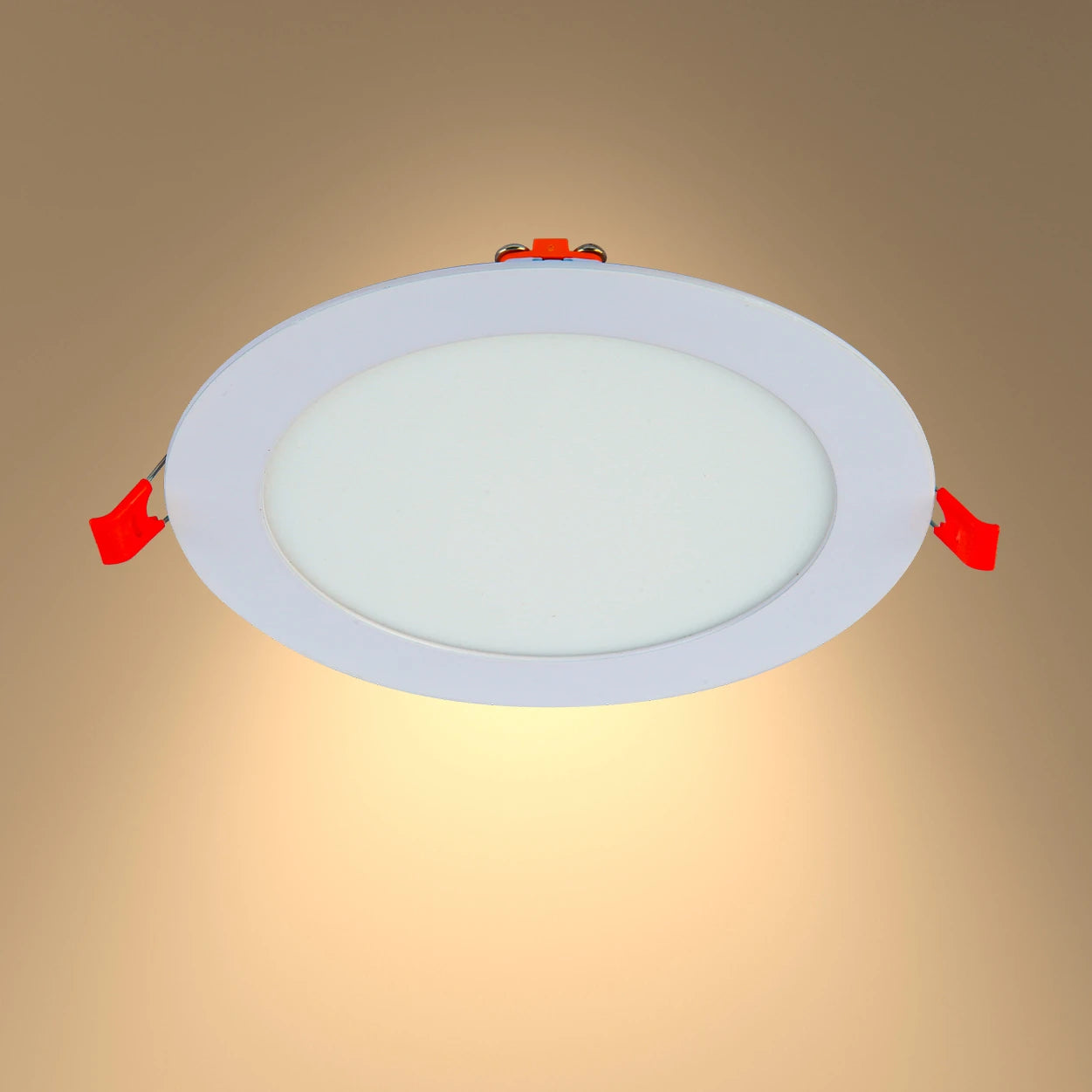

Downlight LED Round Slim Panel Light 12W D170mm

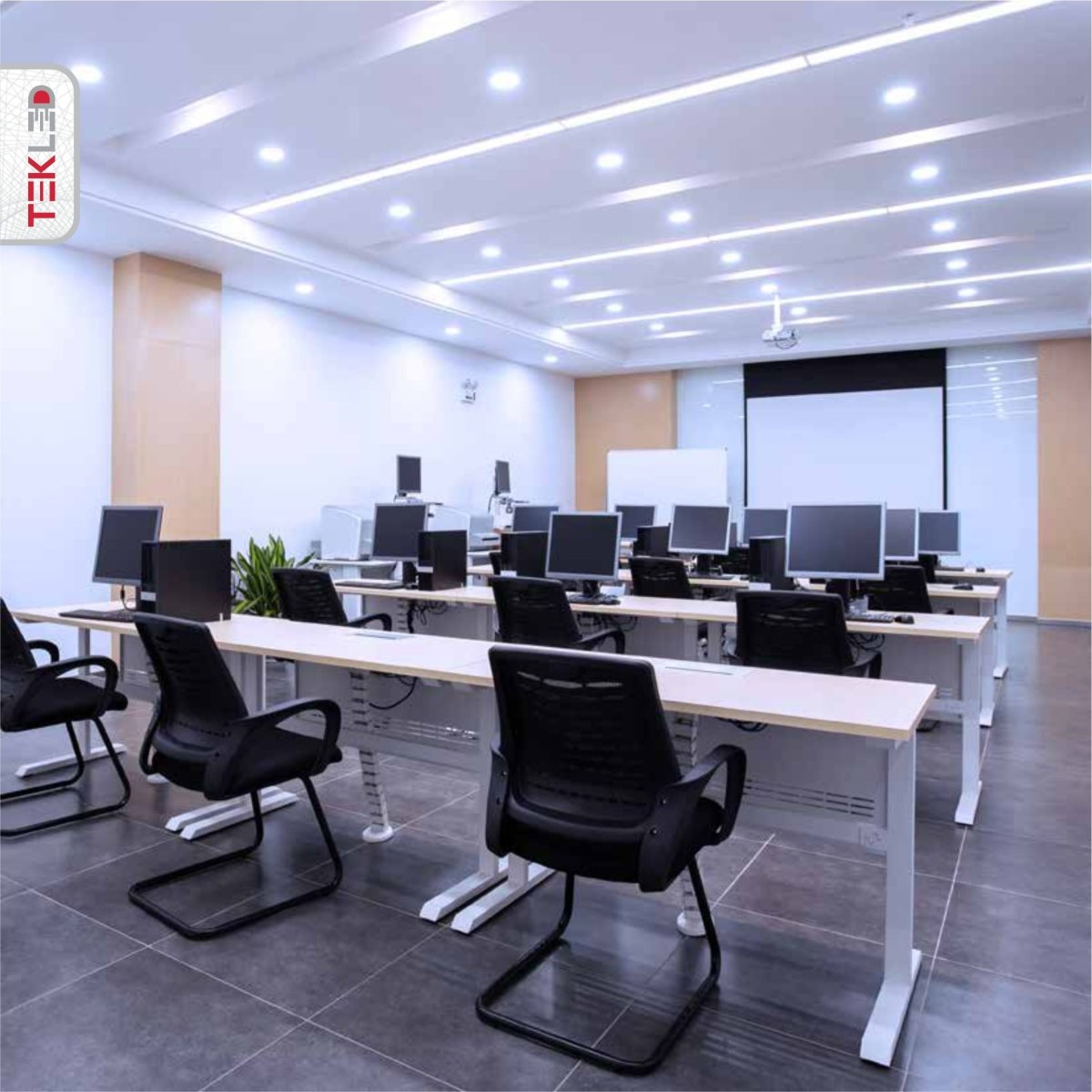

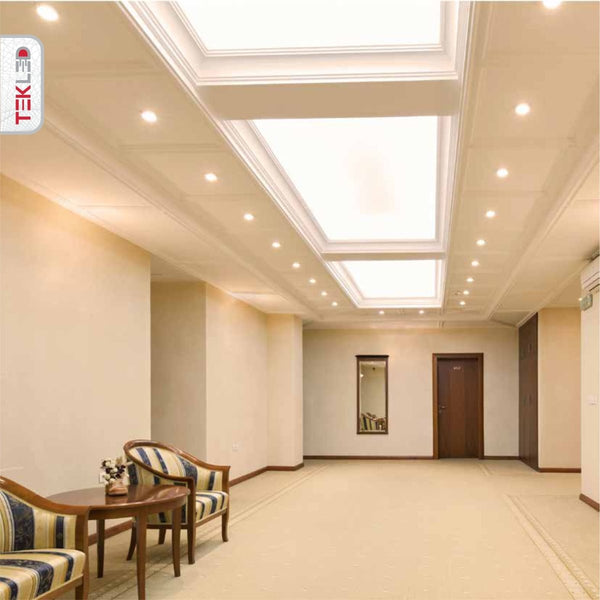

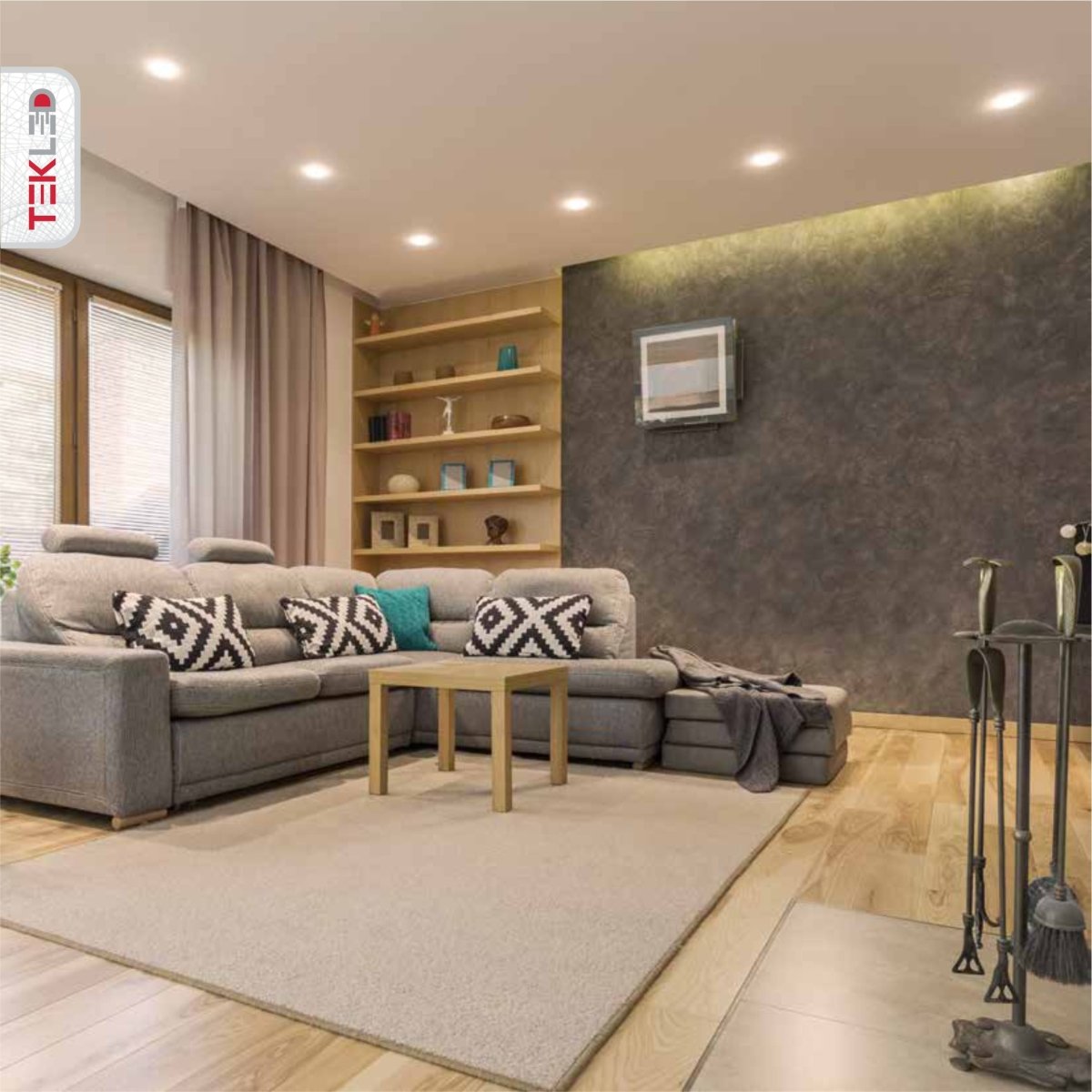

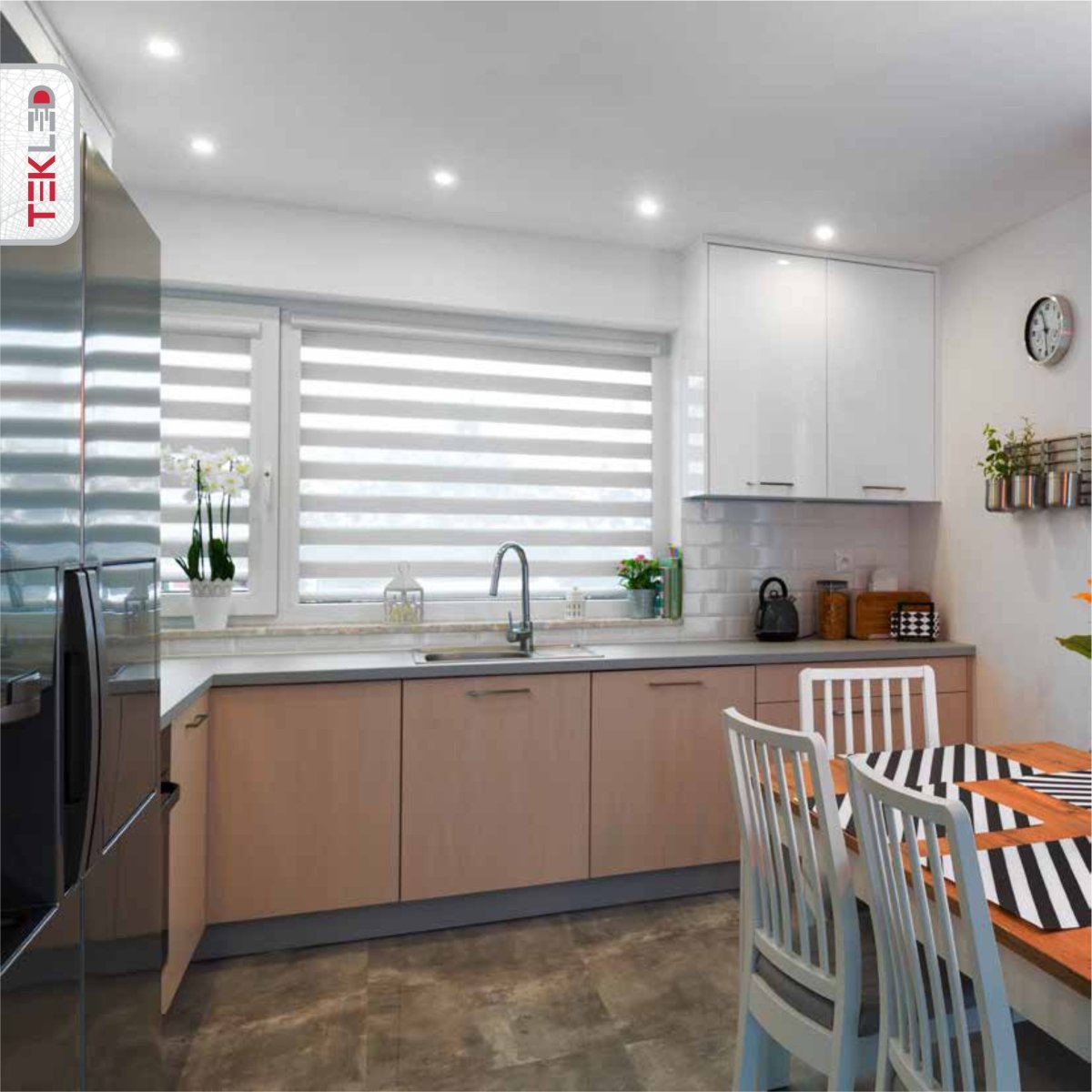

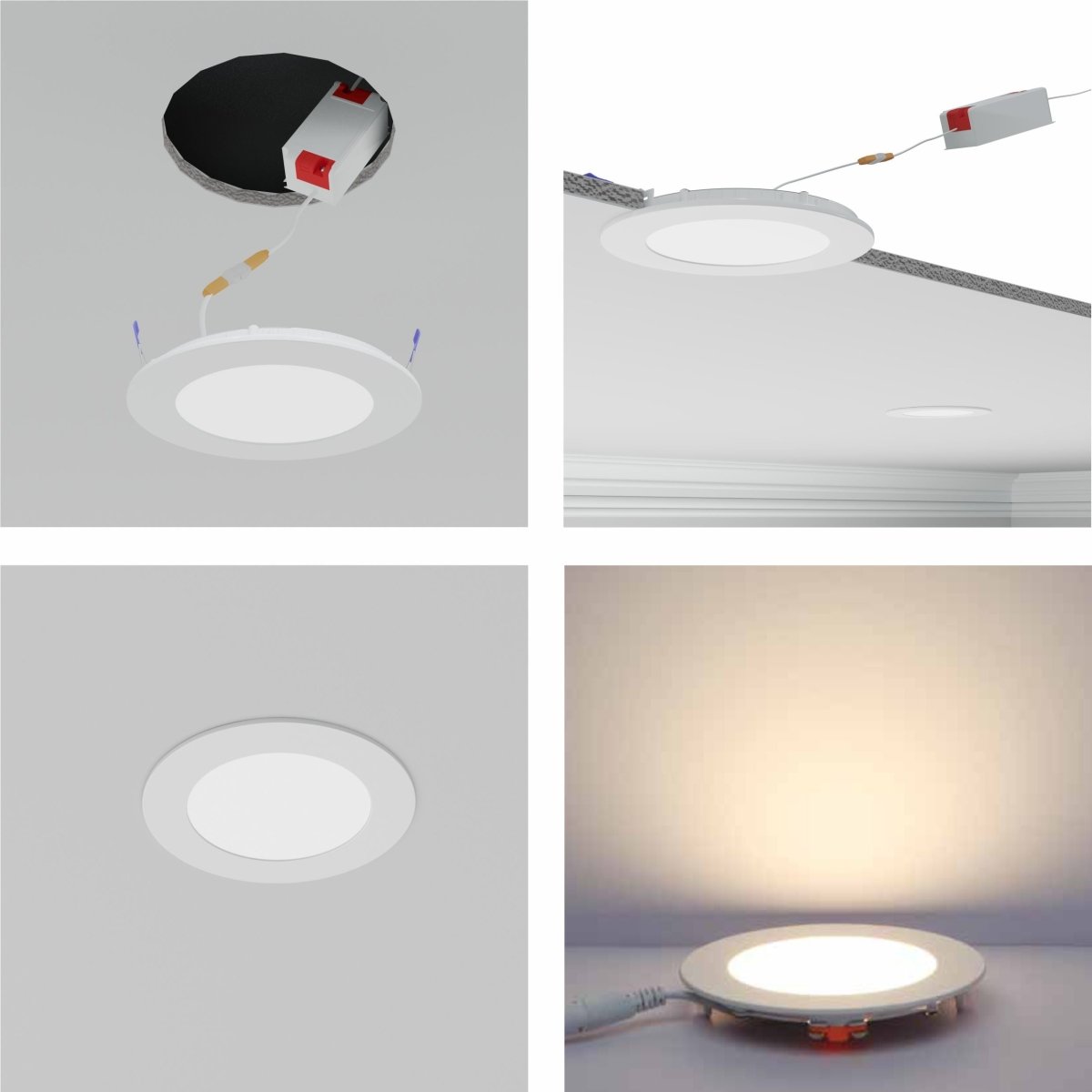

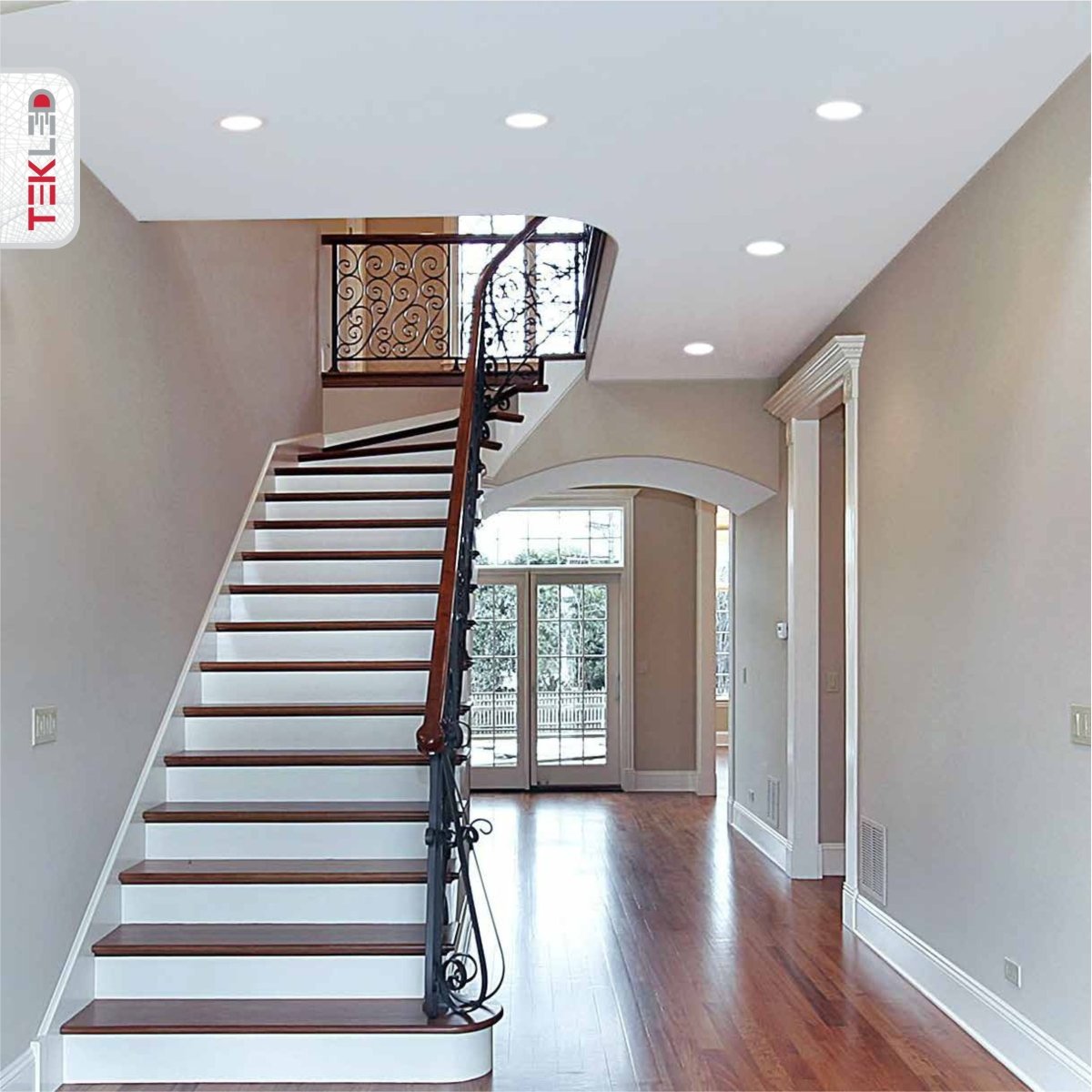

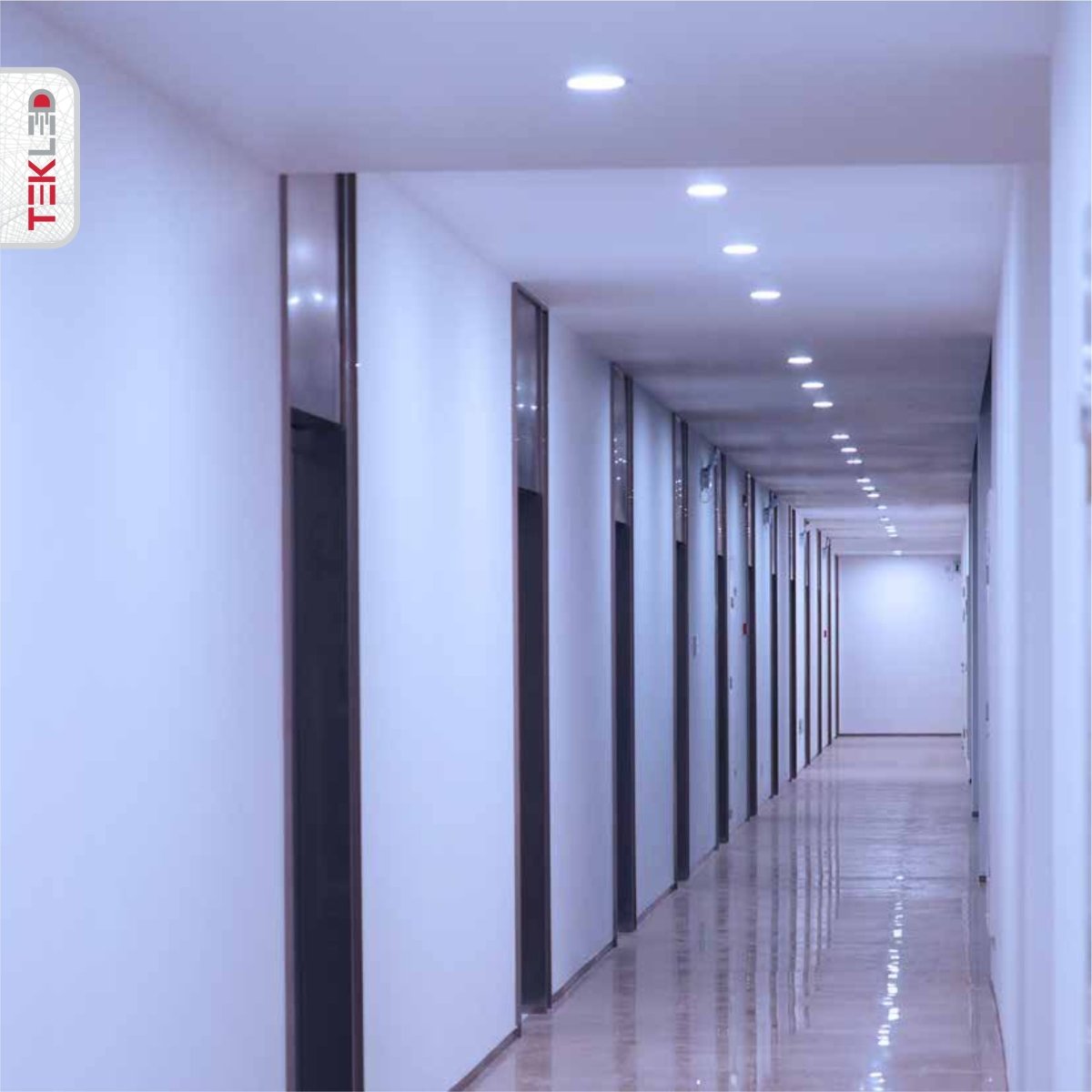

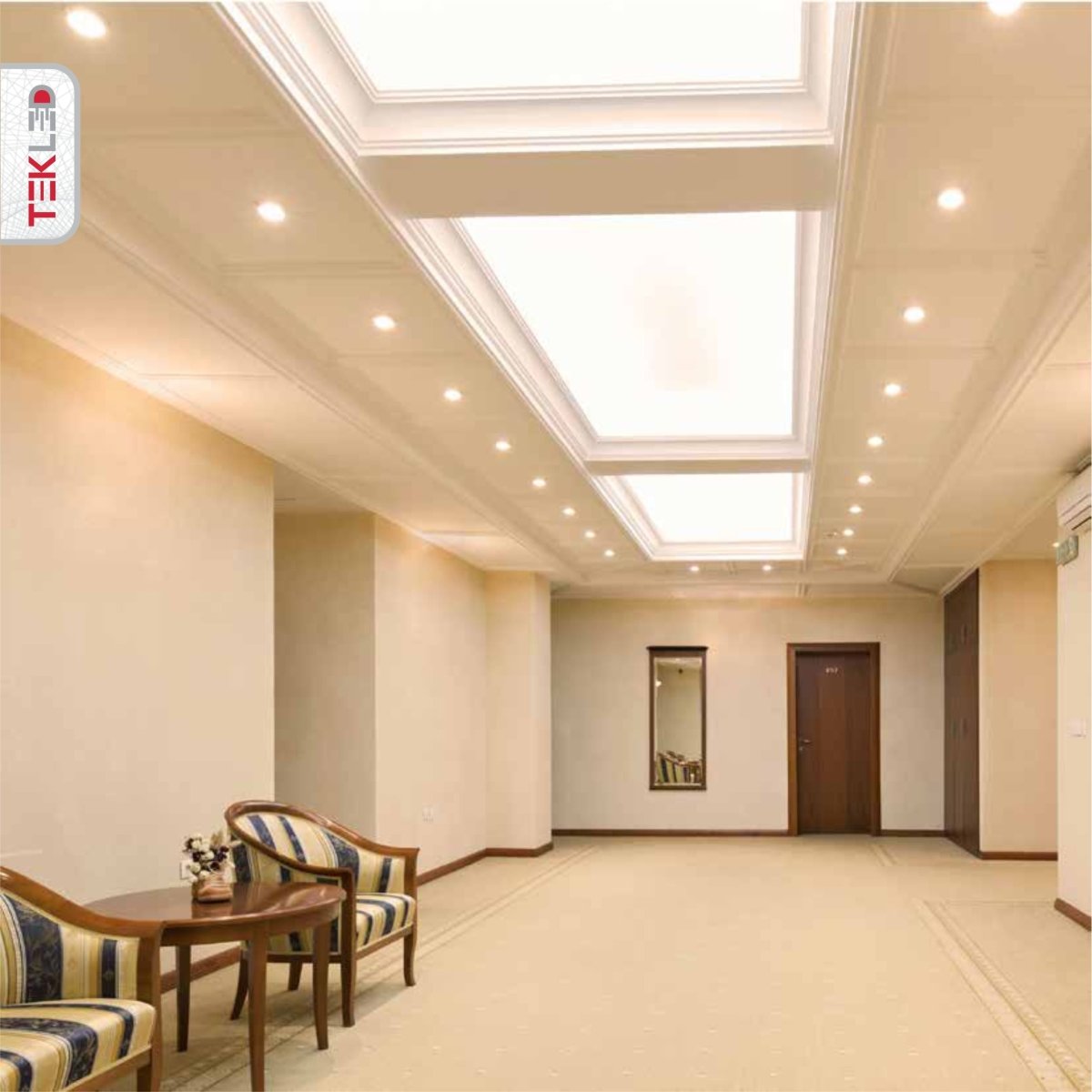

Bring home the new range of LED round slim panel downlight from TEKLED for a brighter and even illumination all around while saving up to 80% on your electricity bills. This IP 20 recessed mount light is made from high quality aluminium and steel, making it highly durable. With a colour rendering index of 80, this hardwired downlight comes with integrated LEDs which run for more hours than any traditional incandescent lamp and give you non-flickering brightness. These LED panel light can be installed in dining room, living Room, hallways, balcony, bedrooms, kitchen, bathroom, staircases, garage, office, school, hospital, restaurants, hotels, shops, beauty salons and any such places that require to be lit up for longer periods of time. LEDs also save you big bucks on lamp replacement costs, making this a highly cost effective purchase for you. Our high quality LED Lights are elegant in design and integrate seamlessly with your ceilings. All are our LED Lights are extremely energy efficient and feature high efficiency LED driver giving outstanding lighting performance while being extremely low on energy consumption. More so, our lights dissipate least amount of heat to the environment resulting in cooler and comfortable indoors. This fixture comes fitted with 12W 3000K warm white LEDs, 4000K cool white LEDs and 5700K cool daylight LEDs. You can choose the colour temperature as per your need and set up an ambience for yourself.
Technical Specifications
Name | Downlight LED Round Slim Panel Light 12W Warm White Cool White Cool Daylight D170mm |
Product Code | 165-03608 | 165-03609 | 165-03610 |
Power | 12 W |
Power Source | Hardwired |
Voltage | 220/240Vac 50/60Hz |
Input Current | 0.1A @240Vac |
Lamp Holder Type | Integrated LED |
Protection Class | Class II |
Dimmability | Non-Dimmable |
Light Source | LED SMD 2835 |
Led Quantity | 5P12S 60Pcs |

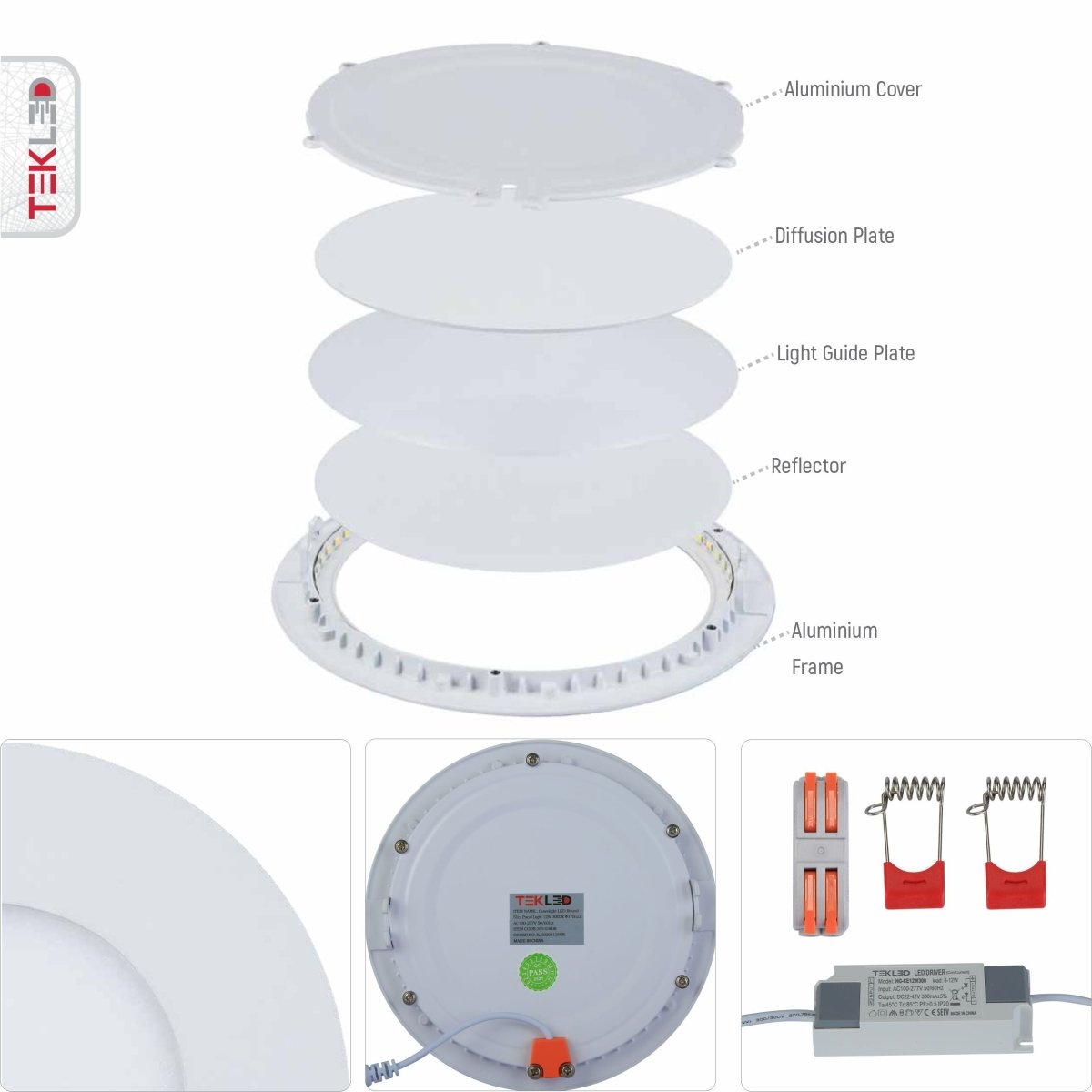

Bulbs | Built-in LED fixture with LED driver |
Lit Type | Edge Lit |
Light Output(luminous flux) | 1100 lm |
Luminous Efficacy | 90 lm/W |
Lux | 36Lux @2m | 37Lux @2m |
CRI(Colour Rendering Index) | CRI>80 |

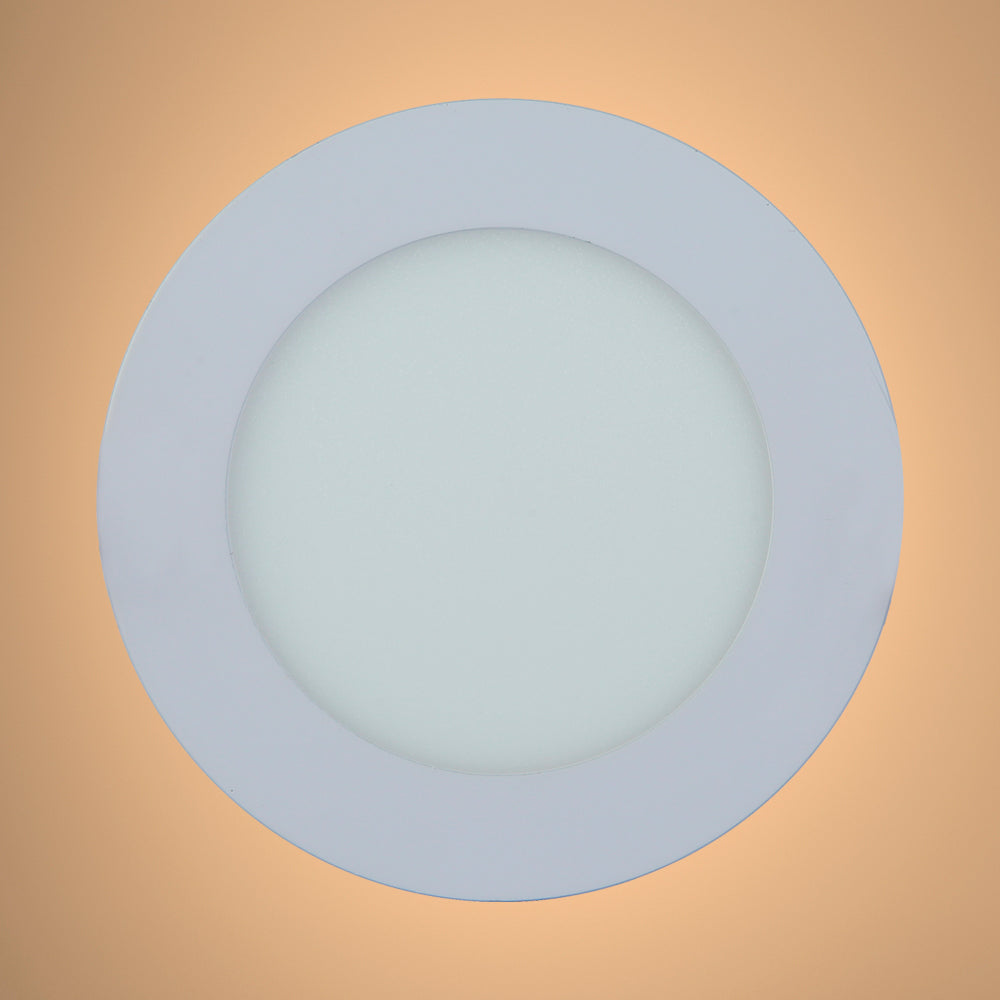

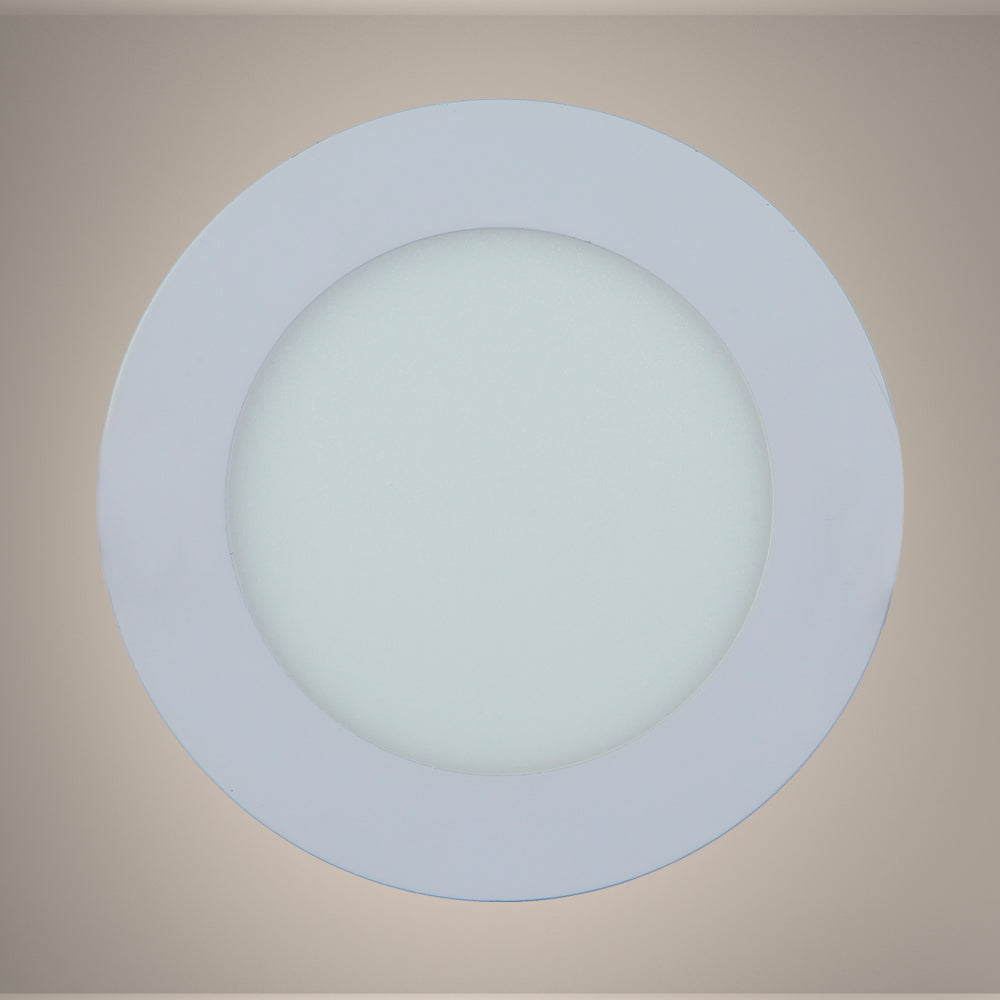

CCT (Kelvin)(Light Colour) | 3000K Warm White | 4000K Cool White | 5700K Cool Daylight |
IP Class(Ingress Protection) | IP20 |
Mount Type | Recessed Mount |
Function Mode | On/Off |

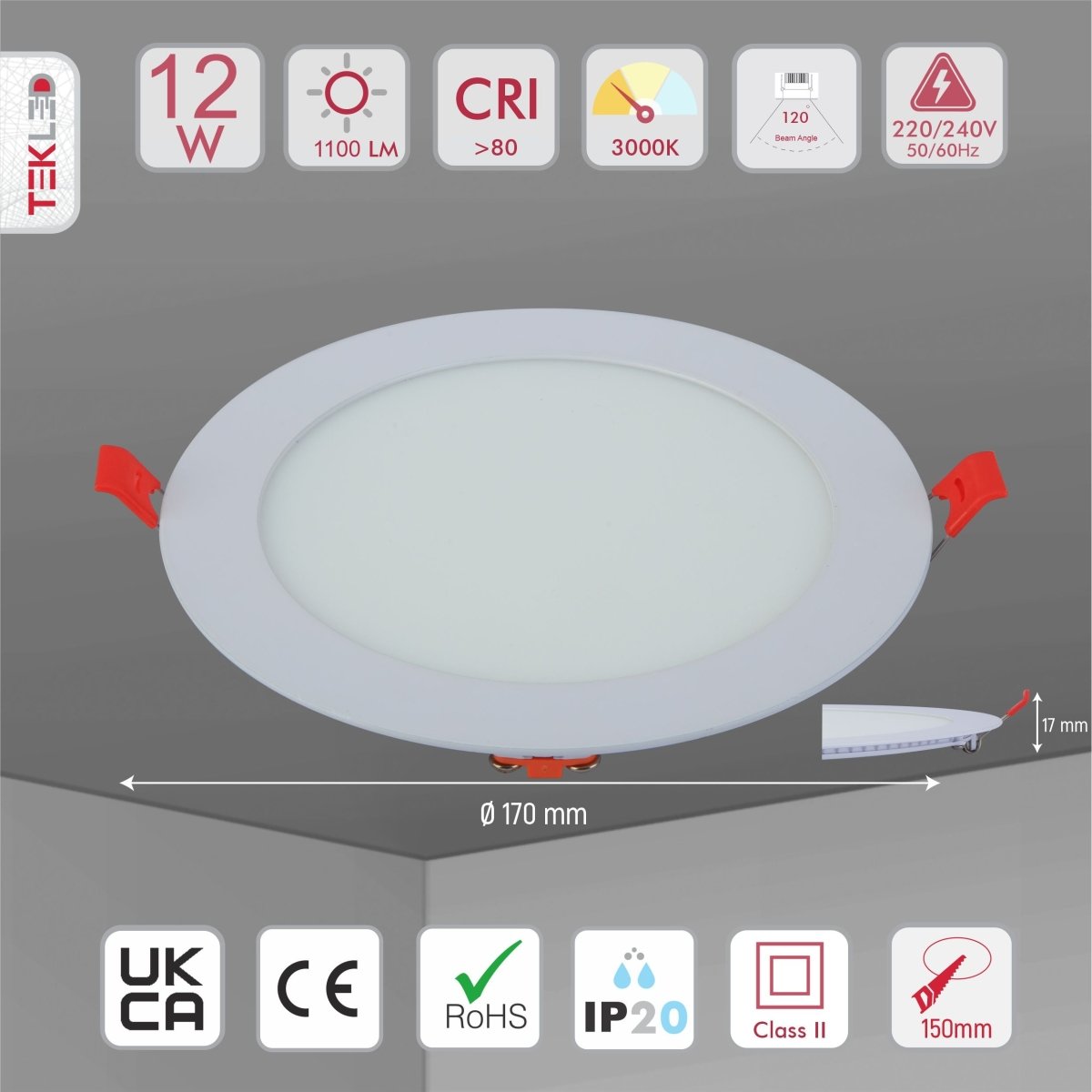

Product Dimensions (L x W x H) (D x H) | D170x17mm |
Cut-Out Size | D150 mm |
Power Cord Length | 15cm |
Made of Materials | Aluminium, Steel, Polystyrene |
Product Colour | White |
Paint Type | Spray Painted |
Diffuser Material | Polystyrene |
Diffuser Type | Opal |
Driver Type | Constant Current |
Driver Power | 12W |
Driver Input Voltage | 100-277Vac 50/60Hz |
Driver Input Current | 0.102 A @240Vac | 0.103 A @240Vac | 0.105 A @240Vac |
Driver Output Voltage | 22-42Vdc |
Driver Output Current | 300mA |
Surge Protection Level | 2kV |
Power Factor | pf>0.5 |
Flickering | Non-Flickering |
Control | On/Off |
Operating Temperature (C) | -20/+55C |
New Energy Rating | F |
Energy Rating | A+ |
Warranty | 2 year |
Life Span | 30000 h |
Gross Weight | 260 g |
Net Weight | 220g |
Box Dimensions (LxWxH) | 17.5x2.5x20.5cm |

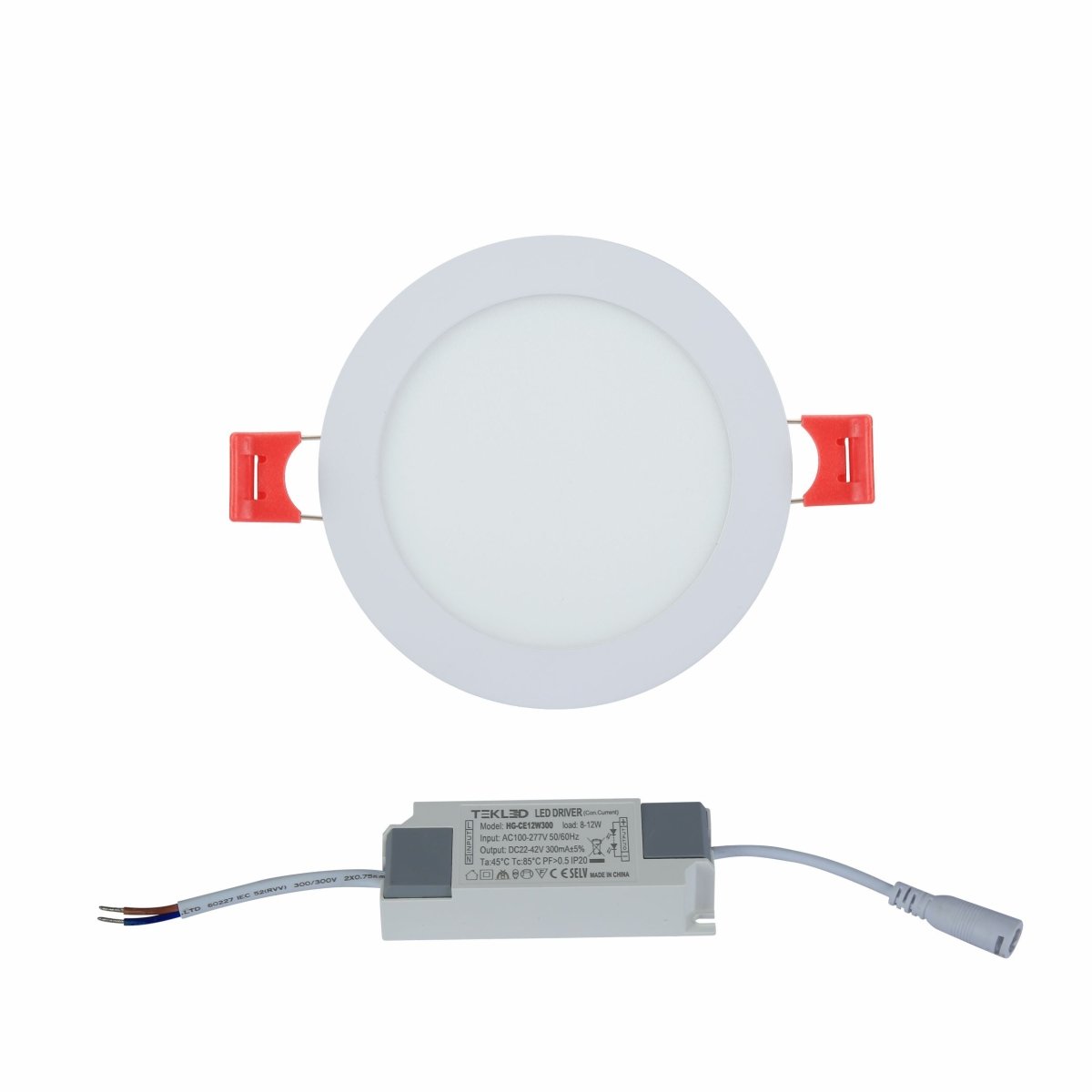

Box Content | 1Light fixture, User manual, 2Springs, 1terminal |
Certifications | UKCA, CE, RoHS |
