LED Floodlight SMD3030 150W Cool White 4000K IP65
LED Floodlight SMD3030 150W Cool White 4000K IP65
The new range of SMD Flood Lights from TEKLED with IP65 rating is a premium quality product that can easily withstand dust and rain. The 150W LED flood light offers highly effective lighting with low energy consumption, saving up a lot of energy when compared with traditional lighting fixtures such as halogen, sodium vapor and metal-halide lamps. Quality light combined with an incredibly durable fixture makes this product ideal for all types of outdoor application such as car parking, home security, sport yards and commercial buildings as well. LED floodlights does not require a warm up time and gives maximum luminous efficacy when instant on. Comparing lifetime with other choices LEDs have multiple lifetime of metal-halide or sodium vapor lamps. The product uses tempered glass to enhance users' safety and polycarbonate lens create a vast pool of light with a 60 degree beam spread. The cool white light with 4000K CCT ensures ample energising illumination.
Driver used on this fixture has below specifications
- Full Power at Wide Output Current Range (Constant Power)
- Adjustable Output Current (AOC) with Programmability
- Isolated 1-5V/1-10V/10V PWM/3-Timer-Modes Dimmable
- Output Lumen Compensation
- Input Surge Protection: DM 6kV, CM 10kV
- All-Around Protection: OVP, SCP, OTP
- IP66/IP67 and UL Dry/Damp/Wet Location(this is for driver but fixture is not IP65, it is for indoor)
- SELV Output
- TYPE HL, for use in a Class I, Division 2 hazardous (Classified) location
- The EUM series, constant-current, programmable IP67 LED driver that operates from 90 - 305Vac input with excellent power factor. It is created for many lighting applications including high bay, high mast and roadway, etc. The high efficiency of these drivers and compact metal case enables them to run cooler, significantly improving reliability and extending product life. To ensure trouble-free operation, protection is provided against input surge, output over voltage, short circuit, and over temperature.
Technical Specifications
| Name | LED Floodlight SMD 3030 150W Cool White 4000K IP65 |
| Product Code | 224-038233 |
| Power | 135 W(150W) |
| Power Source | Hardwired |
| Voltage | 220/240Vac 50/60Hz |
| Input Current | 0.63A @240Vac |
| Lamp Holder Type | Integrated LED |
| Protection Class | Class I |
| Dimmability | Dimmable |
| Light Source | LED SMD 2835 |
| Led Quantity | 12P5S 60pcs *4 |
| Bulbs | Built-in LED fixture with LED driver |
| Light Output(luminous flux) | 17600 lm |
| Luminous Efficacy | 125 lm/W |
| Lux | avg 494Lux @6m, max 720Lux |
| CRI(Colour Rendering Index) | CRI>80 |
| CCT (Kelvin)(Light Colour) | 4000K Cool White |
| IP Class(Ingress Protection) | IP66 |
| Mount Type | Surface Mount |
| Function Mode | 1-5V, 1-10V, PWM, Multiple Timers |

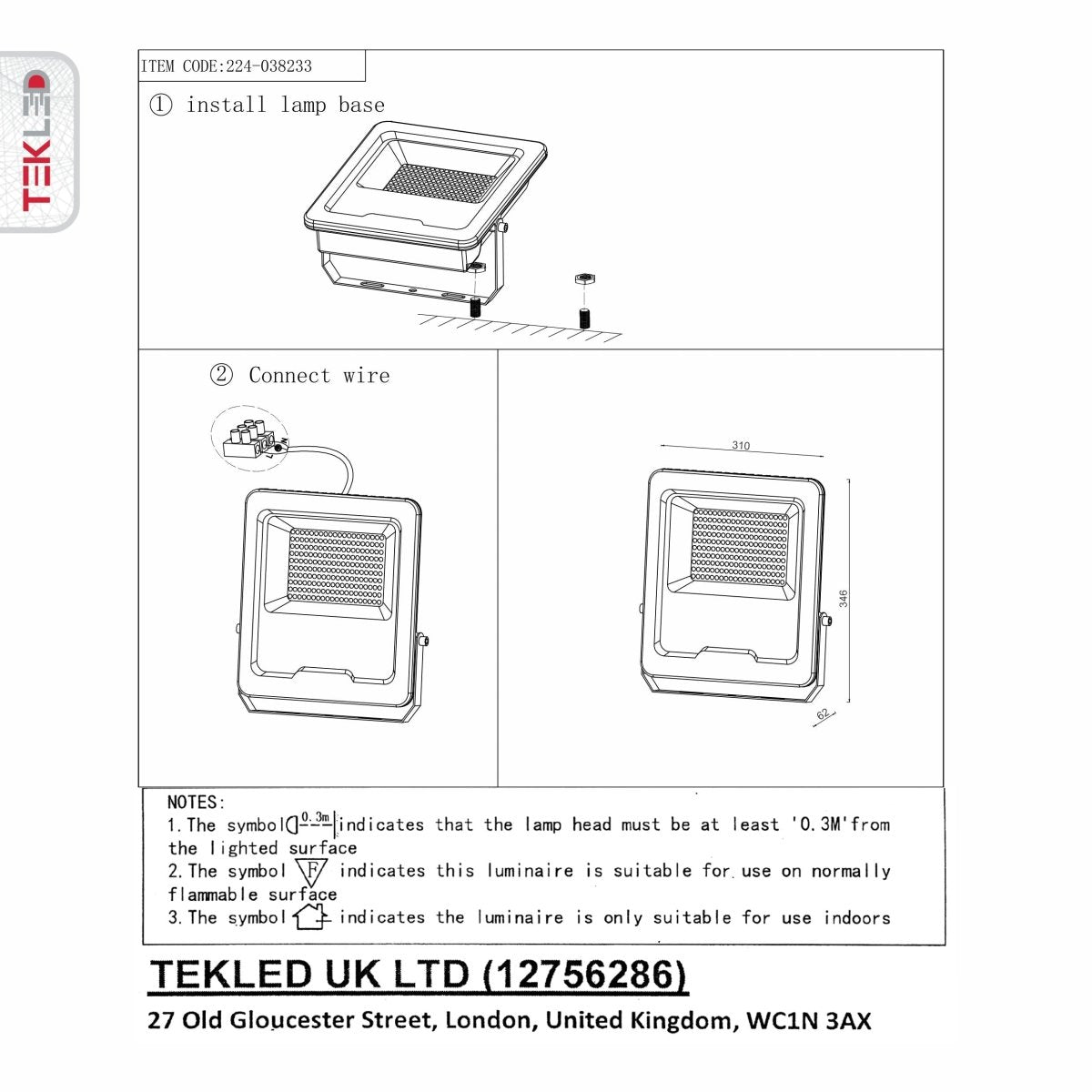

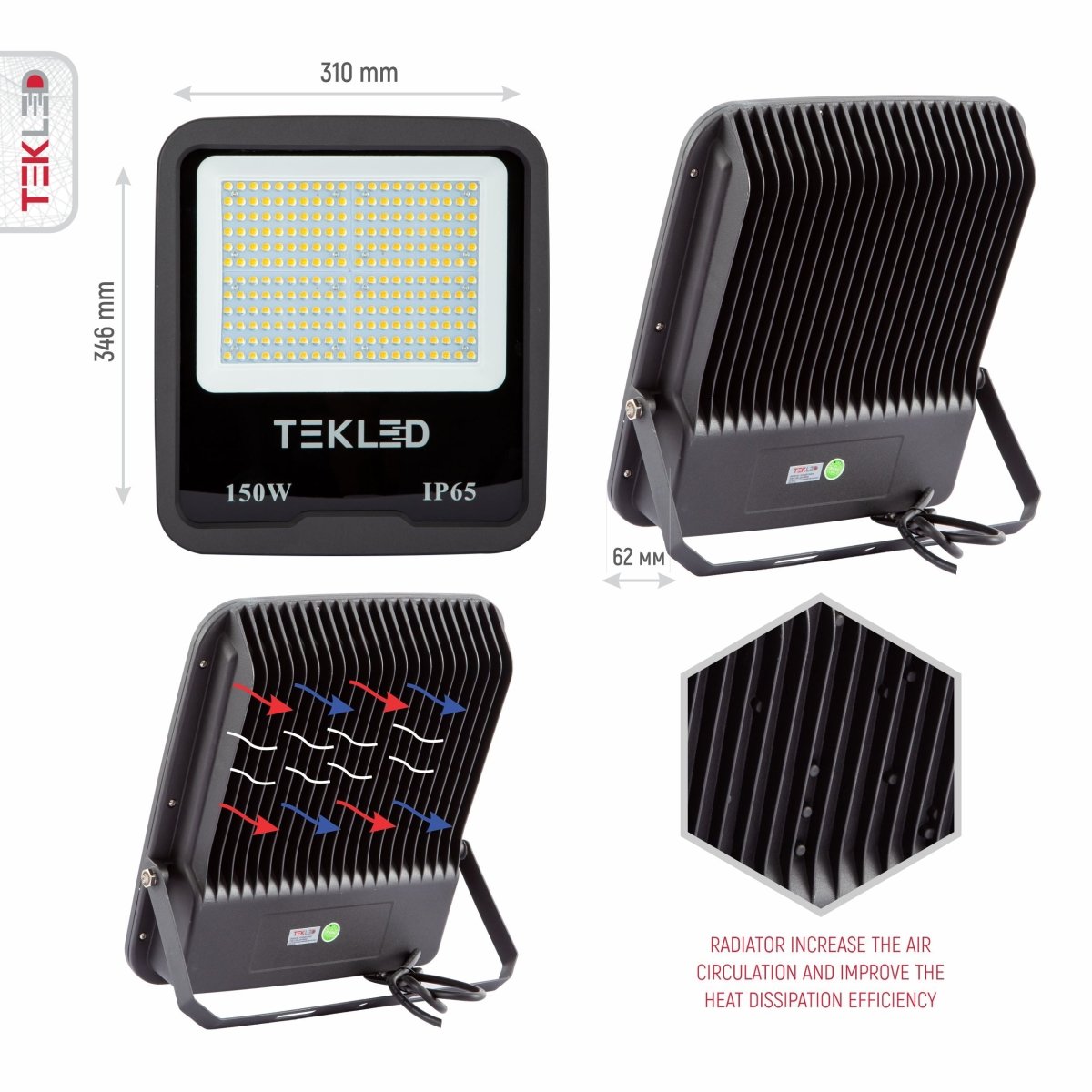

| Product Dimensions (L x W x H) (D x H) | 360x325x60mm |

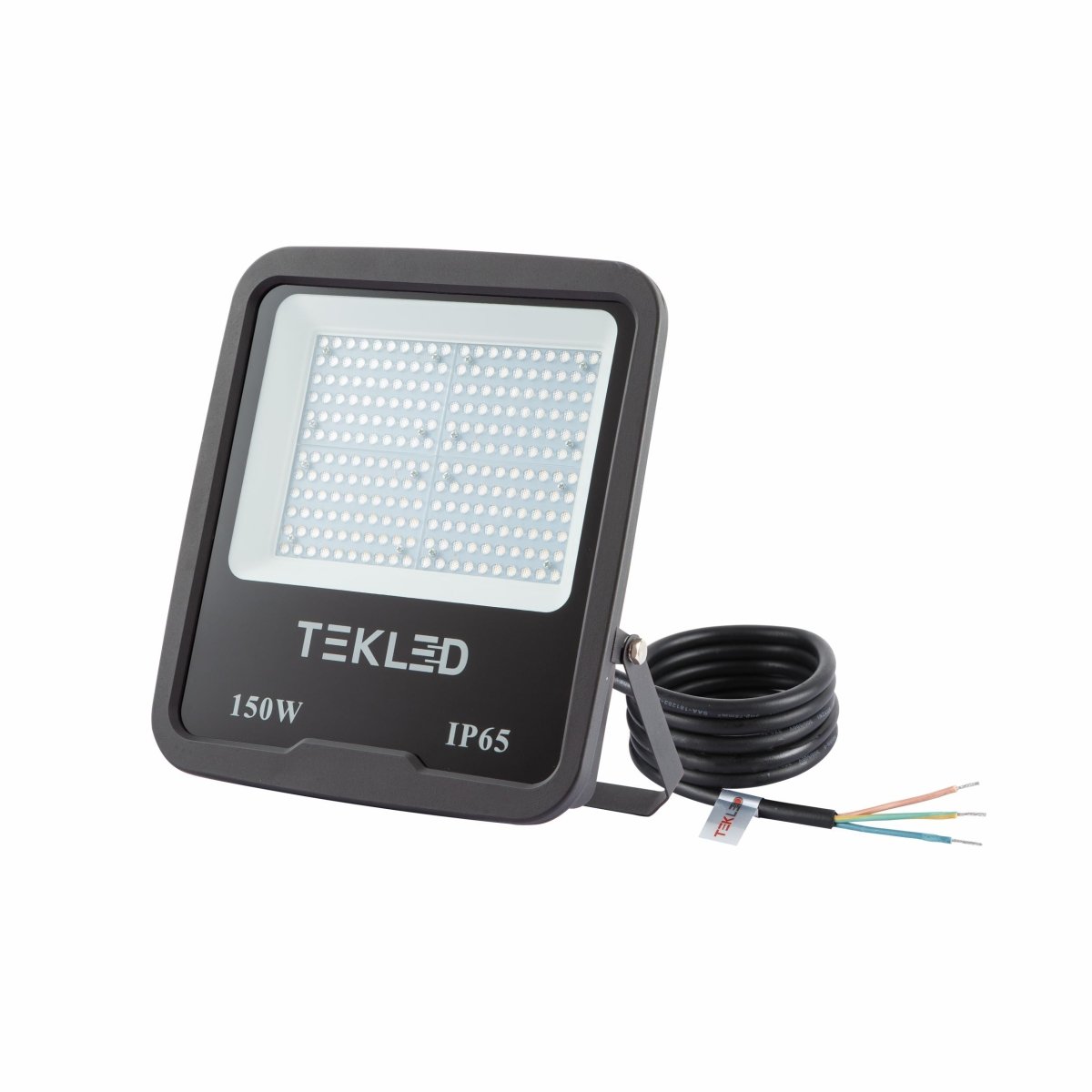

| Power Cord Length | 145cm |

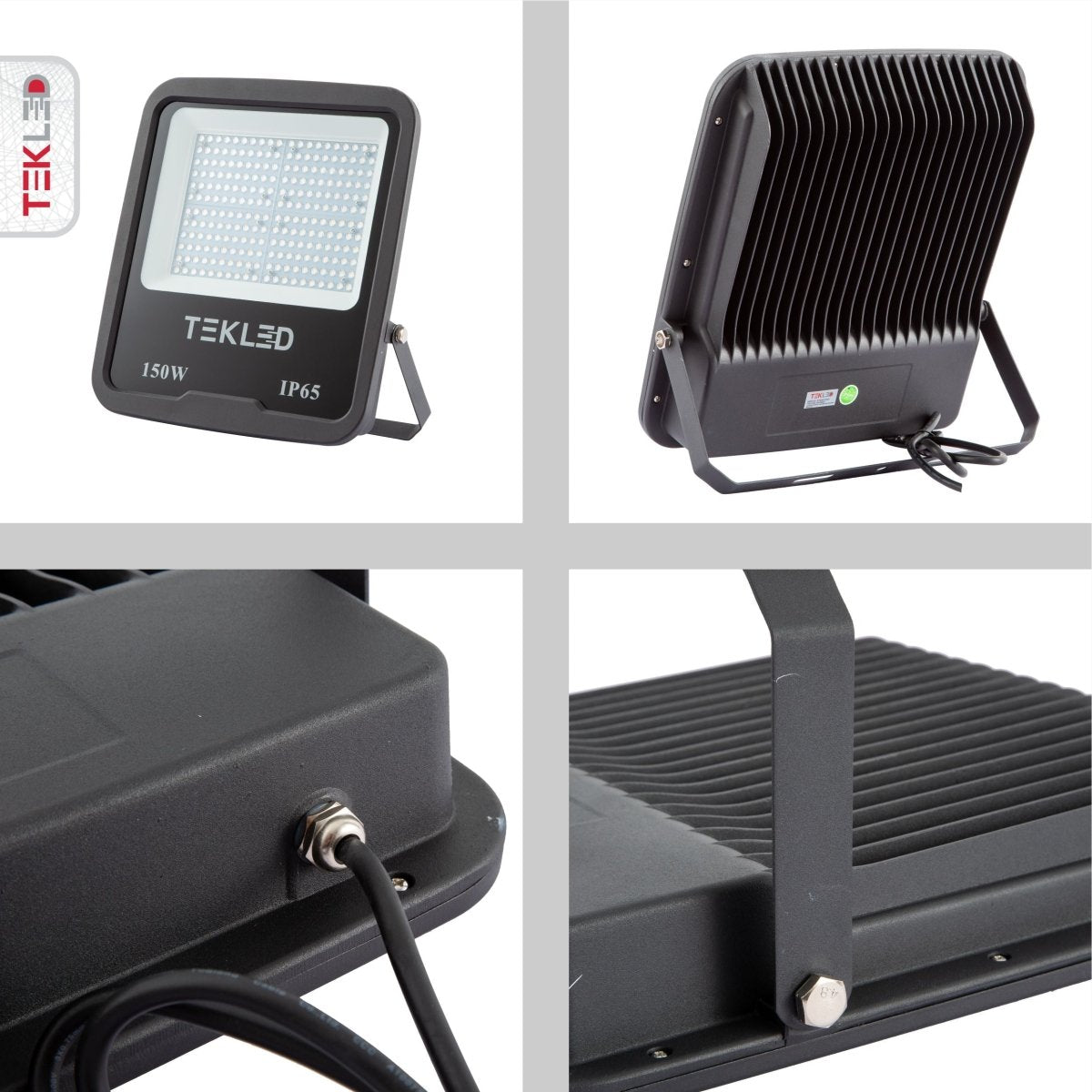

| Made of Materials | Aluminium, Steel, Glass, Polycarbonate |
| Product Colour | Black |
| Paint Type | Spray Painted |

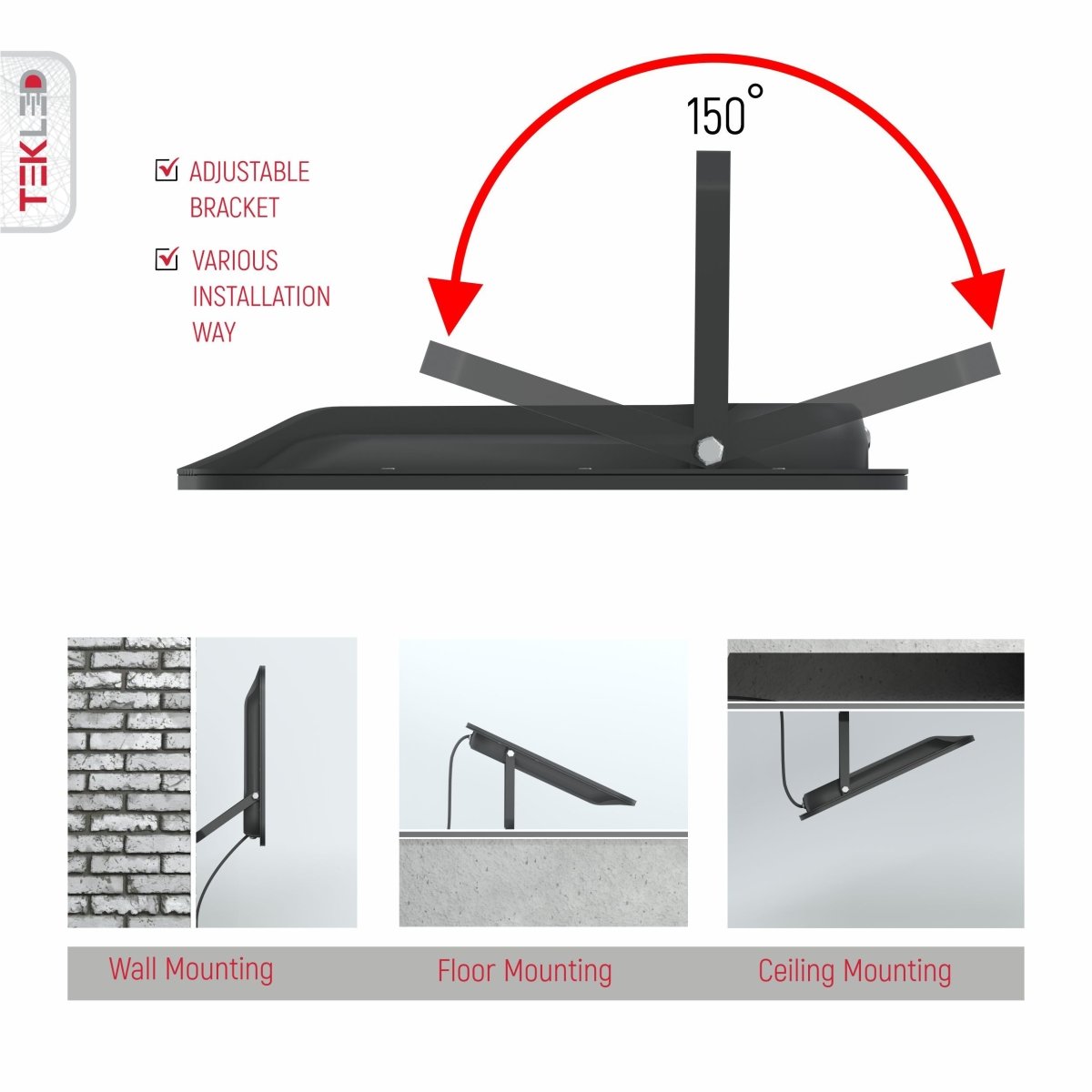

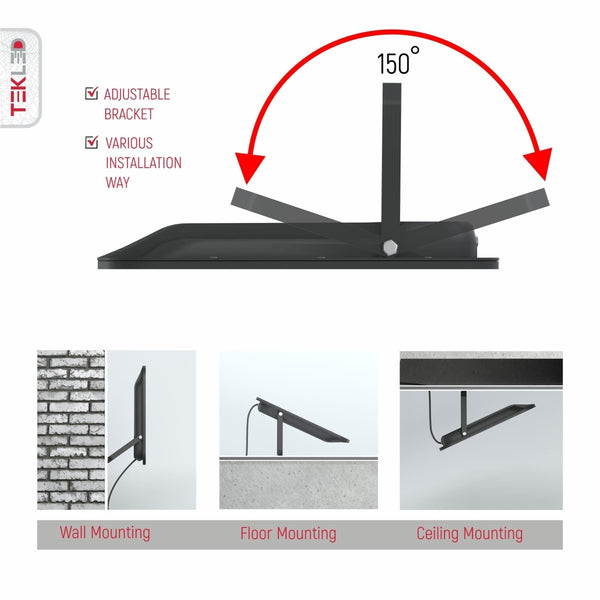

| Adjustable | Adjustable Bracket |
| Beam Angle | 60 |
| Optic Type | Lens |
| Optic Material | Polycarbonate |
| Diffuser Material | Tempered Glass |
| Diffuser Type | Clear |
| Driver Brand | Inventronics EUM-150S420DG |
| Driver Type | Constant Current |
| Driver Power | 150W |
| Driver Input Voltage | 90~305 Vac / 127~300 Vdc 50/60Hz |
| Driver Input Current | 0.63A @240Vac |
| Driver Output Voltage | 18 ~ 54 Vdc |
| Driver Output Current | 4200mA |
| Efficiency | 0.915 |
| Surge Protection Level | 6kv |
| Power Factor | pf>0.95 |
| Flickering | Non-Flickering |
| Control | 1-5V, 1-10V, PWM, Multiple Timers |
| Operating Temperature (C) | -40/+60C |
| New Energy Rating | E |
| Energy Rating | A++ |
| Warranty | 5 year |
| Life Span | 60000 h |
| Gross Weight | 3.54kg |
| Net Weight | 3.37kg |
| Box Dimensions (LxWxH) | 365x340x70mm |
| Box Content | 1pc Lamp body 1pc instruction |
| Pieces/Box | 1 |
| Certifications | UKCA, CE (LVD, EMC) |
