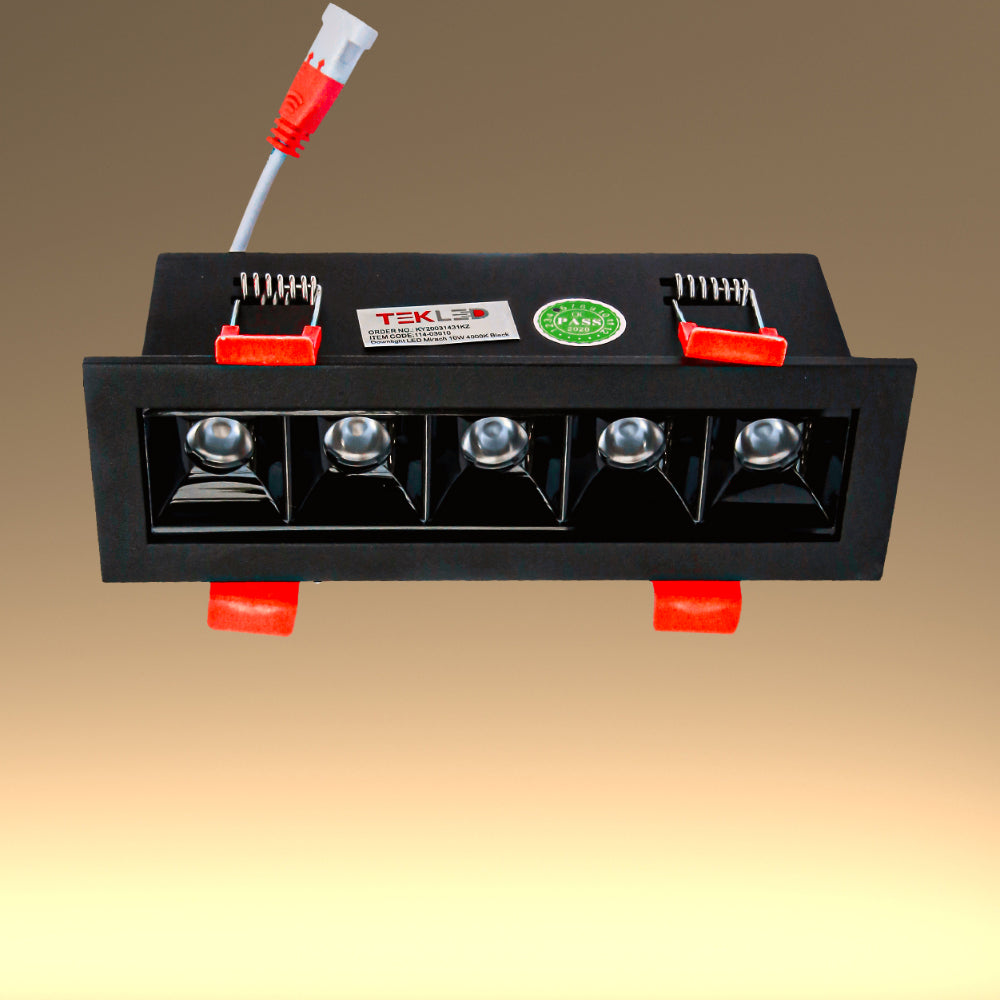

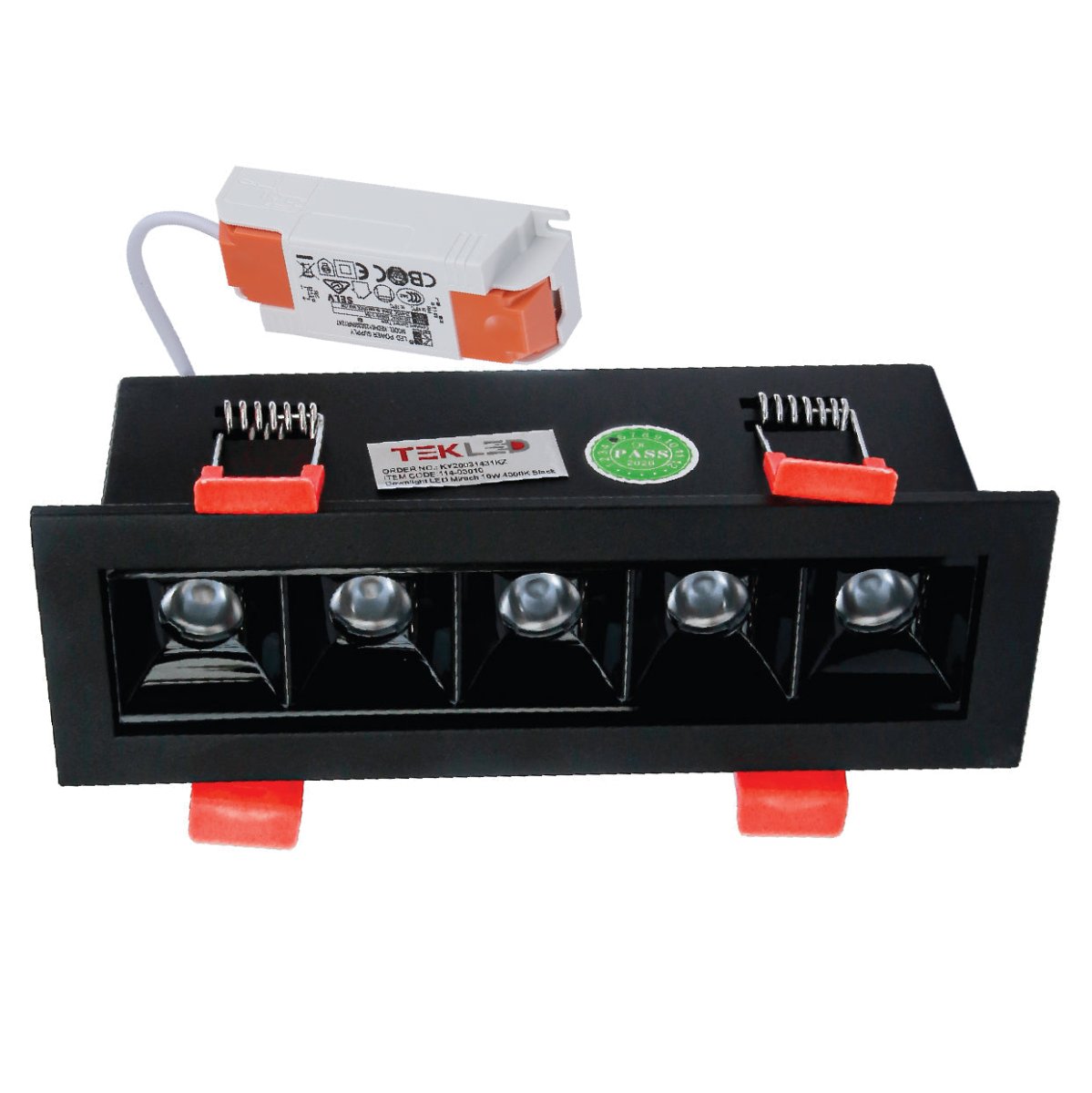

LED Mirage Laser Blade Recessed Rectangle Fixed Downlight 10W Cool White 4000K IP20 - Black.
Colour:Black

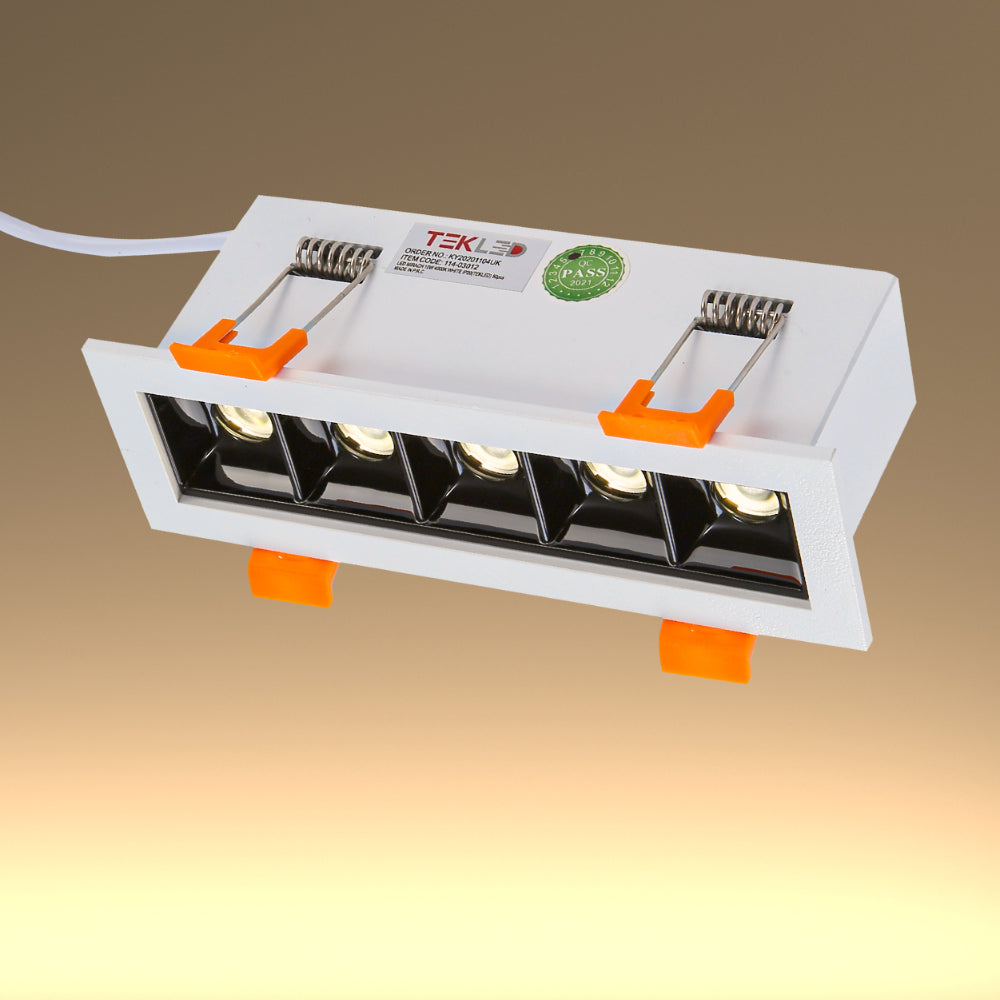

LED Mirage Laser Blade Recessed Downlight 10W Cool White 4000K IP20
LED Mirage Blade Recessed Downlight 10W Cool White 4000K IP20 is a 5-light light fitting, which has an elegant design. The downlight emits a bright, white light which can be used for indoor applications. This downlight, available in black and white colours, provides you with long-lasting, non-flickering service.A brilliant low profile downlight to pick up the ambient light from the wall, giving a high quality impression. The 5-way LED downlight bulb with a 10W power rating creates a cool white light that is ideal for task lighting.

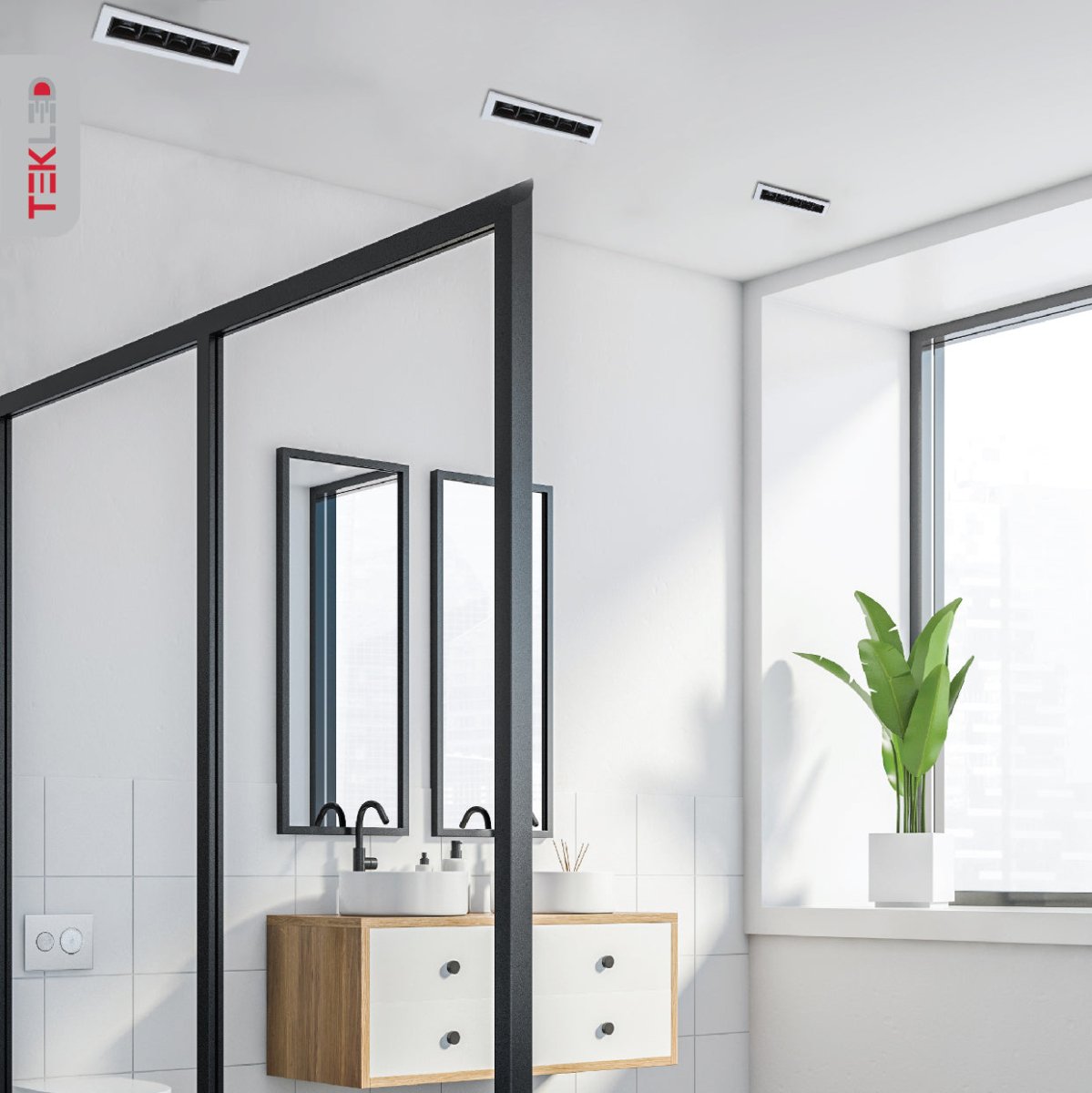

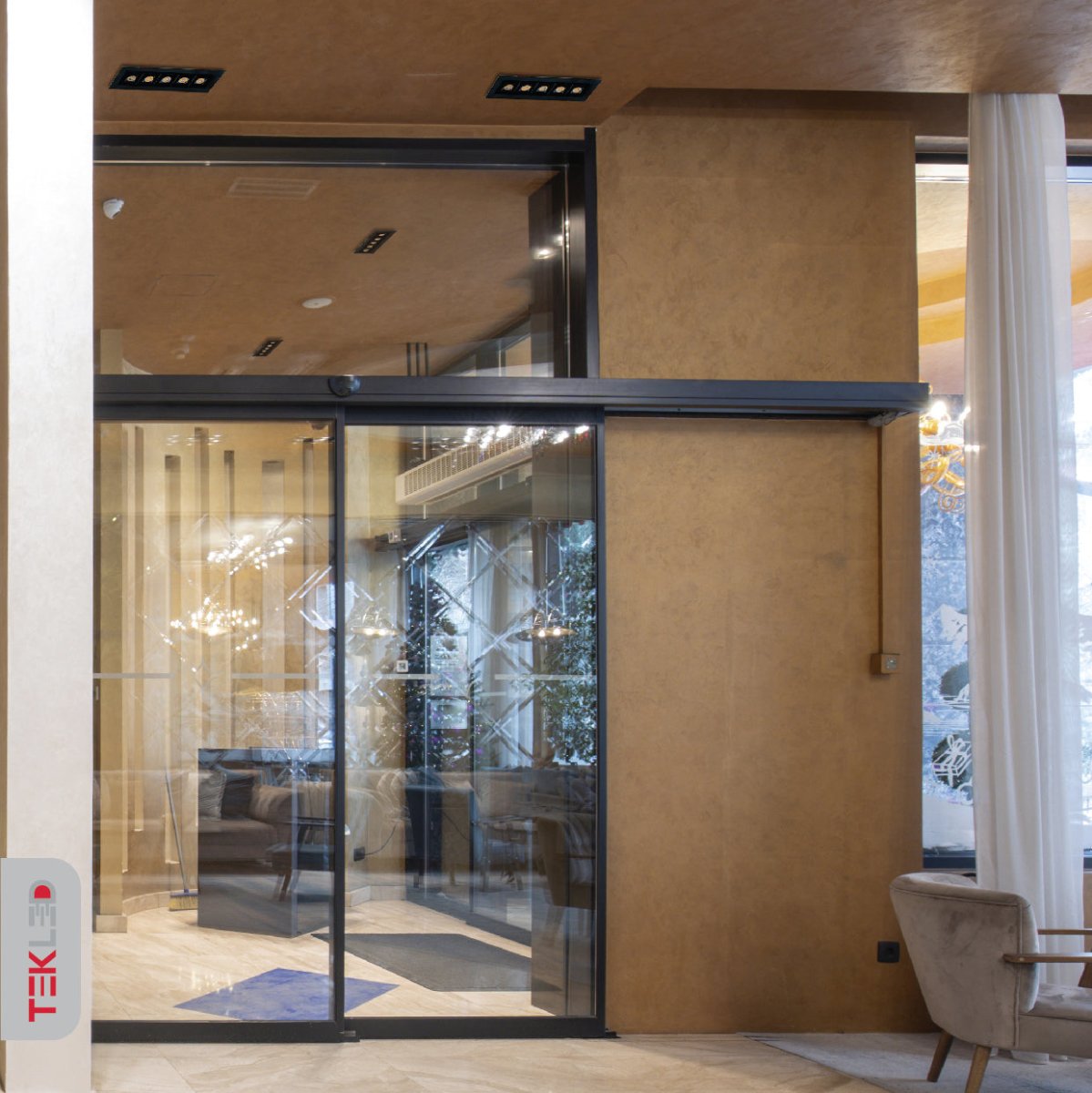

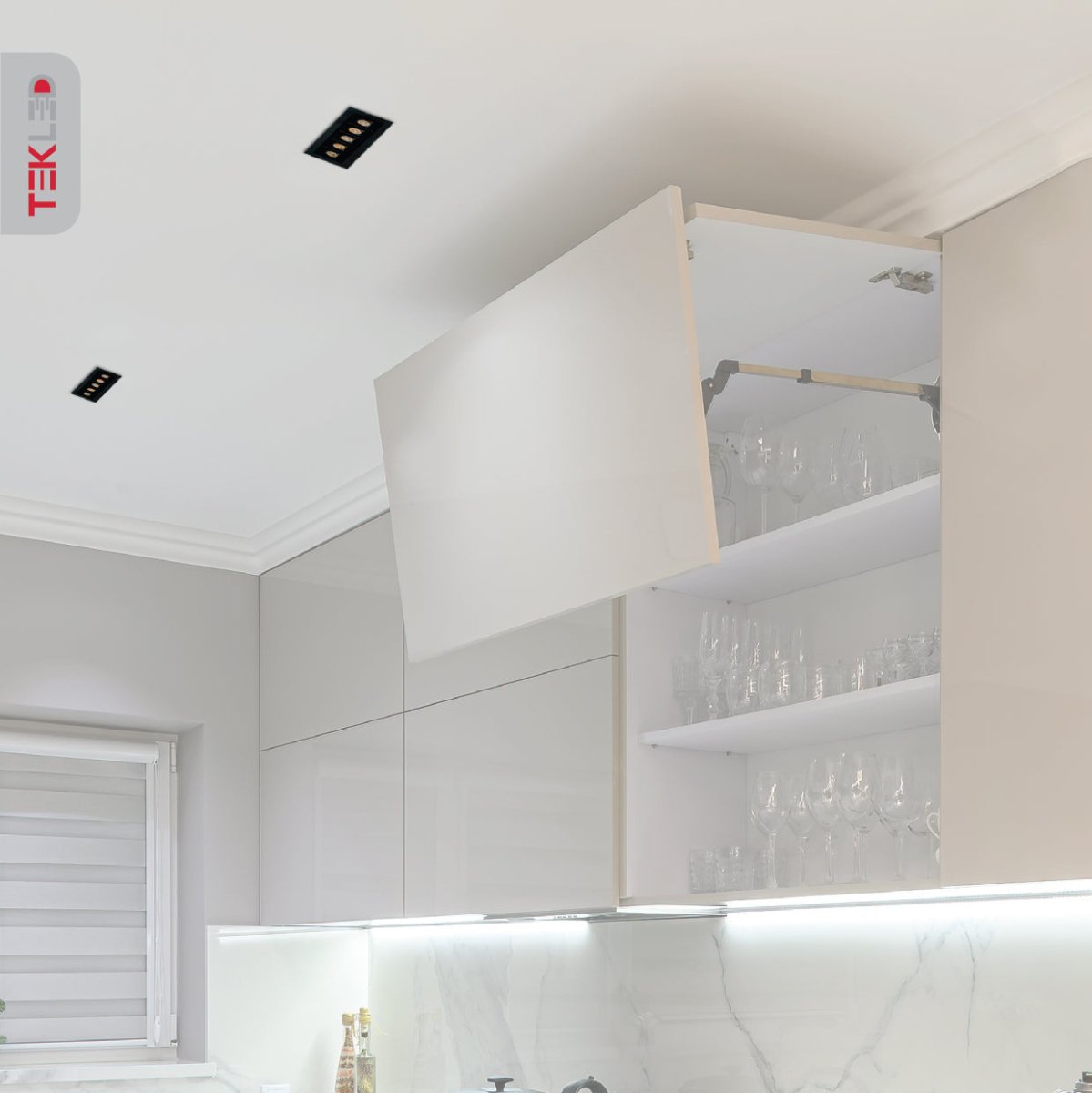

It is ideal for commercial purpose rooms as well as cafes bars, and restaurants and hotels. This design ensures that you can use this product in the hallway, stairwell with plaster walls and wooden walls. This Downlight LED spot is made using only high-quality materials.
The IP20 rated ceiling downlight is designed to be used in dry locations where only a small amount of condensation builds up inside the unit. Suitable for stores, markets, take-away restaurants, kitchens, warehouse or any kind of work place.
Technical Specifications
| Name | LED Mirage Blade Recessed Downlight 10W Cool White 4000K IP20 White or Black |
| Product Code | 114-03010 | 114-03012 |
| Model | Blade, Laser Blade, Lens, Linear Spot |
| Power | 11 W |
| Power Source | Hardwired |
| Voltage | 220/240Vac 50/60Hz |
| Input Current | 0.1 A @240Vac |
| Lamp Holder Type | Integrated LED |
| Protection Class | Class II |
| Dimmability | Non-Dimmable |
| Light Source | LED SMD 3030 |
| Led Quantity | 5pcs 2W |

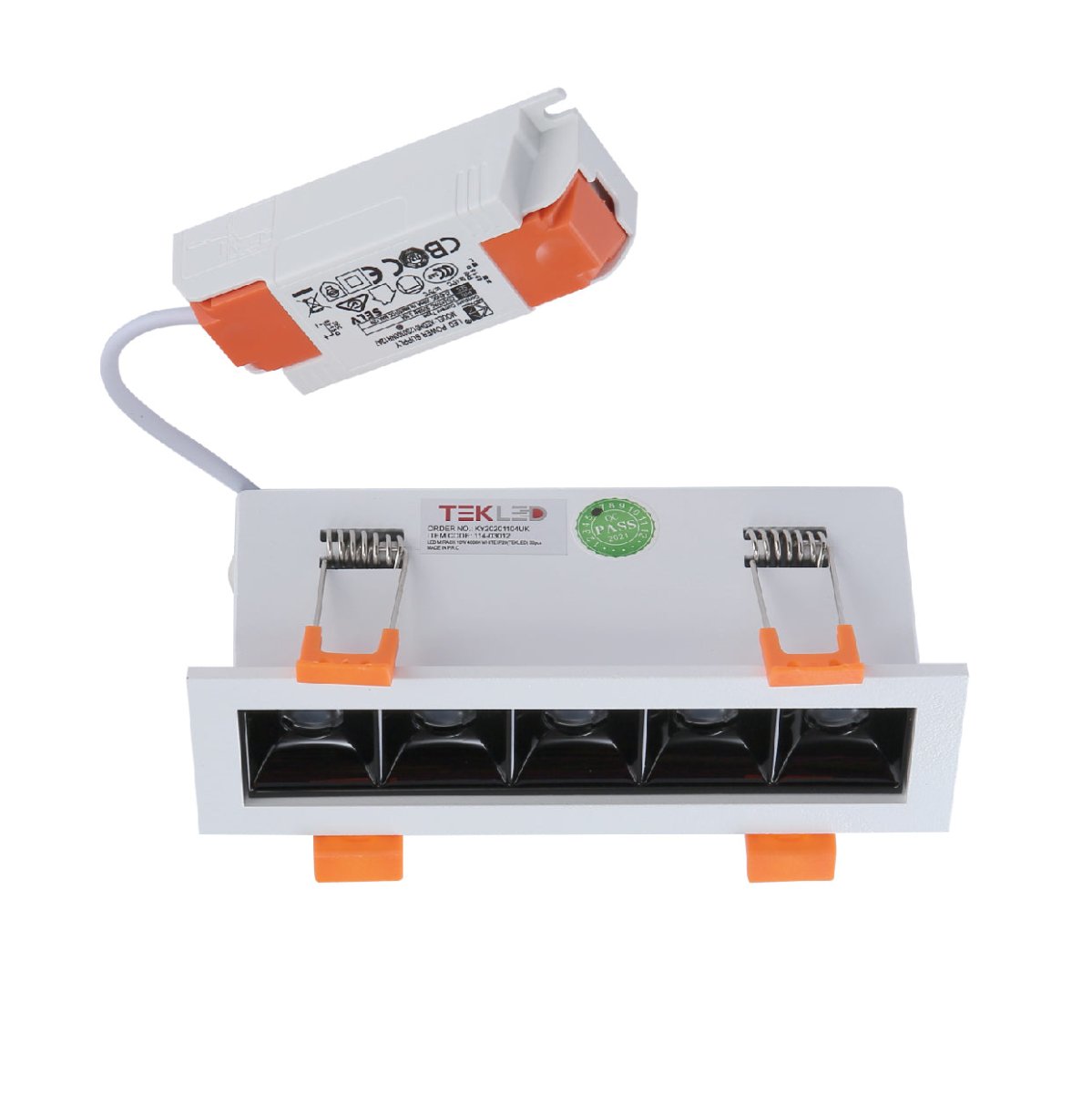

| Bulbs | Built-in LED fixture with LED driver |
| Light Output(luminous flux) | 1120 lm |
| Luminous Efficacy | 100 lm/W |
| Lux | avg 950Lux @2m and 1306Lux max |
| CRI(Colour Rendering Index) | CRI>80 |
| CCT (Kelvin)(Light Colour) | 4000K Cool White |
| IP Class(Ingress Protection) | IP20 |
| Mount Type | Recessed Mount |
| Function Mode | On/Off |

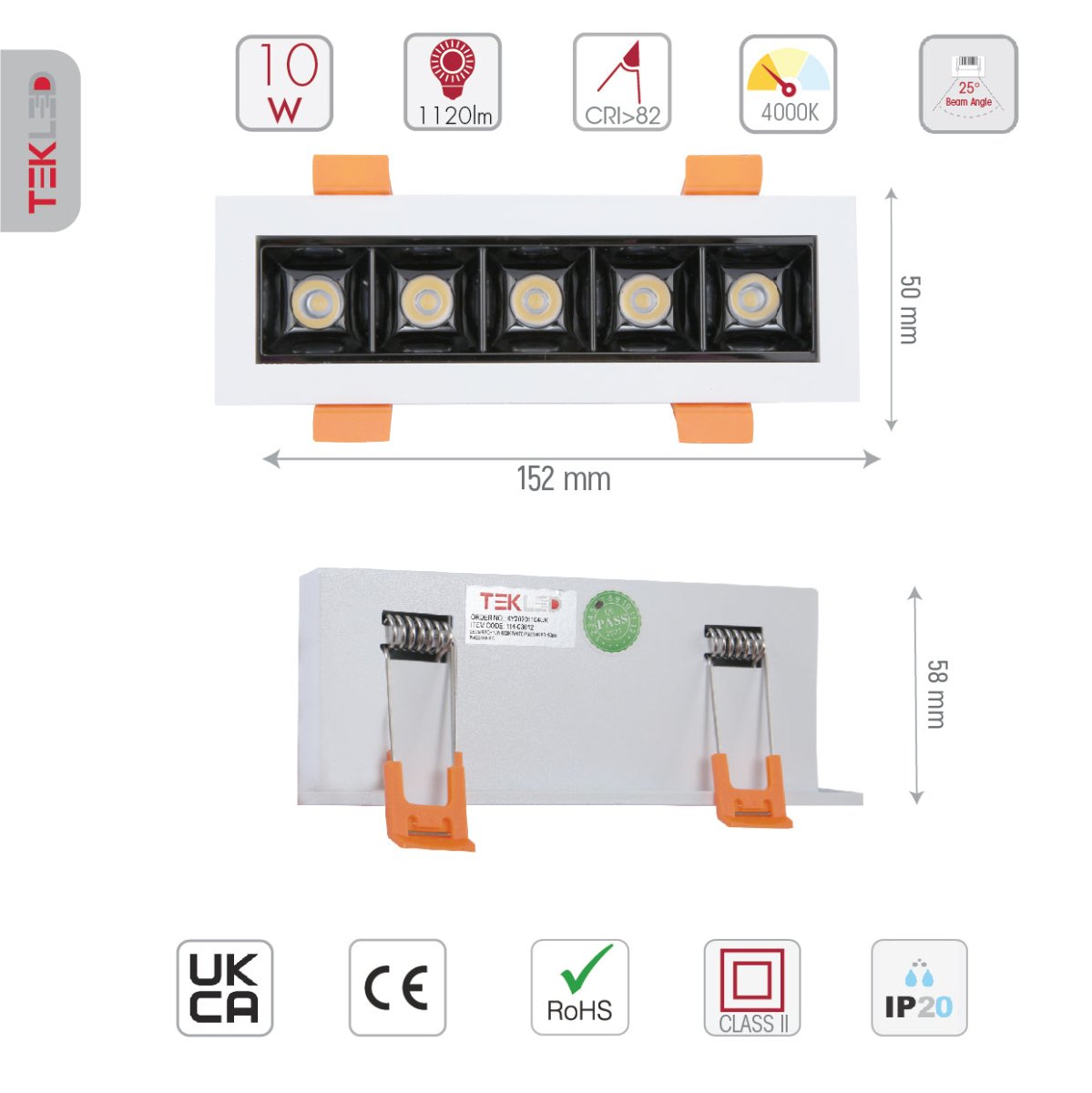

| Product Dimensions (L x W x H) (D x H) | 152x58x50mm |

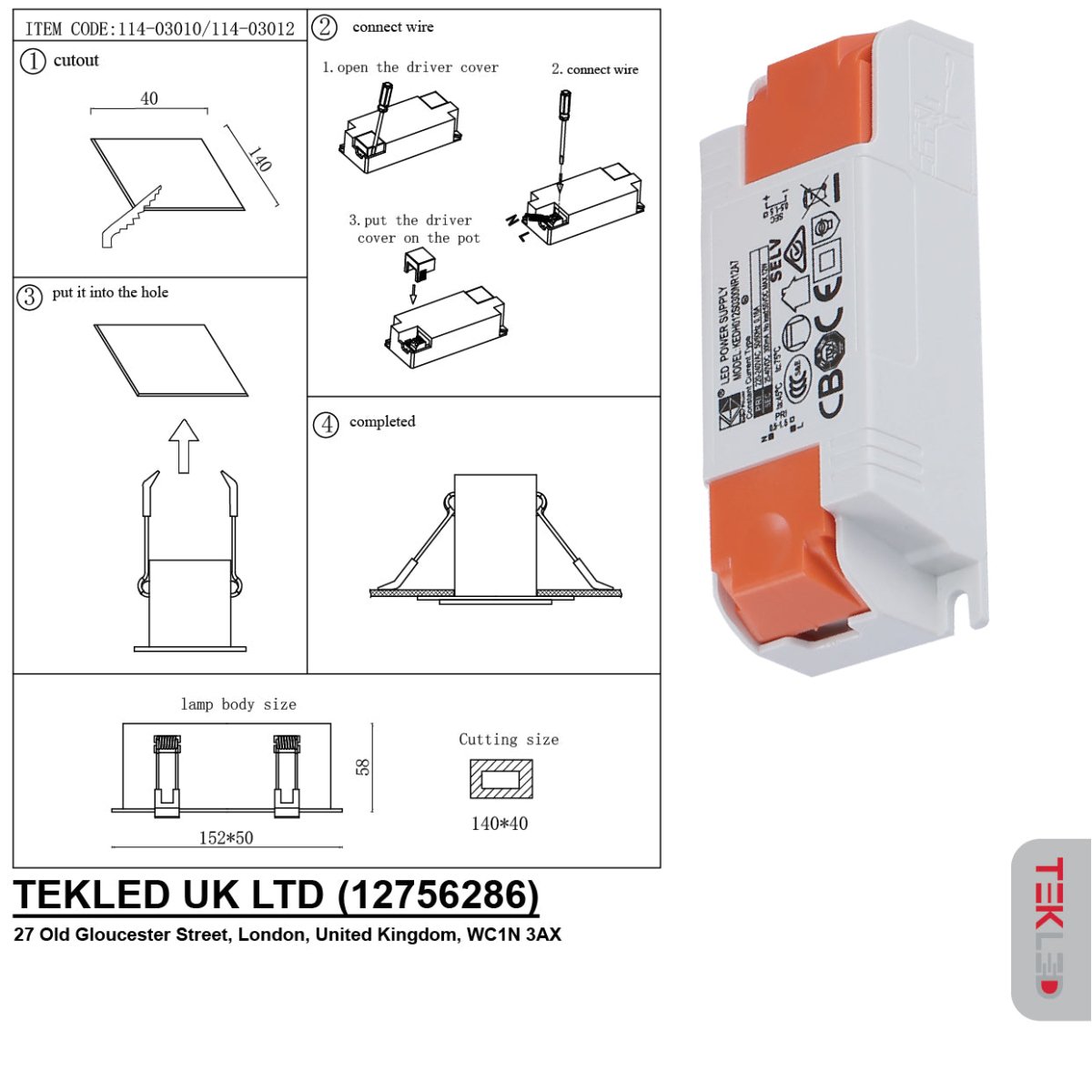

| Cut-Out Size | 140x40mm |

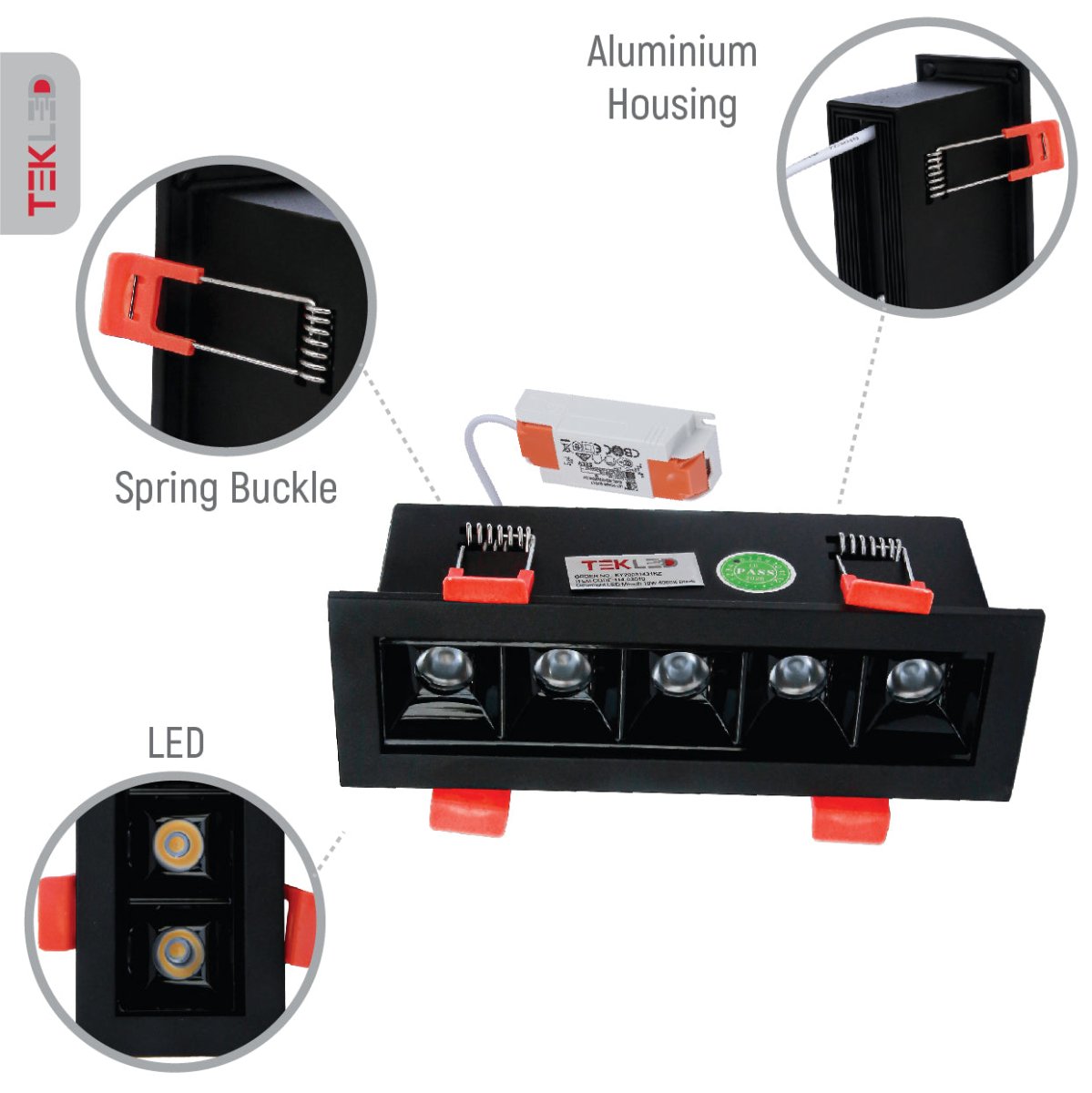

| Made of Materials | Aluminium, PMMA, ABS |
| Product Colour | Black | White |
| Paint Type | Powder coated |
| Optic Type | Lens |
| Optic Material | PMMA(acrylic) |

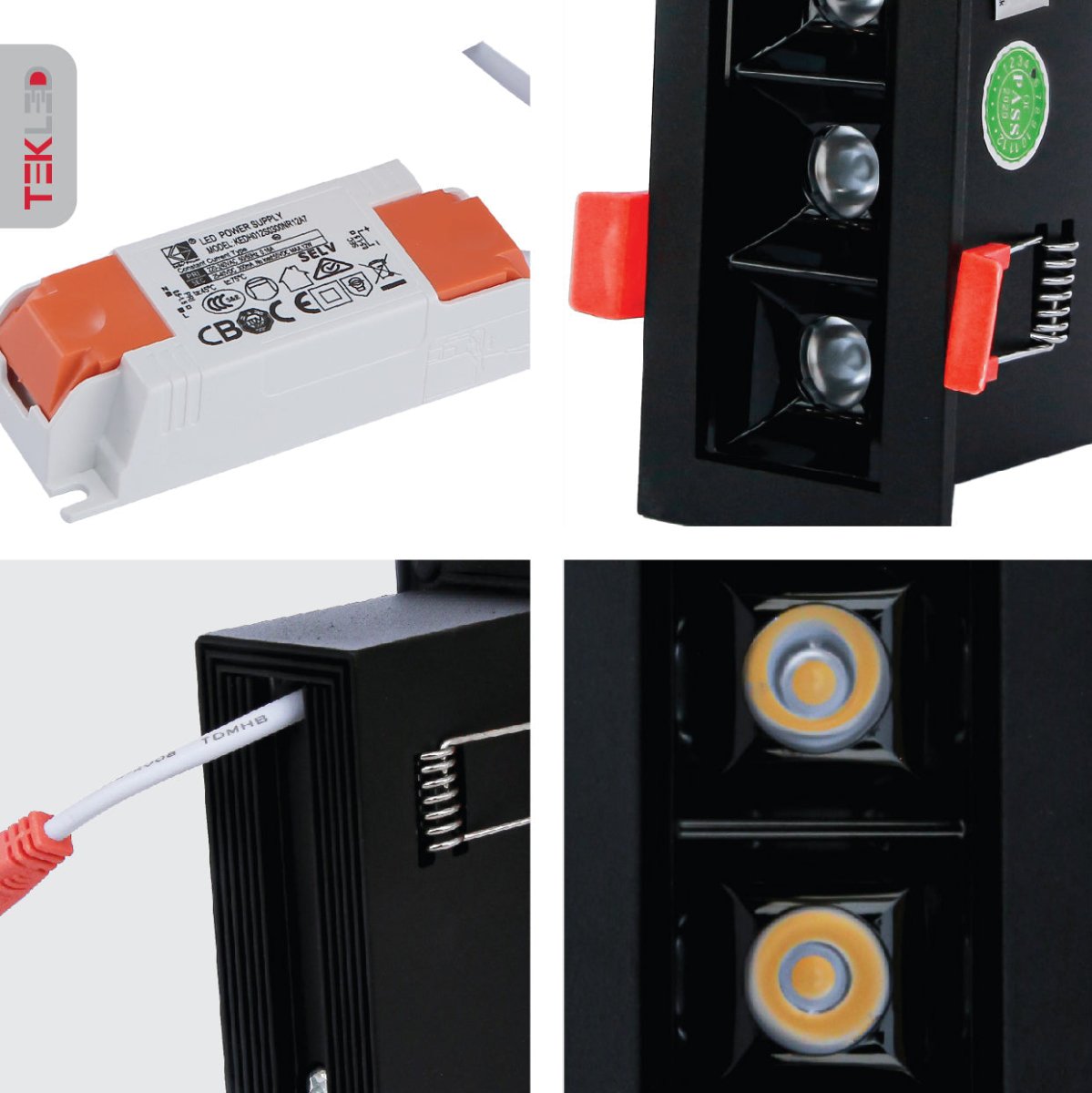

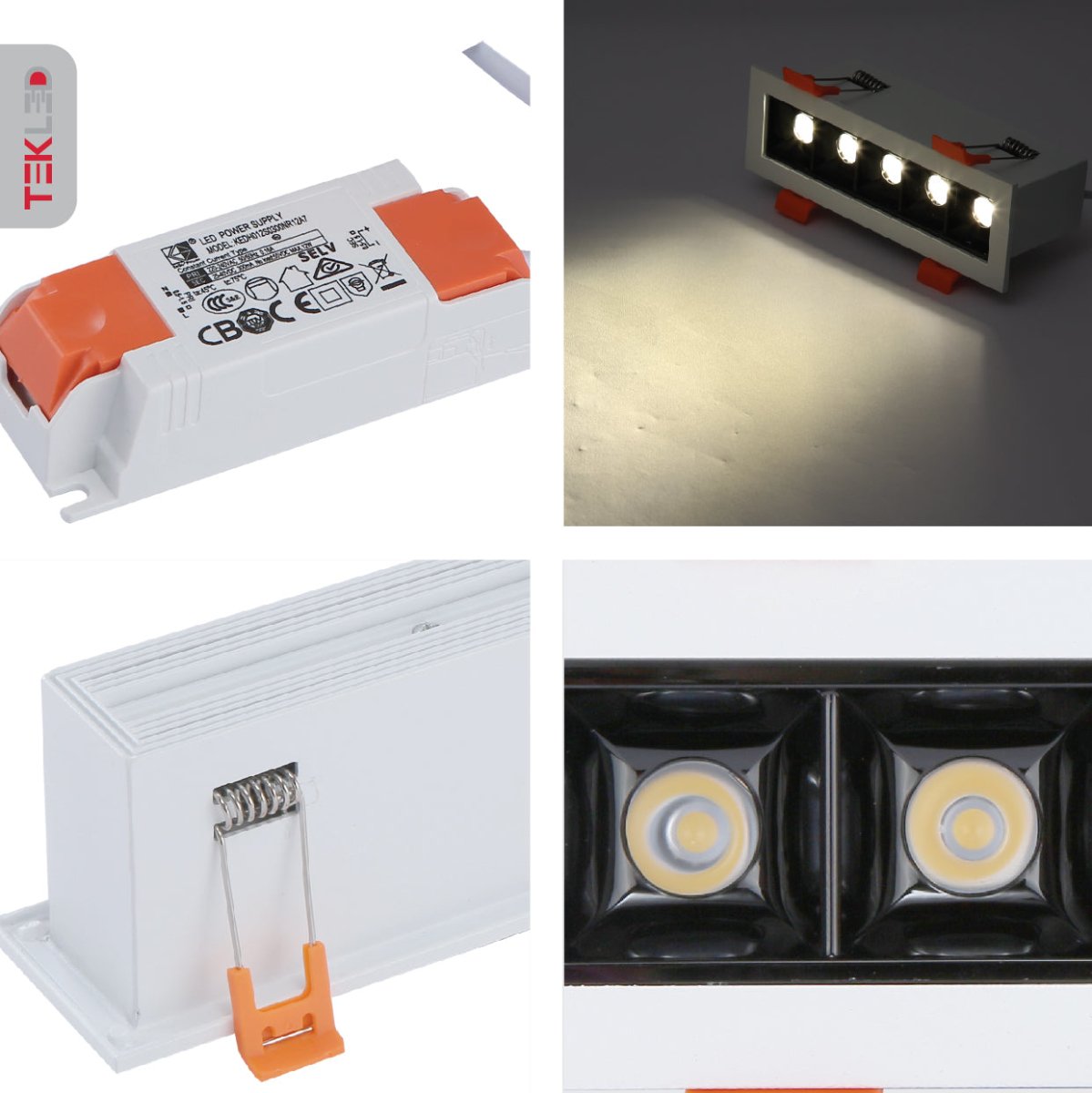

| Driver Brand | KeGu |
| Driver Type | Constant Current |
| Driver Power | 12W |
| Driver Input Voltage | 220~240Vac 50/60Hz |
| Driver Input Current | 0.1 A @240Vac |
| Driver Output Voltage | 25-40Vdc |
| Driver Output Current | 300mA |
| Surge Protection Level | 1kV |
| Power Factor | pf>0.5 |
| Flickering | Non-Flickering |
| Control | On/Off |
| Operating Temperature (C) | -20/+45C |
| New Energy Rating | F |
| Energy Rating | A++ |
| Warranty | 3 year |
| Life Span | 30000 h |
| Gross Weight | 320g |
| Net Weight | 290g |
| Box Dimensions (LxWxH) | 160x80x75mm |
| Box Content | 1pcs lamp body, 1pcs Instruction |
| Certifications | UKCA, CE (LVD, EMC) |
