LED Paladin Bulkhead 14-16-20 W 3CCT IP54 with White Rim - Bulkhead.
LED Paladin Bulkhead 14-16-20 W 3CCT IP54 with White Rim
The LED Paladin Bulkhead is a versatile and powerful lighting solution, offering a customizable lighting experience with multiple power and colour temperature options. Featuring a sturdy, durable plastic body and equipped with high-quality LED light sources and drivers, this bulkhead is designed to withstand both indoor and outdoor environments. The IP54 rating ensures protection against dust and splashes, making it perfect for residential, commercial, and industrial applications.
With 3 power settings (14W, 16W, 20W) and 3 CCT options (Warm White, Natural White, Cool White), all adjustable via convenient dipswitches, this bulkhead adapts easily to your lighting needs. Additionally, four variants allow you to choose the configuration that best suits your requirements, and an optional black bezel can be purchased separately to replace the standard white bezel.
Key Features:

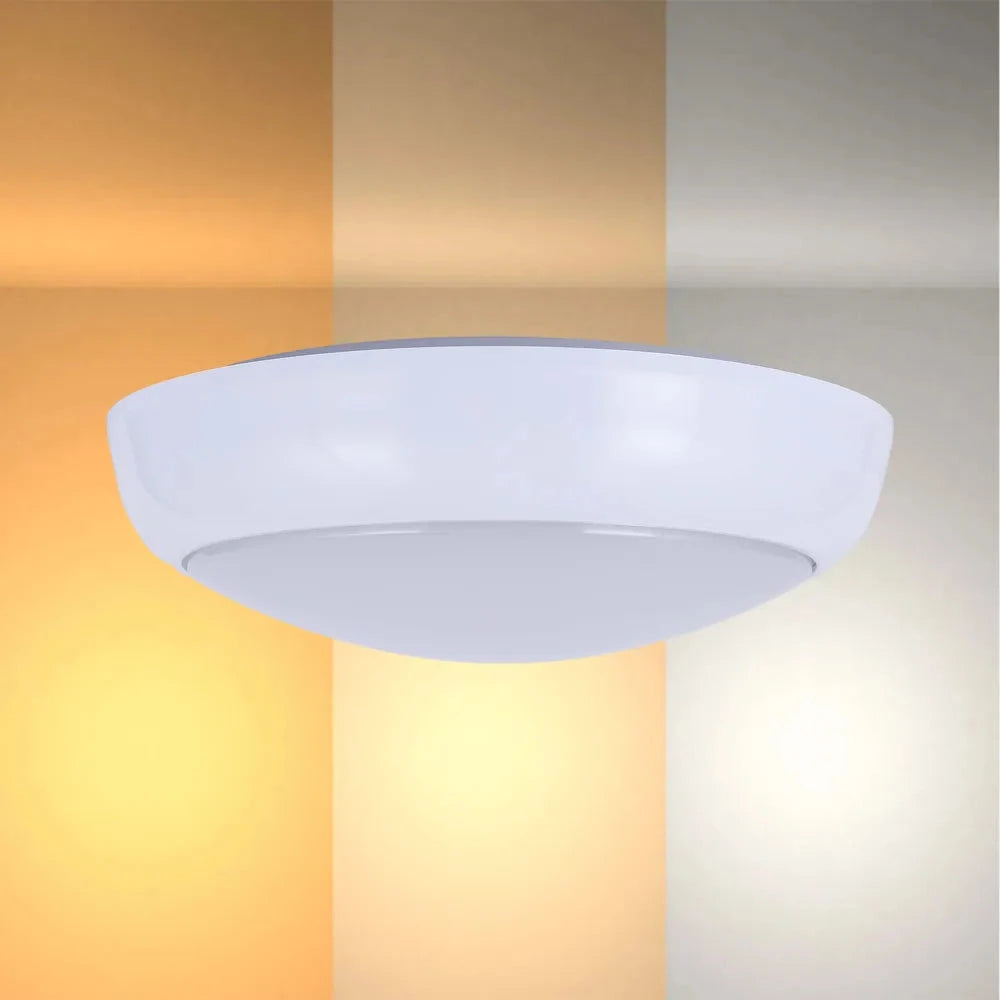

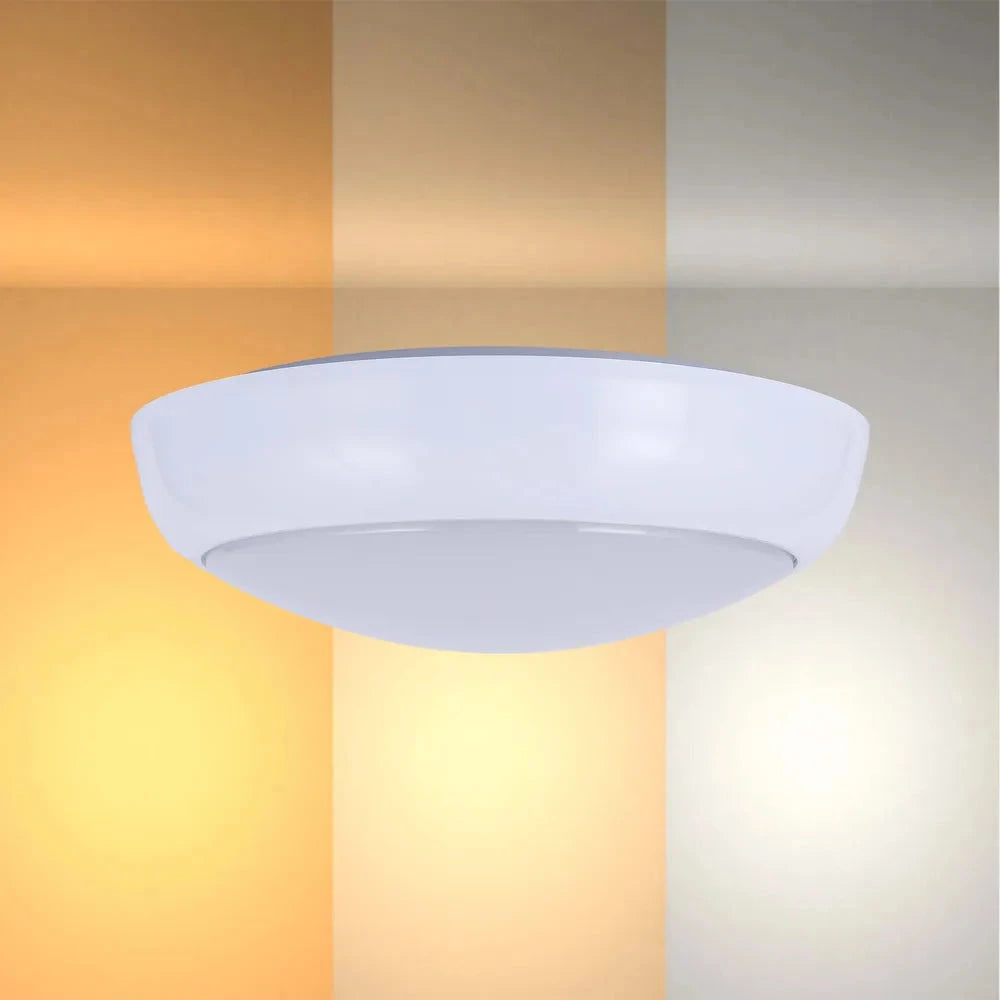

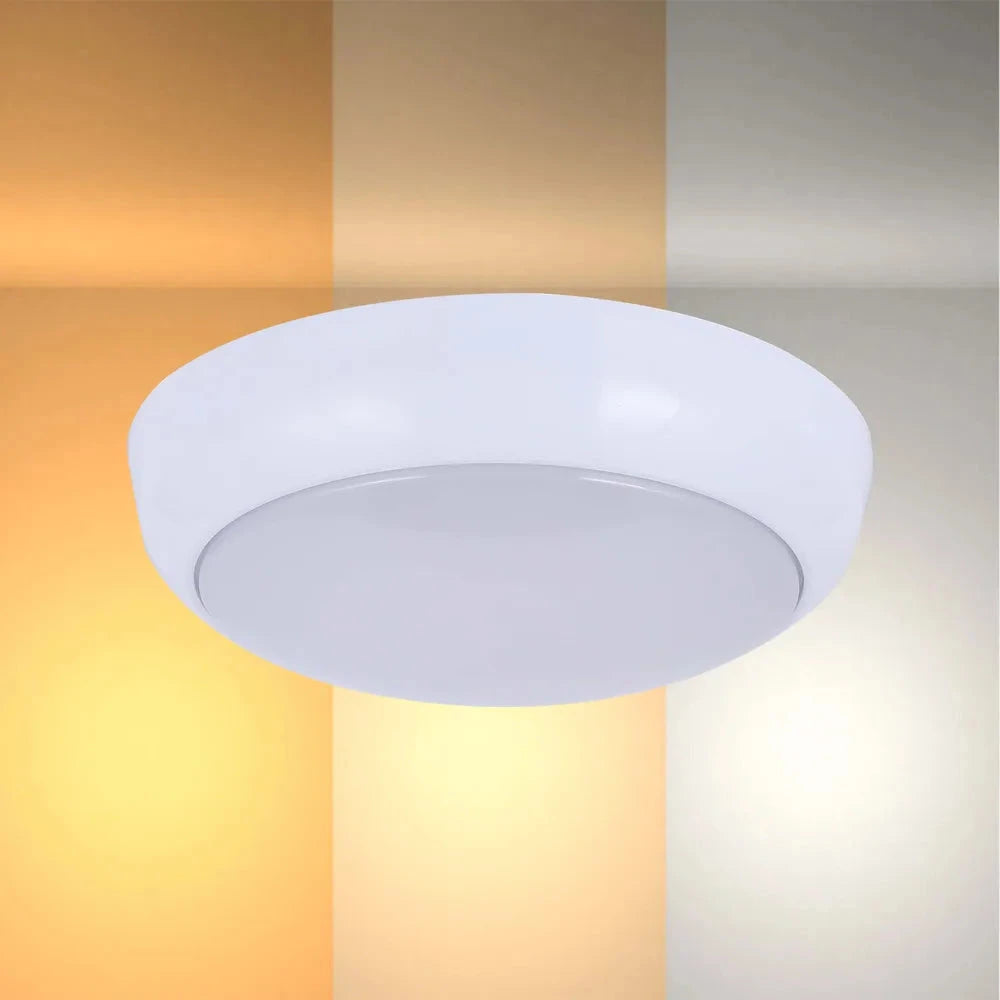

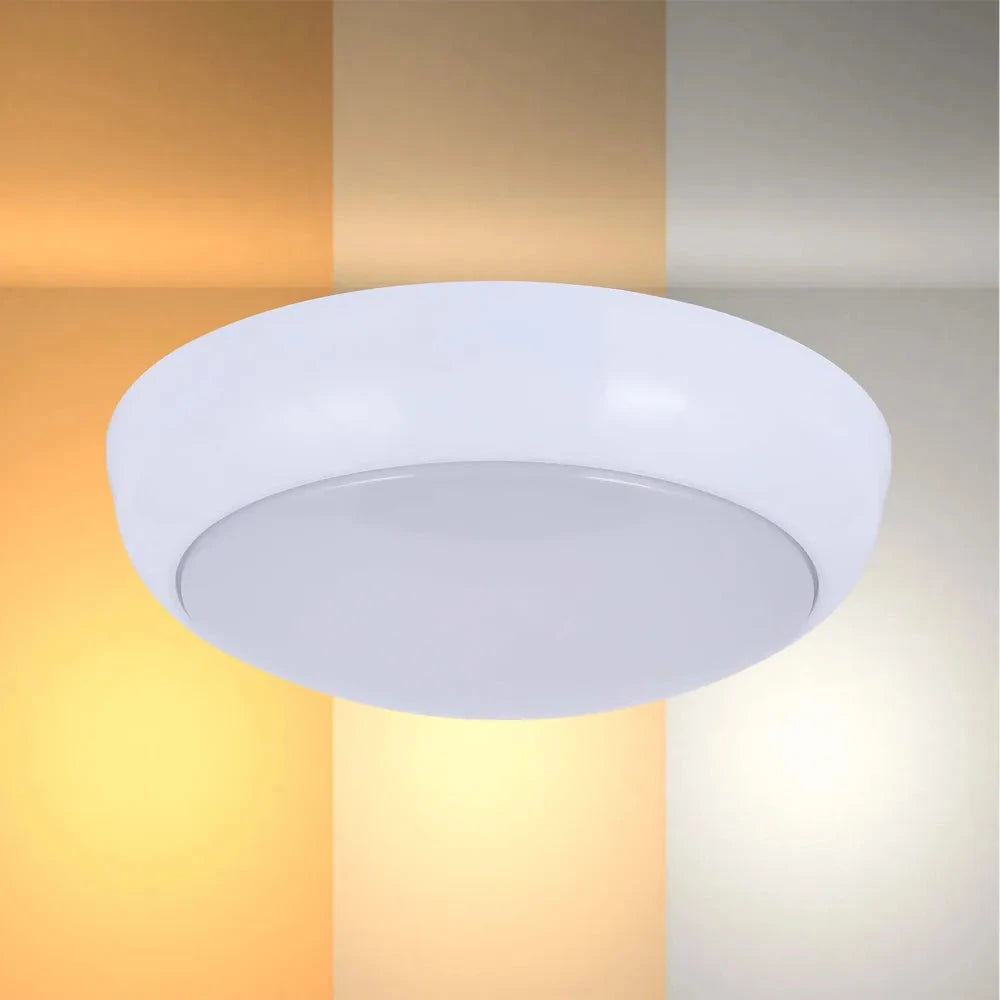

- Adjustable Power and CCT Options: Switch between 14W, 16W, or 20W and select from 3000K, 4000K, or 6500K colour temperatures, all via easy-to-use dipswitches.
- IP54 Rating: Weather-resistant, making it suitable for both indoor and outdoor installations.
- Durable Construction: Made from sturdy plastic, this bulkhead is built to last.
- 4 Variants: Choose the variant that best fits your needs, with additional options for sensors and emergency lighting.

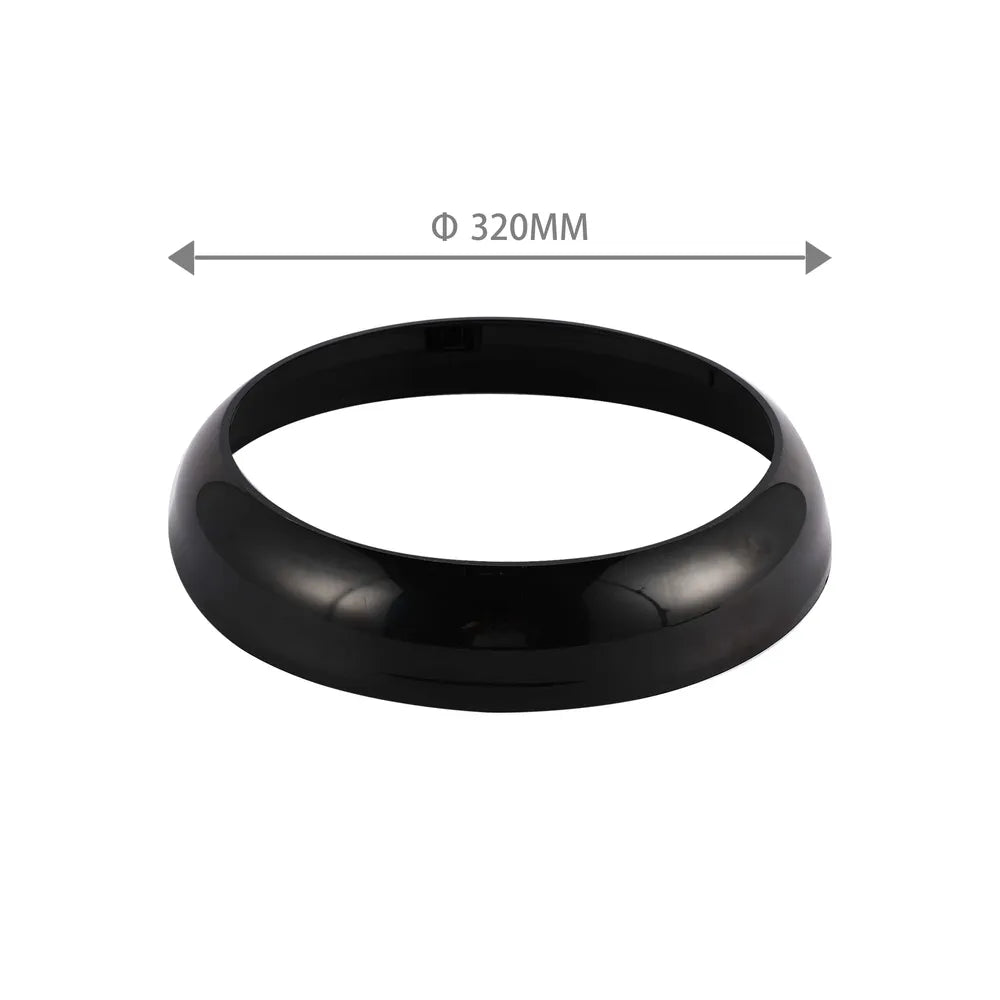

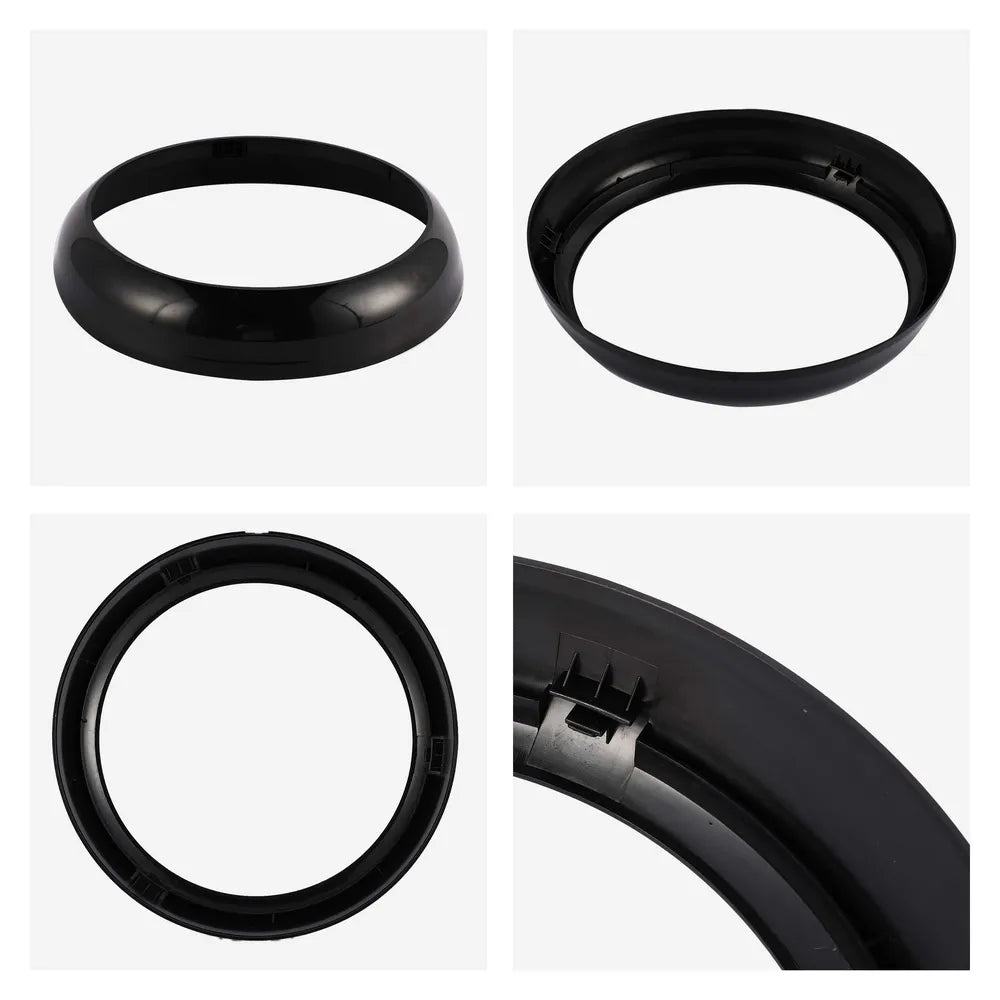

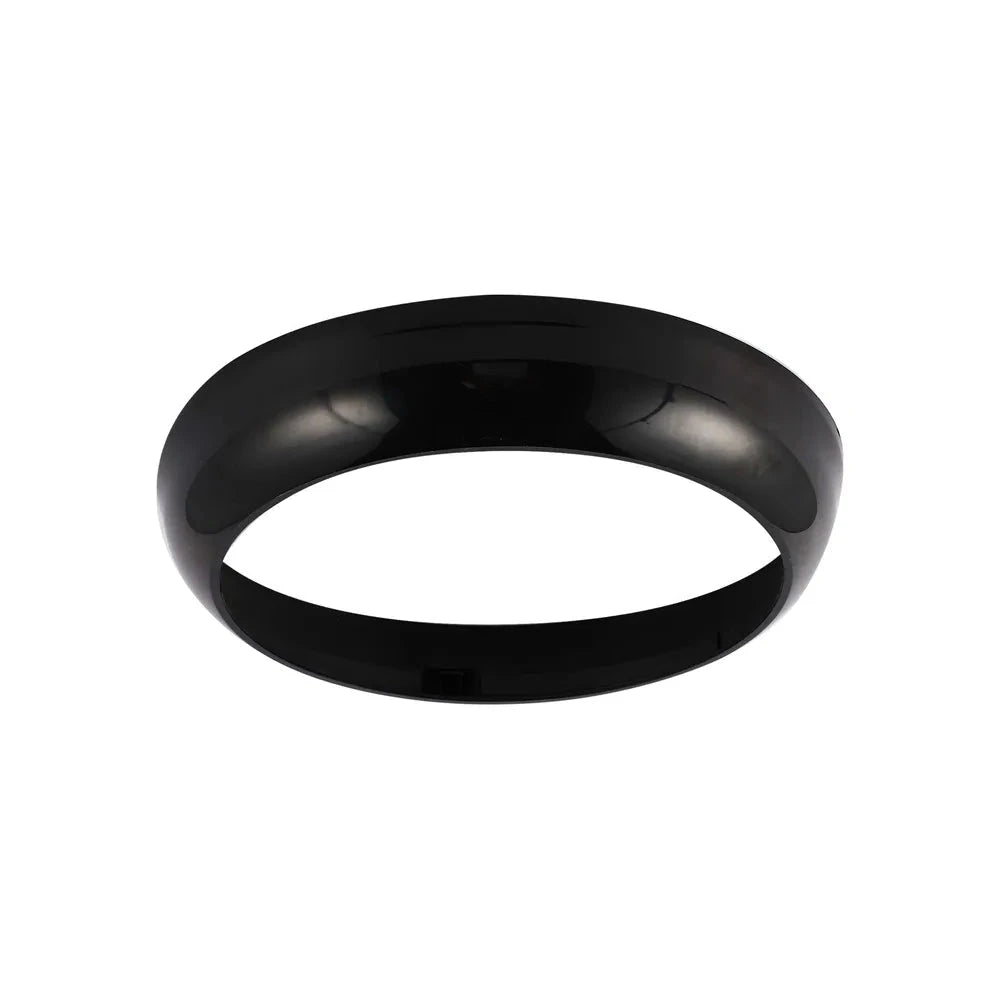

- Optional Black Bezel: Customize the fixture by purchasing a black bezel to replace the white one, offering design flexibility.

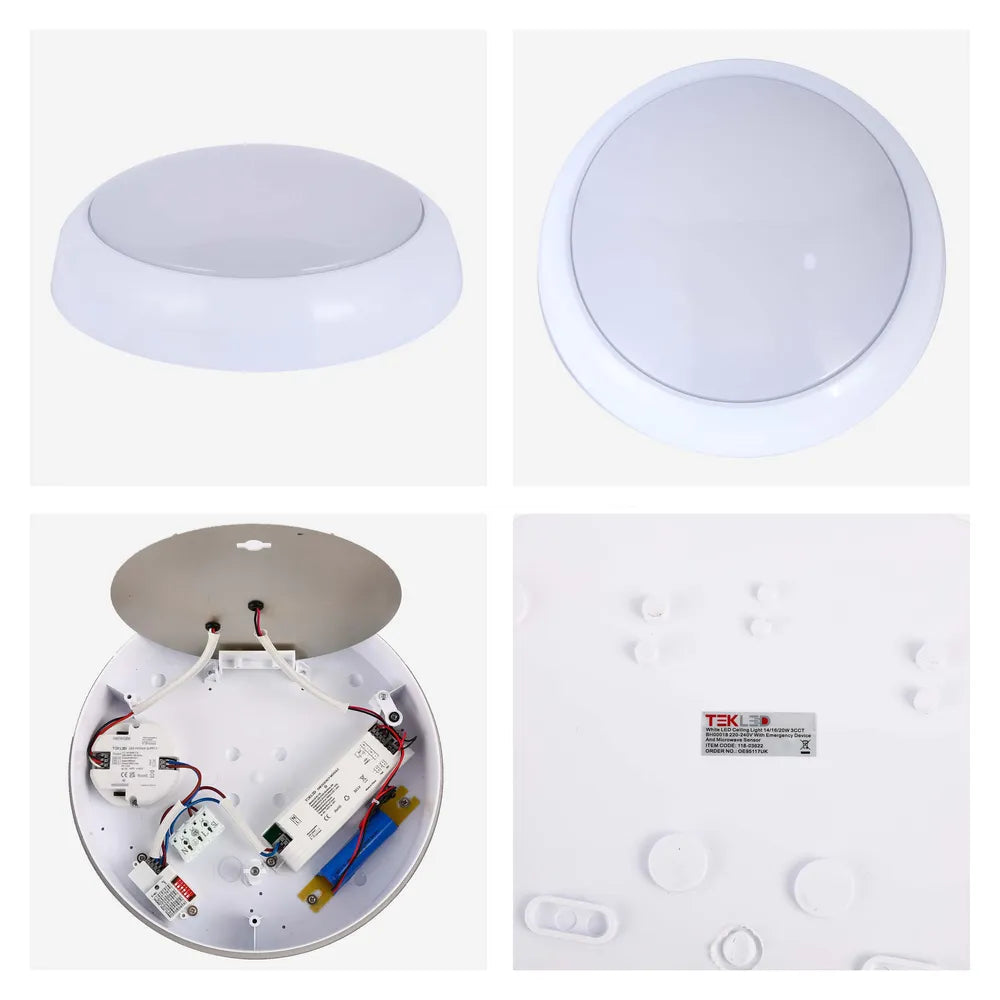

This bulkhead is powered by a high-quality LED light source, ensuring long-lasting performance and energy efficiency. With a robust driver and sensor technology, it delivers reliable, consistent lighting in all conditions. The optional emergency pack and sensor features provide enhanced functionality, especially for safety-focused installations.
Available Variants:
- Bulkhead: Standard model with adjustable power and CCT options.
- Bulkhead with Microwave Sensor: Includes a microwave motion sensor for automatic operation.
- Bulkhead with Emergency Pack: Comes with an emergency lighting function for power outages.
- Bulkhead with Microwave Sensor and Emergency Pack: Combines both motion-sensing and emergency lighting features for maximum functionality.
Décor & Style Compatibility:

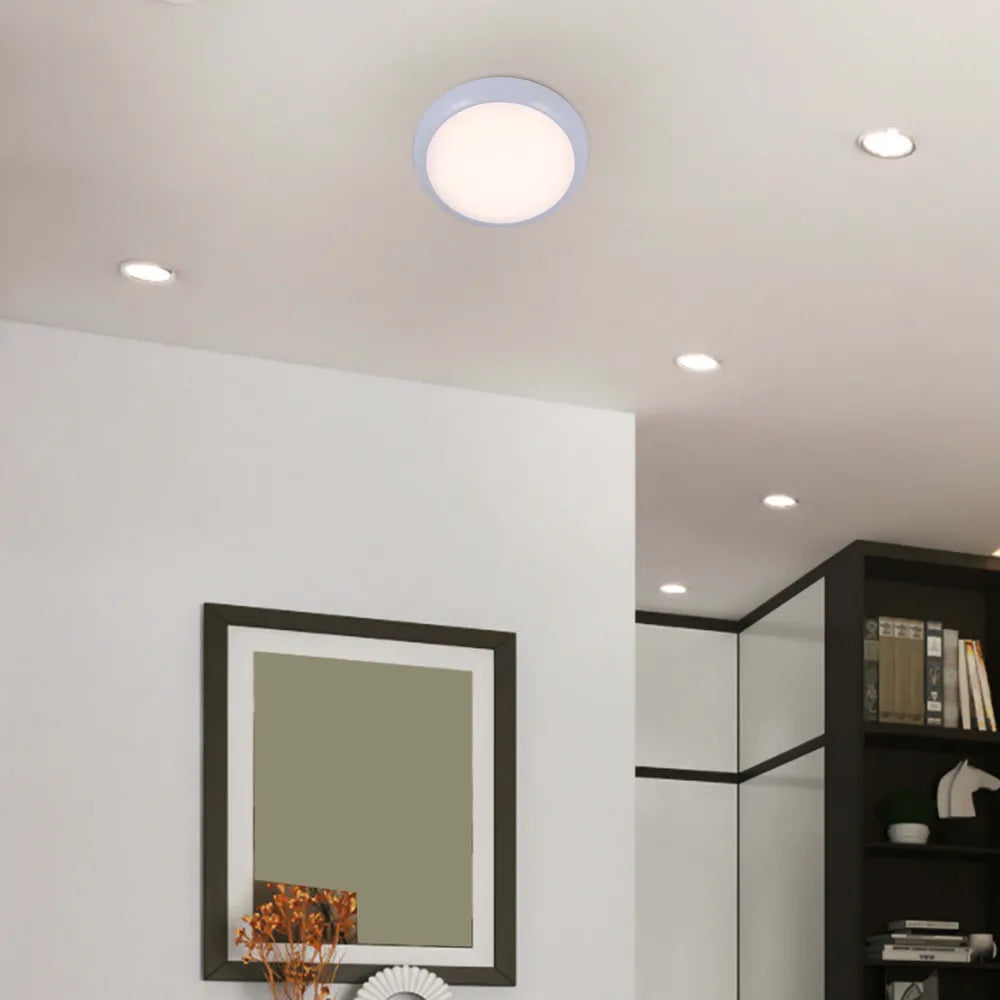

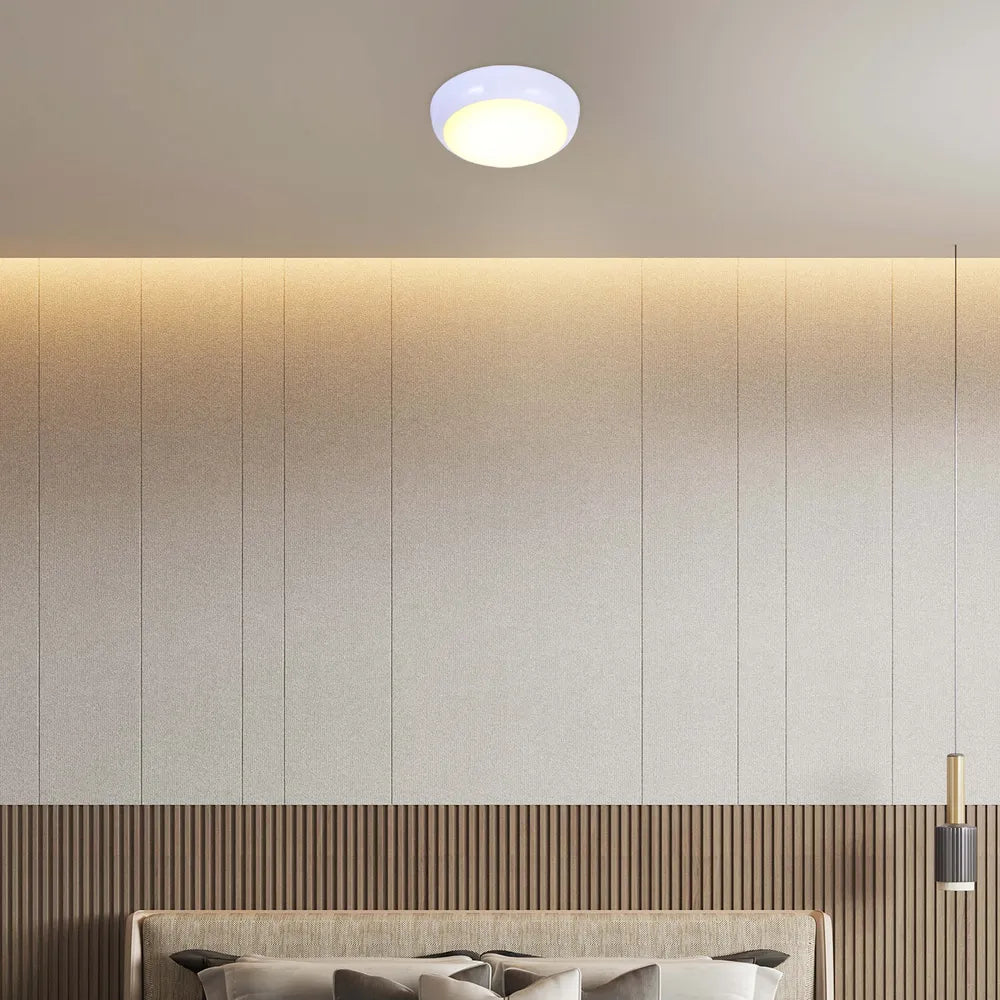

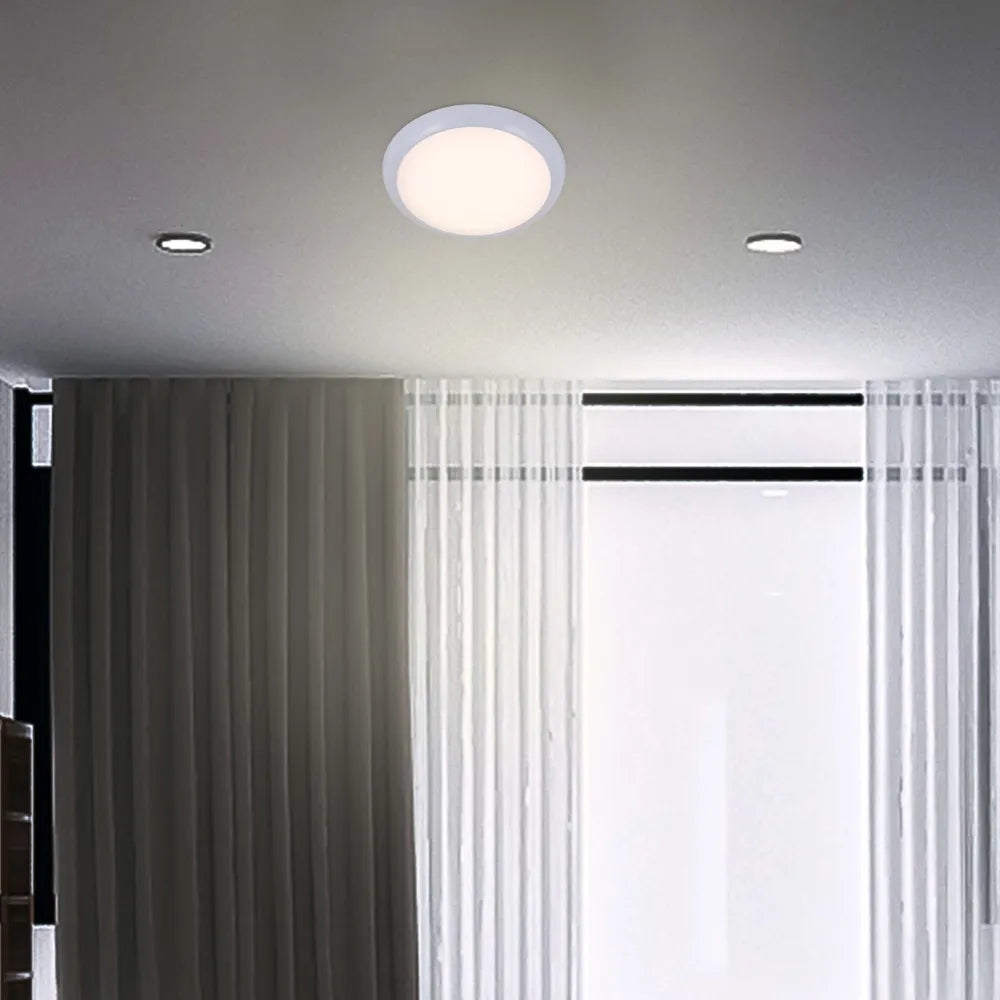

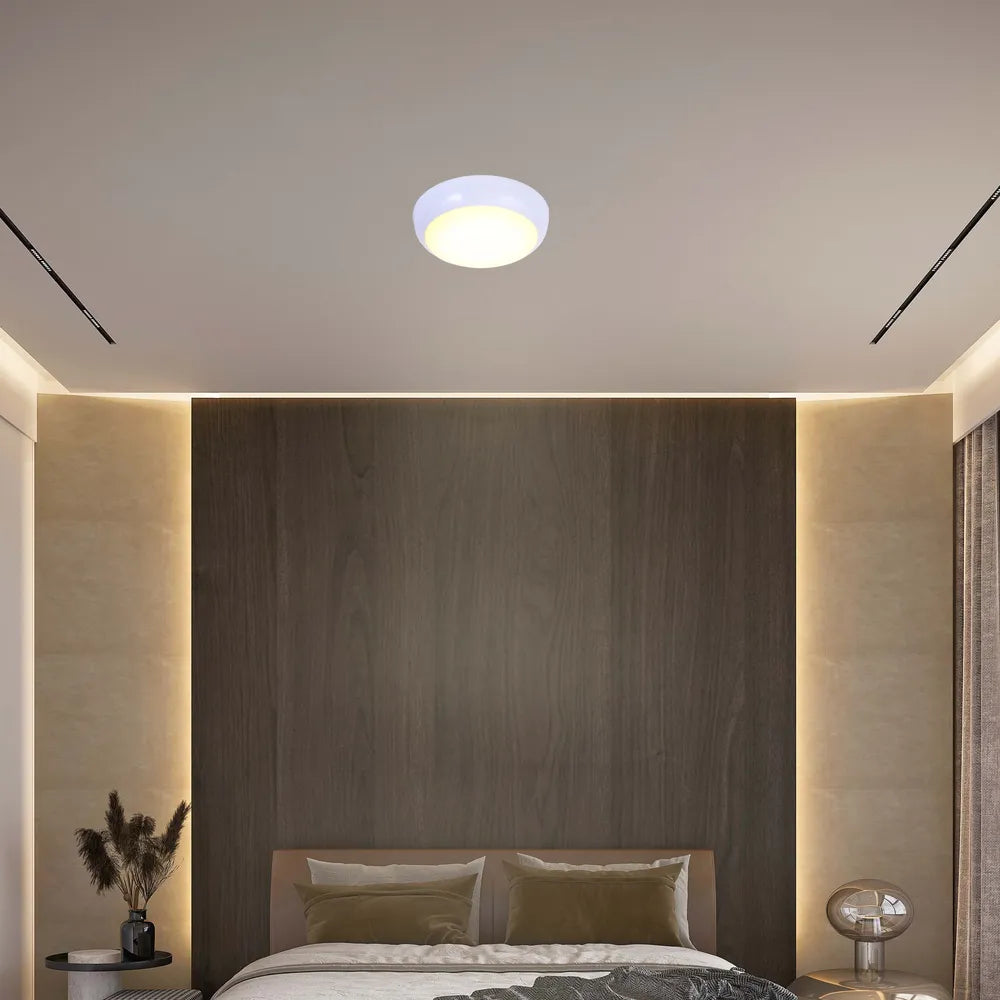

- Residential Exteriors: Use this in entryways or patios to provide weather-resistant lighting. The adjustable CCT options make it adaptable for creating either a warm, inviting glow or a bright, functional light.
- Commercial & Industrial: Perfect for warehouses, corridors, and outdoor areas, where the emergency pack and sensor options provide safety and convenience.
- Modern Minimalist Spaces: With its sleek, functional design, this bulkhead light fits seamlessly into modern and minimalist décor styles, especially when paired with the optional black bezel for a bold contrast.
No matter the setting, the LED Paladin Bulkhead delivers flexible, powerful, and reliable lighting with a range of configurations to suit any environment.
Technical Specifications
Product Code | 118-03616 | 118-03618 | 118-03620 | 118-03622 | 118-03614 |
Power | 14W | 16W | 20W |
Power Source | Hardwired |
Voltage | 220/240V AC 50/60Hz |
Power Factor | 0.5 |
Lamp Holder Type | Built-in LED |
Protection Class | Class I |
Light Source | SMD LED |
Lumen | 1600 lm |
Luminous efficacy | 80 lm/W |
CRI | CRI>80 |
CCT (Kelvin) Light Colour | 3000/4000/6000K 3CCT |
Beam Angle | 160 |
IP Class | IP54 |
Diffuser Material | PC |
Diffuser Type | Opal |
Mount Type | Flush Mount |

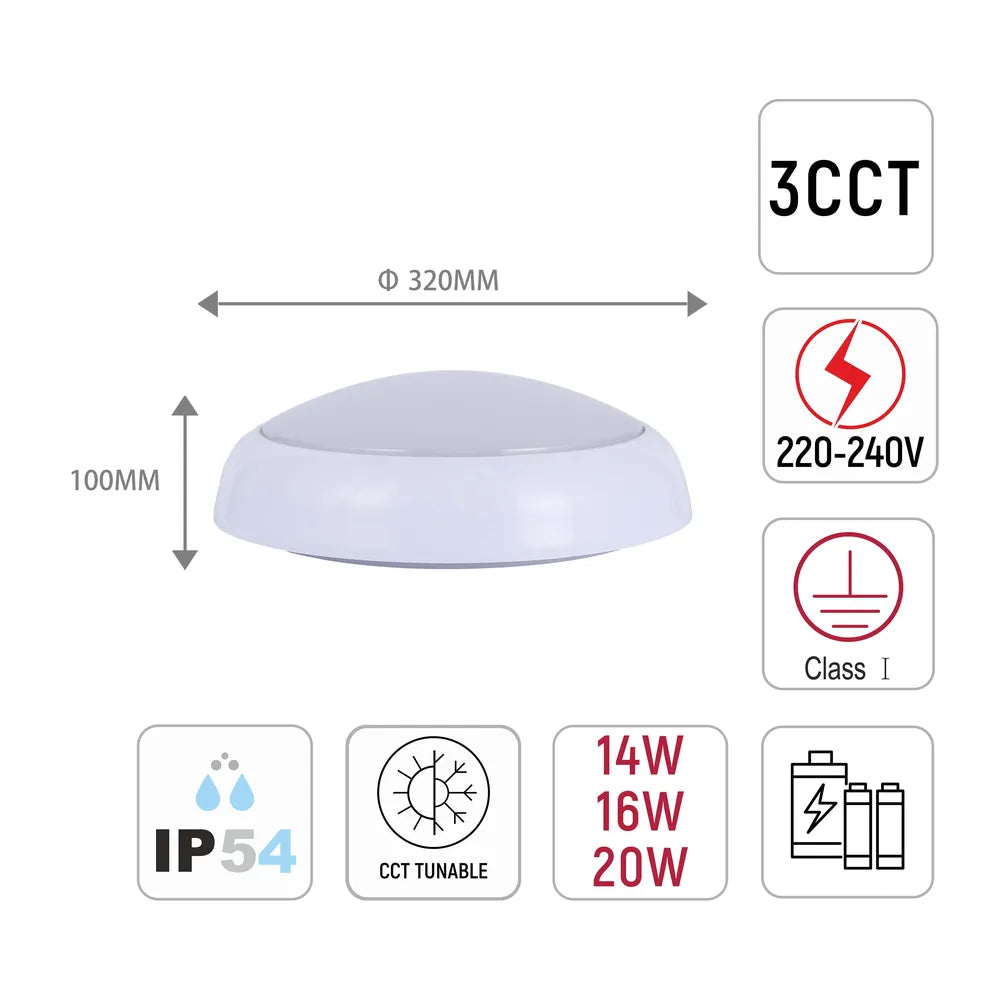

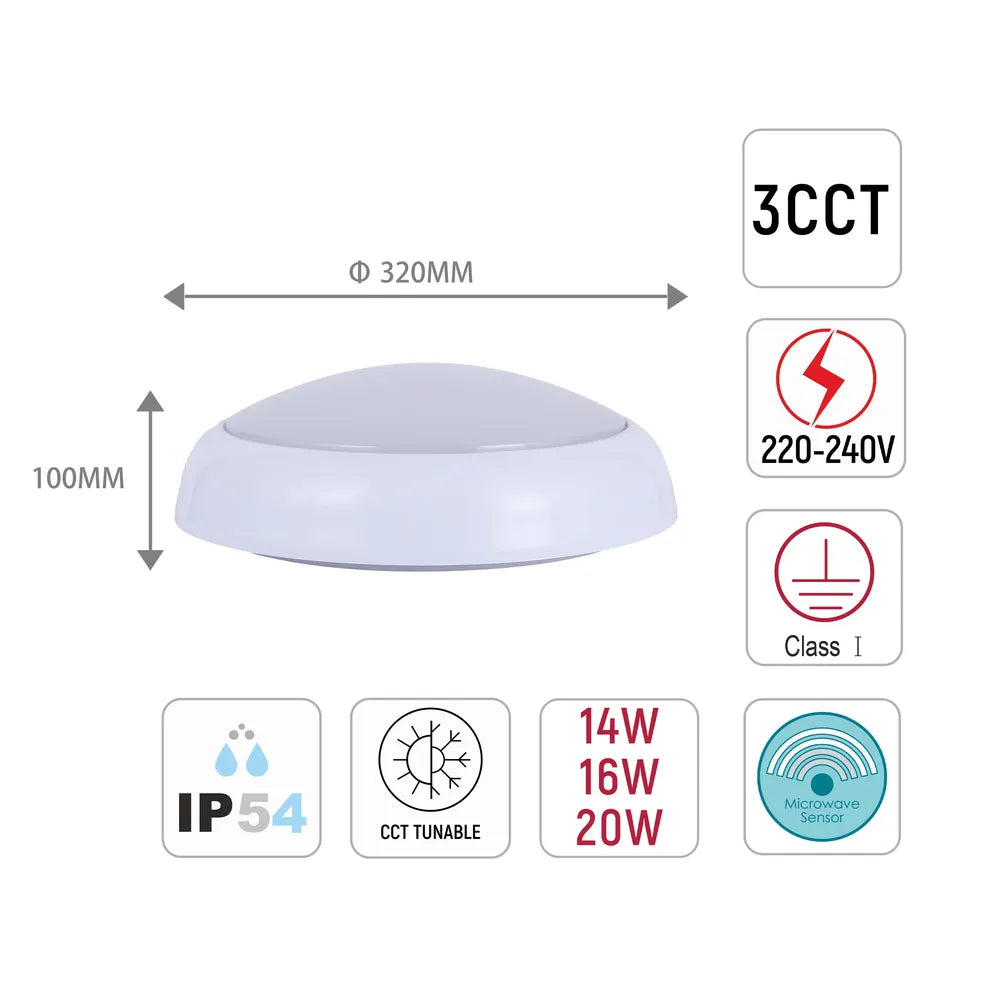

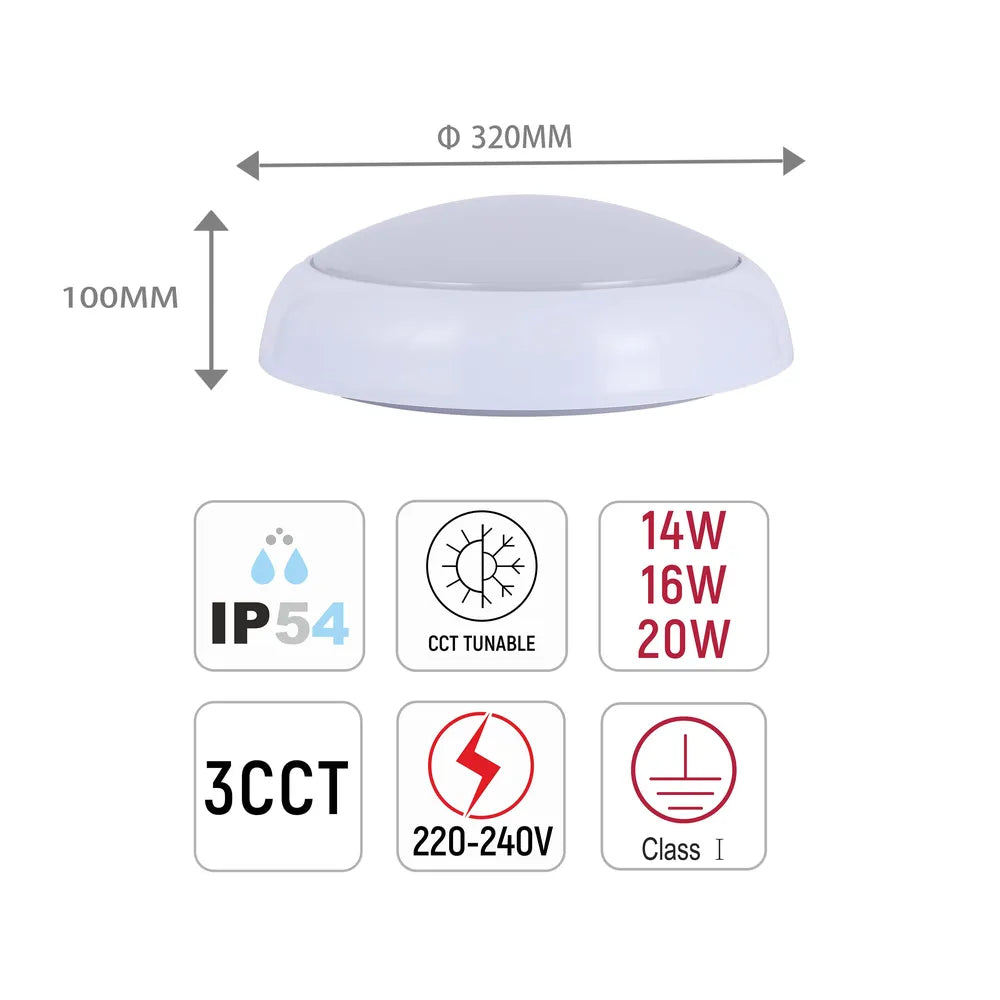

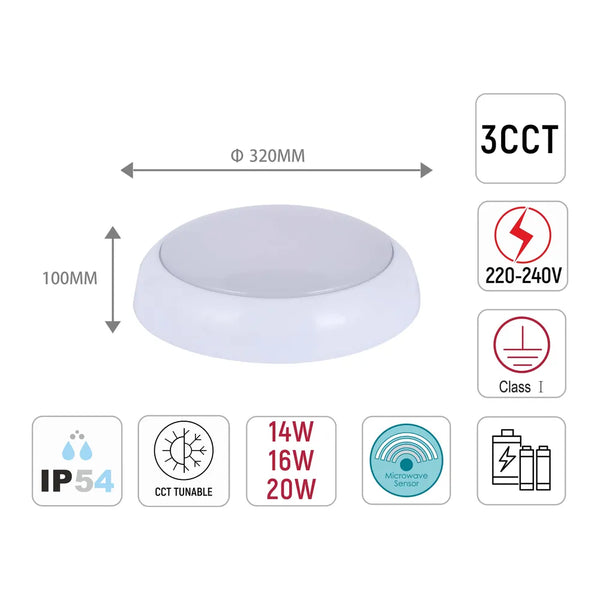

Product Dimensions (L x W x H) (D x H) | Φ 320*100mm |

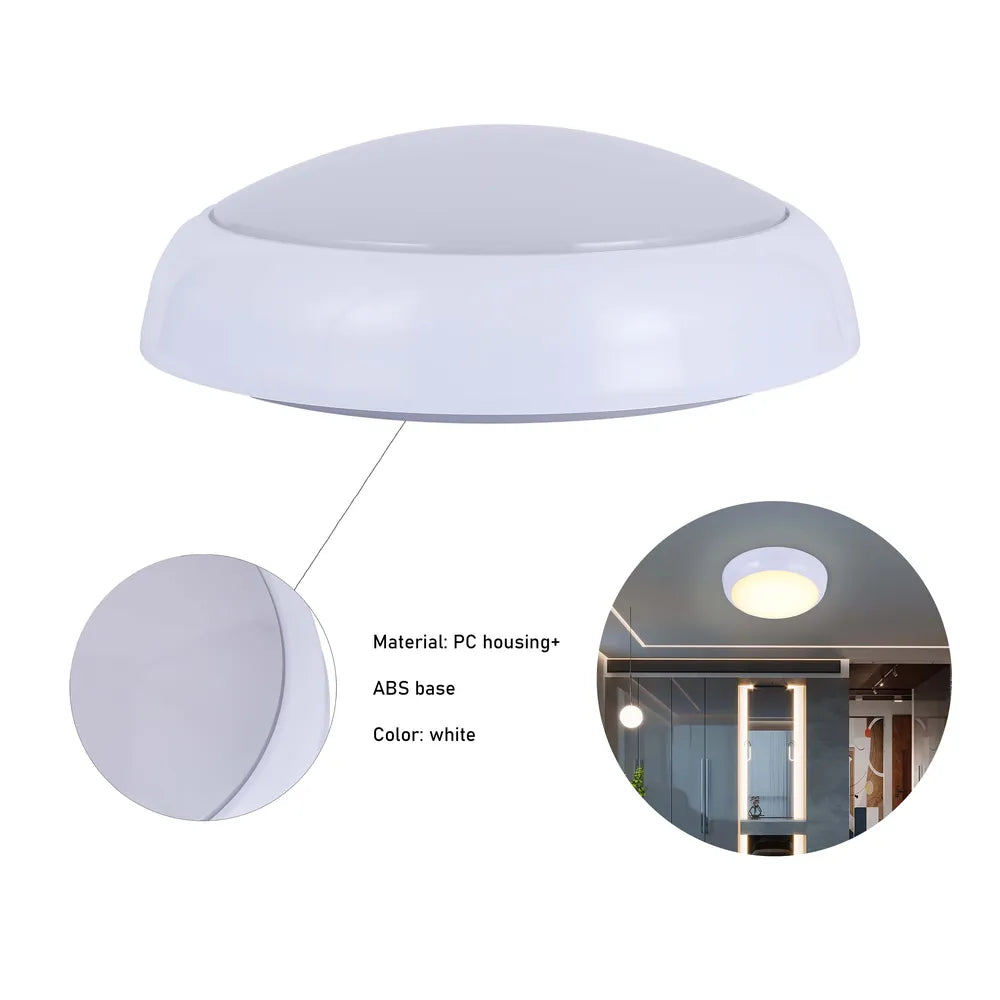

Made Of Materials | PC housing and ABS base |
Product Colour | White |
Function Mode | On/Off with sensor | Emergency back up for 3h | On/Off with sensor and Emergency back up for 3h |
Extra Specification | 3 CCT - 3 power | 3 CCT - 3 power - Microwave Sensor | 3 CCT - 3 power - Emergency Kit | 3 CCT - 3 power - Emergency Kit - Microwave Sensor |
Light Colour Control | Choose one of 3 CCTs 3000K-4000K-6000K |
Physical switch | DIP switch |
Battery Power | 3.2V/1500mAh |
Control | On/Off |
Surge Protection Level | 2.5kV |
Operating Temperature (°C) | -20/+45 C |
Energy Rating | G |
Energy Rating Range | A-G |
Emergency | 3 hour |
Warranty | 3 year |
Life Span | 30000h |
Box Dimension (L x W x H) | 330*330*110mm |
Net Weight | 0.76kg | 0.79kg | 0.88kg | 0.91kg |
Gross Weight | 1.00kg | 1.03kg | 1.12kg | 1.15kg |
Box Content | 1*LED Ceiling Light, 1*User manual |
Pieces/Box | 1 |
Certifications | CE, UKCA |
Dimming Method | Choose one of wattages 14W-16W-20W |
