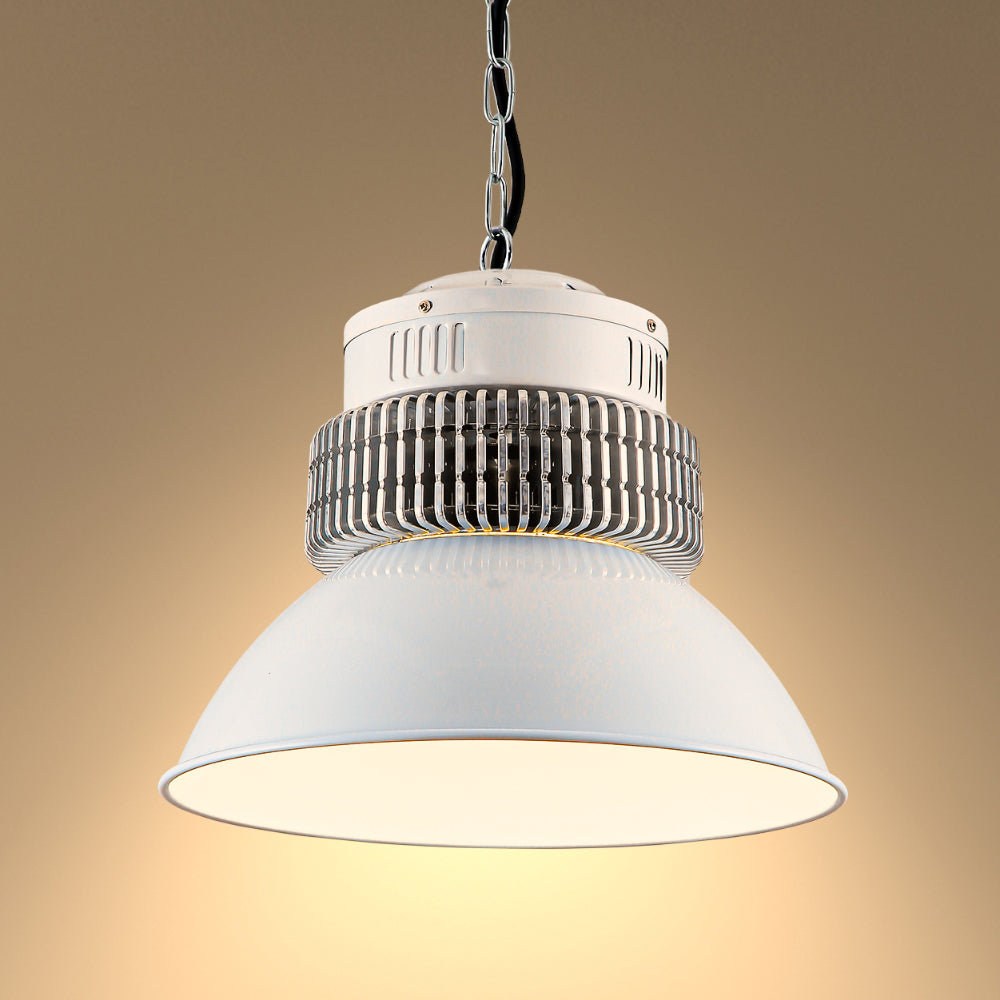

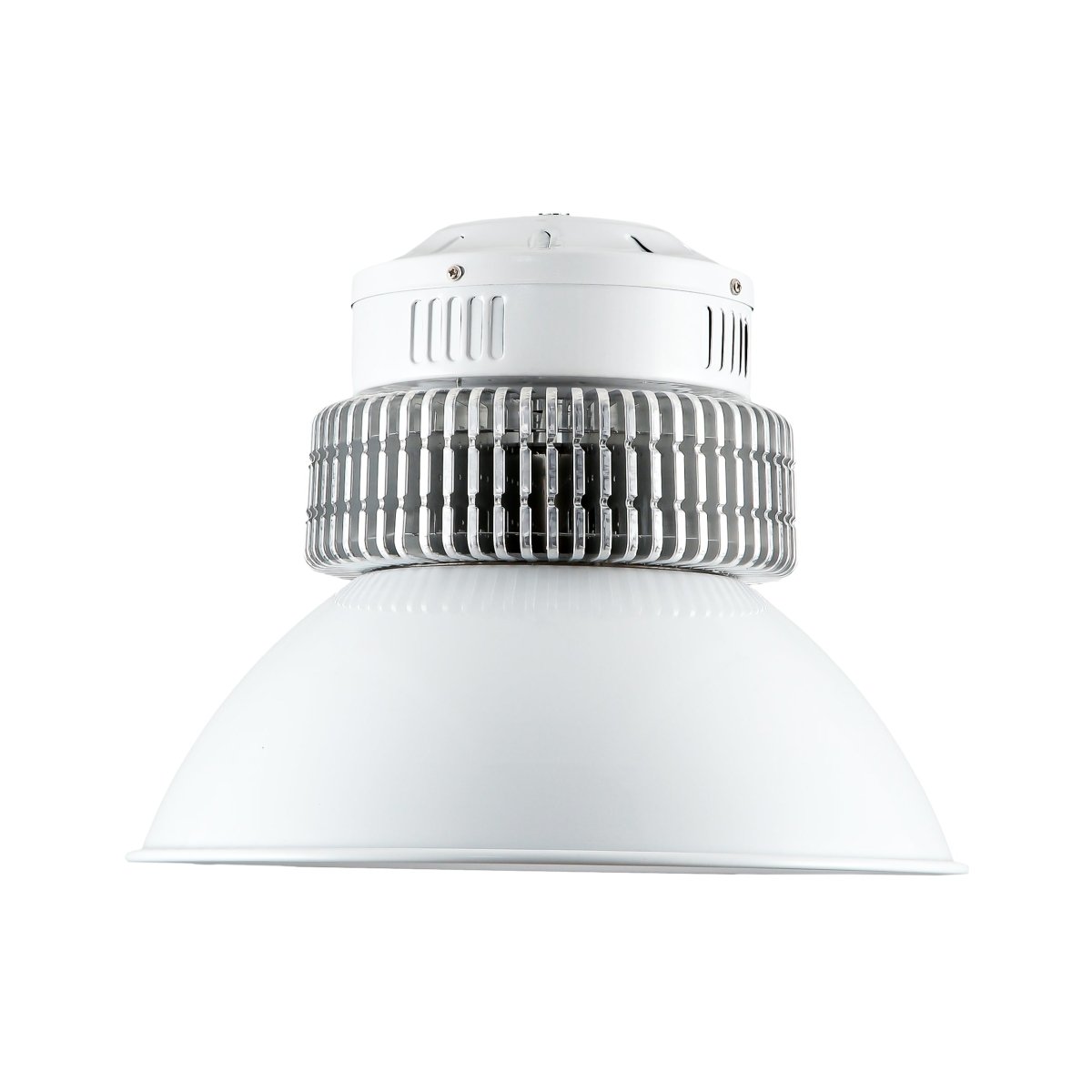

LED Radiator High bay 150W Cool White 4000K IP20 - with Metal Reflector.
LED Radiator High bay 150W Cool White 4000K IP20

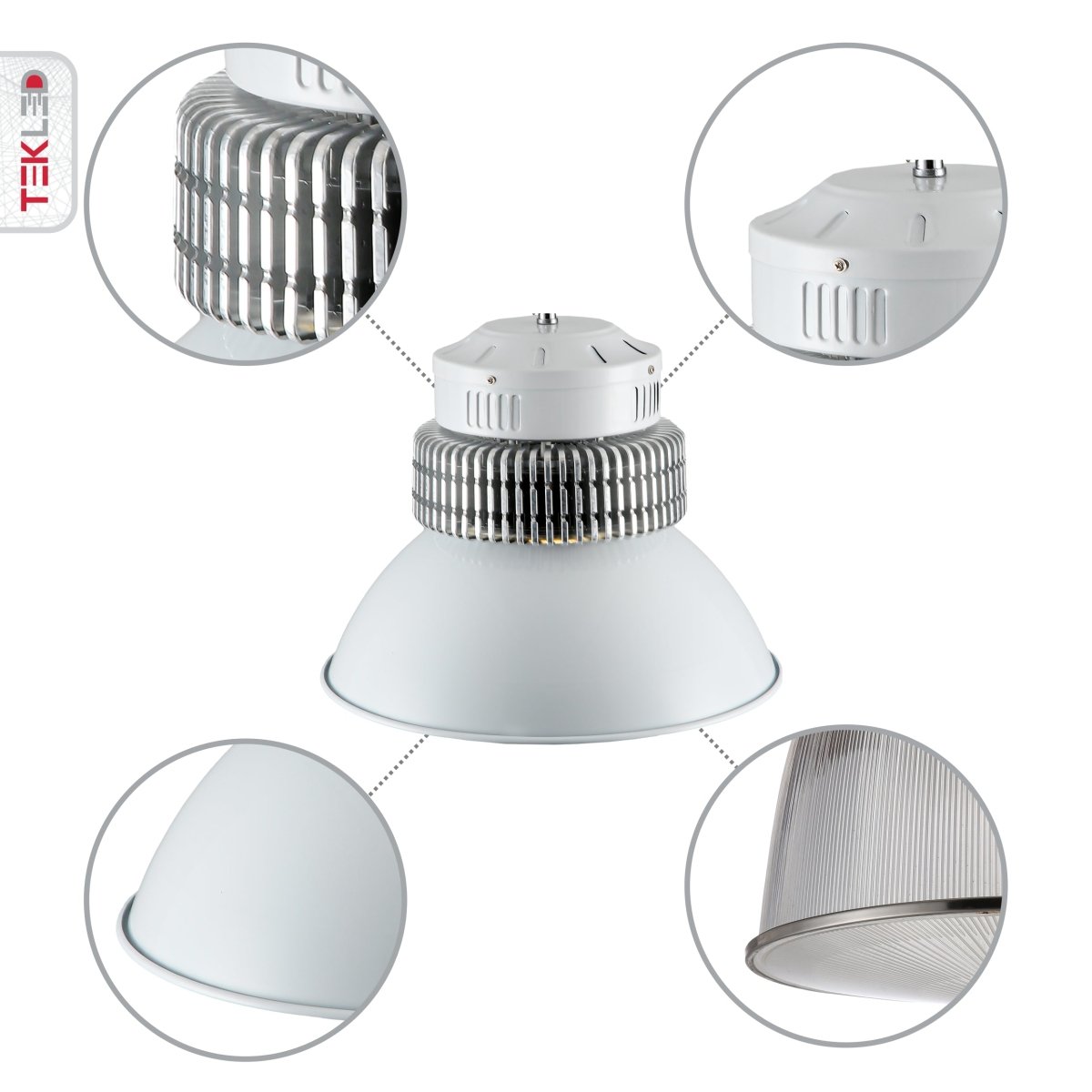

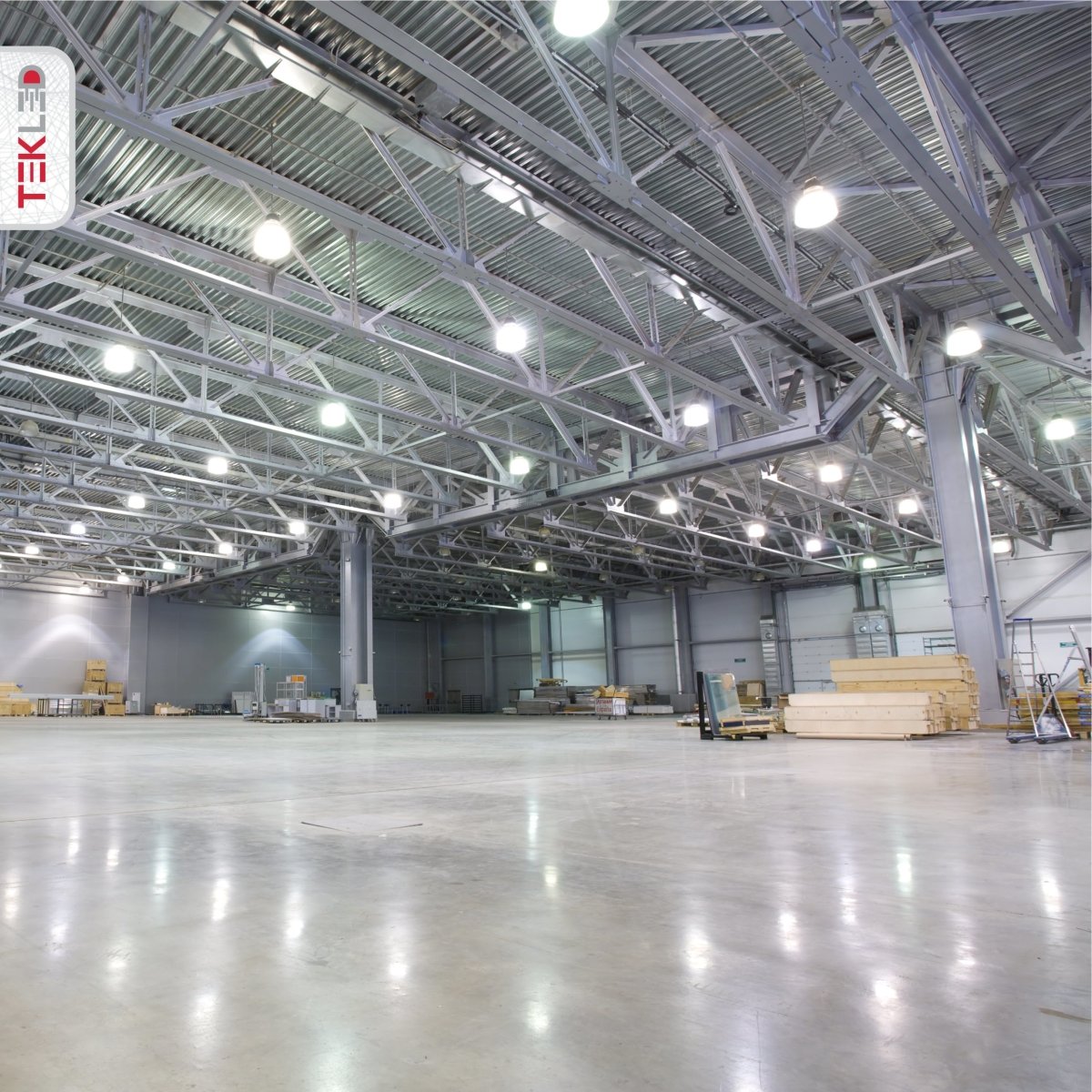

Our LED High Bay Light, crafted by TEKLED, is an exceptional lighting solution ideal for high-ceiling spaces such as warehouses, school gyms, retail stores, and exhibition centres. Its sleek white finish and durable aluminium radiator-type heat sink allow for efficient heat dissipation, promoting optimal performance and longevity.
This advanced light is available in 100W, 150W, and 200W power options, each offering a cool white colour temperature of 4000K. This feature ensures clear visibility and a pleasant working environment. With an impressive luminous efficacy of 130 lm/W, the LED High Bay Light delivers bright illumination while maximizing energy efficiency.
Equipped with an Inventronics brand driver, it accepts a broad input voltage range of 90~305 V AC, making it compatible with various electrical systems. Additionally, it offers advanced control options for flexible lighting management. Its high-quality driver comes with a 5-year warranty and a rated lifetime of over 60,000 hours, ensuring reliable performance and reduced maintenance costs.

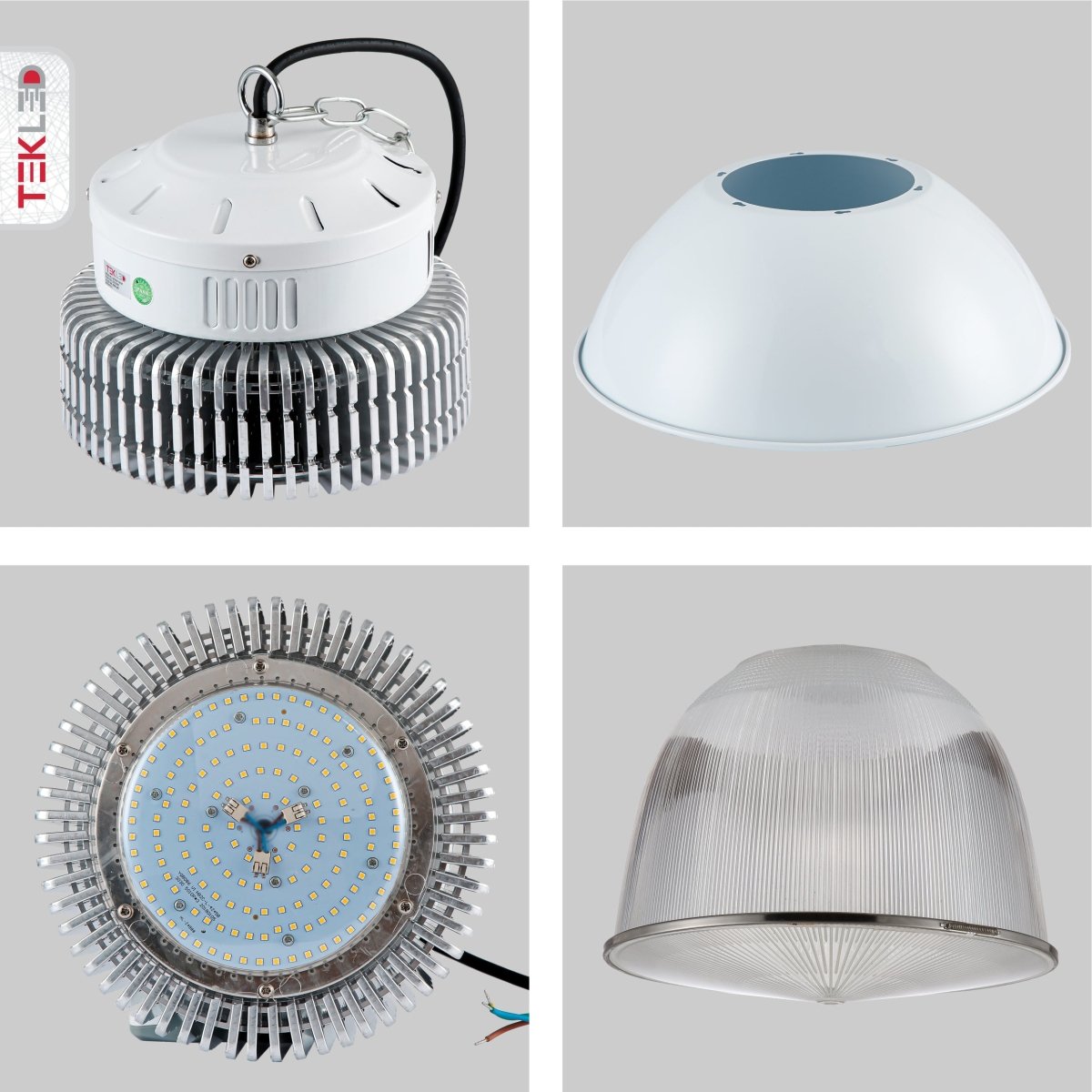

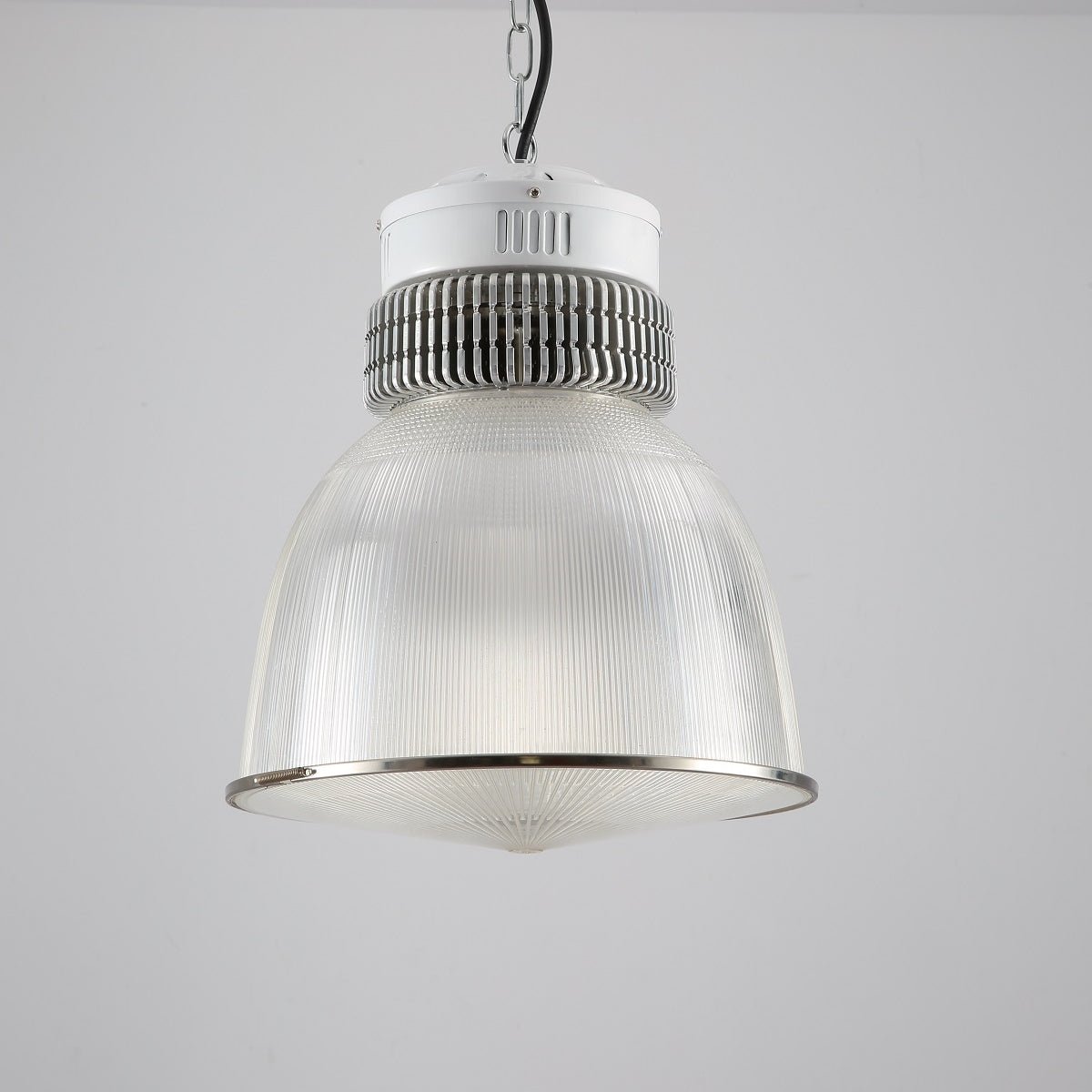

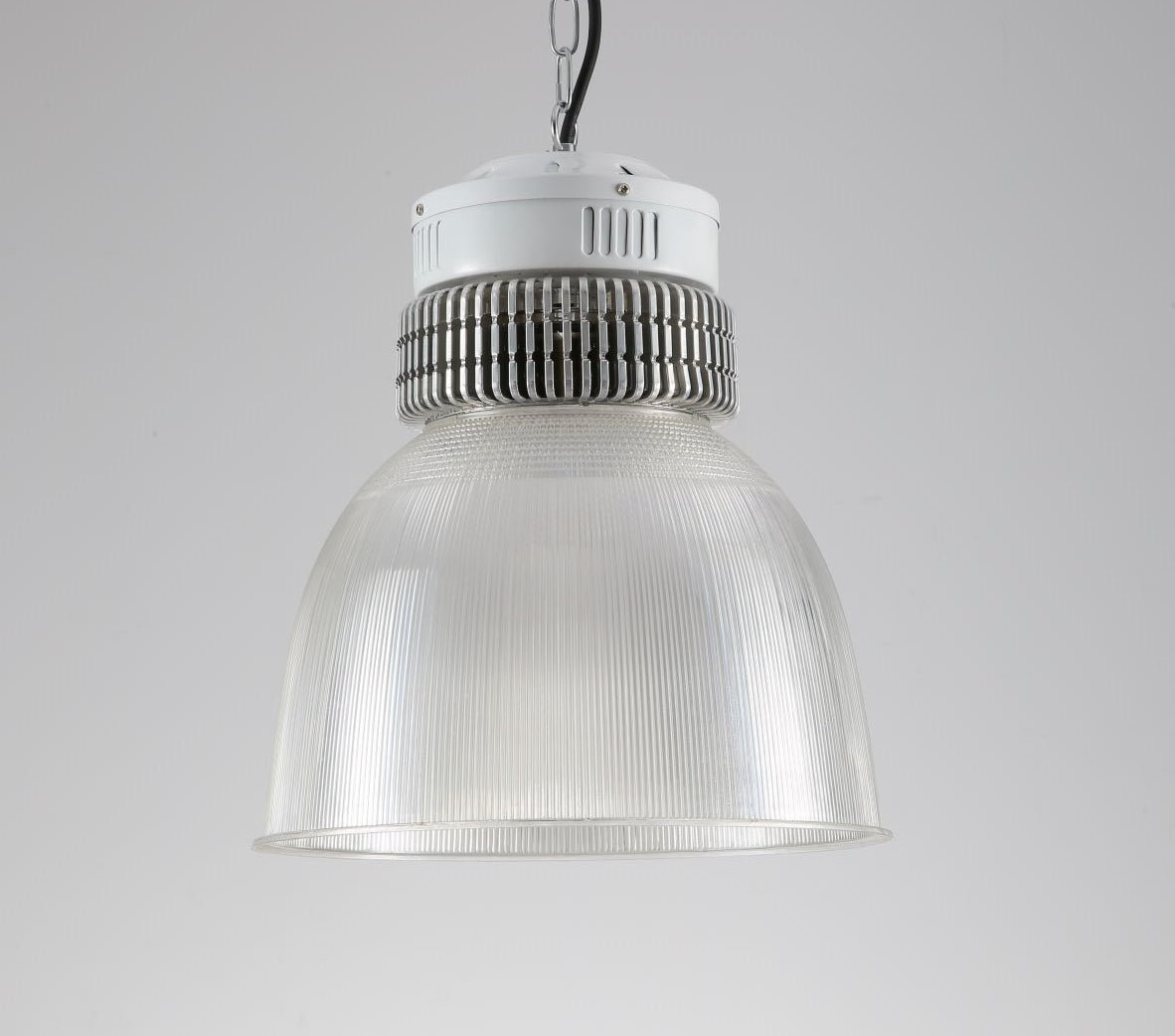

The LED High Bay Light offers three reflector options, including a metal reflector with a 95-degree beam angle, a PC transparent reflector, and a PC transparent reflector with a lid cover. These options cater to different lighting needs while minimizing glare.
Finally, this LED Radiator High Bay Light provides an optimal balance of functionality, aesthetics, and energy efficiency. Its sleek design and versatile power options ensure it is the ideal choice for high-ceiling spaces, delivering superior illumination and promoting productivity.
Driver used on this fixture has below specifications
- Full Power at Wide Output Current Range (Constant Power)
- Adjustable Output Current (AOC) with Programmability
- Isolated 1-5V/1-10V/10V PWM/3-Timer-Modes Dimmable
- Output Lumen Compensation
- Input Surge Protection: DM 6kV, CM 10kV
- All-Around Protection: OVP, SCP, OTP
- IP66/IP67 and UL Dry/Damp/Wet Location(this is for driver but fixture is not IP65, it is for indoor)
- SELV Output
- TYPE HL, for use in a Class I, Division 2 hazardous (Classified) location
- The EUM series, constant-current, programmable IP67 LED driver that operates from 90 - 305Vac input with excellent power factor. It is created for many lighting applications including high bay, high mast and roadway, etc. The high efficiency of these drivers and compact metal case enables them to run cooler, significantly improving reliability and extending product life. To ensure trouble-free operation, protection is provided against input surge, output over voltage, short circuit, and over temperature.
Technical Specifications
Name | LED Radiator High bay 150W Cool White 4000K IP20 |
Product Code | 230-03562 | 230-03564 | 230-035640 |
Power | 140W |
Power Source | Hardwired |
Voltage | 220/240V AC 50/60Hz |
Lamp Holder Type | Built-in LED |
Protection Class | Class I |
Dimmability | Dimmable |
Light Source | SMD 3030 LED |
Led Quantity | 10P5S*3 150 PCS |
Bulbs | Integrated LED, no need additional bulb |
Lumen | 18000lm |
Luminous Efficacy | 130lm/W |
Lux | avg 115Lux @6m height 12m diamter, max 270Lux |
CRI | CRI>70 |
CCT (Kelvin) Light Colour | 4000K Cool White |
Flickering | Flicker-free |
IP Class | IP20 |
Mount Type | Suspended |
Function Mode | 1-5V, 1-10V, PWM, Multiple Timers |

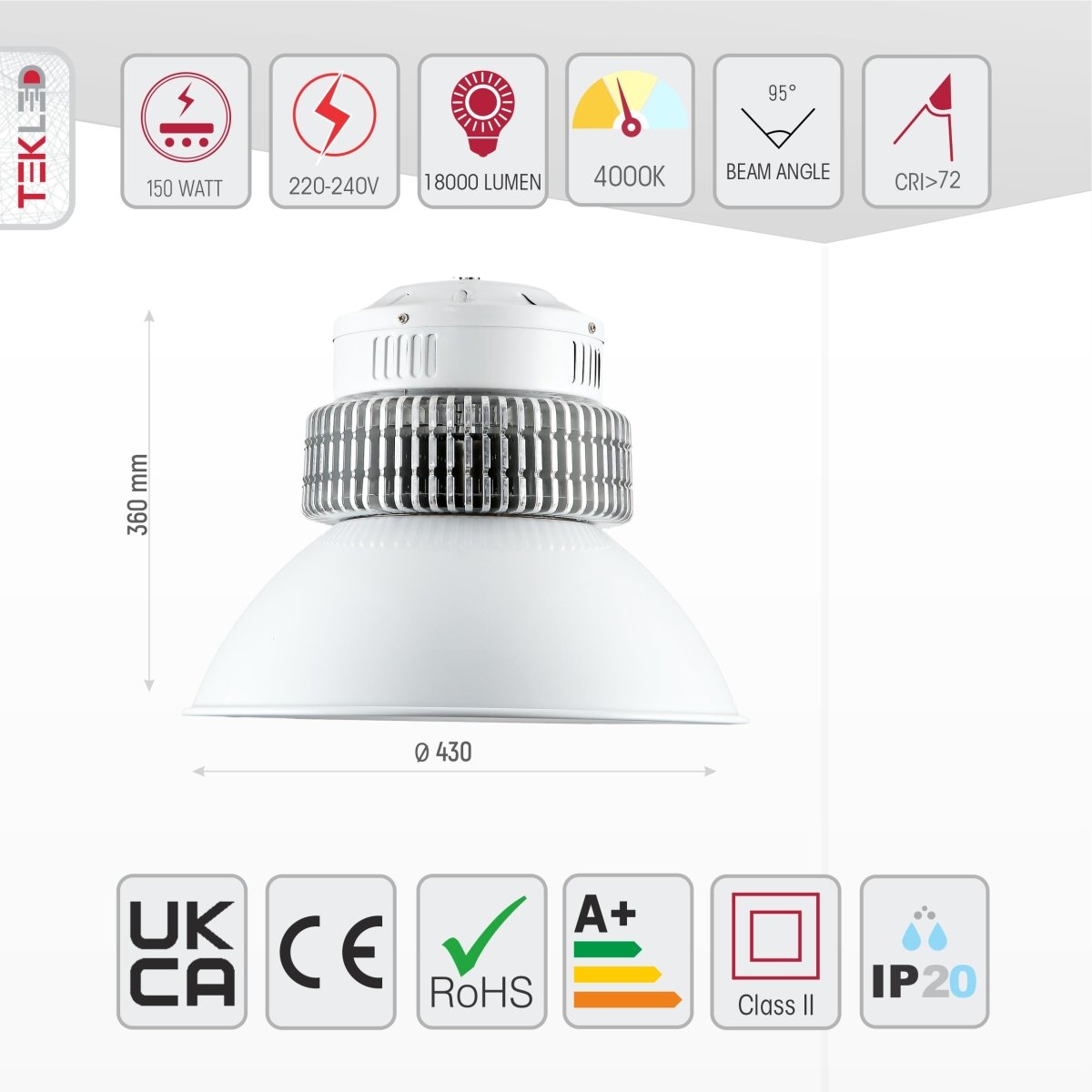

Product Dimensions (LxWxH) (DxH) | body D245x235mm whole item D430x360mm |
Power Cord Length | 500mm |
Made Of Materials | Aluminium, Steel, Polycarbonate |
Product Colour | White |
Paint Type | Spray Painted |
Suspension Type | Chain |
Suspension Length | 250mm |
Driver Brand | Inventronics EUM-150S420DG |
Driver Type | Constant Current Driver |
Driver Power | 150W |
Driver Input Voltage | 90~305 V AC / 127~300 V DC 50/60Hz |
Driver Output Voltage | 18-54V DC |
Driver Output Current | 4200mA |
Surge Protection Level | 6kV |
Power Factor | pf>0.95 |
Control | 1-5V, 1-10V, PWM, Multiple Timers |
Operating Temperature (C) | -40/+60C |
New Energy Rating | E |
Energy Rating Range | A-G |
Warranty | 5 year |
Life Span | 60000h |
Net Weight | 2.32kg |
Gross Weight | 2.62kg |
Box Dimension (LxWxH) | 255x255x280mm |

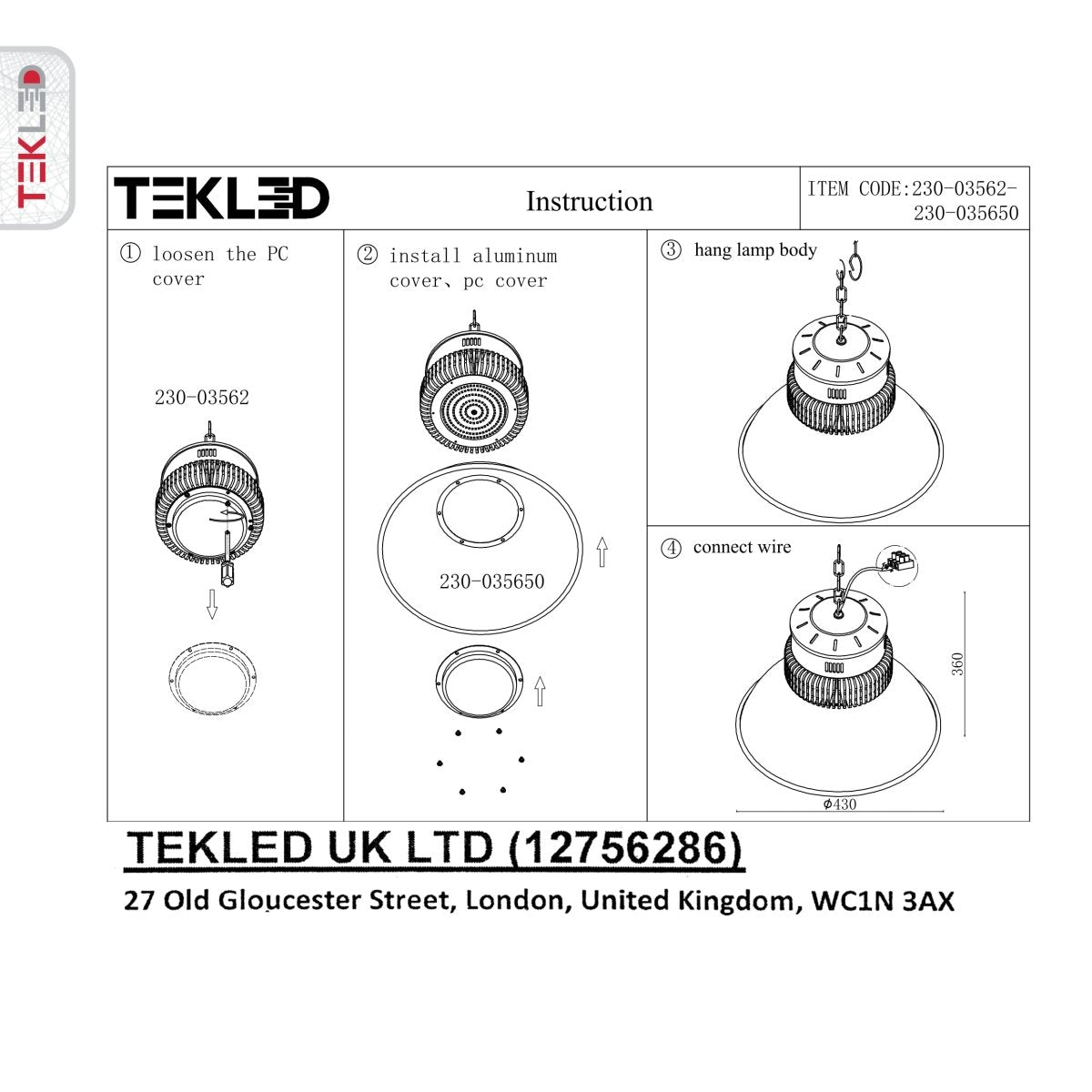

Box Content | 1 pc Lamp Body , 1 pc Instruction |
Certifications | UKCA, CE (LVD, EMC) |
