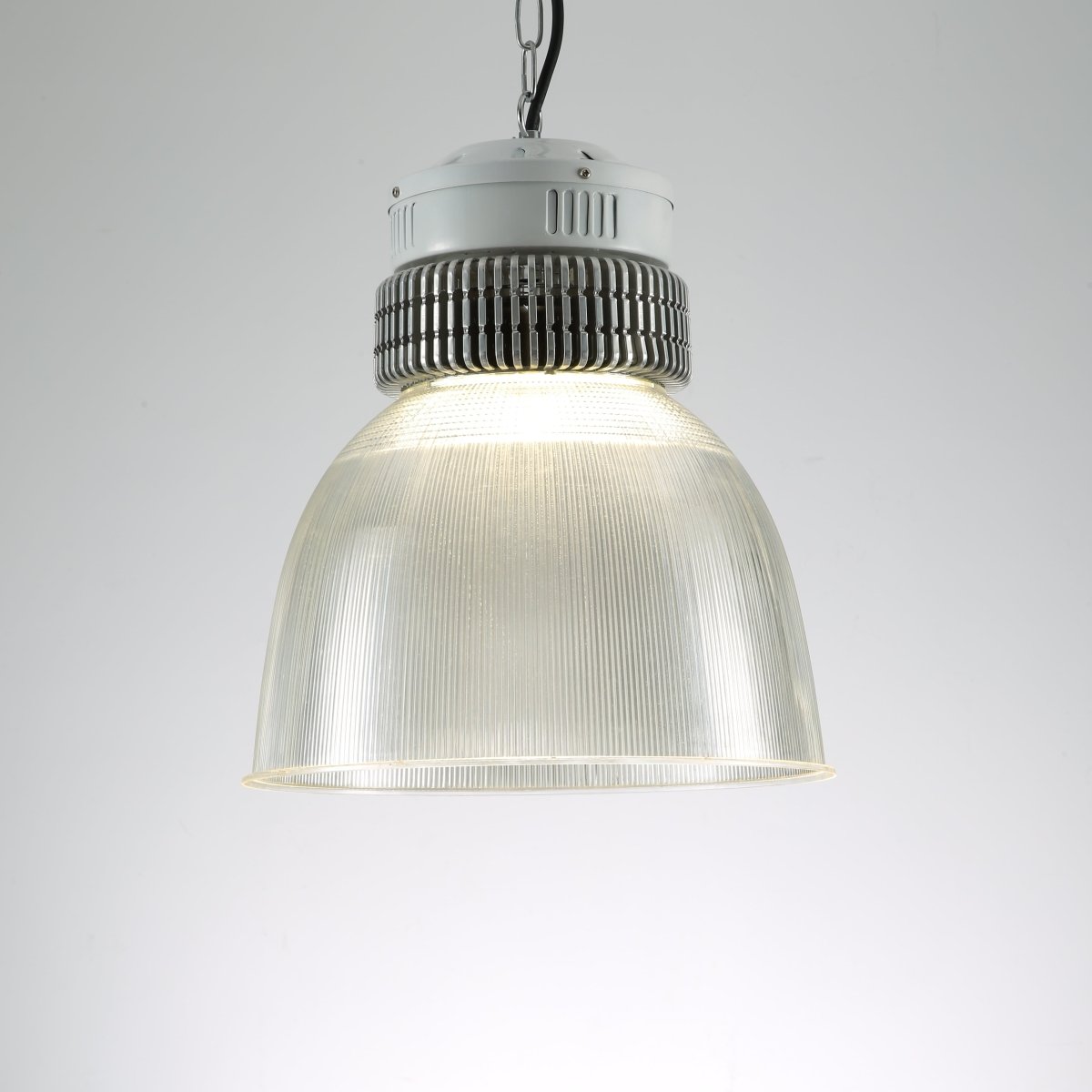

LED Radiator High bay 150W Cool White 4000K IP20
LED Radiator High bay 150W Cool White 4000K IP20
SKU: SKU: 230-03564 EAN:| EAN: 5060833957860
In stock. 71 available
Couldn't load pickup availability
Couldn't load pickup availability
Delivery within 1-2 working days
15 day returns. 30 days for members. Register
Description
Product Overview
This high bay light is a great option if you're looking for a reliable and efficient way to illuminate large spaces. It’s suitable for warehouses, factories and other industrial settings. You can choose between a metal reflector, a polycarbonate (PC) reflector, or a PC reflector with a cover. The metal reflector is more durable and long-lasting, while the PC options are better at diffusing the light more evenly.
Key details at a glance:
- Dimensions: 245mm (D) x 235mm (H) - body only; 430mm (D) x 360mm (H) - whole item
- Compatible bulbs: Not needed. Built-in LED
- Power: 140W
- CCT: 4000K (cool white)
- Dimmable: Yes
Perfect for:
- Warehouses: Provides powerful illumination for large storage areas.
- Factories: Improves visibility and safety in industrial workspaces.
- Retail spaces: Creates a bright and welcoming shopping experience
- Sports halls: Ensures optimal lighting conditions for athletes
For more details, see the full technical specifications on the corresponding tab.
Specifications
| Name | LED Radiator High bay 150W Cool White 4000K IP20 |
| Product Code | 230-03562 | 230-03564 | 230-035640 |
| Power | 140W |
| Power Source | Hardwired |
| Voltage | 220/240V AC 50/60Hz |
| Lamp Holder Type | Built-in LED |
| Protection Class | Class I |
| Dimmability | Dimmable |
| Light Source | SMD 3030 LED |
| Led Quantity | 10P5S*3 150 PCS |
| Bulbs | Integrated LED, no need additional bulb |
| Lumen | 18000lm |
| Luminous Efficacy | 130lm/W |
| Lux | avg 115Lux @6m height 12m diamter, max 270Lux |
| CRI | CRI>70 |
| CCT (Kelvin) Light Colour | 4000K Cool White |
| Flickering | Flicker-free |
| IP Class | IP20 |
| Mount Type | Suspended |
| Function Mode | 1-5V, 1-10V, PWM, Multiple Timers |
| Product Dimensions (LxWxH) (DxH) | body D245x235mm whole item D430x360mm |
| Power Cord Length | 500mm |
| Made Of Materials | Aluminium, Steel, Polycarbonate |
| Product Colour | White |
| Paint Type | Spray Painted |
| Suspension Type | Chain |
| Suspension Length | 250mm |
| Driver Brand | Inventronics EUM-150S420DG |
| Driver Type | Constant Current Driver |
| Driver Power | 150W |
| Driver Input Voltage | 90~305 V AC / 127~300 V DC 50/60Hz |
| Driver Output Voltage | 18-54V DC |
| Driver Output Current | 4200mA |
| Surge Protection Level | 6kV |
| Power Factor | pf>0.95 |
| Control | 1-5V, 1-10V, PWM, Multiple Timers |
| Operating Temperature (C) | -40/+60C |
| New Energy Rating | E |
| Energy Rating Range | A-G |
| Warranty | 5 year |
| Life Span | 60000h |
| Net Weight | 2.32kg |
| Gross Weight | 2.62kg |
| Box Dimension (LxWxH) | 255x255x280mm |
| Box Content | 1 pc Lamp Body , 1 pc Instruction |
| Certifications | UKCA, CE (LVD, EMC) |
