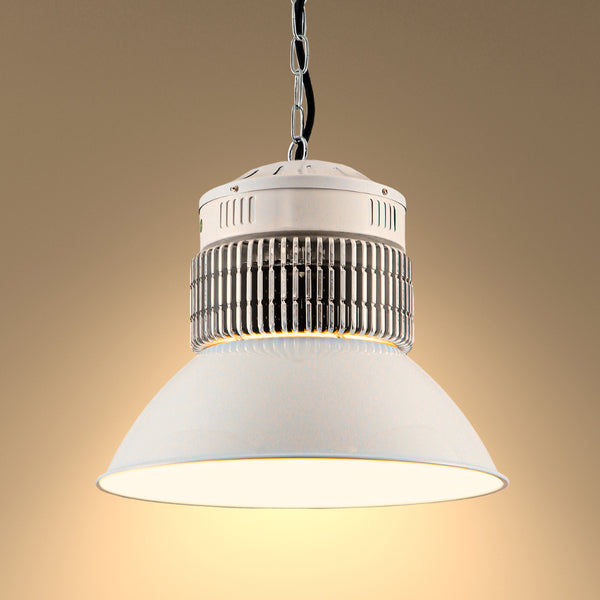

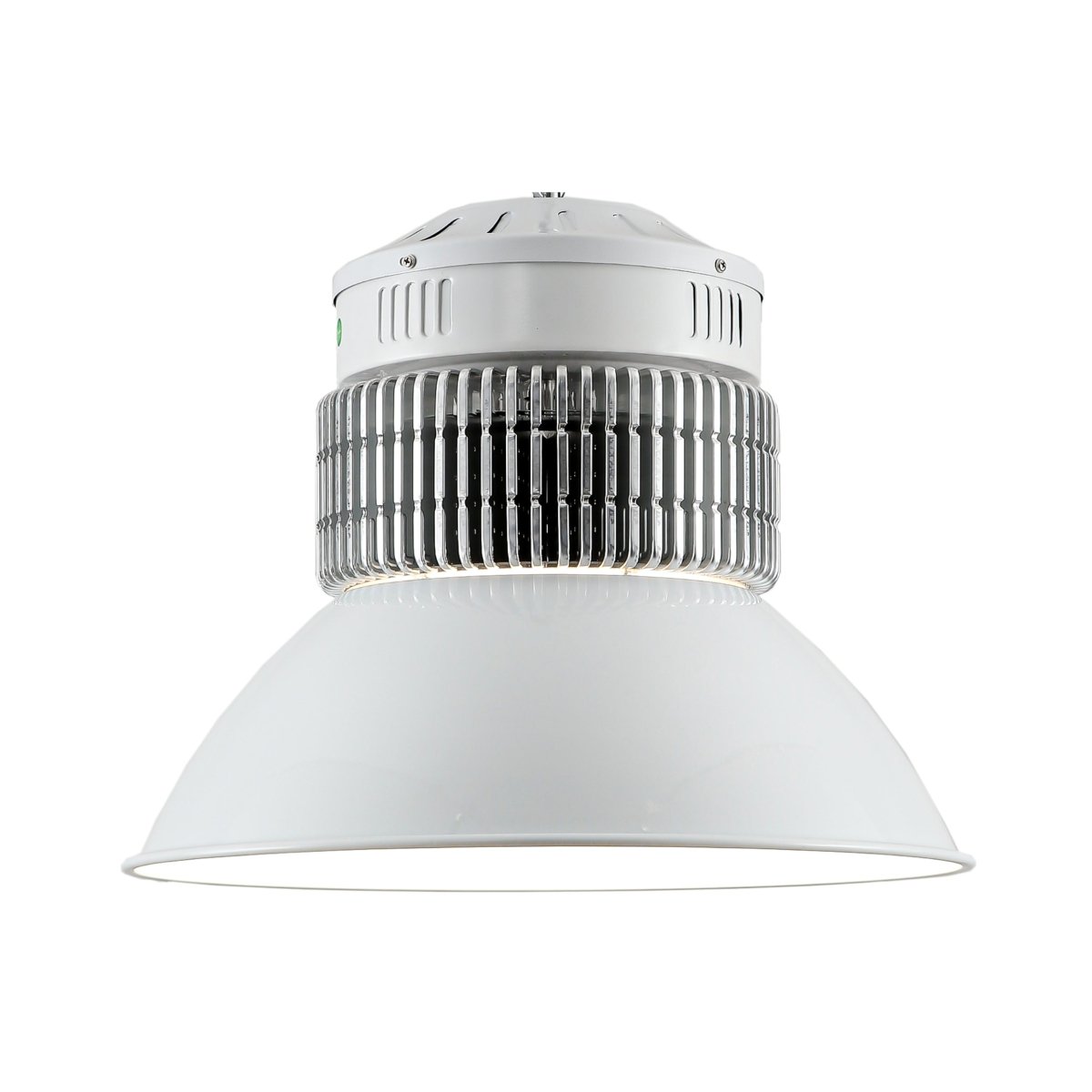

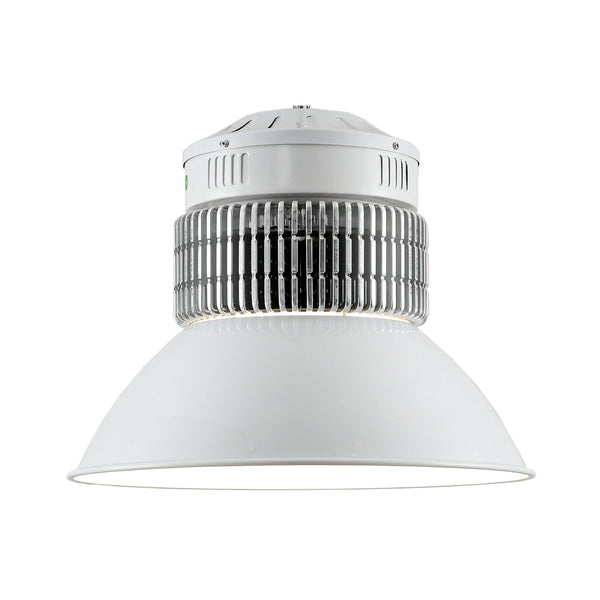

LED Radiator Highbay 200W Cool White 4000K IP20
LED Radiator High bay 200W Cool White 4000K IP20

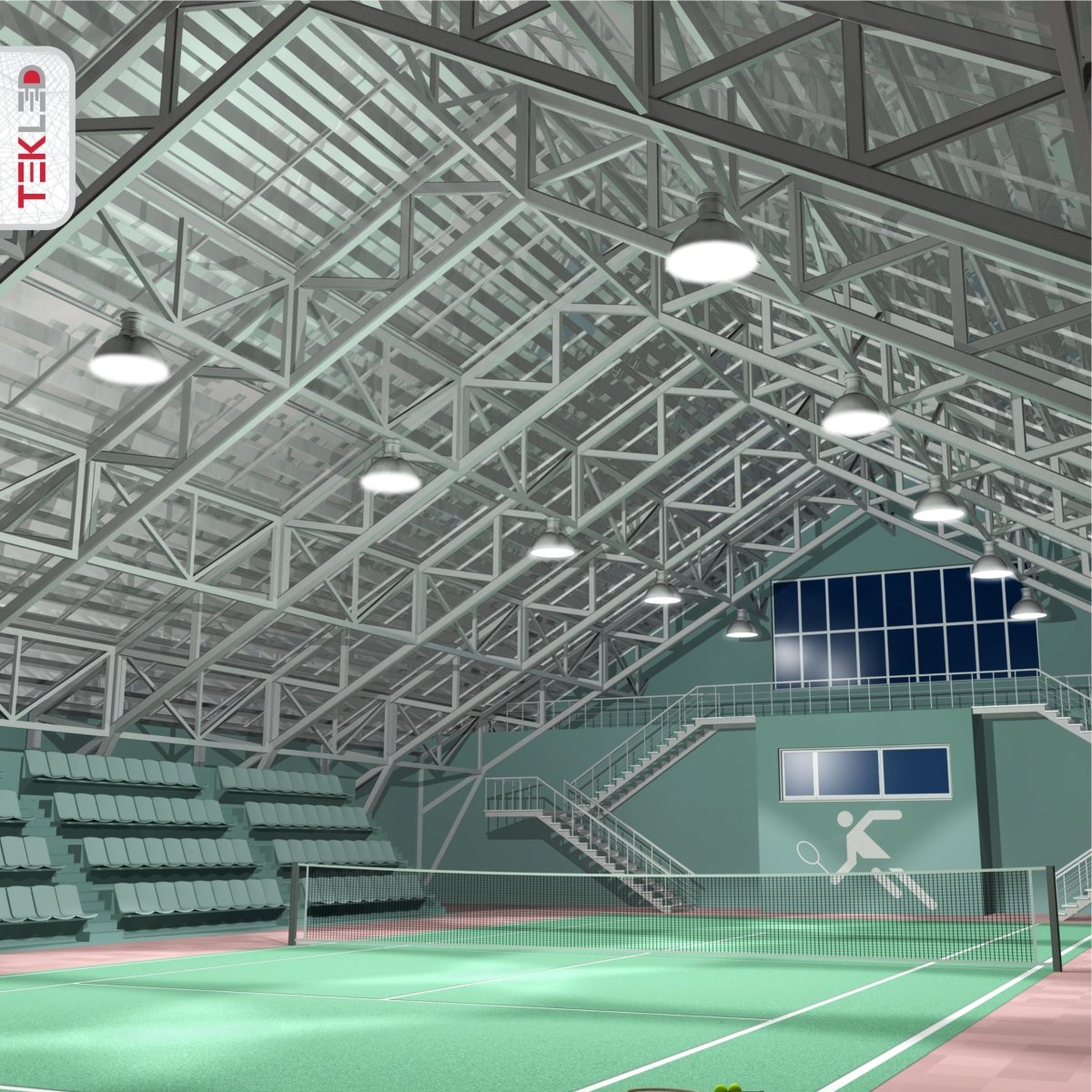

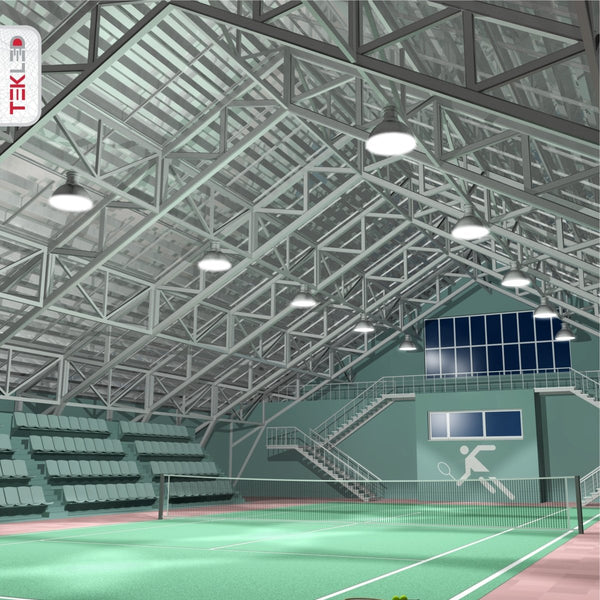

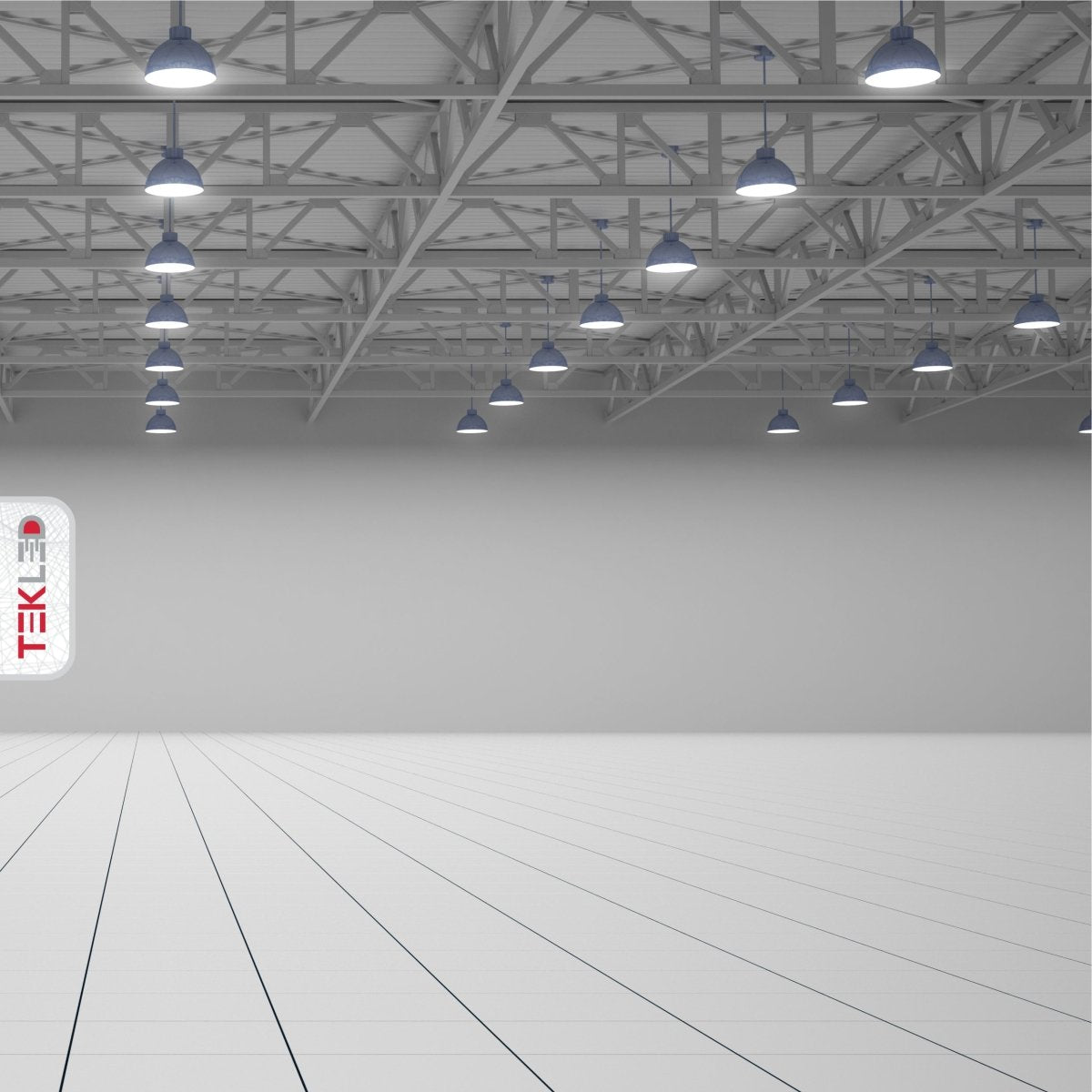

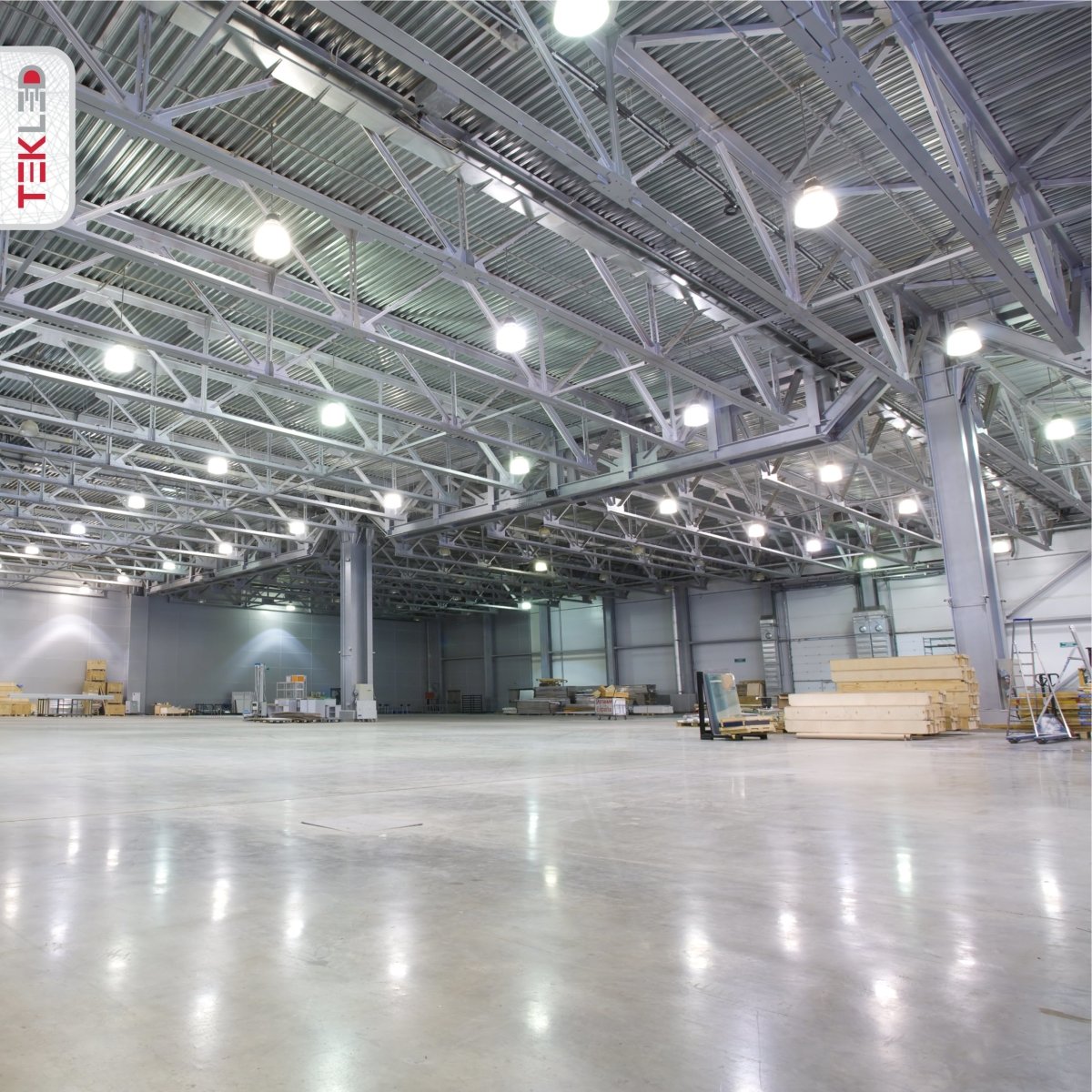

Our LED High Bay Light is a powerful and versatile solution, perfect for a variety of high-ceiling applications such as warehouses, gyms, retail stores, and exhibition halls. This 200W variant emits a cool 4000K white light, ensuring clear visibility and a comfortable working environment.
The high bay light stands out for its energy efficiency, boasting a luminous efficacy of 130 lm/W. It includes an Inventronics driver that supports a wide voltage range, offering compatibility with various electrical systems and advanced control options for versatile lighting management.

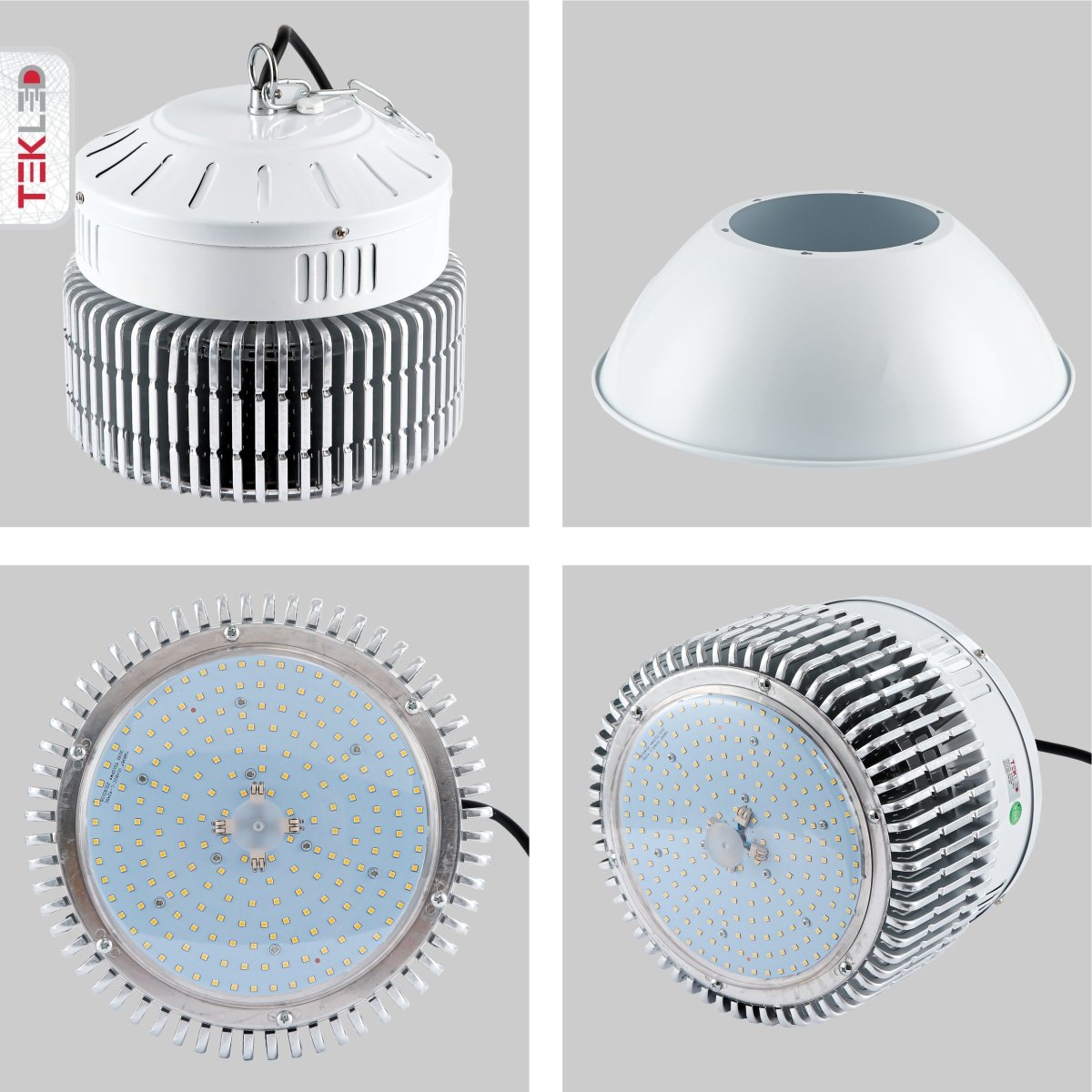

Designed with durability and reliability in mind, this high bay light comes with a 5-year warranty and a lifespan exceeding 60,000 hours, reducing maintenance needs. Its metal reflector ensures precise light distribution, enhancing its performance.

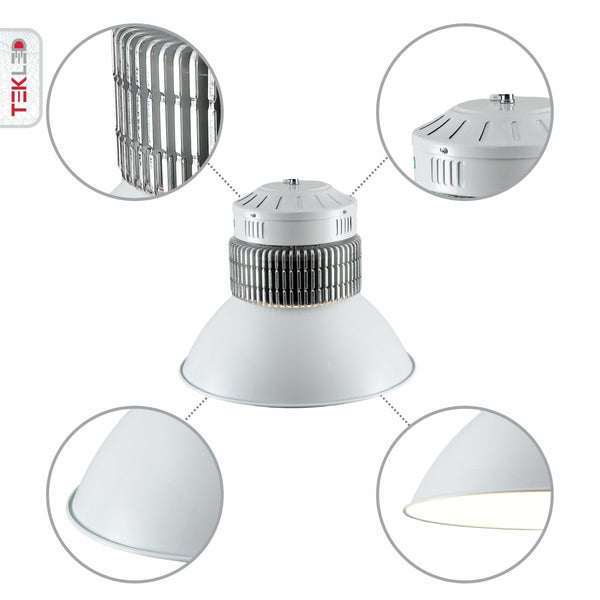

Additionally, the LED Radiator High Bay 200W Cool White IP20 LED downlight from TEKLED offers a sleek design with a robust aluminium body. Ideal for commercial spaces and warehouses, it provides ample illumination with its 23100 lm output. The installation process is straightforward, making it a convenient choice for various spaces.
Driver used on this fixture has below specifications
- Full Power at Wide Output Current Range (Constant Power)
- Adjustable Output Current (AOC) with Programmability
- Isolated 1-5V/1-10V/10V PWM/3-Timer-Modes Dimmable
- Output Lumen Compensation
- Input Surge Protection: DM 6kV, CM 10kV
- All-Around Protection: OVP, SCP, OTP
- IP66/IP67 and UL Dry/Damp/Wet Location(this is for driver but fixture is not IP65, it is for indoor)
- SELV Output
- TYPE HL, for use in a Class I, Division 2 hazardous (Classified) location
- The EUM series, constant-current, programmable IP67 LED driver that operates from 90 - 305Vac input with excellent power factor. It is created for many lighting applications including high bay, high mast and roadway, etc. The high efficiency of these drivers and compact metal case enables them to run cooler, significantly improving reliability and extending product life. To ensure trouble-free operation, protection is provided against input surge, output over voltage, short circuit, and over temperature.
Technical Specifications
Name | LED Radiator Highbay 200W Cool White 4000K IP20 |
Product Code | 230-03568 |
Power | 185W |
Power Source | Hardwired |
Voltage | 220/240Vac 50/60Hz |
Input Current | 0.75A @240Vac |
Lamp Holder Type | Integrated LED |
Protection Class | Class I |
Dimmability | Dimmable |
Light Source | LED SMD 3030 |
Led Quantity | 10P5S*4 200pcs |
Bulbs | Built-in LED fixture with LED driver |
Light Output(luminous flux) | 23100 lm |
Luminous Efficacy | 128 lm/W |
Lux | avg 140Lux @6m height 12m diamter, max 330Lux |
CRI(Colour Rendering Index) | CRI>70 |
CCT (Kelvin)(Light Colour) | 4000K Cool White |
IP Class(Ingress Protection) | IP20 |
Mount Type | Suspended |
Function Mode | 1-5V, 1-10V, PWM, Multiple Timers |

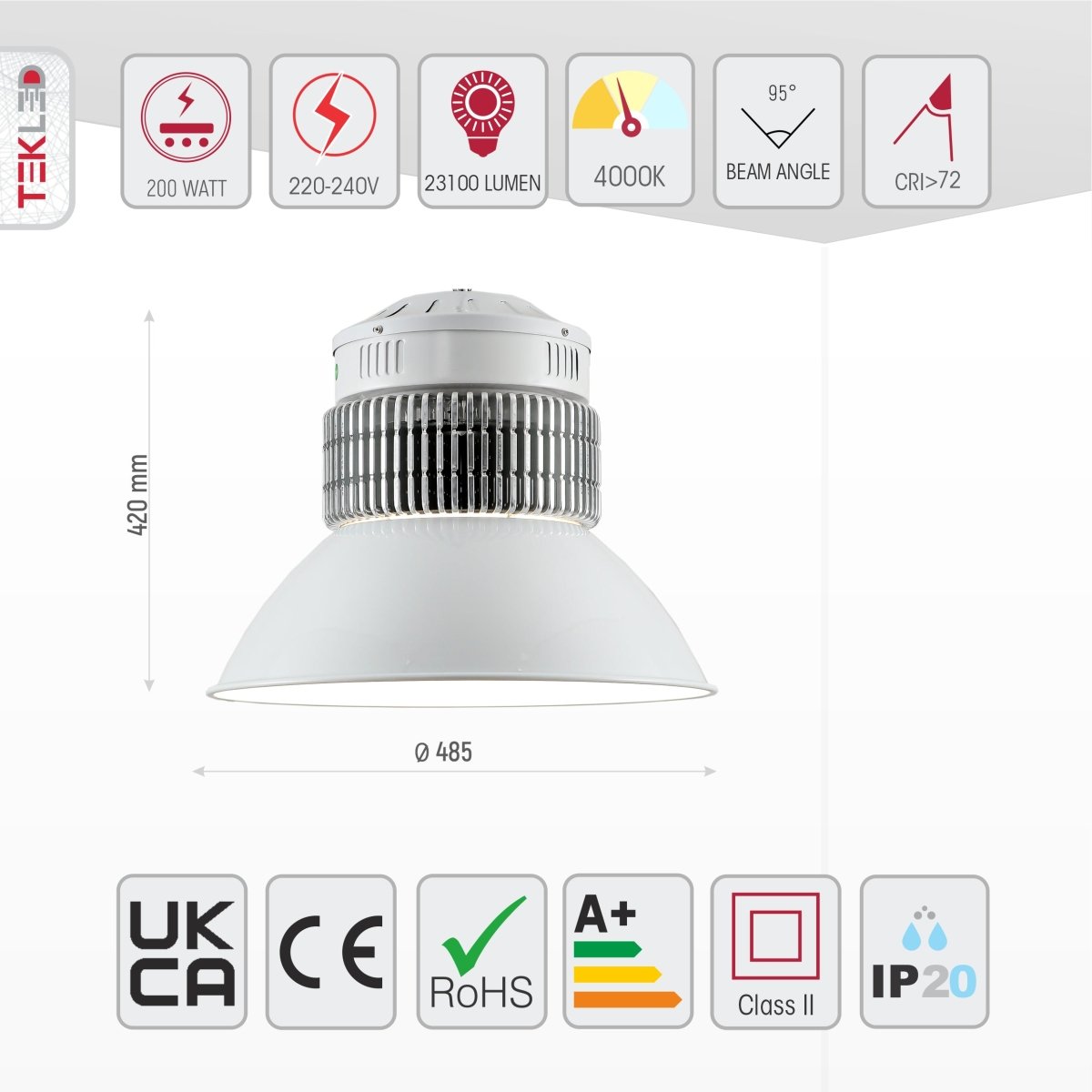

Product Dimensions (L x W x H) (D x H) | 260x275 |
Power Cord Length | 50cm |

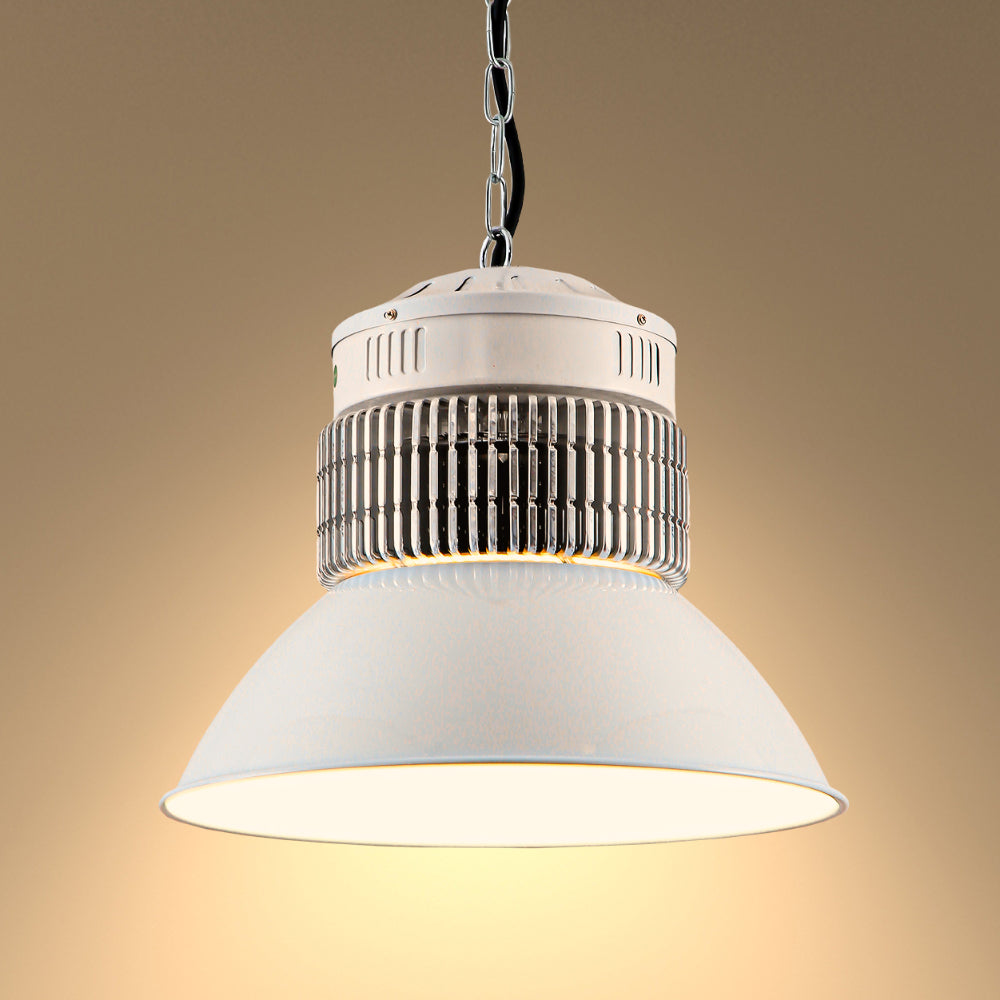

Suspension Type | Chain |
Suspension Length | 25cm |
Made of Materials | Aluminium, Steel, Polycarbonate |
Product Colour | White |
Paint Type | Spray Painted |
Optic Type | Reflector |
Driver Brand | Inventronics EUM-200S560DG |
Driver Type | Constant Current |
Driver Power | 200W |
Driver Input Voltage | 90~305 Vac / 127~300 Vdc 50/60Hz |
Driver Input Current | 0.75A @240Vac |
Driver Output Voltage | 18 ~ 54 Vdc |
Driver Output Current | 5600mA |
Efficiency | 0.915 |
Surge Protection Level | 6kv |
Power Factor | pf>0.95 |
Flickering | Non-Flickering |
Control | 1-5V, 1-10V, PWM, Multiple Timers |
Operating Temperature (C) | -40/+60C |
New Energy Rating | E |
Energy Rating | A+ |
Warranty | 5 year |
Life Span | 60000 h |
Gross Weight | 3.6kg |
Net Weight | 3.22kg |
Box Dimensions (LxWxH) | 270x270x315mm |

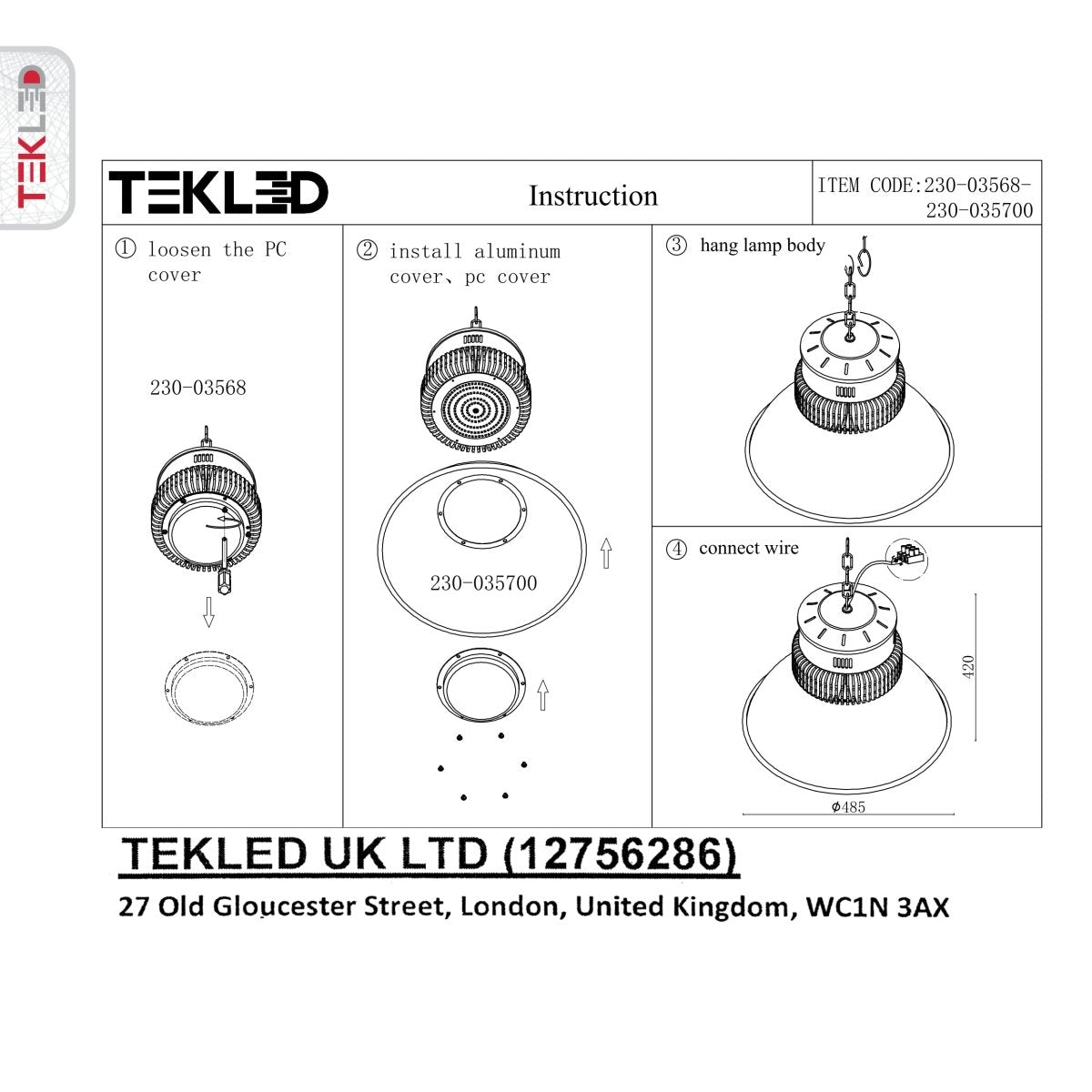

Box Content | 1pc Lamp body, 1pc instruction |
Pieces/Box | 1 |
Certifications | UKCA, CE (LVD, EMC) |
