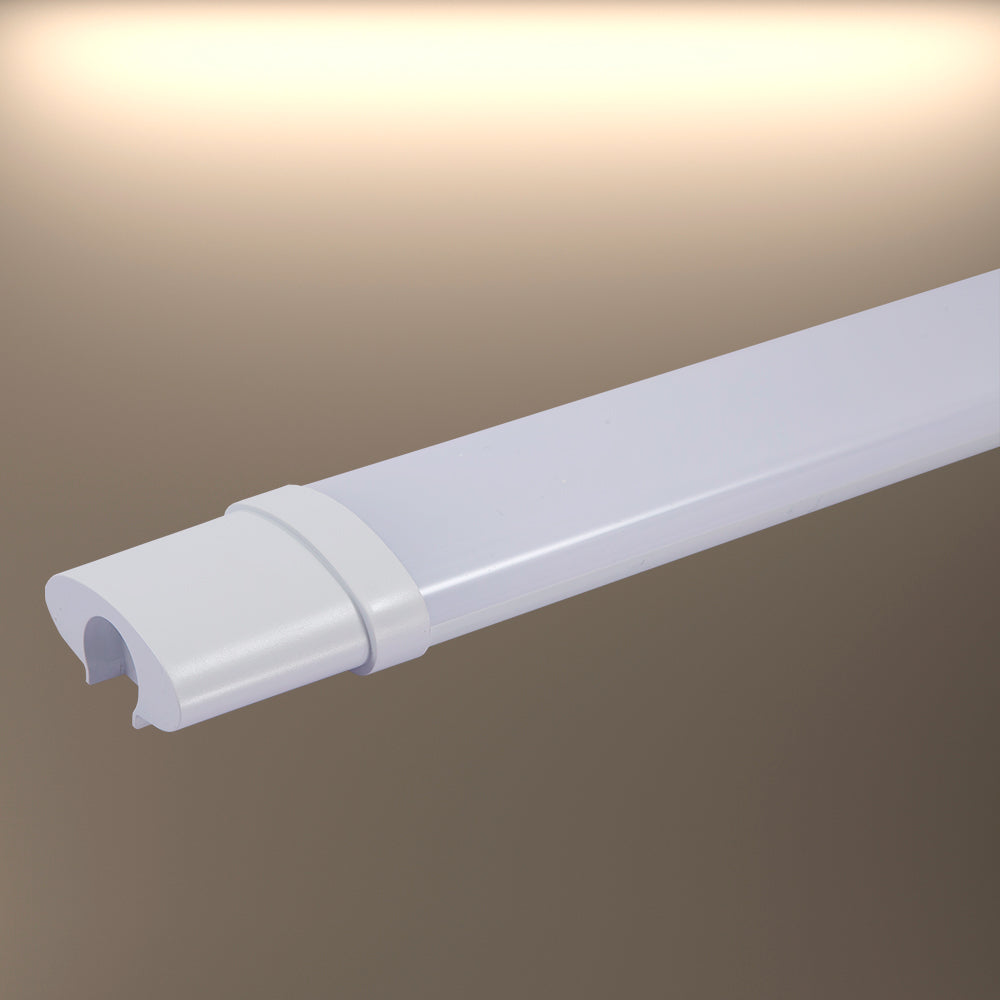

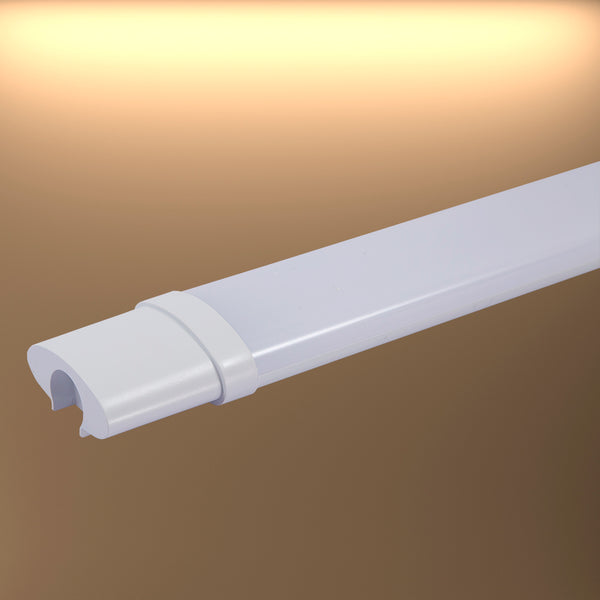

LED Tri-proof Slim Batten Linear Fitting 36W IP65 120cm 4ft - 4000k Cool White.
Light Colour:4000k Cool White
Quantity:

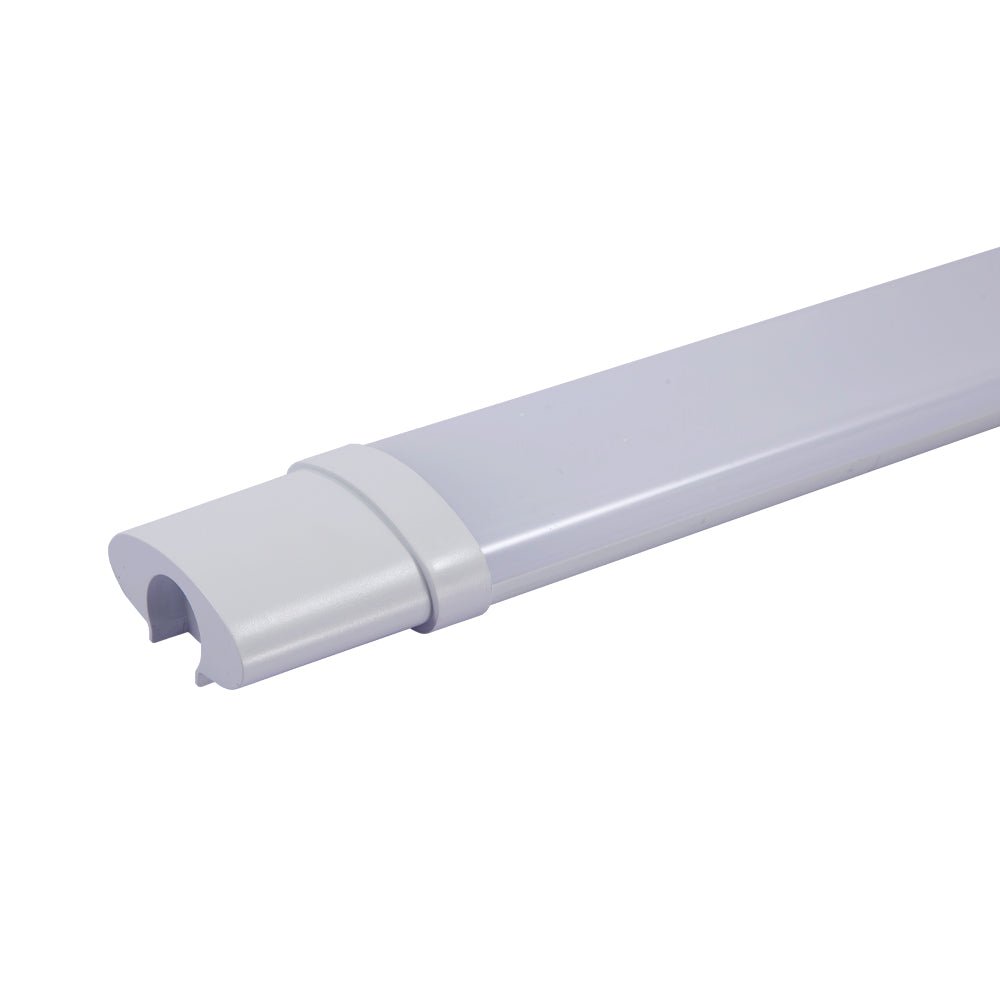

LED Tri-proof Slim Batten Linear Fitting 36W IP65 120cm 4ft
Our LED Tri-proof Batten is the most versatile of our range, featuring a stylish and simple design that will match most exteriors.The LED Tri-proof Slim Batten Linear Fitting 36W comes in variants of 6500K Cool Daylight /5000K Cool White/4000k Cool White IP65 120cm 4ft uses high power LEDs that produce a consistent light output and a durable solution for outdoor areas such as exterior walkways and stairwells.
Linear LED fitting with tri-proof batten and bright daylight IP65, manufactured from durable and tough resin, with a rigid construction, special design on each fitting make it suitable for ceilings and walls. With its beautiful design and high performance, this product is great for commercial or residential use. This LED Tri-proof Batten is designed to be robust, long lasting and suitable for indoor and outdoor use.

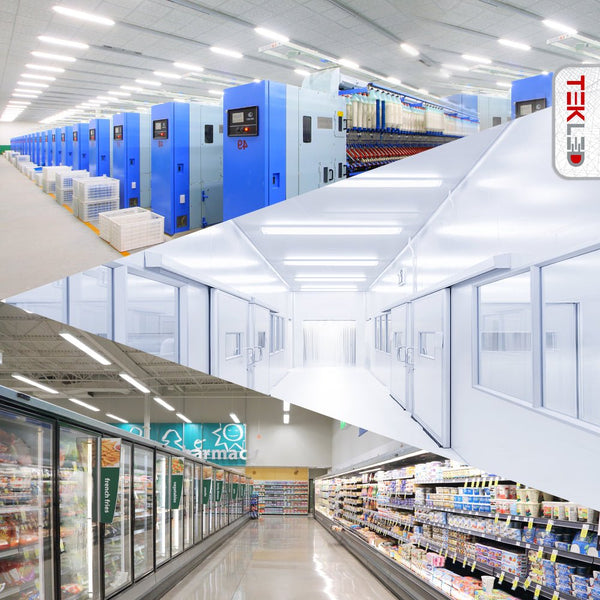

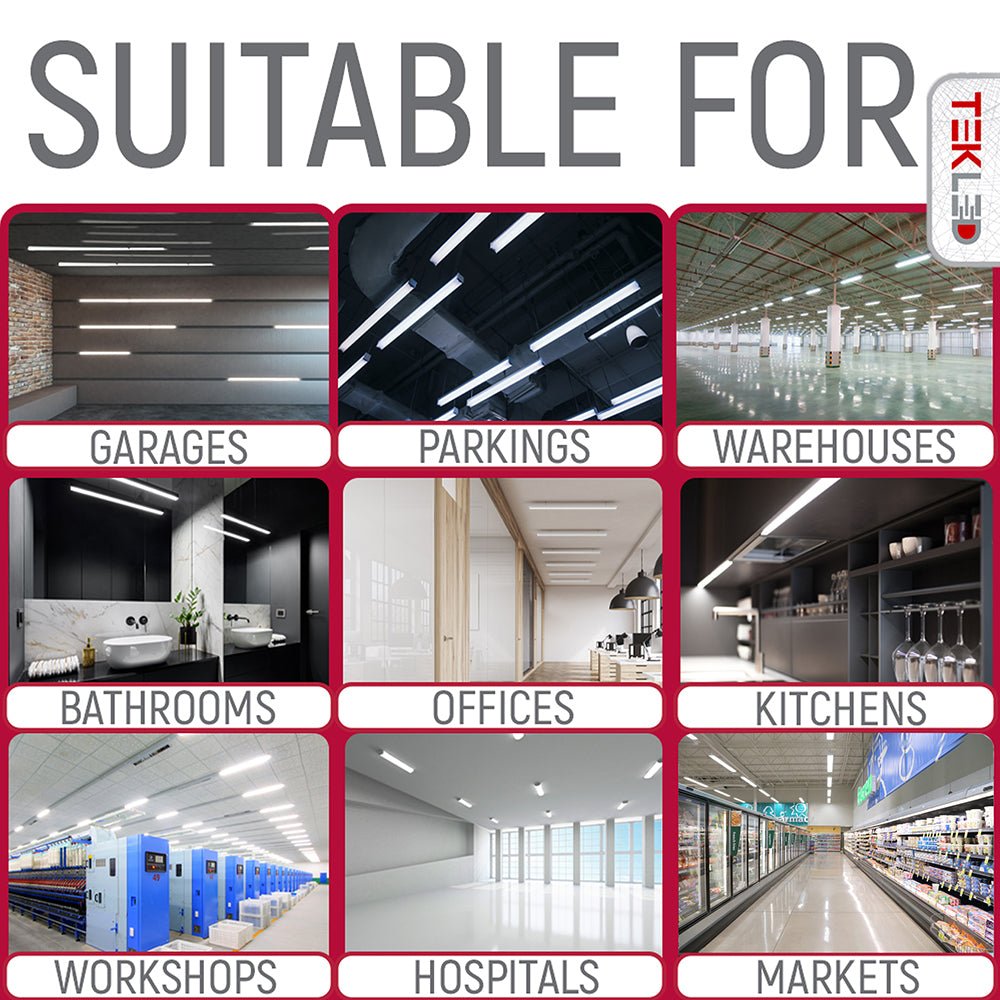

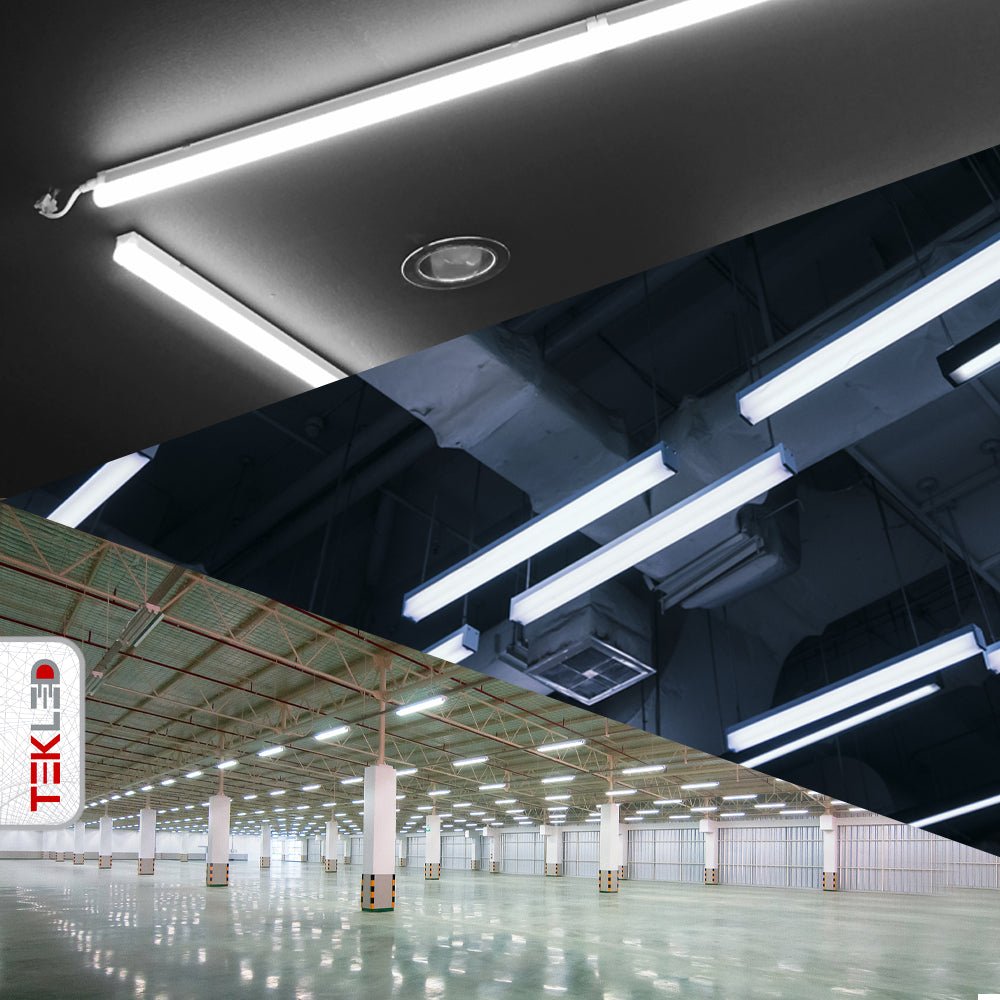

The elegant design spruces up the surrounding while the bright light creates an ambience of comfort and efficacy. This waterproof 4ft light fitting comes with an IP rating of 65 and an outstanding energy rating of A++. Suitable for stores, markets, take-away restaurants, kitchens, warehouse or any kind of work place.
Technical Specifications

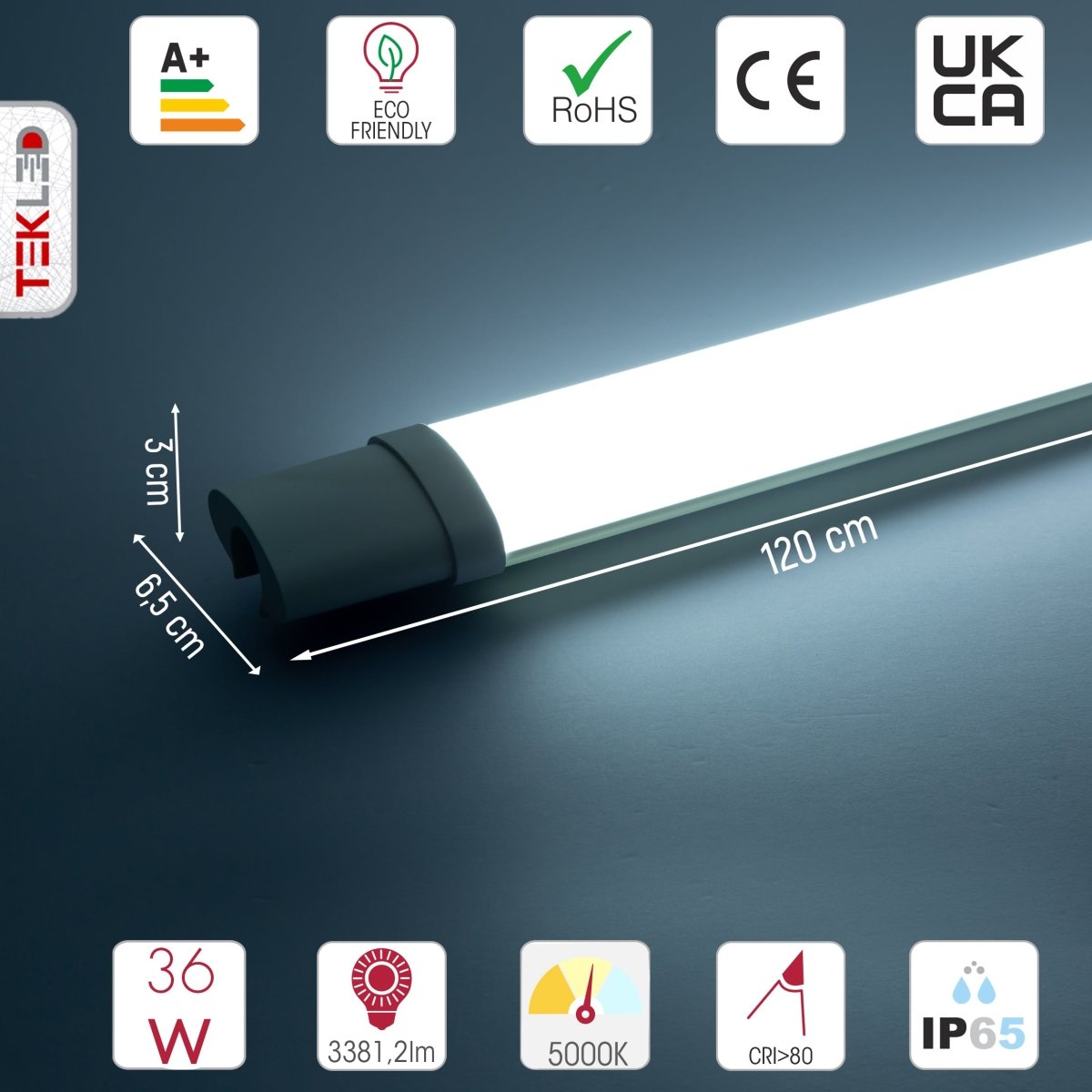

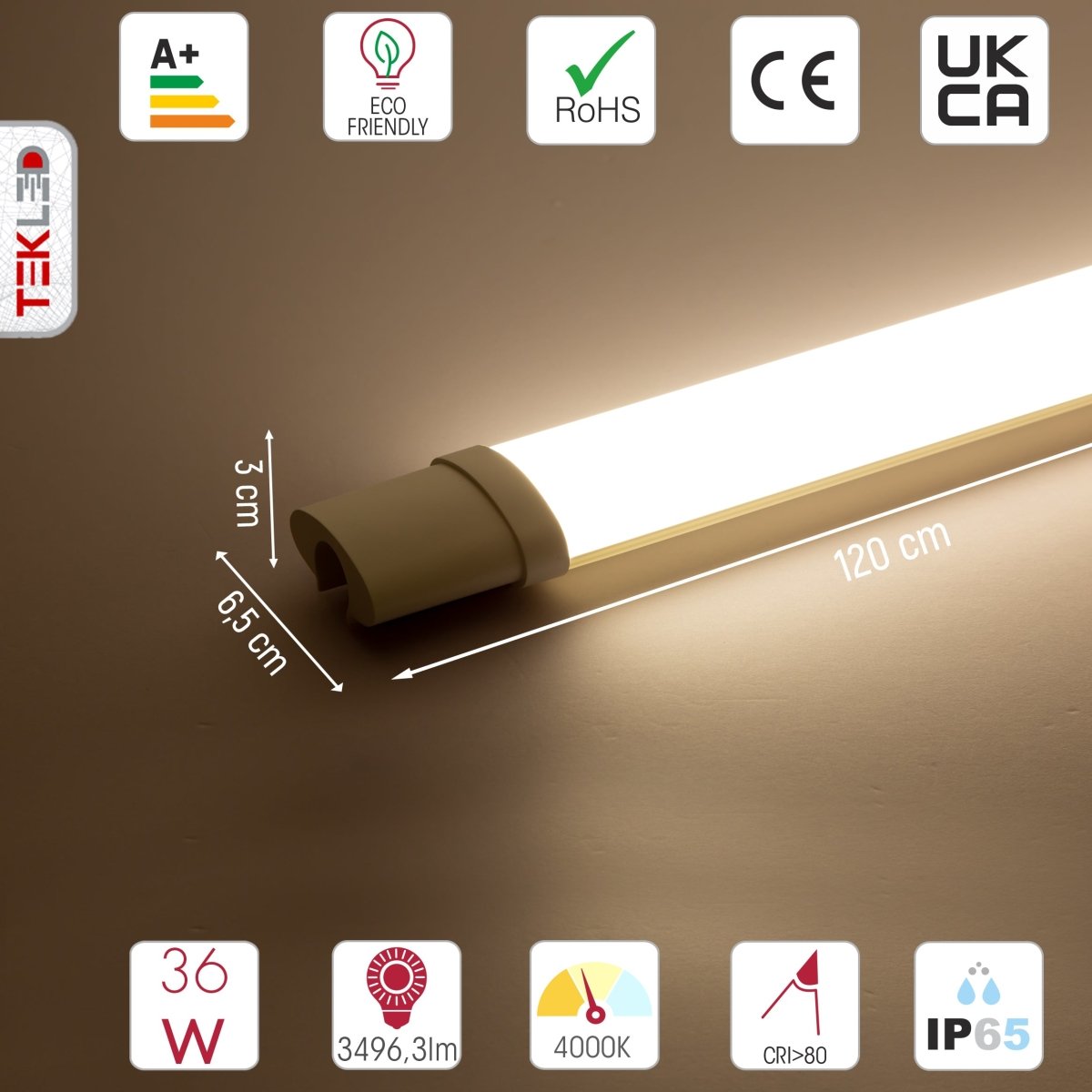

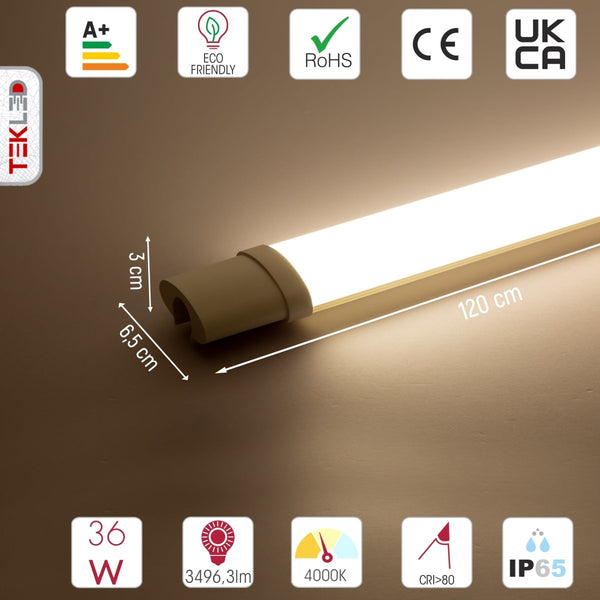

Name | LED Tri-proof Slim Batten Linear Fitting 36W IP65 120cm 4ft Cool White or Cool Daylight |
Product Code | 116-033212 | 116-033213 | 116-033214 |
Model | Slim type batten, waterproof batten, integrated led batten |
Power | 33 W |
Power Source | Hardwired |
Voltage | 220/240Vac 50/60Hz |
Input Current | 0.27 A @240Vac |
Lamp Holder Type | Integrated LED |
Protection Class | Class II |
Dimmability | Non-Dimmable |
Light Source | LED SMD 2835 |
Led Quantity | 4P24S*2 |
Bulbs | Built-in LED fixture with built-in LED driver |
Light Output(luminous flux) | 3500 lm | 3390 lm | 3730 lm |
Luminous Efficacy | 115 lm/W | 105 lm/W | 112 lm/W |
Lux | 85Lux @2m |
CRI(Colour Rendering Index) | CRI>80 |
CCT (Kelvin)(Light Colour) | 4000K Cool White | 5000K Cool White | 6500K Cool Daylight |
IP Class(Ingress Protection) | IP65 |

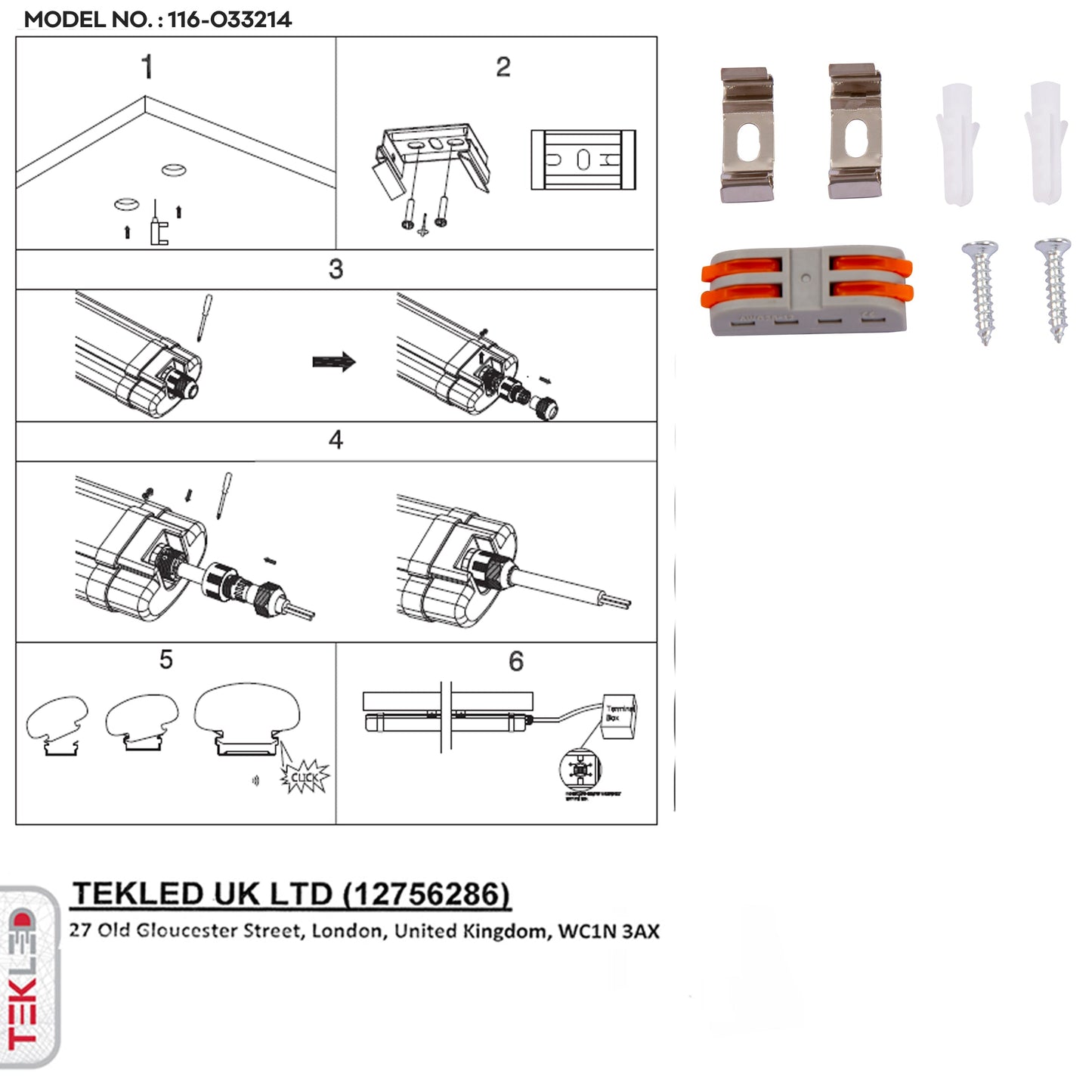

Mount Type | Surface Mount, Suspended |
Function Mode | On/Off |

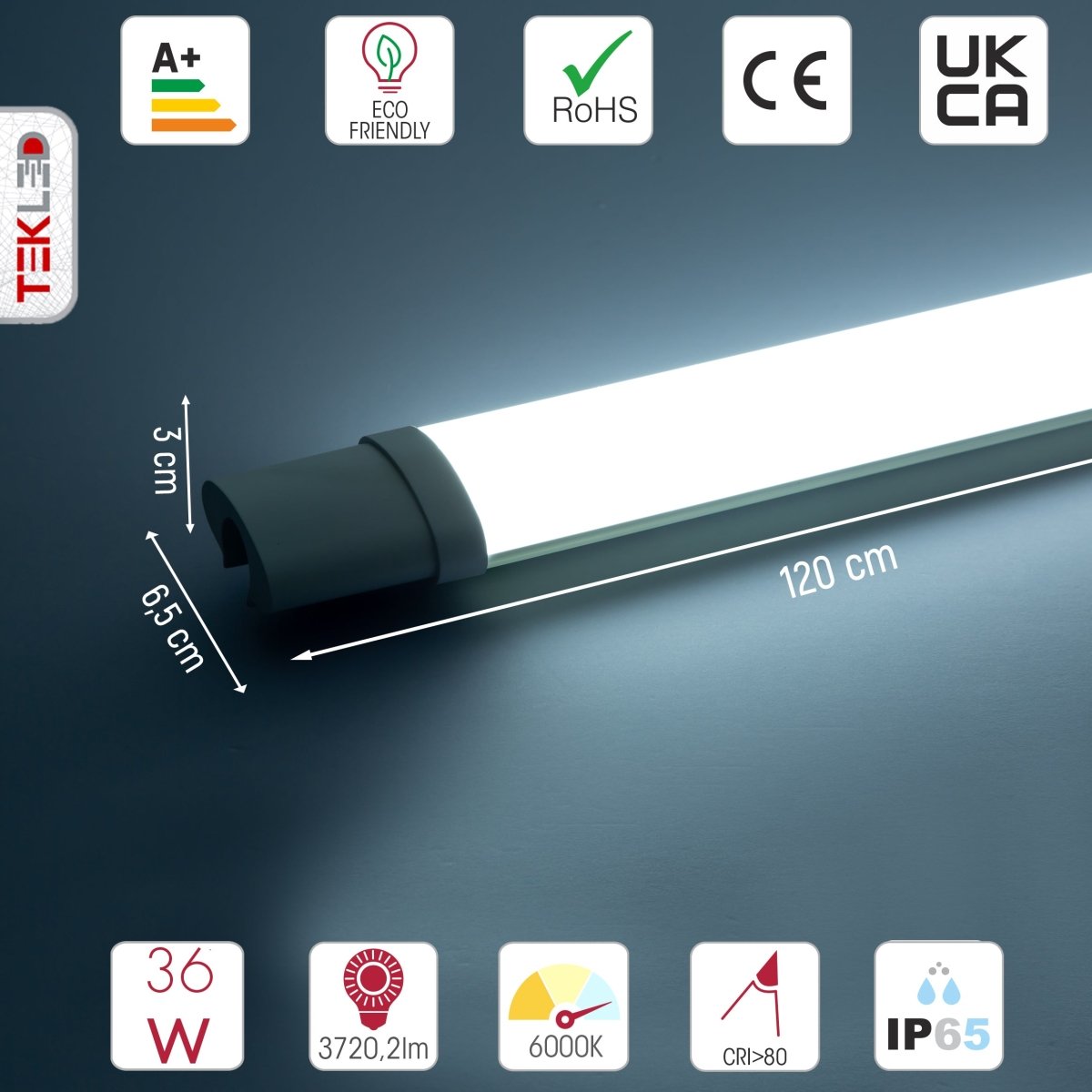

Product Length | 120cm |
Power Cord Length | 15cm |
Made of Materials | Polycarbonate |
Product Colour | White |

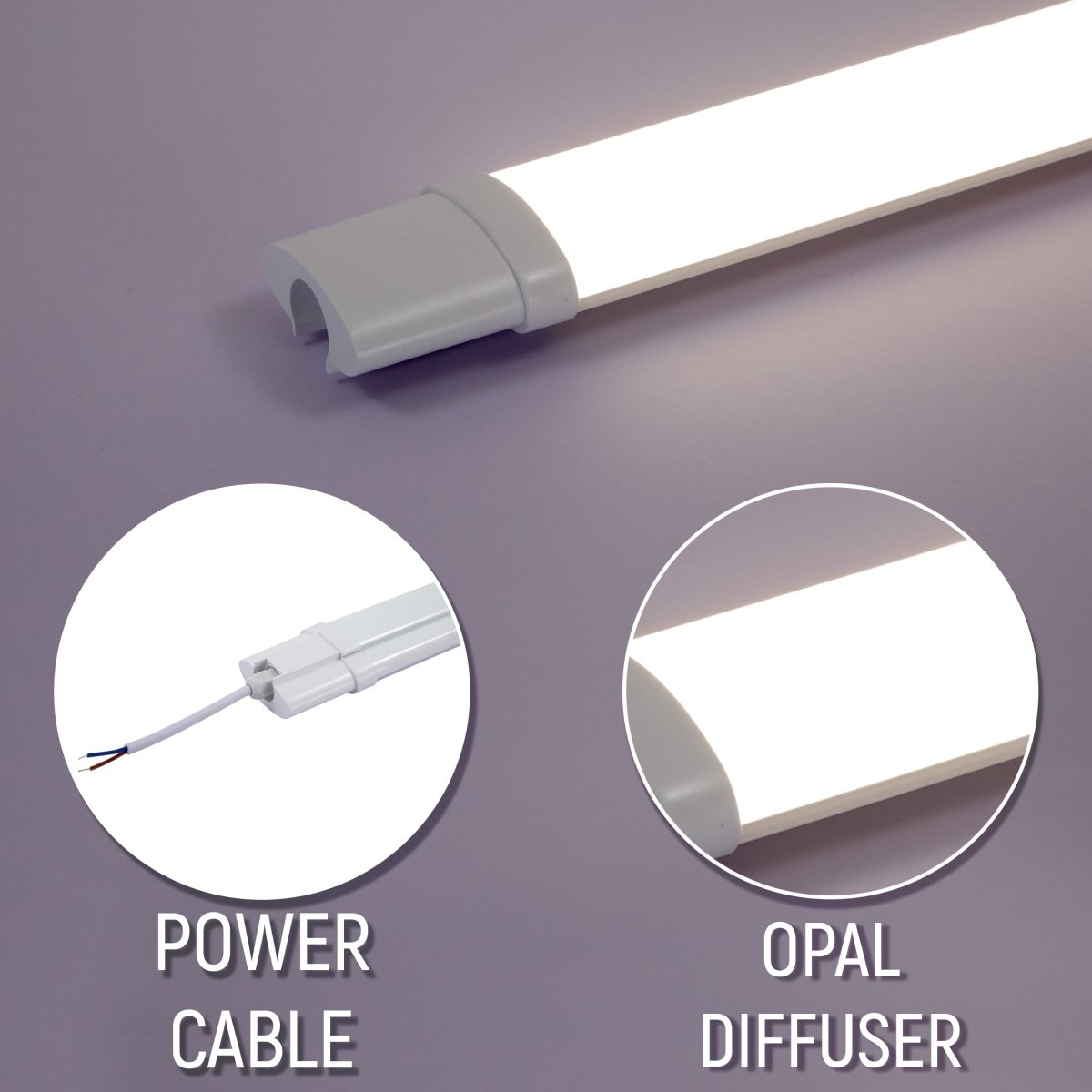

Diffuser Material | Polycarbonate |
Diffuser Type | Opal |
Driver Type | Constant Current |
Driver Power | 36W |
Driver Input Voltage | 85-265 Vac 50/60Hz |
Driver Input Current | 0.27 A @240Vac |
Driver Output Current | 300mA |
Surge Protection Level | 2kV |
Power Factor | pf>0.5 |
Flickering | Non-Flickering |
Control | On/Off |
Operating Temperature (C) | -20/+55C |
New Energy Rating | E | F | E |
Energy Rating | A++ |
Warranty | 2 year |
Life Span | 30000 h |
Net Weight | 0.3kg |
Box Dimensions (LxWxH) | 125x6.4x3.3cm |
Box Content | 1Light fixture, User manual 1fittings, 1terminal |
Certifications | UKCA, CE (LVD, EMC) |
