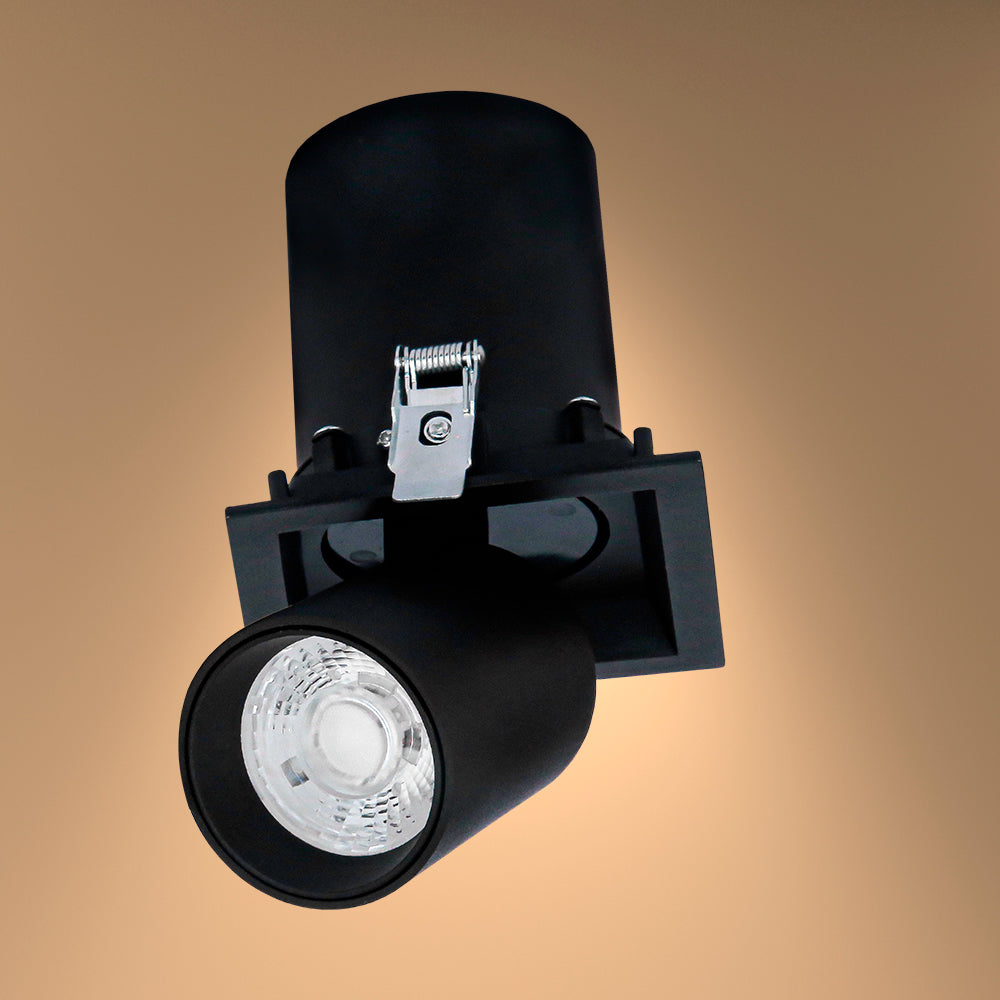

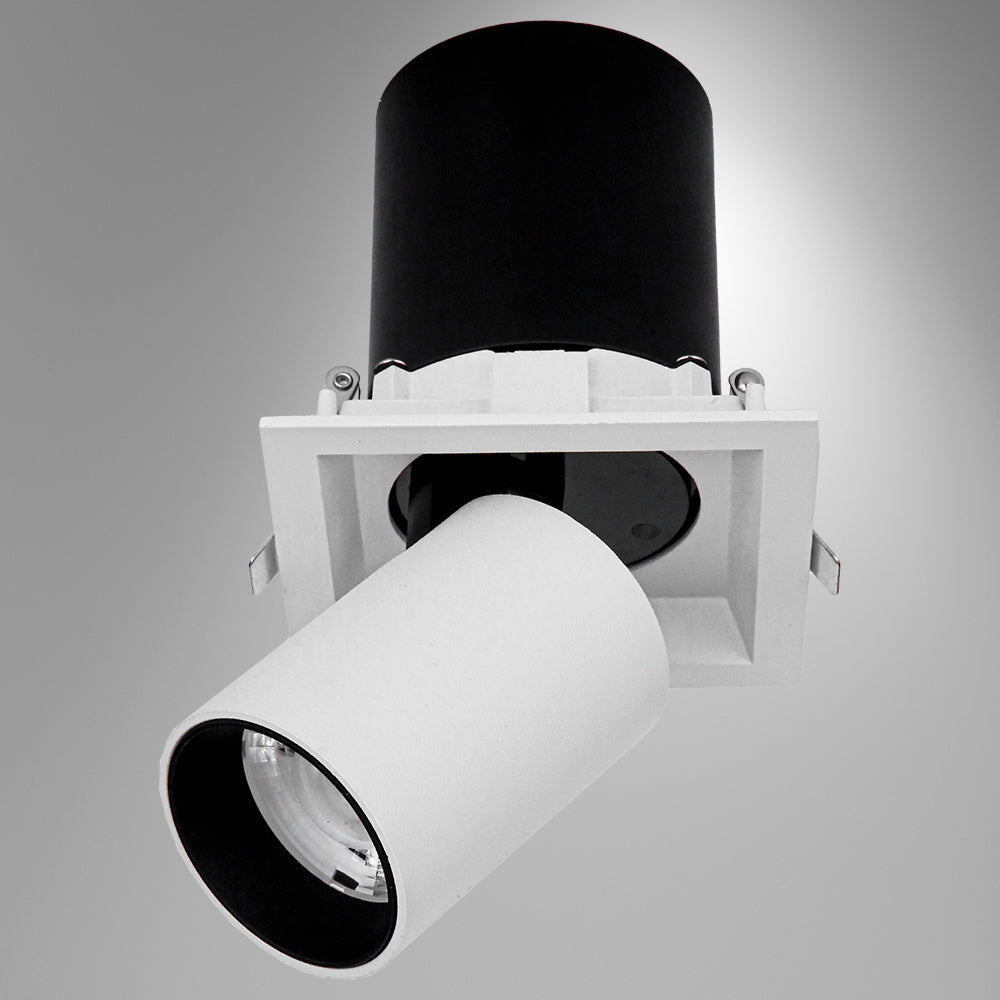

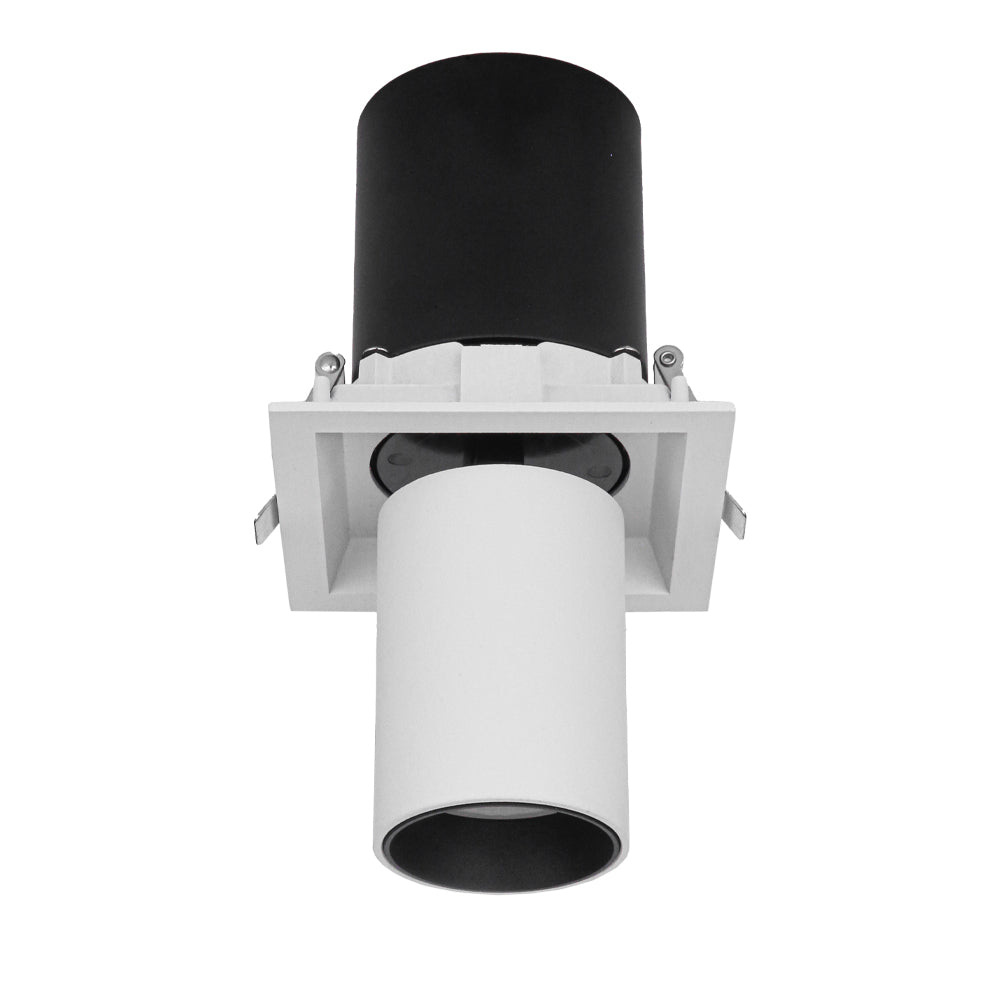

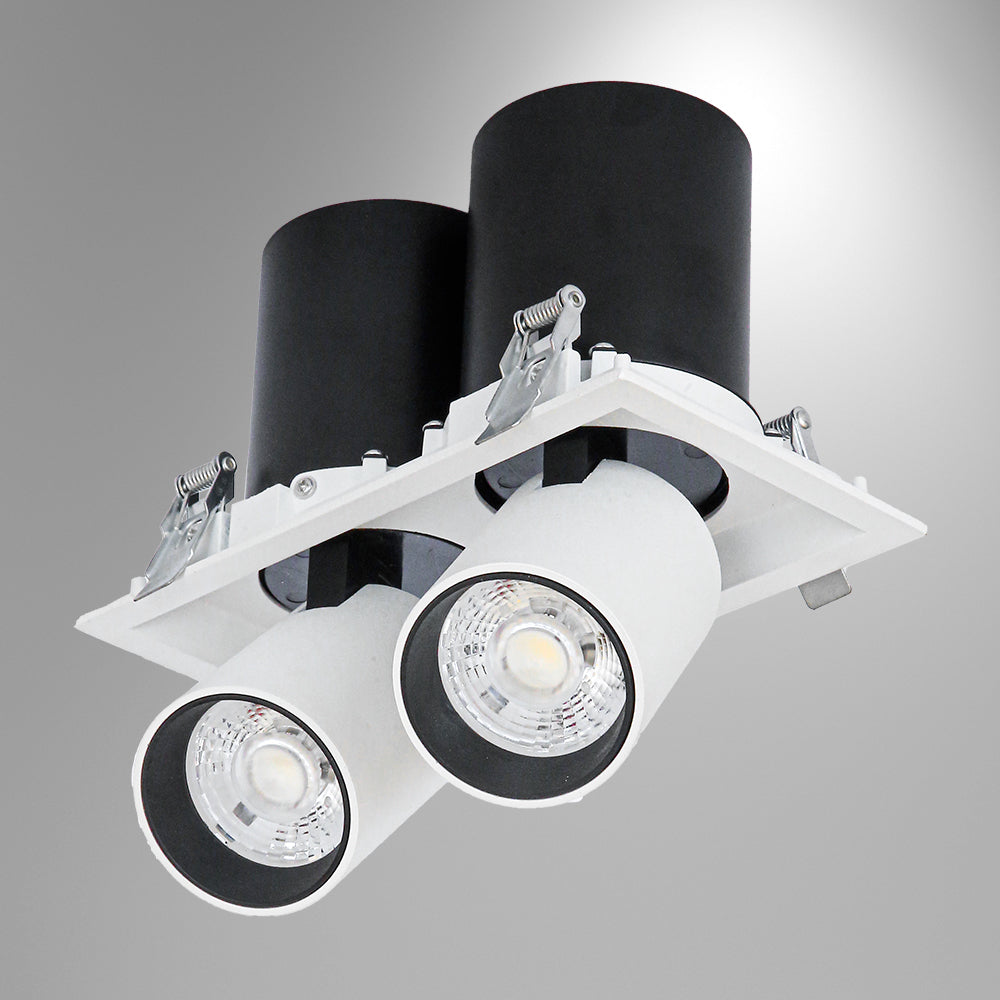

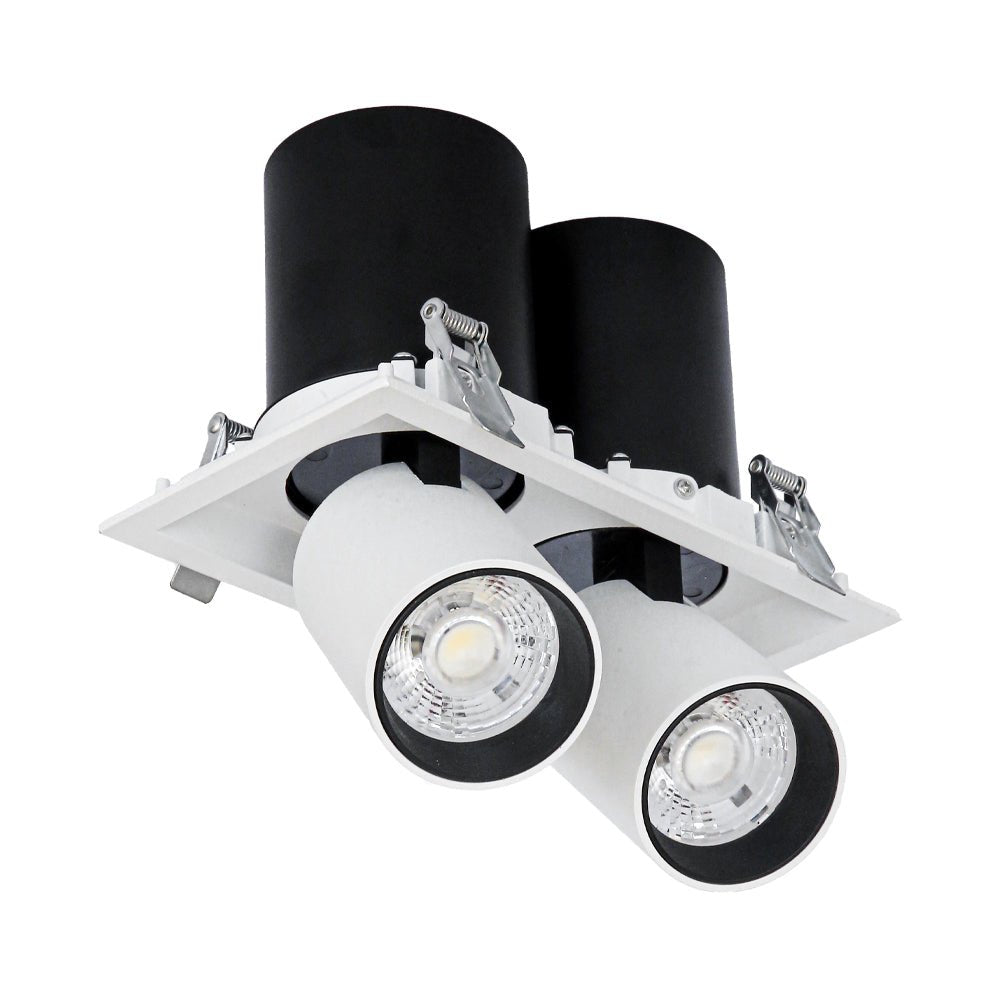

Telescopic Swivel Tilt Adjustable Retractable In-Out LED Rectangle Downlight - White / 2 Lamp.
Telescopic Swivel Adjustable In-Out LED Downlight Cool White 4000K
Experience Advanced Lighting with TEKLED's Retractable Telescopic Swivel In-Out LED Downlights
Transform your lighting solution with TEKLED's cutting-edge range of Retractable Telescopic Swivel In-Out LED downlights. These fixtures are constructed from high-quality aluminium and steel, ensuring durability with a modern aesthetic that integrates seamlessly into any ceiling. With a Colour Rendering Index of 90, the integrated LEDs provide vivid, consistent light without flickering, lasting longer than traditional bulbs and cutting down on maintenance costs.
Product Specifications:
Power Options: Available in 10W, 20W, and 30W built-in LED

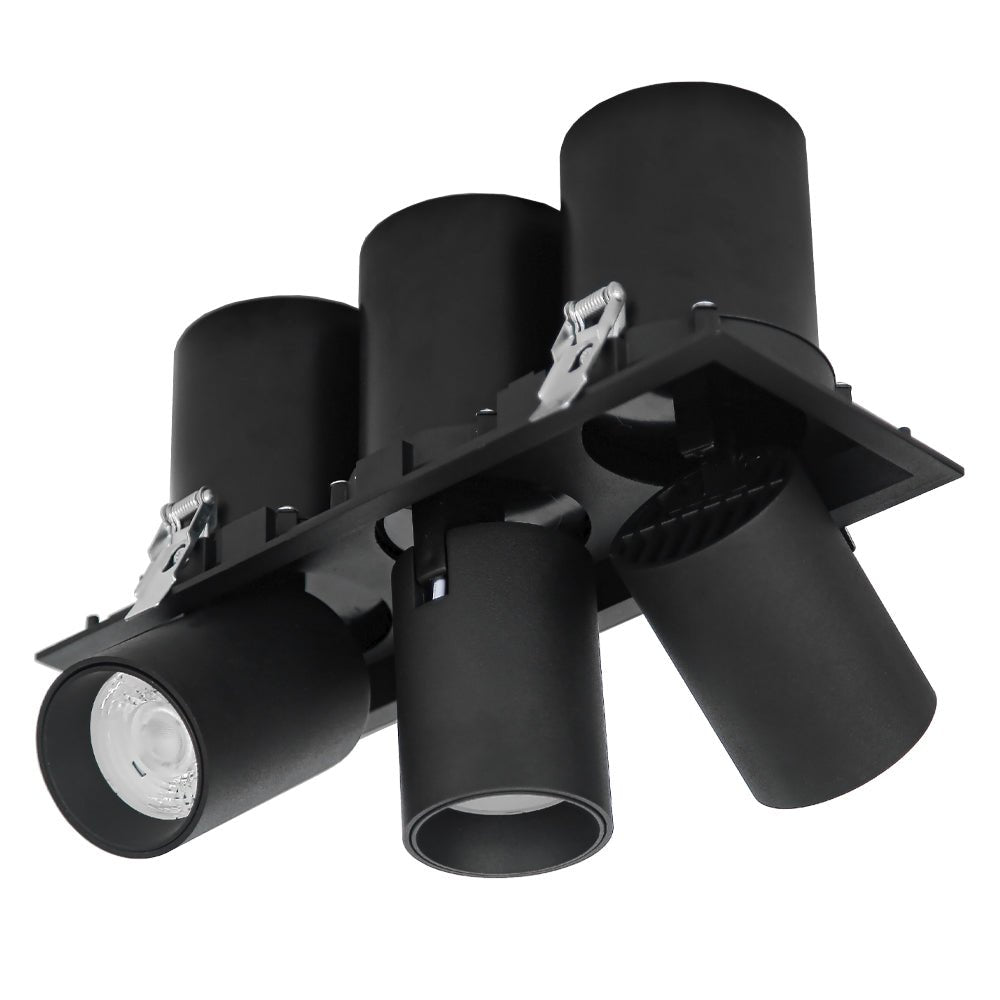

Colour Finishes: Choose between sleek black or pristine white

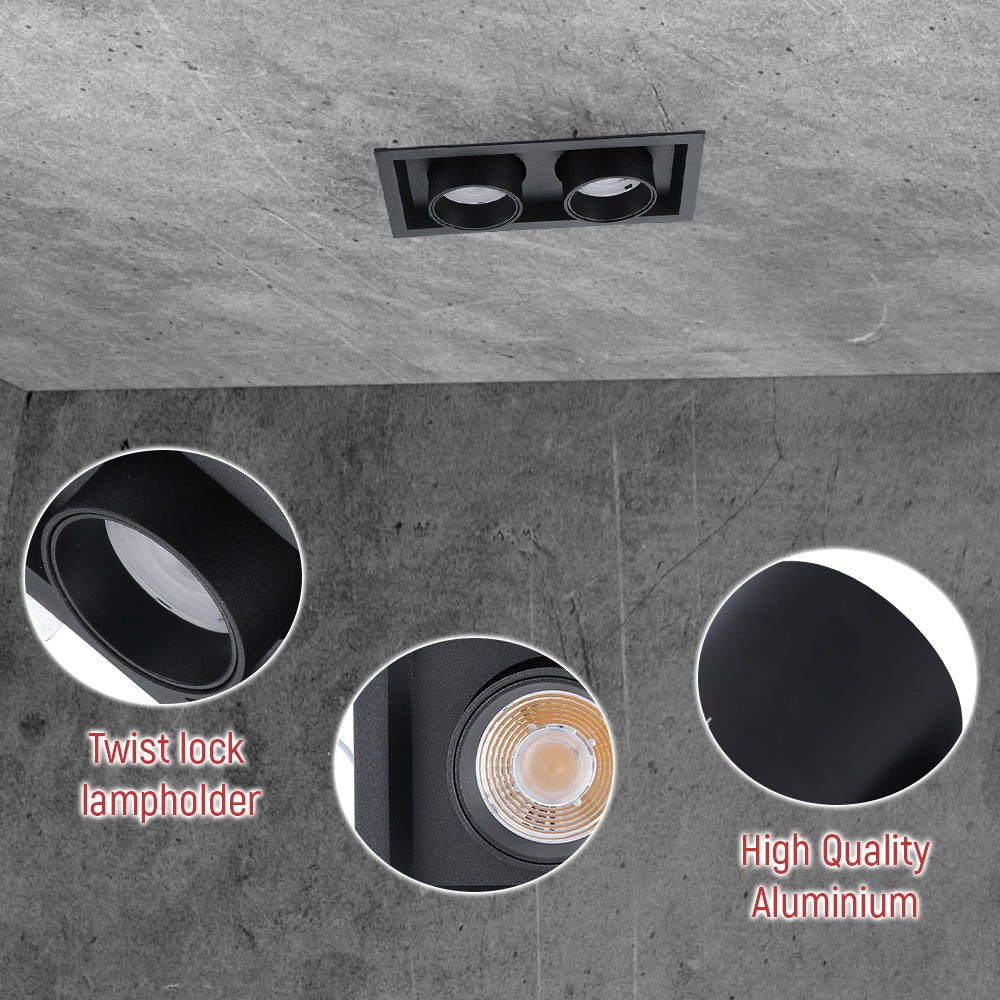

Material: High-grade aluminium and steel
Certification: IP20 rated for indoor use

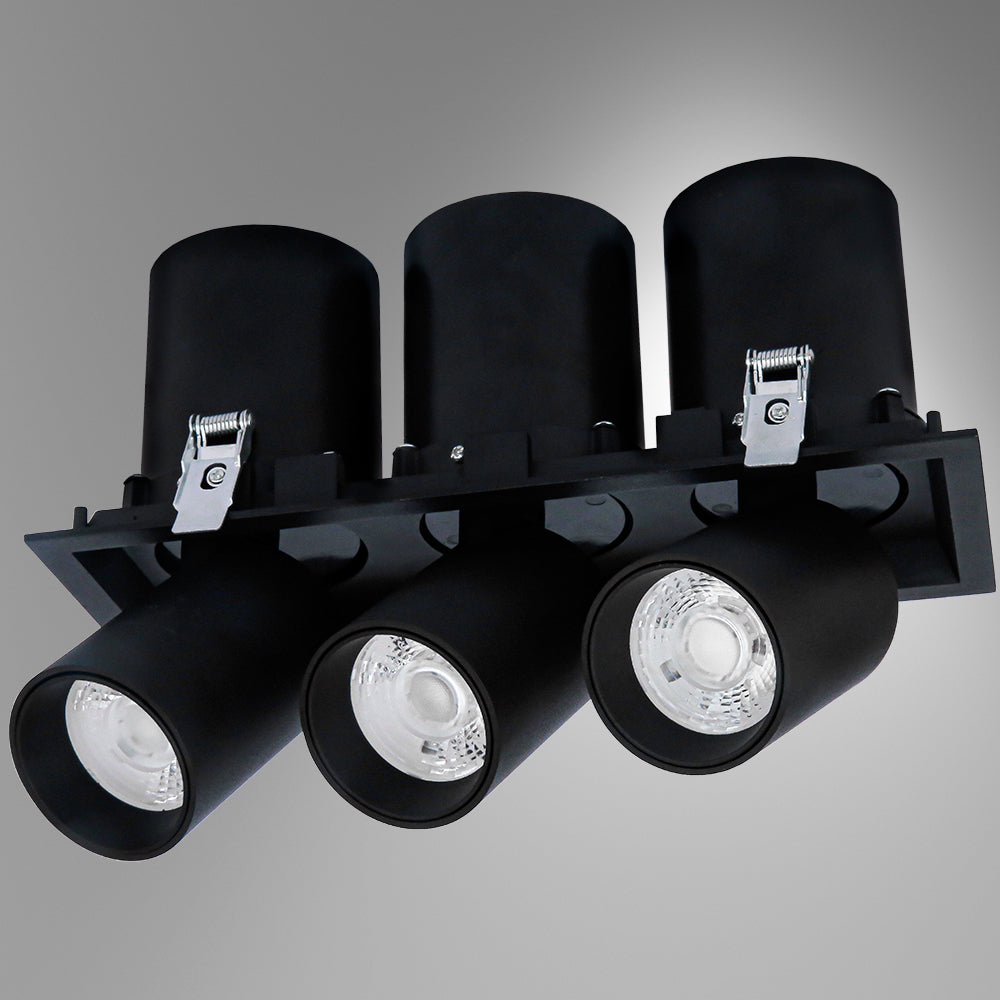

Lamp Holder Variants: Options with 1, 2, or 3 lights
Energy Efficiency: High-efficiency LED driver for superior performance with minimal power consumption
Heat Dissipation: Emits minimal heat compared to halogen and metal halide lamps( for greener earth)
Retractable Feature:

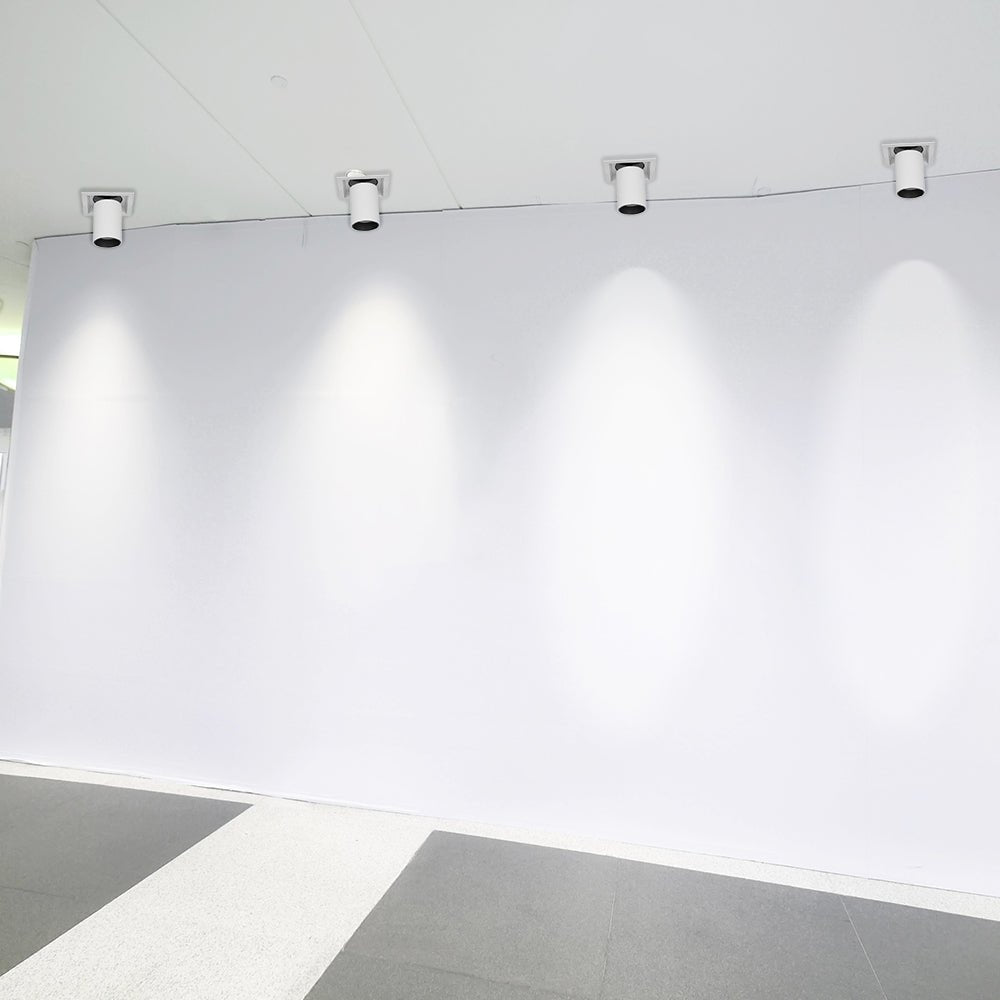

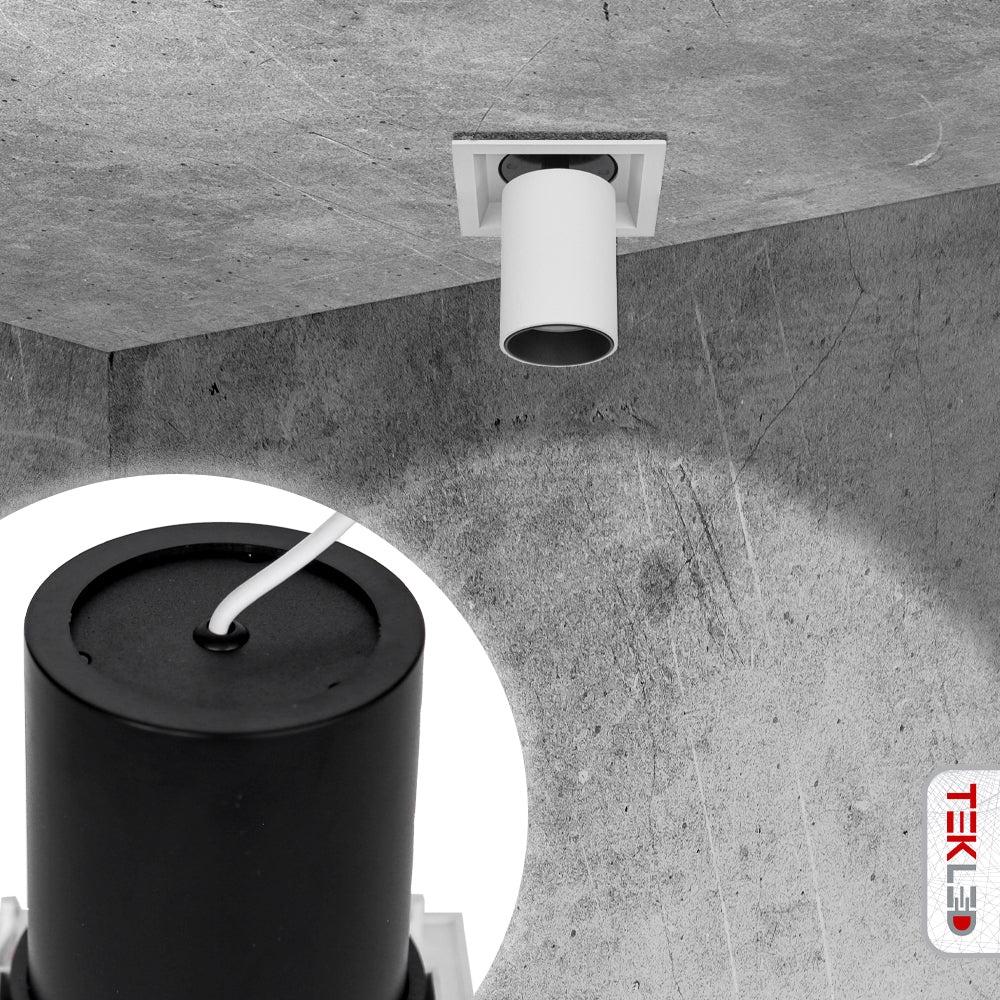

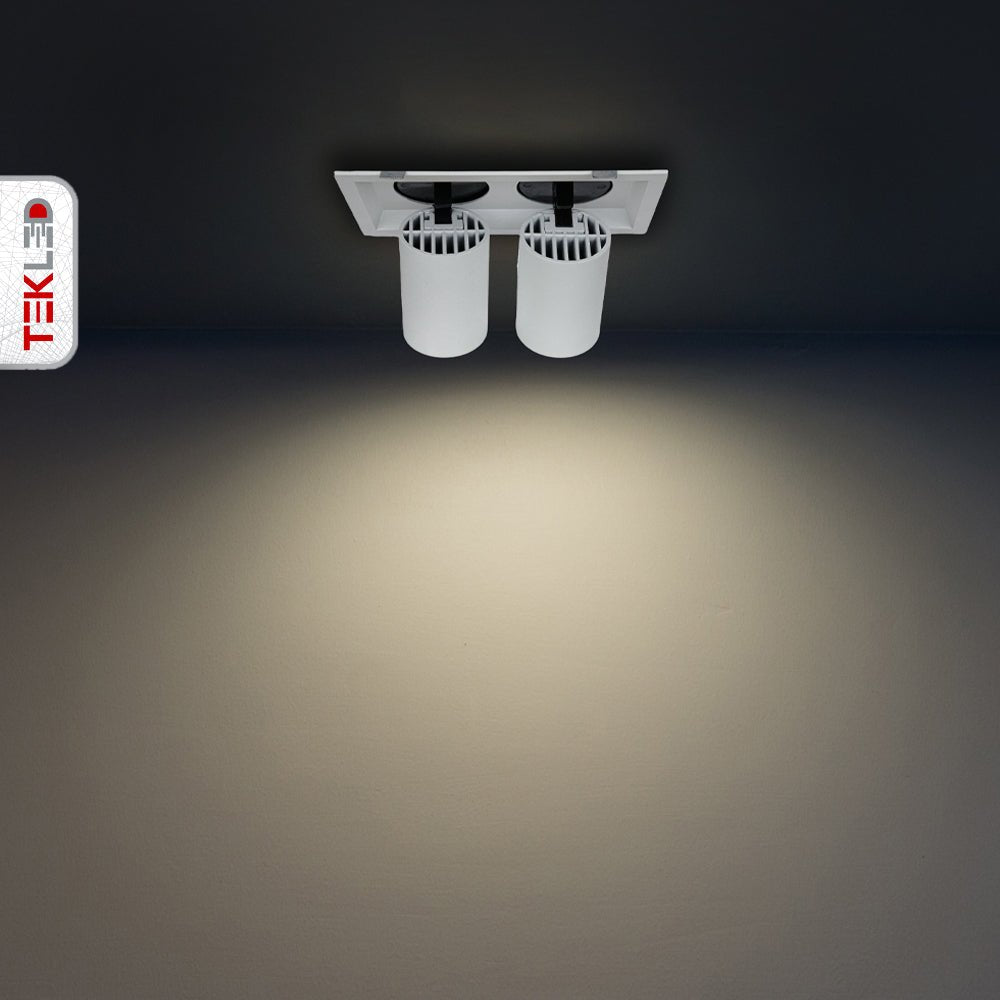

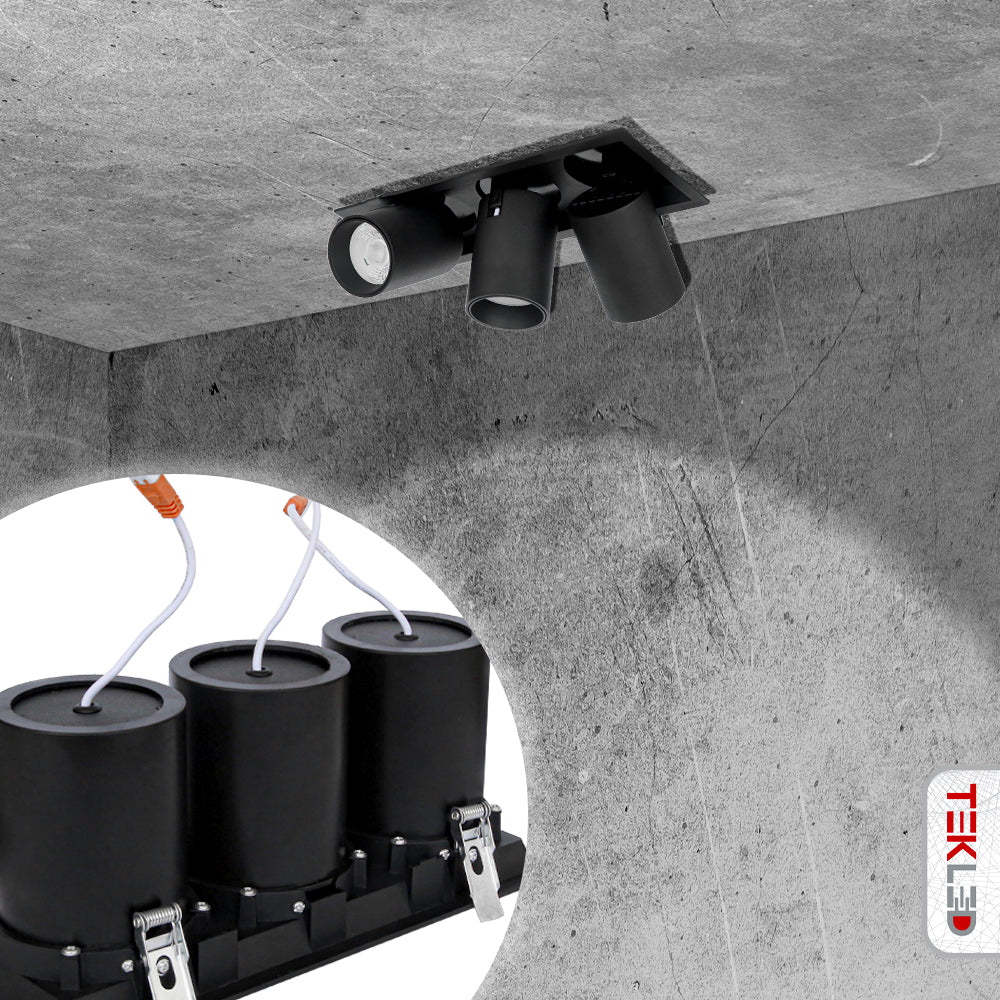

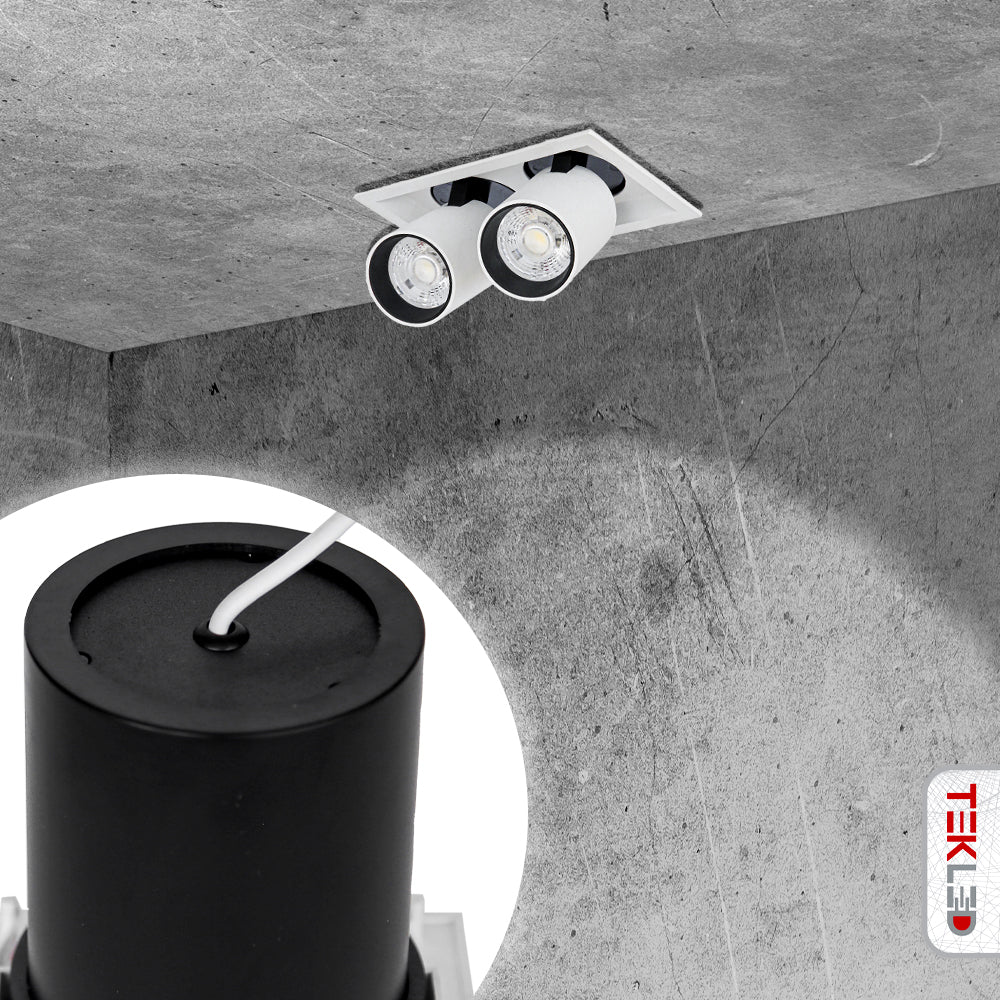

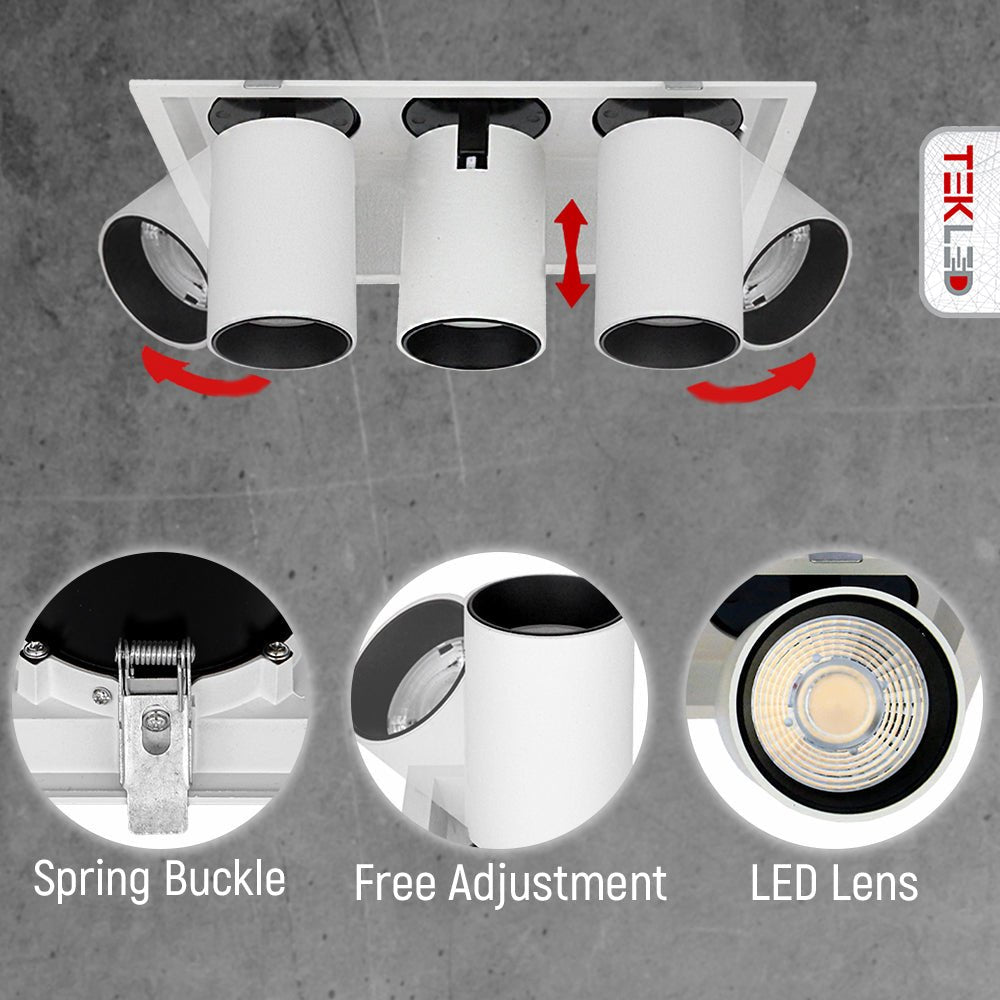

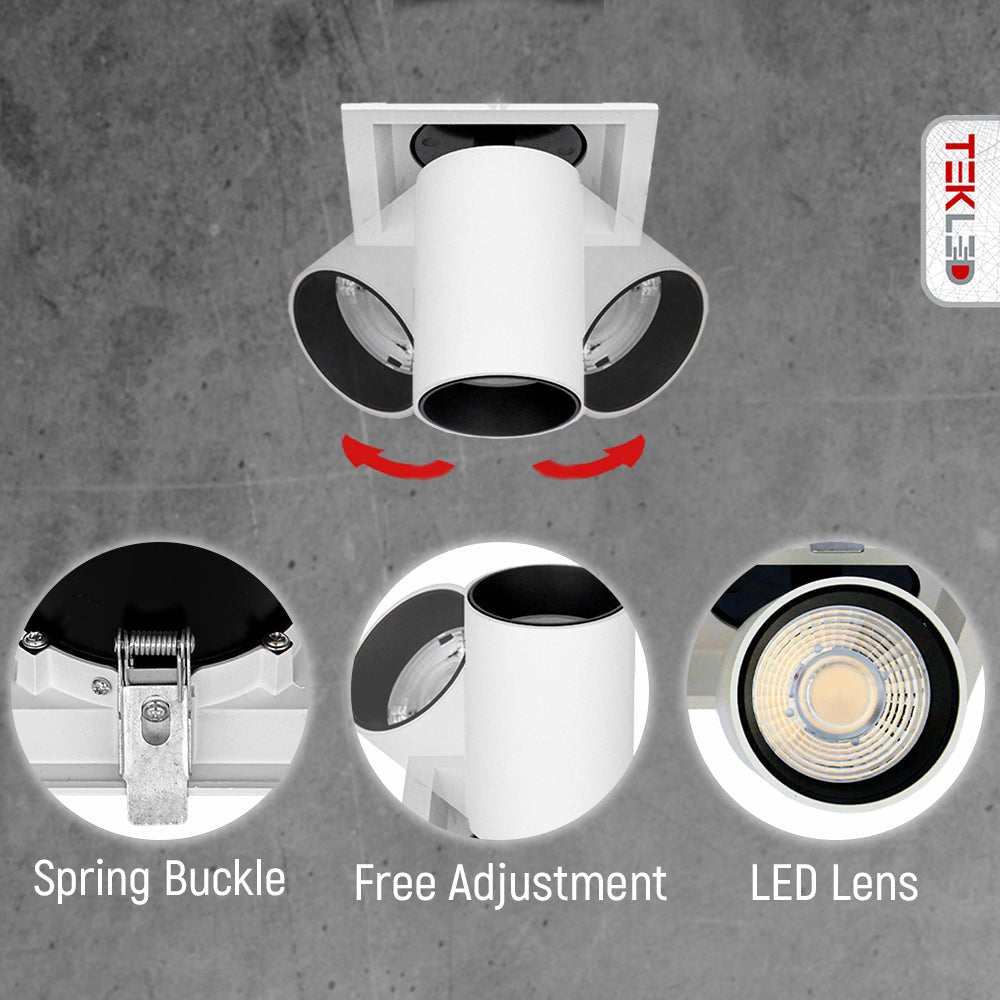

The unique retractable and telescopic design allows the downlight to be neatly retracted into the ceiling when not in use, preserving the aesthetic integrity of your space. When extended, the downlight can act as a scoop light or spotlight, adjustable and rotatable to focus light precisely where it's needed.
How to Use:
Installation should be performed by a qualified electrician. Once installed, the downlight can be easily extended or retracted using a simple mechanism. Adjust the angle and rotation to direct the light towards specific areas, ideal for highlighting displays or enhancing the ambiance.
Where to Use:
These versatile downlights are perfect for a range of settings, including:

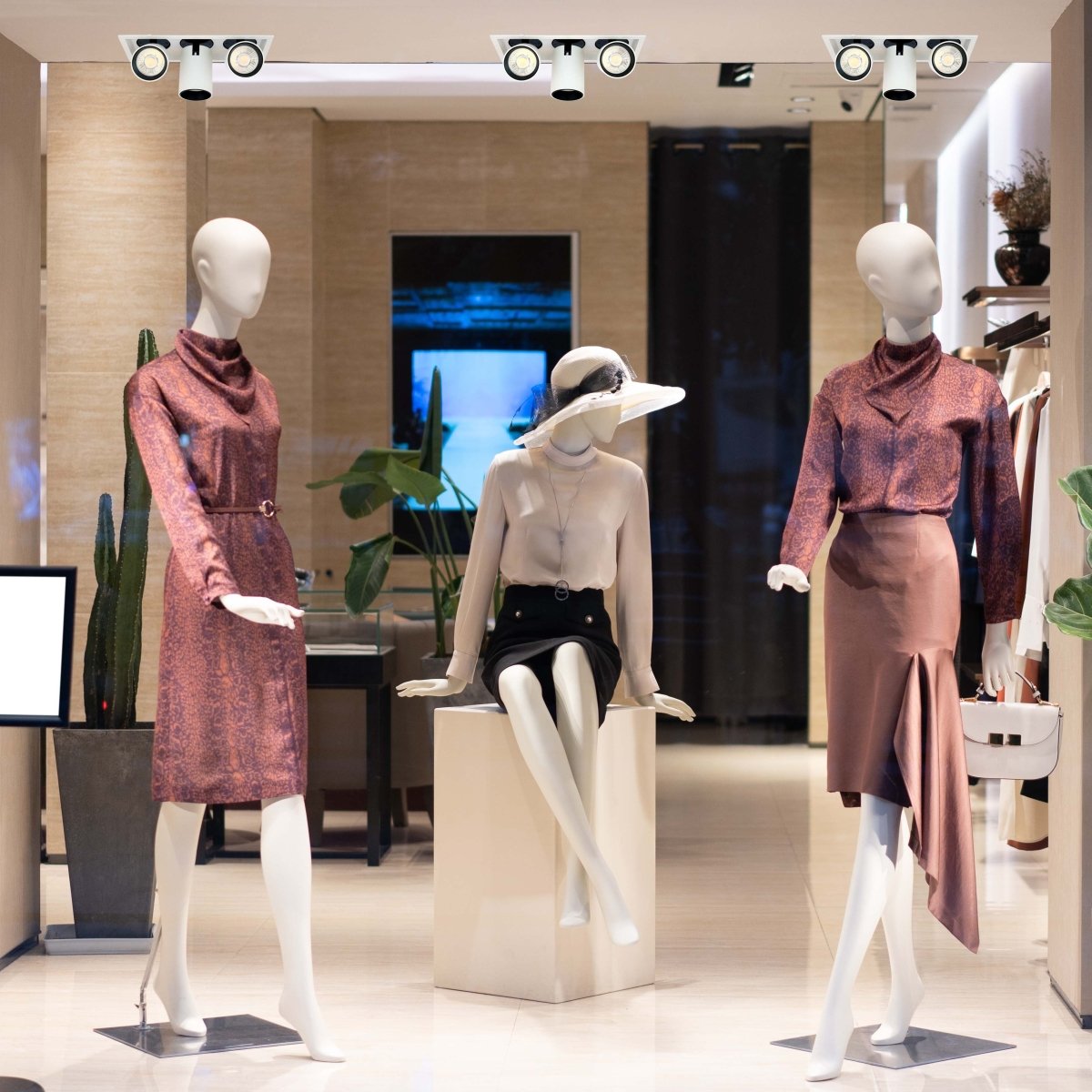

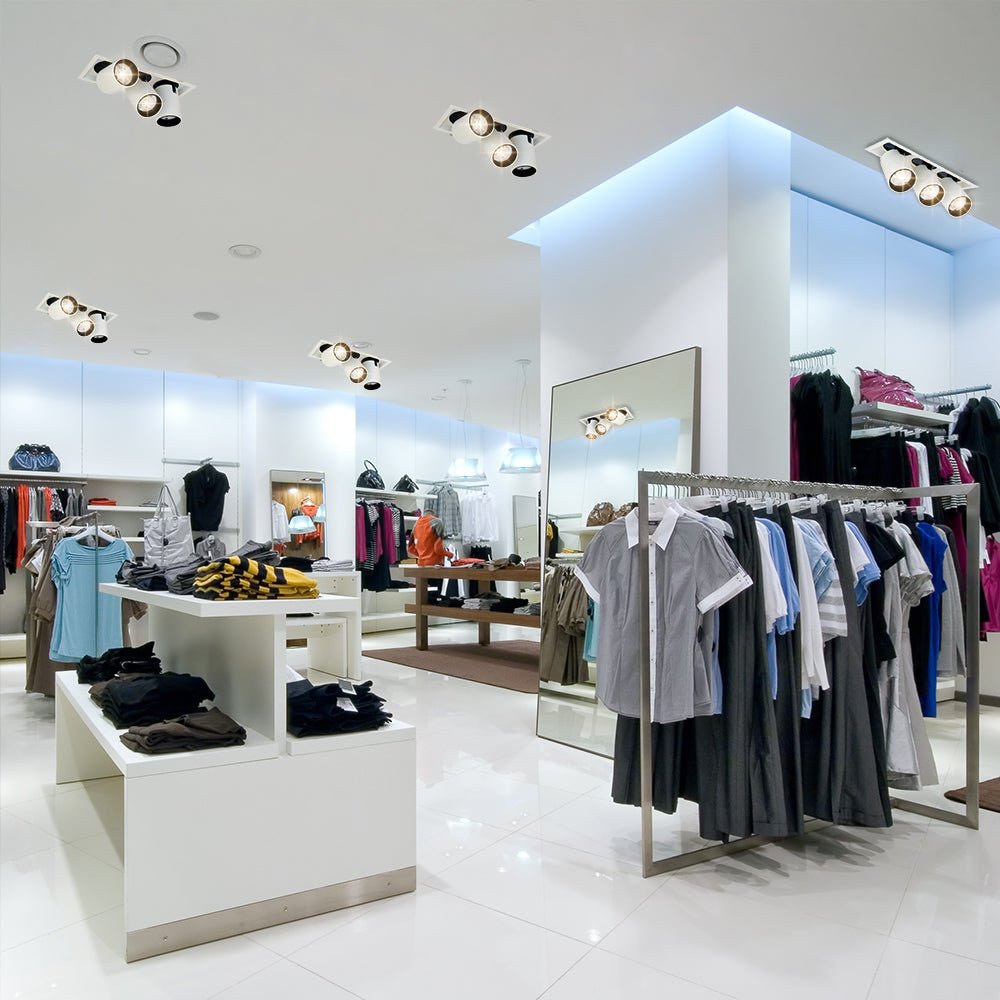

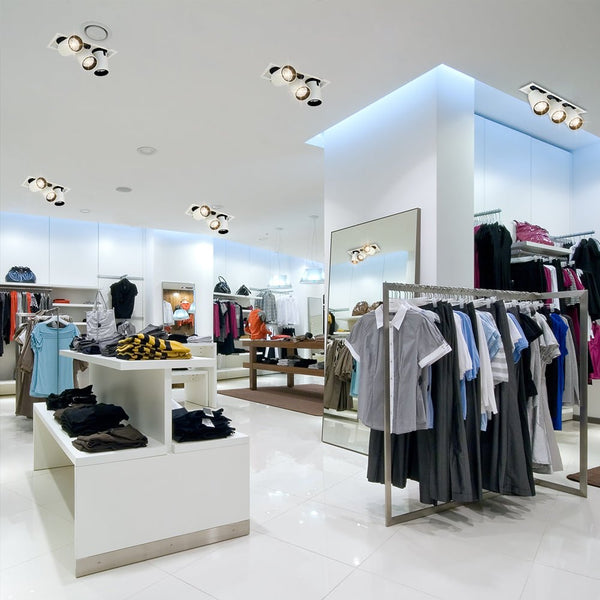

Retail Stores: Excellent for creating focal points in clothing or furniture stores.
Galleries and Museums: Precise directional lighting helps accentuate artworks and exhibits.

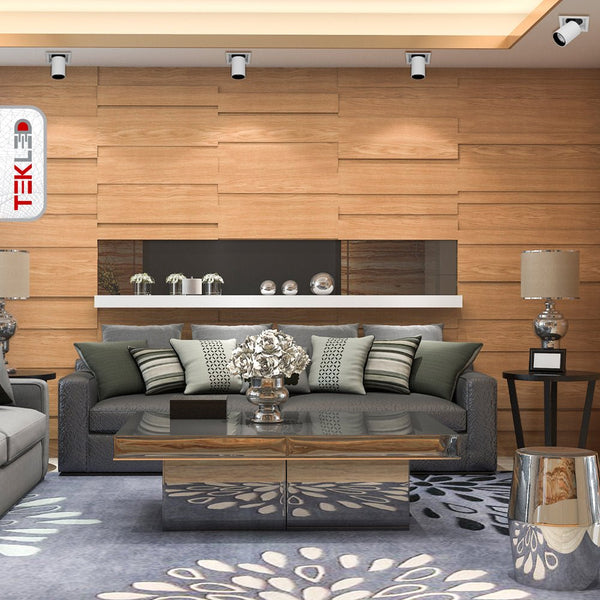

Home Interiors: Ideal for task lighting in kitchens or accent lighting in living rooms.

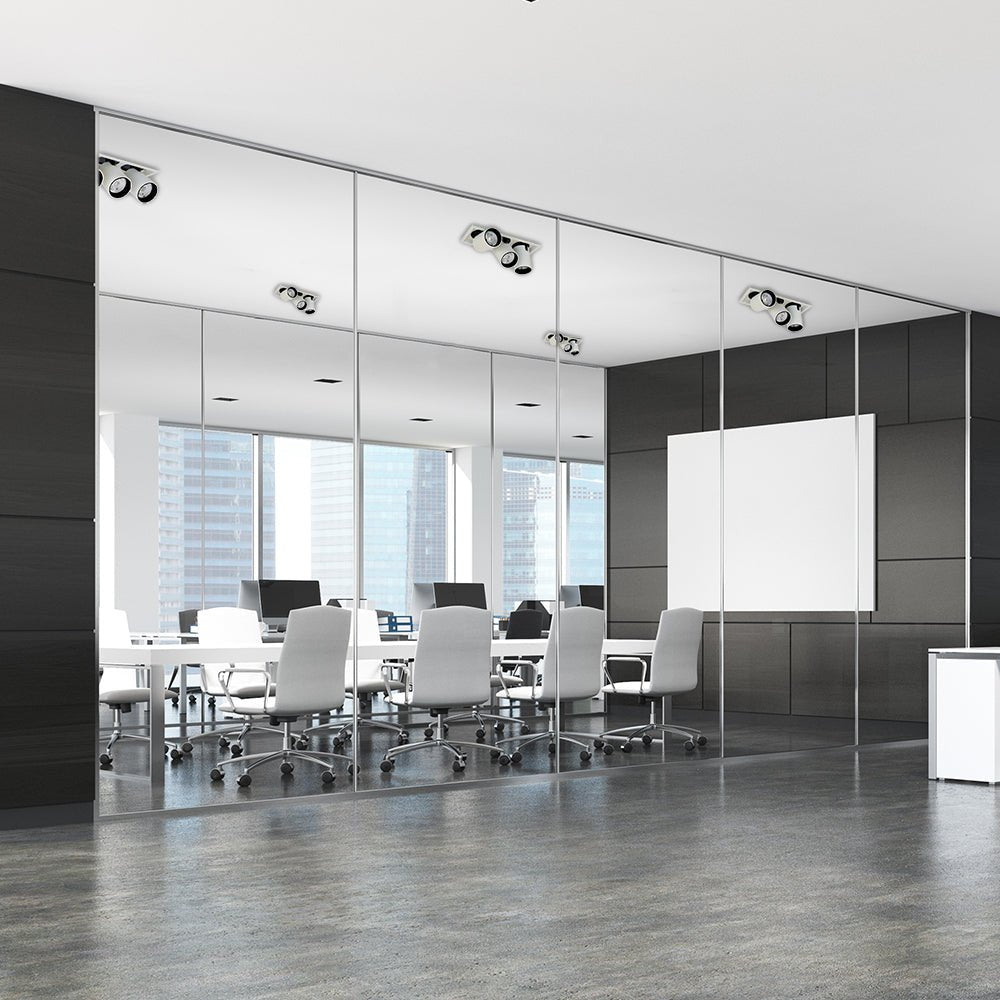

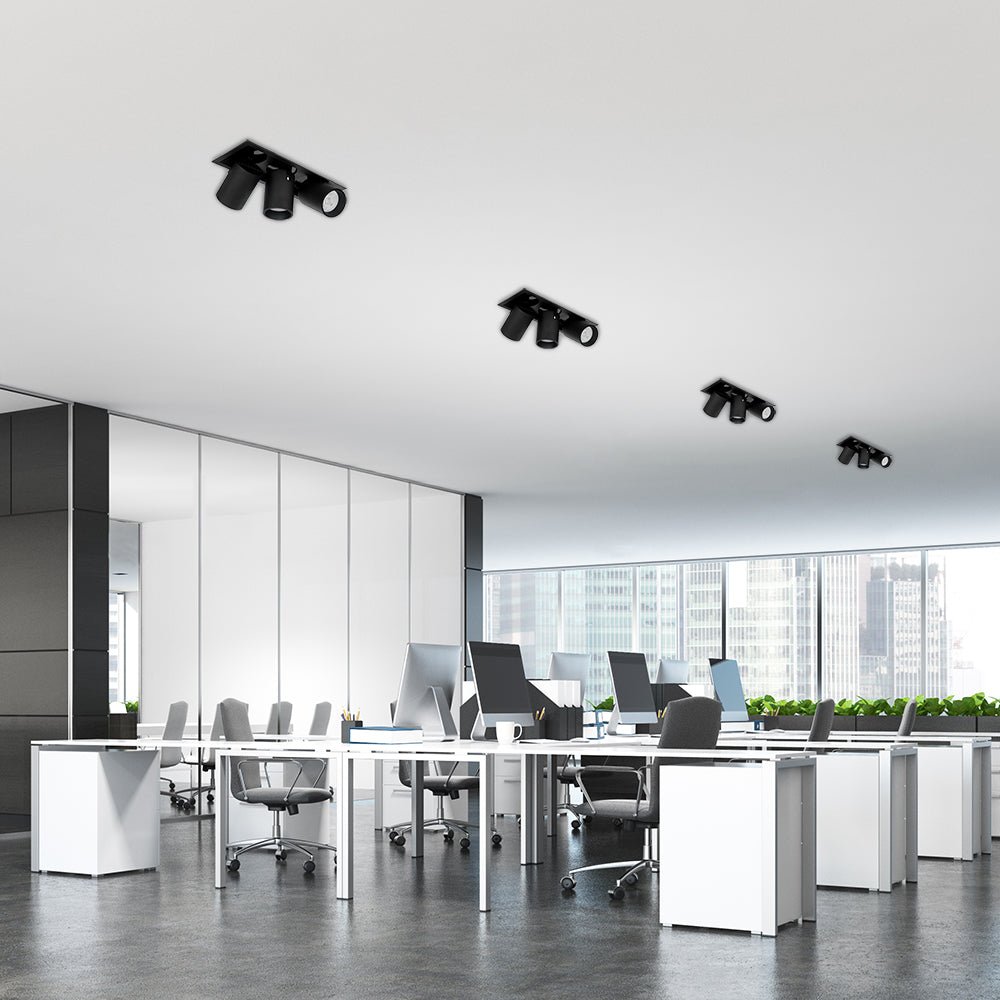

Offices: Enhance productivity with targeted lighting in work areas or conference rooms.
Embrace the convenience and elegance of TEKLED's Retractable LED Downlights to bring efficient, customizable lighting to your environment.
Technical Specifications
Name | Telescopic Swivel Adjustable In-Out LED Downlight 10W 20W 30W Cool White 4000K Black or White Finish |
Product Code | 165-03938 | 165-03942 | 165-03946 | 165-03940 | 165-03944 | 165-03948 |
Power | 10W | 20W | 30W |
Power Source | Hardwired |
Voltage | 220/240V AC 50/60Hz |
Lamp Holder Type | Built-in LED |
Protection Class | Class II |
Dimmability | Non-Dimmable |
Light Source | COB 1414-10W LED |
Led Quantity | 1PC COB | 2 PCS COB | 3 PCS COB |
Bulbs | Integrated LED, no need additional bulb |
Lumen | 1130lm | 2210lm | 3280lm | 2220lm | 3340lm |
Luminous Efficacy | 113lm/W | 110lm/W | 111lm/W | 112lm/W |
Lux | avg 1086Lux @2m - max 1542Lux and avg 271Lux @4m - max 375Lux | avg 2137Lux @2m - max 3004Lux and avg 534Lux @4m - max 751Lux | avg 3158Lux @2m - max 4403Lux and avg 789Lux @4m - max 1100Lux | avg 977Lux @2m - max 1317Lux and avg 244Lux @4m - max 330Lux | |
CRI | CRI>90 |
CCT (Kelvin) Light Colour | 4000K Cool White |
Flickering | Flicker-free |
IP Class | IP20 |

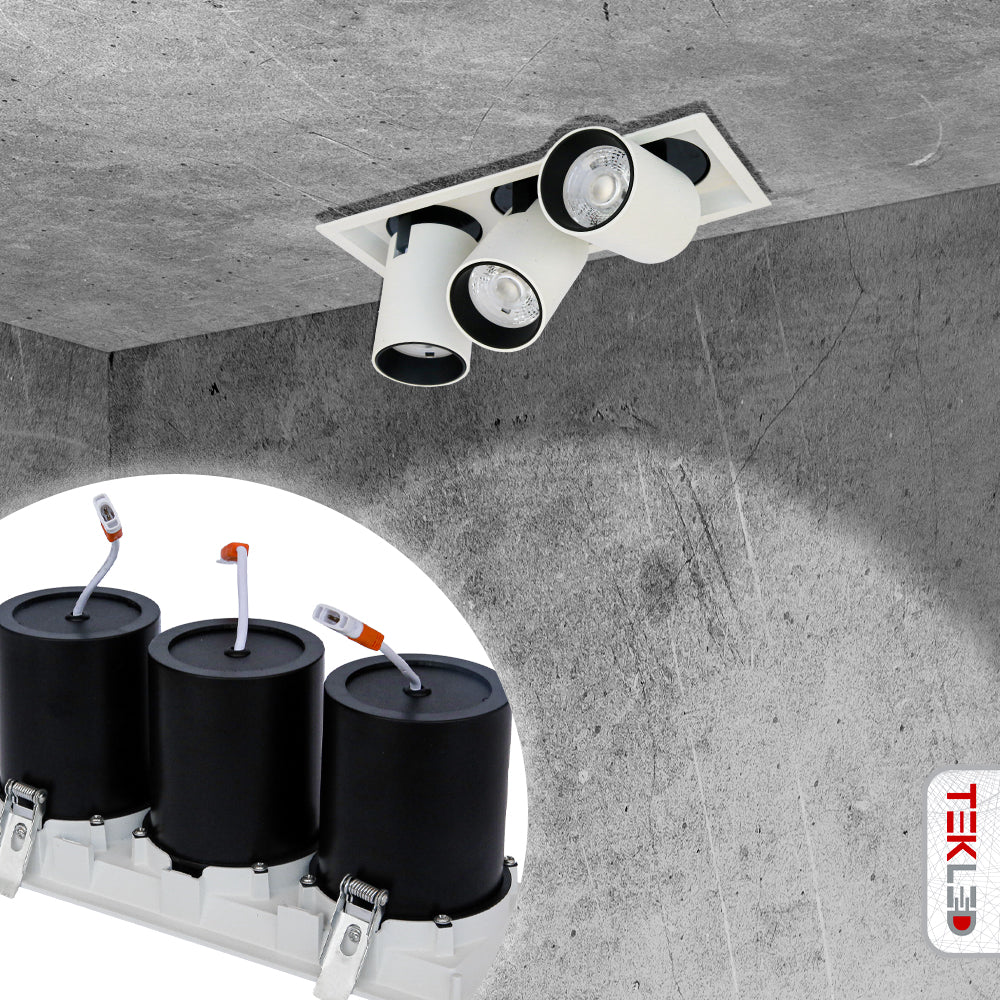

Mount Type | Recessed Mount |

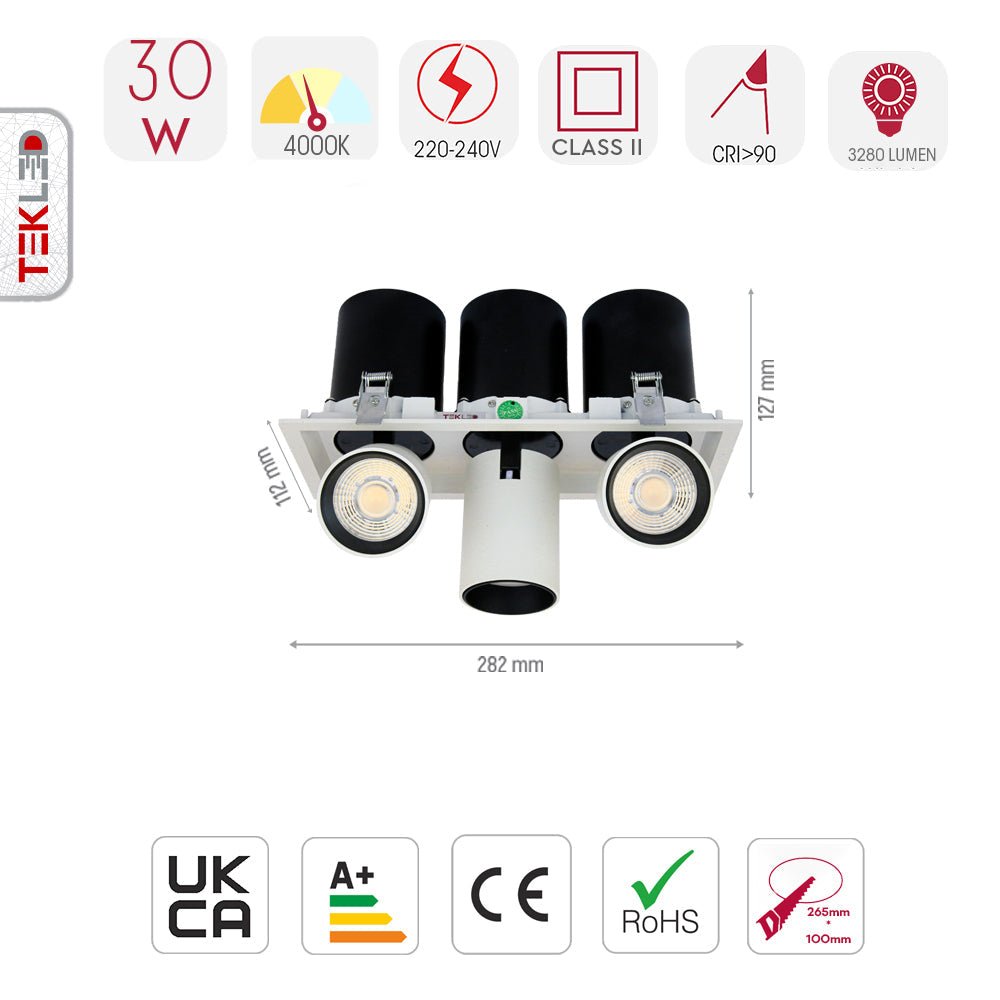

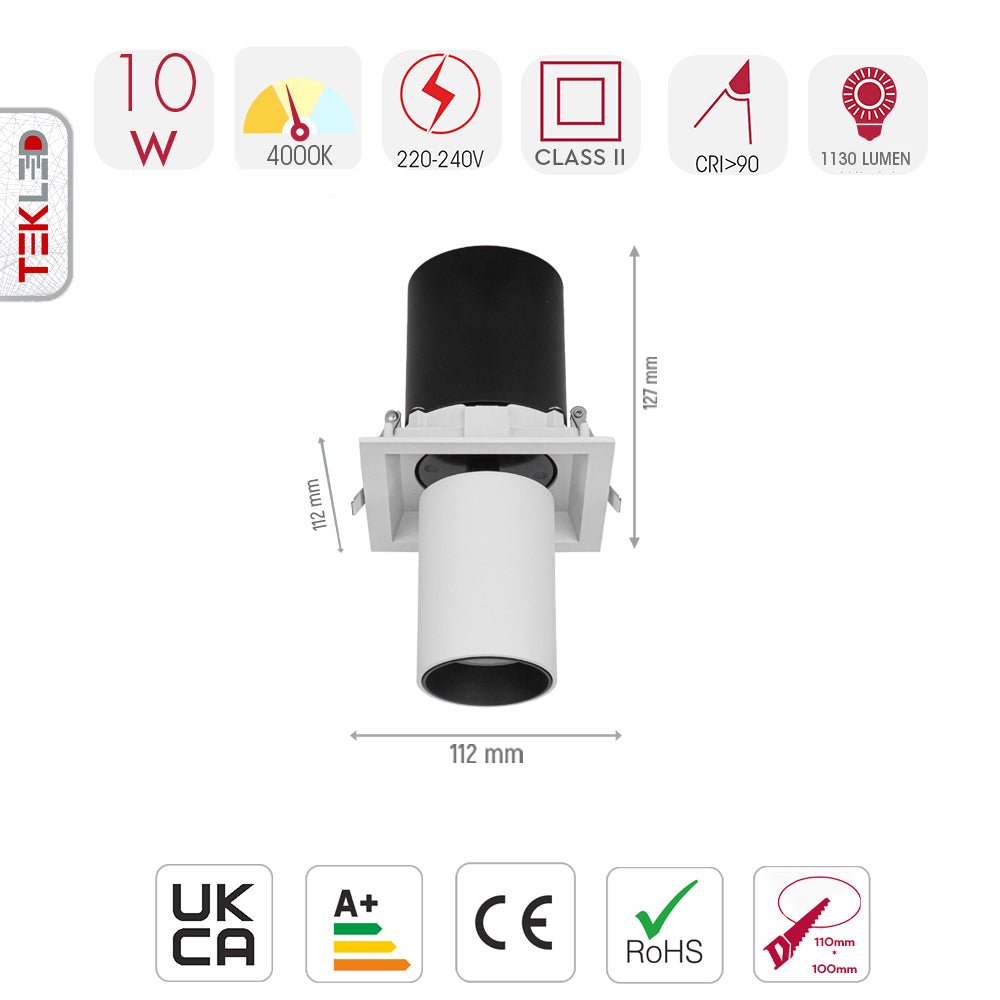

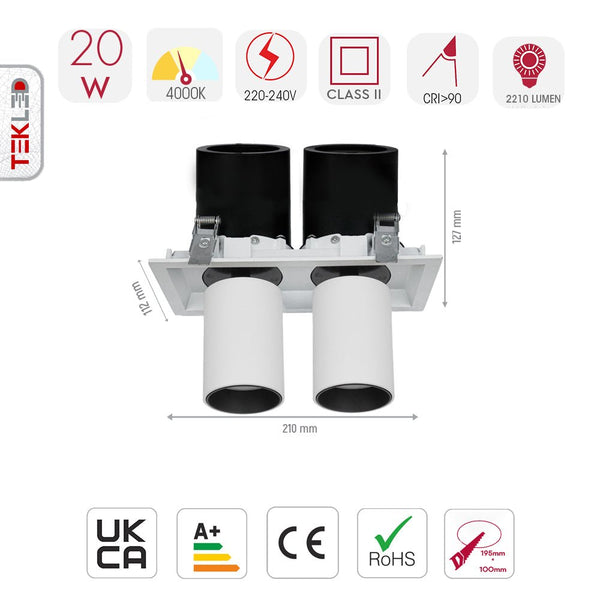

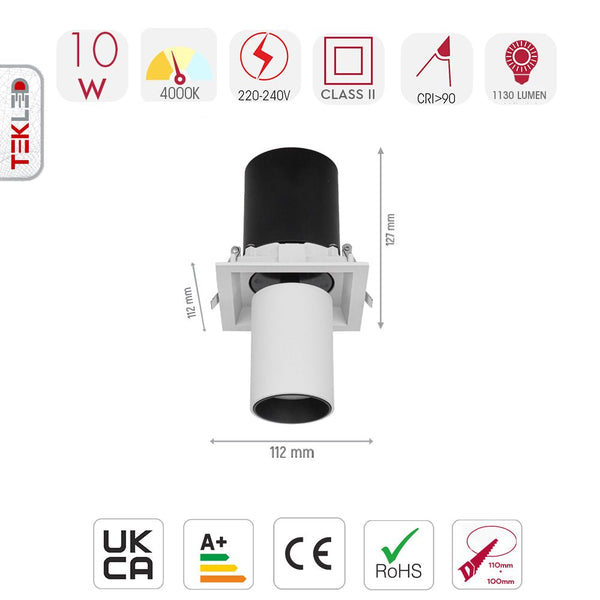

Product Dimensions (LxWxH) (DxH) | 127x112x112mm | 210x127x112mm | 282x127x112mm |
Cutout Size | 100x100mm | 195x100mm | 265x100mm |
Made Of Materials | Steel, Aluminium, ABS, PMMA (Acrylic) |

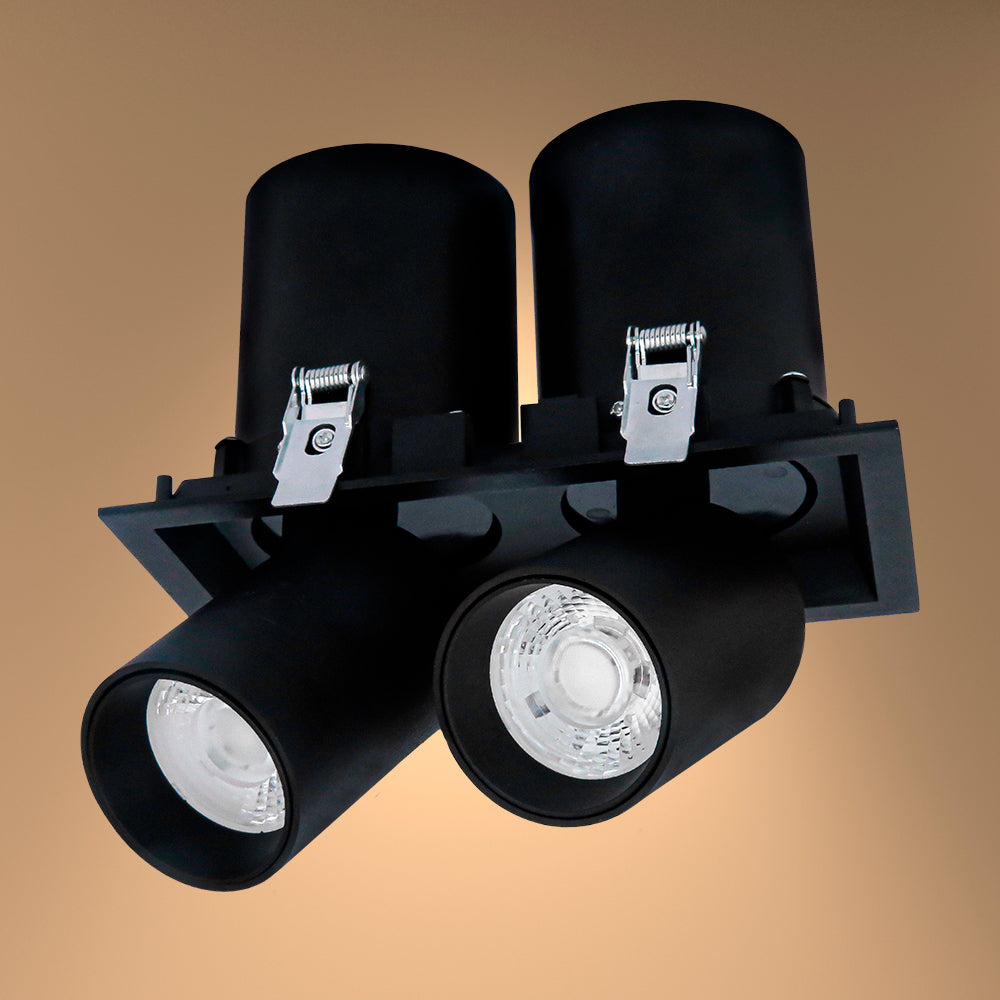

Product Colour | White | Black |
Paint Type | Powder Coated |

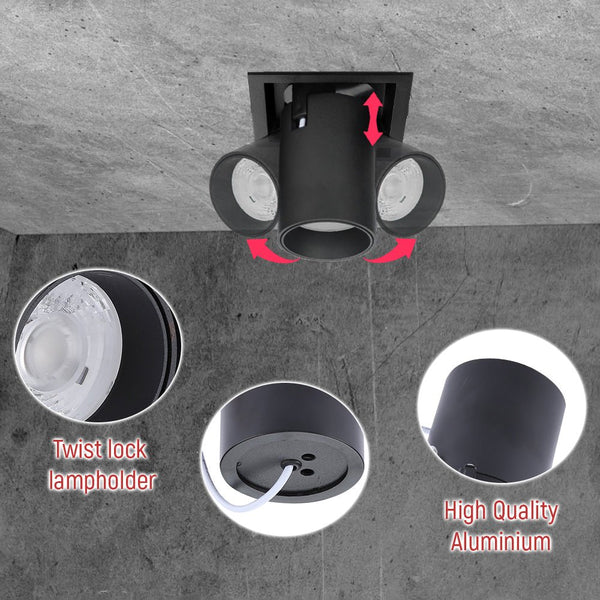

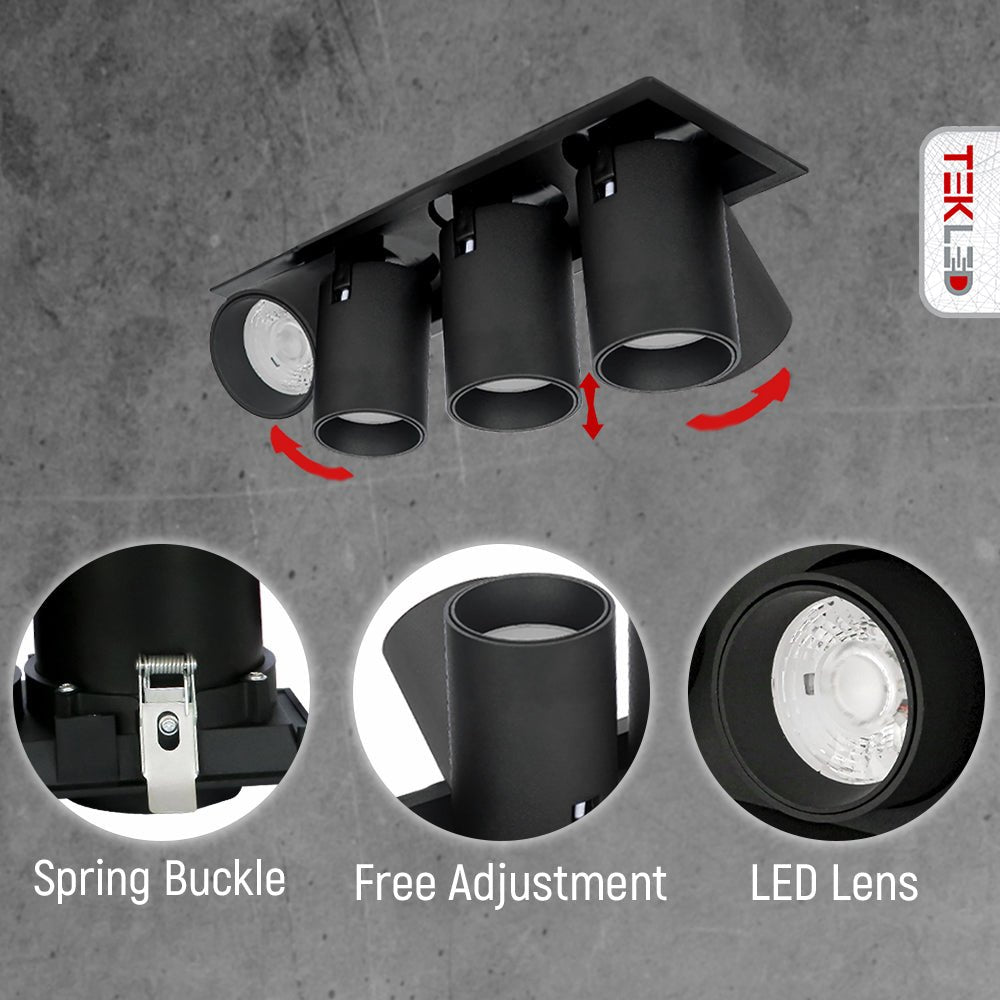

Adjustable Beam | Adjustable (Rotate and Tilt) In and Out movement |
Optic Type | Lens |
Optic Material | PMMA (Acrylic) |

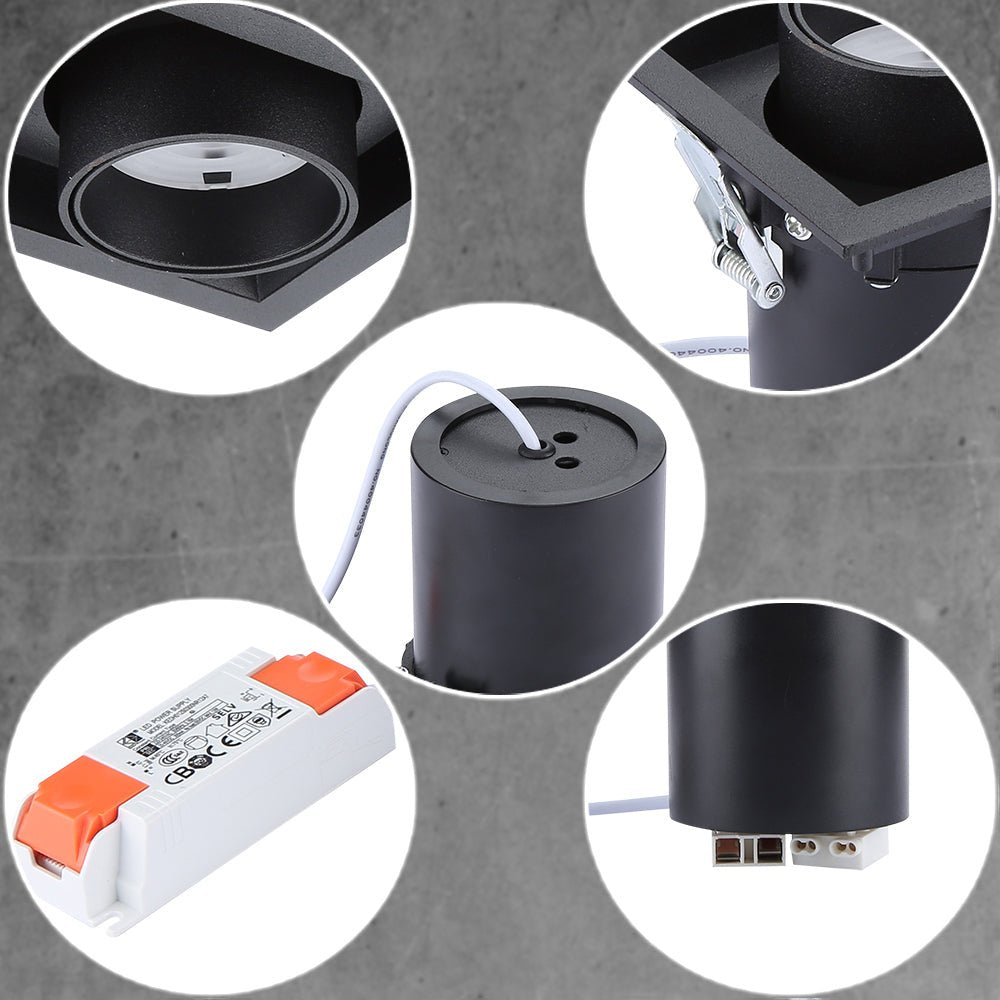

Driver Brand | KeGu |
Driver Type | Constant Current Driver |
Driver Power | 10W/driver |
Driver Input Voltage | 220~240V AC 50/60Hz |
Driver Output Voltage | 25-40V DC |
Driver Output Current | 300mA/driver |
Surge Protection Level | 1kV |
Power Factor | pf>0.5 |
Control | On/Off |
Operating Temperature (C) | -20/+45C |
New Energy Rating | E | F | E | E |
Energy Rating Range | A-G |
Warranty | 3 year |
Life Span | 30000h |
Net Weight | 0.62kg | 1.24kg | 1.8kg |
Gross Weight | 0.67kg | 1.34kg | 1.9kg |
Box Dimension (LxWxH) | 133x130x122mm | 220x133x130mm | 290x133x130mm | 133x130x120mm |
Box Content | 1 pc Lamp, 1 pc Instruction |
Certifications | UKCA, CE, SAA, TUV |
