Universal Downlight LED Round Panel Light with Built-in Microwave Sensor 3000-6000K Warm White Cool Daylight - 9 W.

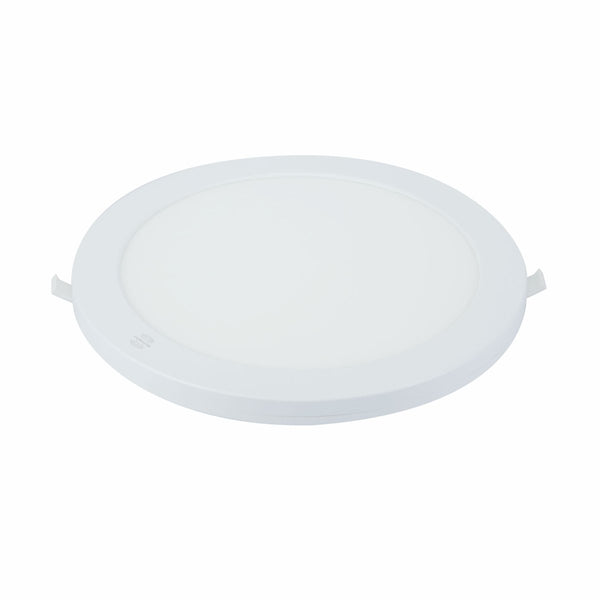

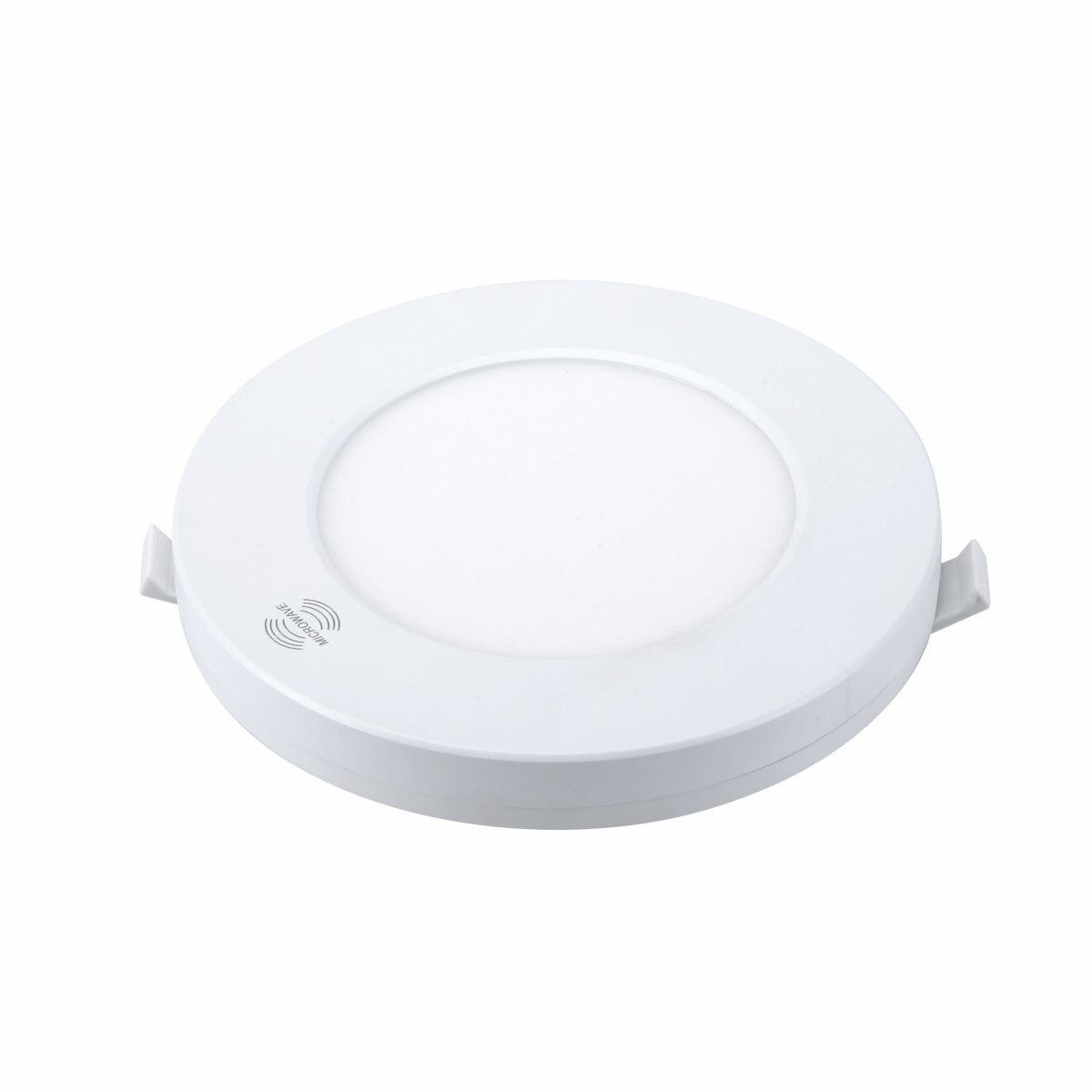

Universal Downlight LED Round Panel Light with Built-in Microwave Sensor 3000-6000K Warm White Cool Daylight
Bring home the new universal downlight LED round panel light from TEKLED for a brighter and even illumination all around while saving upto 80% on your electricity bills. This IP 20 recessed mount light is made from high quality polycarbonate, making it highly durable. With a colour rendering index of 80, this edge lit, hardwired downlight comes with integrated LEDs which run for more hours than any traditional incandescent lamp and give you non-flickering brightness. The special feature of this light is that it has a microwave sensor which does not only help you save energy but also time. It also carries a switch to help you change the colour temperature as per your requirement and mood from a 3000K warm white light to a 6000K cool daylight. These LED lights can be installed in hallways, balcony, bedroom dressing room, kitchen cellar, toilet, staircases, garage, school washrooms, hospital washroom and staircase, restaurant washroom and toilets, hotel hallway, and places need limited time periods without touching the switches. LEDs also save you big bucks on lamp replacement costs, making this a highly cost effective purchase for you. Our high quality LED Lights are elegant in design and integrate seamlessly with your ceilings. All are our LED Lights are extremely energy efficient and feature high efficiency LED driver giving outstanding lighting performance while being extremely low on energy consumption. More so, our lights dissipate least amount of heat to the environment resulting in cooler and comfortable indoors. This fixture comes in four different variants based on their maximum operable wattage. You can choose your favourite from 9W, 12W,18W and 24W options. This item has built in driver and microwave sensor. Sensor time and sense distance can not be adjusted. It is ideal for washrooms and staircases.
Technical Specifications
Name | Universal Downlight LED Round Panel Light with Built in Microwave Sensor 9W 12 W 18W 24W 3000-6000K Warm White Cool Daylight |
Product Code | 165-03622 | 165-03623 | 165-036231 | 165-036232 |
Power | 9 W | 12 W | 18 W | 24 W |
Power Source | Hardwired |
Voltage | 220/240Vac 50/60Hz |
Input Current | 0.08A @240Vac | 0.1A @240Vac | 0.15A @240Vac | 0.2A @240Vac |

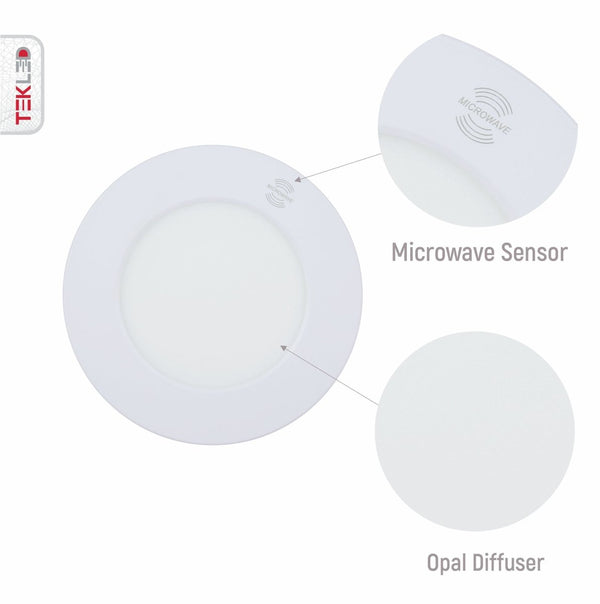

Sensor Type | Microwave Sensor |
Lamp Holder Type | Integrated LED |
Protection Class | Class II |
Dimmability | Non-Dimmable |
Light Source | LED SMD 2835 |
Led Quantity | 3P9S*2 54Pcs | 3P12S*2S 72Pcs | 3P19S*2 114Pcs | 3P25S*2 150Pcs |
Bulbs | Built-in LED fixture with built-in LED driver |
Lit Type | Edge Lit |
Light Output(luminous flux) | 900 lm | 1200 lm | 2000 lm | 2800 lm |
Luminous Efficacy | 90 lm/W | 100 lm/W | 115 lm/W | 110 lm/W |
Lux | 25Lux @2m | 33Lux @2m | 53Lux @2m | 65Lux @2m |
CRI(Colour Rendering Index) | CRI>80 |

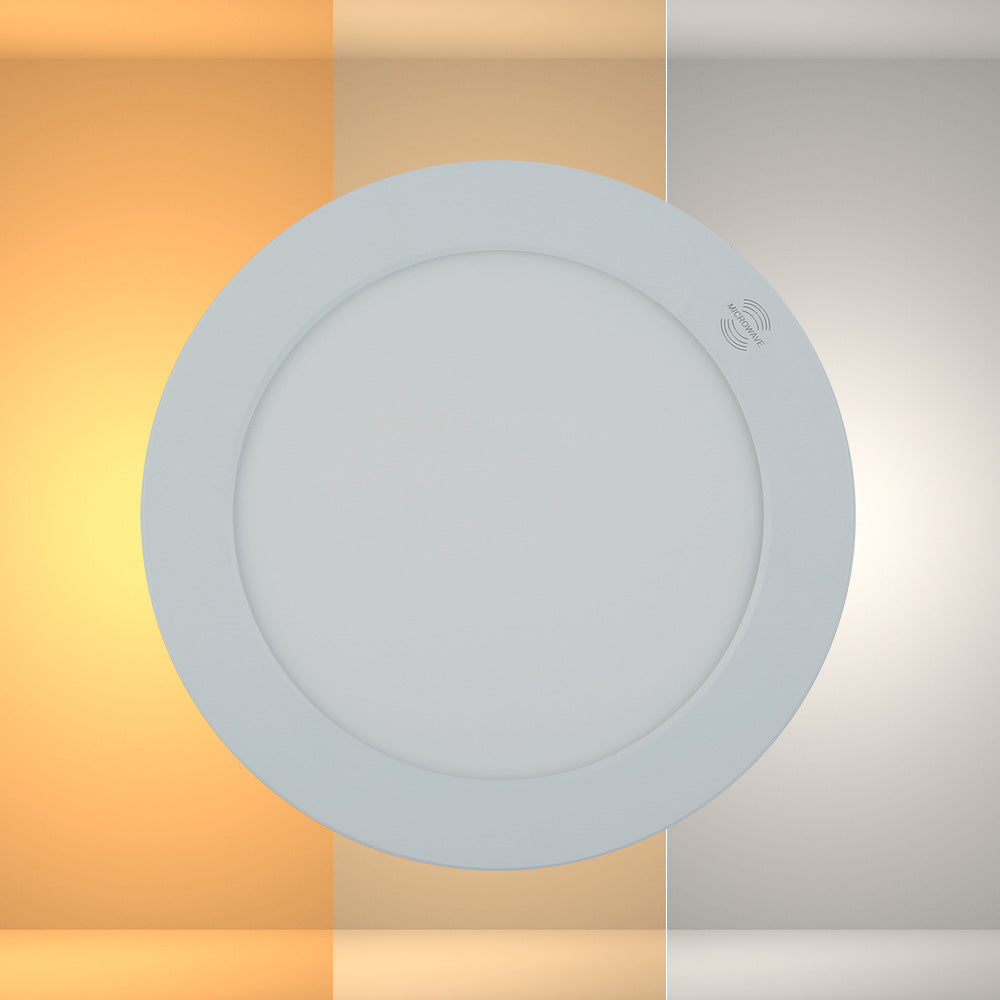

CCT (Kelvin)(Light Colour) | 3000K Warm White-6000K Cool Daylight |
IP Class(Ingress Protection) | IP20 |
Mount Type | Recessed Mount, Surface Mount |
Function Mode | Switch for Choosing CCT |

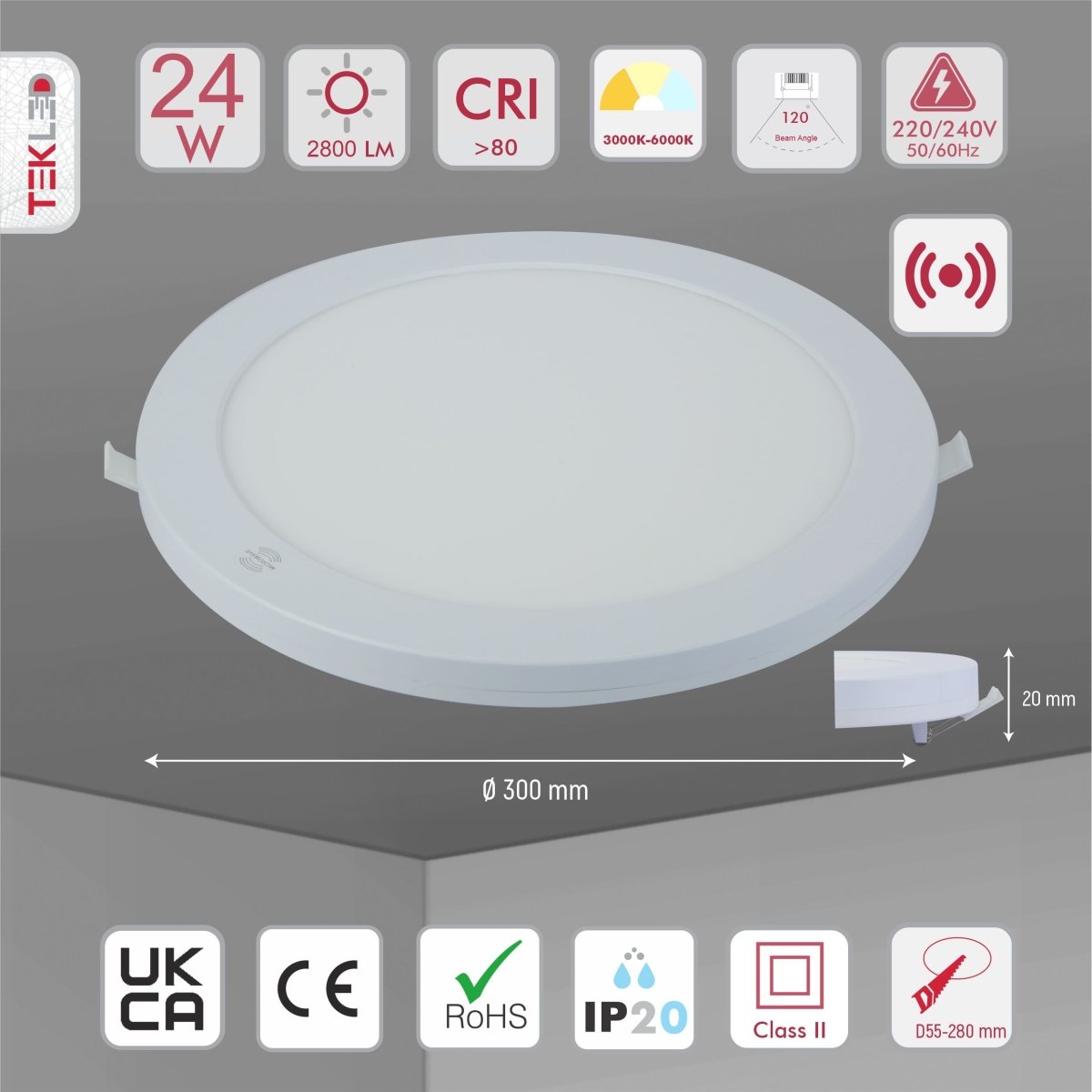

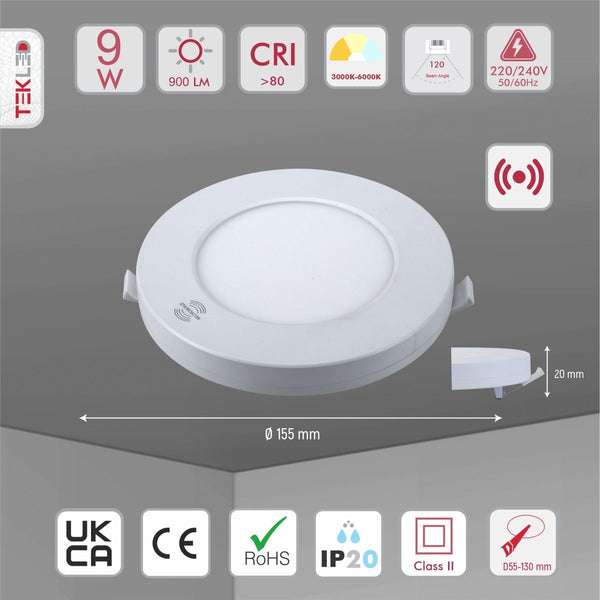

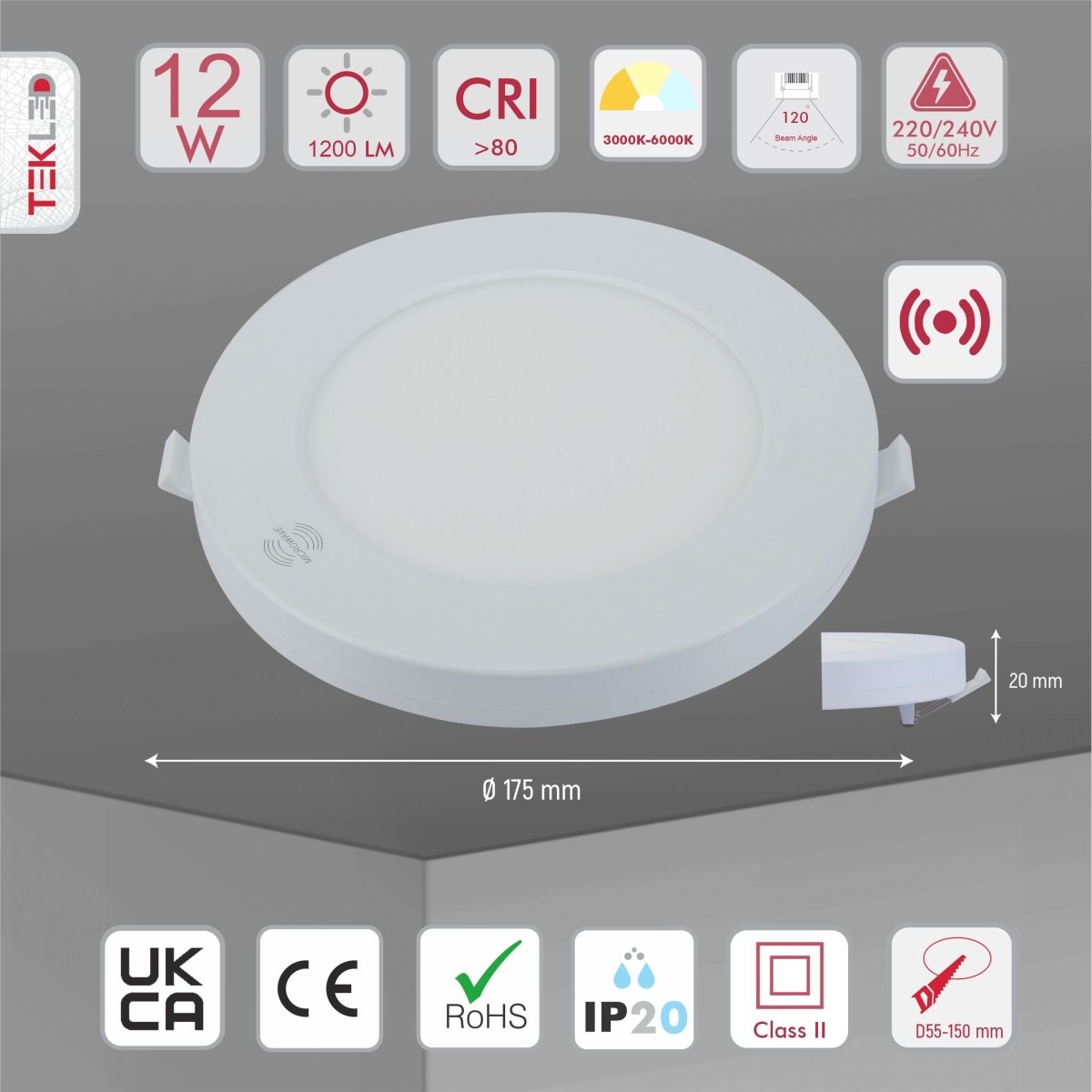

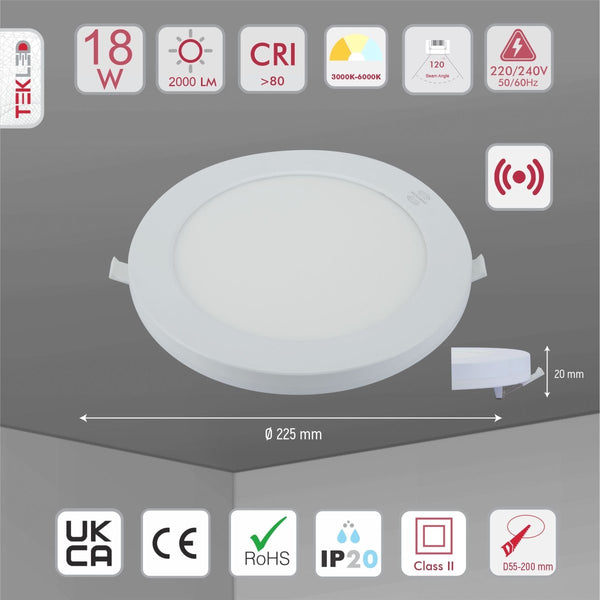

Product Dimensions (L x W x H) (D x H) | D155x20mm | D175x20mm | D225x20mm | D300x20mm |
Cut-Out Size | D55-130mm | D55-150mm | D55-200 mm | D55-280mm |
Power Cord Length | 15cm |
Made of Materials | Polycarbonate |
Product Colour | White |
Diffuser Material | Polystyrene |
Diffuser Type | Opal |
Driver Type | Constant Current |
Driver Power | 9W | 12W | 18W | 24W |
Driver Input Voltage | 100-277Vac 50/60Hz |
Driver Input Current | 0.081 A @240Vac | 0.102 A @240Vac | 0.143 A @240Vac | 0.2 A @240Vac |
Driver Output Voltage | 20-36Vdc | 22-42Vdc | 30-70Vdc | 45-84Vdc |
Driver Output Current | 300mA |
Surge Protection Level | 2kV |
Power Factor | pf>0.5 |
Flickering | Non-Flickering |
Control | On/Off |
Operating Temperature (C) | -20/+55C |
New Energy Rating | F | F | E | F |
Energy Rating | A+ |
Warranty | 2 year |
Life Span | 30000 h |
Gross Weight | 255 g | 312 g | 475 g | 758 g |
Net Weight | 209g | 258g | 397g | 633g |
Box Dimensions (LxWxH) | 17.5x3x18.5cm | 19.5x3x20.5cm | 24.5x3x25.5cm | 32.5x3x33.5cm |

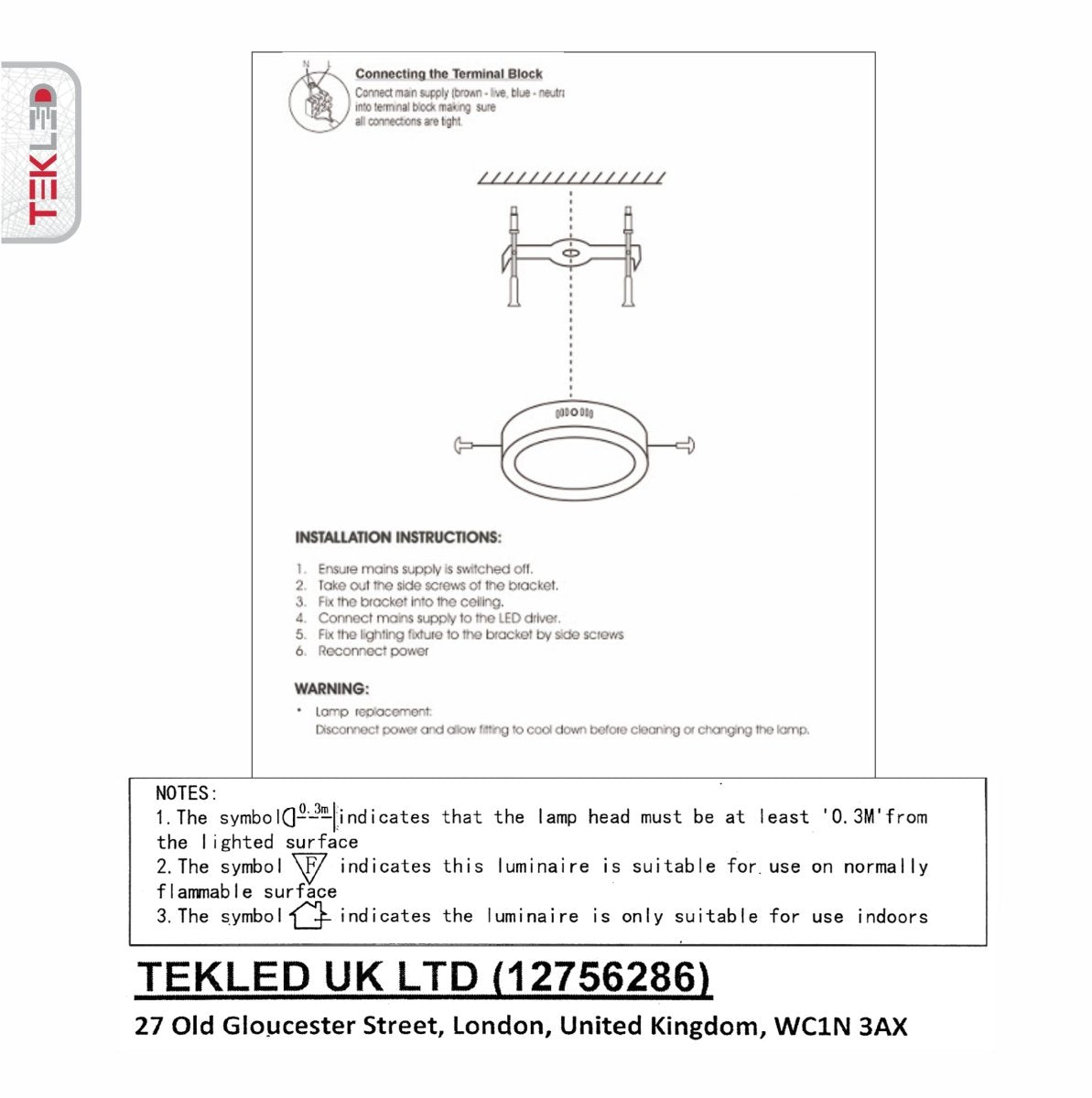

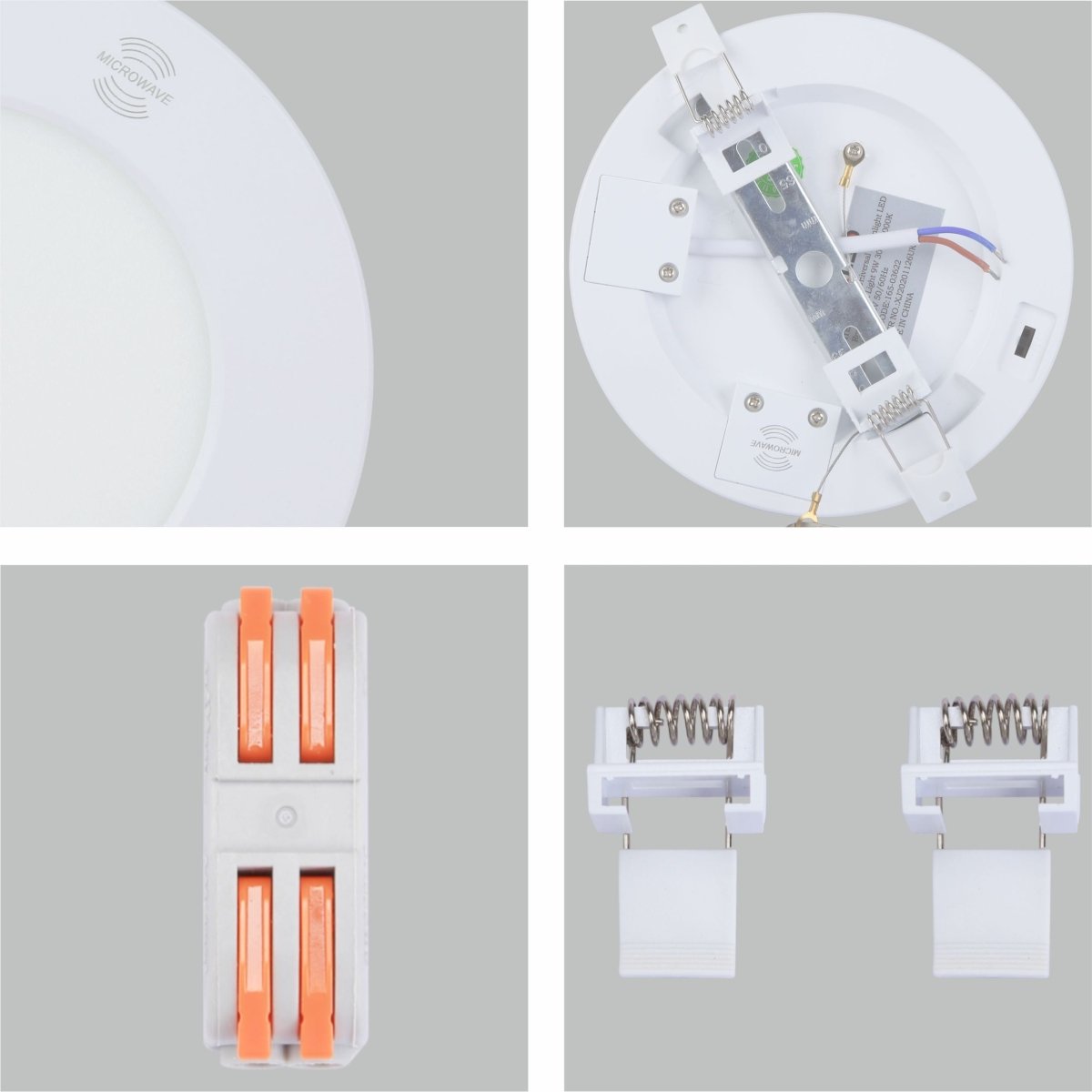

Box Content | 1Light fixture, User manual, 1 fittings, 2 Springs, 1 terminal |
Certifications | UKCA, CE, RoHS |
