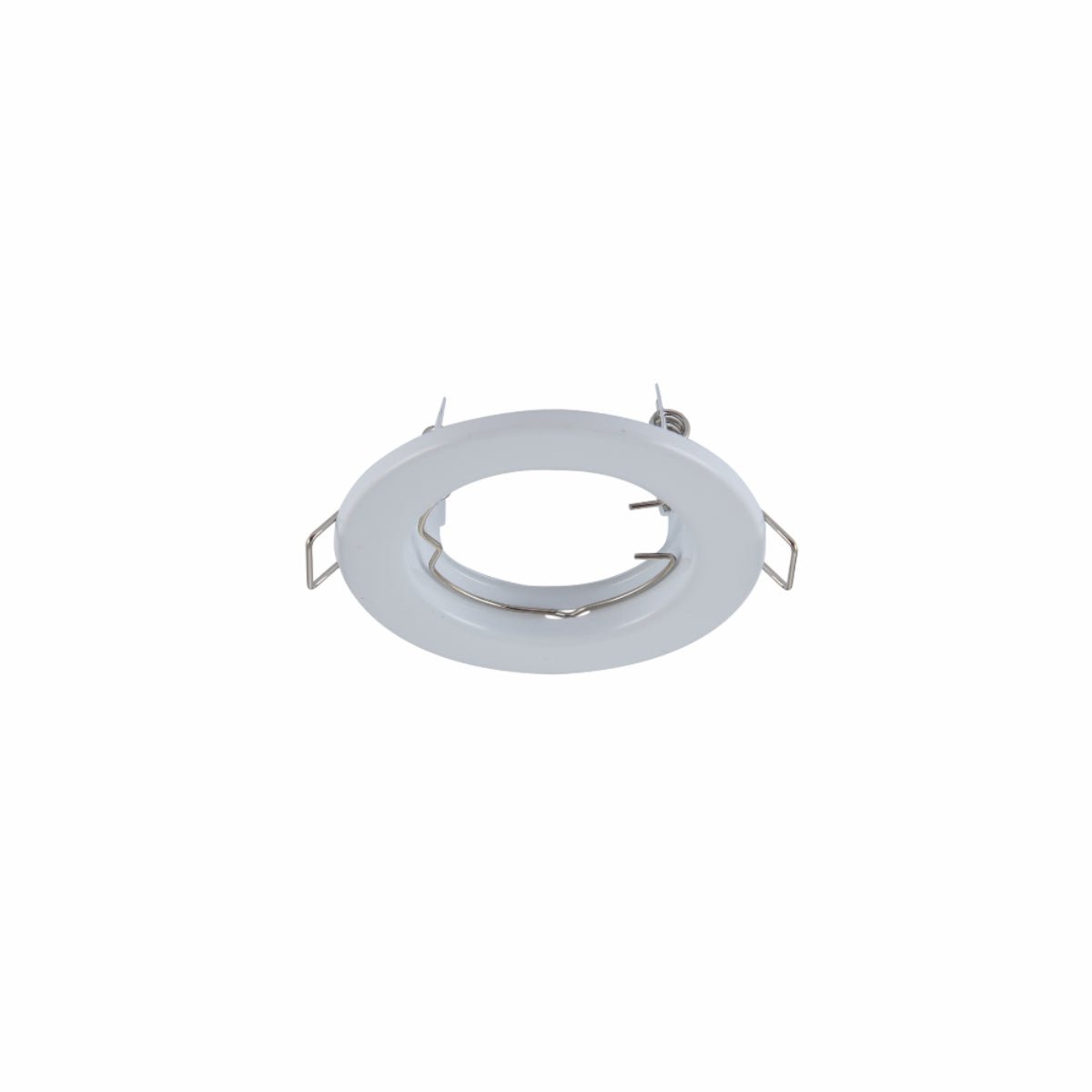

Fixed Pressed Steel Downlight IP20 GU10 Fitting

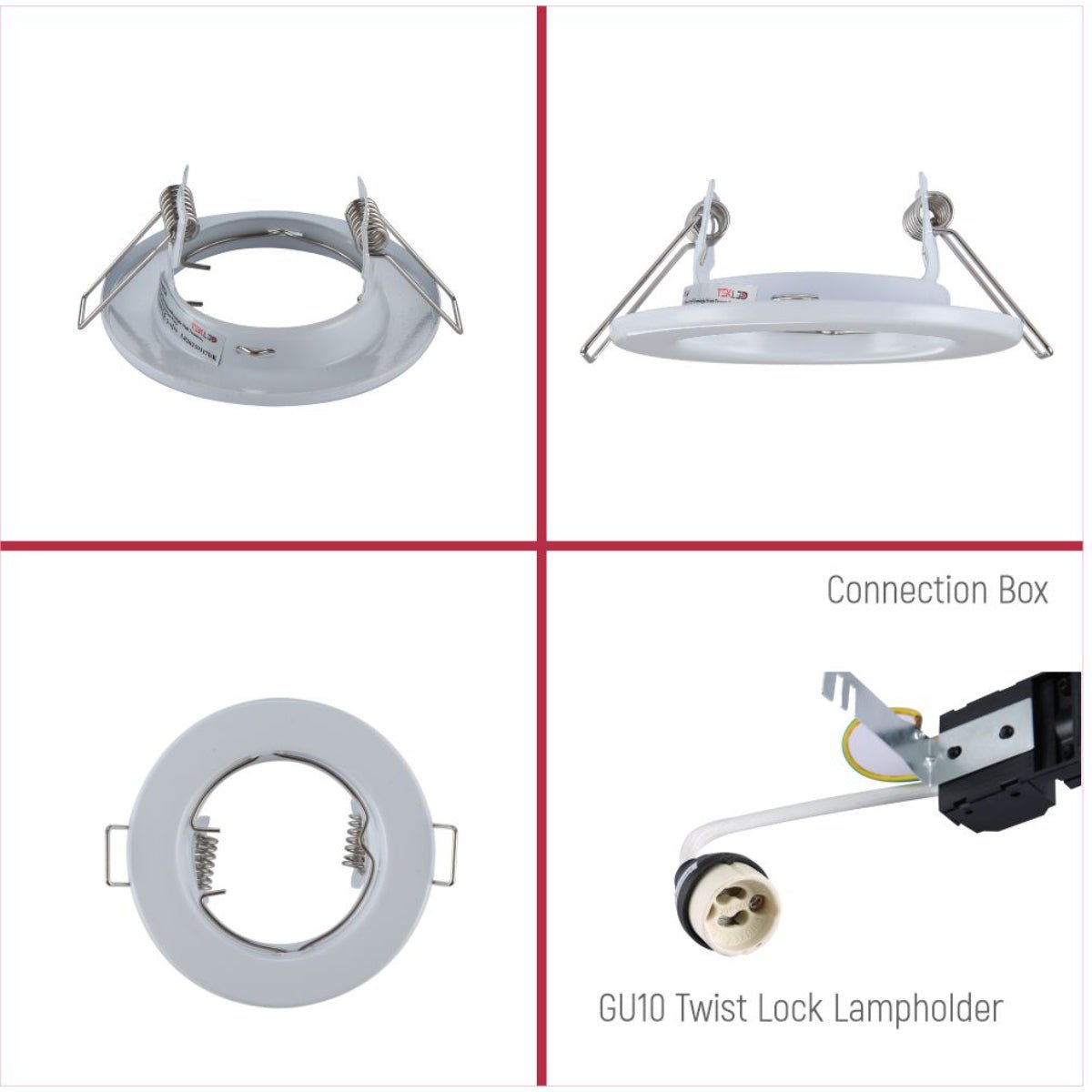

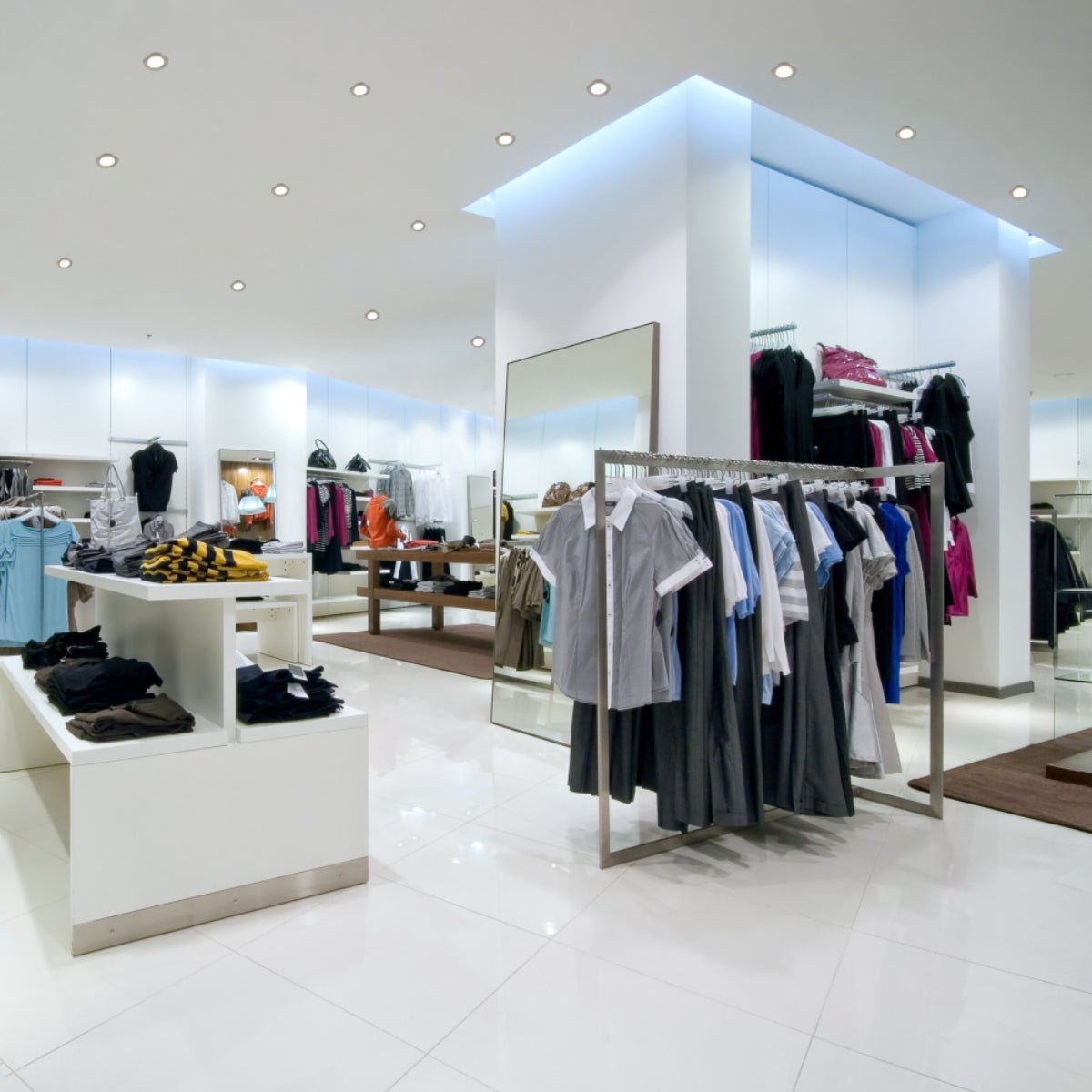

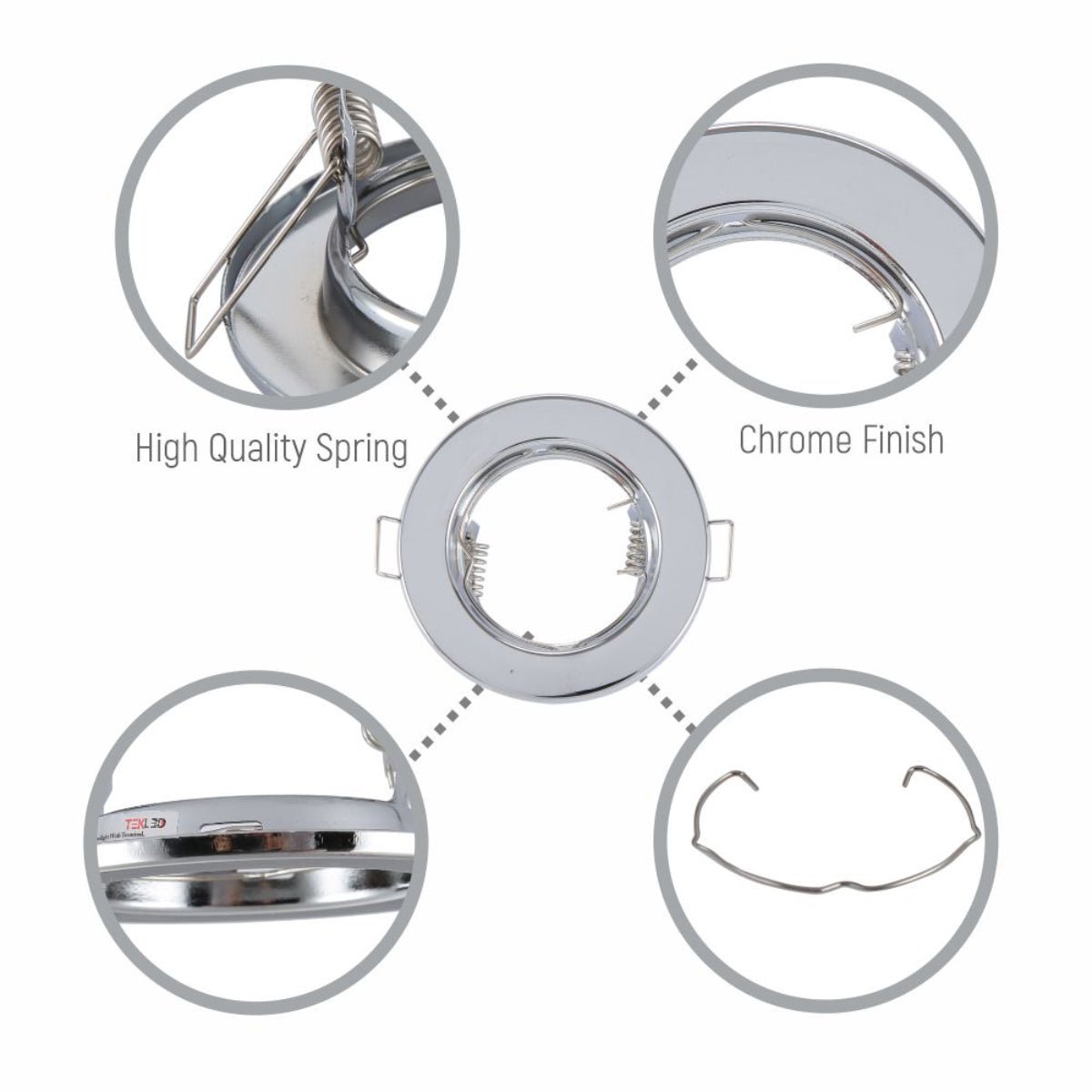

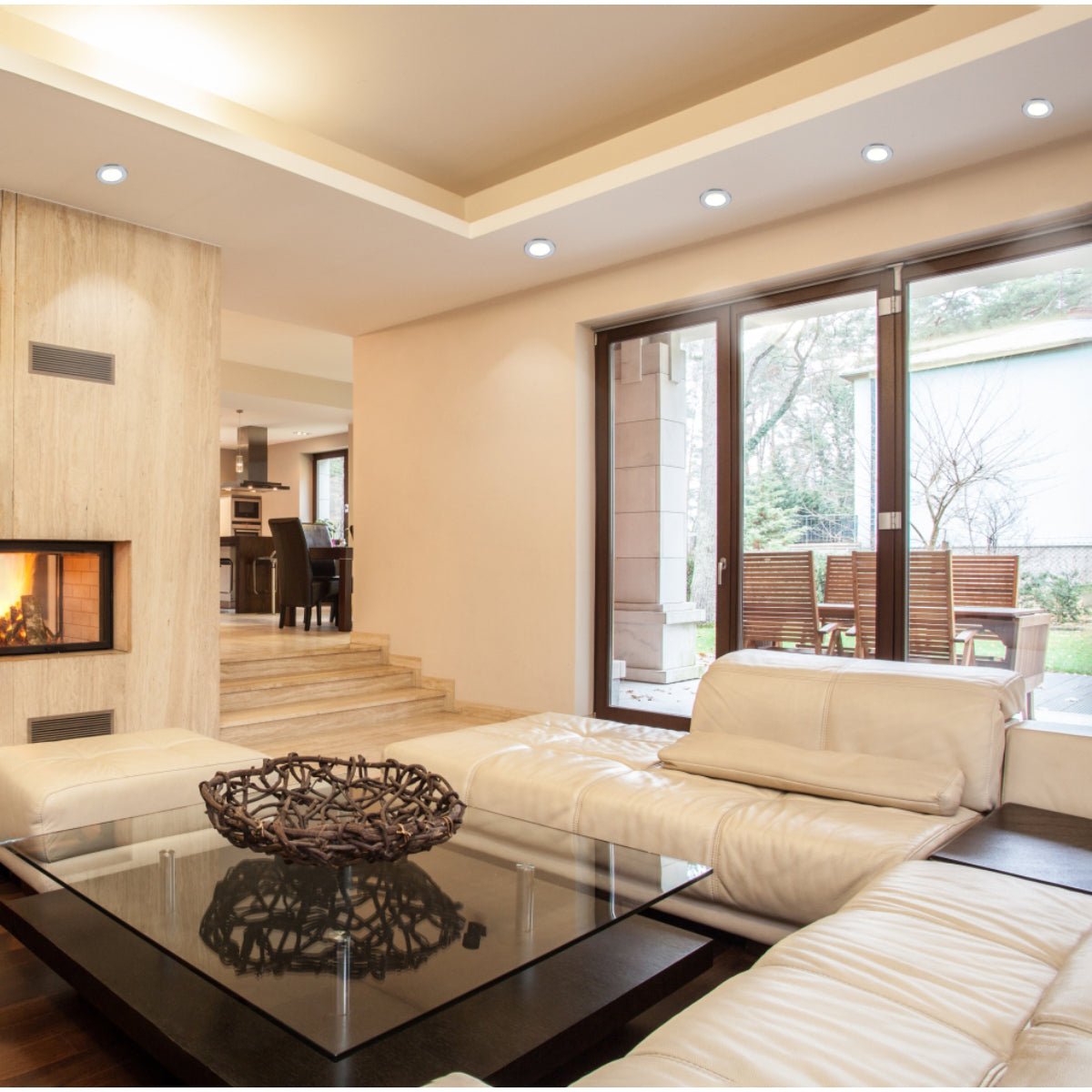

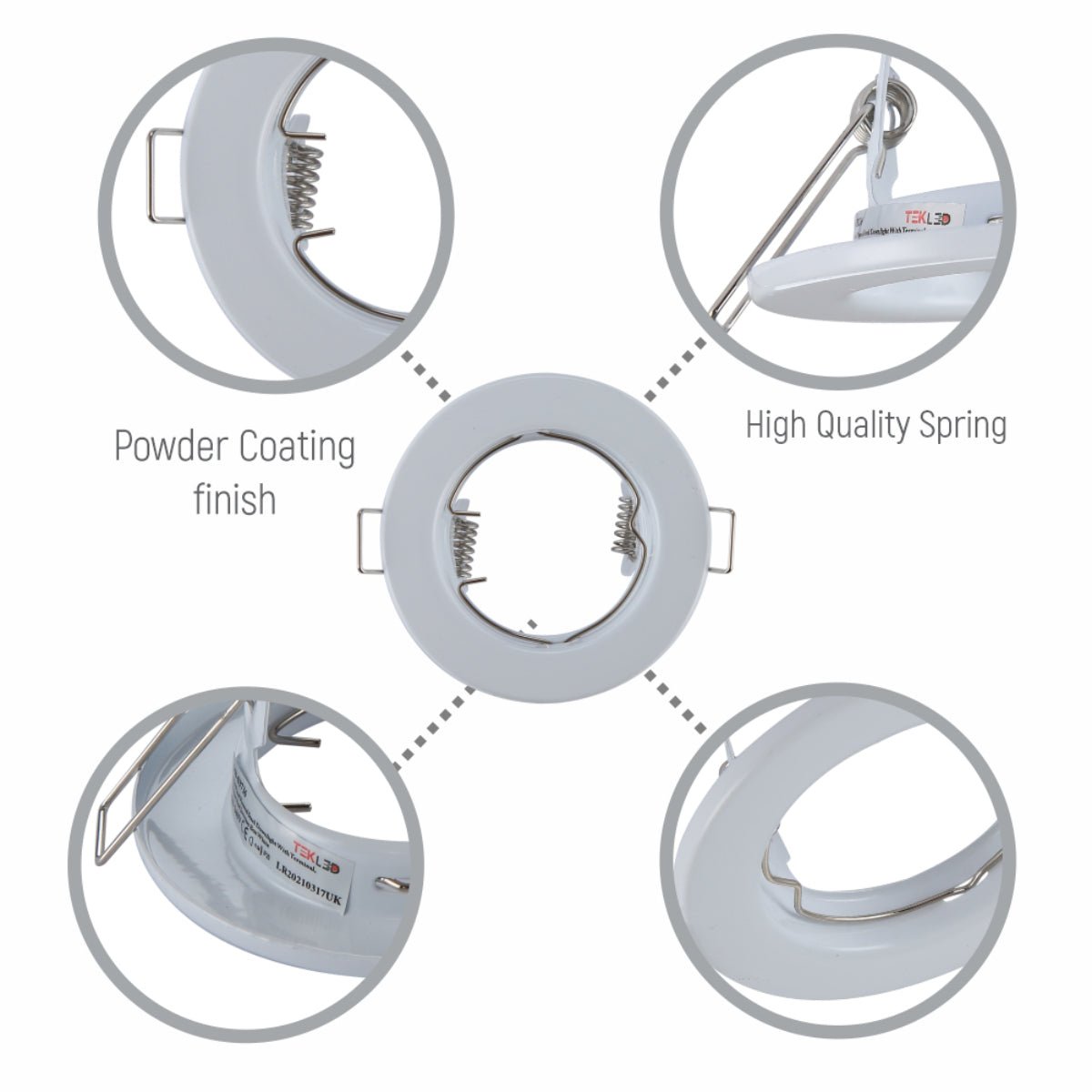

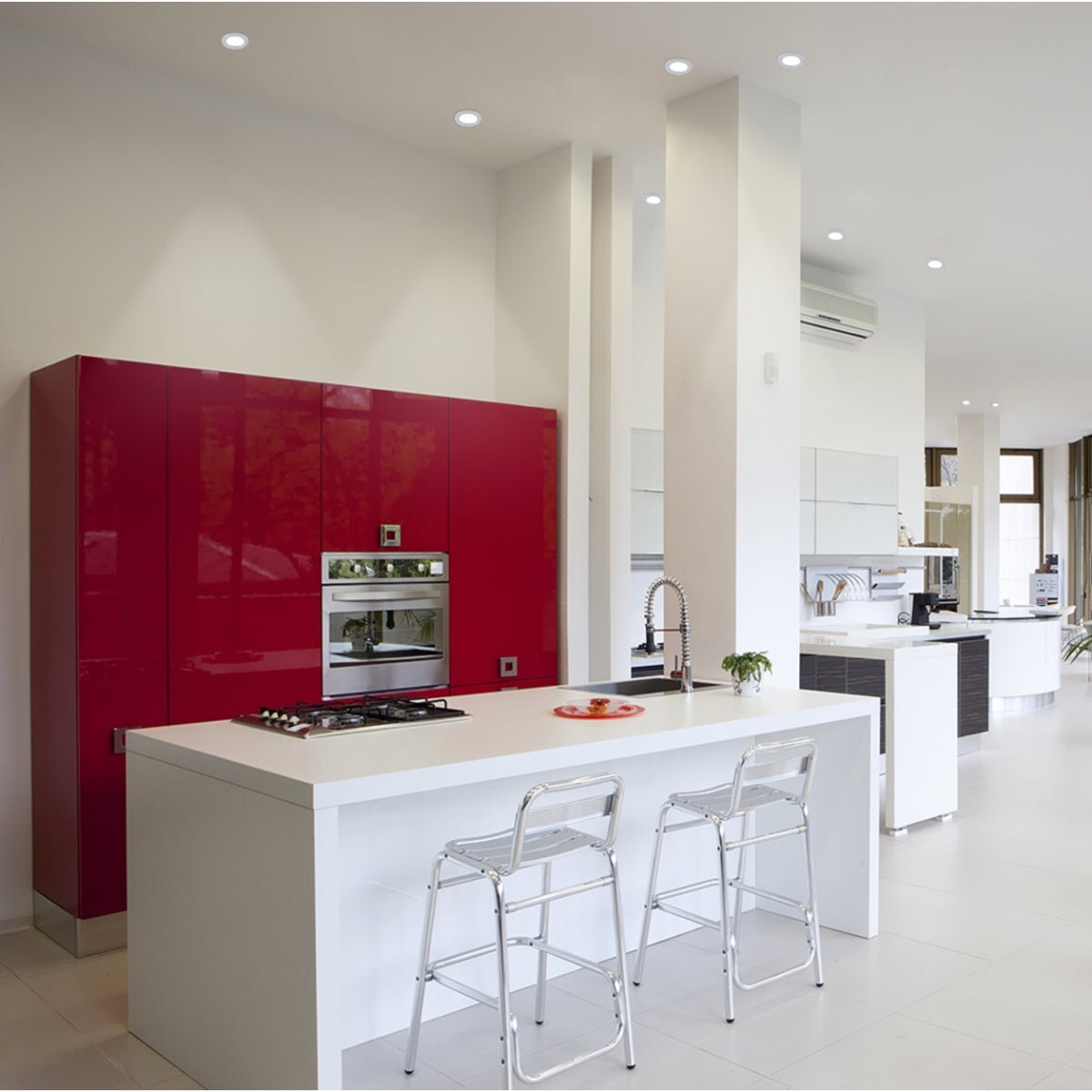

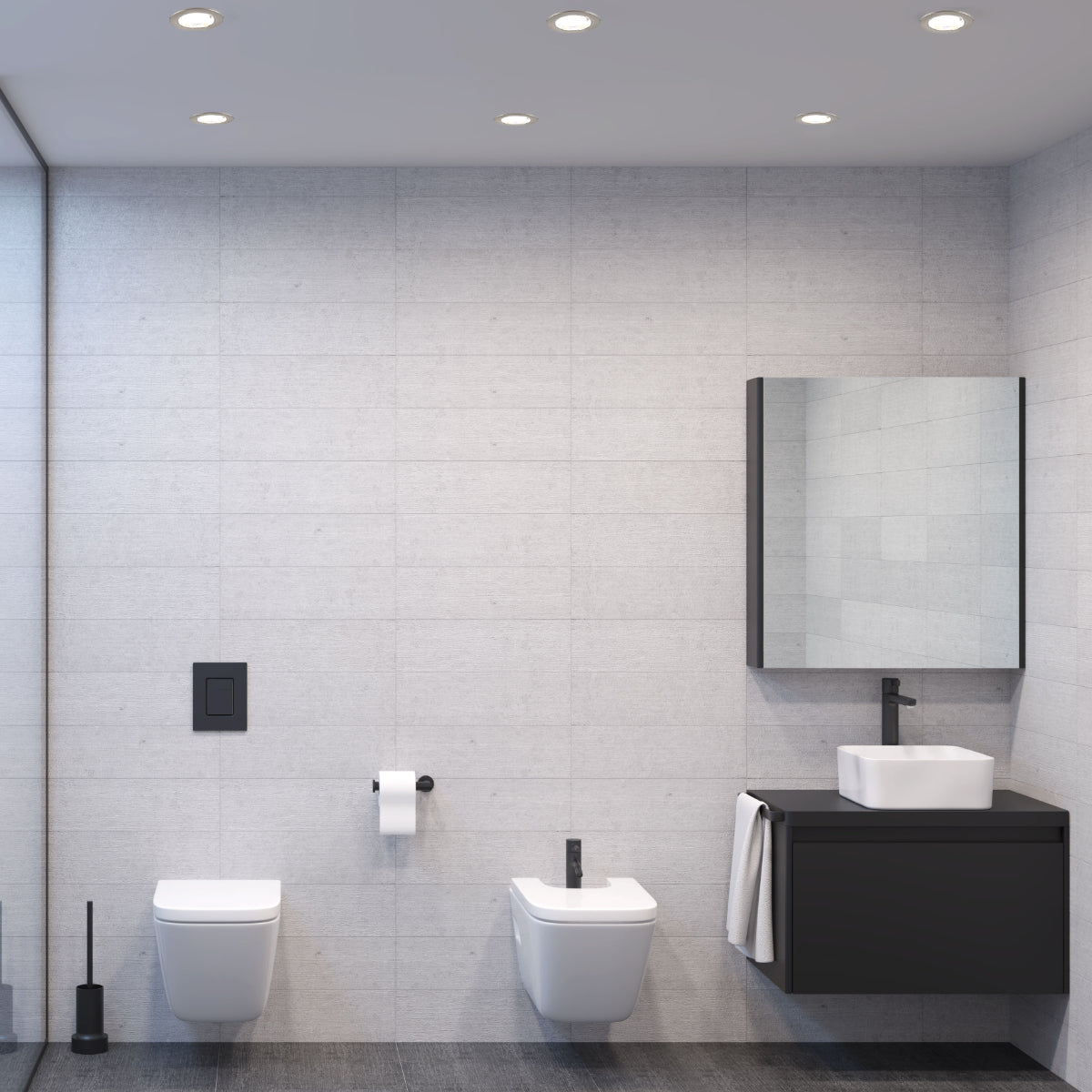

This Fixed Pressed Steel Downlight IP20 with GU10 Fitting is ideal for enhancing the ambience of your living room or bedroom. Ideal to be used in hallways, corridors and spaces that need to be lit for longer hours, this fixture makes for a great commercial light. No transformer required; downlights can be wired straight to the mains. They feature a metal spring clip which allows for easy GU10 bulb replacement. 220-240V Halogen or LED COB compatible, energy saving when using LED bulbs, suitable for kitchens, Zone 3 bathrooms, shower rooms, leisure facilities, homes, offices, etc. Compatible with dimmable bulbs (not included). Available in Satin Nickel/ Chrome/ White.
Technical Specifications
| Name |
Fixed Pressed Steel Downlight Satin Nickel Chrome White IP20 with GU10 Fitting |
| Product Code |
143-03738 | 143-03740 | 143-03736 |
| Power |
Max 7W LED Bulb |
| Equivalent Wattage |
Max 50W Halogen Bulb |
| Power Source |
Hardwired |
| Voltage |
220/240Vac 50/60Hz |
| Lamp Holder Type |
GU10 Twist Lock |
| Protection Class |
Class I |
| Dimmability |
Dimmable if used with dimmable bulbs |
| Light Source |
Bulb |
| Bulbs |
Bulbs are not included |
| IP Class(Ingress Protection) |
IP20 |
| Mount Type |
Recessed Mount |
| Function Mode |
ON/OFF, Dimmable |

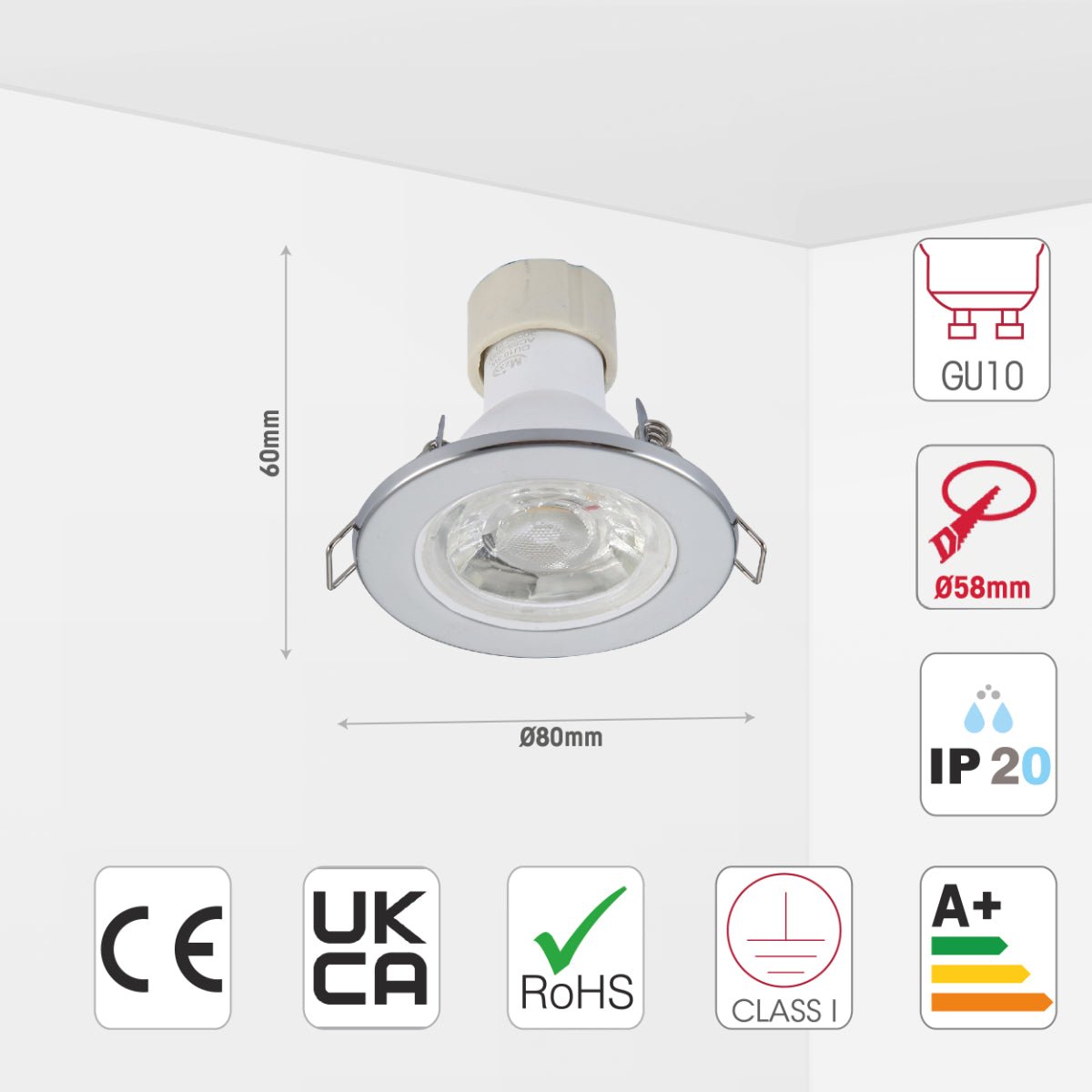

| Product Dimensions (L x W x H) (D x H) |
D80x31mm |
| Cut-Out Size |
D58mm |
| Power Cord Length |
10cm |
| Made of Materials |
Steel |
| Product Colour |
Chrome | Satin Nickel | White |
| Paint Type |
Electroplated | Powder coated |
| Operating Temperature (C) |
-20/+45C |
| Warranty |
3 year |
| Net Weight |
95g |
| Box Dimensions (LxWxH) |
10x10x4.5cm |
| Box Content |
1 x Light fitting + 1 x GU10 socket + 1 x Instruciton sheet |
| Certifications |
UKCA, CE, RoHS |
