LED Mirage Laser Blade Surface Mount Rectangle Fixed Downlight 10W Cool White 4000K IP20 - Black.
Colour:Black
Quantity:
Integrated LED, no additional bulb needed

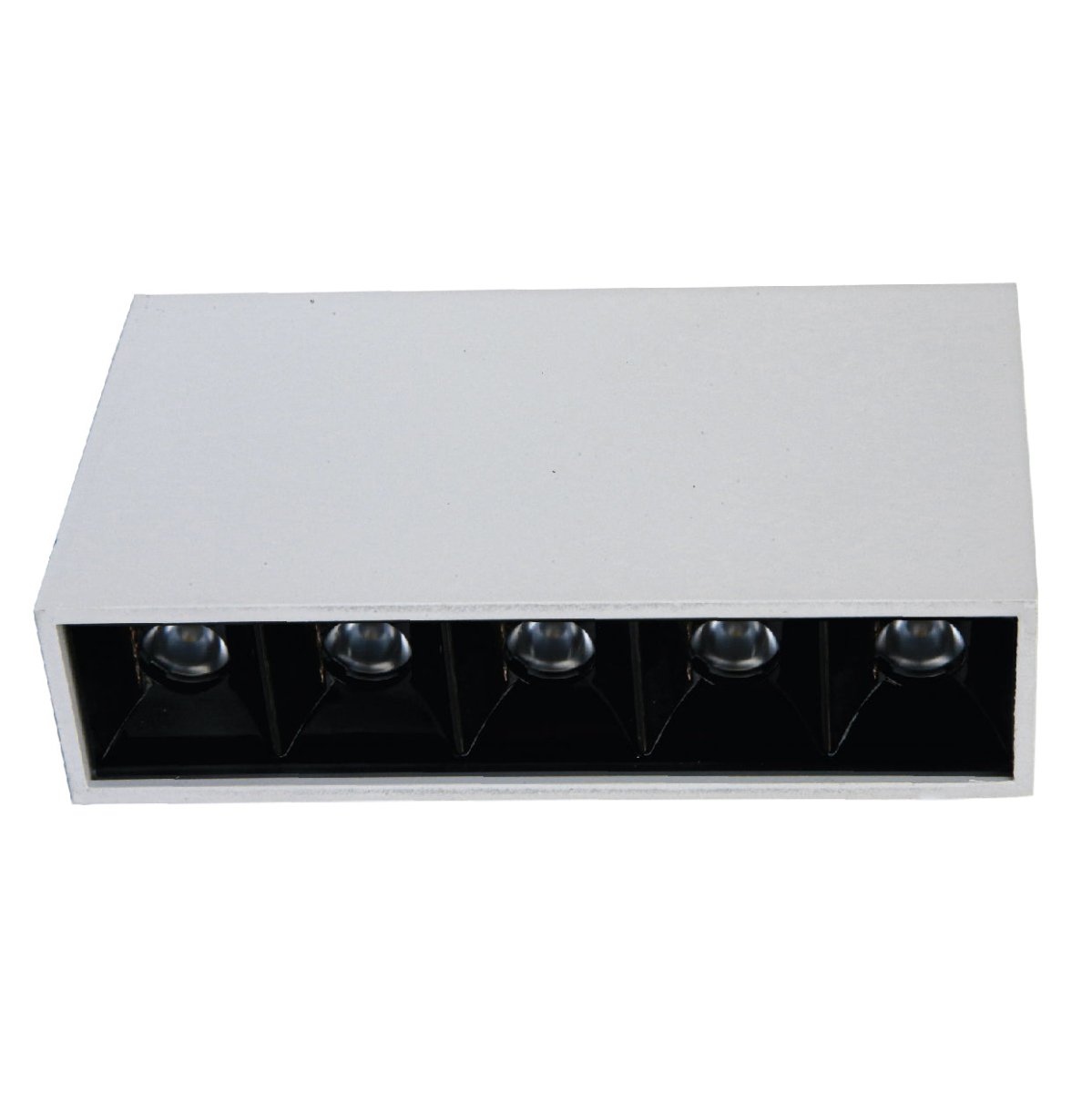

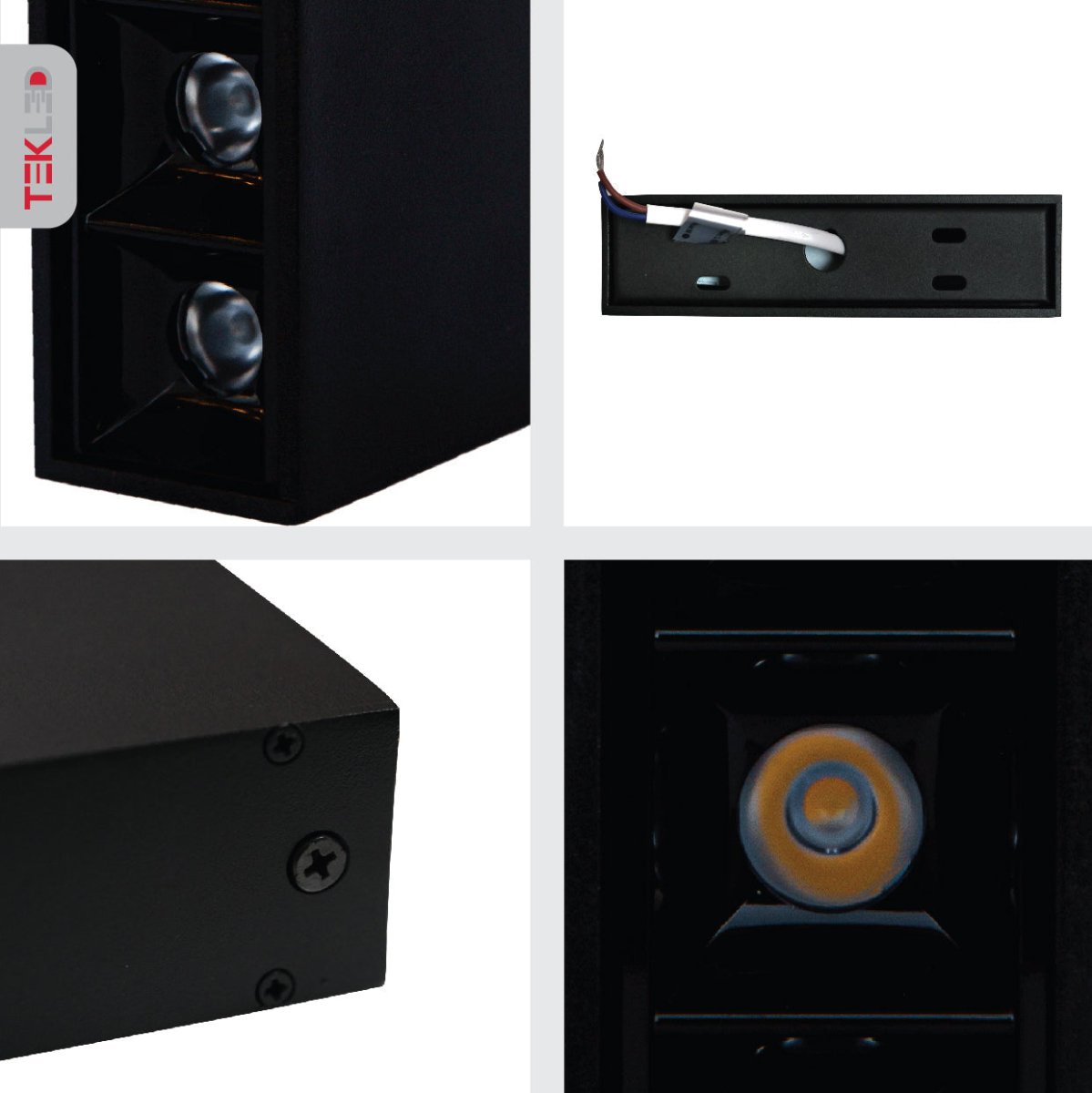

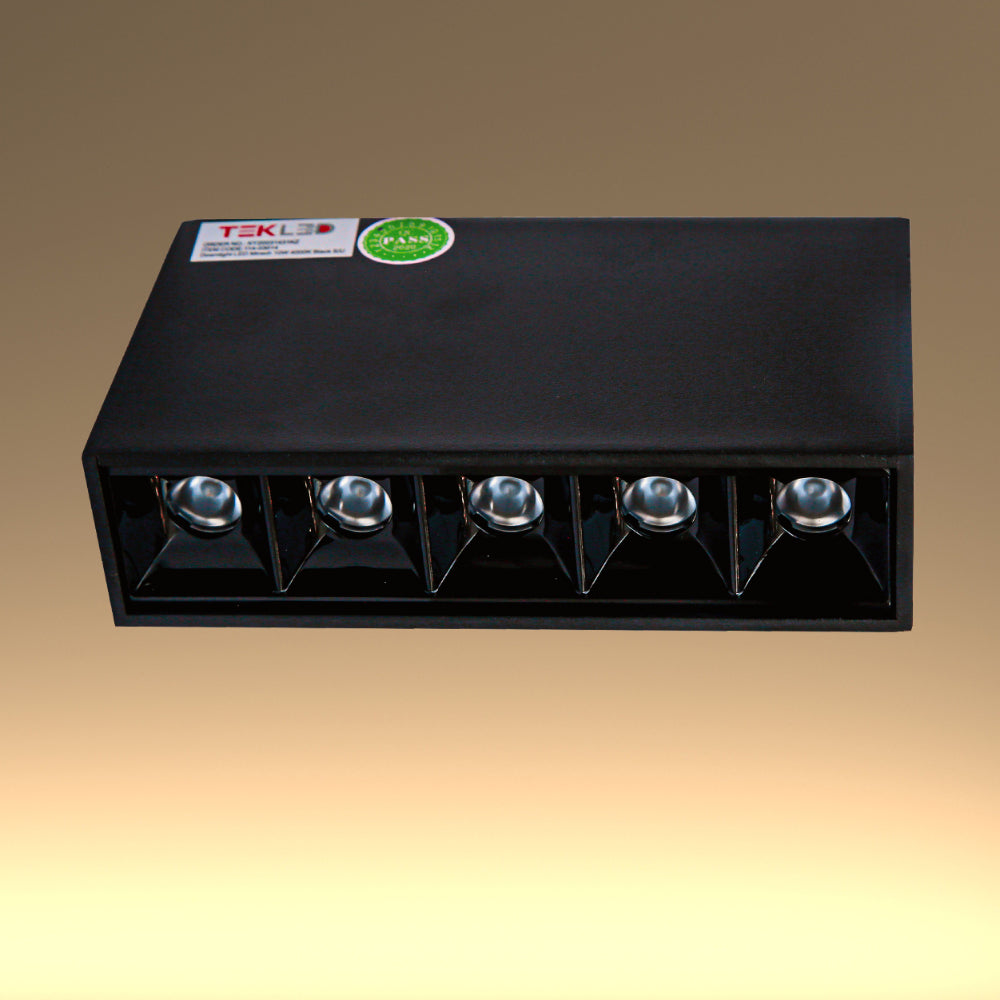

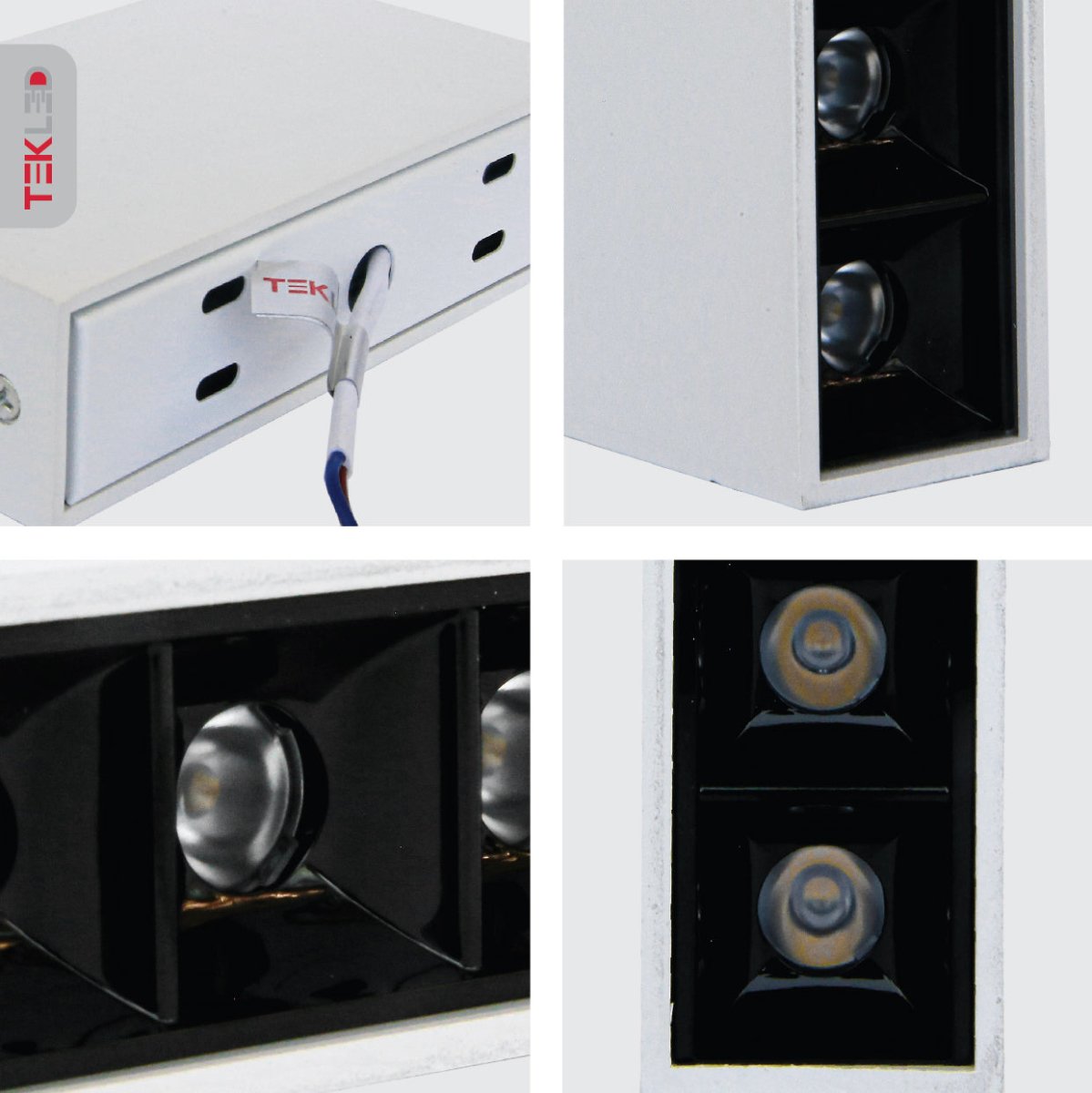

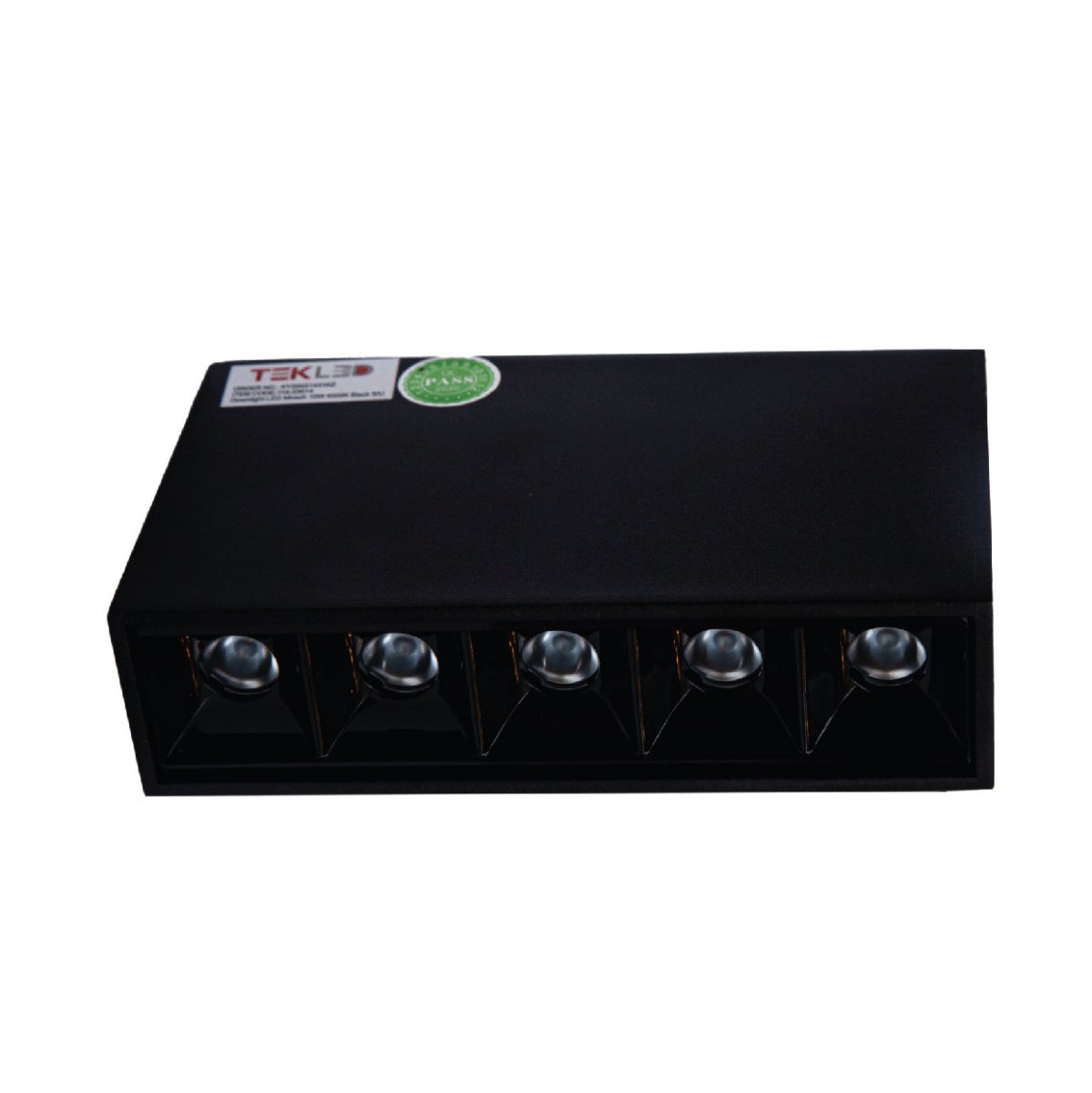

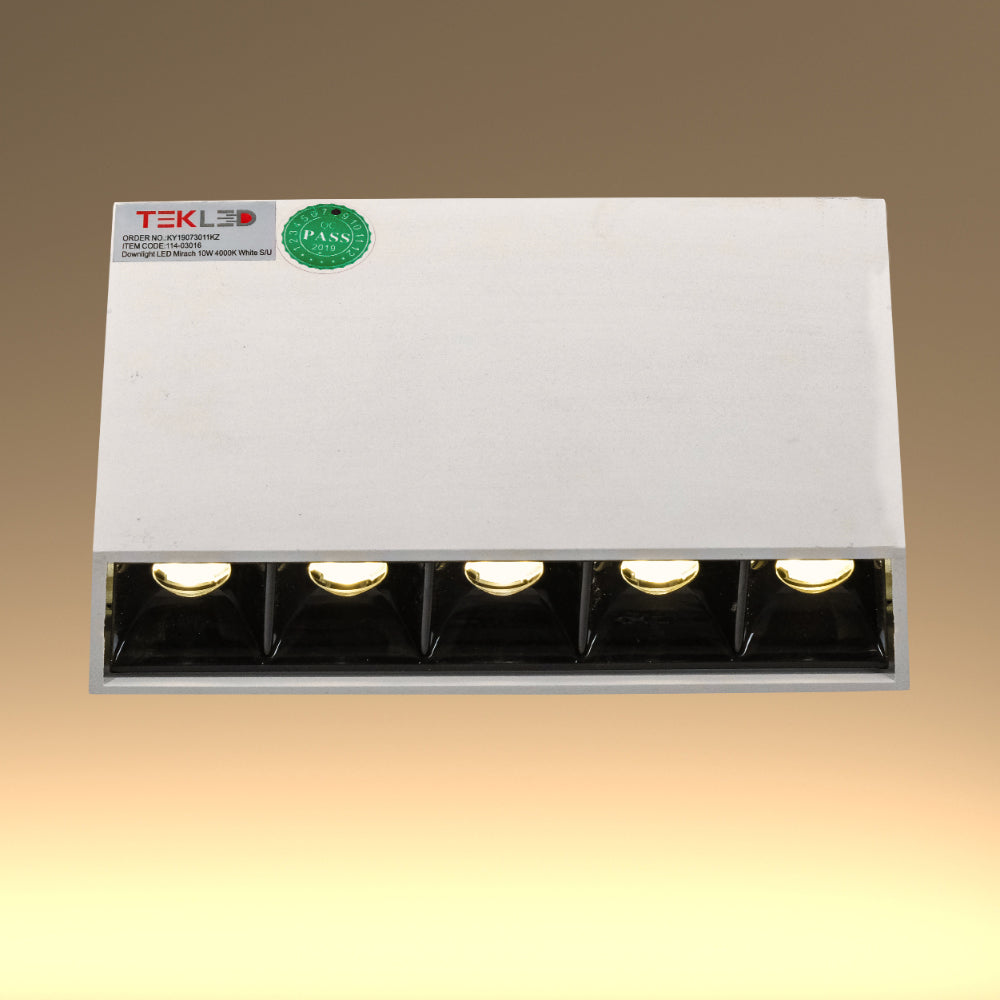

LED Mirage Laser Blade Surface Mount Downlight 10W Cool White 4000K IP20

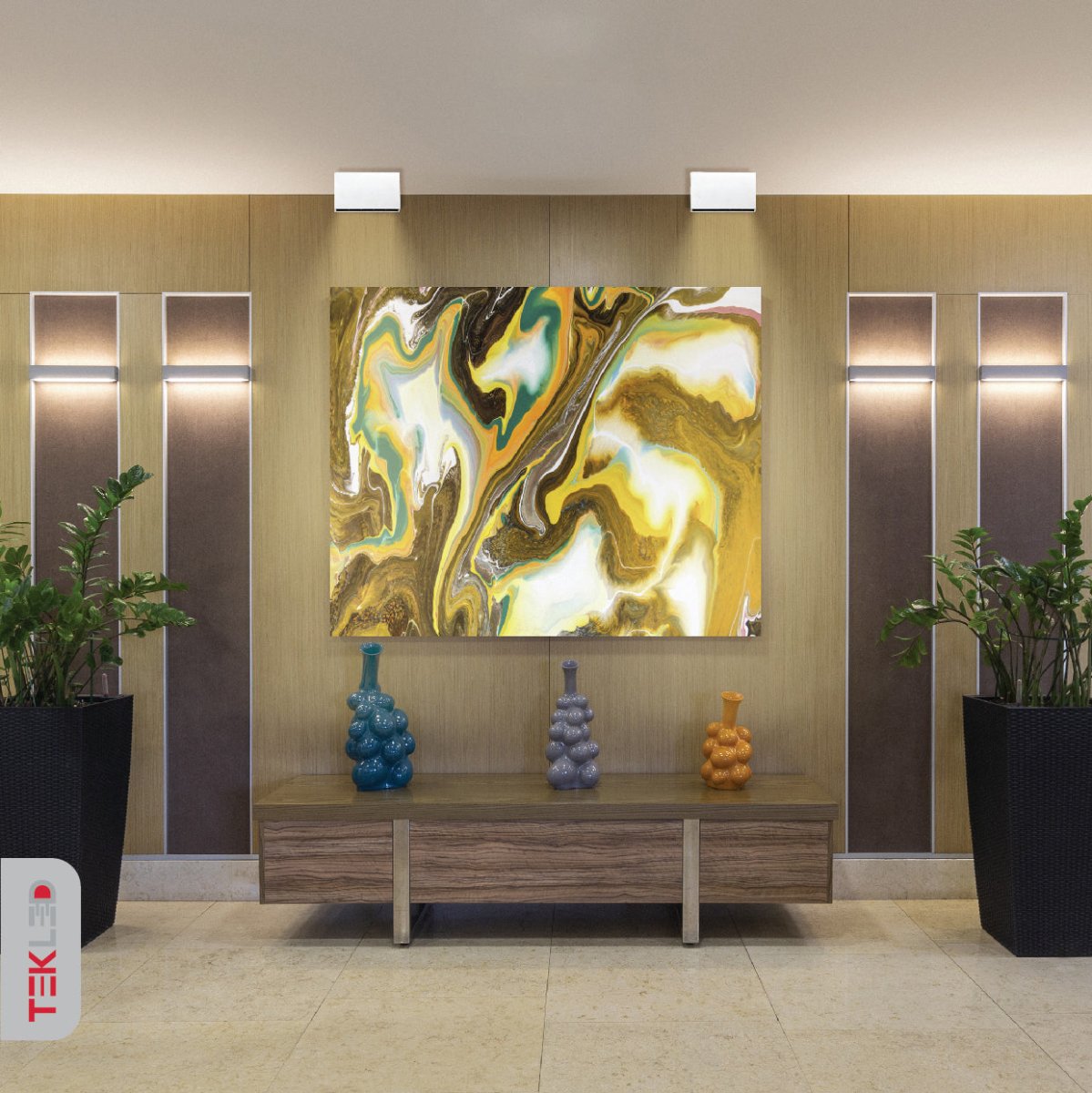

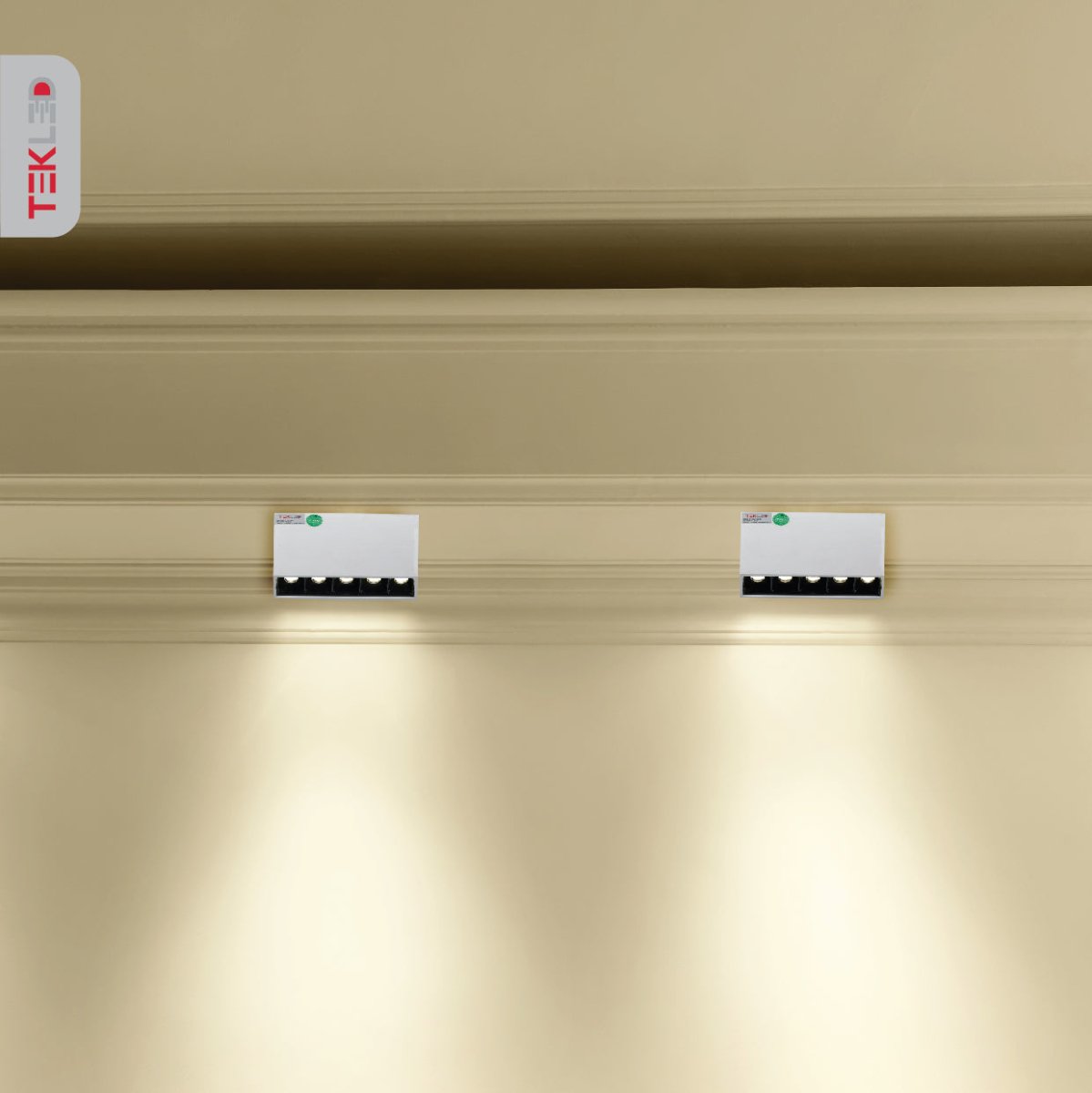

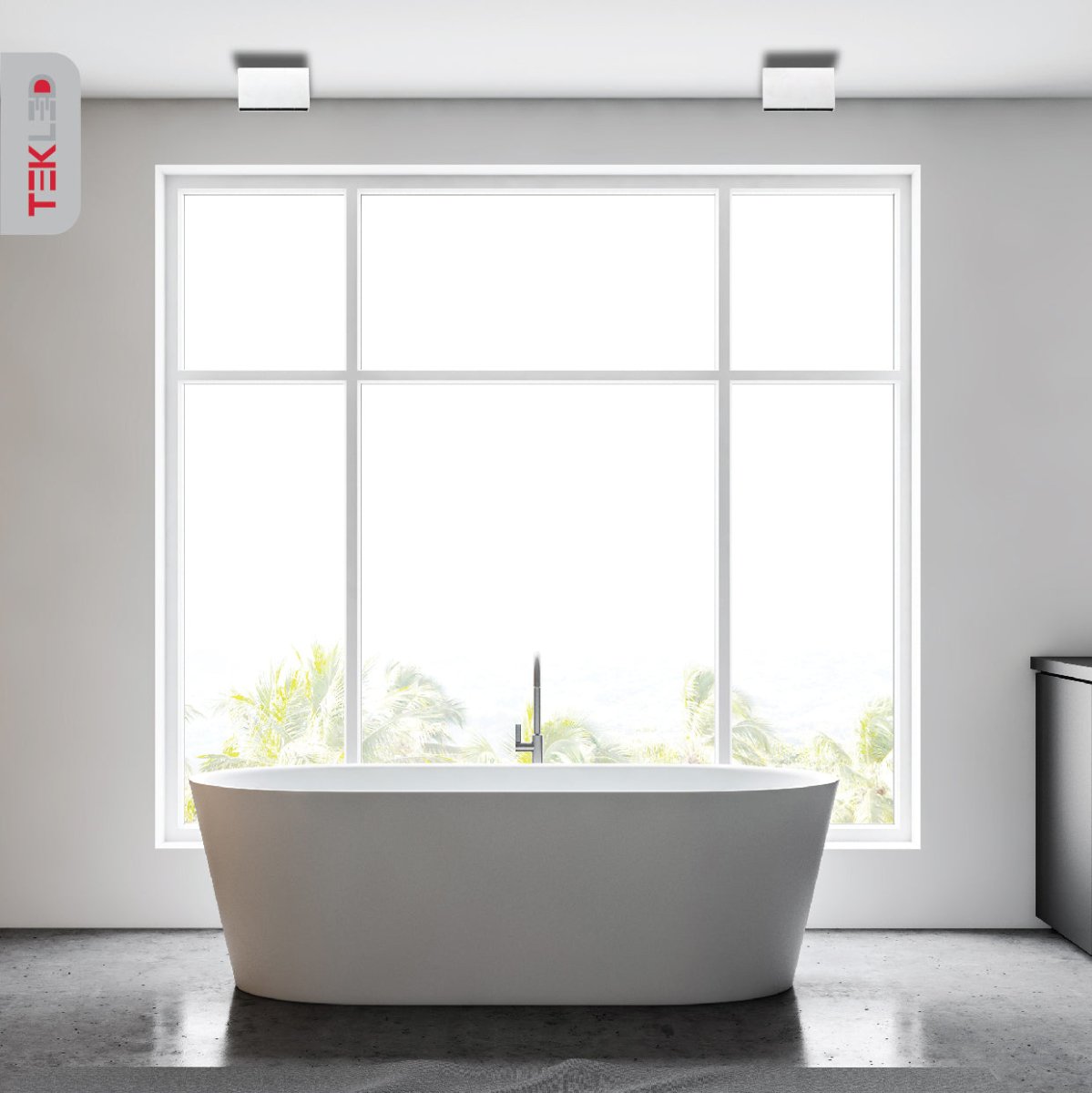

LED Mirage Blade Surface Mount Downlight 10W Cool White 4000K IP20 is a 5-light light fitting, which has an elegant design. The downlight emits a bright, white light which can be used for indoor applications. This downlight, available in black and white colours, provides you with long-lasting, non-flickering service. It is ideal for commercial purpose rooms as well as cafes bars, and restaurants and hotels. The IP20 rated downlights have Surface-mount components to ensure that they sit flush with the wood or concrete surfaces or ceiling, without compromising any of the design aesthetic. This design ensures that you can use this product in the bathroom, hallway, stairwell and other spaces without fear of breaking the surface. This Downlight is made using only high-quality materials.The IP20 rated ceiling downlight is designed to be used in dry locations where only a small amount of condensation builds up inside the unit. Suitable for stores, markets, take-away restaurants, kitchens, warehouse or any kind of work place.
Technical Specifications
| Name | LED Mirage Blade Surface Mount Downlight 10W Cool White 4000K IP20 White or Black |
| Model | Blade, Laser Blade, Lens, Linear Spot |
| Product Code | 114-03014 | 114-03016 |
| Power | 11W |
| Power Source | Hardwired |
| Voltage | 220/240V AC 50/60Hz |
| Lamp Holder Type | Built-in LED |
| Protection Class | Class II |
| Dimmability | Non-Dimmable |
| Light Source | SMD 3030 LED |
| Led Quantity | 5 PCS 2W |
| Bulbs | Integrated LED, no need additional bulb |
| Lumen | 1120lm |
| Luminous Efficacy | 100lm/W |
| Lux | avg 950Lux @2m and 1306Lux max |
| CRI | CRI>80 |
| CCT (Kelvin) Light Colour | 4000K Cool White |
| Flickering | Flicker-free |
| IP Class | IP20 |
| Mount Type | Surface Mount |

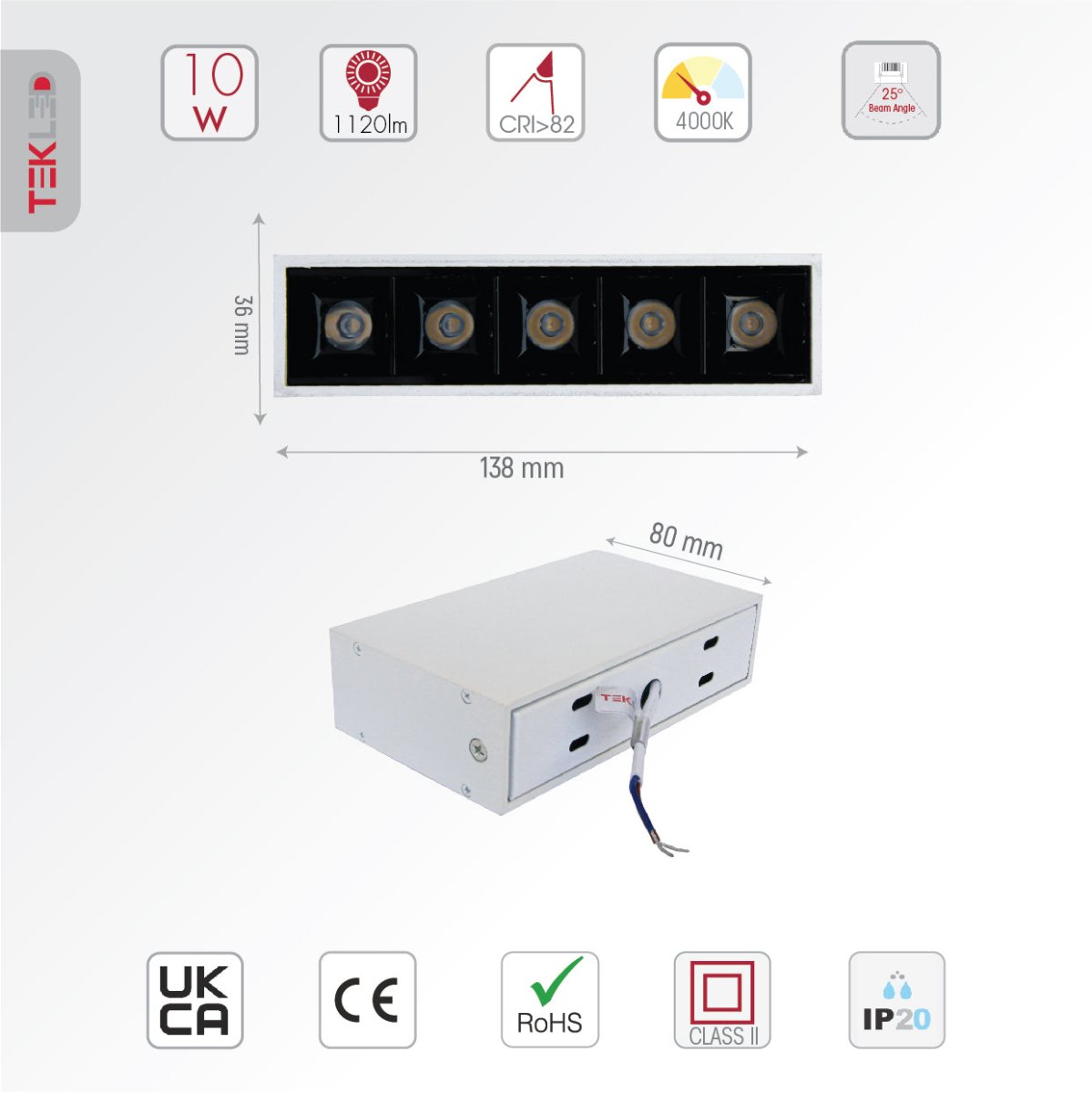

| Product Dimensions (LxWxH) (DxH) | 138x80x36mm |

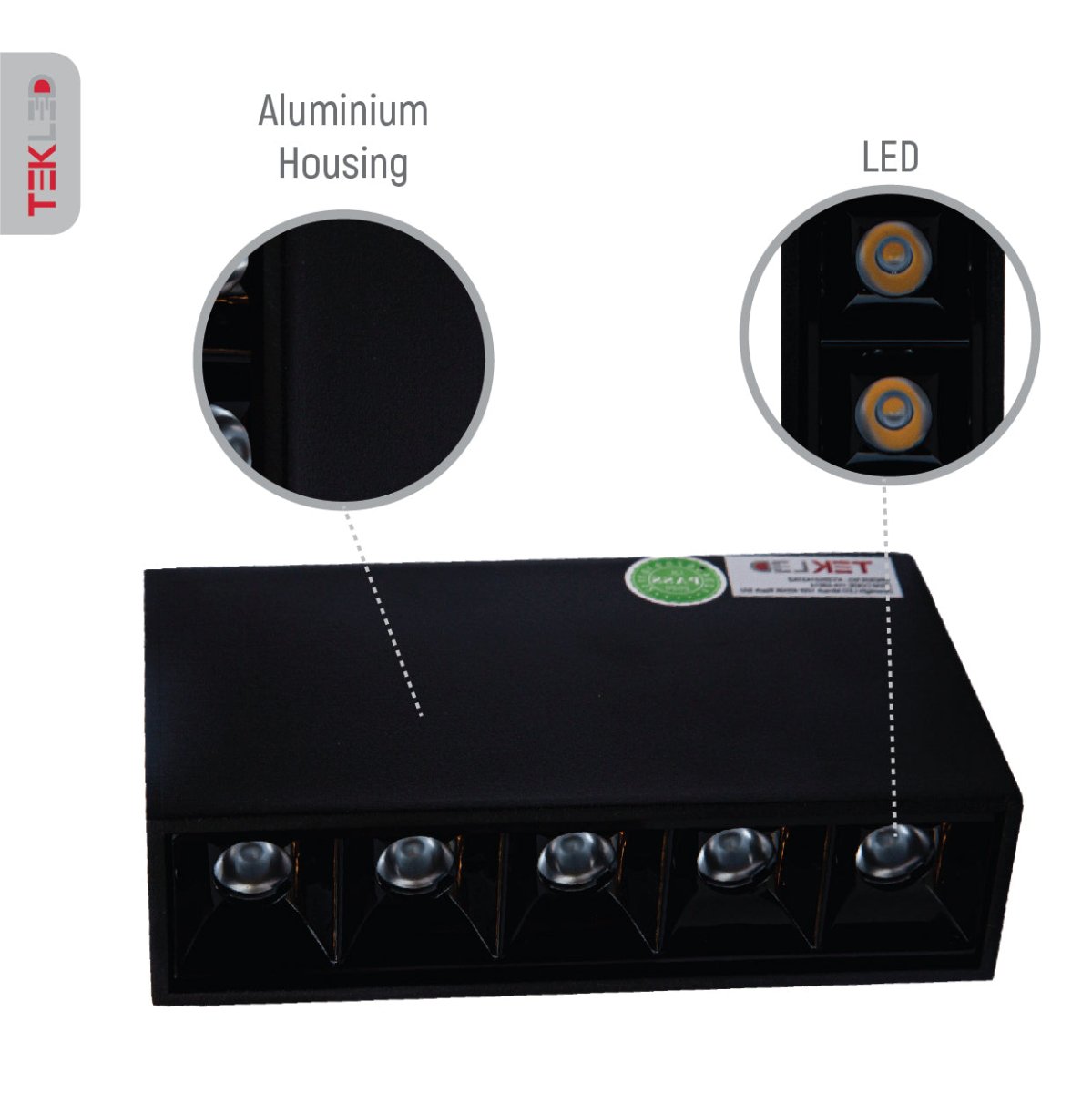

| Made Of Materials | Aluminium, PMMA (Acrylic), ABS, Steel |
| Product Colour | Black | White |
| Paint Type | Powder Coated |
| Optic Type | Lens |
| Optic Material | PMMA (Acrylic) |
| Driver Brand | KeGu |
| Driver Type | Constant Current Driver |
| Driver Power | 12W |
| Driver Input Voltage | 220~240V AC 50/60Hz |
| Driver Output Voltage | 25-40V DC |
| Driver Output Current | 300mA |
| Surge Protection Level | 1kV |
| Power Factor | pf>0.5 |
| Control | On/Off |
| Operating Temperature (C) | -20/+45C |
| New Energy Rating | F |
| Energy Rating Range | A-G |
| Warranty | 3 year |
| Life Span | 30000h |
| Net Weight | 0.34kg |
| Gross Weight | 0.36kg |
| Box Dimension (LxWxH) | 145x90x43mm |

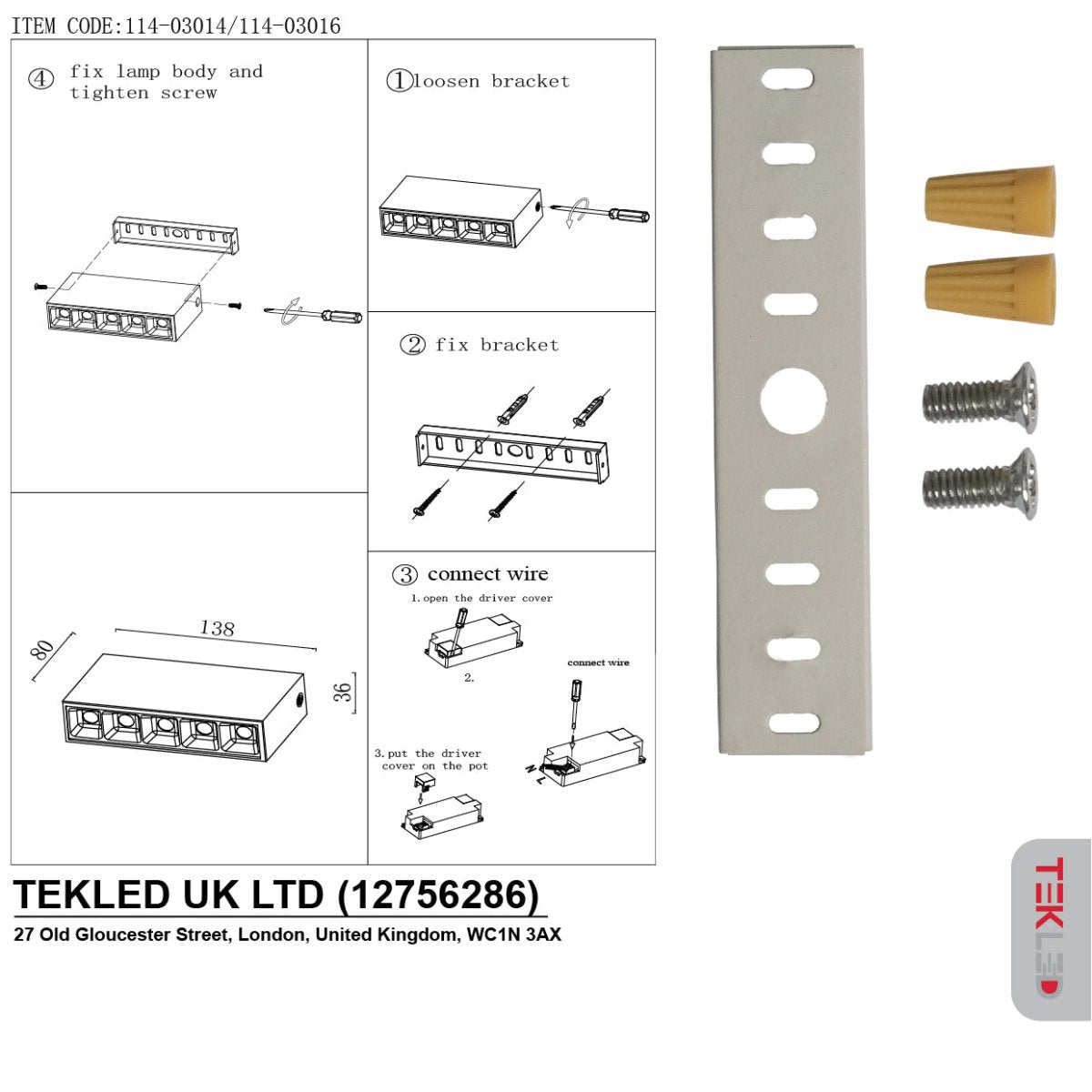

| Box Content | 1 pc Lamp Body, 1 pc Instruction, 2 pcs Screws, 2 pcs Rubber Particles |
| Certifications | UKCA, CE (LVD, EMC) |
