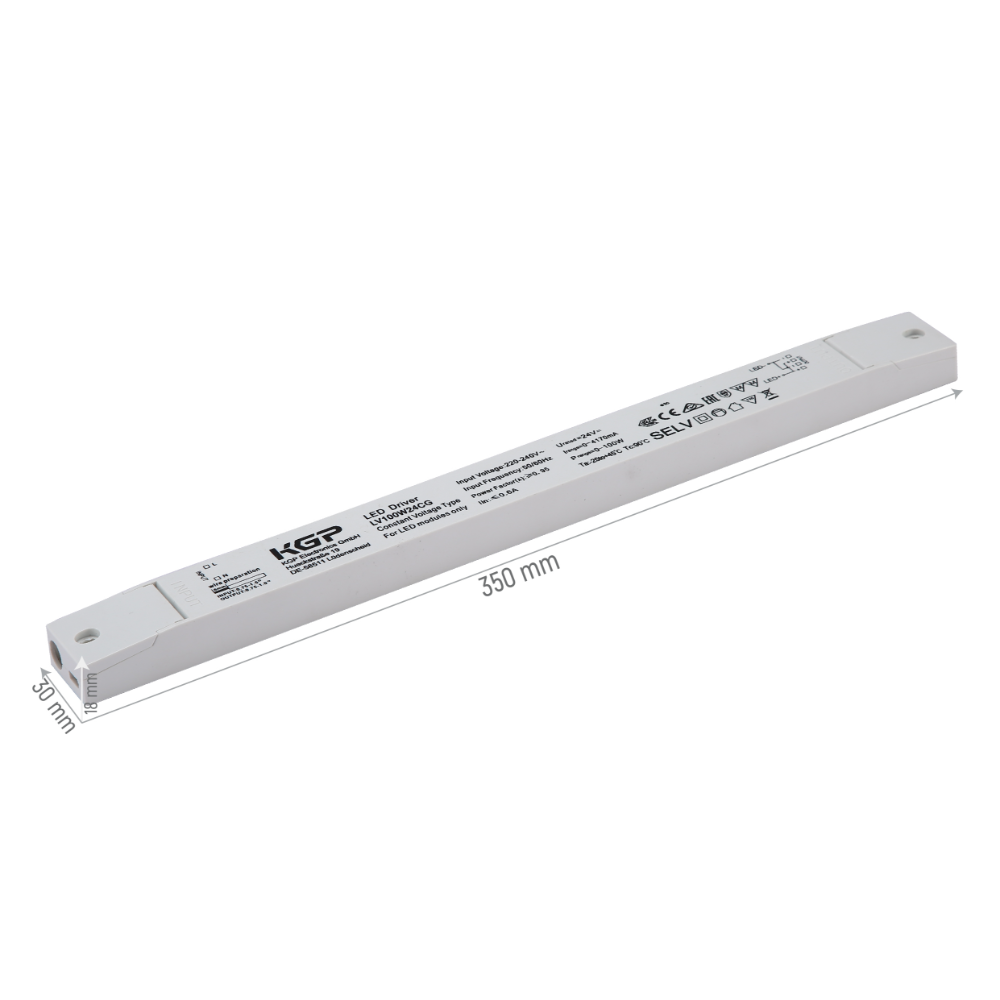

KGP Constant Voltage LED Driver 24V 100W 4A for LED Strips-Modules
Introducing the KGP Constant Voltage LED Driver — your robust solution for powering LED Modules and Strip lights. With its sleek design and advanced features, it ensures the reliable performance of your LED setups.
Key Features & Benefits:
- Power-packed Performance: With an impressive 100W capacity and a broad output current range up to 4170 mA, this driver stands out, ensuring your LEDs shine brightly and consistently.
- Steady Voltage Output: Delivering a uniform 24V DC, the driver ensures your LEDs maintain a consistent luminosity and hue.
- Adaptable Dimming Options: Though the driver is inherently non-dimmable, pair it with 24V dimmer controllers to achieve your desired brightness levels, offering flexibility in lighting ambiance.
- Sleek and Unobtrusive Design: Measuring just 350*30*18 mm, its white, compact plastic casing can be discreetly integrated into most settings, preserving aesthetics.
- Exceptional Durability: Designed for longevity, this driver boasts a lifespan of 50,000 hours, so you can install with confidence, knowing it's built to last.
- Wide Temperature Tolerance: With an operational temperature range from -25°C to +45°C, it's resilient enough to perform in diverse climatic conditions, ensuring reliability.
- Certified Excellence: Meeting stringent quality benchmarks, it's endorsed with certifications from UKCA, CE, ENEC, EAC, and SELV. Rest assured, you're investing in a product that meets globally recognized standards.
Perfect for both residential and commercial applications, the KGP Constant Voltage LED Driver guarantees a harmonious blend of efficiency, longevity, and compatibility. Whether you're setting up decorative strips or high-power LED modules, trust this driver to deliver the power you need.
Technical Specifications
Name | KGP Constant Voltage LED Driver 24V 100W 4A for LED Strips-Modules |
Product Code | 890-15957 LV100W24CG |
Power | 100 W |
Type | Constant Voltage 24V dc |
Input Voltage | 220/240Vac 50/60Hz |
Input Current | <0.6 A |
Output Voltage | 24V dc |
Output Current | 0-4170 mA |
Power Range | 0-100 W |
LED Type | for LED Modules and LED Strip lights |
Output | 2 output |
Protection Class | Class II |
Dimmability | Non-dimmable but can be used with 24V dimmer controllers for dimming the LEDs |
IP Class(Ingress Protection) | IP20 indoor |
Product Dimensions (L x W x H) (D x H) | 350*30*18 mm |
Made of Materials | Plastic Box |
Product Colour | White |
Input Cable Size | 0.75 - 1.5 mm |
Output Cable Size | 0.75 - 1 mm |
Power Factor | pf>0.95 |
Flickering | Non-Flickering |
Operating Temperature (C) | -25/+45°C |
Temperature (Tc) |
90°C |
Warranty | 3 year |
Life Span | 50000 h |
Box Dimensions (LxWxH) | x x mm |
Box Content | 1 Piece of driver |
Certifications | UKCA, CE, ENEC, EAC, SELV |
