KGP Constant Voltage LED Driver 24V 60W 2.5A for LED Strips-Modules
Introducing the KGP Constant Voltage LED Driver "” your robust solution for powering LED Modules and Strip lights. With its sleek design and advanced features, it ensures the reliable performance of your LED setups.
Key Features & Benefits:
- Power-packed Performance: With an impressive 60W capacity and a broad output current range up to 2500 mA, this driver stands out, ensuring your LEDs shine brightly and consistently.
- Steady Voltage Output: Delivering a uniform 24V DC, the driver ensures your LEDs maintain a consistent luminosity and hue.
- Adaptable Dimming Options: Though the driver is inherently non-dimmable, pair it with 24V dimmer controllers to achieve your desired brightness levels, offering flexibility in lighting ambiance.

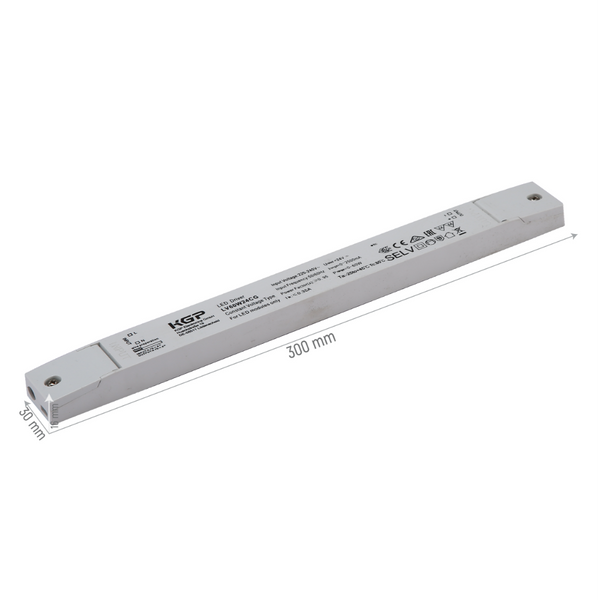

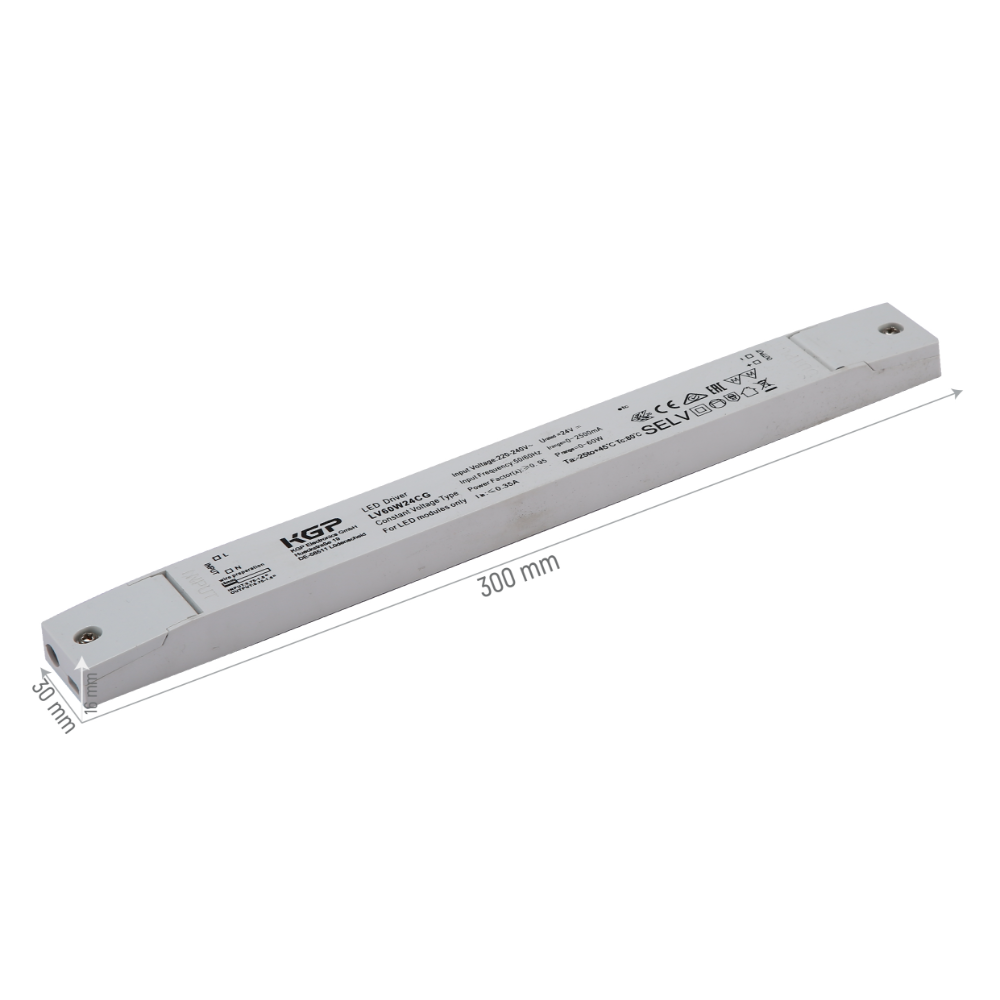

- Sleek and Unobtrusive Design: Measuring just 300*30*18 mm, its white, compact plastic casing can be discreetly integrated into most settings, preserving aesthetics.
- Exceptional Durability: Designed for longevity, this driver boasts a lifespan of 50,000 hours, so you can install with confidence, knowing it's built to last.
- Wide Temperature Tolerance: With an operational temperature range from -25°C to +45°C, it's resilient enough to perform in diverse climatic conditions, ensuring reliability.
- Certified Excellence: Meeting stringent quality benchmarks, it's endorsed with certifications from UKCA, CE, ENEC, EAC, and SELV. Rest assured, you're investing in a product that meets globally recognized standards.
Perfect for both residential and commercial applications, the KGP Constant Voltage LED Driver guarantees a harmonious blend of efficiency, longevity, and compatibility. Whether you're setting up decorative strips or high-power LED modules, trust this driver to deliver the power you need.
Technical Specifications
Name | KGP Constant Voltage LED Driver 24V 60W 2.5A for LED Strips-Modules |
Product Code | 890-15958 LV60W24CG |
Power | 60W |
Type | Constant Voltage 24V DC |
Voltage | 220/240V AC 50/60Hz |
Output Voltage | 24V DC |
Output Current | 0-2500mA |
Power Range | 0-60W |
Led Type | for LED Modules and LED Strip lights |
Output | single output |
Protection Class | Class II |
Dimmability | Non-Dimmable but can be used with 24V dimmer controllers for dimming the LEDs |
Flickering | Flicker-free |
IP Class | IP20 |
Product Dimensions (LxWxH) (DxH) | 300x30x18mm |
Made Of Materials | Plastic Box |
Product Colour | White |
Input Cable Size | 0.75 - 1.5 mm |
Output Cable Size | 0.75 - 1 mm |
Power Factor | pf>0.95 |
Operating Temperature (C) | -25/+45C |
Temperature (tc) | 90C |
Warranty | 3 year |
Life Span | 50000h |
Box Dimension (LxWxH) | xxmm |
Box Content | 1 Piece of driver |
Certifications | UKCA, CE, ENEC, EAC, SELV |
