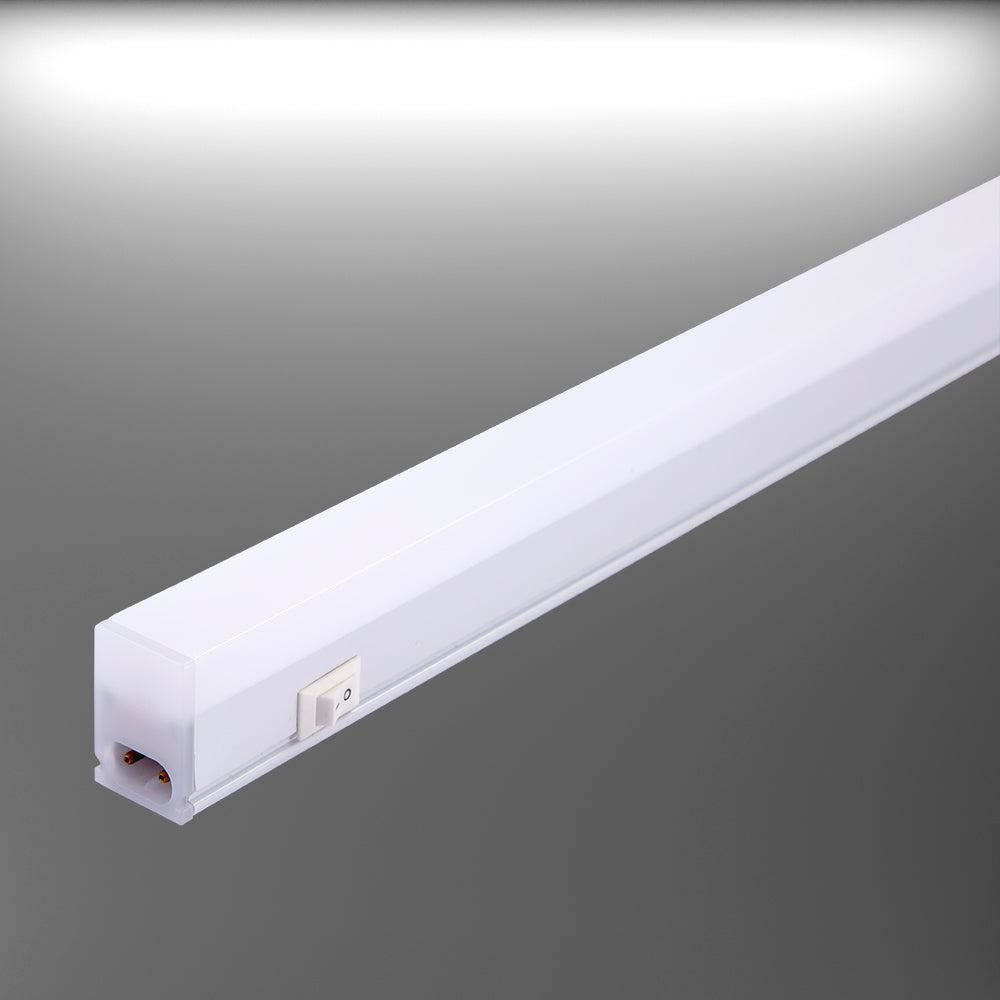

5W 1ft LED T5 Under Cabinet Link Light IP20 with switch 286mm
5W 1ft LED T5 Under Cabinet Link Light IP20 with switch 286mm
SKU: SKU: 116-034274 EAN:| EAN: 5060833953787
We recommend this
In stock. 367 available
Couldn't load pickup availability
Couldn't load pickup availability
Delivery within 1-2 working days
15 day returns. 30 days for members. Register
Description
Product Overview

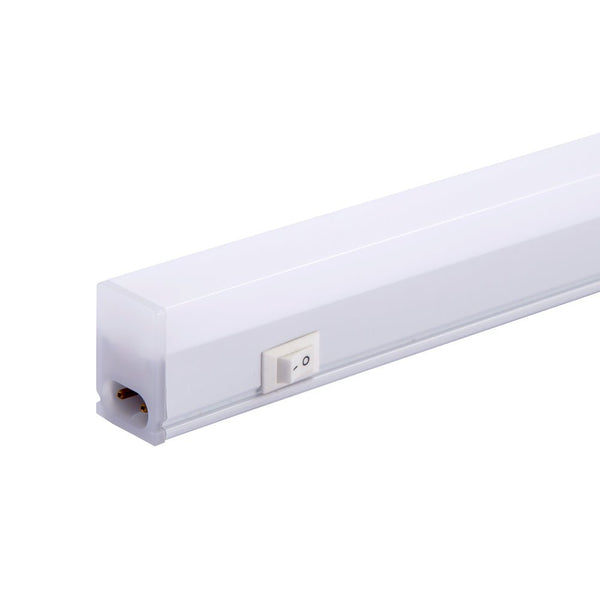

This slim, easily-installed LED T5 under-cabinet link light is perfect for illuminating worktops, shelves and cabinets. You can choose between warm white, cool white and cool daylight. The light’s built-in on/off switch makes it super convenient to use.
Key details at a glance:

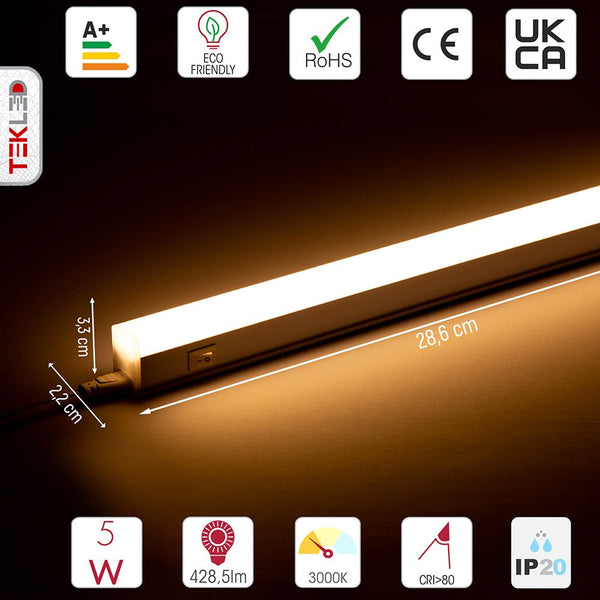

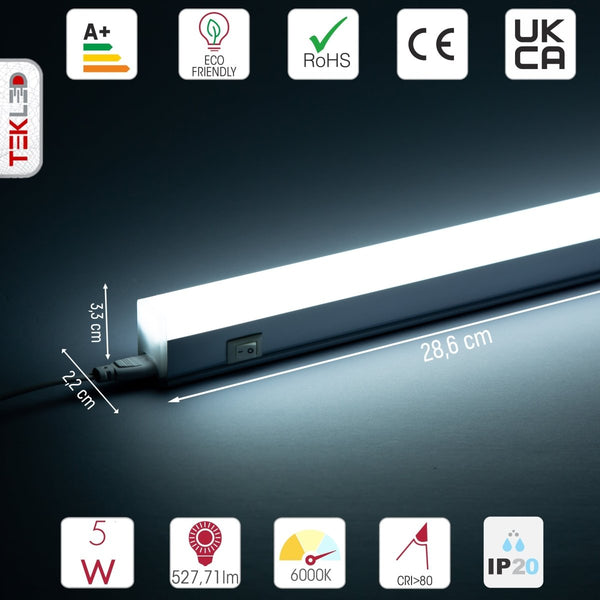

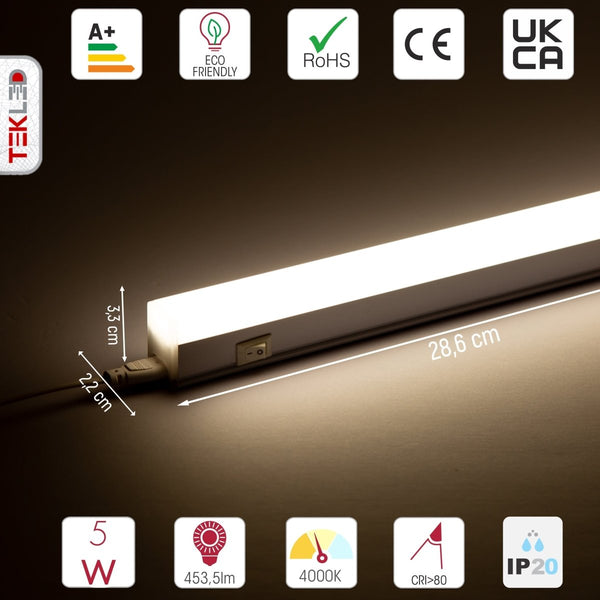

- Dimensions: 286mm (L) x 25mm (W) x 35mm (H)
- IP rating: IP20
- Power: 5W
- Light source: SMD 2835 LED
- Lumen: 430lm, 460lm or 530lm (depending on the chosen colour temperature)
Perfect for:

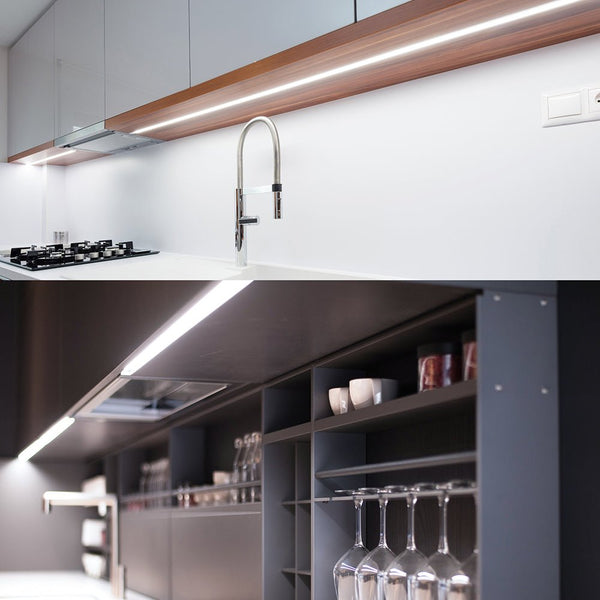

- Kitchens: Brightens up countertops and cabinets, making cooking and food prep safer and more enjoyable.

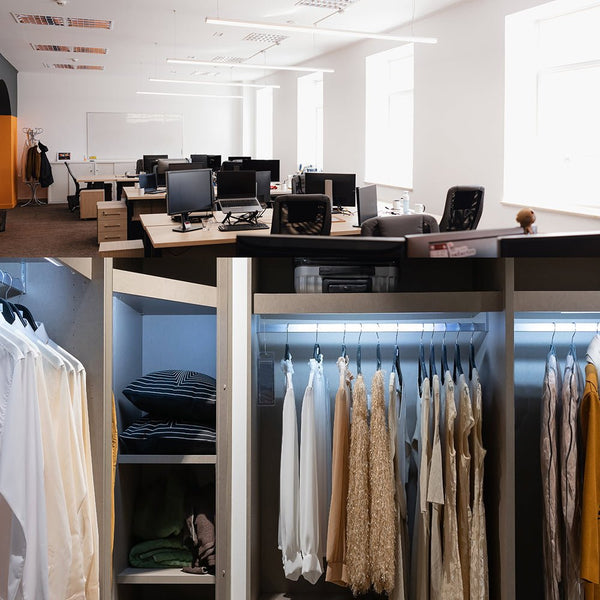

- Offices: Provides focused task lighting, reducing eye strain.
- Workshops/garages: Illuminates workbenches and storage areas.

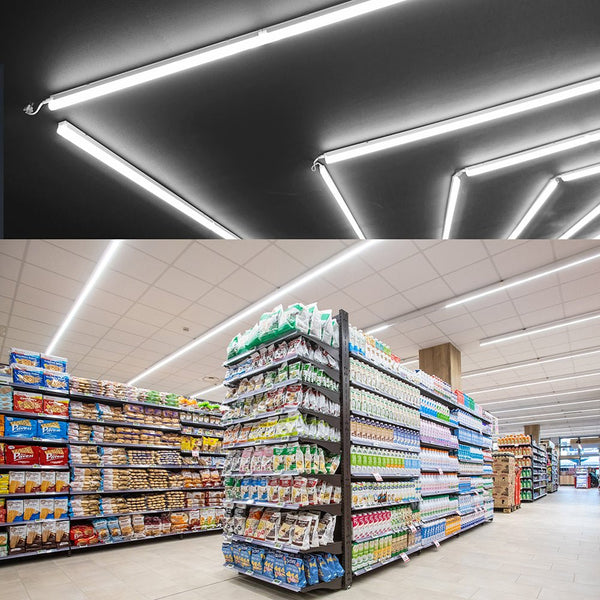

- Retail displays: Creates an attractive display, highlighting products and drawing customers' attention.
For more details, see the full technical specifications on the corresponding tab.
Specifications
| Name | LED T5 Under Cabinet Link Light 5W IP20 with switch 286mm 1ft Warm White Cool White or Cool Daylight |
| Model | Cabinet, Under Cabinet, Built-in LED batten, built-on switch |
| Product Code | 116-034272 | 116-034273 | 116-034274 |
| Power | 5W |
| Power Source | Hardwired |
| Voltage | 220/240V AC 50/60Hz |
| Lamp Holder Type | Built-in LED |
| Protection Class | Class II |
| Dimmability | Non-Dimmable |
| Light Source | SMD 2835 LED |
| Led Quantity | 2P12S |
| Bulbs | Integrated LED, no need additional bulb |
| Lumen | 430lm | 460lm | 530lm |
| Luminous Efficacy | 89lm/W | 94lm/W | 109lm/W |
| Lux | 11Lux @2m | 10Lux @2m | 13Lux @2m |
| CRI | CRI>80 |
| CCT (Kelvin) Light Colour | 3000K Warm White | 4000K Cool White | 6500K Cool Daylight |
| Flickering | Flicker-free |
| IP Class | IP20 |
| Mount Type | Surface Mount, Suspended |

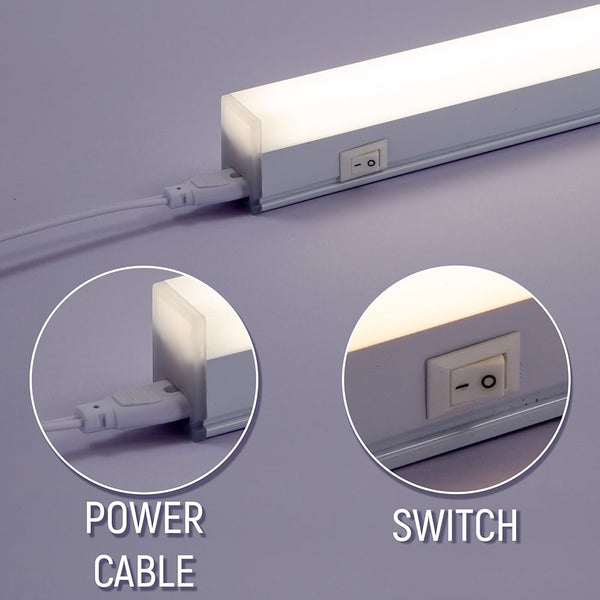

| Function Mode | Built-in On/Off Switch |
| Product Length | 286mm |
| Made Of Materials | Polycarbonate |
| Product Colour | White |
| Diffuser Material | PC (Polycarbonate) |
| Diffuser Type | Opal |
| Driver Type | Constant Current Driver |
| Driver Power | 5W |
| Driver Input Voltage | 85-265 V AC 50/60Hz |
| Driver Output Current | 300mA |
| Surge Protection Level | 2kV |
| Power Factor | pf>0.5 |
| Control | On/Off |
| Operating Temperature (C) | -20/+55C |
| New Energy Rating | F | F | F |
| Energy Rating Range | A-G |
| Warranty | 2 year |
| Life Span | 30000h |
| Net Weight | 72g |
| Box Dimension (LxWxH) | 33x2.5x3.5cm |

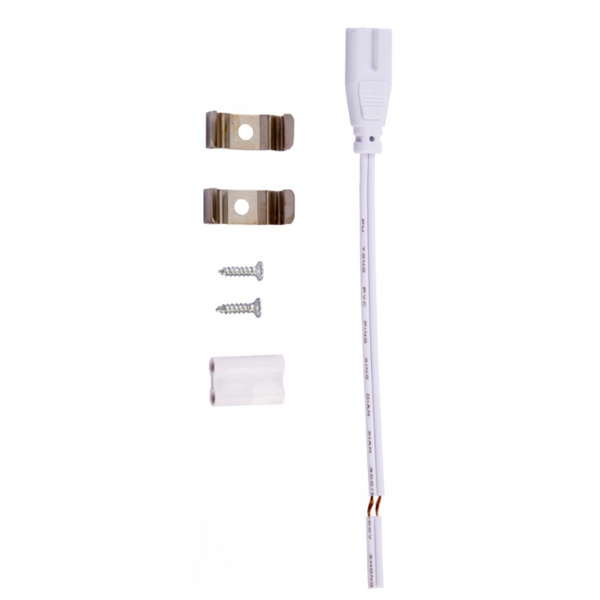

| Box Content | 1 pc Light Fixture, User Manual, 1 pc Fittings, 1 pc Terminal |
| Certifications | UKCA, CE (LVD, EMC) |
