LED T5 Under Cabinet Link Light 14W IP20 with switch 872mm 3ft - 3000K Warm White.
Light Colour:3000K Warm White
Quantity:

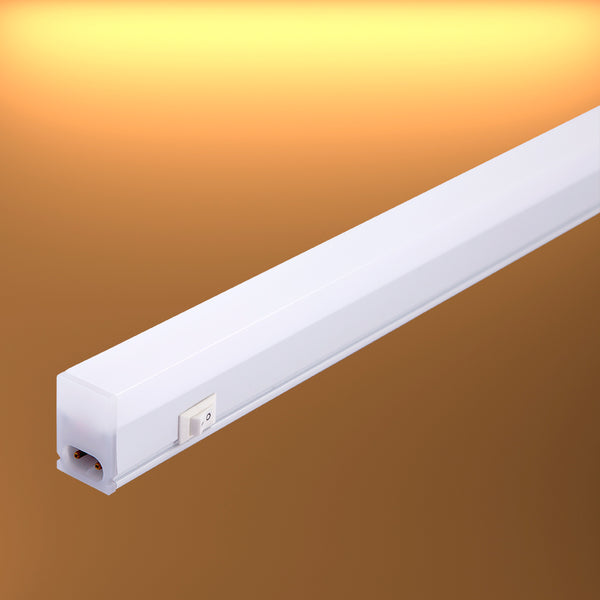

LED T5 Under Cabinet Link Light 14W IP20 with switch 872mm 3ft

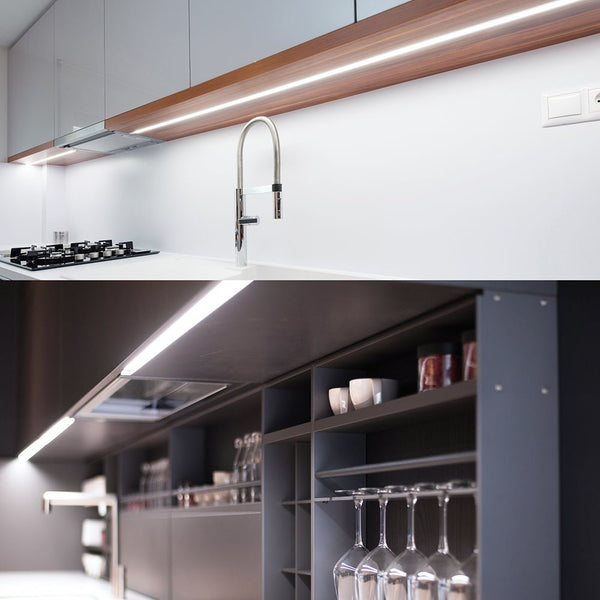

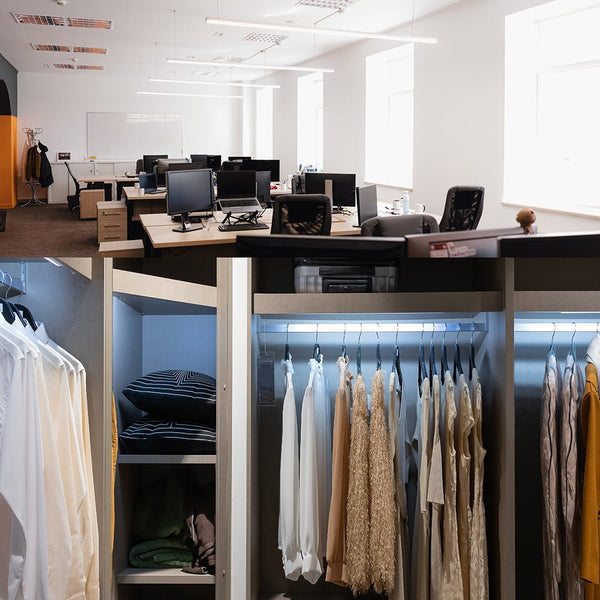

The new LED T5 Under Cabinet Link Light from TEKLED is made up of quality polycarbonate and comes with an opal diffuser to provide perfect lighting and stable performance for your lighting needs. This simple-designed 9W light goes perfectly with any furniture or cabinets and gives off a flicker free and glare free light to protect your eyes. Available in colour temperatures of 3000K, 4000K and 6500K, you can now choose from warm, cool white and cool daylight. The light strip does not heat up ensuring that you do not have to worry about fire. This product is 2ft long, lightweight and easy to mount. Perfect to illuminate your cupboards, cabinets and wardrobes, this fixture comes with a 566mm in-built on/off switch. This fixture comes with an IP rating of 20 and an energy rating of A++, making it an energy efficient option for you. With integrated LED, you can now enjoy a light with long lifespan which also fits your budget.Technical Specifications
Name | LED T5 Under Cabinet Link Light 14W IP20 with switch 872mm 3ft Warm White Cool White or Cool Daylight |
Product Code | 116-03431 | 116-034311 | 116-034312 |
Model | cabinet, under cabinet, integrated led batten, built-on switch |
Power | 13 W |
Power Source | Hardwired |
Voltage | 220/240Vac 50/60Hz |
Input Current | 0.1 A @240Vac |
Lamp Holder Type | Integrated LED |
Protection Class | Class II |
Dimmability | Non-Dimmable |
Light Source | LED SMD 2835 |
Led Quantity | 2P36S |
Bulbs | Built-in LED fixture with built-in LED driver |
Light Output(luminous flux) | 1380 lm | 1520 lm | 1540 lm |
Luminous Efficacy | 103 lm/W | 110 lm/W | 118 lm/W |
Lux | 32Lux @2m | 37Lux @2m | 36Lux @2m |
CRI(Colour Rendering Index) | CRI>80 |
CCT (Kelvin)(Light Colour) | 3000K Warm White | 4000K Cool White | 6500K Cool Daylight |
IP Class(Ingress Protection) | IP20 |
Mount Type | Surface Mount, Suspended |

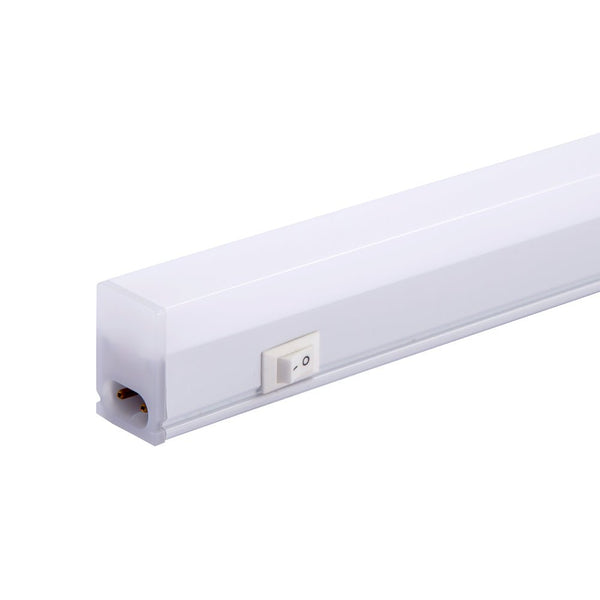

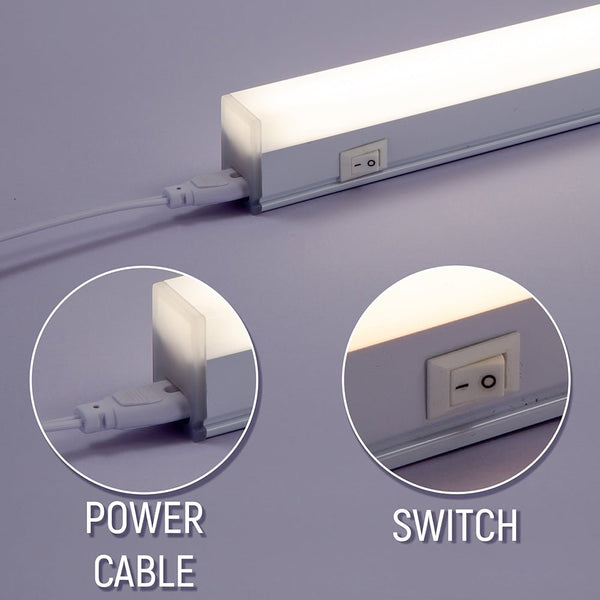

Function Mode | Built-in On/Off Switch |

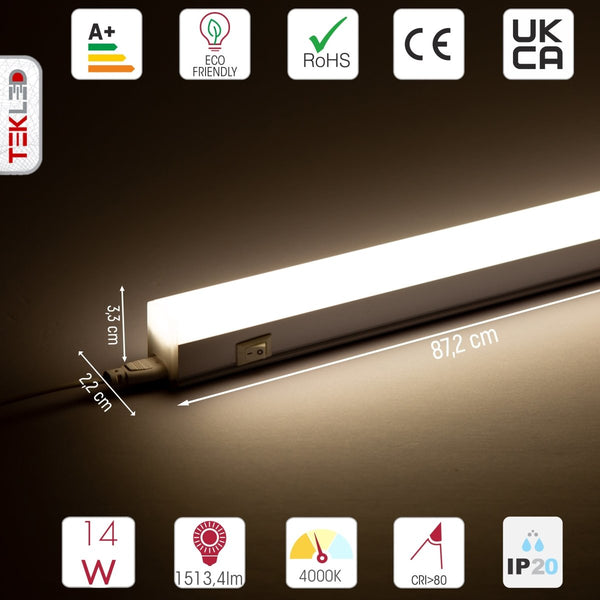

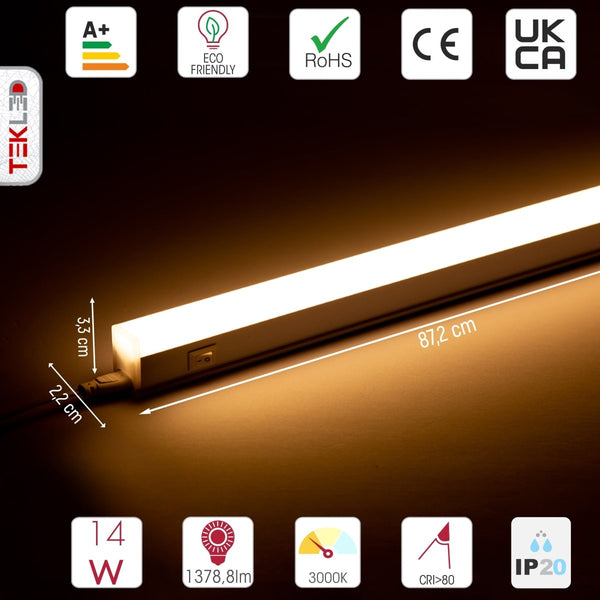

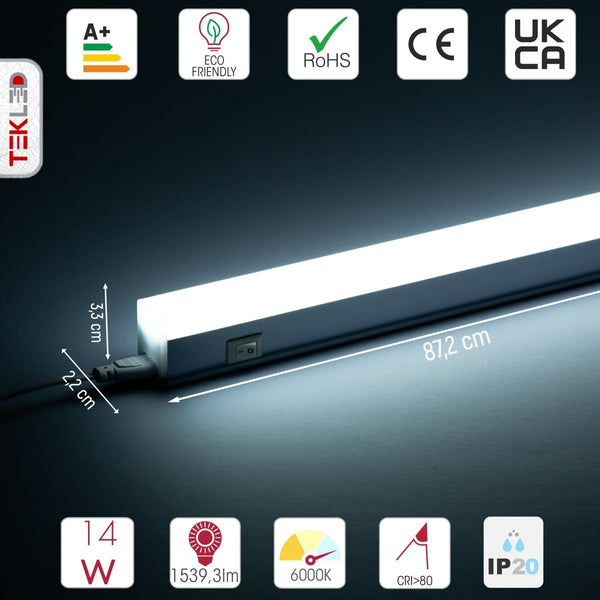

Product Length | 87.2cm |
Made of Materials | Polycarbonate |
Product Colour | White |
Diffuser Material | Polycarbonate |
Diffuser Type | Opal |
Driver Type | Constant Current |
Driver Power | 14W |
Driver Input Voltage | 85-265 Vac 50/60Hz |
Driver Input Current | 0.1 A @240Vac |
Driver Output Current | 300mA |
Surge Protection Level | 2kV |
Power Factor | pf>0.5 |
Flickering | Non-Flickering |
Control | On/Off |
Operating Temperature (C) | -20/+55C |
New Energy Rating | F | F | E |
Energy Rating | A++ |
Warranty | 2 year |
Life Span | 30000 h |
Net Weight | 152g |
Box Dimensions (LxWxH) | 91x2.5x3.5cm |

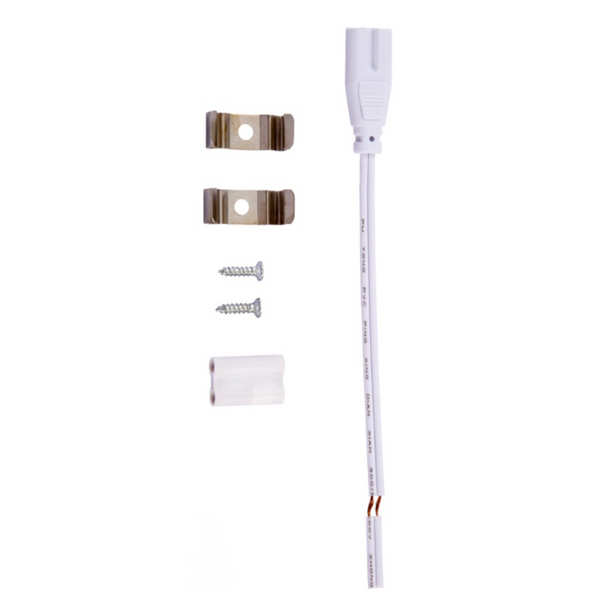

Box Content | 1Light fixture, User manual 1fittings, 1terminal |
Certifications | UKCA, CE (LVD, EMC) |
