LED T5 Under Cabinet Link Light 18W IP20 with switch 1175mm 4ft - 4000K Cool White.
Light Colour:4000K Cool White
Quantity:

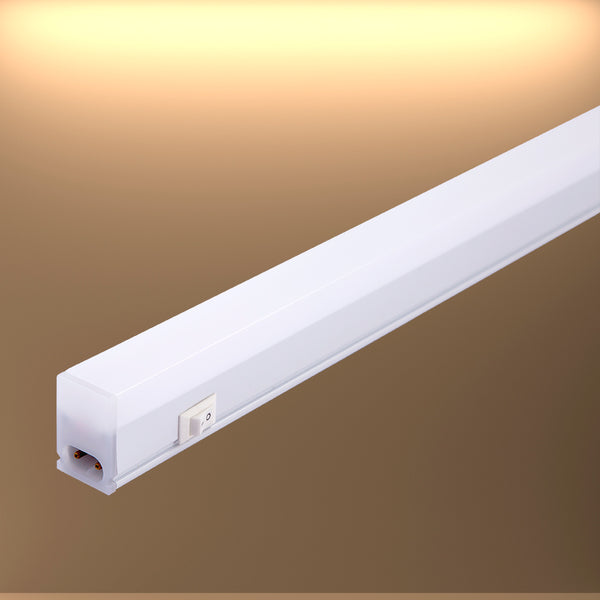

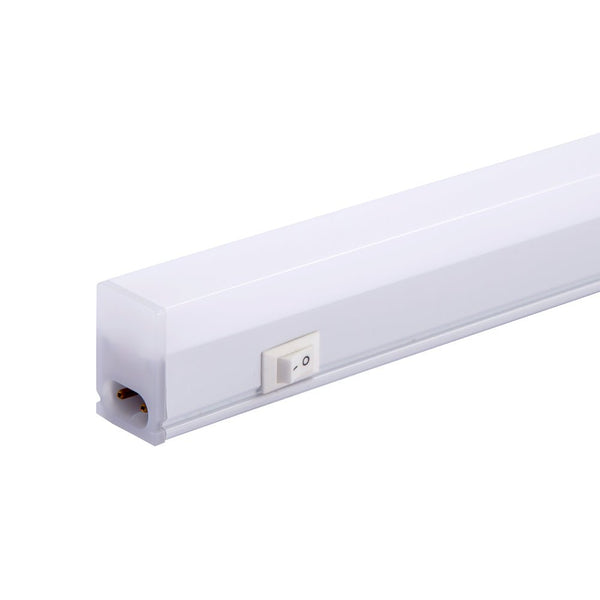

LED T5 Under Cabinet Link Light 18W IP20 with switch 1175mm 4ft

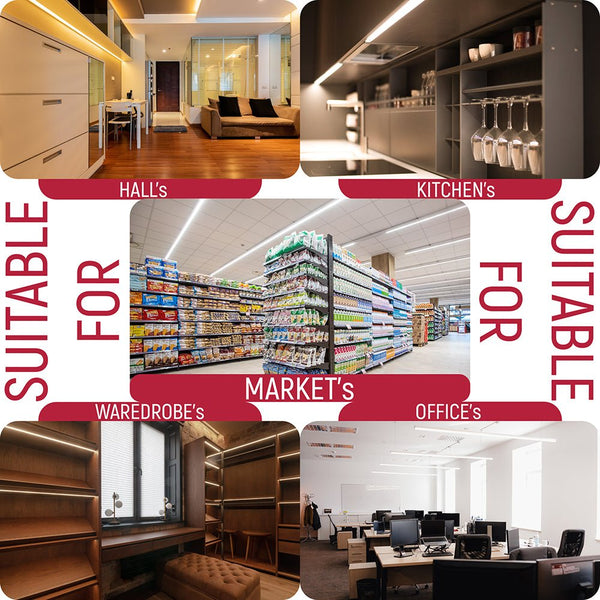

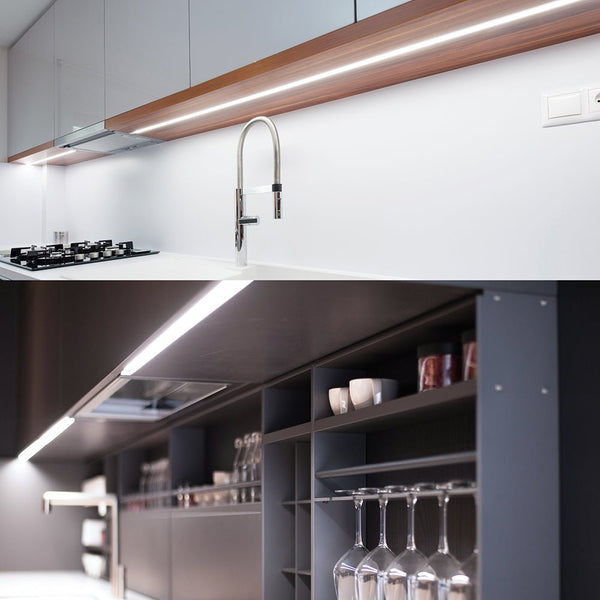

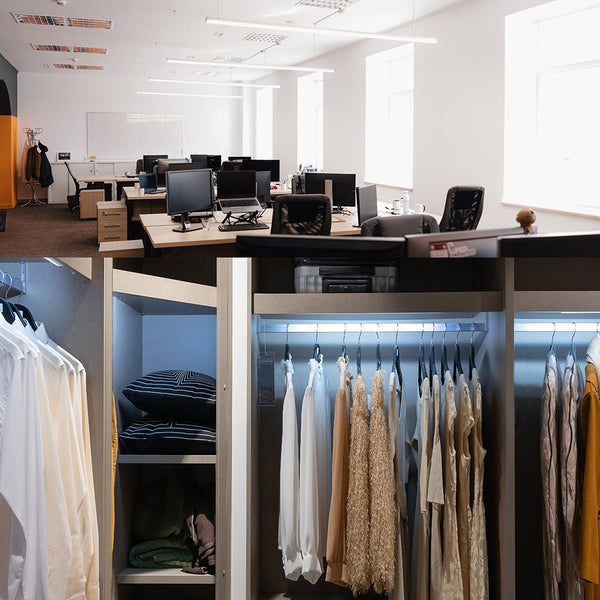

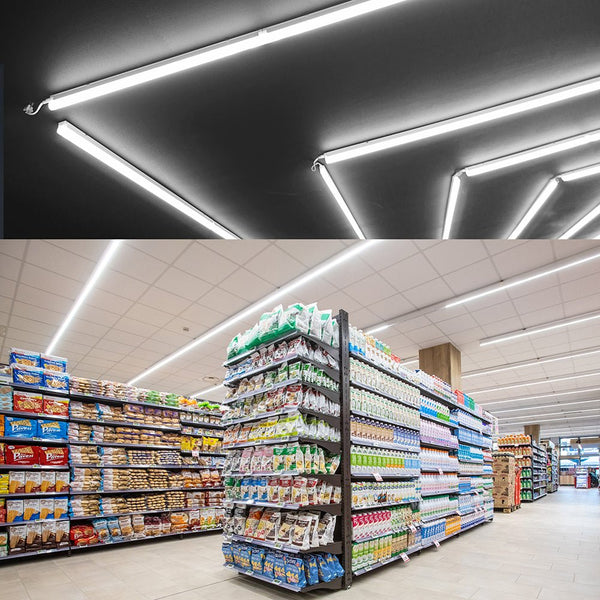

A new addition to the wide range of surface mounted luminaires from TEKLED, this LED T5 Under Cabinet Link Light can be discreetly positioned to create an evenly and well illuminated space or can be used for focused illumination in the kitchen or above your desk. Suitable for all types of residential and commercial usages, this 18W cabinet link light is 4 ft long and has an in-built on/off switch which is 1175mm long. With high lumen efficacy, this product consumes less energy to give you ideal, glare and flicker free light for your tasks and saves you big bucks on electricity bills. Available in colour temperatures of 4000K and 6500K, you can now choose between cool white and cool daylight. With an IP rating of 20 and an outstanding energy rating of A++, this integrated LED fixture is an excellent choice for you.Technical Specifications
Name | LED T5 Under Cabinet Link Light 18W IP20 with switch 1175mm 4ft Cool White or Cool Daylight |
Product Code | 116-03433 | 116-034331 |
Model | cabinet, under cabinet, integrated led batten, built-on switch |
Power | 18 W |
Power Source | Hardwired |
Voltage | 220/240Vac 50/60Hz |
Input Current | 0.15 A @240Vac |
Lamp Holder Type | Integrated LED |
Protection Class | Class II |
Dimmability | Non-Dimmable |
Light Source | LED SMD 2835 |
Led Quantity | 2P48S |
Bulbs | Built-in LED fixture with built-in LED driver |
Light Output(luminous flux) | 2080 lm | 2090 lm |
Luminous Efficacy | 116 lm/W | 121 lm/W |
Lux | 38Lux @2m |
CRI(Colour Rendering Index) | CRI>80 |
CCT (Kelvin)(Light Colour) | 4000K Cool White | 6500K Cool Daylight |
IP Class(Ingress Protection) | IP20 |
Mount Type | Surface Mount, Suspended |

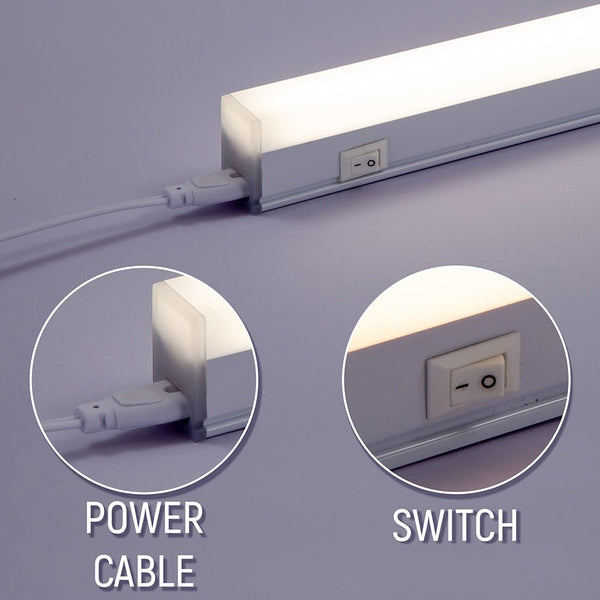

Function Mode | Built-in On/Off Switch |

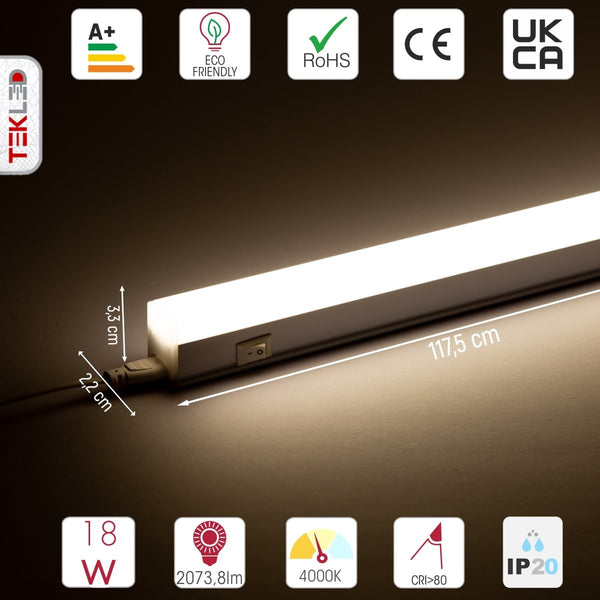

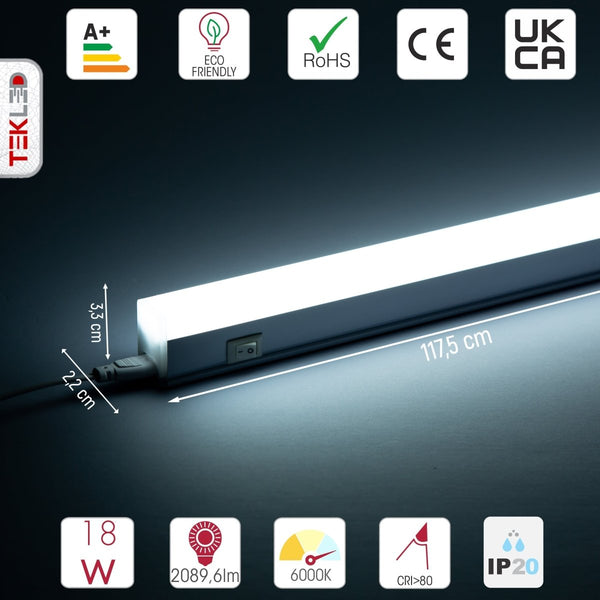

Product Length | 117.5cm |
Made of Materials | Polycarbonate |
Product Colour | White |
Diffuser Material | Polycarbonate |
Diffuser Type | Opal |
Driver Type | Constant Current |
Driver Power | 18W |
Driver Input Voltage | 85-265 Vac 50/60Hz |
Driver Input Current | 0.15 A @240Vac |
Driver Output Current | 300mA |
Surge Protection Level | 2kV |
Power Factor | pf>0.5 |
Flickering | Non-Flickering |
Control | On/Off |
Operating Temperature (C) | -20/+55C |
New Energy Rating | E | E |
Energy Rating | A++ |
Warranty | 2 year |
Life Span | 30000 h |
Net Weight | 171g |
Box Dimensions (LxWxH) | 122x2.5x3.5 |

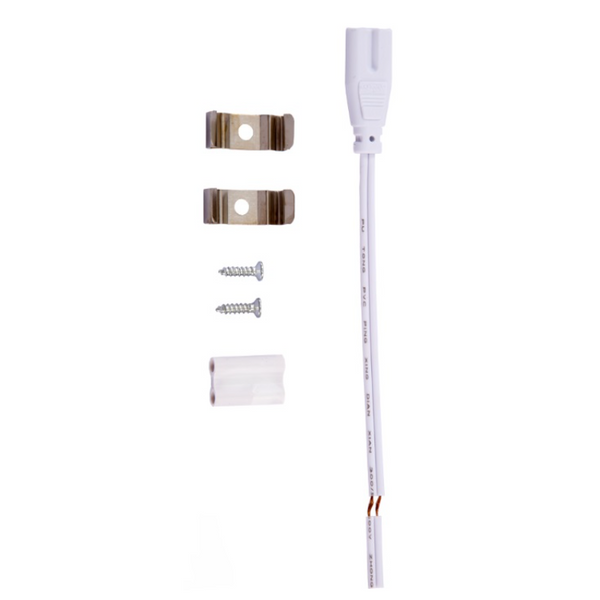

Box Content | 1Light fixture, User manual 1fittings, 1terminal |
Certifications | UKCA, CE (LVD, EMC) |
