TEKLED

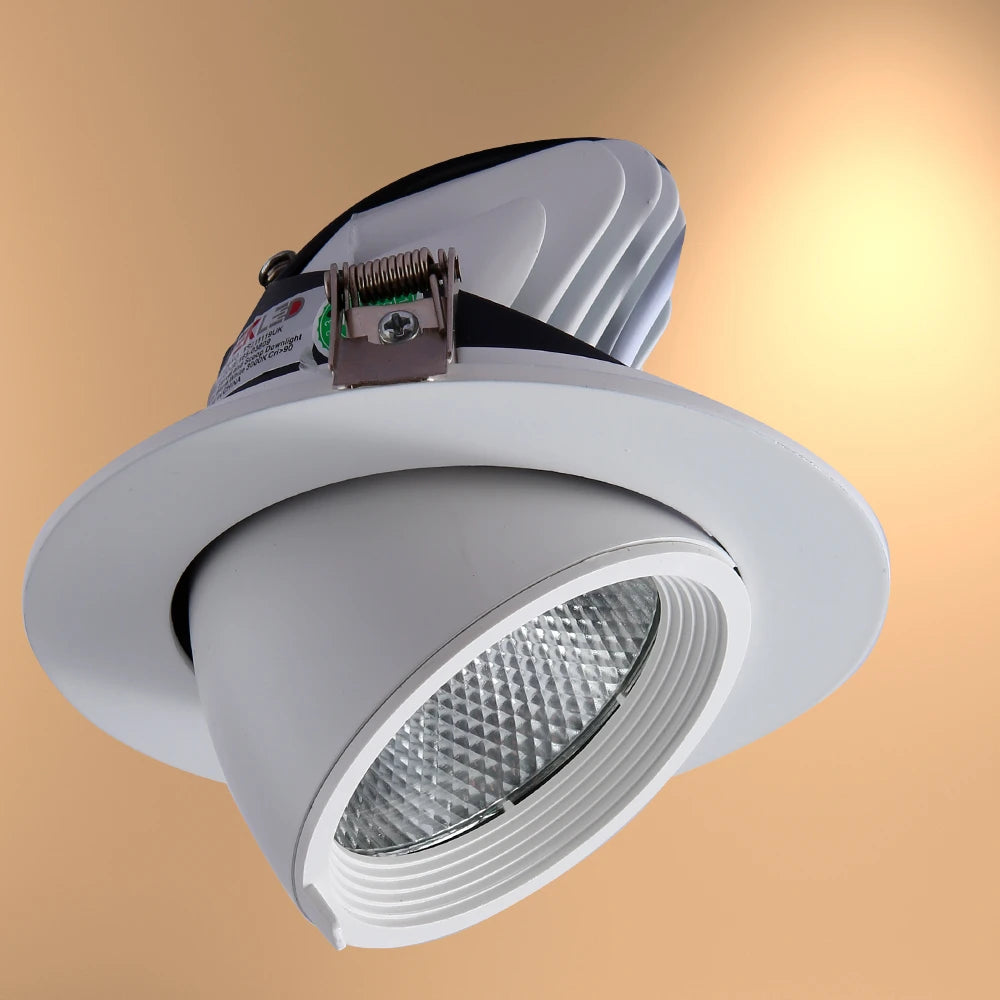

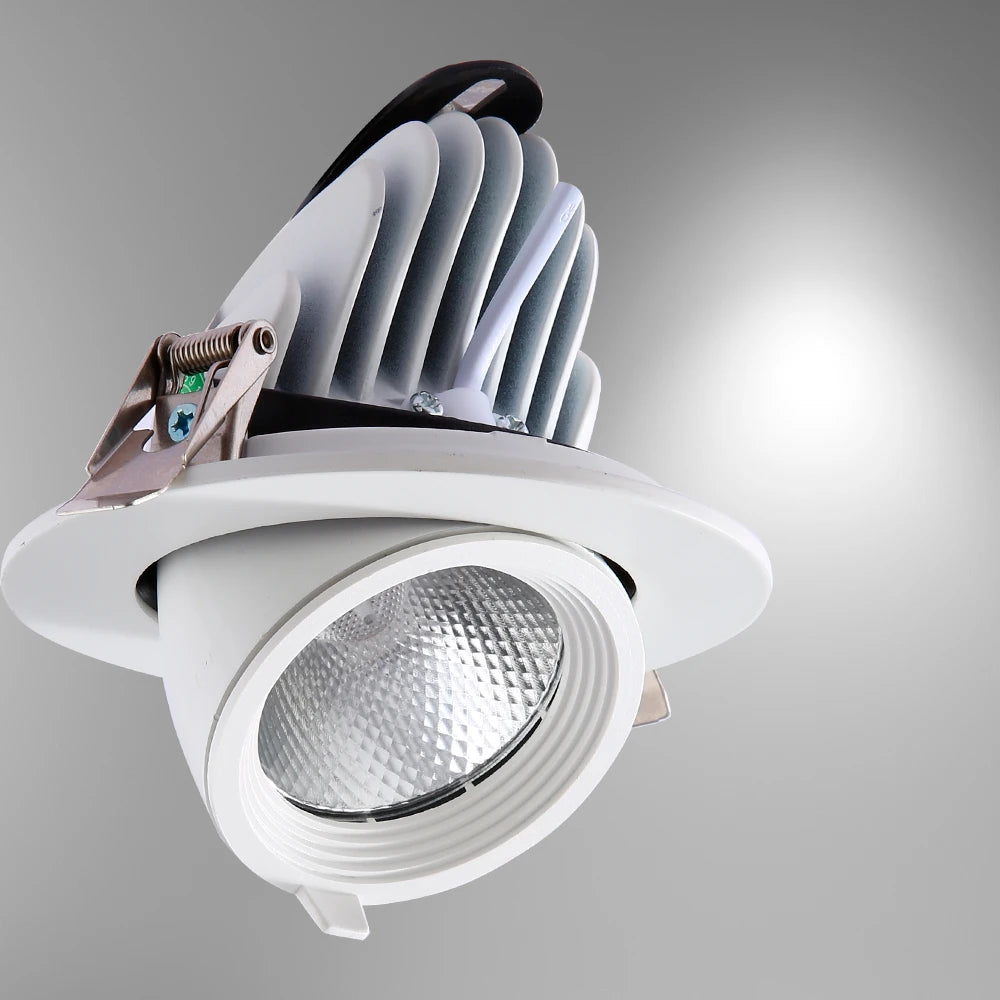

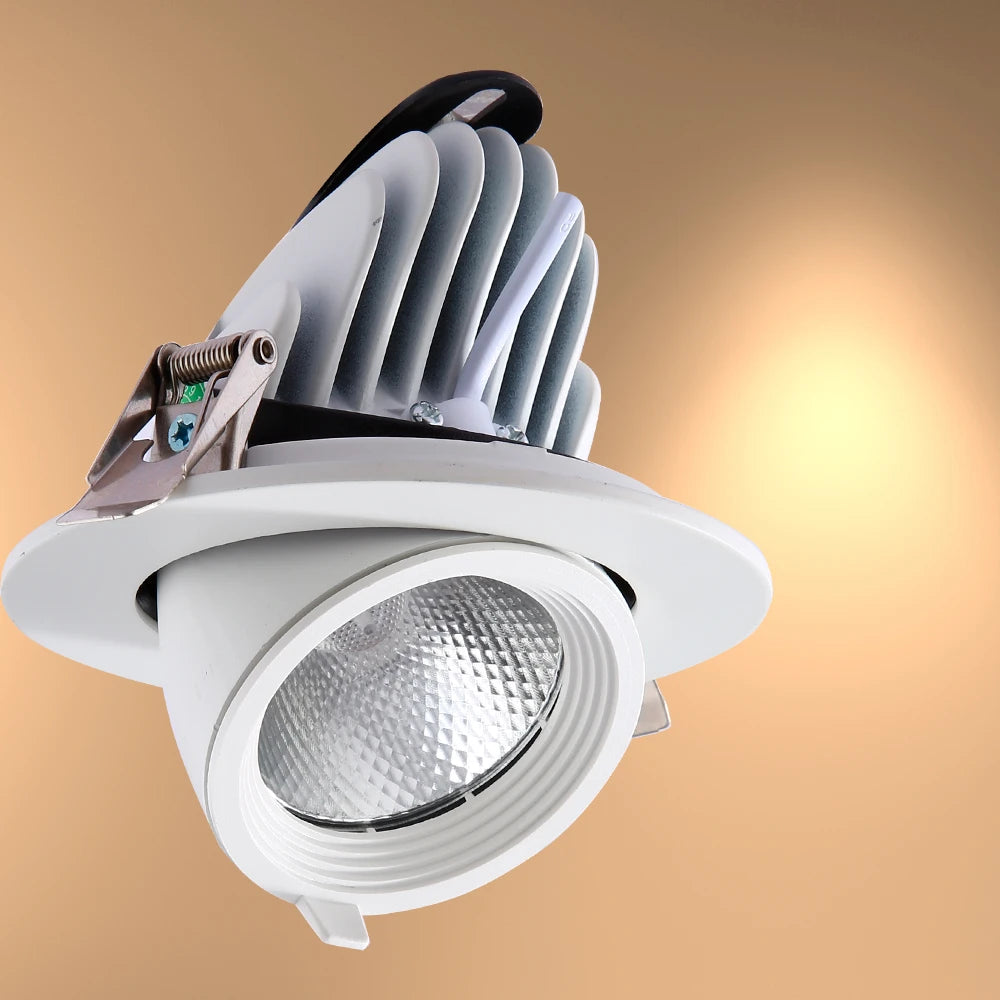

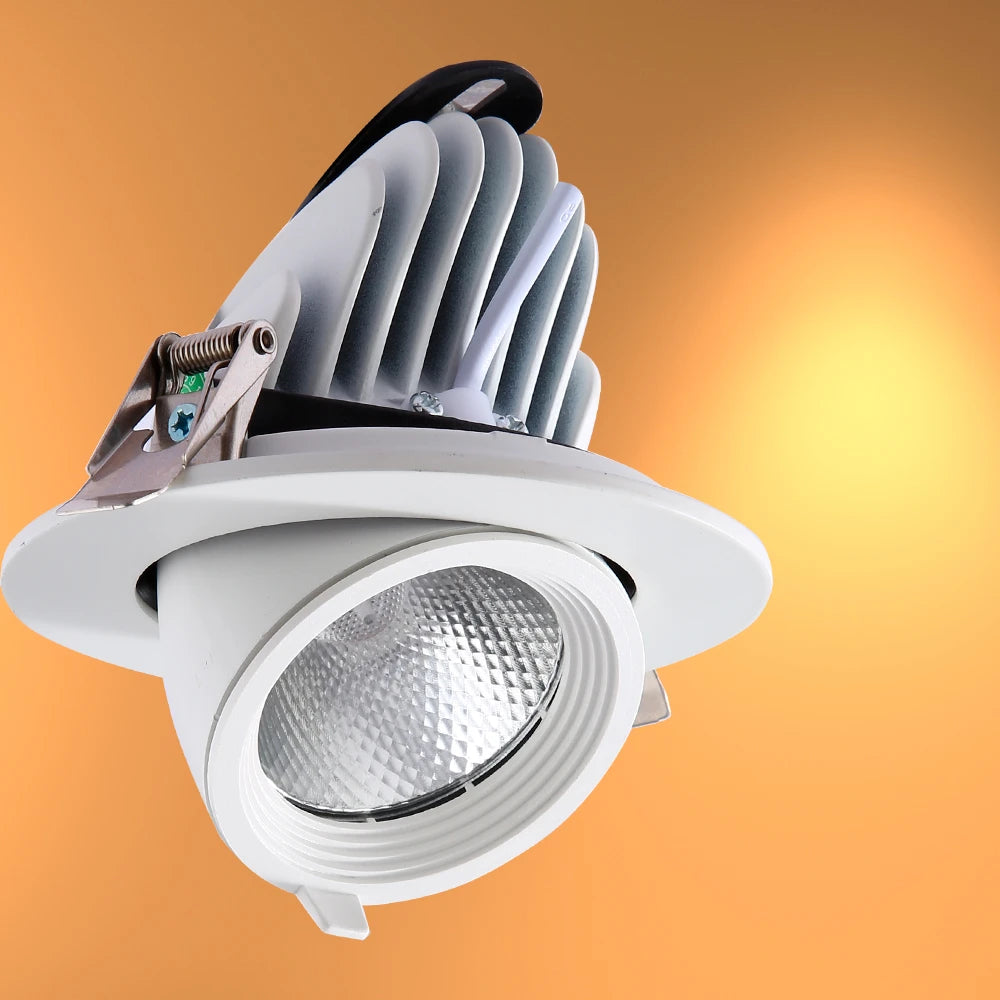

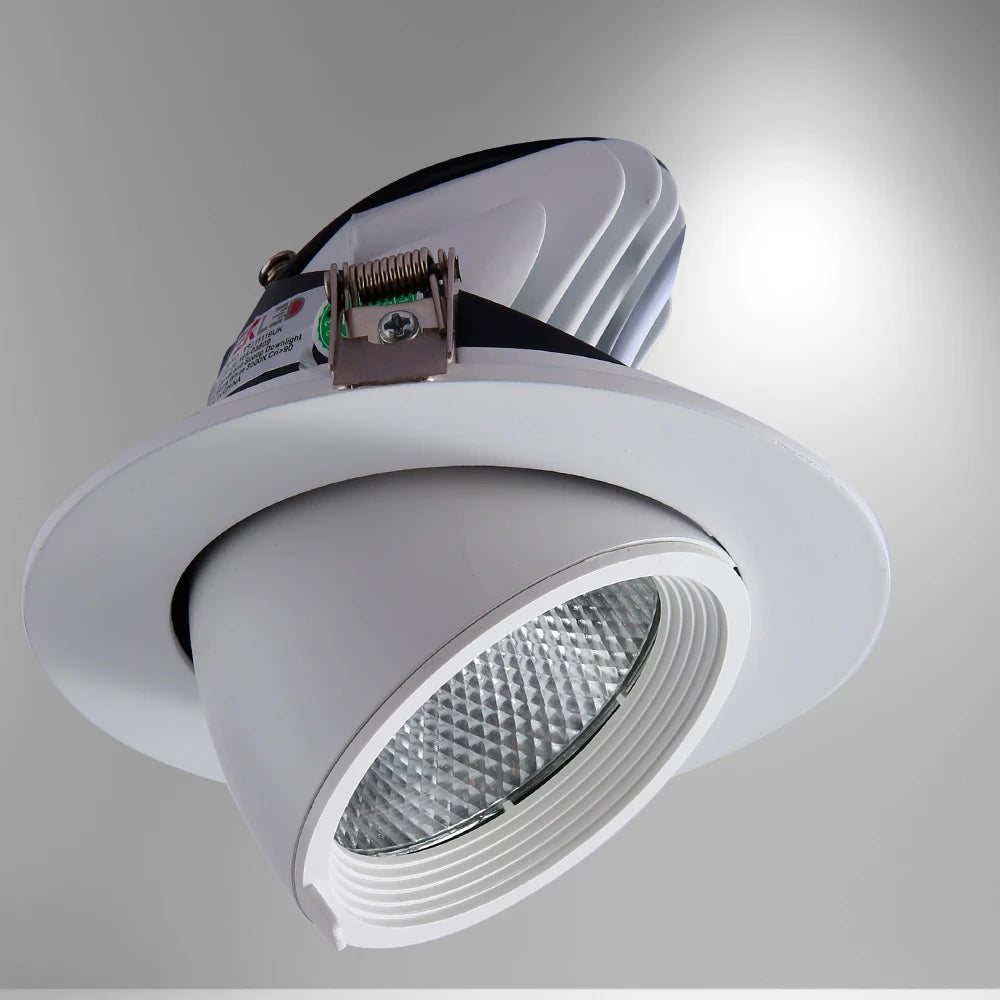

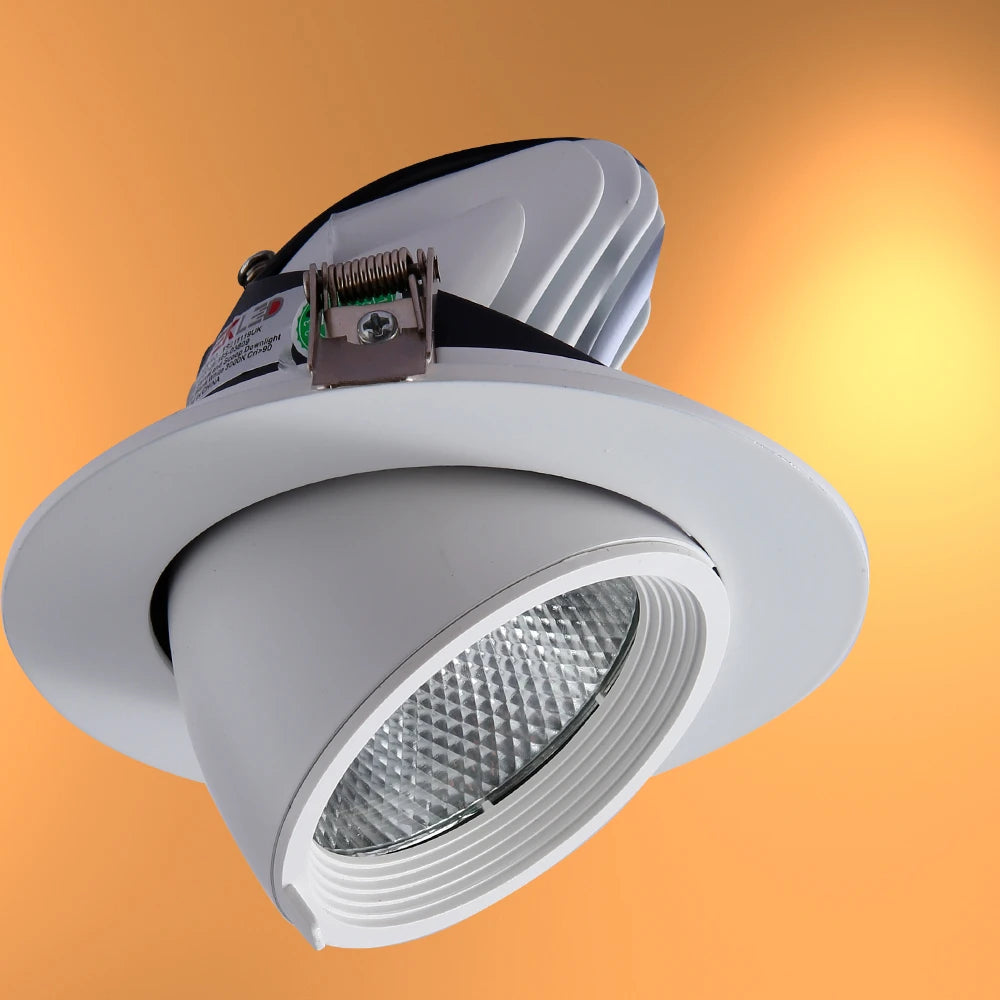

LED Accent Performance Swivel and Scoop Tilt Recessed Downlight CRI90 White - 10 W / 4000K Cool White.
LED Accent Performance Swivel and Scoop Downlight CRI90 White
Accentuate your indoor lighting with this new LED Accent Performance Swivel and Scoop downlight fromTEKLED for a brighter and even illumination all around while saving upto 80% on your electricity bills. This IP 20 recessed mount light is made from high quality aluminium, glass and polycarbonate, making it highly durable. With a colour rendering index of 80, this hardwired downlight comes with integrated LEDs which run for more hours than any traditional incandescent lamp and give you non-flickering brightness. These LED panel light can be installed in dining room, living Room, hallways, balcony, bedrooms, kitchen, bathroom, staircases, garage, office, school, hospital, restaurants, hotels, shops, beauty salons and any such places that require to be lit up for longer periods of time. LEDs also save you big bucks on lamp replacement costs, making this a highly cost effective purchase for you. Our high quality LED Lights are elegant in design and integrate seamlessly with your ceilings. All are our LED Lights are extremely energy efficient and feature high efficiency LED driver giving outstanding lighting performance while being extremely low on energy consumption. More so, our lights dissipate least amount of heat to the environment resulting in cooler and comfortable indoors. This fixture comes fitted with 3000K warm white LEDs, 4000K cool white LEDs and 6500K cool daylight LEDs. You can choose the colour temperature as per your need and set up an ambience for yourself. You also have the options of choosing from 10, 20 or 30 W fittings as per your lighting requirements.
Technical Specifications
Name | LED Accent Performance Swivel and Scoop Downlight 10W 20W 30W Warm White Cool White Cool Daylight CRI90 White |
Product Code | 165-03806 | 165-03807 | 165-03808 | 165-03809 | 165-038090 | 165-038091 | 165-038092 | 165-038093 | 165-038094 |
Power | 10 W | 20 W | 30 W |
Power Source | Hardwired |
Voltage | 220/240Vac 50/60Hz |
Lamp Holder Type | Integrated LED |
Protection Class | Class II |
Dimmability | Non-Dimmable |
Light Source | COB1414-10w | COB1919-20w | COB1919-30w |
Led Quantity | 1pc COB |
Bulbs | Built-in LED fixture with LED driver |
Light Output(luminous flux) | 766 lm | 1350 lm | 2905 lm |
Luminous Efficacy | 71 lm/W | 67 lm/W | 102 lm/W |
Lux | avg 745 lux @2m | avg 1256 lux @2m | avg 2077 lux @2m |
CRI(Colour Rendering Index) | CRI>90 |
CCT (Kelvin)(Light Colour) | 3000K Warm White | 4000K Cool White | 6500K Cool Daylight |
IP Class(Ingress Protection) | IP20 |
Mount Type | Recessed Mount |
Function Mode | On/Off |
Product Dimensions (L x W x H) (D x H) | D110x85 mm | D135x105 mm | D165x130 mm |
Cut-Out Size | D95 mm | D115 mm | D150 mm |
Product Length | 110 mm | 135 mm | 165 mm |
Made of Materials | Aluminium, Glass, Polycarbonate |
Product Colour | White |
Paint Type | Powder coated |
Adjustable | Swivel and scoop |
Optic Type | Reflector |
Optic Material | Aluminium |
Driver Brand | kegu |
Driver Type | Constant Current |
Driver Power | 12w | 21w | 30w |
Driver Input Voltage | 220~240Vac 50/60Hz |
Driver Input Current | 0.05 A @240 Vac | 0.09 A @240 Vac | 0.13 A @240 Vac |
Driver Output Voltage | 25-40V | 27-42V | 33-40V |
Driver Output Current | 300 mA | 500 mA | 750 mA |
Surge Protection Level | 1 kV |
Power Factor | pf>0.5 | pf>0.9 |
Flickering | Non-Flickering |
Control | On/Off |
Operating Temperature (C) | -20/+50C |
New Energy Rating | G | G | F |
Energy Rating | A+ |
Warranty | 3 year |
Life Span | 30000 h |
Gross Weight | 0.354 kg | 0.598 kg | 1.098 kg |
Net Weight | 0.317 kg | 0.550 kg | 1.020 kg |
Box Dimensions (LxWxH) | 115x115x110mm | 140xx140xx120mm | 170x170x155mm |
Box Content | 1xLight fixture 1xinstruction |
Certifications | UKCA, CE(LVD), RoHS |
