LED COB Recessed Fixed Downlight - 10 W / 4000K Cool White.

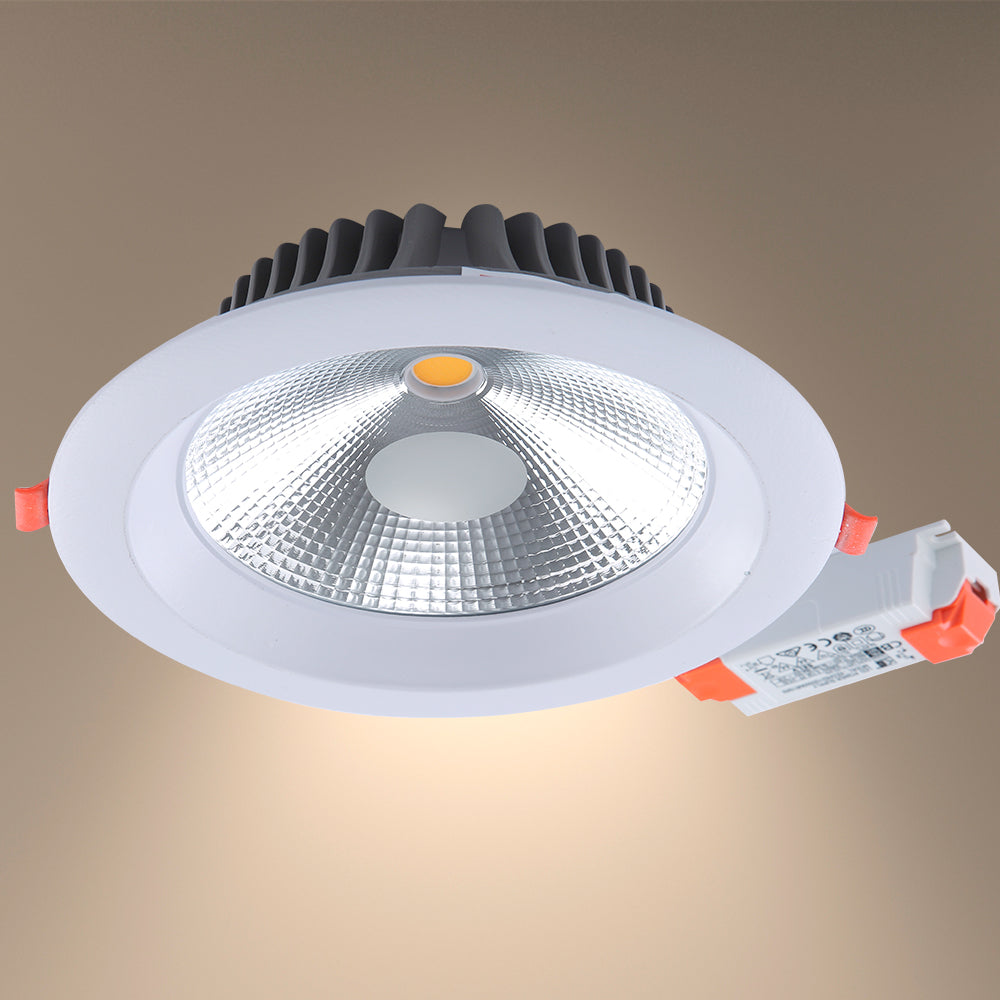

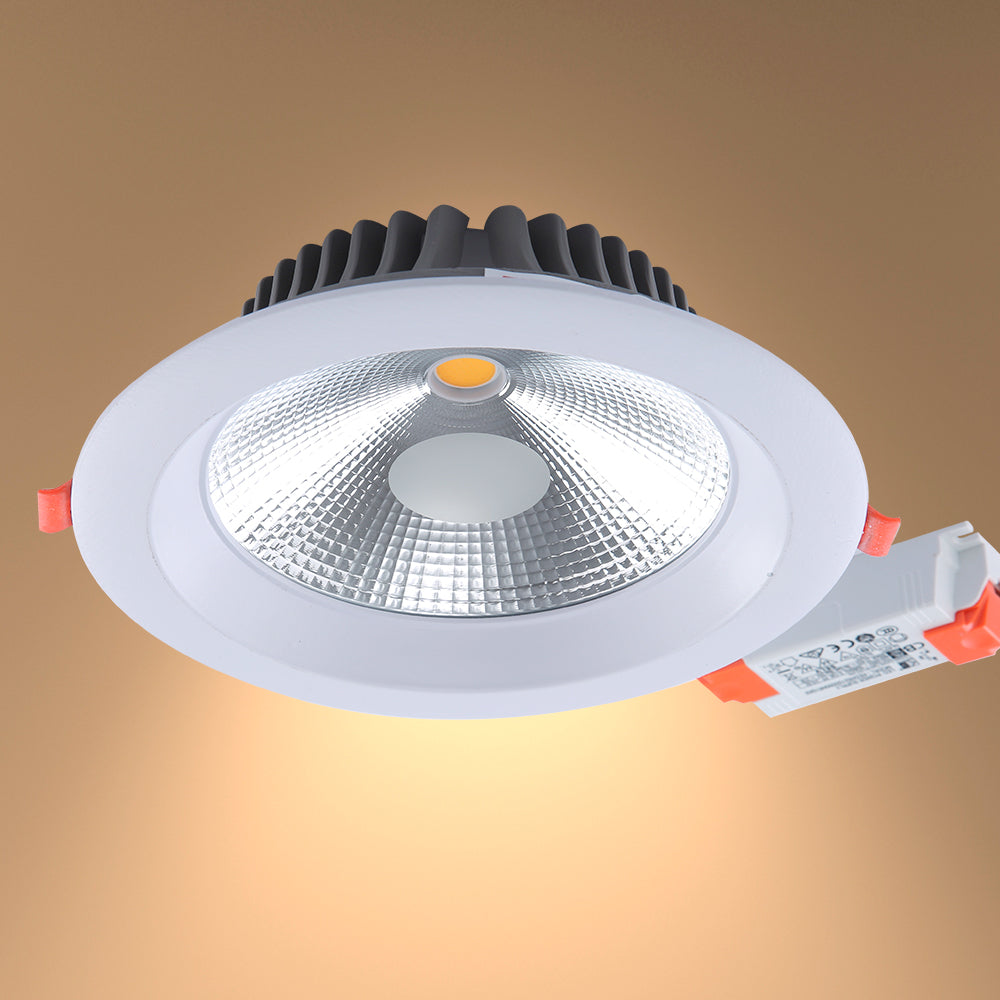

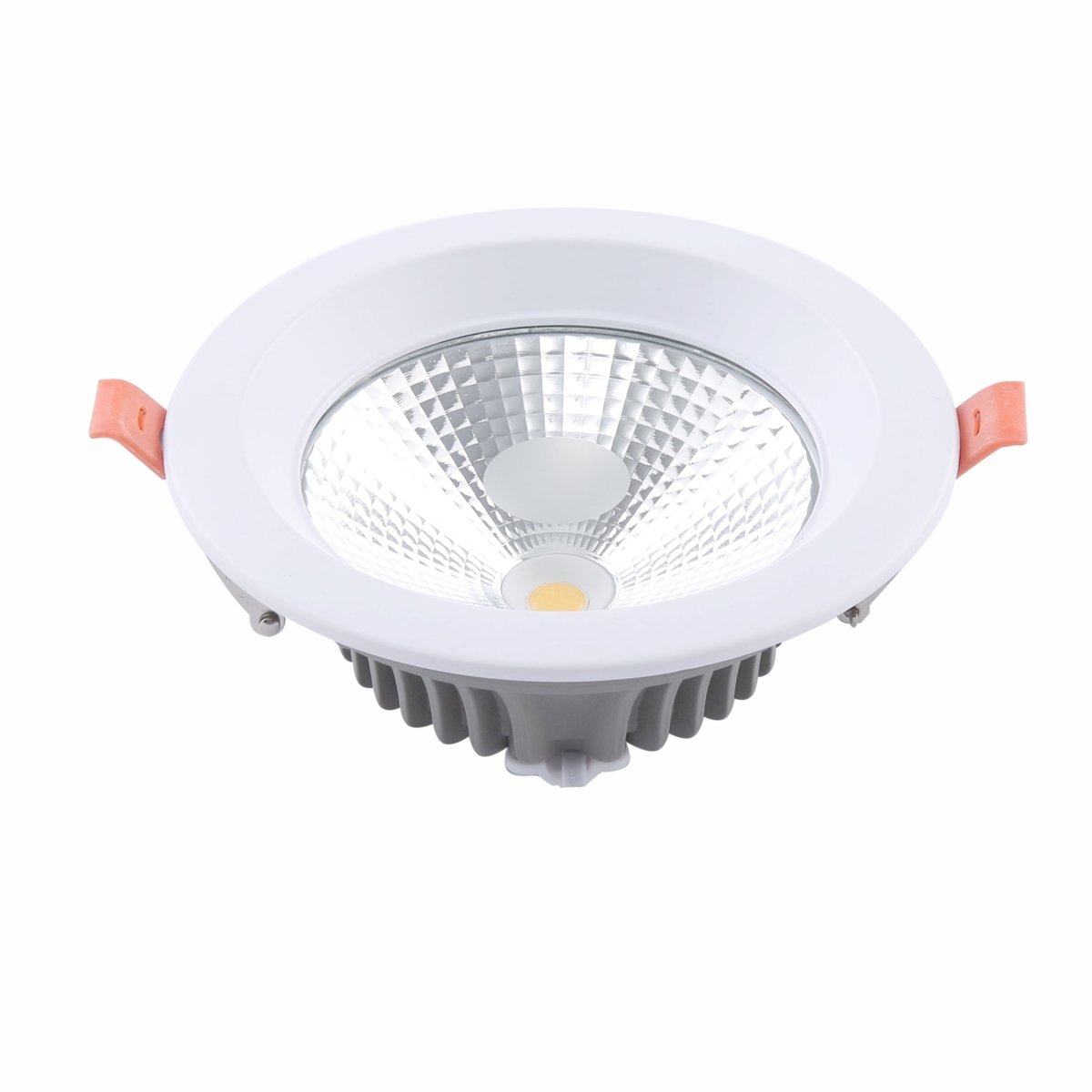

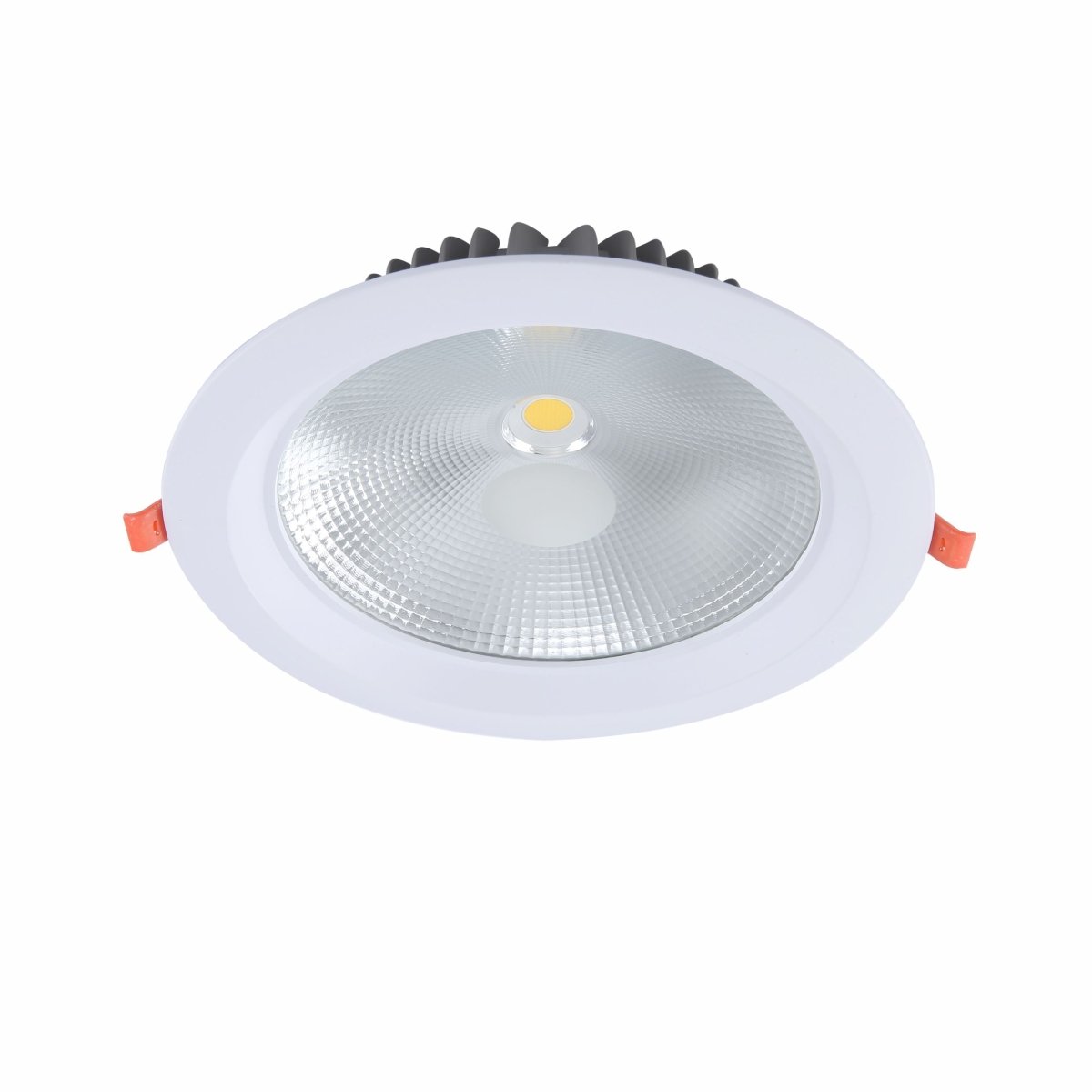

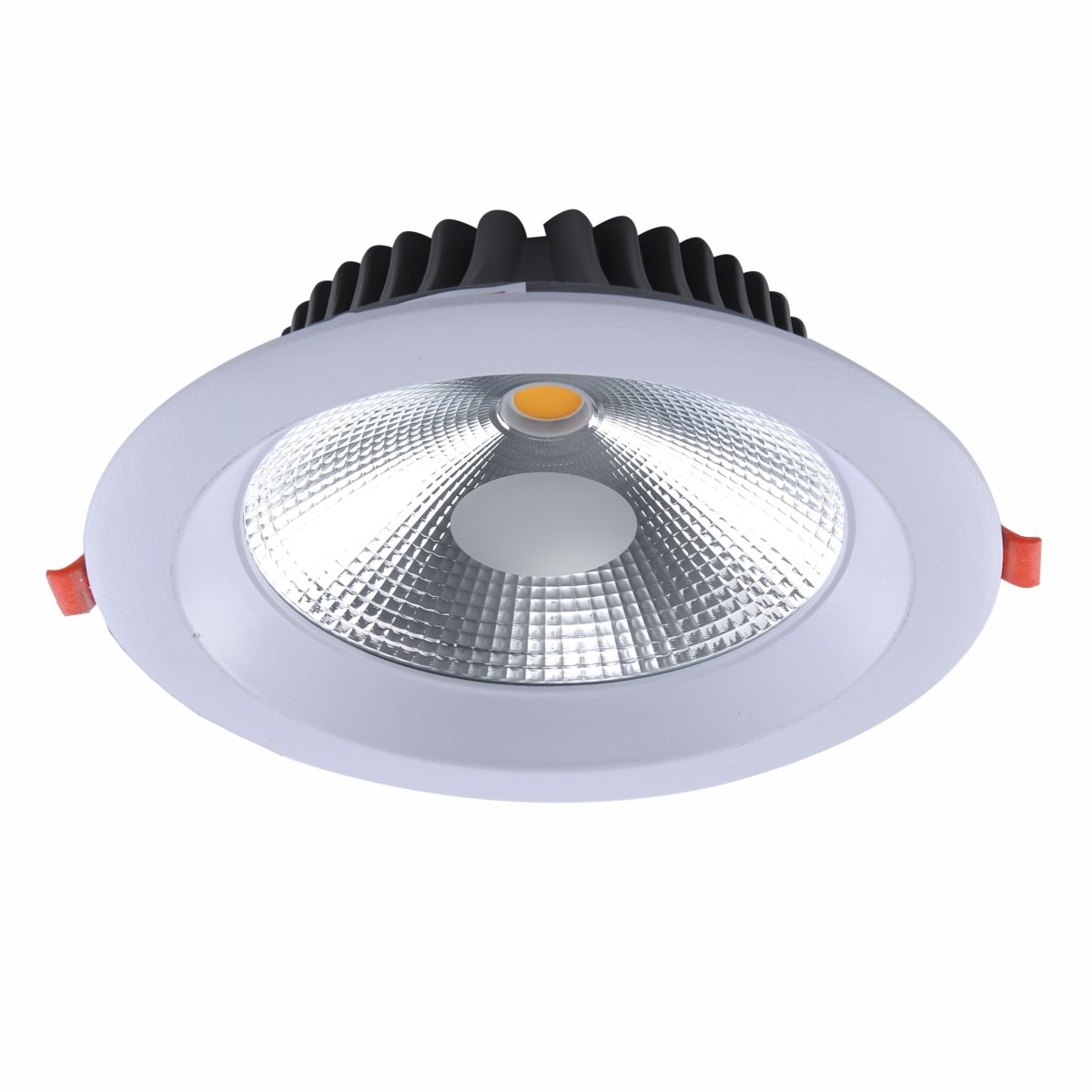

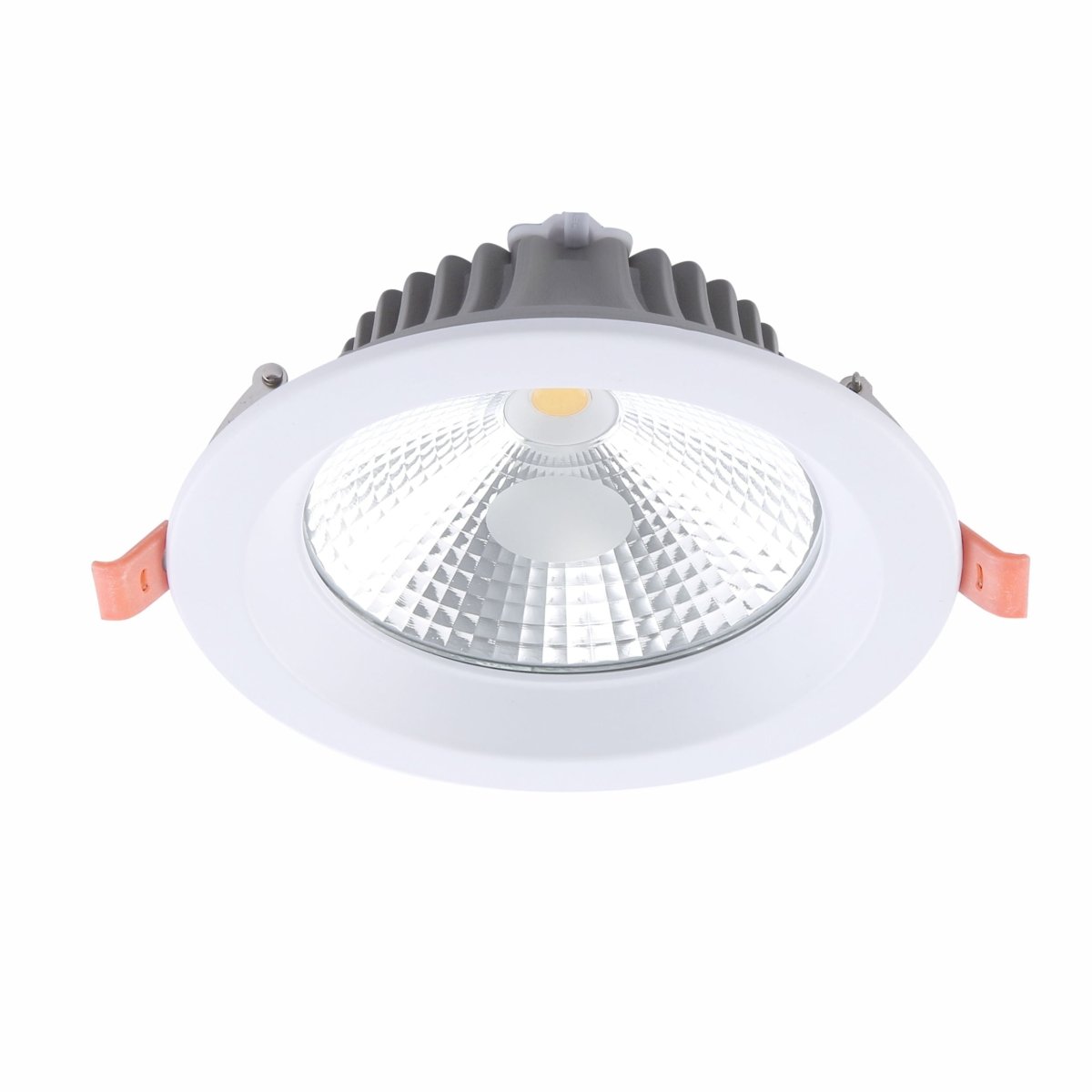

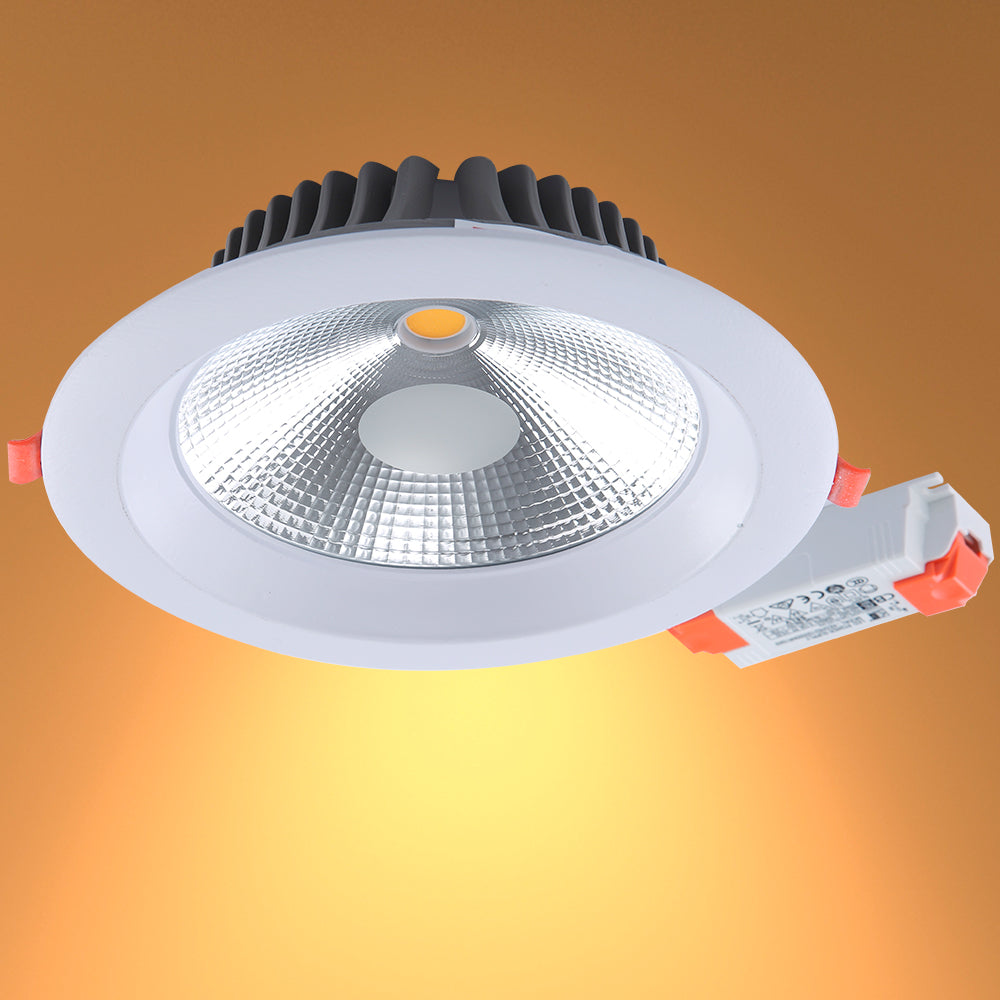

LED COB Recessed Downlight
Illuminate your surroundings while saving upto 80% on your electricity bills with this new range of LED COB recessed downlights from TEKLED. This IP 20 recessed mount light is made from high quality aluminium and glass, making it highly durable. With a colour rendering index of 90, this hardwired downlight comes with integrated LEDs which run for more hours than any traditional incandescent lamp and give you non-flickering brightness. LEDs also save you big bucks on lamp replacement costs, making this a highly cost effective purchase for you. Our high quality LED Lights are elegant in design and integrate seamlessly with your ceilings. All are our LED Lights are extremely energy efficient and feature high efficiency LED driver giving outstanding lighting performance while being extremely low on energy consumption. More so, our lights dissipate least amount of heat to the environment resulting in cooler and comfortable indoors. This fixture comes fitted with 3000K warm white LEDs, 4000K cool white LEDs and 5000K cool white LEDs. You can choose the colour temperature as per your need and set up an ambience for yourself. You also choose from 10W, 20W or 30W fixtures.
Technical Specifications
| Name | LED COB Recessed Downlight 10W 20W 30W Warm White or Cool White |
| Product Code | 165-03398 | 165-03400 | 165-034010 | 165-034011 | 165-034031 | 165-03404 |
| Power | 10 W | 20 W | 30 W |
| Power Source | Hardwired |
| Voltage | 220/240Vac 50/60Hz |
| Input Current | 0.09A @240Vac |
| Lamp Holder Type | Integrated LED |
| Protection Class | Class II |
| Dimmability | Non-Dimmable |
| Light Source | COB 1414-10W | COB 1919-20W | COB 1919-30W |
| Led Quantity | 1pc COB |

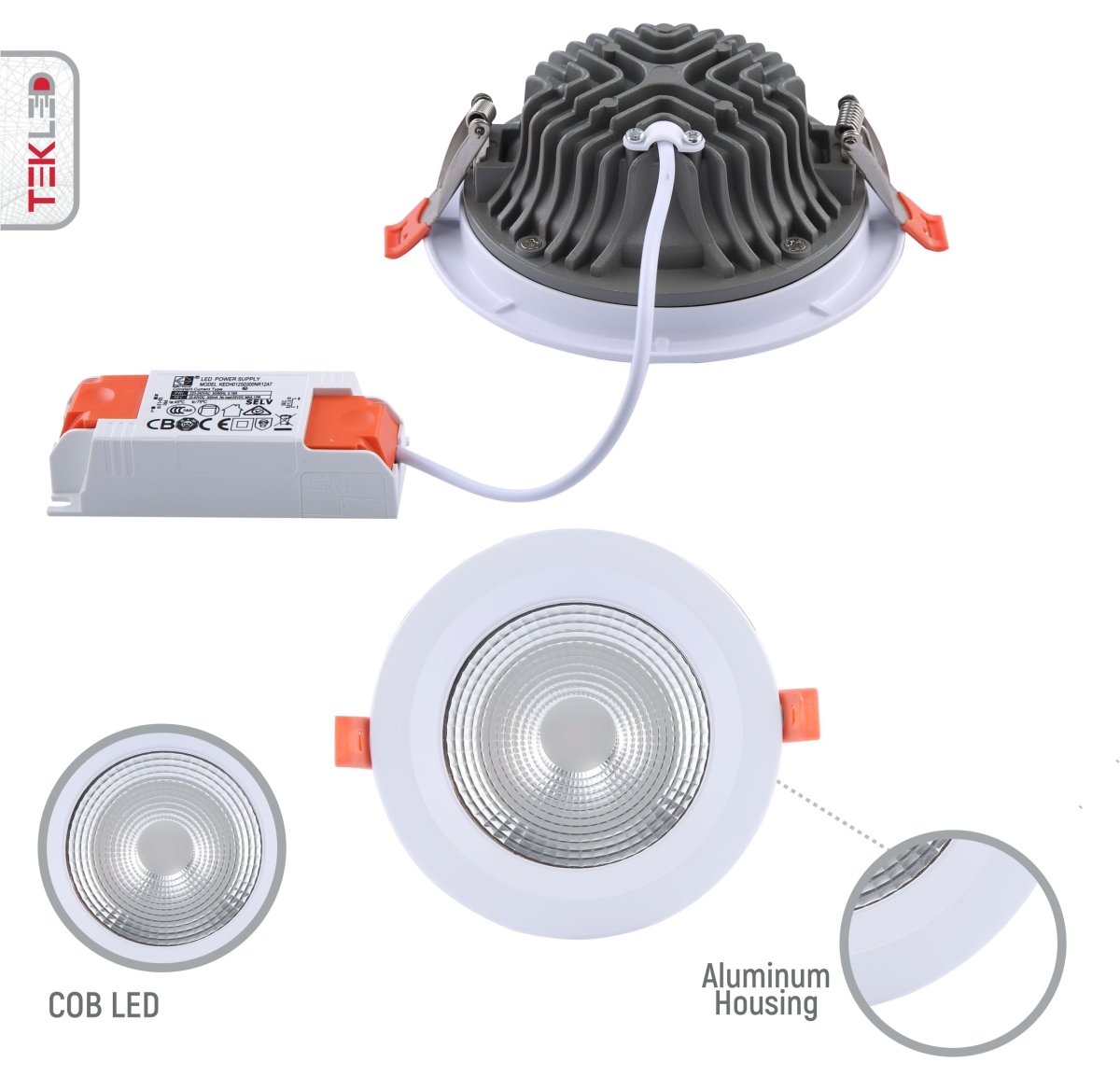

| Bulbs | Built-in LED fixture with LED driver |
| Light Output(luminous flux) | 1130 lm | 2200 lm | 3170 lm |
| Luminous Efficacy | 108 lm/W | 111 lm/W | 110 lm/W |
| Lux | avg 68Lux @2m | avg68Lux @2m | avg 112Lux @2m, max 197Lux | avg 130Lux @2m, max 372Lux |
| CRI(Colour Rendering Index) | CRI>90 |
| CCT (Kelvin)(Light Colour) | 4000K Cool White | 5000K Cool White | 3000K Warm White |
| IP Class(Ingress Protection) | IP20 |
| Mount Type | Recessed Mount |
| Function Mode | On/Off |

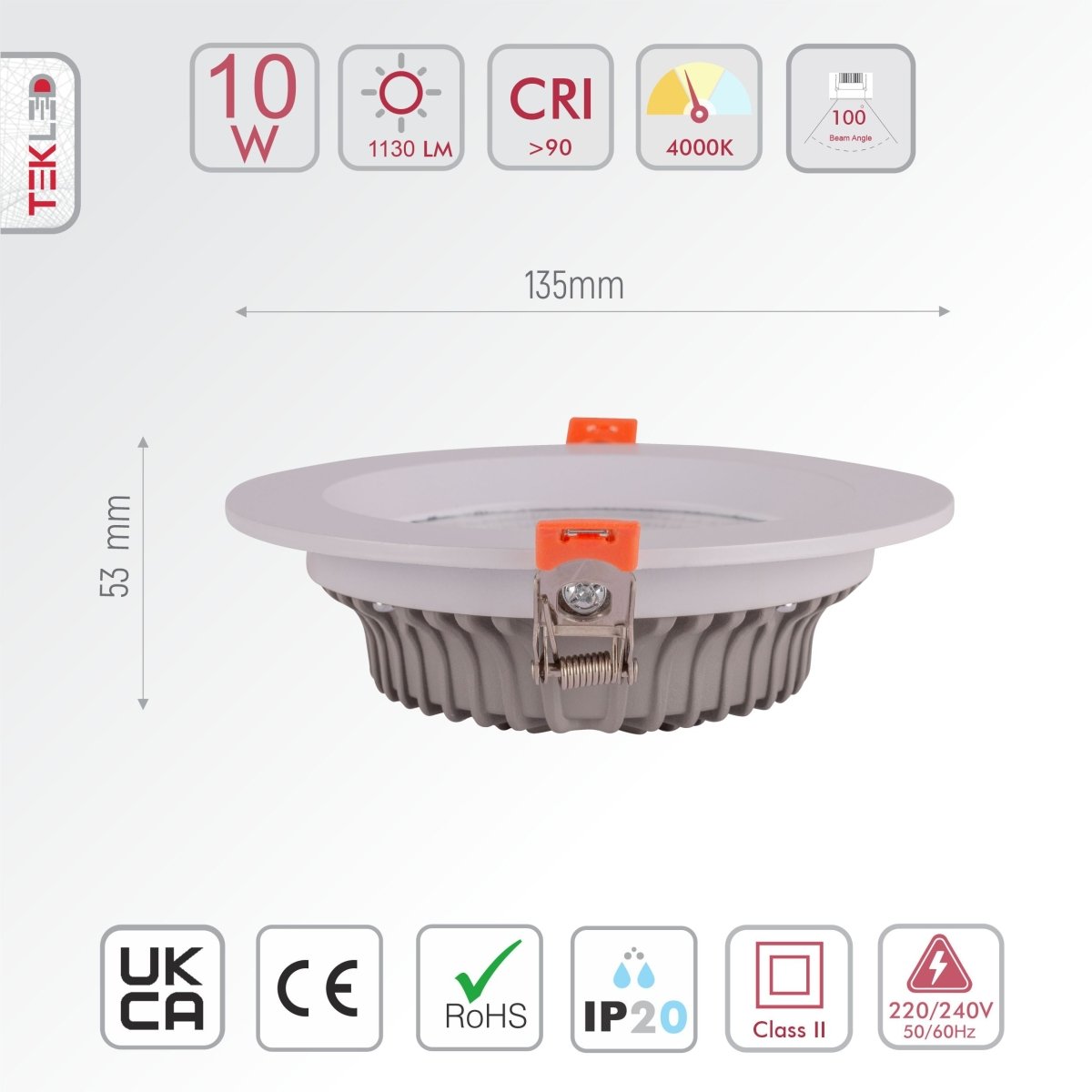

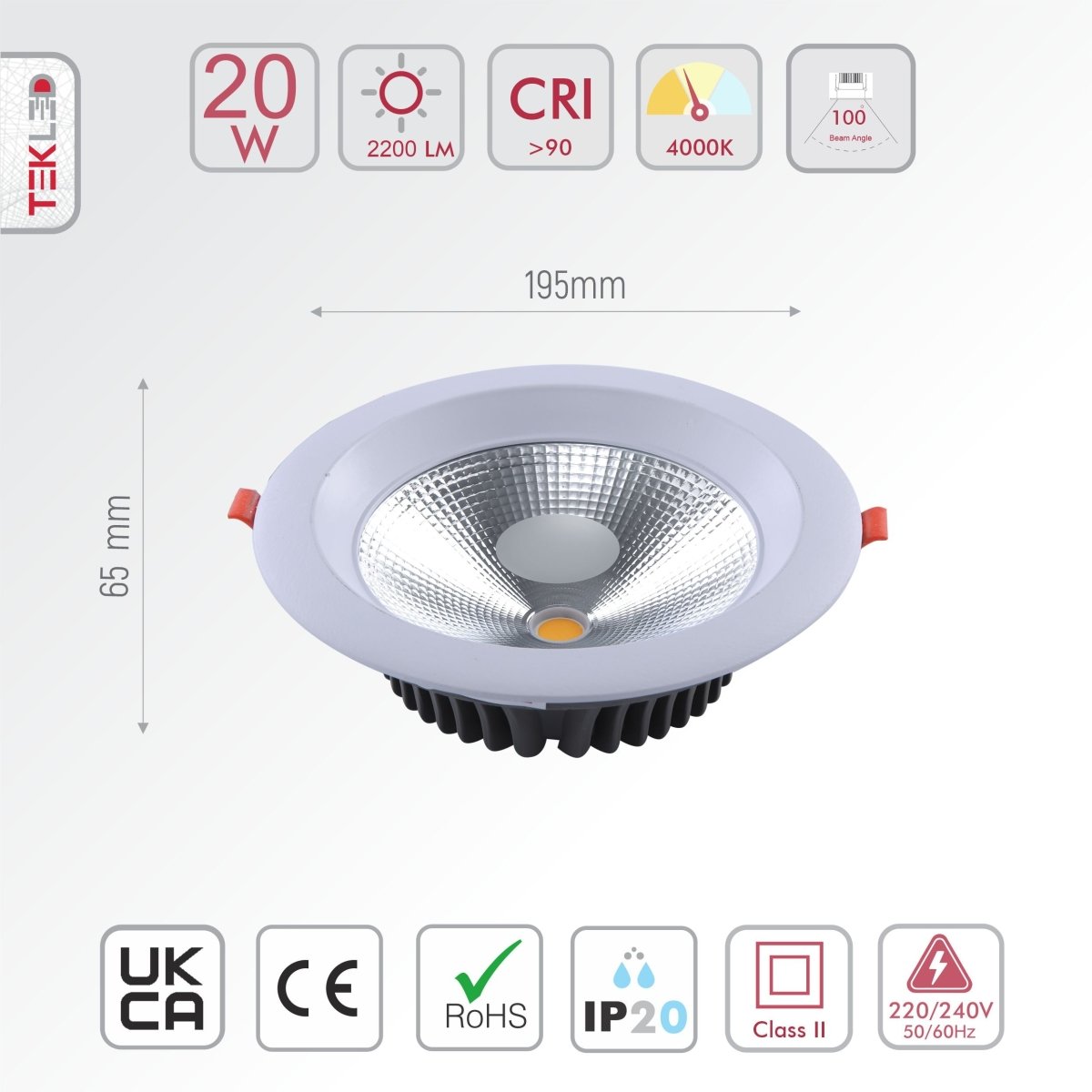

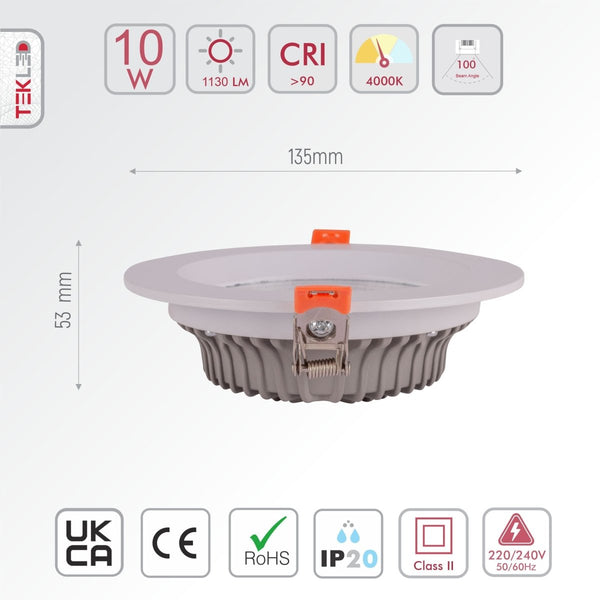

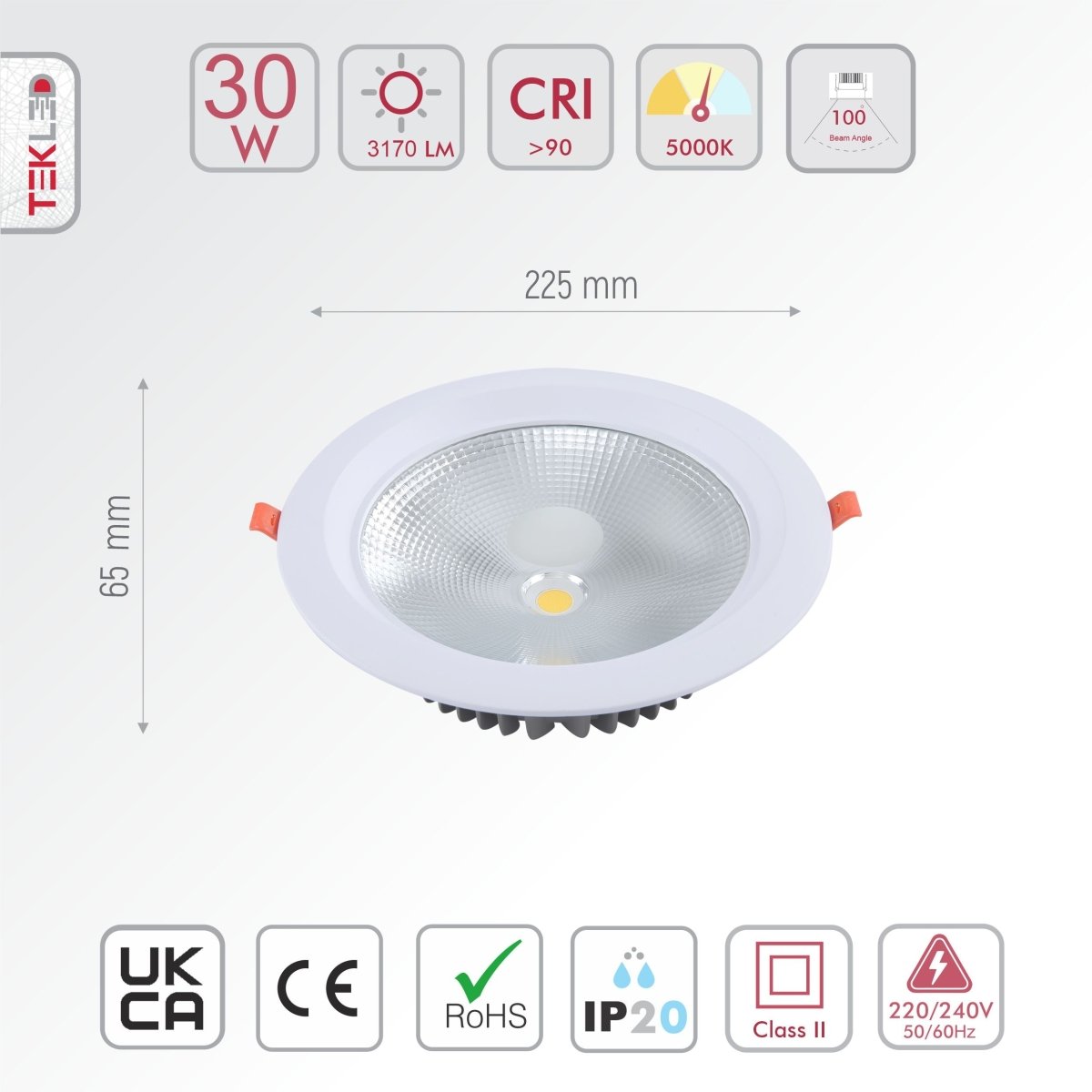

| Product Dimensions (L x W x H) (D x H) | D135x53mm | D195x65mm | D225x65mm |
| Cut-Out Size | D120 mm | D170 mm | D200 mm |

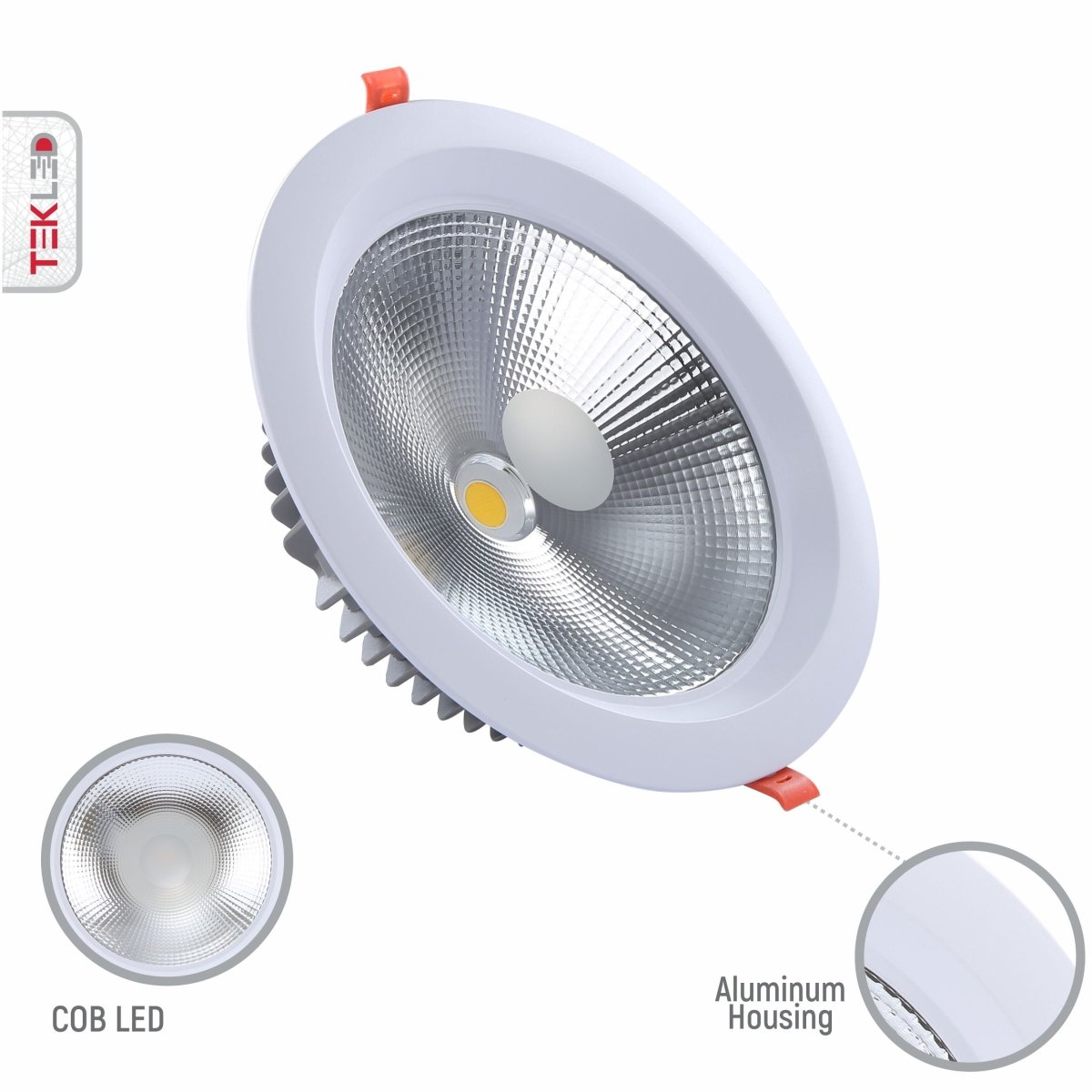

| Made of Materials | Aluminium, Glass |
| Product Colour | White |
| Paint Type | Powder coated |
| Optic Type | Reflector |
| Optic Material | Aluminium |
| Diffuser Material | Glass |
| Diffuser Type | Clear |

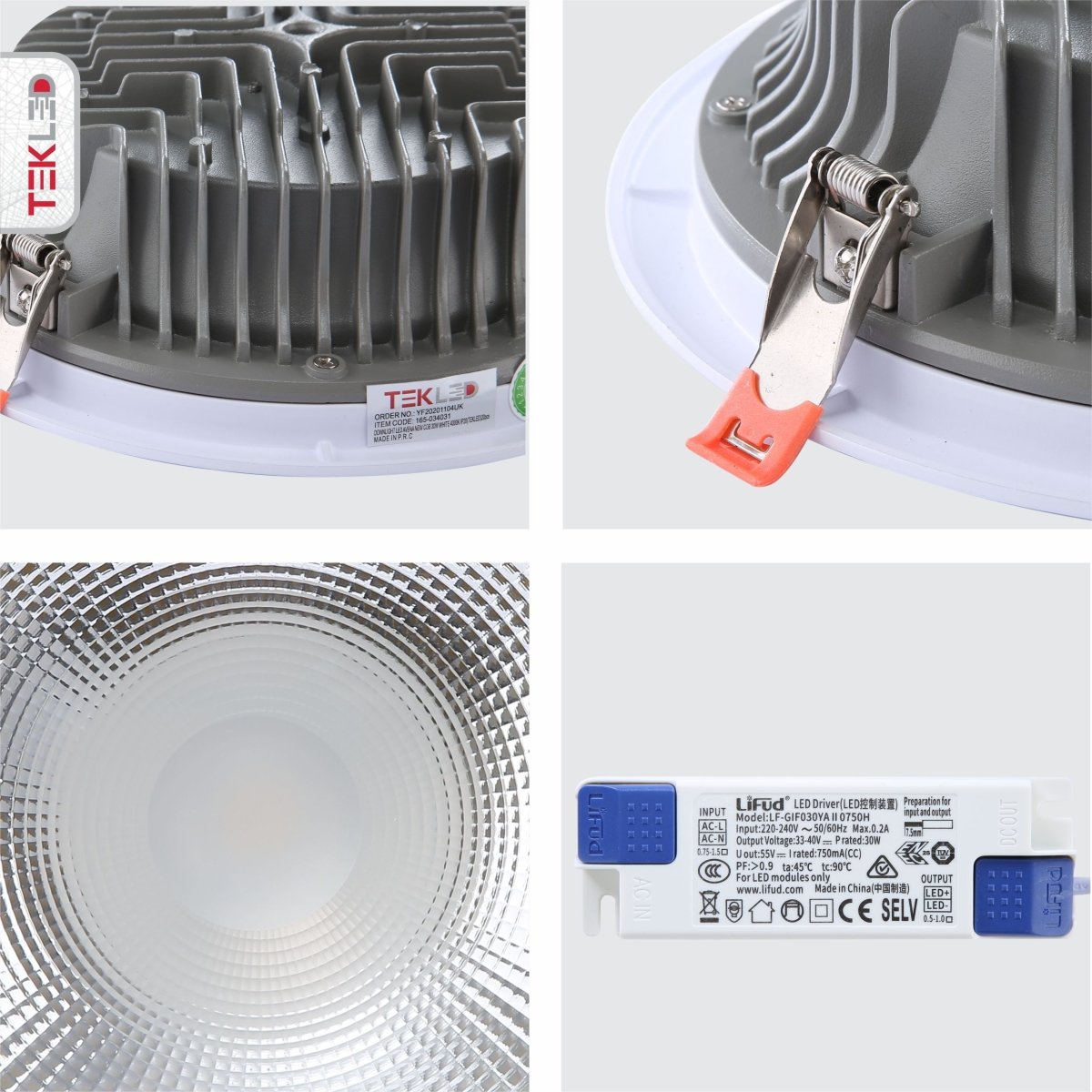

| Driver Brand | KeGu | LIFUD |
| Driver Type | Constant Current |
| Driver Power | 12W | 21W | 30W |
| Driver Input Voltage | 220~240Vac 50/60Hz |
| Driver Input Current | 0.09A @240Vac | 0.13A @240Vac |
| Driver Output Voltage | 25-40Vdc | 27-42Vdc | 33-40Vdc |
| Driver Output Current | 300mA | 500mA | 750mA |
| Surge Protection Level | 1kV |
| Power Factor | pf>0.5 | pf>0.9 |
| Flickering | Non-Flickering |
| Control | On/Off |
| Operating Temperature (C) | -20/+45C |
| New Energy Rating | F | E | F |
| Energy Rating | A+ |
| Warranty | 3 year |
| Life Span | 36000 h |
| Gross Weight | 320g | 0.62kg | 0.79kg |
| Net Weight | 280g | 0.55kg | 0.7kg |
| Box Dimensions (LxWxH) | 140x140x70mm | 210x205x75mm | 235x235x75mm |
| Box Content | 1pc Lamp body 1pc instruction |
| Certifications | UKCA, CE (LVD, EMC) |
