LED Surface Mounted Linear Fitting 36W IP20 120cm 4ft - 4000K Cool White.
Light Colour:4000K Cool White
Quantity:

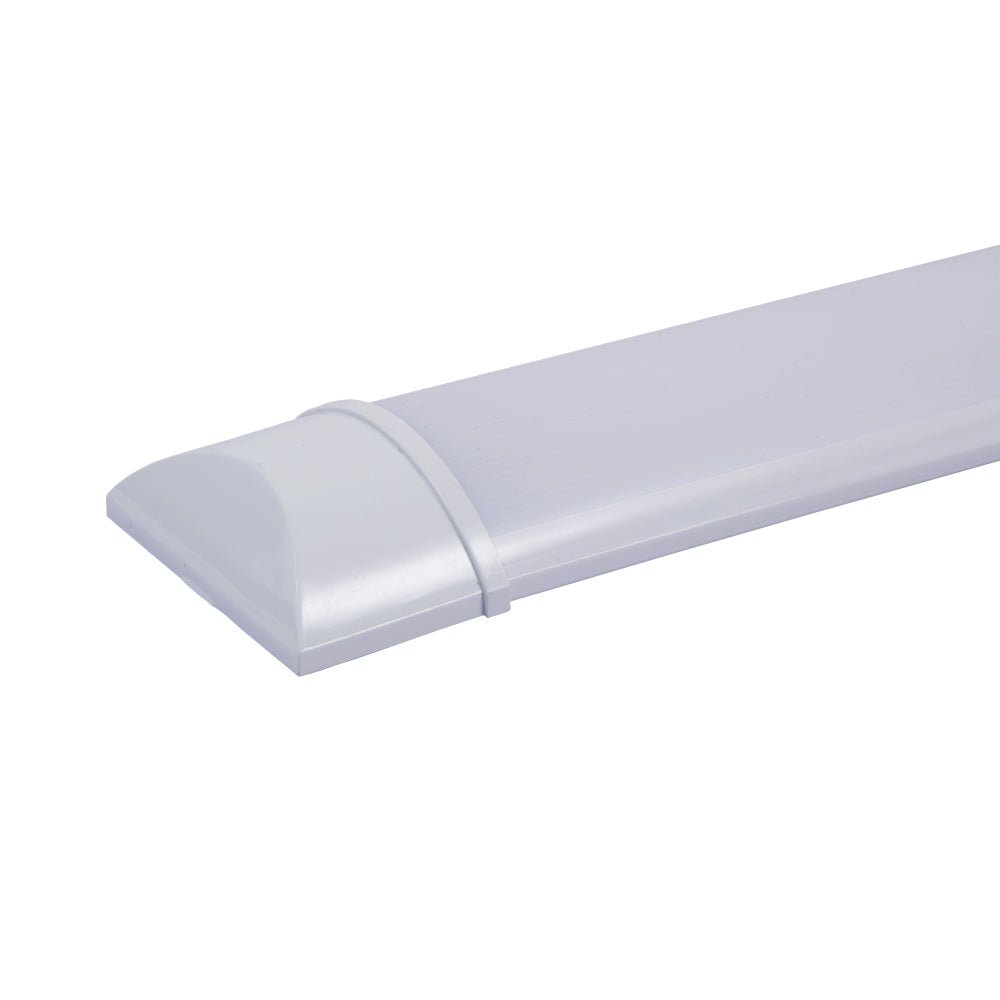

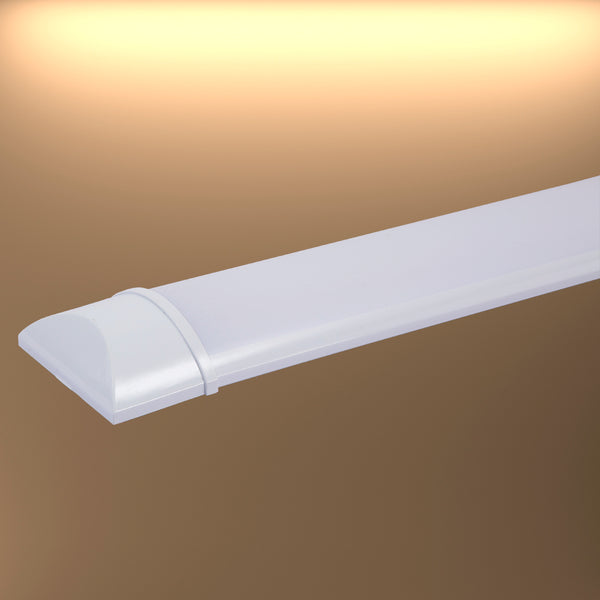

LED Surface Mounted Linear Fitting 36W IP20 120cm 4ft

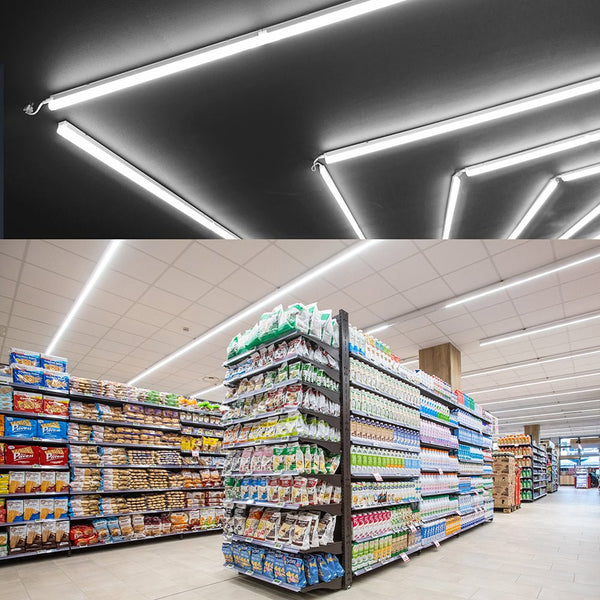

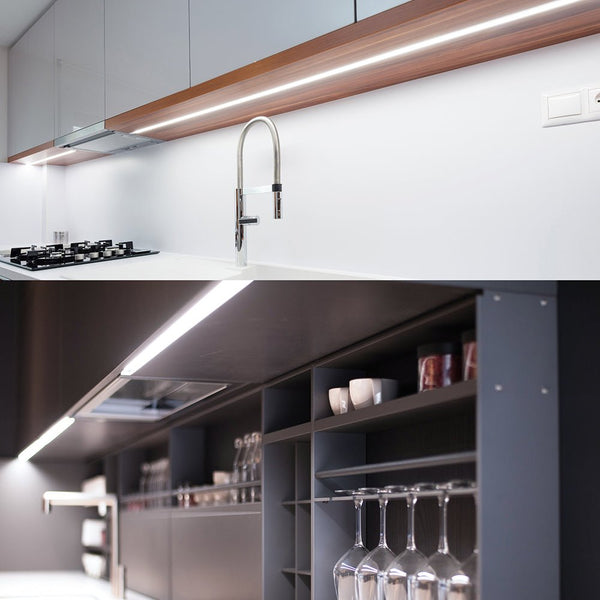

TEKLED introduces the new surface mounted linear fitting LED batten light with a high lumen output, making it an ideal choice for all your residential as well as commercial needs. This 36W light fitting gives off an even and comfortable light that has been perfected for your well being. The glare free and flicker free lights are easy on the eyes while perfectly illuminating the surrounding. This fixture comes in variants of 4000K and 5000K cool white light as well as 6500K cool daylight. The length of the product is 4ft and it comes with a 15cm power cord and an opal diffuser and an IP rating of 20, making it suitable to use in zone 3 of your washrom. This fixture comes with integrated LEDs and can be used in the interiors as well as the exteriors of your house. You also do not have to worry about changing the light fixture when it comes to integrated LEDs as they come with a long lifespan. With an energy rating of A++, this hardwired fixture is a wise and environment friendly choice for you.Technical Specifications
Name | LED Surface Mounted Linear Fitting 36W IP20 120cm 4ft Cool White or Cool Daylight |
Product Code | 116-03403 | 116-03404 | 116-03401 |
Model | Slim type batten, waterproof batten, integrated led batten |
Power | 33 W |
Power Source | Hardwired |
Voltage | 220/240Vac 50/60Hz |
Input Current | 0.27 A @240Vac |
Lamp Holder Type | Integrated LED |
Protection Class | Class II |
Dimmability | Non-Dimmable |
Light Source | LED SMD 2835 |
Led Quantity | 4P24S*2 |
Bulbs | Built-in LED fixture with built-in LED driver |
Light Output(luminous flux) | 4260 lm | 4100 lm | 4150 lm |
Luminous Efficacy | 127 lm/W | 123 lm/W |
Lux | 78Lux @2m |
CRI(Colour Rendering Index) | CRI>80 |
CCT (Kelvin)(Light Colour) | 4000K Cool White | 5000K Cool White | 6500K Cool Daylight |
IP Class(Ingress Protection) | IP20 |
Mount Type | Surface Mount, Suspended |
Function Mode | On/Off |

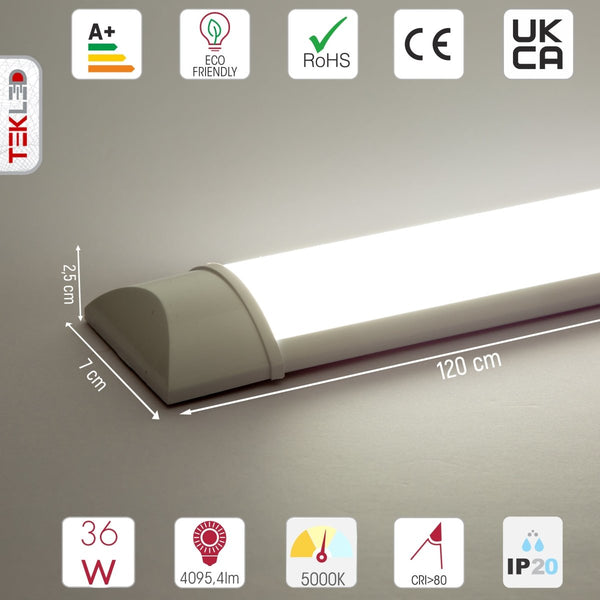

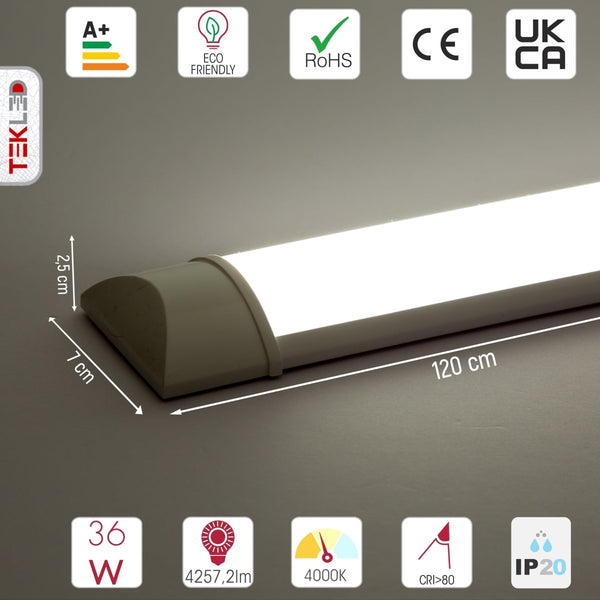

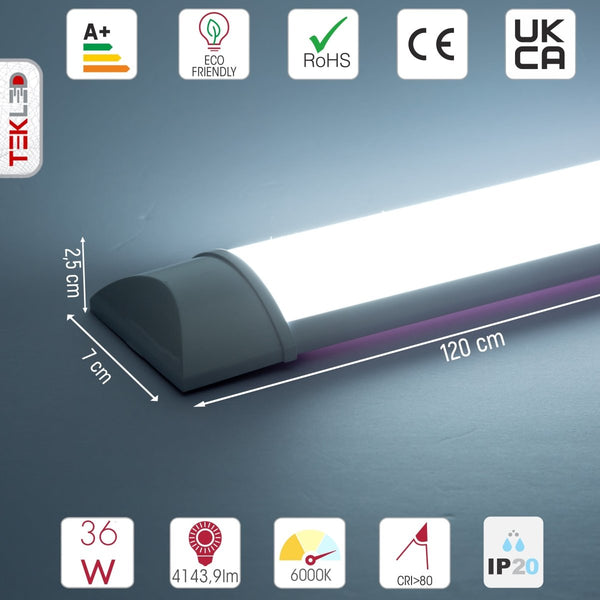

Product Length | 120cm |
Power Cord Length | 15cm |
Made of Materials | Polycarbonate |
Product Colour | White |
Diffuser Material | Polycarbonate |

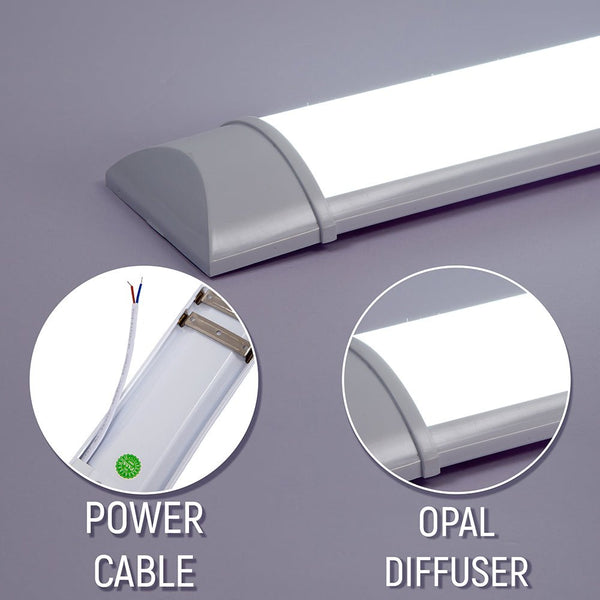

Diffuser Type | Opal |
Driver Type | Constant Current |
Driver Power | 36W |
Driver Input Voltage | 85-265 Vac 50/60Hz |
Driver Input Current | 0.27 A @240Vac |
Driver Output Current | 300mA |
Surge Protection Level | 2kV |
Power Factor | pf>0.5 |
Flickering | Non-Flickering |
Control | On/Off |
Operating Temperature (C) | -20/+55C |
New Energy Rating | E | E |
Energy Rating | A++ |
Warranty | 2 year |
Life Span | 30000 h |
Net Weight | 0.25kg |
Box Dimensions (LxWxH) | 123.5x7.8x2.5cm |

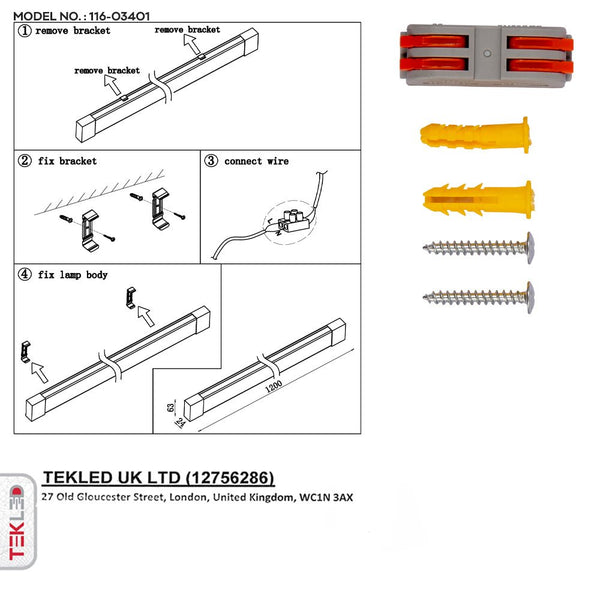

Box Content | 1Light fixture, User manual 1fittings, 1terminal |
Certifications | UKCA, CE (LVD, EMC) |
